Handheld Herelink 1.1 HD Video Transmission and Control System
999.00 $
Description
Herelink 1.1 HD Video, Control System
Handheld Herelink 1.1 HD is an all-in-one solution that allows for the transmission of data over long distances, including HD video, telemetry data, and radio control commands. This 2.4GHz radio controller is equipped with a screen 1000nit screen that provides the best readability under direct sunlight in outdoor environments. You can achieve a transmission range of up to 20km with the included antennas. The video latency is less than 110 milliseconds.
A large 5.5″ screen displays a multitude of control options such as live imaging, autopilot configuration through the preinstalled QGroundControl, and other GCS applications that run on the Mavlink platform.
The air unit is powered with 5-12v power input. A single UART port connects to the flight controller or other Mavlink accessories. Two micro HDMI ports allow simultaneous streaming of two video input sources. Two LED indicators show the current status of the link (Paired/Unpaired, receiving video, receiving flight data, etc.).
Herelink 1.1 is based on the original platform and functions of Herelink 1.0. The display brightness is improved from 600nit to 1000nit for better sunproof readability. An additional ethernet port on the air unit allows more peripherals, while an SD card slot can be used for data recording (future firmware).
Key features of Herelink 1.1 HD Video
- All in one: Telemetry, Video, and Control
- 2.4Ghz frequency
- Up to 20KM in FCC mode and 12KM in CE mode
- UART Telemetry, Ethernet connection port
- RC Protocol: SBUS, iBUS, ETC.
- Mavlink compatible
- Touch screen
- 2 HDMI inputs for 1080P@60fps video transmission
- APP QGround control, and API for development
- WIFI, Bluetooth, and USB to connect with other devices
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 7 × 6 × 4 cm |
Specifications
| General | |
| SOC | 4 *Cortex A53, 2.2GHz / 4 * Cortex A53, 1.4GHz |
| Image Processing |
4 Core, Mali-T860
|
| SDR | A7 + DSP |
| Transmission Distance | FCC 20km | CE / SRRC / MIC 12km |
| Image transmission delay | ≤ 110ms |
| Image transmission | 720p@30fps | 1080p@30/60fps |
| Frequency Band | 2.4GHz ISM |
| Receive sensitivity | -99dBm@20MHz BW |
| Recovery | < 1s |

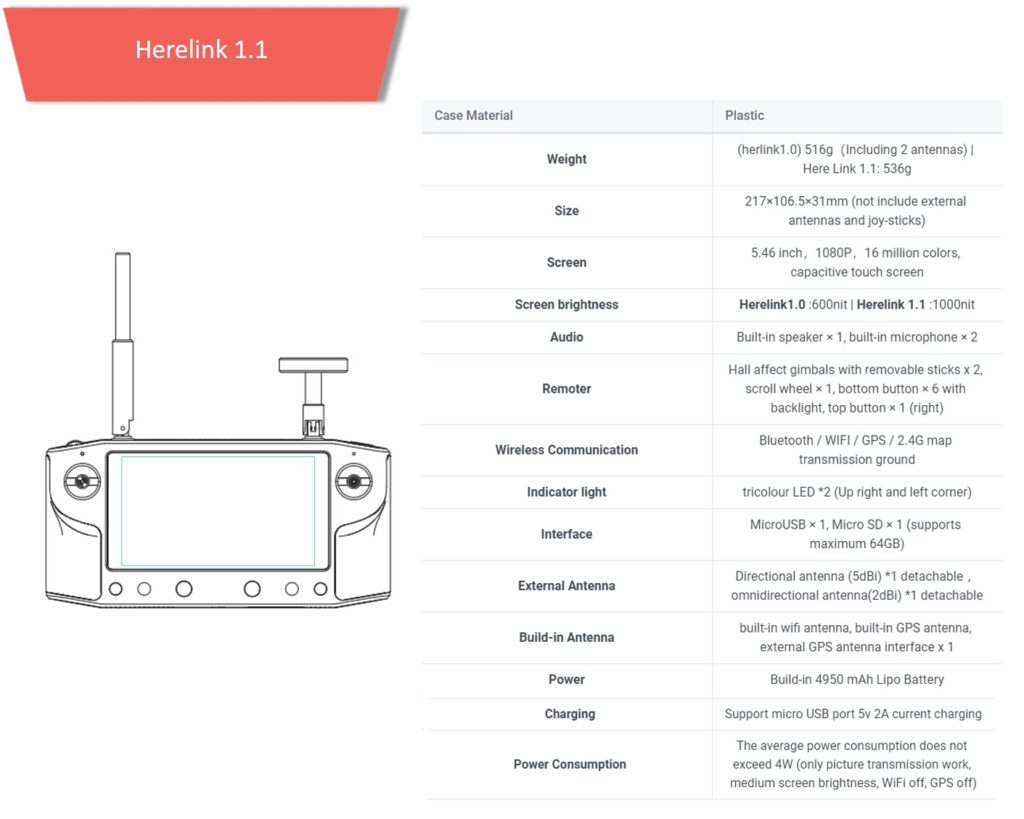

| Controller | |
| Weight | Herelink1.0: 516g（Including 2 antennas) | Herelink 1.1: 536g |
| Size |
217×106.5×31mm (not include external antennas and joy-sticks) |
| Screen | 5.46 inch，1080P，16 million colors, capacitive touch screen |
| Screen brightness | Herelink1.0 :600nit | Herelink 1.1 :1000nit |
| Audio | Built-in speaker × 1, built-in microphone × 2 |
| Remote control | Hall effect gimbals with removable sticks x 2, scroll wheel × 1, bottom button × 6 with backlight, top button × 1 (right) |
| Wireless | Bluetooth / WIFI / GPS / 2.4G map transmission ground |
| Indicator light | tricolor LED *2 (Upright and left corner) |
| Interface | MicroUSB × 1, Micro SD × 1 (supports maximum 64GB) |
| External Antenna | Directional antenna (5dBi) *1 detachable ，omnidirectional antenna(2dBi) *1 detachable |
| Built-in Antenna | built-in wifi antenna, built-in GPS antenna, external GPS antenna interface x 1 |
| Power | Built-in 4950 mAh Lipo Battery |
| Charging | Support micro USB port 5v 2A current charging |
| Power consumption | The average power consumption does not exceed 4W (only picture transmission work, medium screen brightness, WiFi off, GPS off) |
| Air Unit 1.0 | |
| Weight(antenna included) | Herlink 1.0 ：95g |
| Size |
78.5×30×15mm
|
|
Signal Bandwidth
|
20MHz / 10MHz
|
|
Power Consumption
|
The average power consumption does not exceed 4W
|

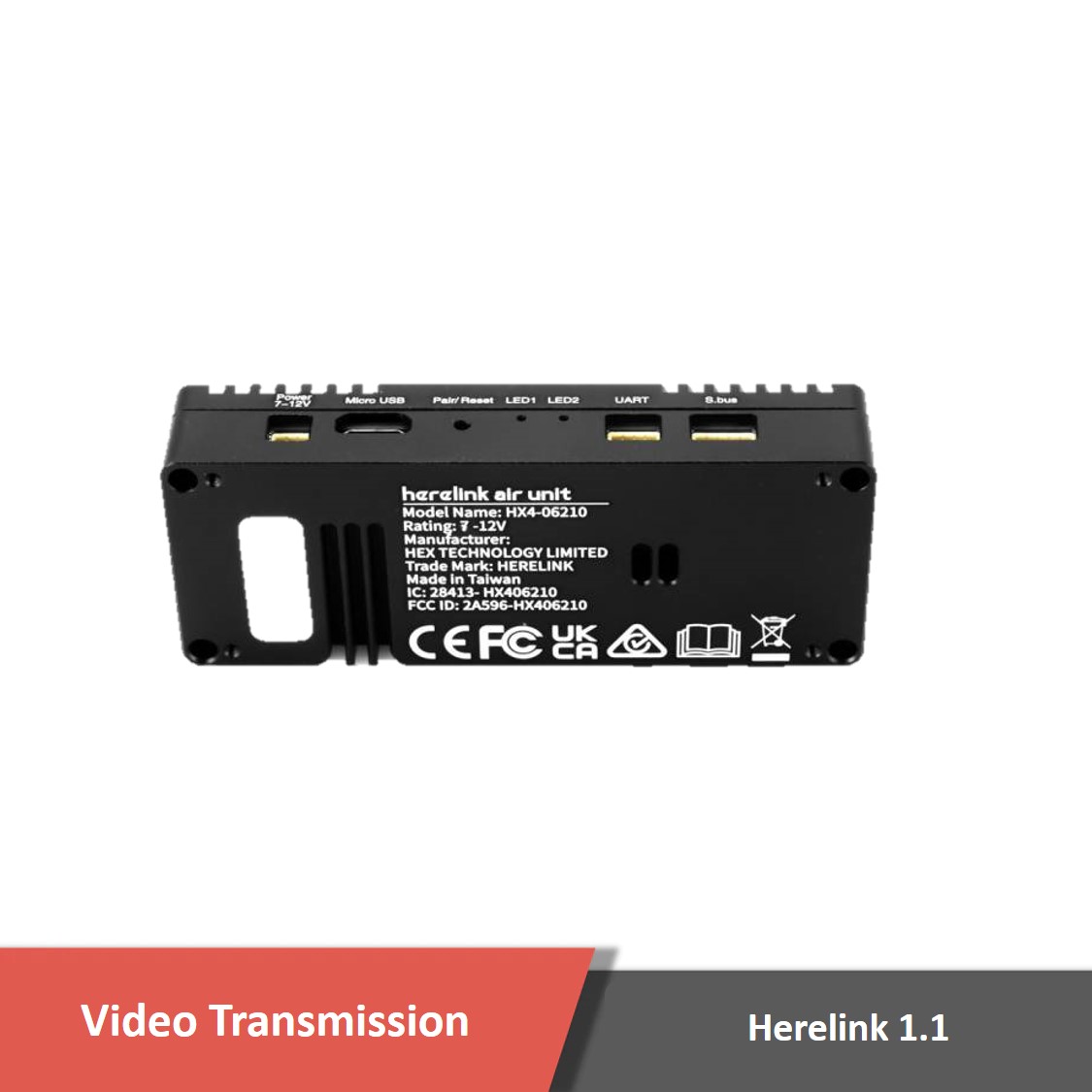

| Micro HDMI 1 | Camera video signal input (Recommend) |
| Micro HDMI 2 |
Camera video signal input
|

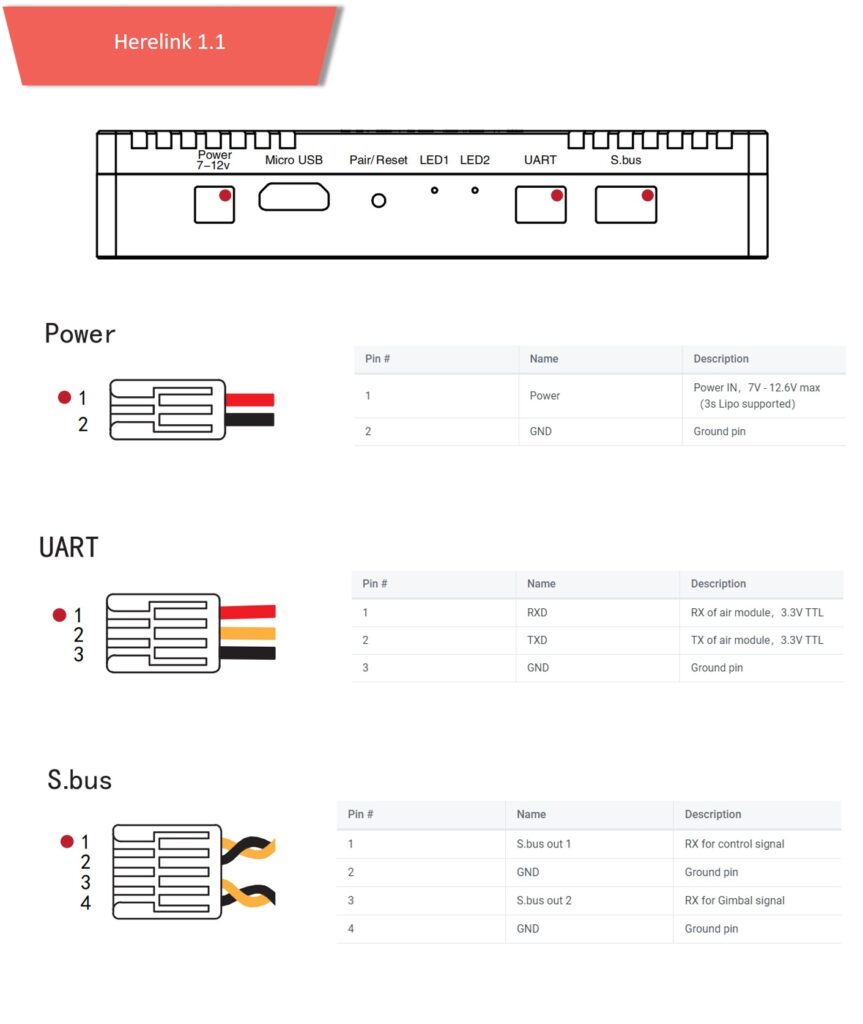

| Power Input | Recommended supply voltage 7V: minimum 6V, maximum 12V, and avoid sharing BEC with servos |
| UART Interface | 3.3V UART |
| S.bus Interface | Dual RC out, S.bus1, and S.bus2 |
| Micro USB | Used for debugging and upgrading, support OTG mode
**（need external power for USB device）** |
| Button | Used for pairing and state reset |

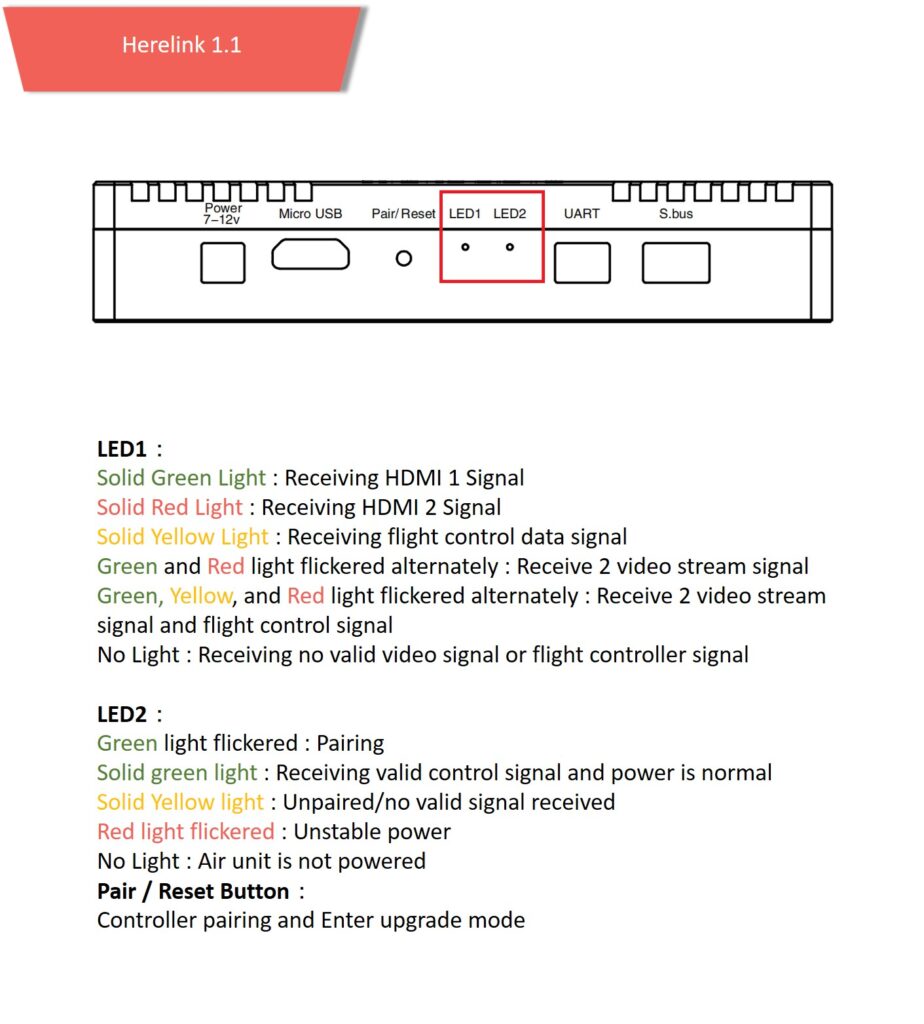

| Indicator light 1, 2 | Used to indicate state for pairing and video transmission |
| MMCX antenna jack 1, 2 | Used for signal transmission and ground communication |
| Air Unit 1.1 | |
| Weight(antenna included) | Herlink 1.1 ：98g |
| Size |
78.5×30×15mm
|
|
Signal Bandwidth
|
20MHz / 10MHz
|
|
Power Consumption
|
The average power consumption does not exceed 4W
|

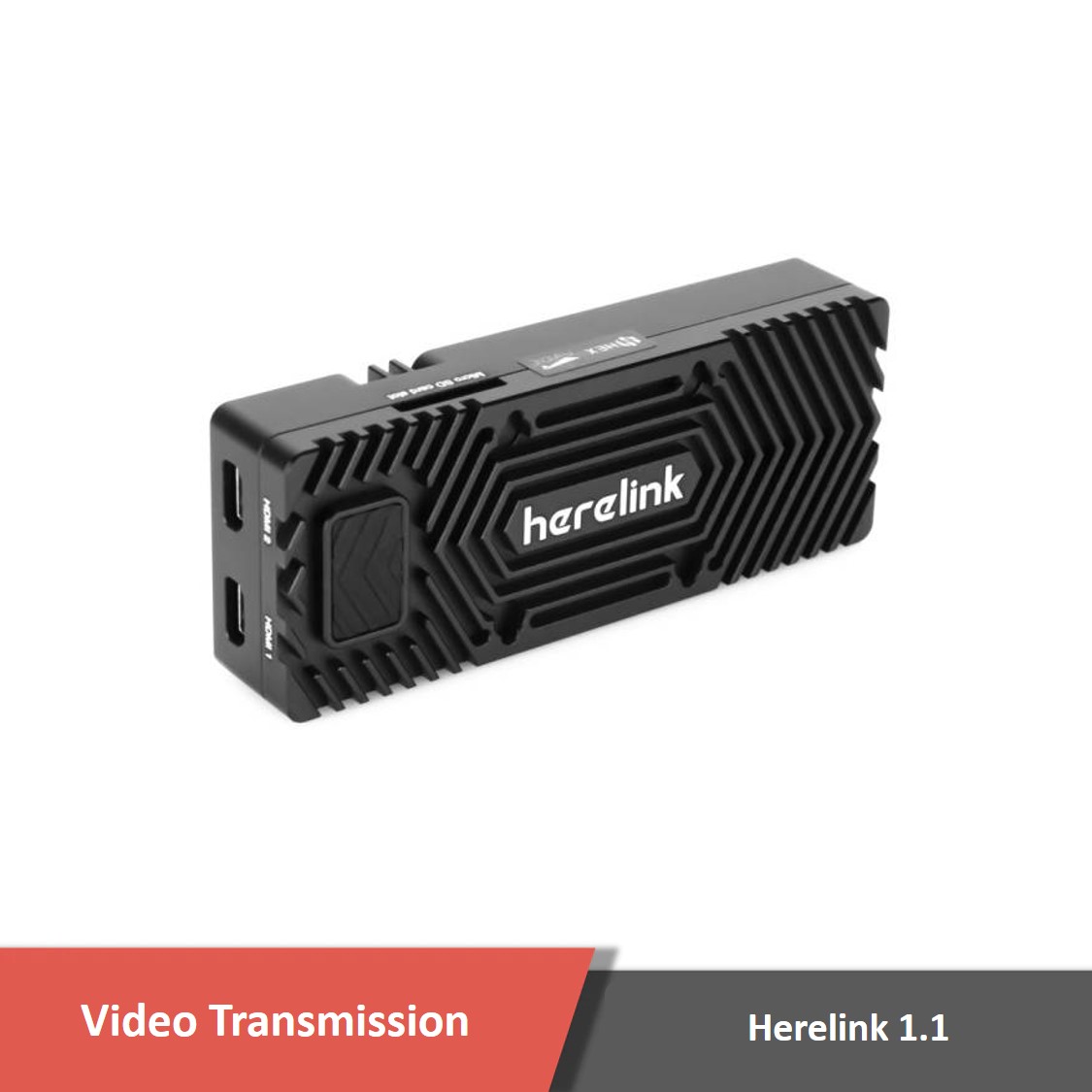

| Micro HDMI 1 | Camera video signal input (Recommend) |
| Micro HDMI 2 |
Camera video signal input
|
| Power Input | Recommended supply voltage 7V
minimum 6V – maximum 12V and avoid sharing BEC with servos |
| UART Interface | 3.3V UART |
| S.bus Interface | Dual RC out, S.bus1, and S.bus2 |
| Micro USB | Used for debugging and upgrading, support OTG mode
**（no need for external power for USB device）** |
| Button | Used for pairing and state reset |
| Indicator light 1, 2 | Used to indicate state for pairing and video transmission |
| MMCX antenna jack 1, 2 | Used for signal transmission and ground communication |
| SD Slot（only supported by Air unit 1.1） | For future usage |
| ETH Interface（only supported by Air unit 1.1 |
Network protocol device access |
Product contents

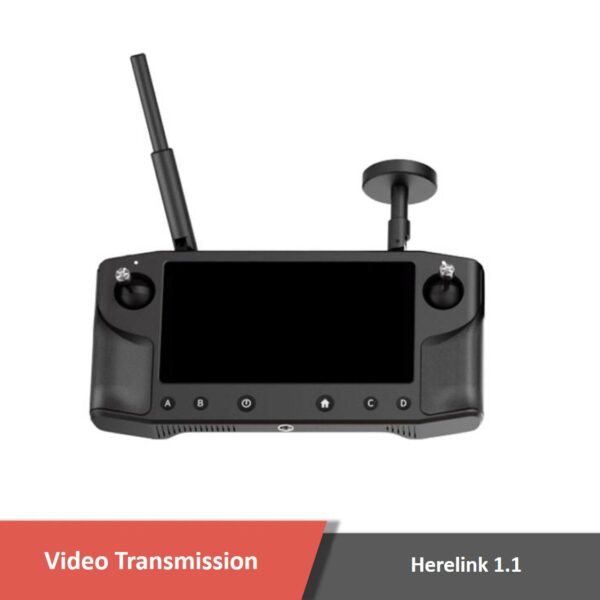

CONTROLLER 1.1
- 1x Herelink Controller Unit V1.1
- 1x Herelink Omni-directional Antenna
- 1x Herelink Directional Antenna
- 2x Herelink Controller Joystick
AIR UNIT 1.1

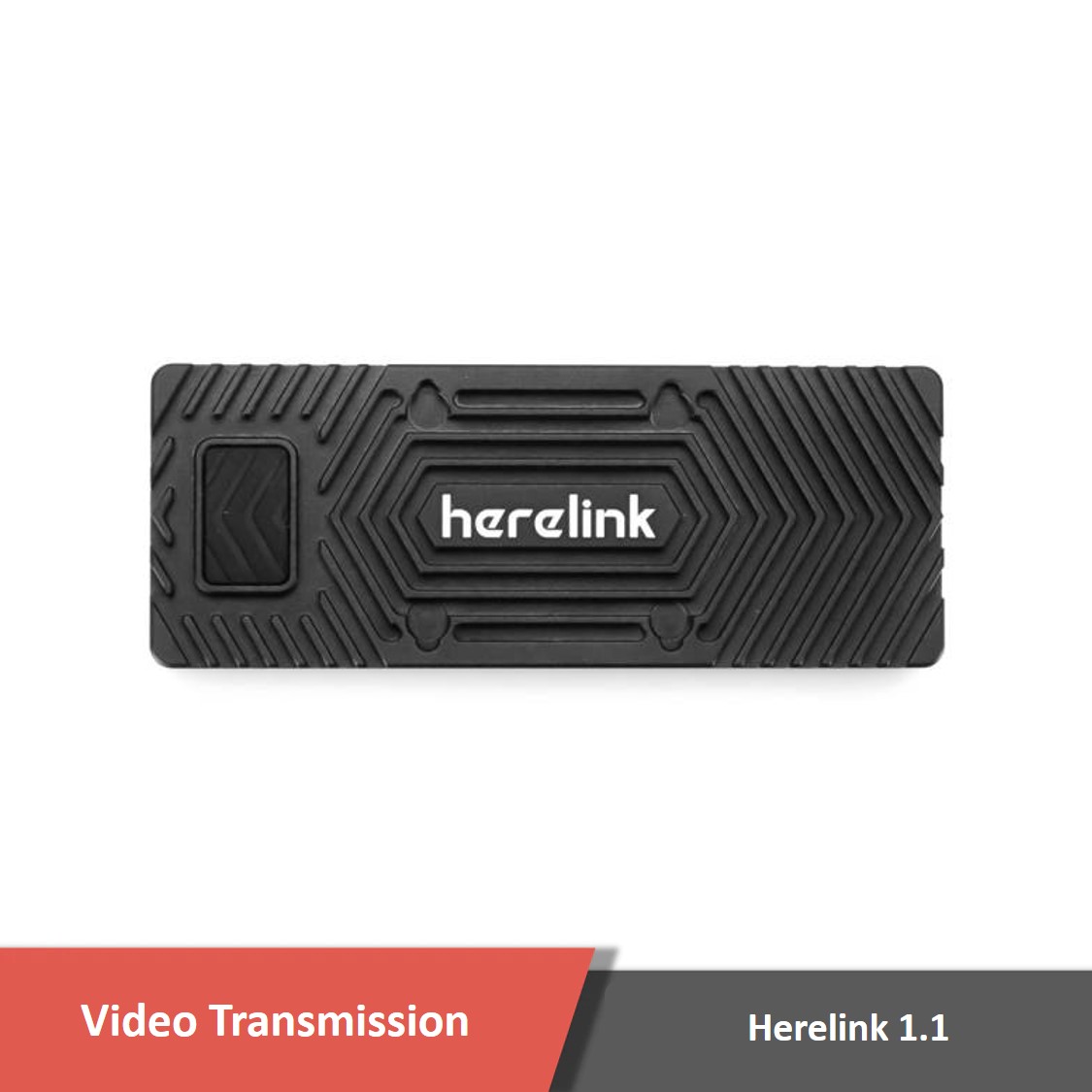

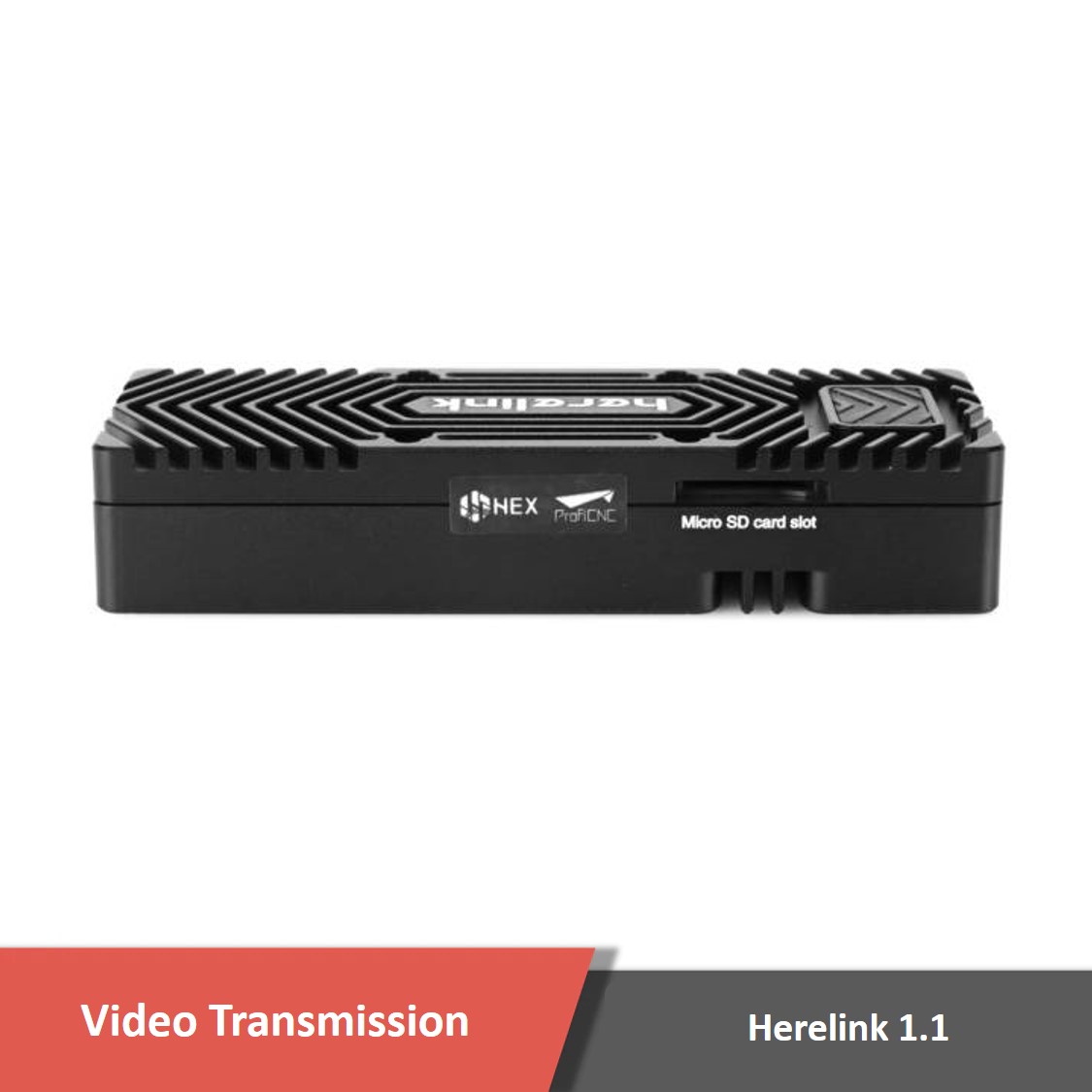

- 1x Herelink HD Air Unit V1.1

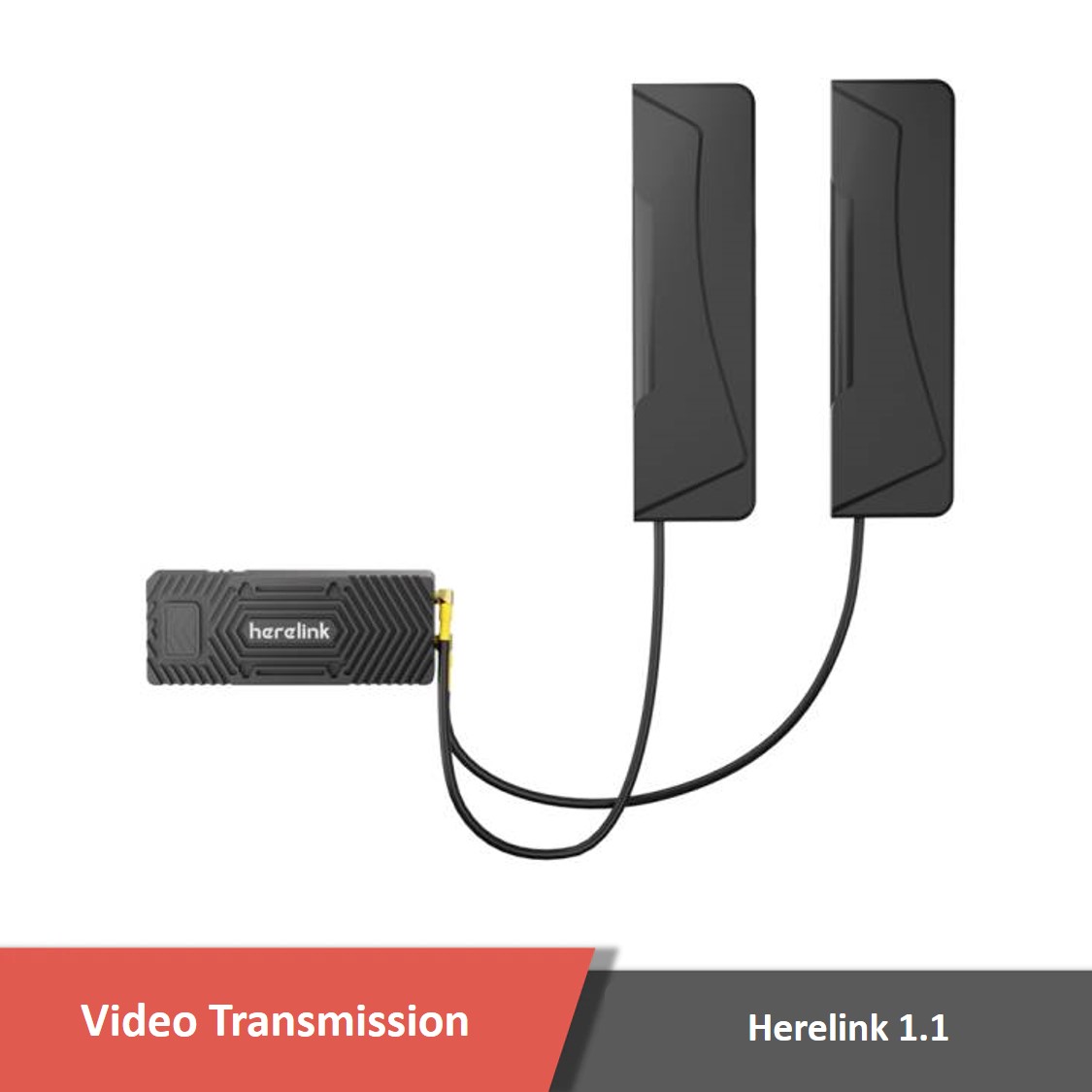

- 2x Herelink Antenna
- 1x Herelink HDMI Cable
- 1x Herelink Screw Set
- 1x Herelink Cable Set
- 1x Herelink Fan
