H16 Handheld Ground Control Station

849.00 $1569.00 $

Description

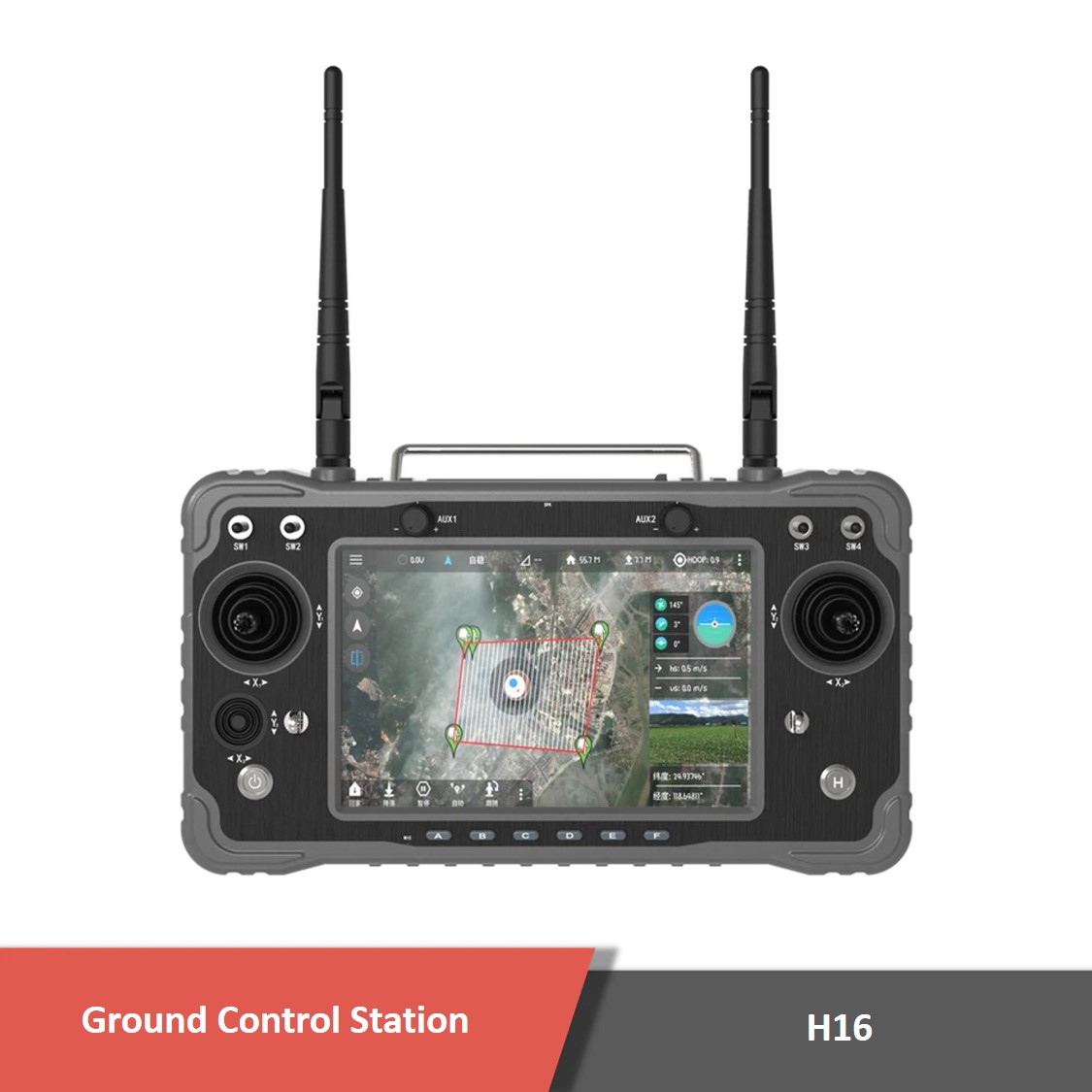

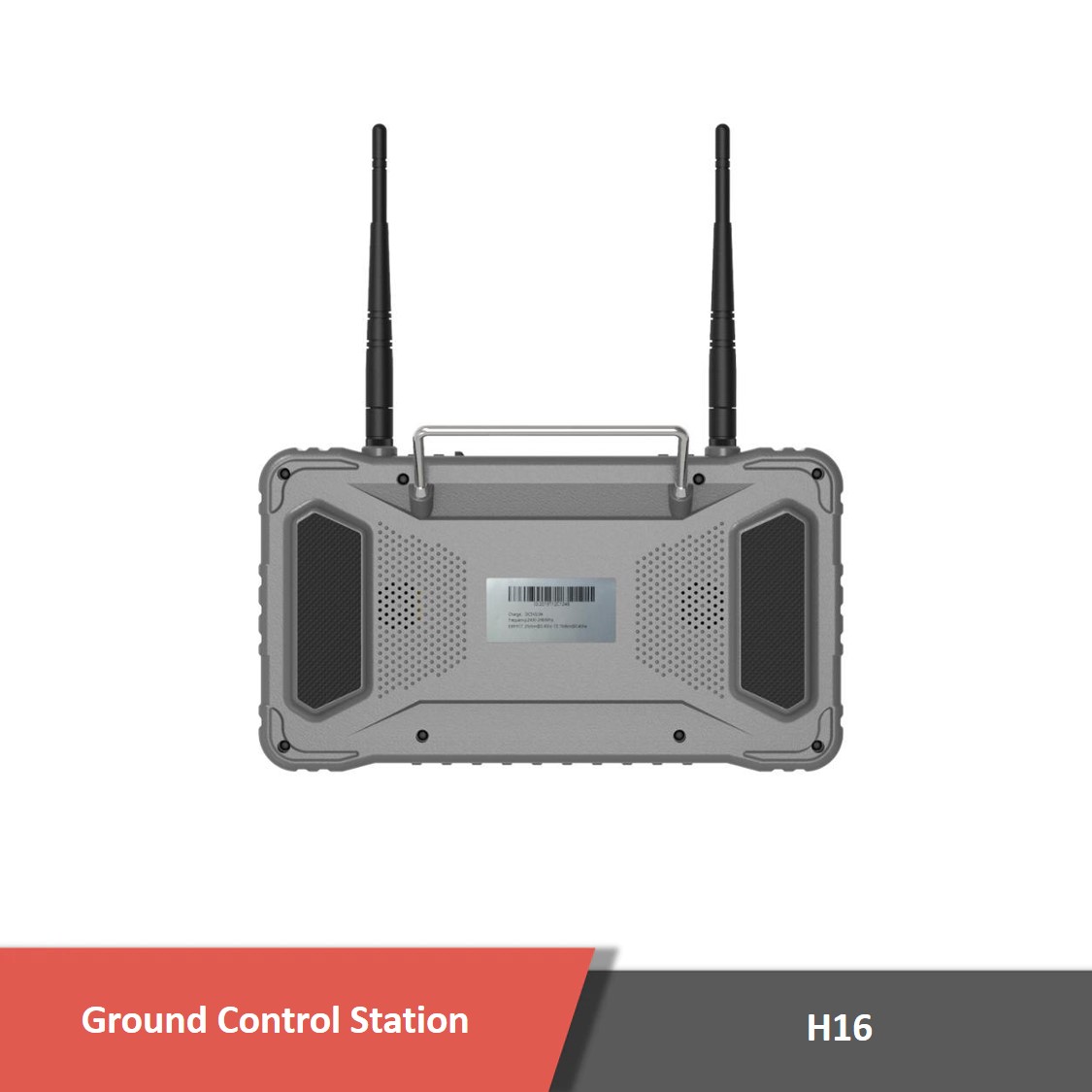

H16 Handheld Ground Control Station

H16 is a handheld Ground Control Station (handheld GCS), which is an all-in-one datalink. Equipped with an Android Operating System and Software Defined Network (SDR) Technology, 1080P Digital Video and Telemetry data are streamed simultaneously between your drone and ground station. H16 has low latency video transmission and a long data transmission distance of up to 10km. The device is Waterproof and has an ergonomic design to provide the best experience for a long-time flight. A 7-inch high brightness touch screen is appropriate for outdoor uses under direct sunlight.

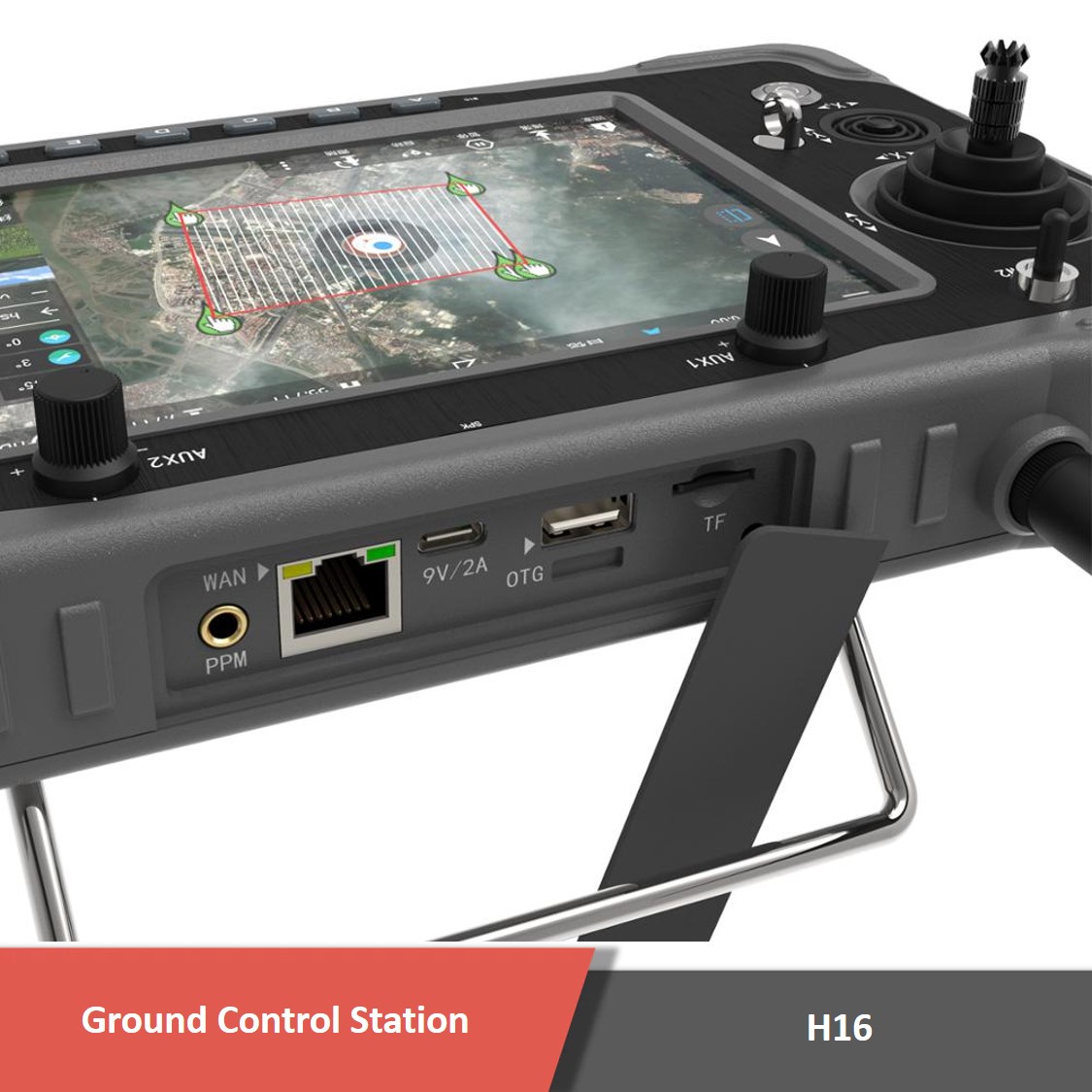

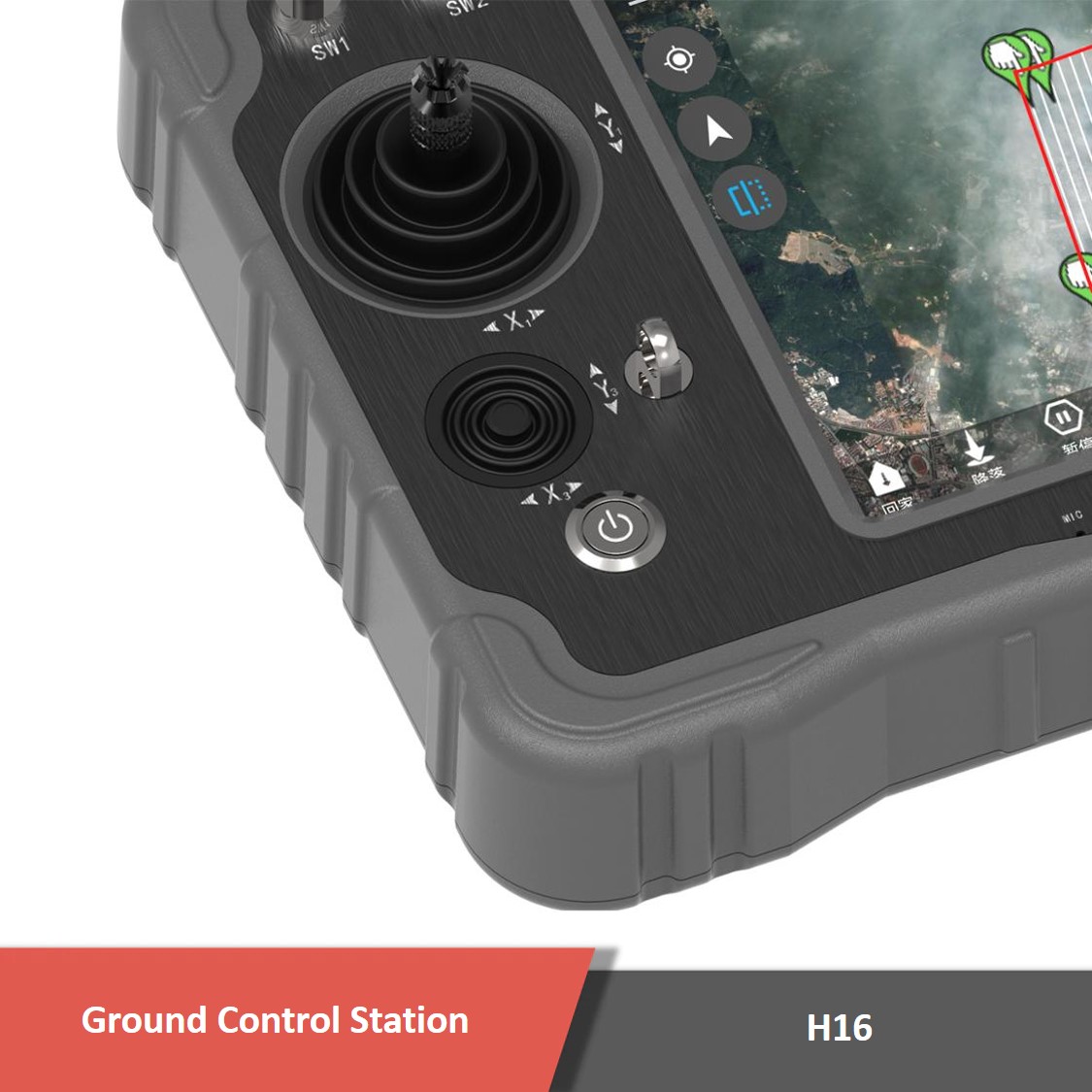

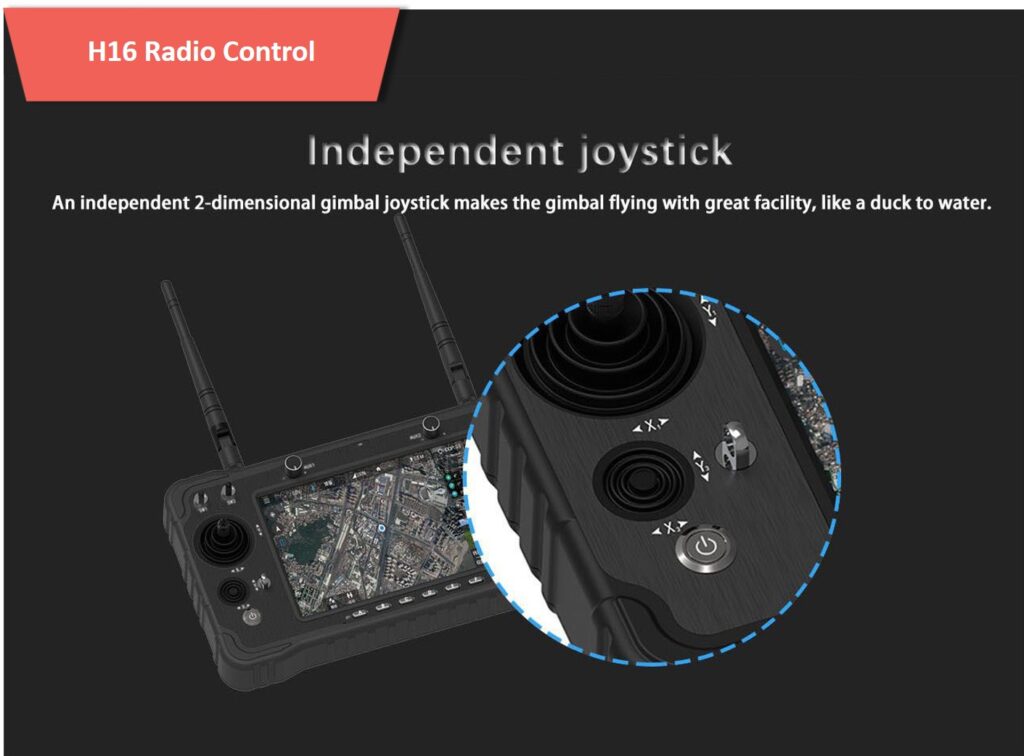

Different interfaces installed on the Radio Control make communication with external accessories easy — HDMI, RJ45, Serial port, and more. Aviation aluminum alloy makes the Radio control operable in harsh environments. An independent 2-axis gimbal joystick is provided for payload control.

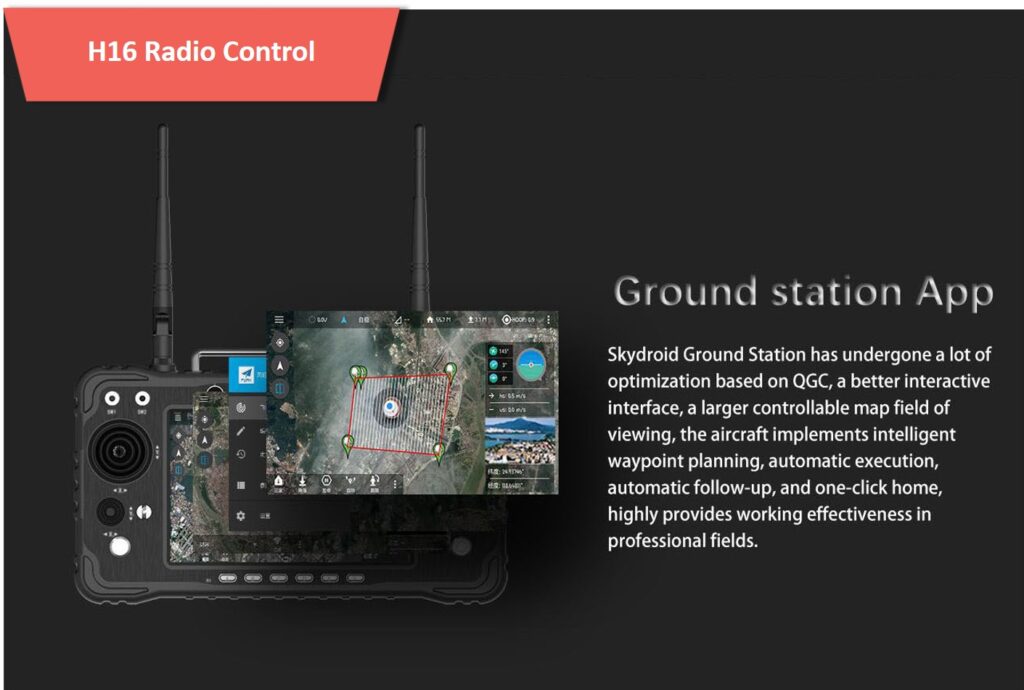

A QGroundControl based GCS software is developed to create a better interactive experience for users. This control system operates at 2.4GHz frequency.

Handheld ground control station H16 handheld ground control station Gcs Ground control station H16 9 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,h16 handheld ground control station - motionew - 7 H16 10 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,h16 handheld ground control station - motionew - 8 H16 11 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,h16 handheld ground control station - motionew - 9 H16 12 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,h16 handheld ground control station - motionew - 10 Radio control H16 14 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,h16 handheld ground control station - motionew - 11 Video transmission H16 16 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,h16 handheld ground control station - motionew - 12

Additional information

Weight 4 kg
Dimensions 30 × 30 × 30 cm

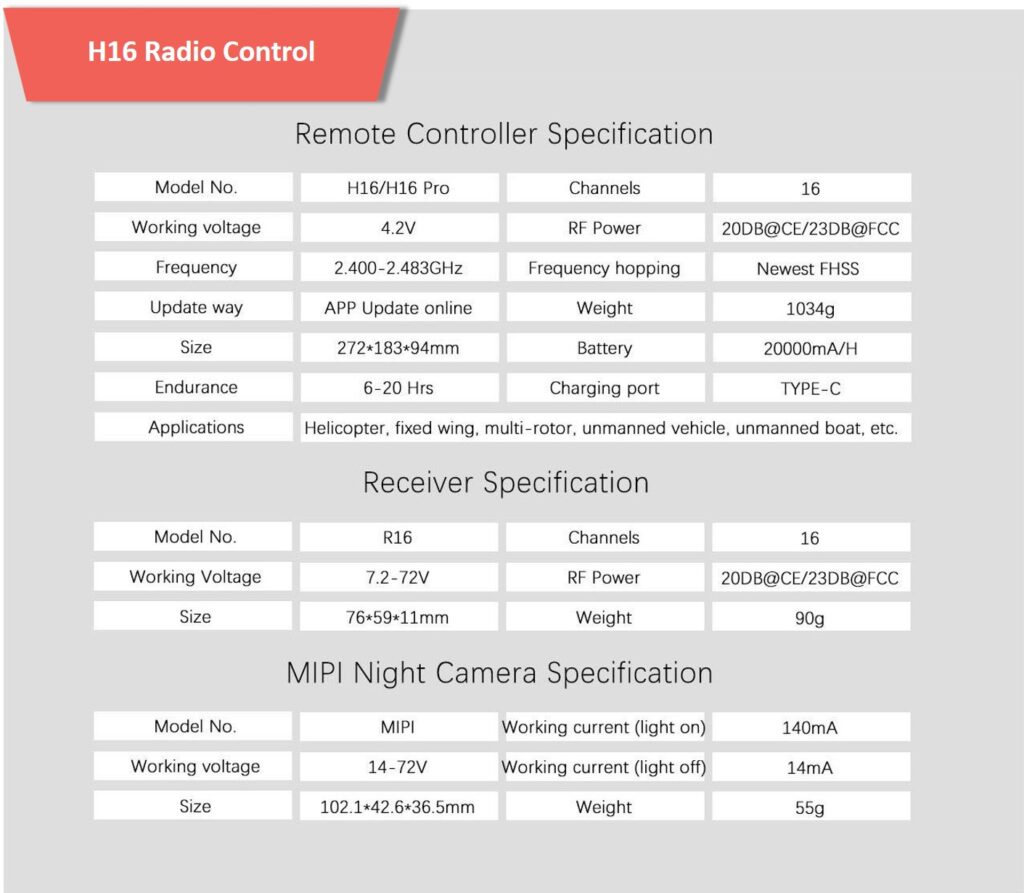

Specifications



Remote Control
Model No. H16 / H16 Pro
Number of Channels 16
Working voltage 4.2v
Frequency 2.4-2.483GHz
Frequency Hopping FHSS
Working Time > 6hrs
Charge Port USB type-c
Battery 20000mAh
Dimensions 272x183x94mm
Weight 1034g



Receiver
Model No. R16
Channels 16
Working Voltage 7.2-72v
Dimensions 76x59x11mm
Weight 90g



MIPI Night Camera
Model No. MIPI
Working Current (light on) 140mA
Working Current (light off) 14mA
Working Voltage 14-72v
Dimensions 102.1×42.6×36.5mm
Weight 55g



Product contents

1x H16 (or H16 Pro) Remote Controller

1x Charger

1x type data cable

1x remote controller hanging bag

1x wire package

1x Receiver

1x Camera (Optional)
