T12 Handheld Ground Control Station

Description

T12 Handheld Ground Control Station

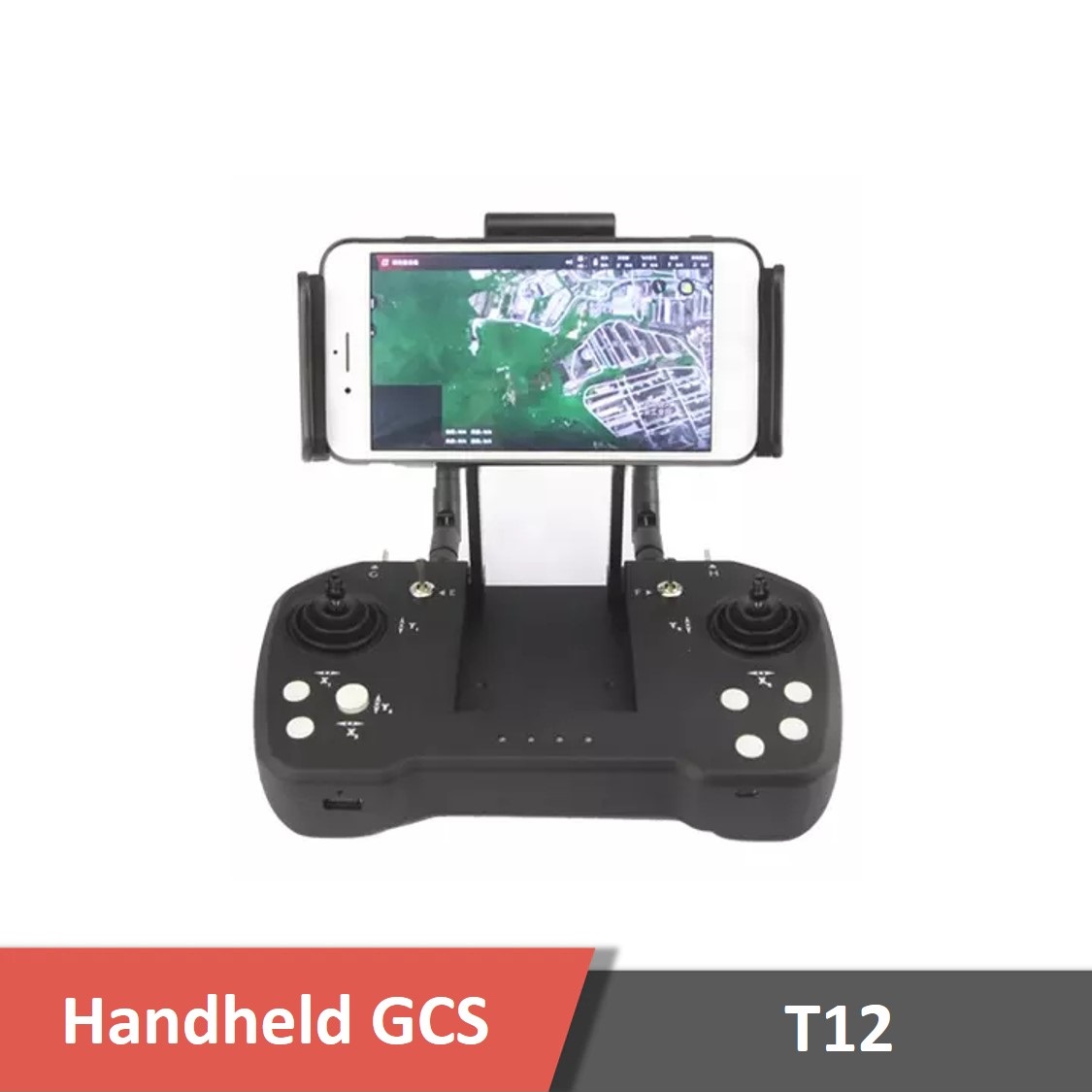

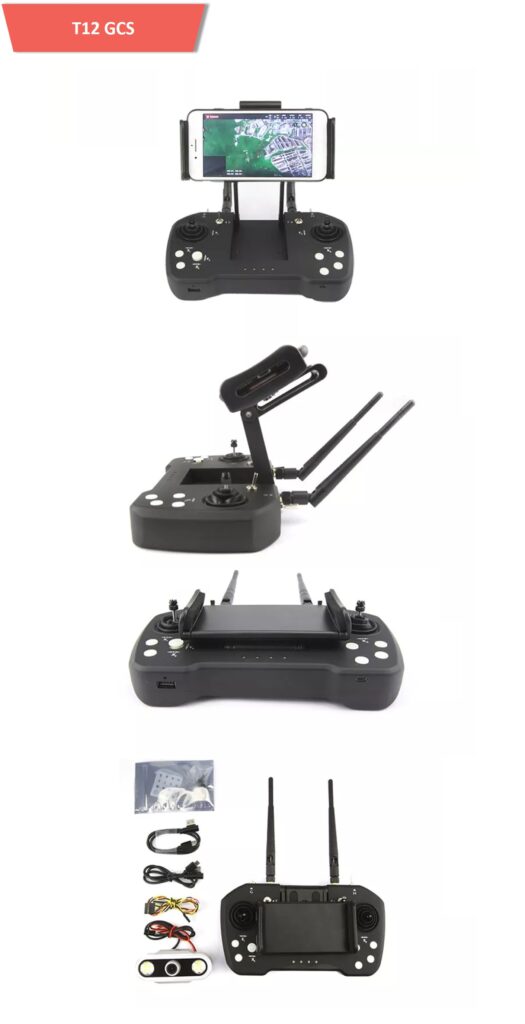

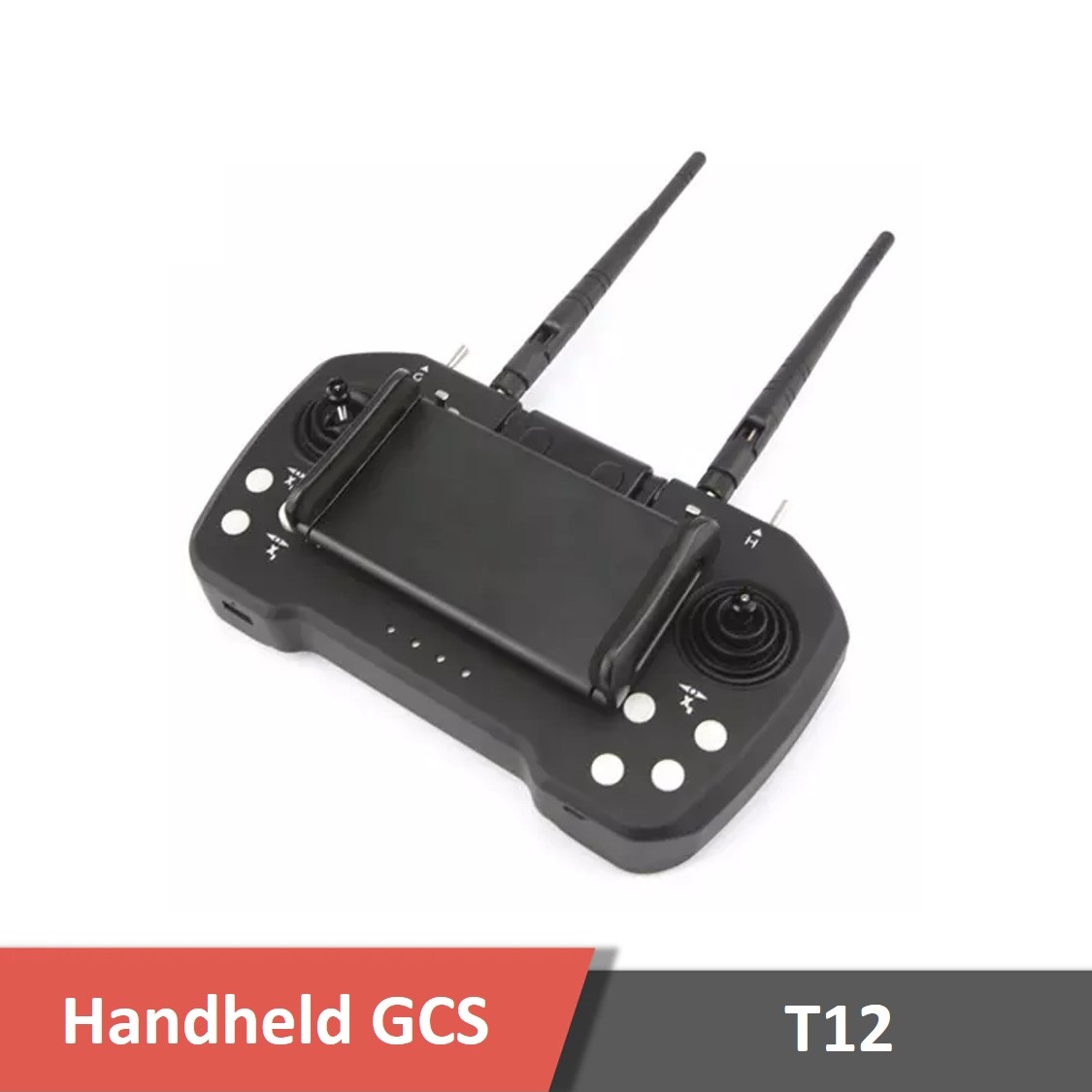

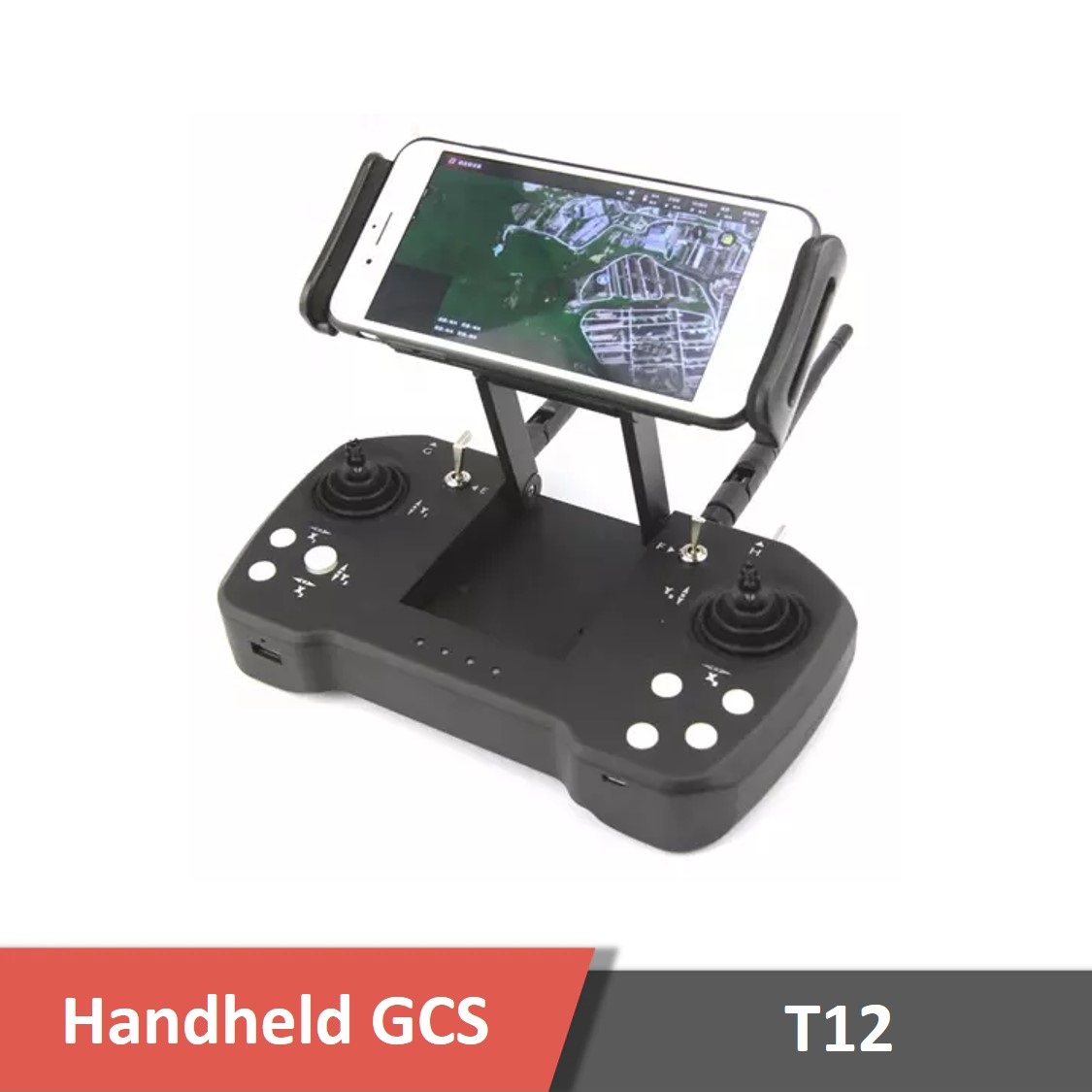

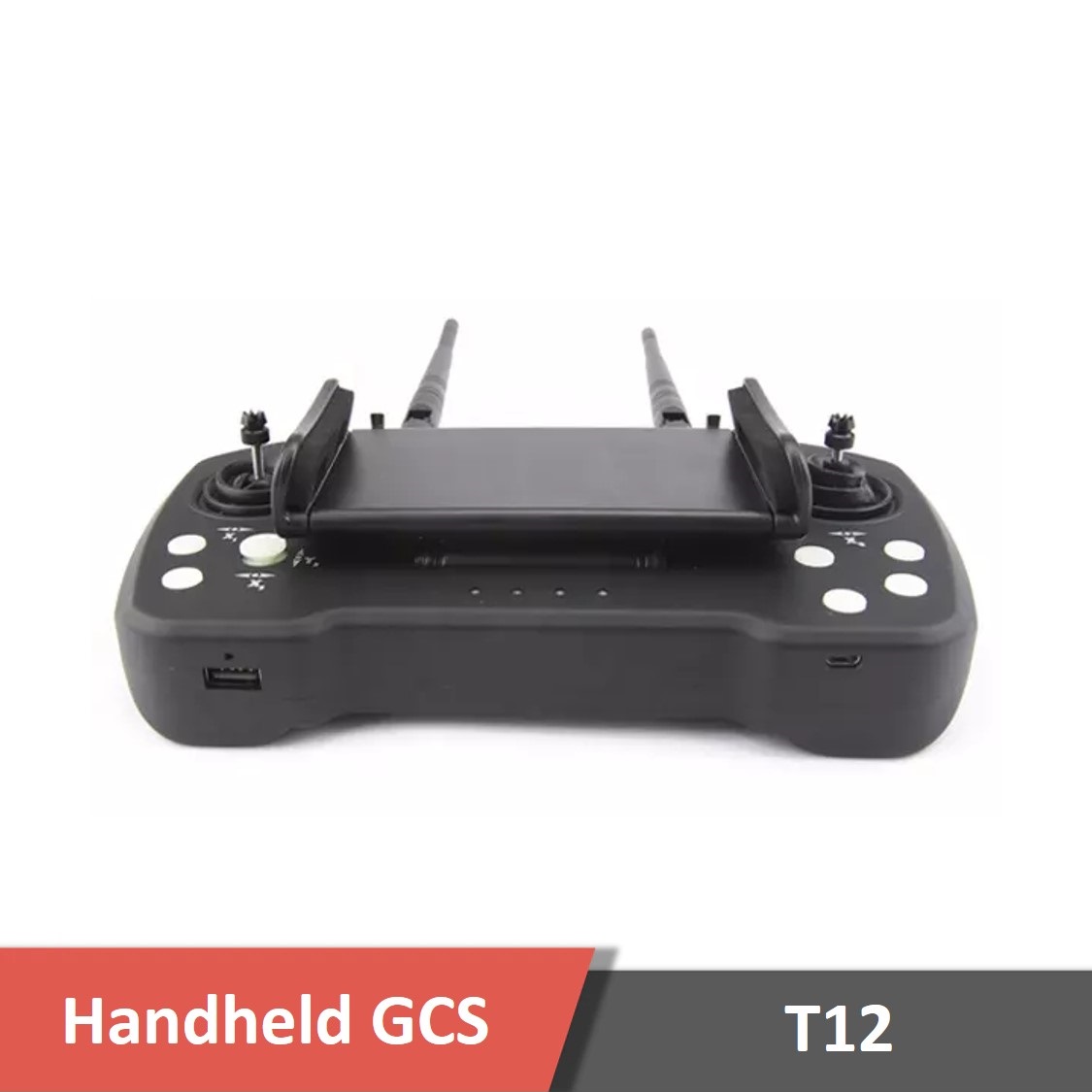

T12 is a handheld ground control station (GCS) unit with a dual high-gain antenna to ensure reliable communication. Thanks to the latest Frequency Hopping Spread Spectrum (FHSS) technology, perfect control and monitoring of the drone are possible. Telemetry data and video of the UAV are sent to the ground station and can be displayed on the developed GCS application, running on a mobile phone. The phone can be connected to the GCS using a USB cable or Bluetooth. The parameters of the datalink can be adjusted anytime using the built-in application.

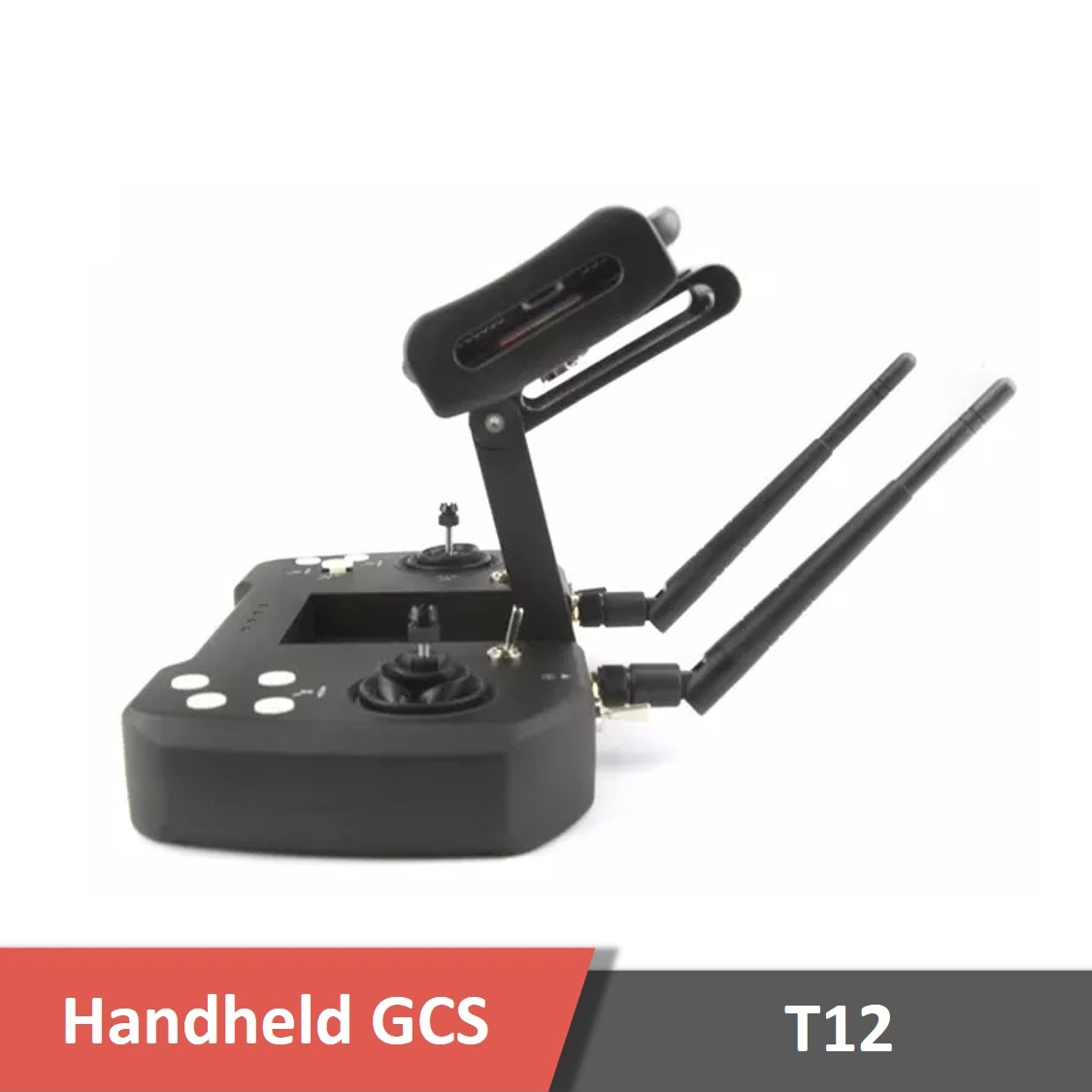

The GCS uses an internal 4000mah Li-ion battery which can last for more than 24 hours. The device has a very low power consumption and can also charge your phone using the microUSB port. A highly integrated design of the data, video, and radio makes the overall size of the system very small and lightweight. There is a foldable Aluminum mounting plate which have a 360 degree adjustment angle.

The camera is equipped with a super bright LED to capture better images at night. The LED consumes 8W of power. This GCS is specially designed for agriculture, and applications requiring real-time video streaming from the drone.

Handheld ground control station

Ground control station

Gcs

Radio control

T10 11 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,t12 handheld ground control station - motionew - 8

T12 handheld ground control station

Video transmission

Data transmission

Additional information

Weight 4 kg
Dimensions 30 × 30 × 30 cm

Specifications

GCS Specifications
Model T12
Number of Channels 12
Working Voltage 3.7v
Current 170mA
Frequency 2.4-2.4833GHz
System FHSS
Weight 560g
Dimensions 225x123x35mm
Battery Capacity 4000mAh
Duration 24h
Charge Port microUSB



Camera Specifications
Model T12R
Working Voltage 5v
Current Light off 14mA
Light on 140mA
Frequency 2.4-2.4833GHz
Weight 90g
Dimensions 103x43x21mm

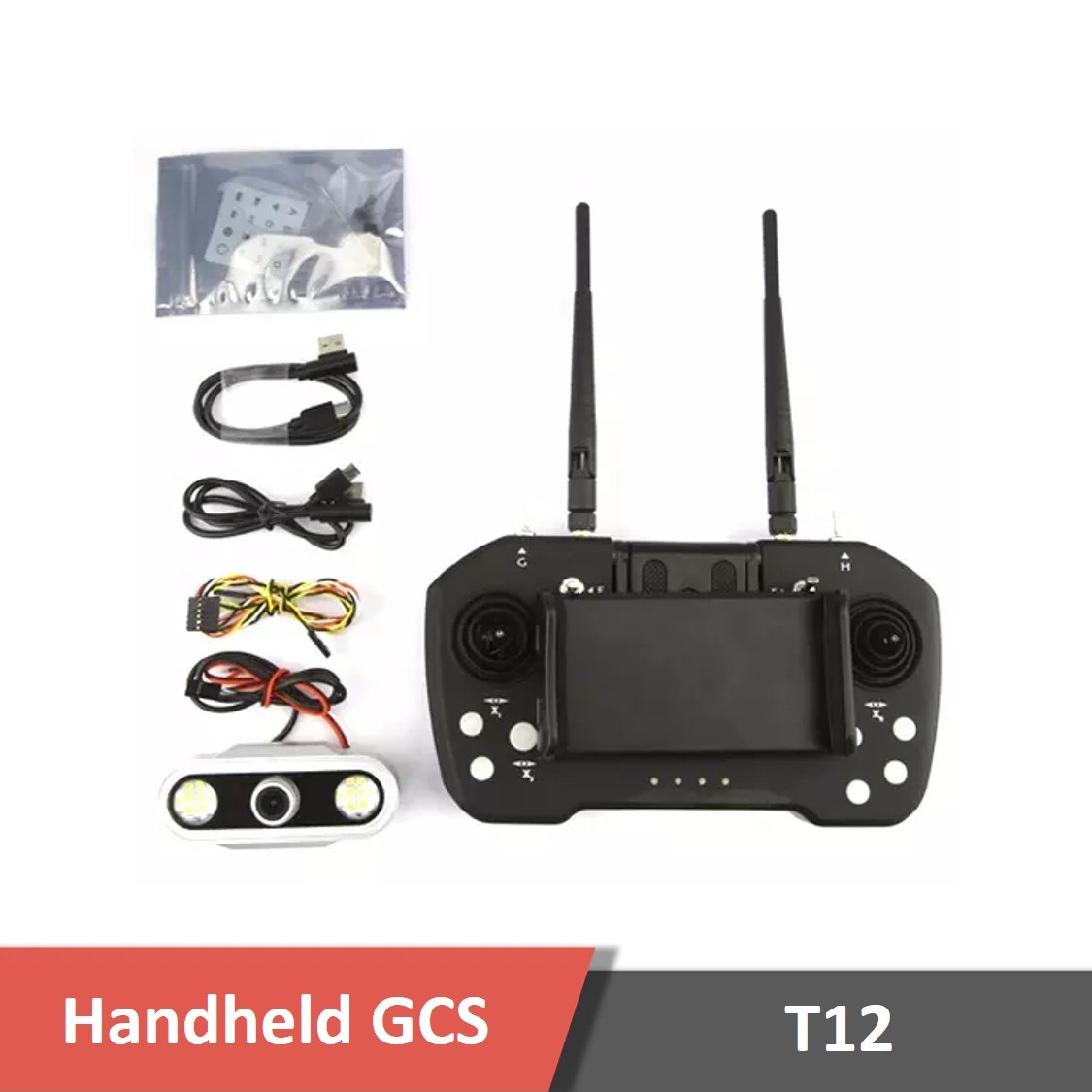

Product contents

Documents

Please contact us for more information
