M10 Handheld Ground Control Station

2999.00 $3949.00 $

(1 customer review)
PayPal
Visa
Master

Description

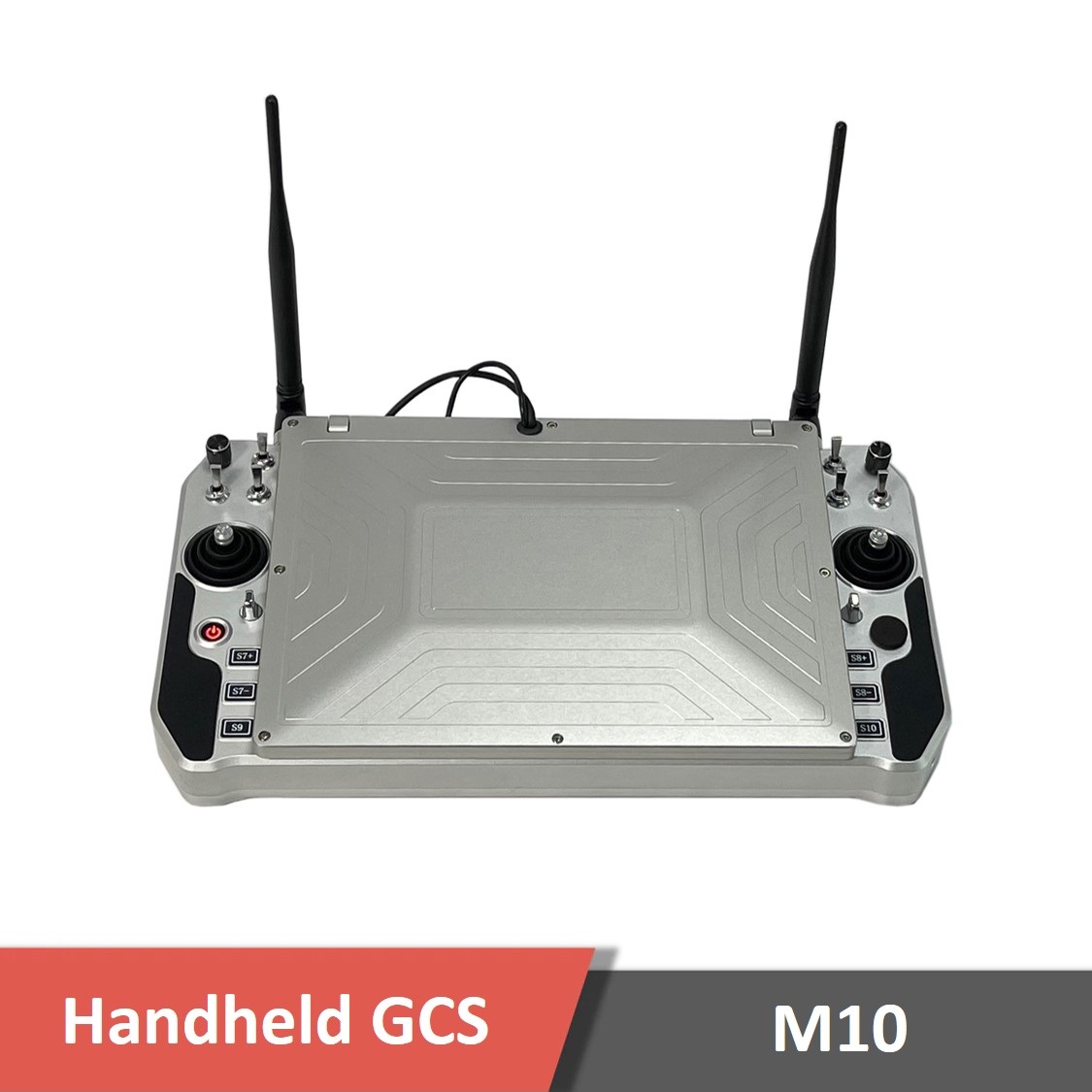

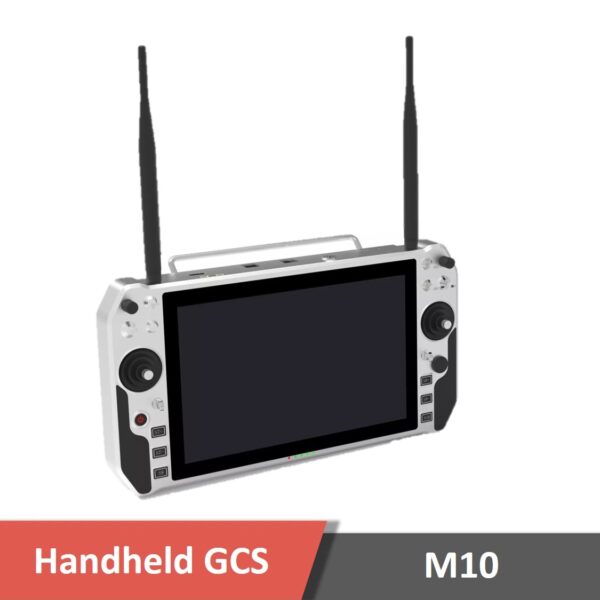

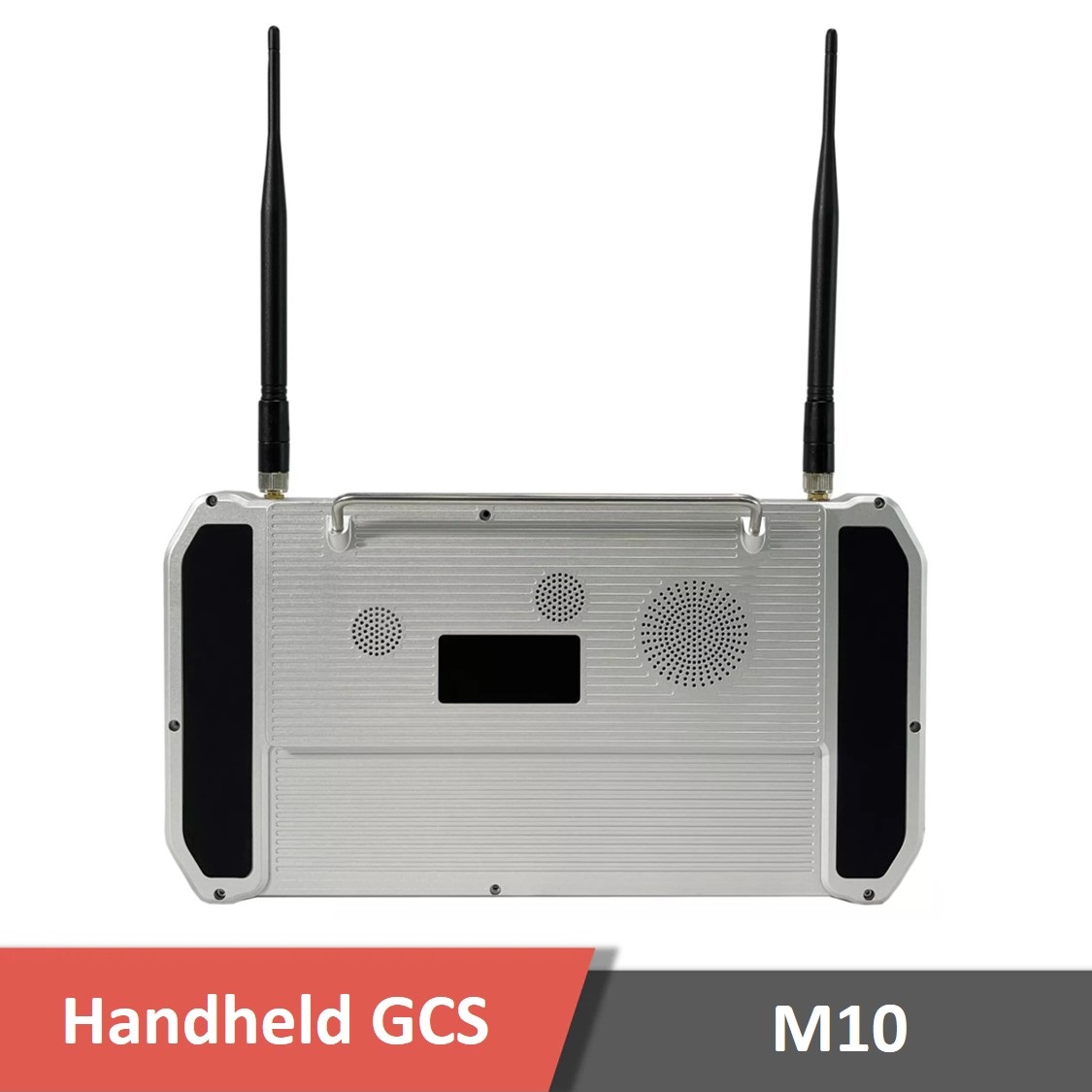

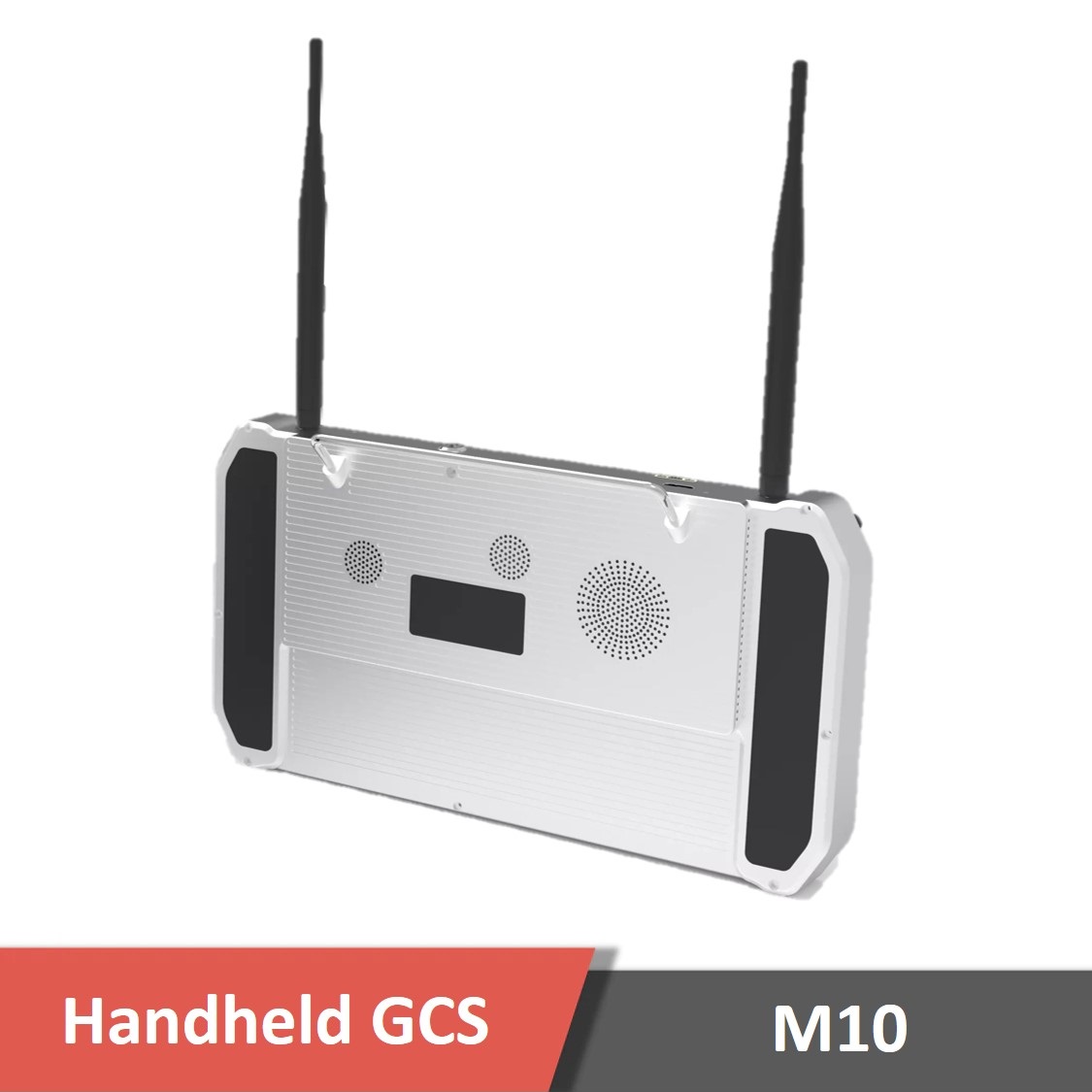

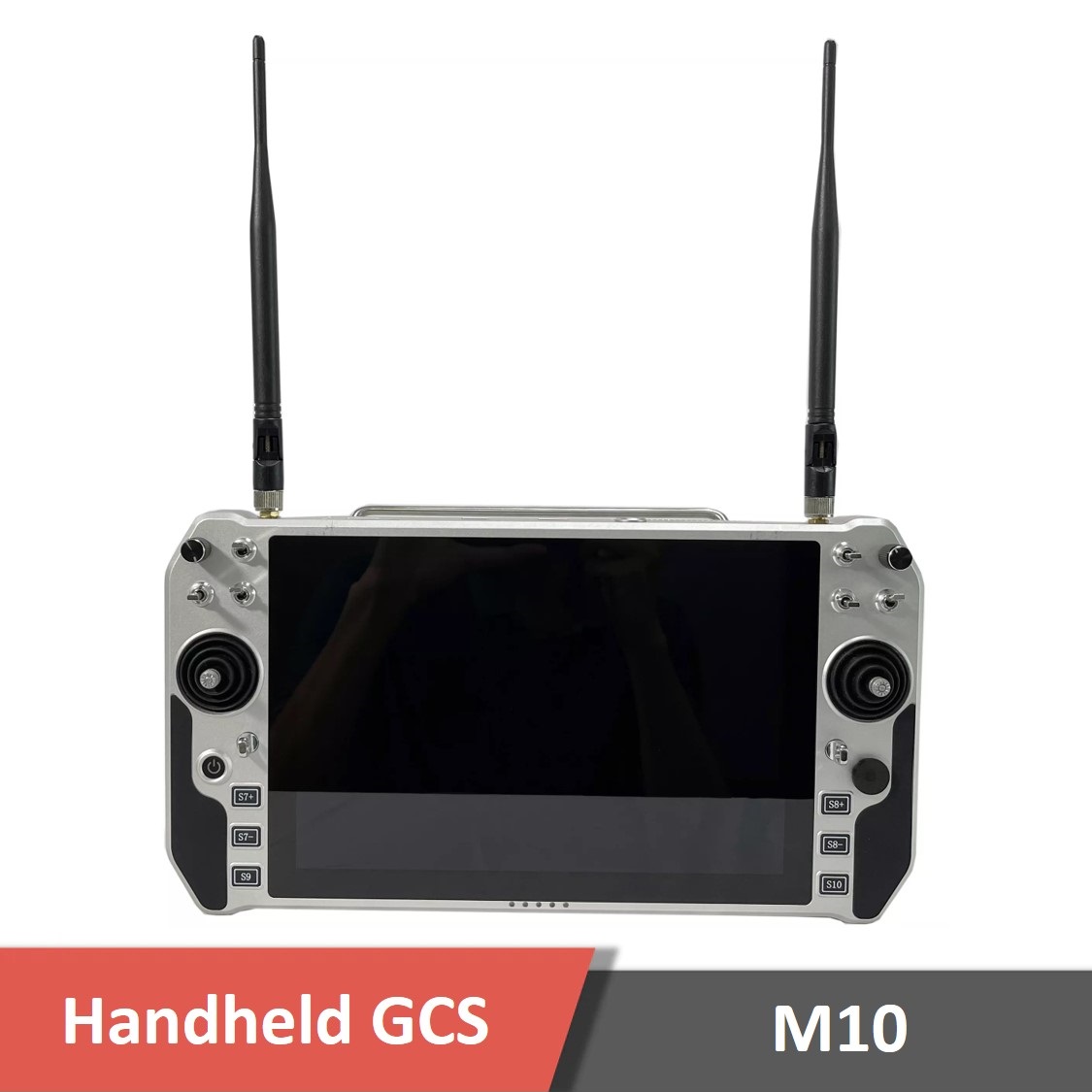

M10 Handheld Ground Control Station

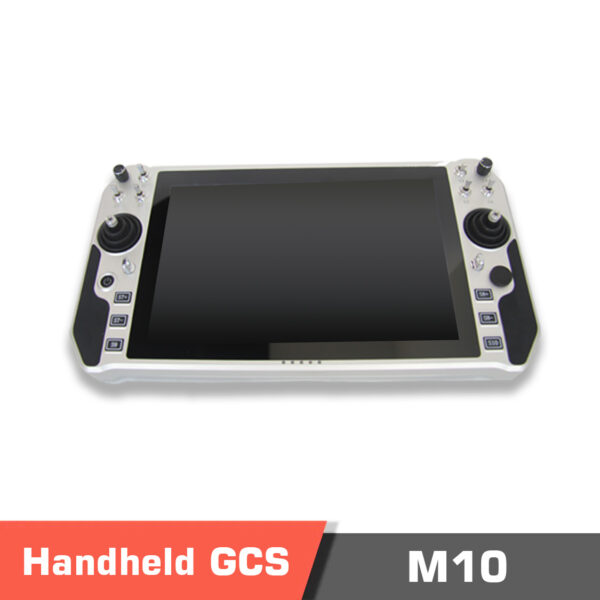

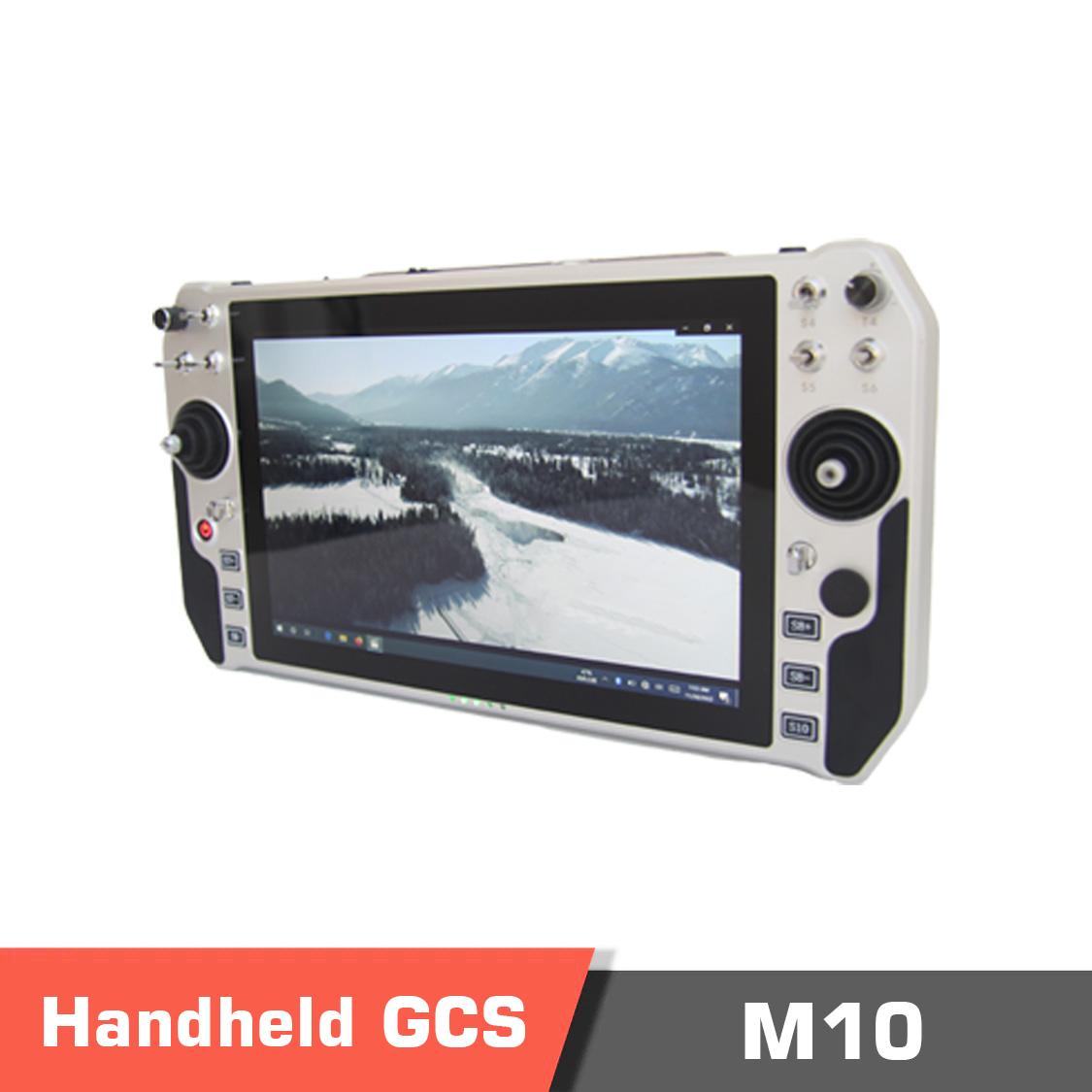

M10 HandHeld Ground Control System is a Portable GCS with a touchscreen and intelligent monitoring system suitable for security patrol drones, surveying and mapping drones, and rescue drones. With a 10.1″ industrial screen with 1200cd/m2 brightness, it is operable in a wide temperature range.

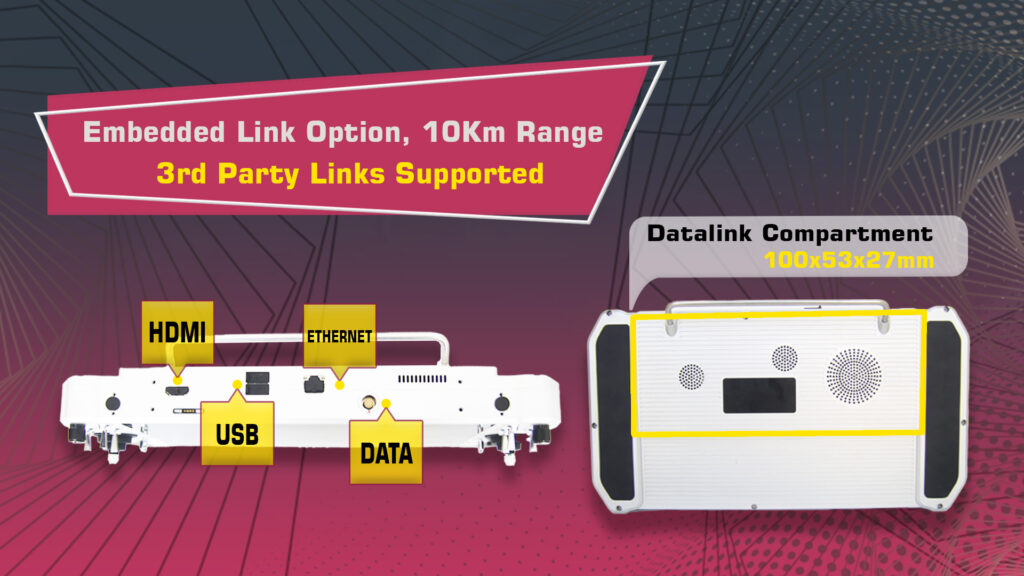

Its body is made by CNC from aviation aluminum for a more sophisticated look and a better heat dissipation system. Channel and appearance customization is supported. There is a built-in 10KM/30KM image data transmission module, with 22 physical channels, which can also work with Sprintlink series.

The GCS comes with i3 / i5 / i7 processors. All common GCS software like MissionPlanner and QGroundControl Station can be installed on the system. Built-in video transmission system and data transmission system and radio control makes this system suitable to be used as a monitoring and control system for drones.

Read more about M10 in our blog post.



1 1 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,m10 handheld ground control station - motionew - 39 2 1 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,m10 handheld ground control station - motionew - 40 3 1 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,m10 handheld ground control station - motionew - 41 4 1 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,m10 handheld ground control station - motionew - 42 5 1 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,m10 handheld ground control station - motionew - 43 6 1 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,m10 handheld ground control station - motionew - 44 7 1 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,m10 handheld ground control station - motionew - 458 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,m10 handheld ground control station - motionew - 46 8 - handheld ground control station,ground control station,gcs,radio control,video transmission,control system,data transmission,2. 4ghz,m10 handheld ground control station - motionew - 47



For a comprehensive reading of related products, please visit the Motionew website.



Specifications

M10 Computer Parameters
CPU Intel i3/i5/i7 Gen 7 (Default i5)
RAM 4GB
GPU Intel HD Graphics 620
Ethernet 1 Gigabit RJ45
OS Windows 7 / Windows 10 / Linux

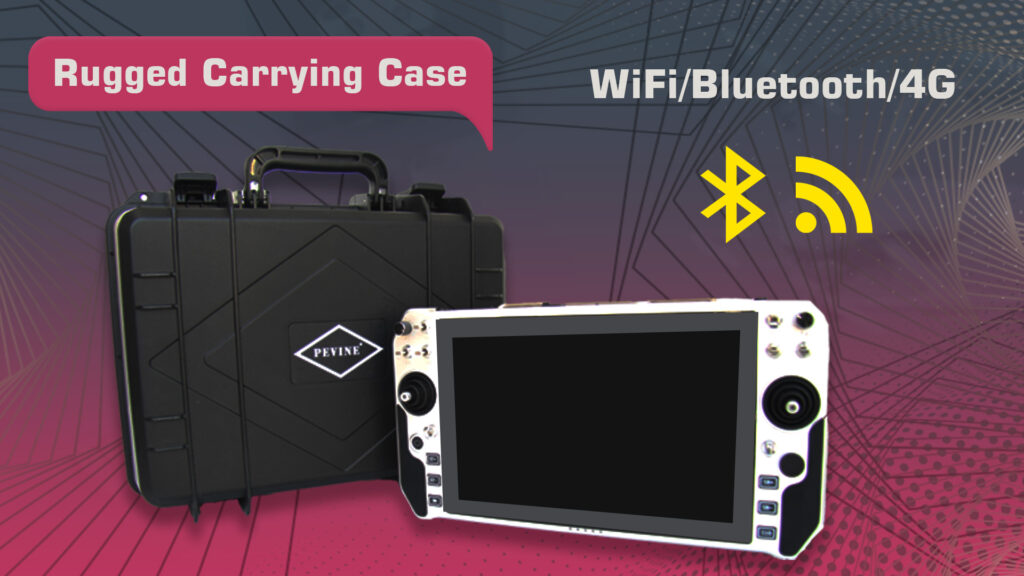

WiFi 2.4G/5.8G Dual WiFi Bluetooth 4.0
Screen Size 10.1″
LCD Resolution 1280×800
Brightness 1200ccd/m
Touch Panel 10 points touch screen

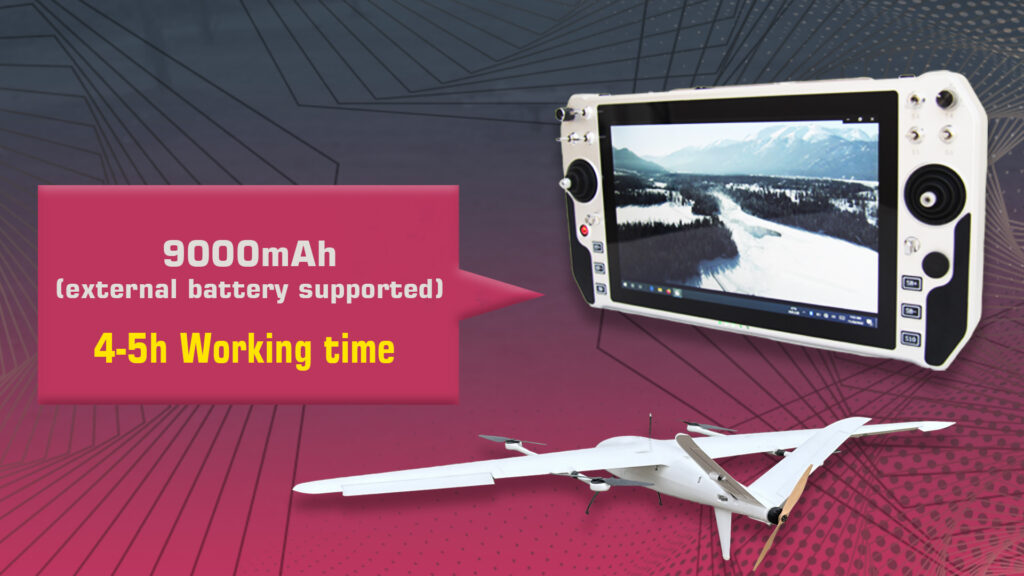

Battery 16.8v 8000mAh
Charging Voltage 19-24V
Battery Indicator OS and LED indicator
Full Charger Time 3-4 hours
Battery Life 4-6 hours

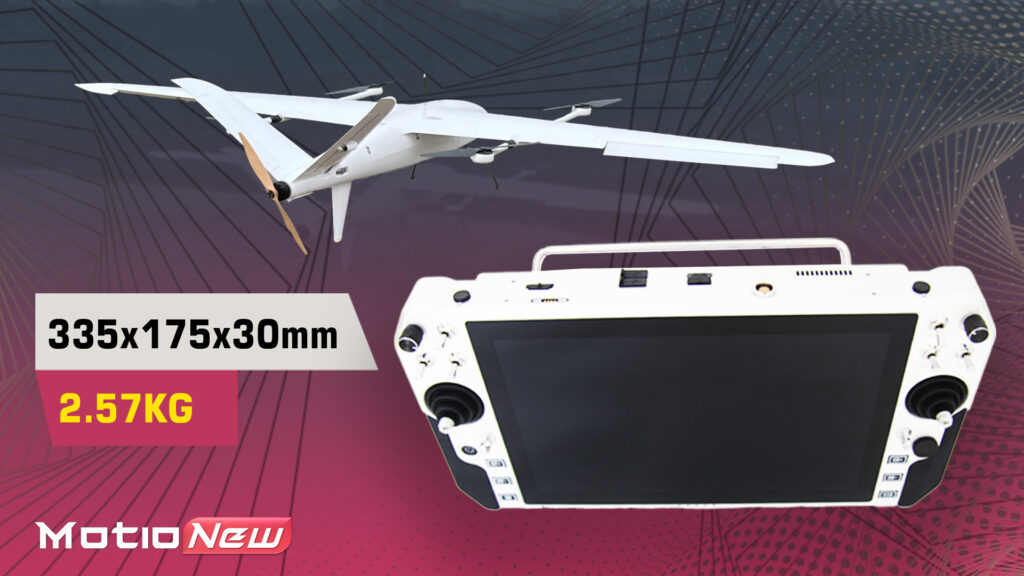

Dimensions 335x184x40mm
N.W. 1.6kg
Storage Temperature -20~70C
Working Temperature -20~60C

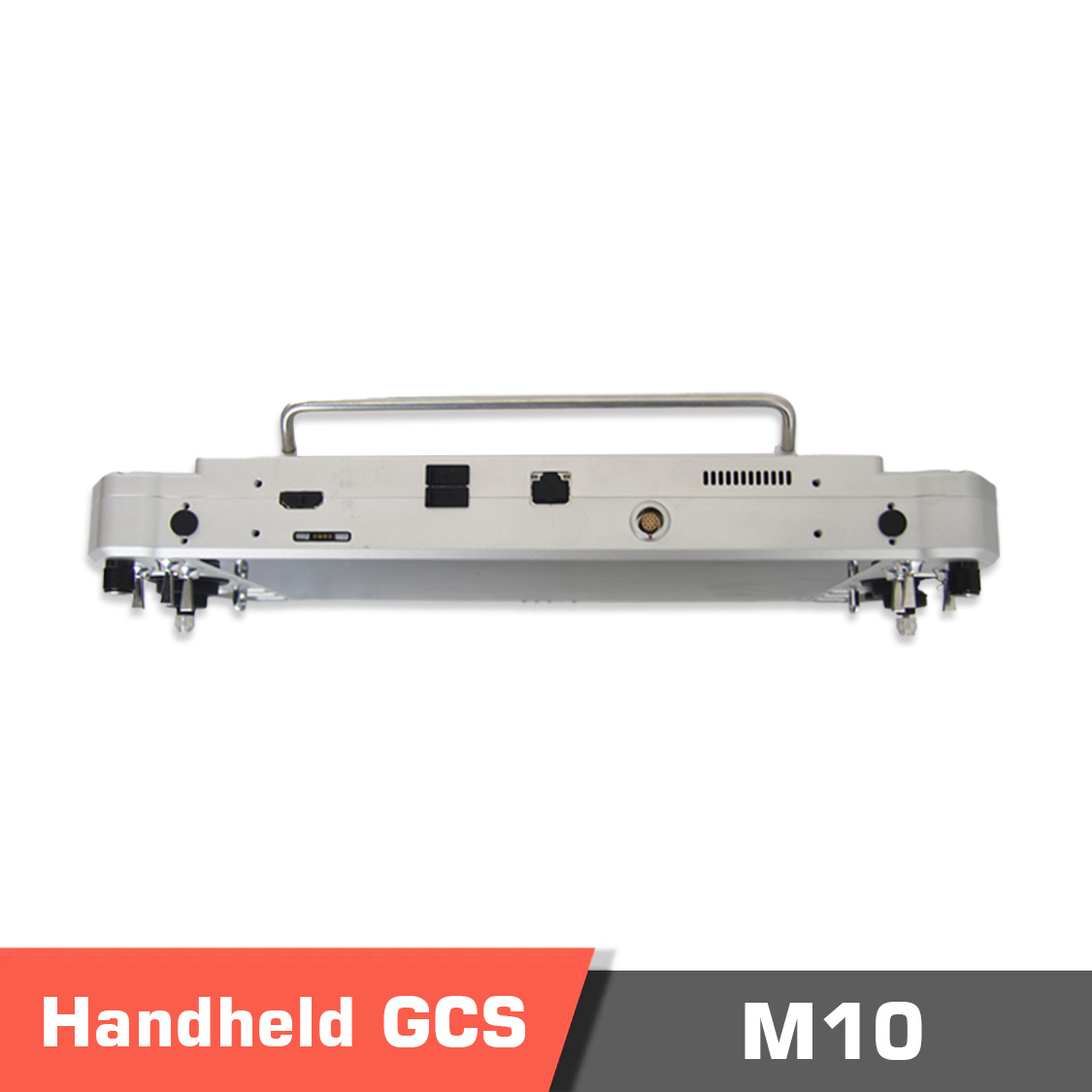

External Ports 2x USB 3.0
1x LAN
1x HDMI

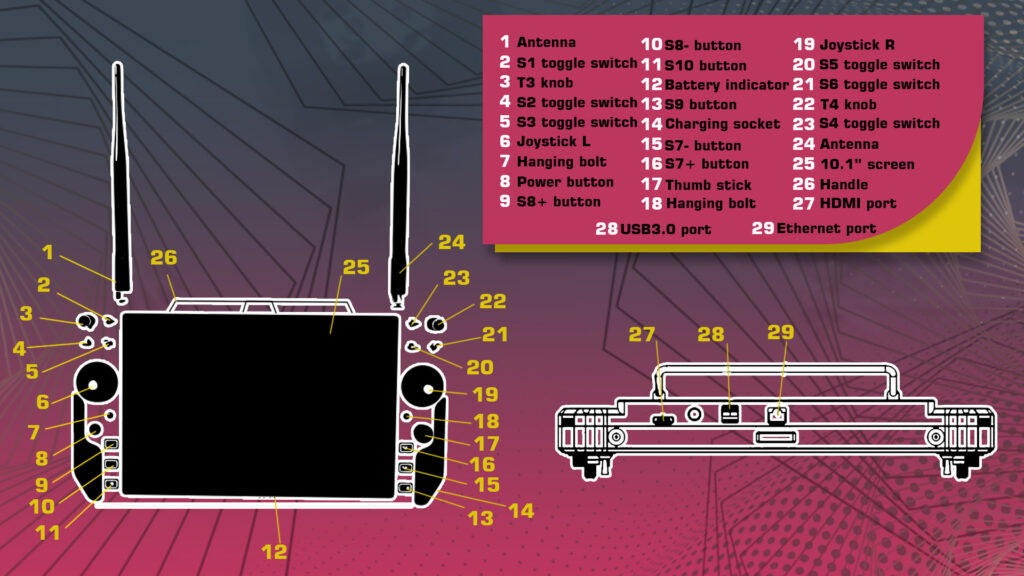

Remote Controller and Video Link Specifications
Joystick 2x joystick
2x Roller switch
1x thumb stick
Switch 6x 3 band toggle switch
potentiometer 2x knob
Button 6x buttons
Channels 18 channels
Tuning Method Windows Software
Video Input (GCS) LAN RTSP Video Stream
Antenna Type 2x SMA
Frequency 800MHz/1.4GHz/2.4GHz
Bandwidth 2.5MHz (upload), 10MHz (download)
Transmit Power 0.5W
Transmission Distance 10-15km
Air Video Input LAN
Air Part Ports LAN/UART/SBUS
Air Dimensions 77.8×47.3×23.5mm
Air N.W. 97g
Air rated voltage 12V/1.2A
Antenna 3dbi 19.5cm Antenna (Air)
3dbi 19.5cm Antenna (GCS) / 3-5km
6dbi 49cm Antenna (GCS) / 10-15km



Product contents

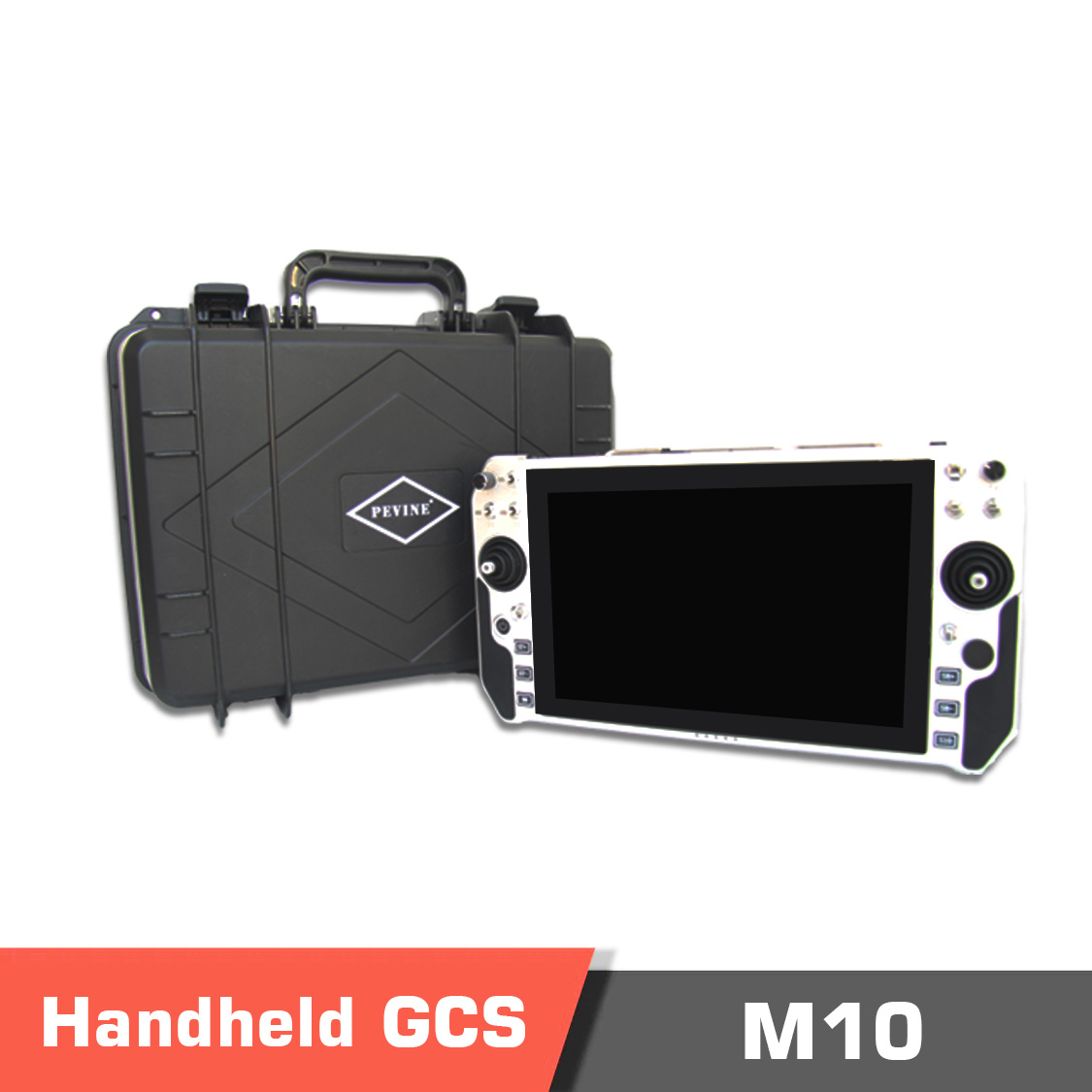

1x M10 Windows portable ground control station
1x AC to DC charger

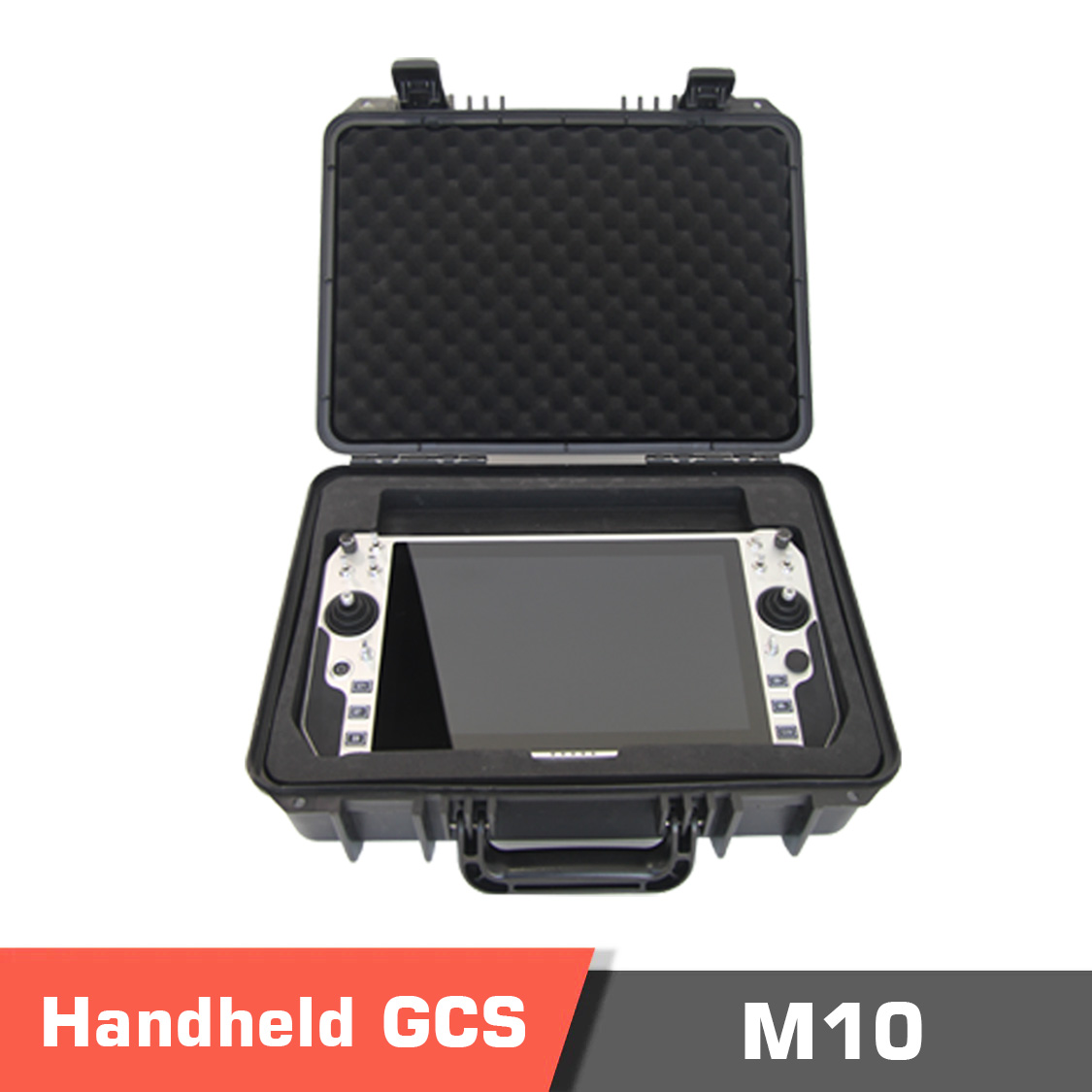

1x Plastic hand box
All bundles come without communication link. If you need communication link, please contact us.



Single Display Bundle Configuration:
CPU core i3 / 1200nit display / 4GB RAM / 128GB SD

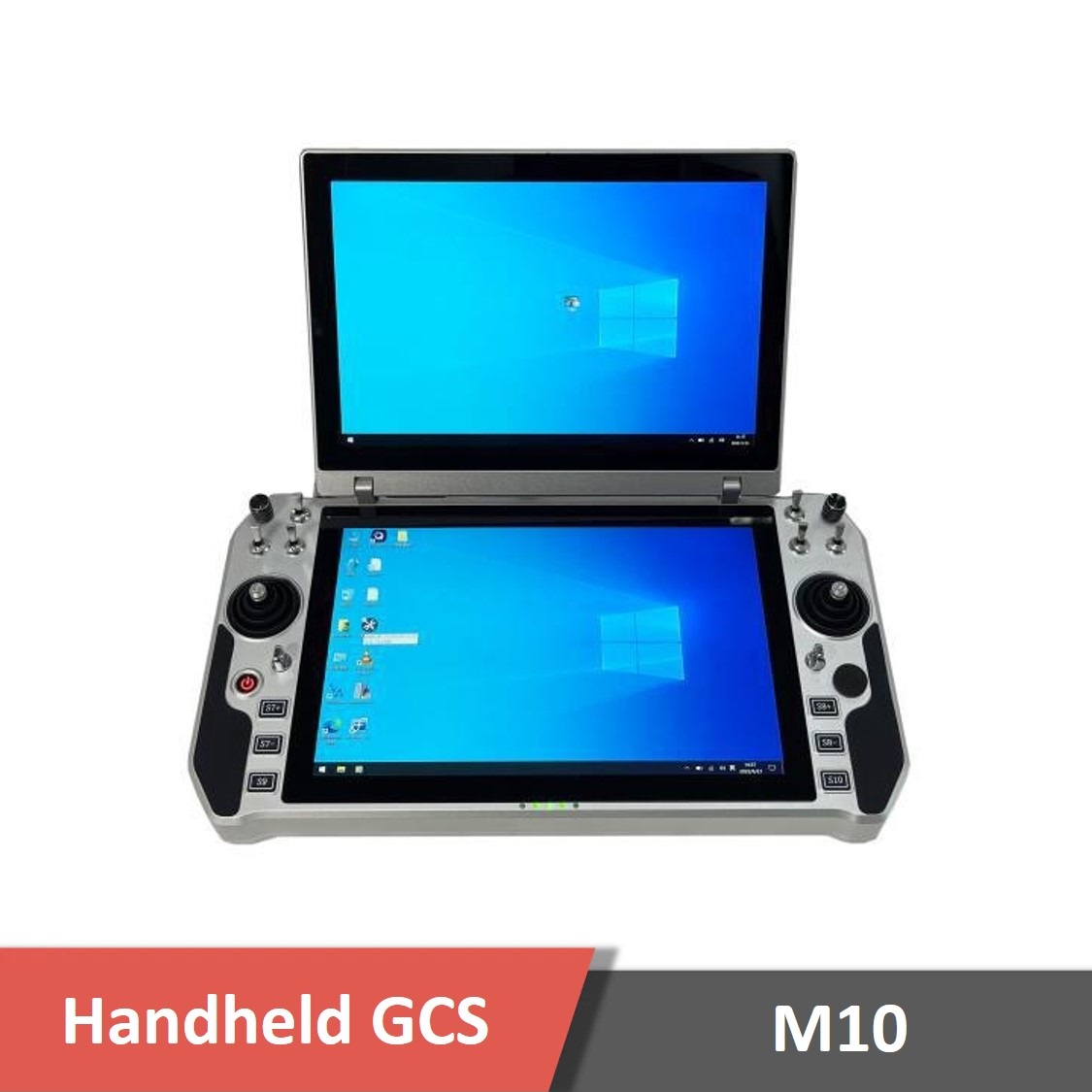

Dual Display Bundle Configuration:
CPU core i7 / 1200nit display / 8GB RAM / 128GB SD

Documents

Please contact us for more information
