Handheld Herelink HD Video Transmission and Control System

875.20 $

Out of stock

Description

Overview of Handheld Herelink HD

Handheld Herelink HD is an all-in-one solution that allows for the transmission of full HD video over long distances, including video, data, and radio control system. A 2.4GHz radio controller is equipped with a built-in screen that makes it possible to transmit video, data, and control information to your devices, and the transmission range is up to 20km. There is a latency of less than 110 milliseconds. It has a large 5.5″ screen that displays a multitude of control options such as live imaging, autopilot configuration through the native QGround control, and other GCS applications that run on the Mavlink platform.

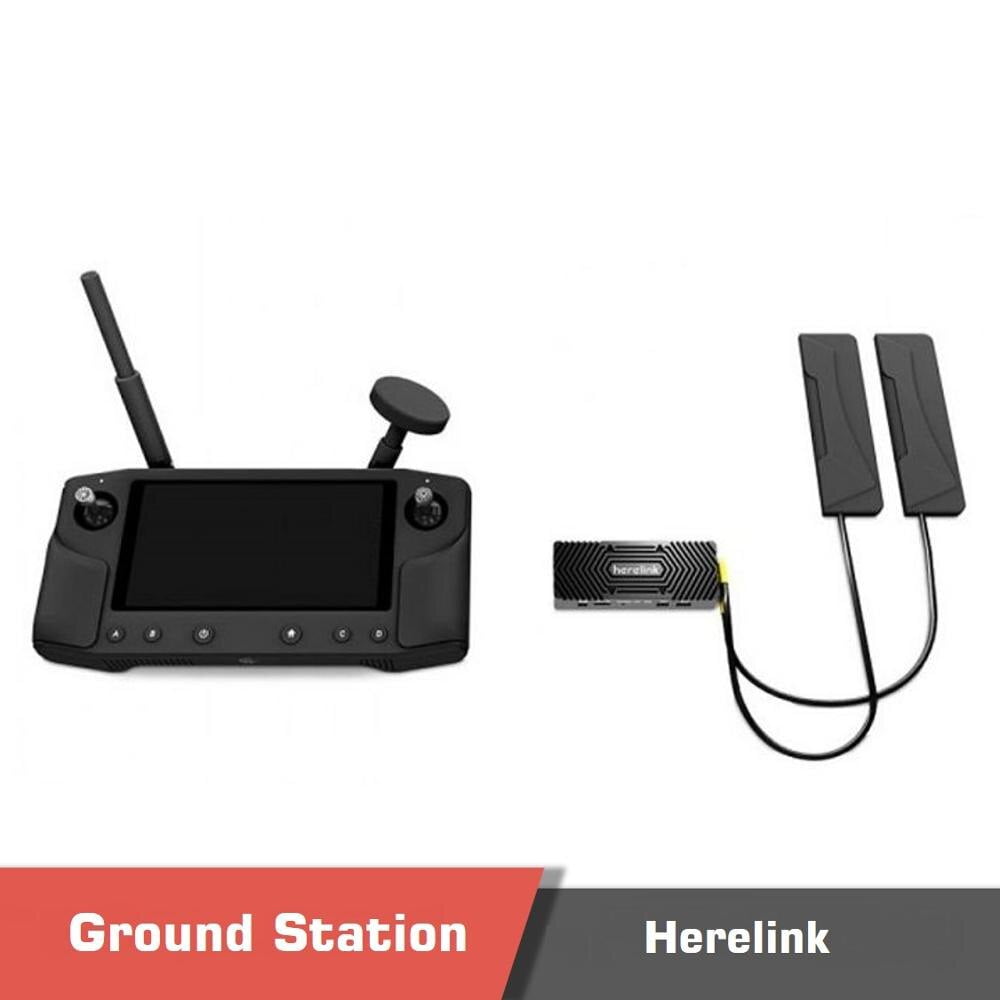

Besides the 5-12v power input, the Air Unit also has a single UART port for the purpose of connecting to a flight controller or other Mavlink accessories. It includes both an Air Unit and a Radio Controller that were designed to connect directly to the Air Unit and the Radio Controller and had a powerful Pinecone S1 processor with 4 cores, and 4 additional cores, at 1.4GHz, which allow for a lot of potential for development in the future.

key feature of Herelink HD Video

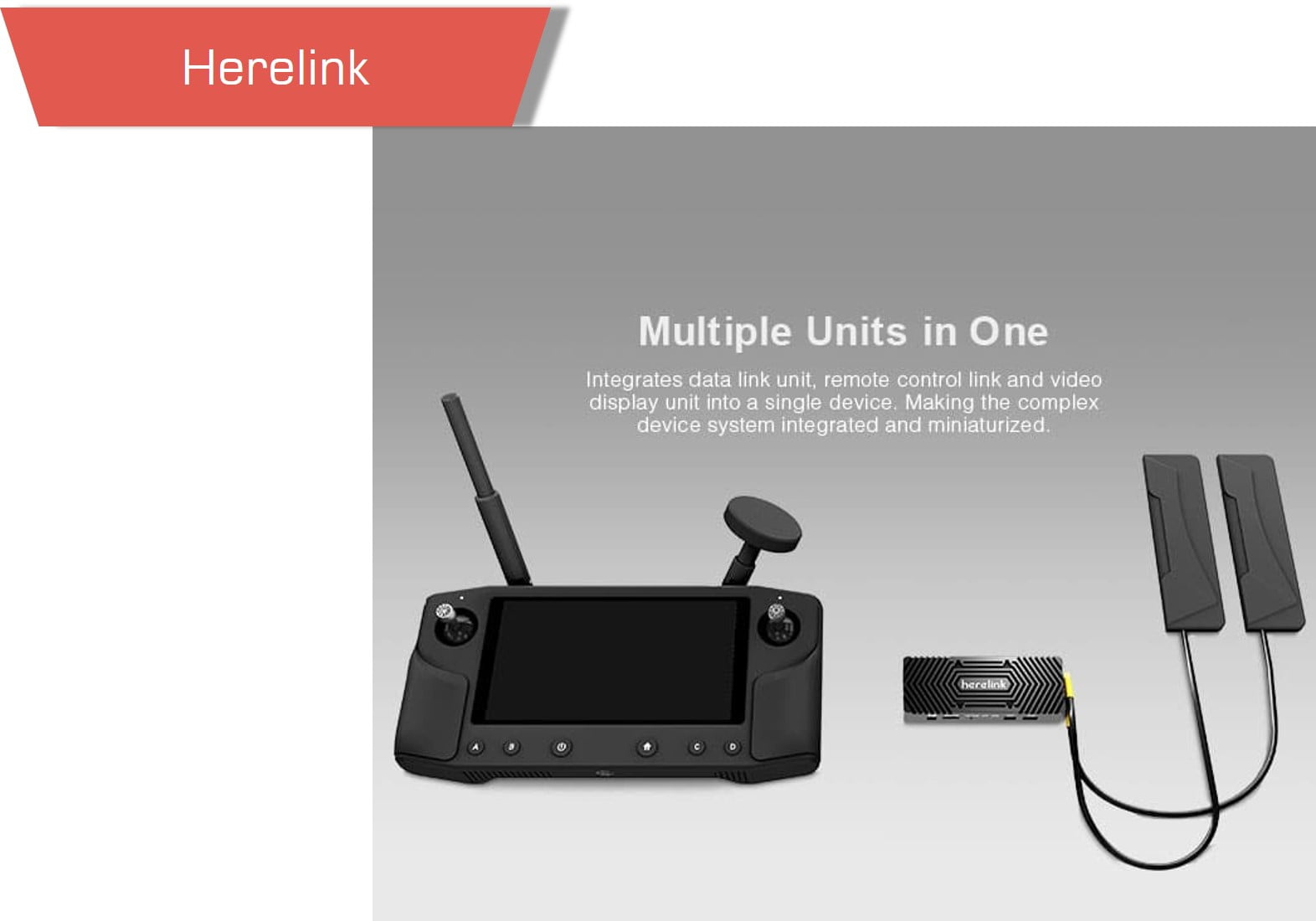

  • All in one: Telemetry, Video, and Control
  • 2.4Ghz frequency
  • Up to 20KM in FCC mode and 12KM in CE mode
  • UART Telemetry
  • RC Protocol: SBUS, iBUS, ETC.
  • Mavlink compatible
  • Touch screen
  • 2 HDMI inputs for 1080P@60fps video transmission

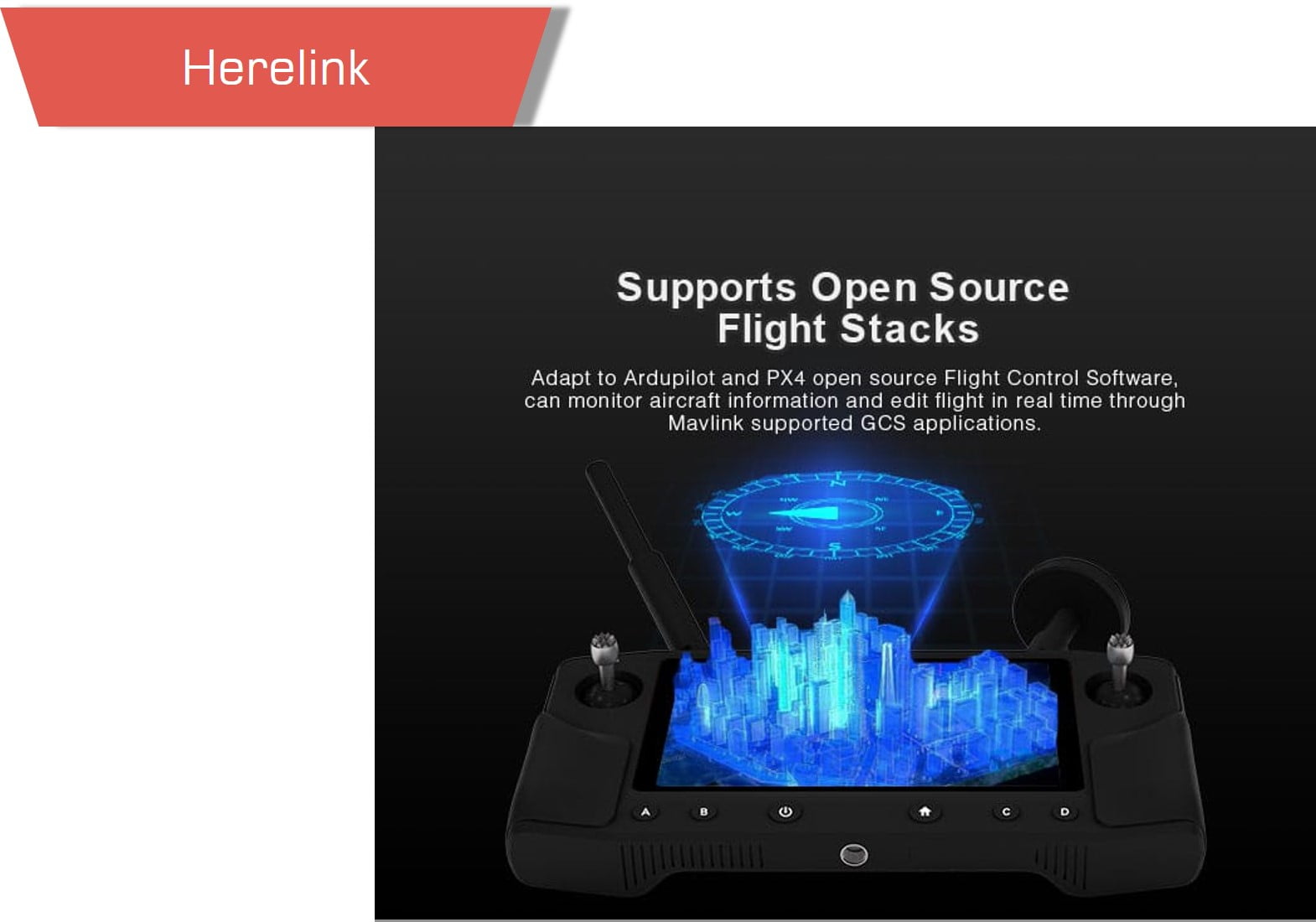

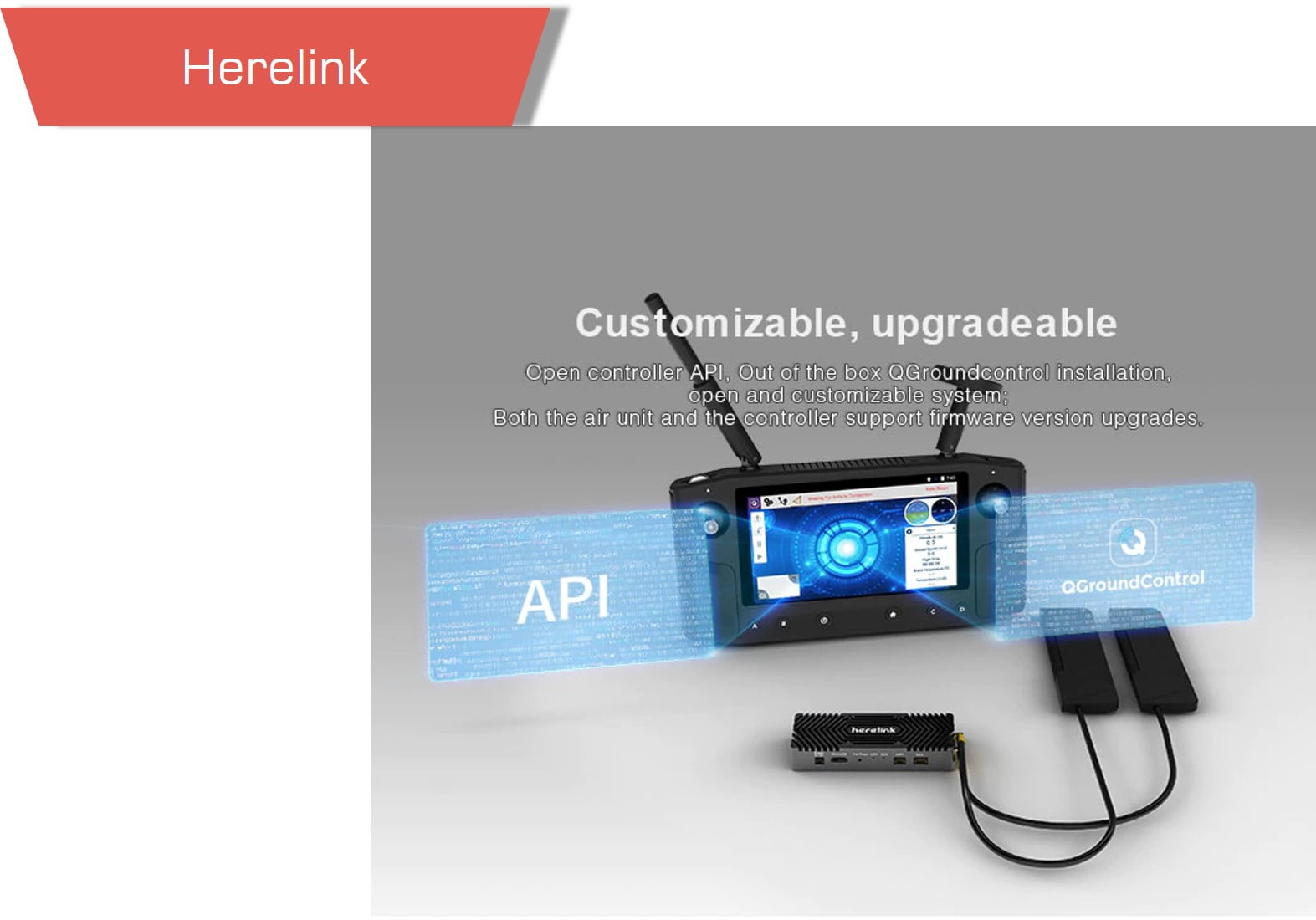

  • APP QGround control, and API for development
  • WIFI, Bluetooth and USB to connect with other devices



Ffdbfdb - handheld herelink hd,herelink hd video,video transmission,control system - motionew - 2 Nhmhm - handheld herelink hd,herelink hd video,video transmission,control system - motionew - 3 Fhmhmh - handheld herelink hd,herelink hd video,video transmission,control system - motionew - 4 Hnhnh - handheld herelink hd,herelink hd video,video transmission,control system - motionew - 5 Hmgmhm - handheld herelink hd,herelink hd video,video transmission,control system - motionew - 6 Vsdvd - handheld herelink hd,herelink hd video,video transmission,control system - motionew - 7 Dfbf - handheld herelink hd,herelink hd video,video transmission,control system - motionew - 8



Additional information

Weight 0.5 kg
Dimensions 7 × 6 × 4 cm

Specifications

Ground & Air Unit

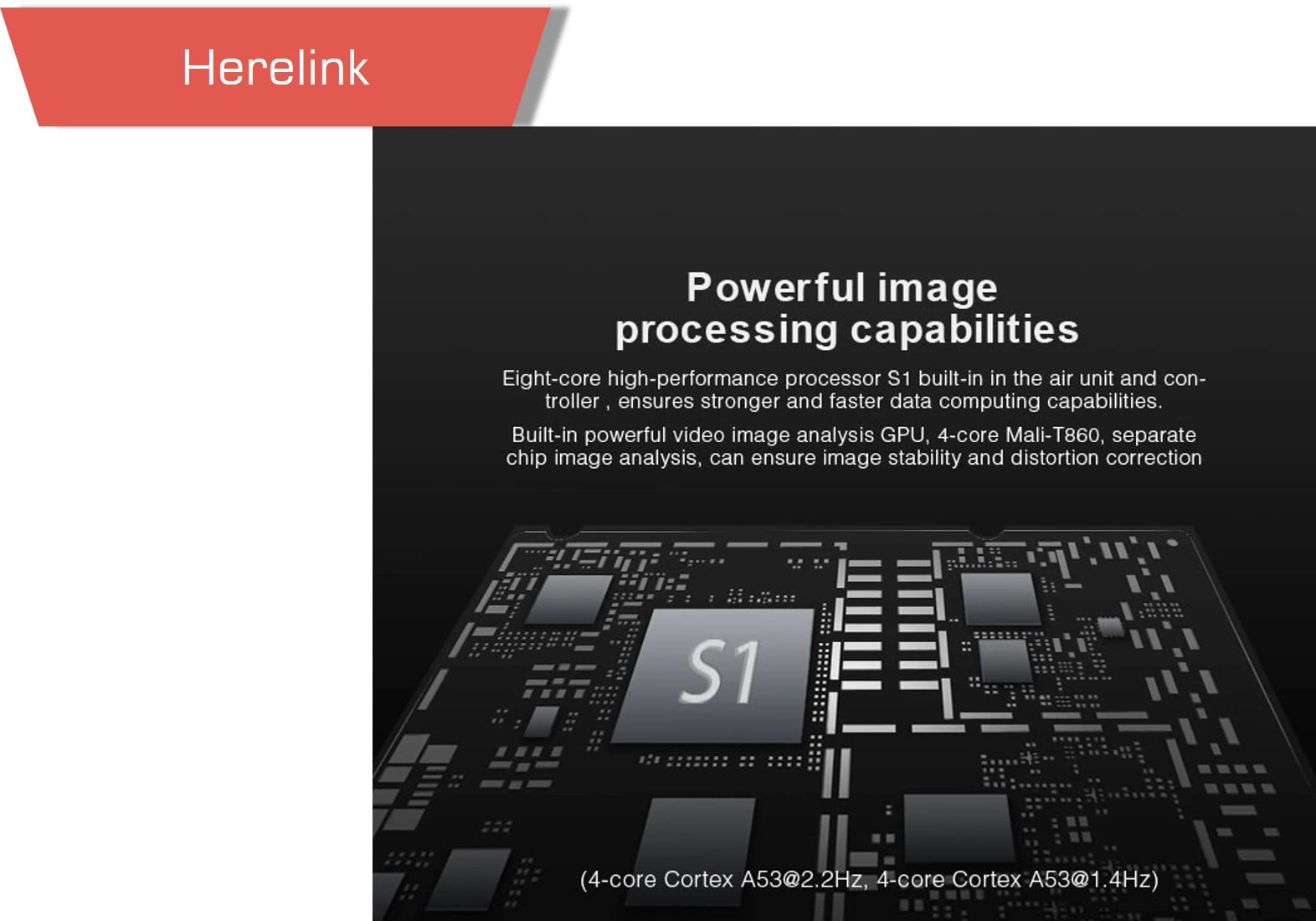

SOC ARM Cortex A53 4 core 2.2GHz + Cortex A53 4 core 1.4GHz
Image Processing Mali-T860 GPU
SDR A7 + DSP
Memory Air Unit: LPDDR3: 1GB, Ground Station: LPDDR3: 2GB, EMMC: Air / Ground 4GB
Transmission Distance FCC 20km CE / SRRC 12km
Image transmission delay ≤ 110ms
Image transmission 720p@30fps 1080p@30 / 60fps transmission, signal bandwidth 20MHz / 10MHz
Frequency Band 2.4GHz
Receive sensitivity -99dBm@20MHz BW
Interference recovery < 1s



Ground Station

Screen 5.46 inch 1080P, 16 million colors, capacitive touch screen
Audio Built-in speaker × 1, built-in microphone × 2
Remote control Hall affect gimbals with removable sticks x 2, scroll wheel × 1, bottom button × 6 with backlight, top button × 1 (right)
Wireless Bluetooth (disabled) / WIFI / GPS / 2.4G map transmission ground
Inputs MicroUSB × 1, Micro SD × 1 (supports maximum 64GB)
Antenna 1× Circular (5dBi), detachable

1× omnidirectional (2dBi), detachable

built-in Wi-Fi antenna, built-in GPS antenna

1× external GPS antenna interface

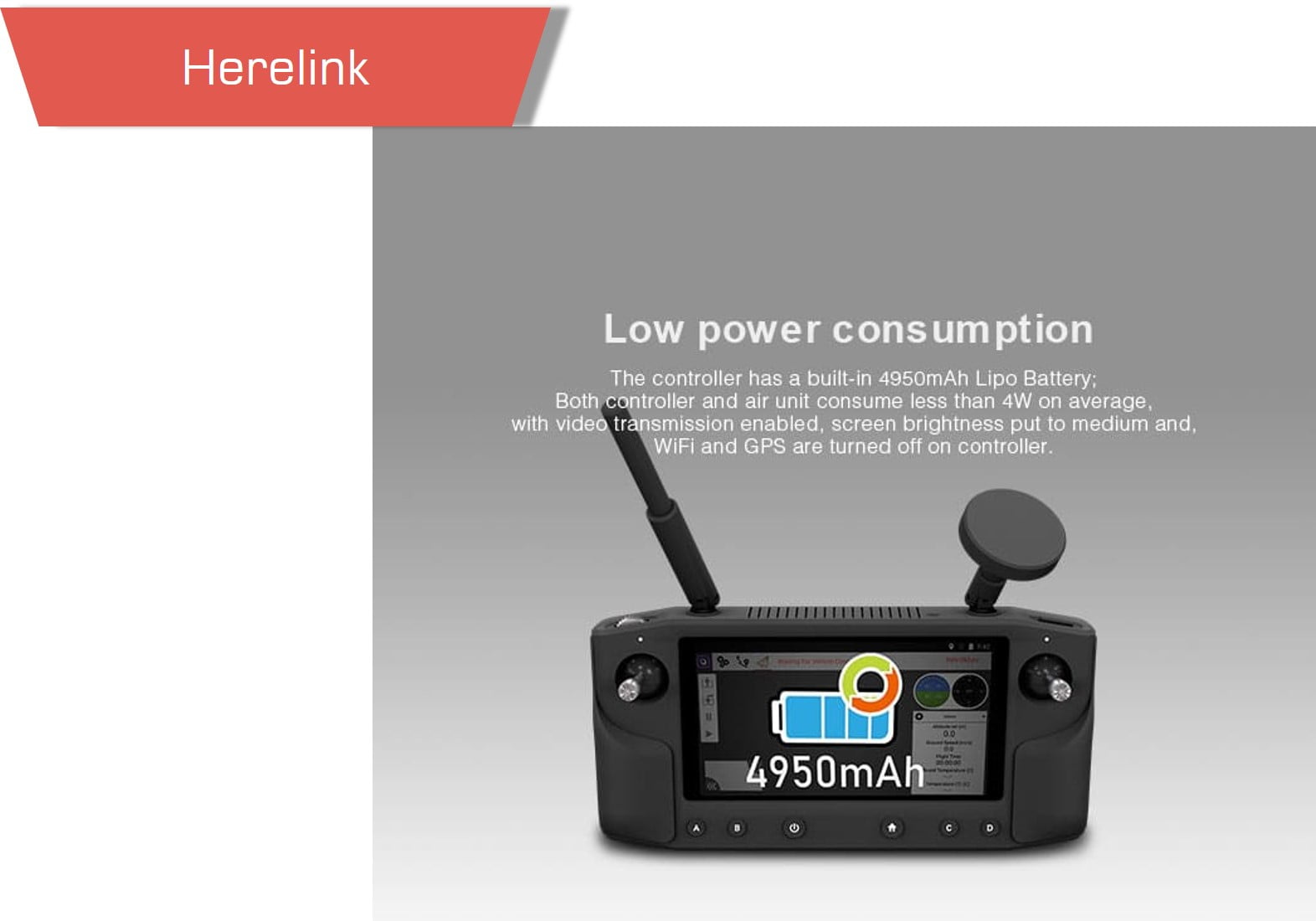

Power Built-in 4950 mAh Lipo Battery
Charging Support micro USB port 5v 2A current charging
Power consumption The average power consumption does not exceed 4W (only picture transmission work, medium screen brightness, Wi-Fi off, GPS off)
Size 217 × 106.5 × 31mm not including external antenna and rocker



Air Unit

Video-Input Micro HDMI x 2: Input for external camera video, supports 720P 30fps & 1080P 30/60fps
Power Input 2 Pin interface x 1: Recommended supply voltage ~7V: minimum 6V: maximum 12V and avoid sharing BEC with servos, the average power consumption of the single-sided module is less than 4W
Telemetry 3 Pin interface x 1:3.3V / 5V level UART interface Mavlink Compatible
Control Output 4 Pin interface x 1: Two 3.3V level RC output connectors (S.bus in phase, S.bus inverting or PPM signal output, ground terminal control)
USB Micro USB x 1: for debugging upgrades, support OTG mode
Antenna MMCX antenna jack x 2: used for signal transmission and ground communication

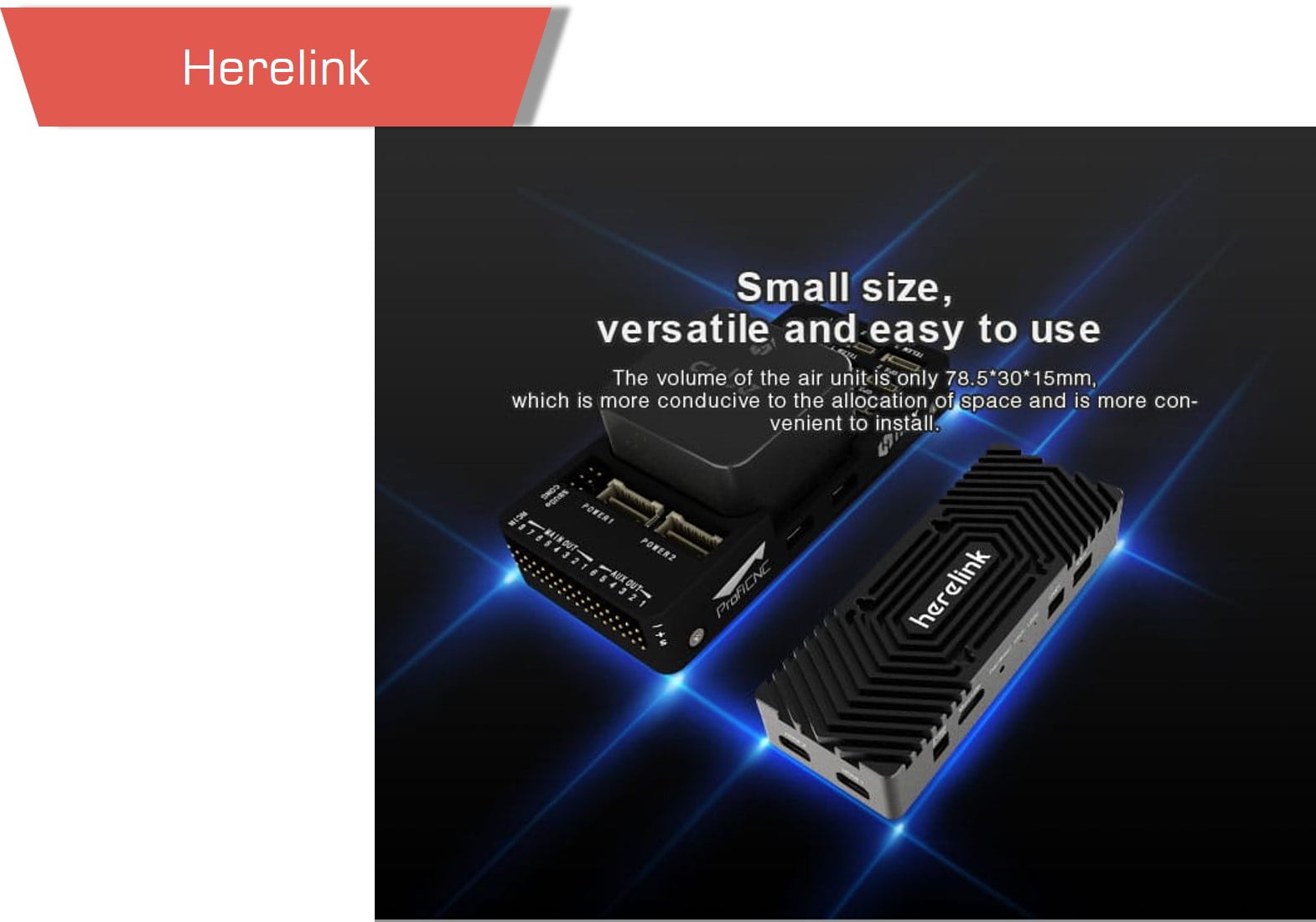

Size 78.5x30x13mm
