H-RTK F9P Ultralight GNSS and Compass

319.00 $

Description

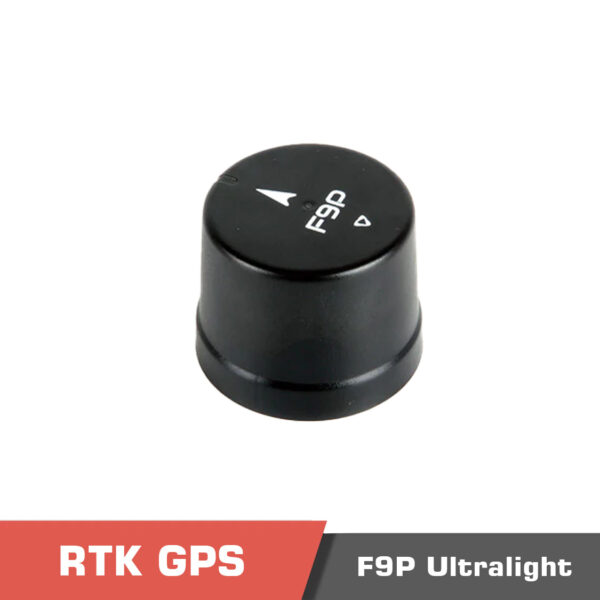

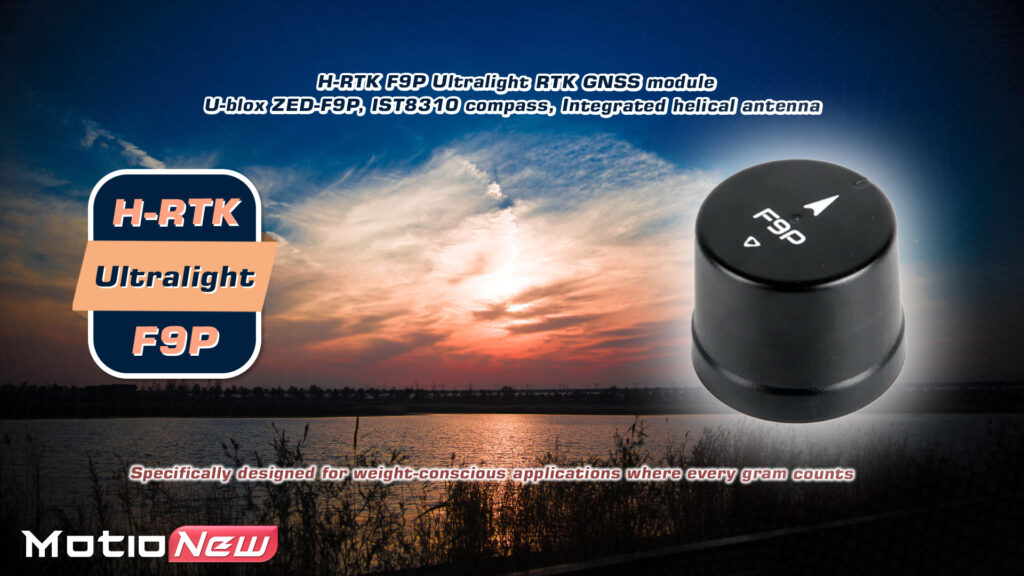

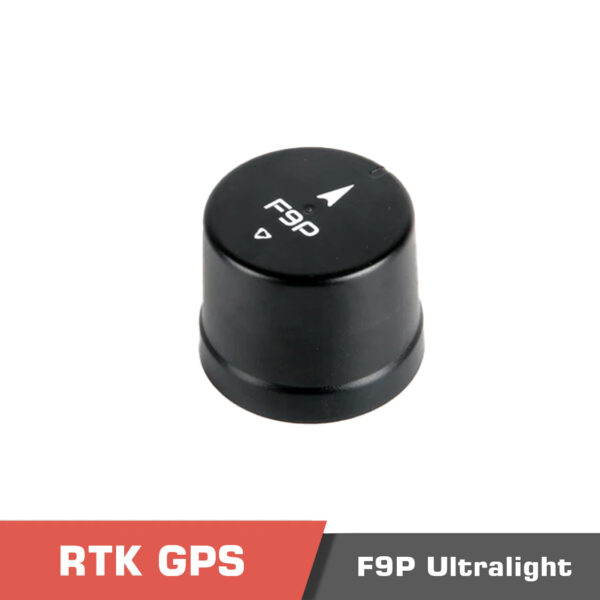

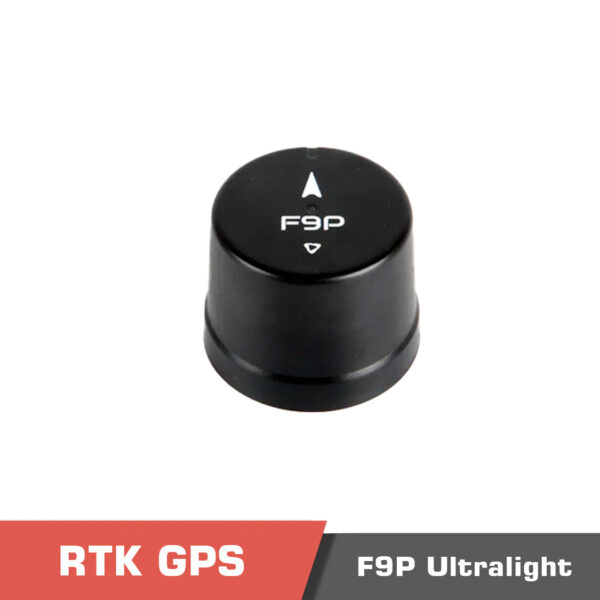

H-RTK F9P Ultralight is an ultra-lightweight RTK GNSS module with U-blox ZED-F9P, an IST8310 compass, and an integrated helical antenna. It is an all in one compact module, designed specifically for weight-conscious applications where every gram counts.

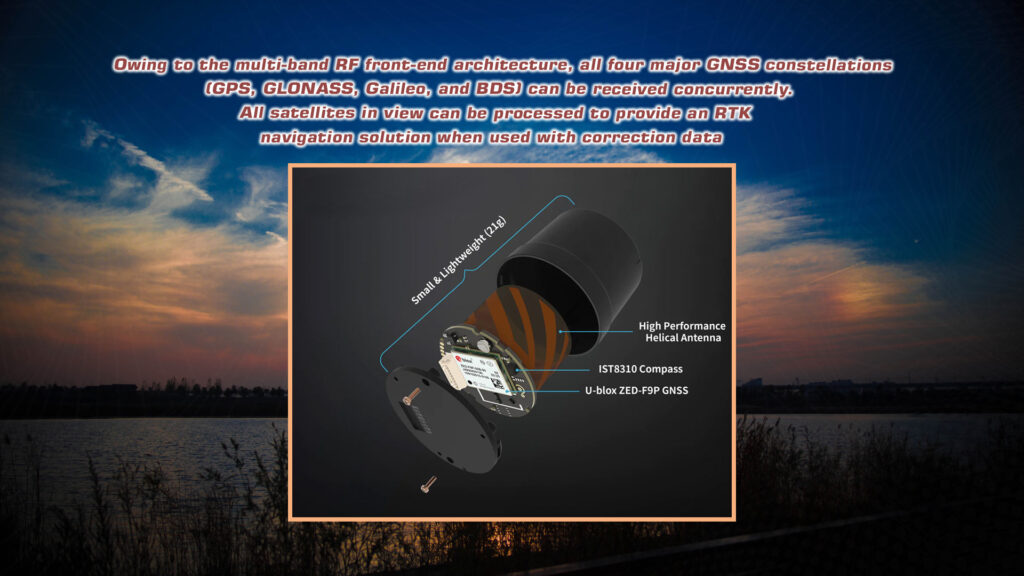

The H-RTK F9P Ultralight can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations (GPS, GLONASS, Galileo, and BDS) can be received concurrently. All satellites in view can be processed to provide an RTK navigation solution when used with correction data.

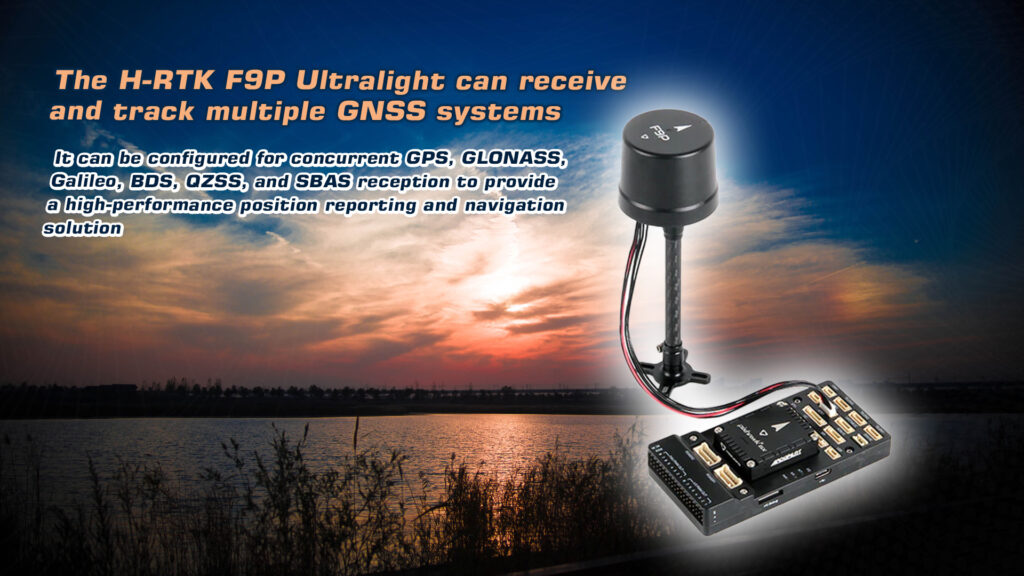

It can be configured for concurrent GPS, GLONASS, Galileo, BDS, QZSS, and SBAS reception to provide a high-performance position reporting and navigation solution. It provides exceptional sensitivity and acquisition times, and interference suppression measures enable reliable positioning even in difficult signal conditions.

F9p ultralight H rtk f9p ultraight. 2 - f9p ultralight,h-rtk f9p,h-rtk f9p ultralight,u-blox zed-f9p,ist8310 compass,rtk and compass,dronecan module,rtk,gps,compass,gnss,beidou,glonass,galileo,pixhawk gps,rtk gnss,gps rtk gnss,can rtk gps - motionew - 10 H rtk f9p ultraight. 3 - f9p ultralight,h-rtk f9p,h-rtk f9p ultralight,u-blox zed-f9p,ist8310 compass,rtk and compass,dronecan module,rtk,gps,compass,gnss,beidou,glonass,galileo,pixhawk gps,rtk gnss,gps rtk gnss,can rtk gps - motionew - 11 H rtk f9p ultraight. 4 1 - f9p ultralight,h-rtk f9p,h-rtk f9p ultralight,u-blox zed-f9p,ist8310 compass,rtk and compass,dronecan module,rtk,gps,compass,gnss,beidou,glonass,galileo,pixhawk gps,rtk gnss,gps rtk gnss,can rtk gps - motionew - 12H rtk f9p ultraight. 5 - f9p ultralight,h-rtk f9p,h-rtk f9p ultralight,u-blox zed-f9p,ist8310 compass,rtk and compass,dronecan module,rtk,gps,compass,gnss,beidou,glonass,galileo,pixhawk gps,rtk gnss,gps rtk gnss,can rtk gps - motionew - 13 H rtk f9p ultraight. 6 - f9p ultralight,h-rtk f9p,h-rtk f9p ultralight,u-blox zed-f9p,ist8310 compass,rtk and compass,dronecan module,rtk,gps,compass,gnss,beidou,glonass,galileo,pixhawk gps,rtk gnss,gps rtk gnss,can rtk gps - motionew - 14 H rtk f9p ultraight. 7 - f9p ultralight,h-rtk f9p,h-rtk f9p ultralight,u-blox zed-f9p,ist8310 compass,rtk and compass,dronecan module,rtk,gps,compass,gnss,beidou,glonass,galileo,pixhawk gps,rtk gnss,gps rtk gnss,can rtk gps - motionew - 15

If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.



Additional information

Weight 1 kg

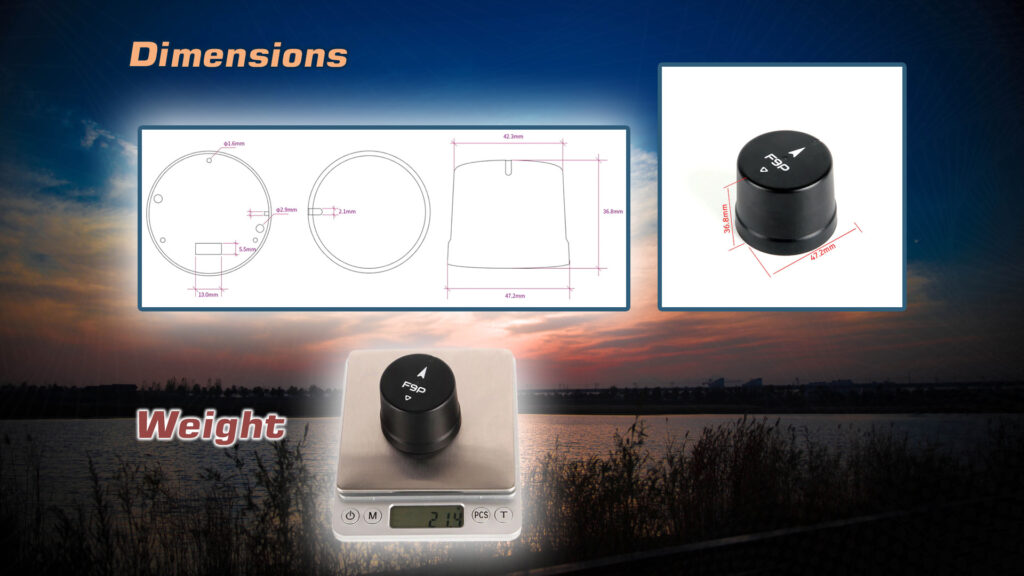

Dimensions 5 × 5 × 4 cm

Specifications

GNSS module u-blox ZED-F9P
Compass IST8310

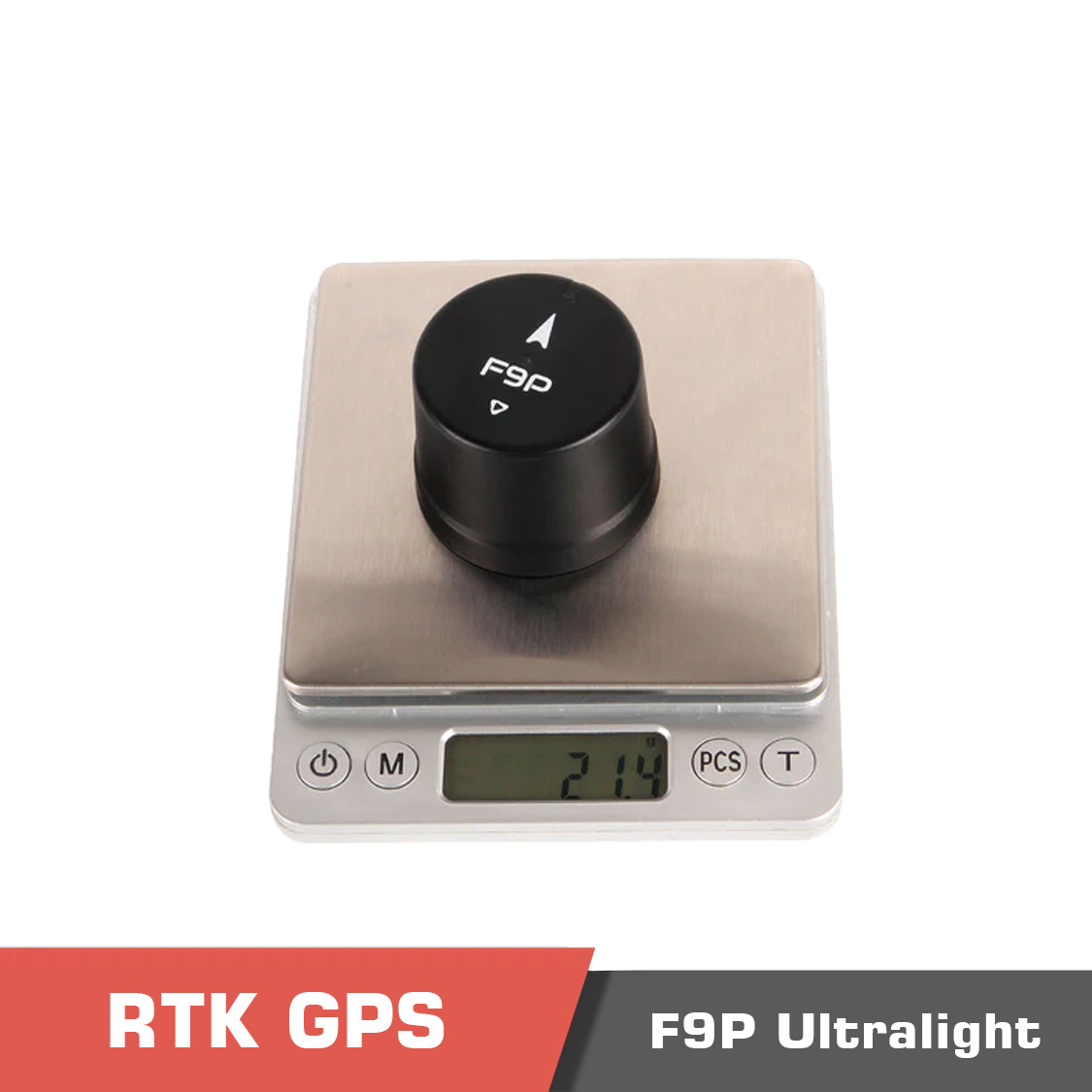

Weight 21.4g
Application Rover (Aircraft)
Receiver type GPS  L1C/A L2C

Galileo  E1 E5b

GLONASS  G2 G1

BDS  B1l B2l
Sensitivity Tracking -163dBm
Reacquisition -147dBm
Time-To-First-Fix¹ Cold Start ≤35 s
Warm Start 20s
Hot Start 1 s
Position accuracy² Autonomous 2.0 m CEP
DGNSS 0.5m CEP
RTK 1cm+1ppm (Horizontal)3
Accuracy of time pulse signal RMS 30ns
Velocity accuracy GNSS 0.1 m/s
D-GNSS 0.05 m/s
Operational limits4 Dynamics ≤ 4 g
Altitude 18000 m
Velocity 515 m/s
Baud Rate 38400-230400 bps（Default 38400 bps）
Max navigation update rate 10Hz (If you need a greater navigation update rate, please contact us)
1. All satellites at ≥-130dBm

2. CEP, 50%, 24 hours static, ≥-130dBm, > 8SVs

3. Based on 30km, the accuracy error increases by 1cm every 10km from the base station

4. Assuming Airborne < 4 g platform

Documents

Please contact us for more information.

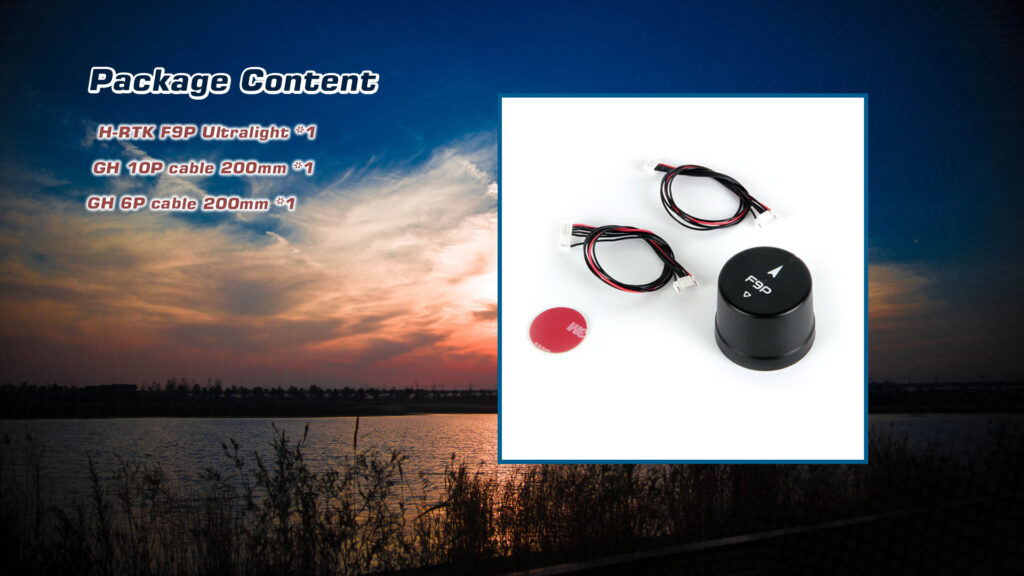

Product contents

  • 1x H-RTK F9P Ultralight
  • 1x GH 10P to 6P cable 200mm

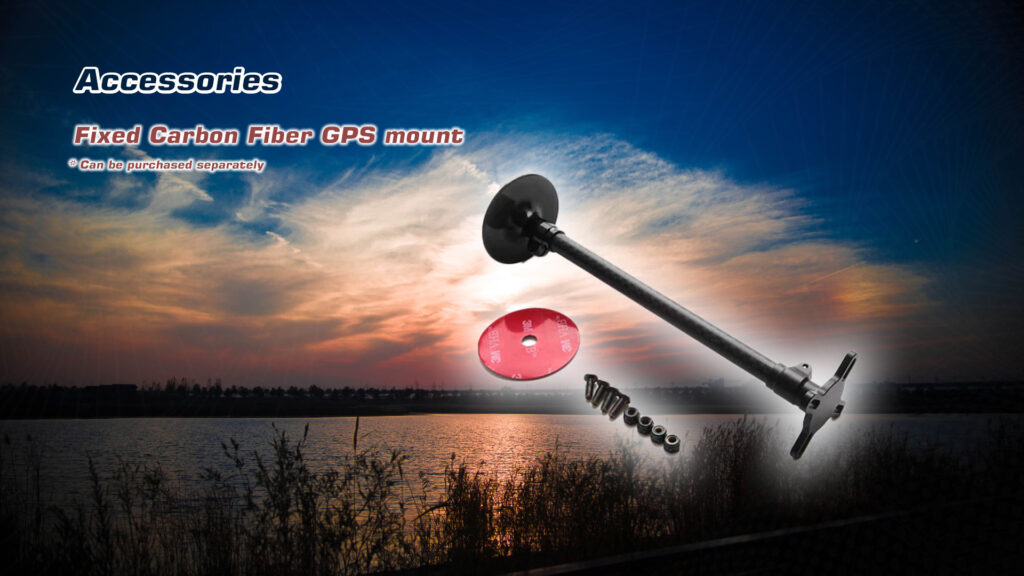

  • Carbon Fiber GPS Mount Should be purchased separately
