MATEKSYS GPS M10Q-5883 with u-blox M10 series GNSS and Compass

33.42 $

PayPal
Visa
Master

Description

MATEKSYS GPS M10Q-5883 Overview

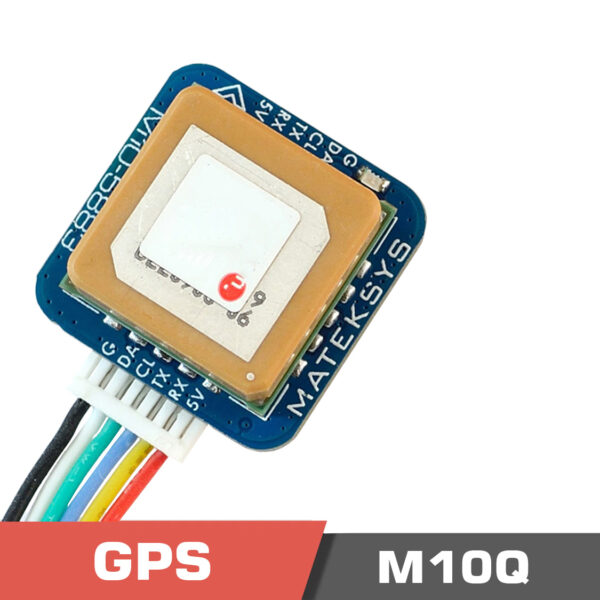

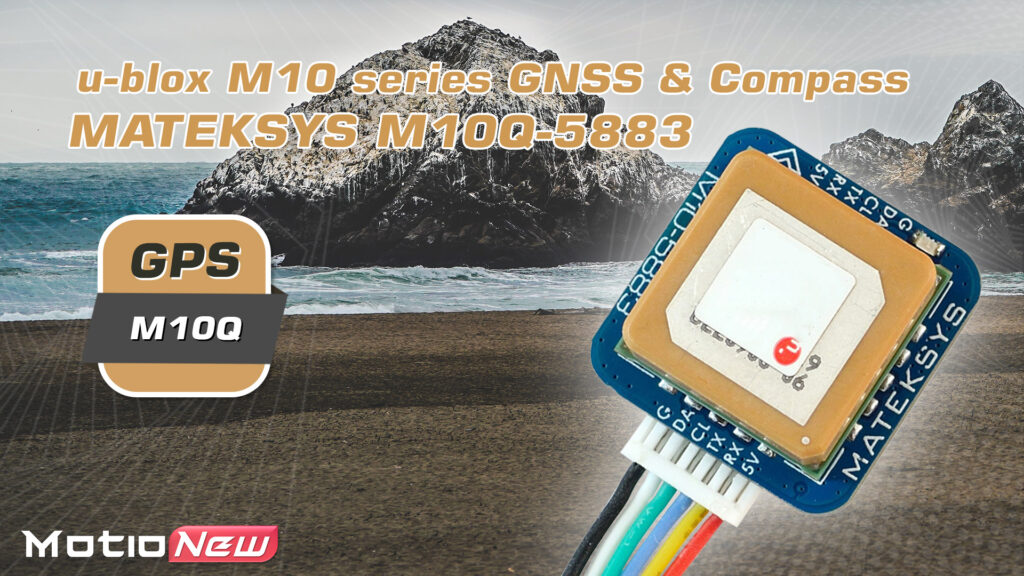

GPS M10Q-5883 is an advanced multi-constellation GNSS module powered by the renowned u-blox M10 series. This cutting-edge GNSS module is equipped with the u-blox M10 standard precision GNSS platform, delivering exceptional sensitivity and rapid acquisition time for all L1 GNSS signals.

The GNSS module supports concurrent reception of four GNSS systems, namely GPS, GLONASS, Galileo, and BeiDou. This enables the receiver to benefit from a high number of visible satellites, optimizing signal selection and maximizing position availability. This is particularly advantageous in challenging environments like deep urban canyons.

Leveraging u-blox Super-S (Super-Signal) technology, this module offers outstanding RF sensitivity. This technology significantly enhances dynamic position accuracy, especially in non-line-of-sight scenarios.

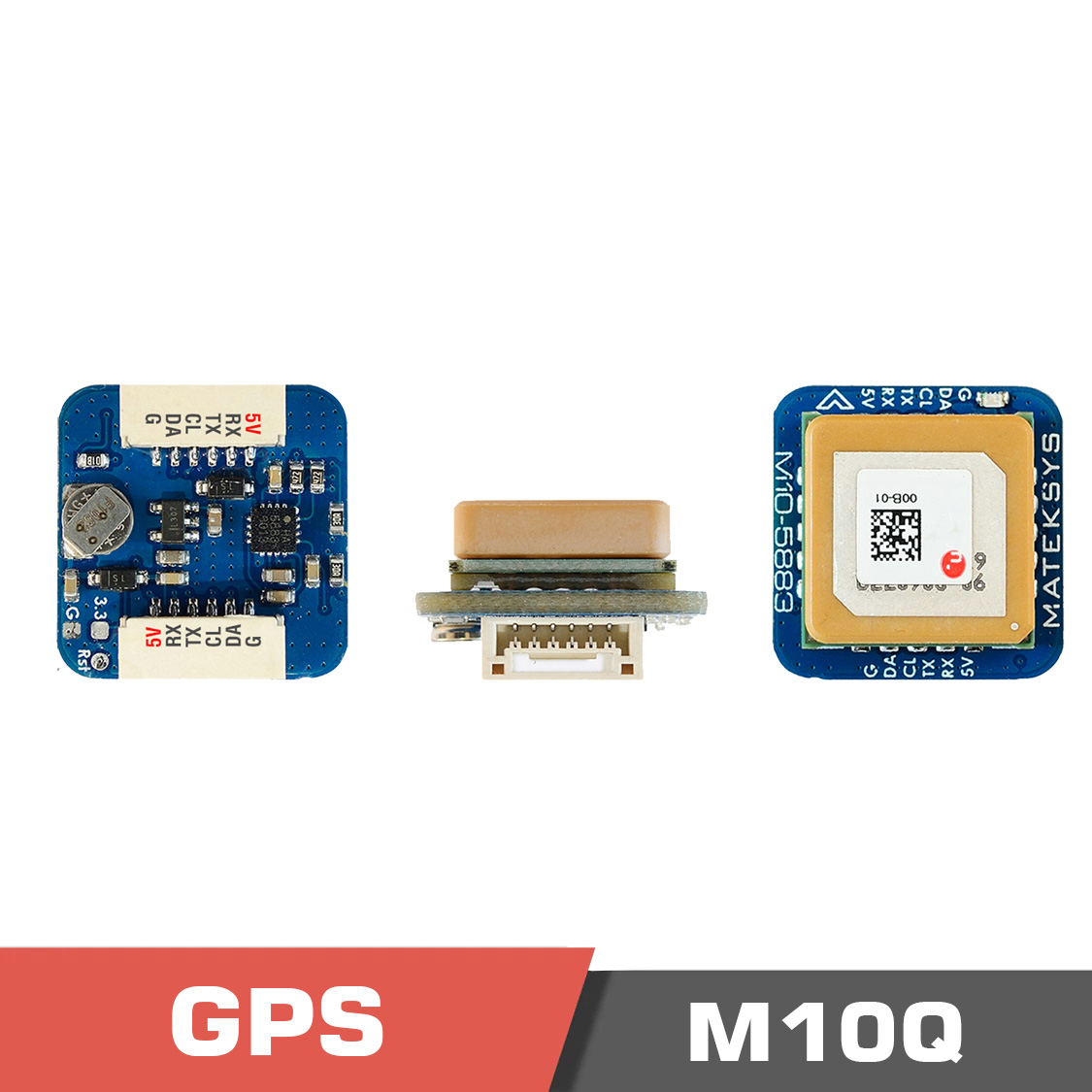

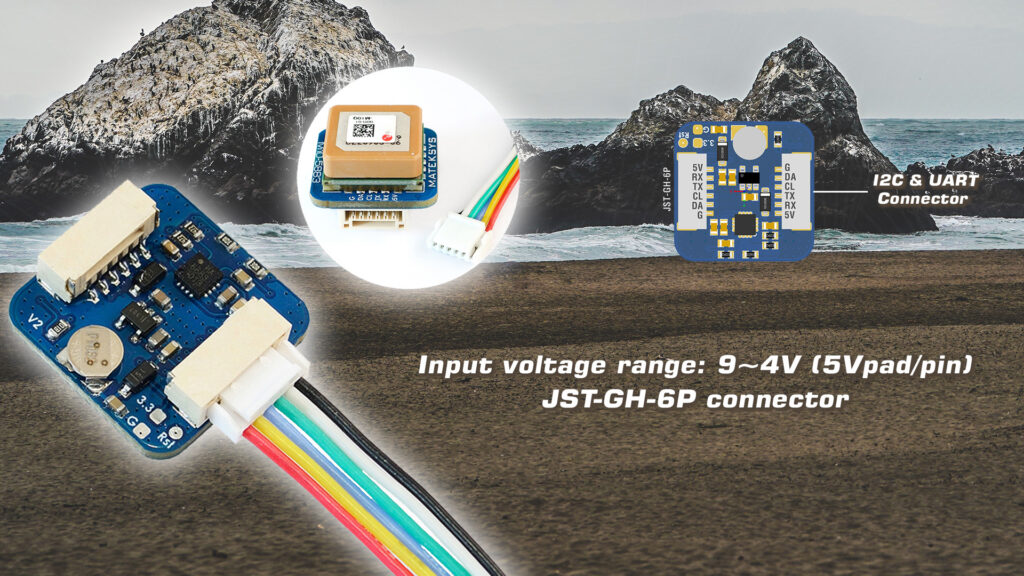

The module features a high-gain 15 x 15 mm² patch antenna, striking the perfect balance between performance and compact size. The omnidirectional radiation pattern of the antenna increases installation flexibility for devices. Equipped with a QMC5883L Magnetic Compass, this module operates on a 4~9V input voltage range, consuming only 13mA. With a default UART Baudrate of 9600, it functions seamlessly in temperatures ranging from -20~80 °C. Interfaces include UART (TX, RX) for GNSS and I2C (DA, CL) for the Compass QMC5883L.

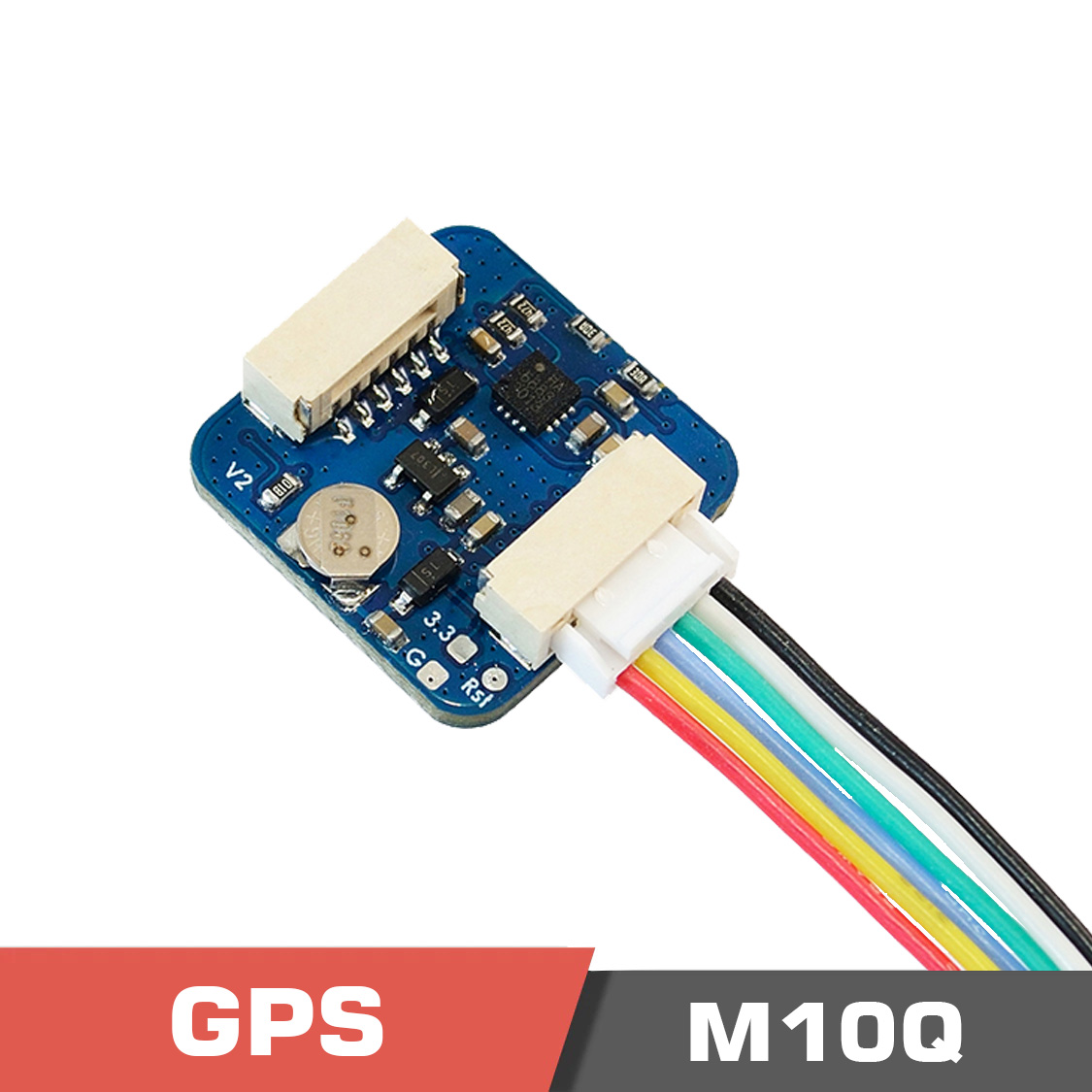

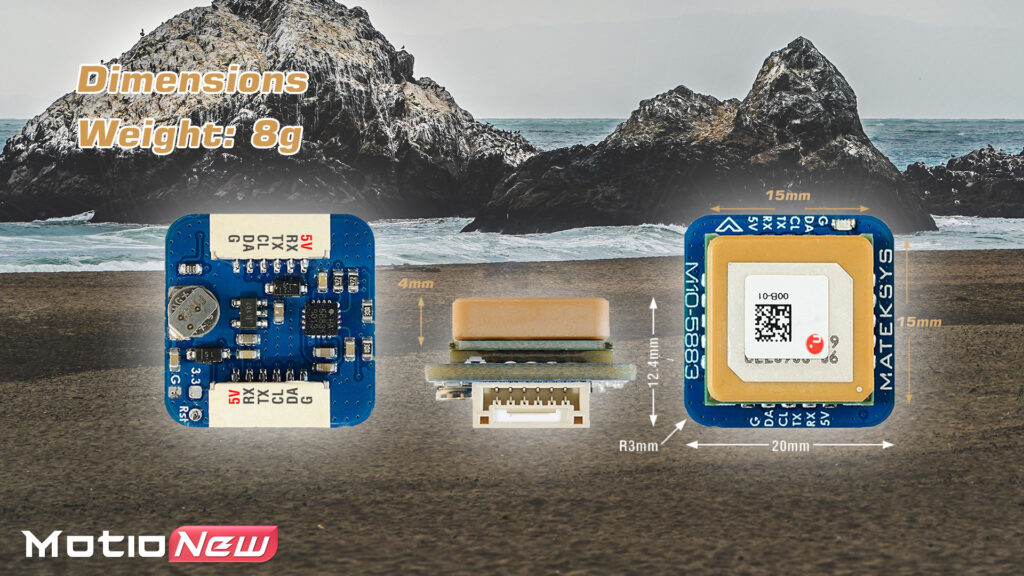

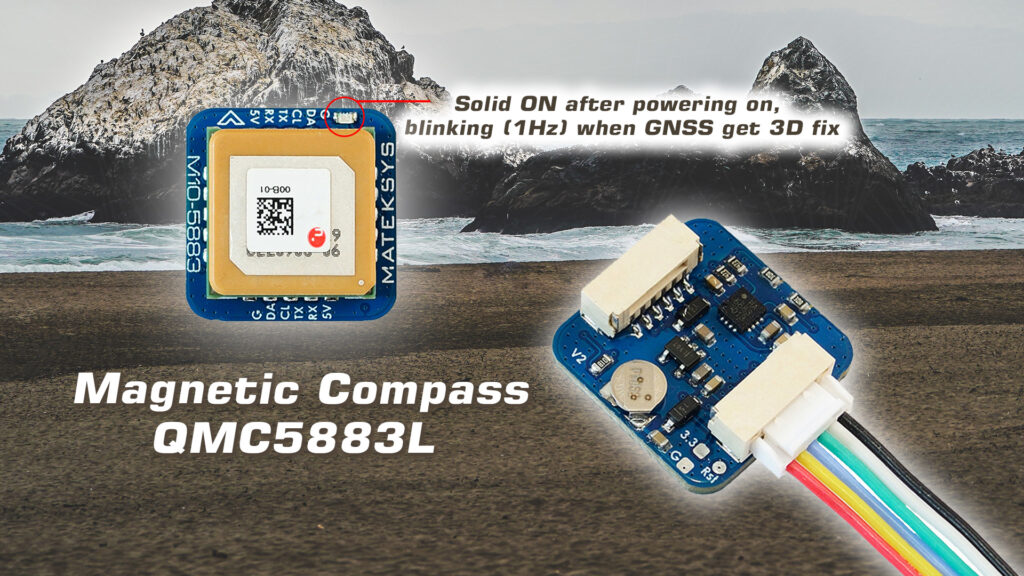

Visible with a Green LED, the GNSS PPS LED stays solid after powering on and blinks at 1Hz when the GNSS achieves a 3D fix. Supporting the UBX (u-blox) protocol at 5Hz for GPS, GAL, BDS B1C, and GLO, or NMEA 1Hz, this module measures 20mm x 20mm x 12.4mm and weighs a mere 8g.

The M10Q-5883 is a compact and powerful GNSS module designed to meet the demands of precise location tracking across diverse applications. Whether in challenging urban environments or remote areas, its advanced features ensure reliable and accurate performance.

Gps m10q-5883 M10q. 2 2 - gps m10q-5883 - motionew - 6 M10q. 3 3 - gps m10q-5883 - motionew - 7 M10q. 4 2 - gps m10q-5883 - motionew - 8

If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.

Additional information

Weight 1 kg
Dimensions 3 × 3 × 2 cm

Specifications

Input voltage range 4~9V (5V pad/pin)
Power consumption 13mA
UART baudrate 9600 default
Operating Temperatures -20~80 °C
Dimension 20x20x12.4mm
weight 8g
GNSS u-blox M10 series GPS, GLONASS, Galileo and BeiDou
Magnetic Compass QMC5883L
Patch antenna size 15x15x4mm
interface
  • UART(TX, RX) interface for GNSS
  • I2C(DA, CL) interface for Compass QMC5883L
  • JST-GH-6P connector (SM06B-GHS-TB). 1.27mm pitch
