CommuniNet MND-142 long range 2W TDD wireless transmission system

4999.00 $

Description

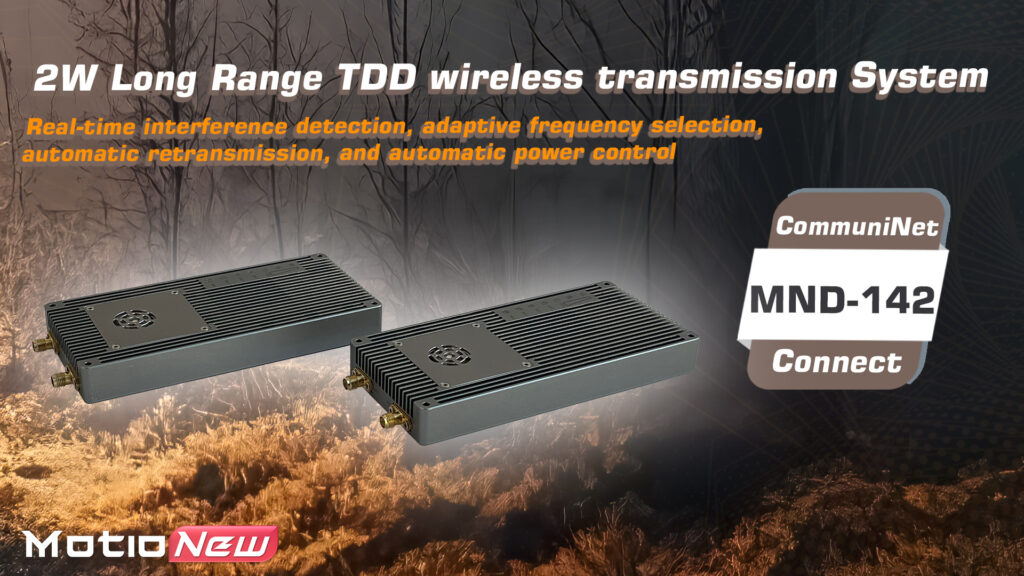

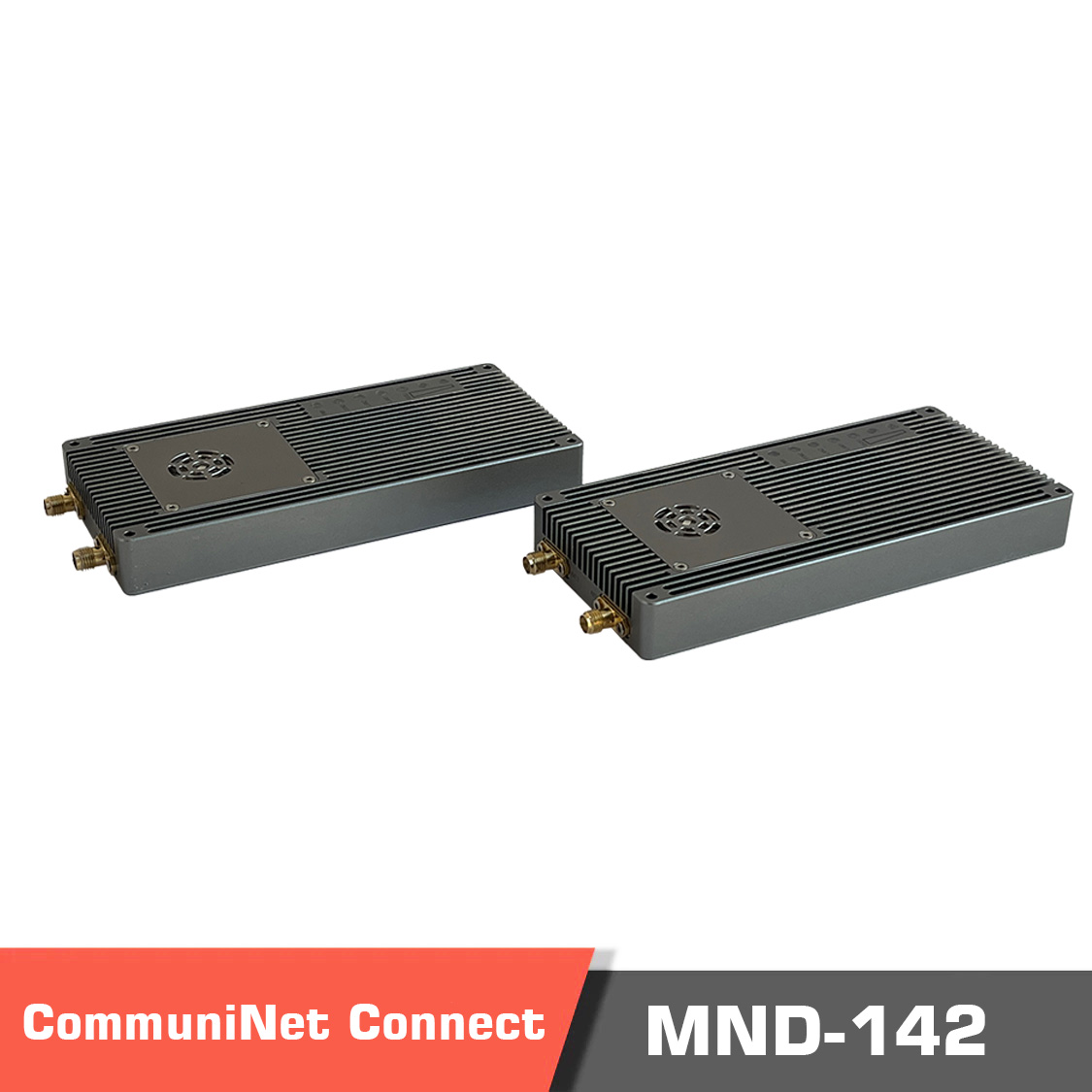

CommuniNet MND-142 long range 2W TDD wireless transmission system


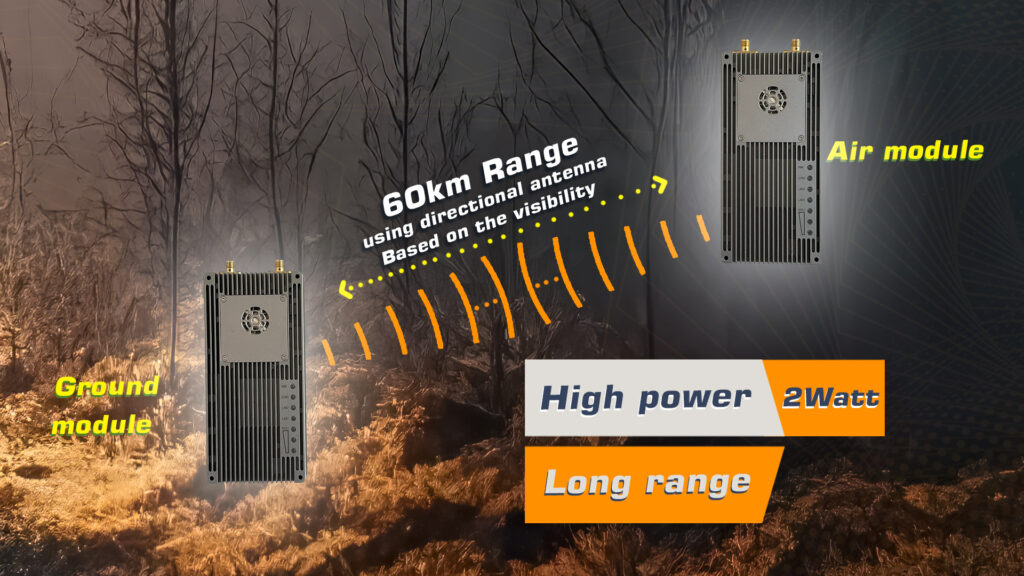

CommuniNet MND-142 is the 2W model from the CommuniNet series datalink and videolink modules (please take a look at CommuniNet 5W MND-145 and CommuniNet 8W MND-148 if you are interested). It is a long-range TDD wireless transmission equipment. The product has the functions of real-time interference detection, adaptive frequency selection, adaptive stream, and automatic retransmission, automatic power control, which greatly improves the ability of anti-multipath and anti-interference. It has the characteristics of high reliability, good stability, and low delay. This product is suitable for firefighting, inspection, monitoring, and other scenarios. In the case of good air-to-ground visibility, the transmission distance is up to 30 km with omnidirectional antenna, and it can reach to more than 60km using a patch antenna (directional antenna).

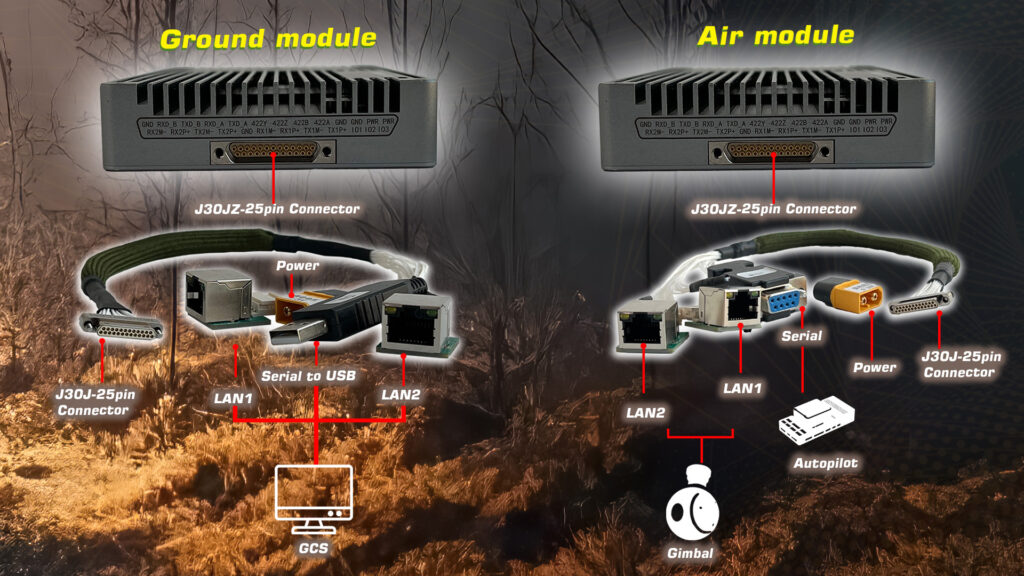

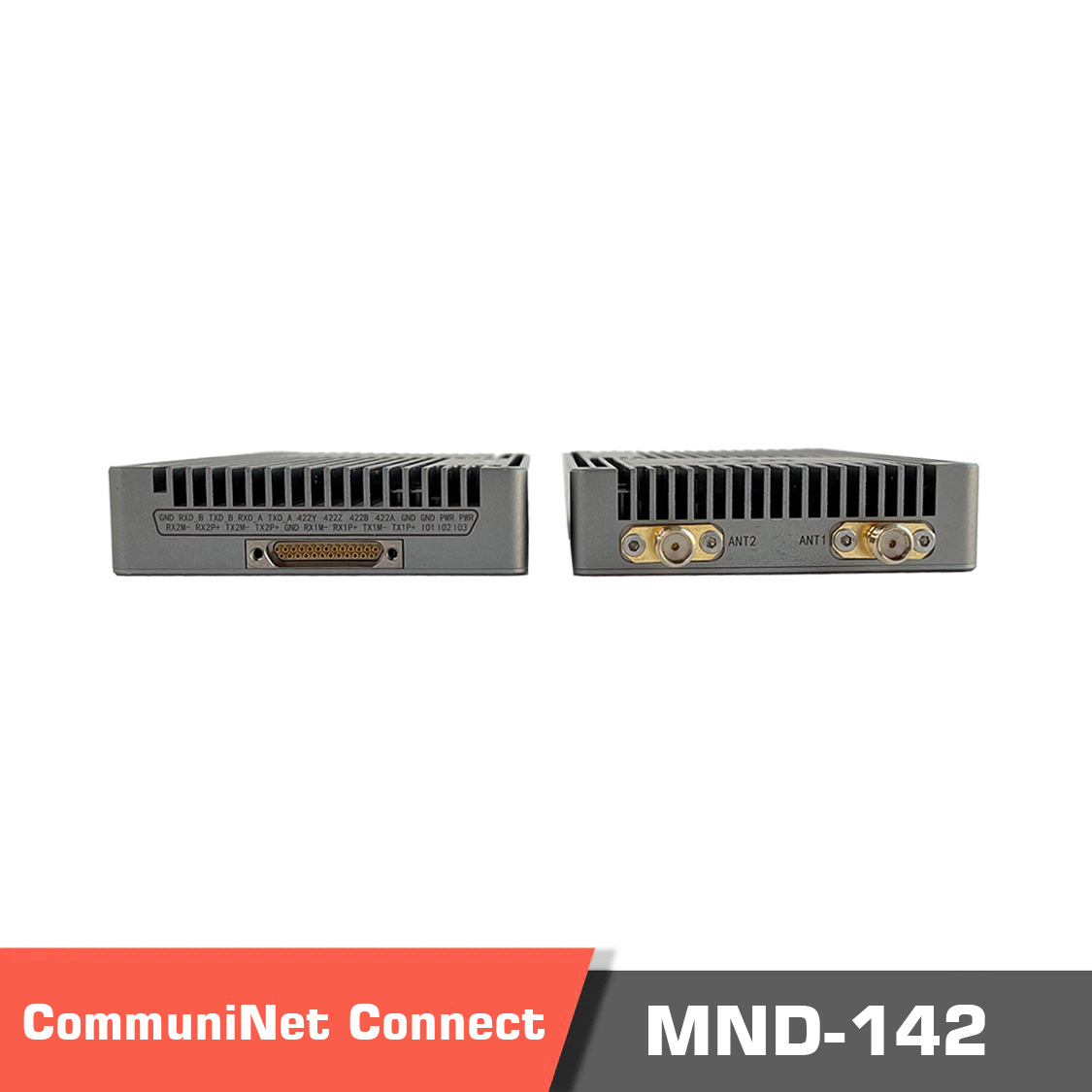

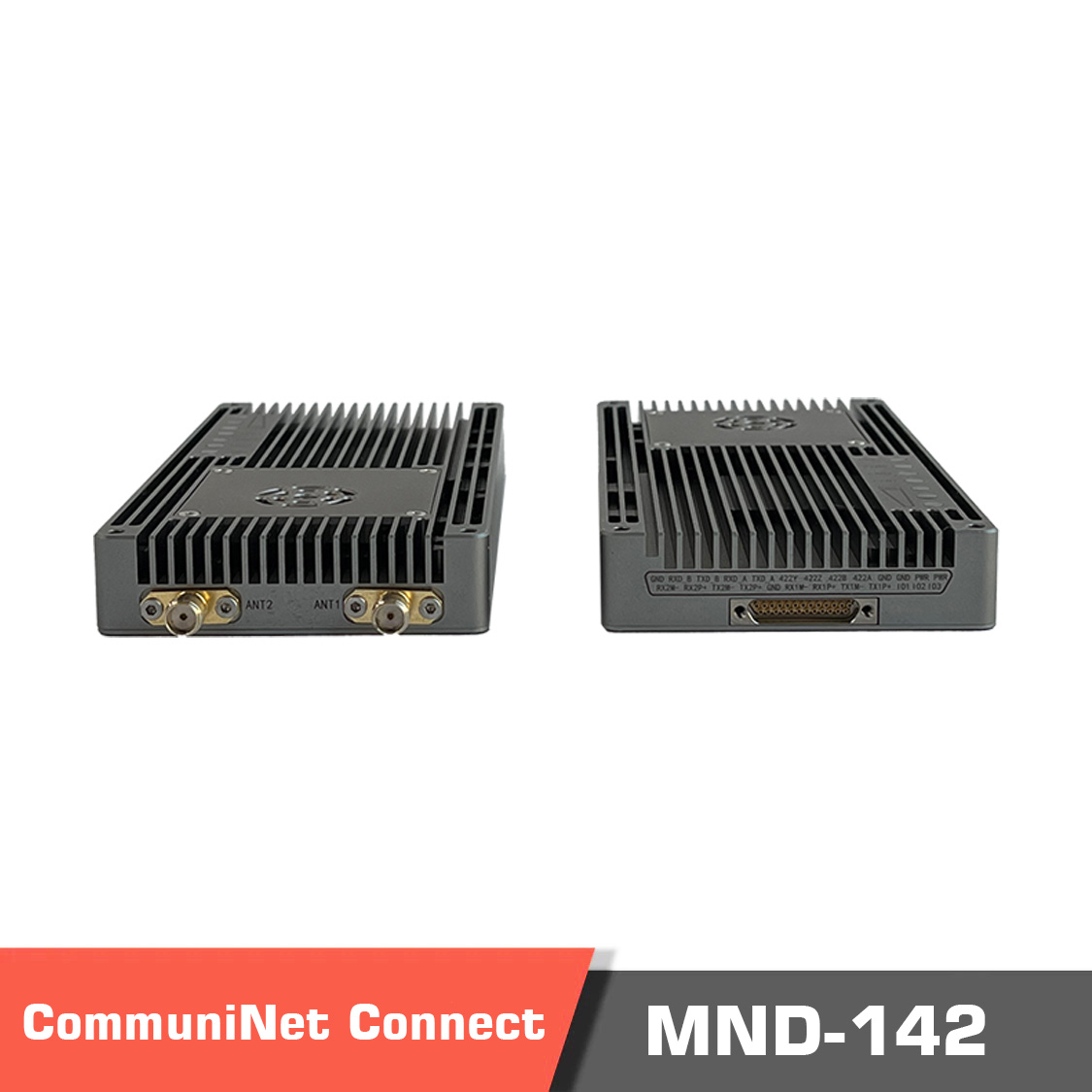

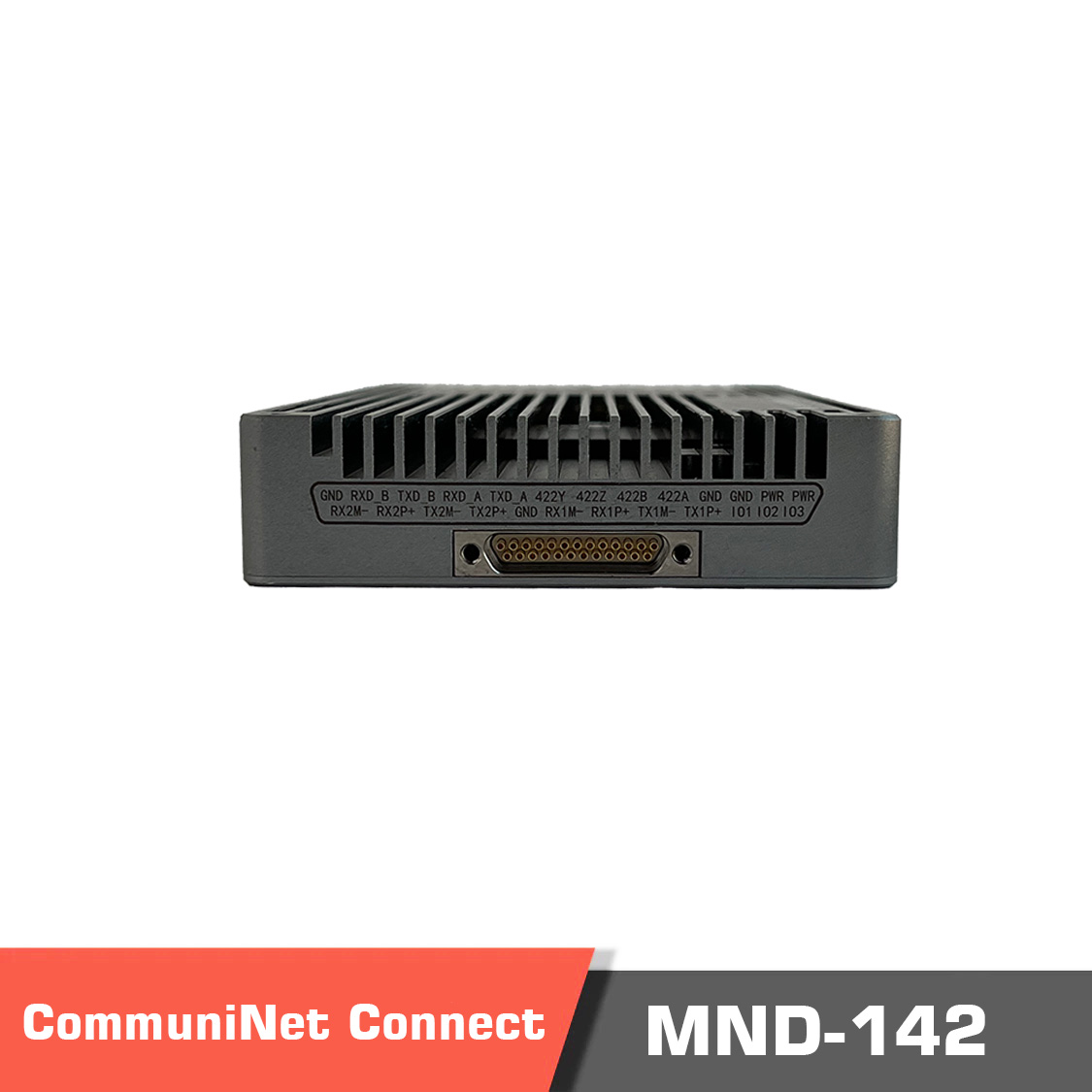

The device adopts a J30JZ-25pin aviation connector, and the product interface has a total of 1 power supply, 2 ethernet ports, and 3 serial ports. The serial ports are divided into 1 RS-422 and 2 RS232/TTL.

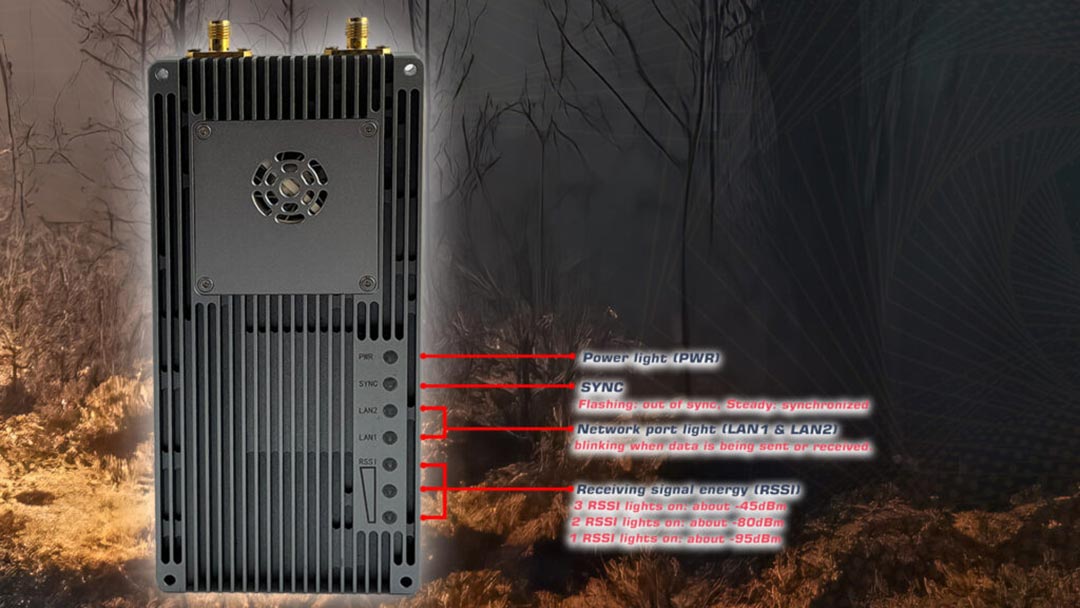

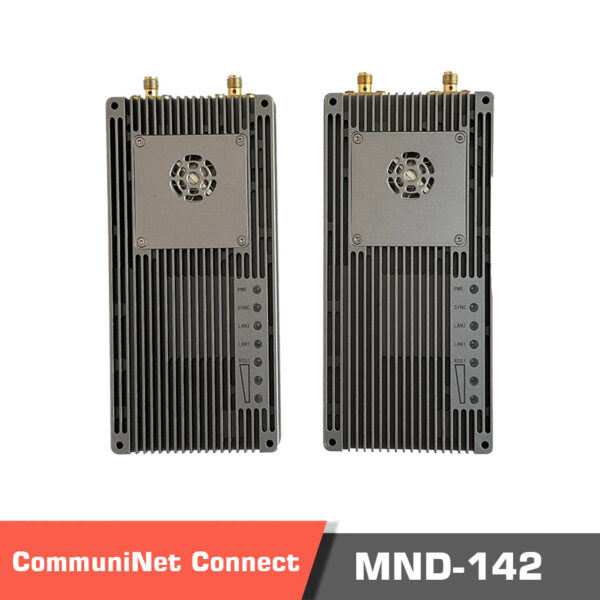

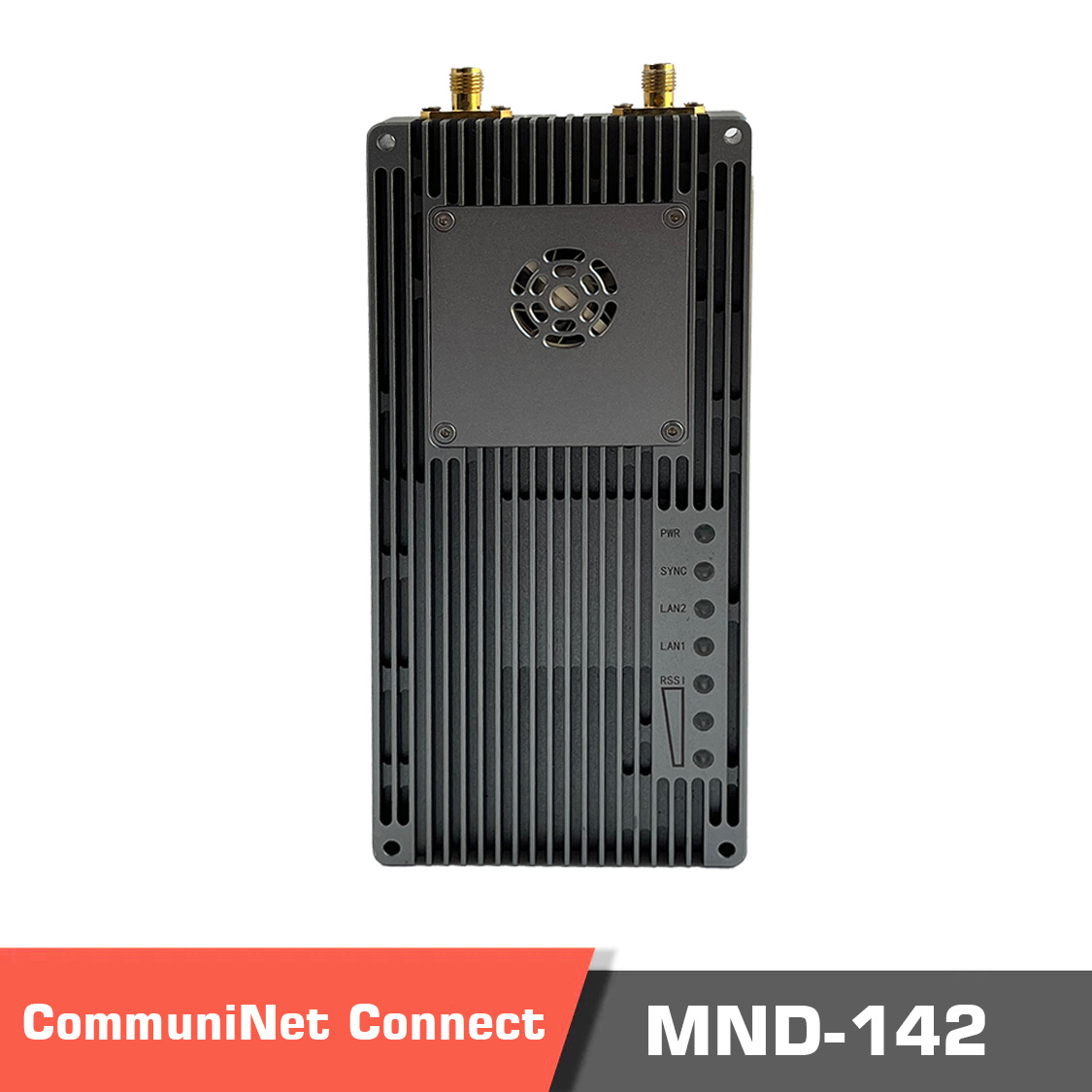

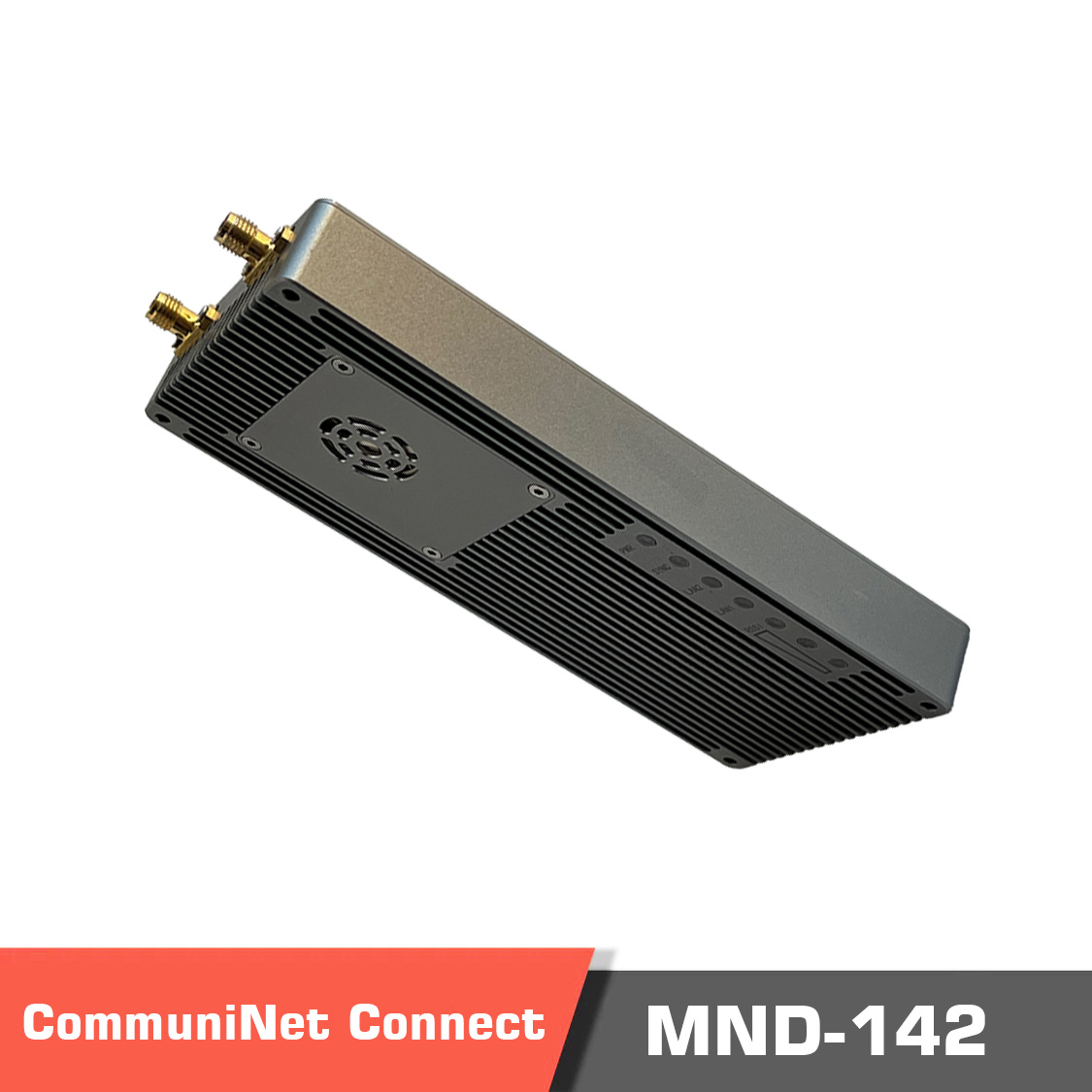

There are multiple LED light indicators on the device. Power light PWR (green) which is turned on when the device is powered on. SYNC(green) will flash if the air and ground modules are in an out-of-sync state, and it will be steady on after synchronization. There are two indicators for network ports LAN1 and LAN2 which start blinking in case of data transmission between the module and an external accessory. The 3 green lights for the RSSI show the received signal strength. Based on the number of lights that are on, the RSSI can be -45dBm, -80dBm, or -95dBm. The greater the number of energy lights, the greater the signal reception strength.

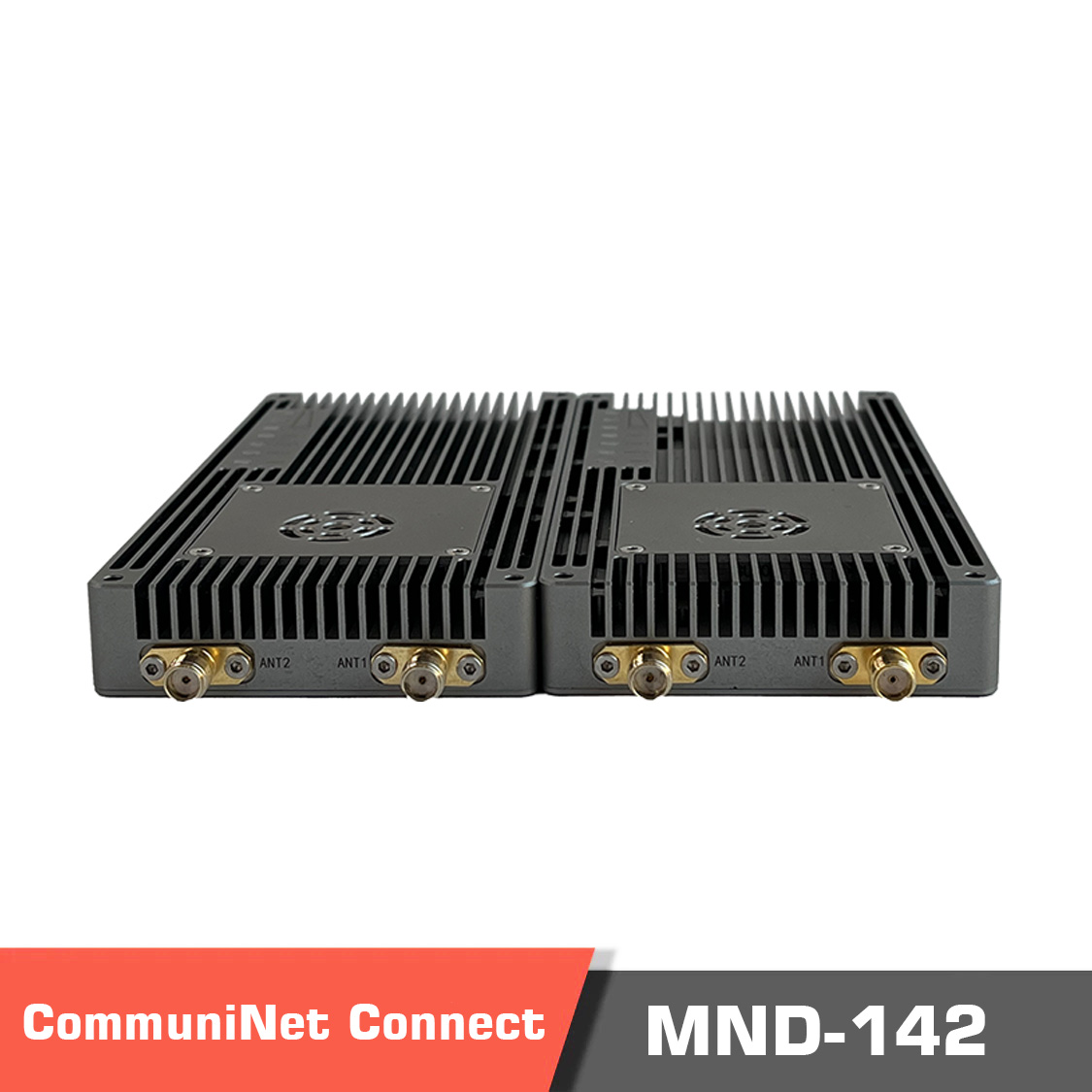

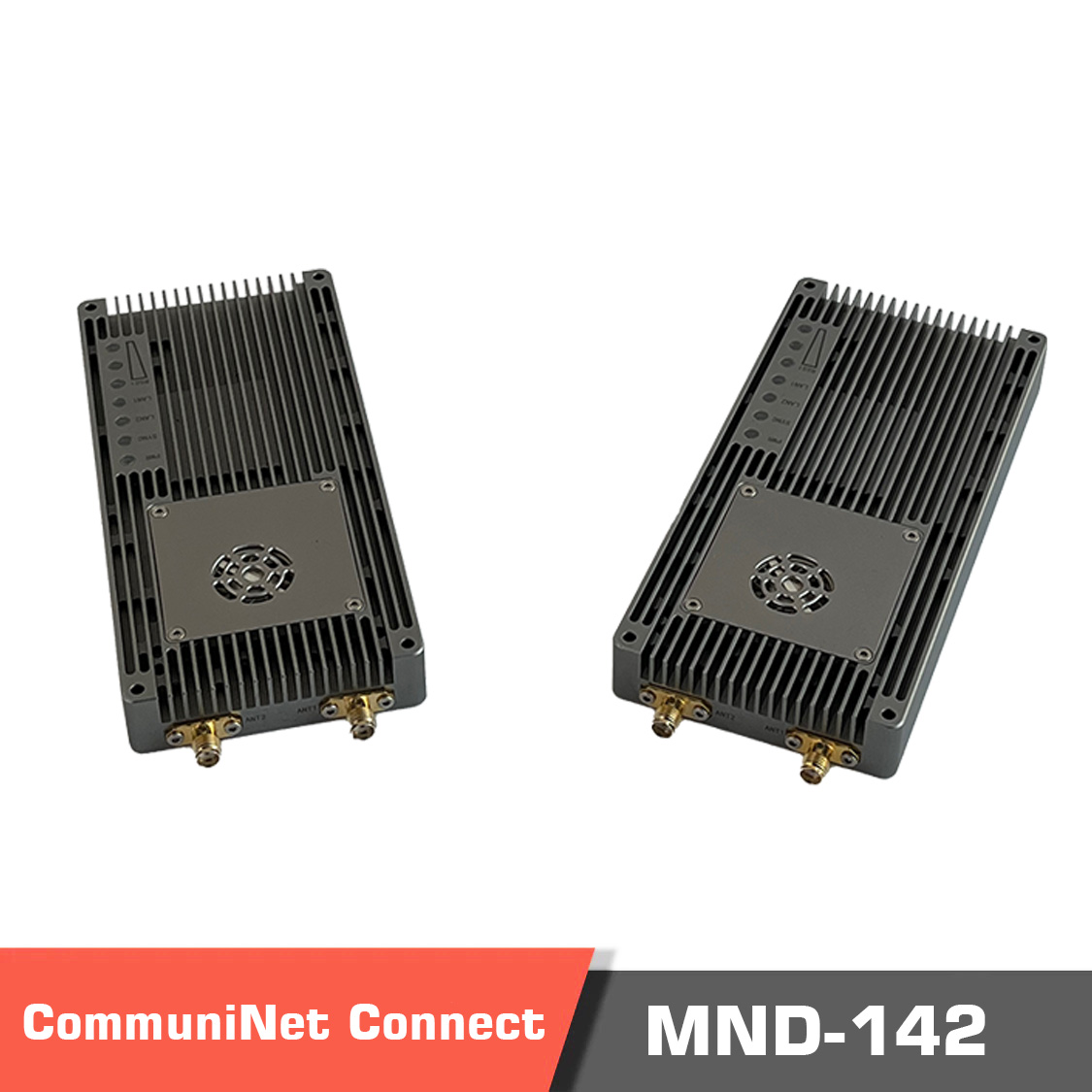

When the master and slave devices are not synchronized, the PWR indicator of the master and slave devices is steady on, the SYNC indicator is blinking, and the RSSI indicator of the master device is off. The RSSI of the slave device will always be in the search state. After the master/slave synchronization, the SYNC indicator of the master/slave is steady on. The master-slave RSSI lamp displays the received signal energy intensity. When the network port is sending or receiving data, the master and slave devices correspond to LAN1, and LAN2 indicator blinks.

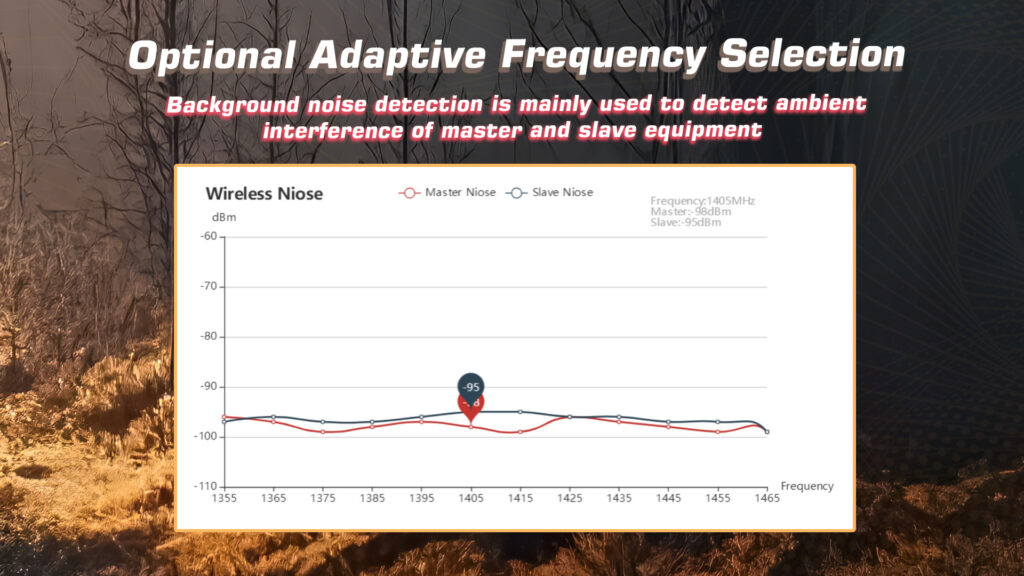

Background noise detection is mainly used to detect ambient interference of master and slave equipment. The red line represents the bottom noise at the primary end and the blue line represents the bottom noise at the secondary end. The lower the absolute value, the cleaner the floor noise, that is, the smaller the interference source. For example, -100dBm is better than -90dBm. Background noise detection can help users quickly eliminate interference sources around the device after power-on, when the absolute value is large, such as -70dBm. At this time, on behalf of serious interference around the equipment, you can pull the far antenna position or away from the electromagnetic wave equipment on the side of the equipment to see whether the bottom noise has become better.



Communinet connect mnd 142. 1 - communinet mnd-142, transmission system, dual-link transmission system, remote control, data transmission, short distance, 1400mhz frequency band, industrial grade, nlos data transmission, for uav and robot, multi indicators, telemetry, dual link transmission system, data link, radio rc, 2w transmission power, 33dbm transmission power, 2w datalink, 33dbm datalink - motionew - 16 Communinet connect mnd 142. 2 - communinet mnd-142, transmission system, dual-link transmission system, remote control, data transmission, short distance, 1400mhz frequency band, industrial grade, nlos data transmission, for uav and robot, multi indicators, telemetry, dual link transmission system, data link, radio rc, 2w transmission power, 33dbm transmission power, 2w datalink, 33dbm datalink - motionew - 17 Communinet connect mnd 142. 3 - communinet mnd-142, transmission system, dual-link transmission system, remote control, data transmission, short distance, 1400mhz frequency band, industrial grade, nlos data transmission, for uav and robot, multi indicators, telemetry, dual link transmission system, data link, radio rc, 2w transmission power, 33dbm transmission power, 2w datalink, 33dbm datalink - motionew - 18Communinet connect mnd 142. 4 - communinet mnd-142, transmission system, dual-link transmission system, remote control, data transmission, short distance, 1400mhz frequency band, industrial grade, nlos data transmission, for uav and robot, multi indicators, telemetry, dual link transmission system, data link, radio rc, 2w transmission power, 33dbm transmission power, 2w datalink, 33dbm datalink - motionew - 19Communinet connect mnd 142. 5 - communinet mnd-142, transmission system, dual-link transmission system, remote control, data transmission, short distance, 1400mhz frequency band, industrial grade, nlos data transmission, for uav and robot, multi indicators, telemetry, dual link transmission system, data link, radio rc, 2w transmission power, 33dbm transmission power, 2w datalink, 33dbm datalink - motionew - 20 Communinet connect mnd 142. 6 - communinet mnd-142, transmission system, dual-link transmission system, remote control, data transmission, short distance, 1400mhz frequency band, industrial grade, nlos data transmission, for uav and robot, multi indicators, telemetry, dual link transmission system, data link, radio rc, 2w transmission power, 33dbm transmission power, 2w datalink, 33dbm datalink - motionew - 21 Communinet connect mnd 142. 7 - communinet mnd-142, transmission system, dual-link transmission system, remote control, data transmission, short distance, 1400mhz frequency band, industrial grade, nlos data transmission, for uav and robot, multi indicators, telemetry, dual link transmission system, data link, radio rc, 2w transmission power, 33dbm transmission power, 2w datalink, 33dbm datalink - motionew - 22 Communinet connect mnd 142. 8 - communinet mnd-142, transmission system, dual-link transmission system, remote control, data transmission, short distance, 1400mhz frequency band, industrial grade, nlos data transmission, for uav and robot, multi indicators, telemetry, dual link transmission system, data link, radio rc, 2w transmission power, 33dbm transmission power, 2w datalink, 33dbm datalink - motionew - 23 Communinet connect mnd 142. 9 - communinet mnd-142, transmission system, dual-link transmission system, remote control, data transmission, short distance, 1400mhz frequency band, industrial grade, nlos data transmission, for uav and robot, multi indicators, telemetry, dual link transmission system, data link, radio rc, 2w transmission power, 33dbm transmission power, 2w datalink, 33dbm datalink - motionew - 24 Communinet connect mnd 142. 10 - communinet mnd-142, transmission system, dual-link transmission system, remote control, data transmission, short distance, 1400mhz frequency band, industrial grade, nlos data transmission, for uav and robot, multi indicators, telemetry, dual link transmission system, data link, radio rc, 2w transmission power, 33dbm transmission power, 2w datalink, 33dbm datalink - motionew - 25



Additional information

Weight 1 kg
Dimensions 15 × 7 × 4 cm

Specifications

Working frequency 1350~1470MHz
Transmission power 33dBm (2W)
Transmission distance Air-to-ground:

30km+ using omnidirectional antenna(visibility)

60km+ using directional antenna (visibility)

Channel bandwidth 10MHz
Modulation mode QPSK/16QAM
Speed up to 17Mbps@16QAM3/4
Communication encryption AES256
Transmission delay 10ms

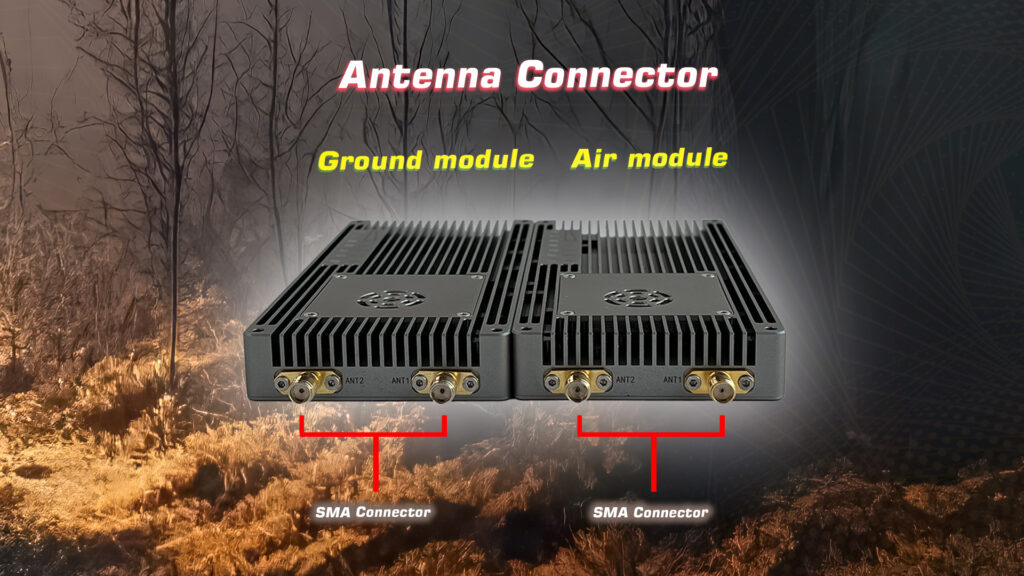

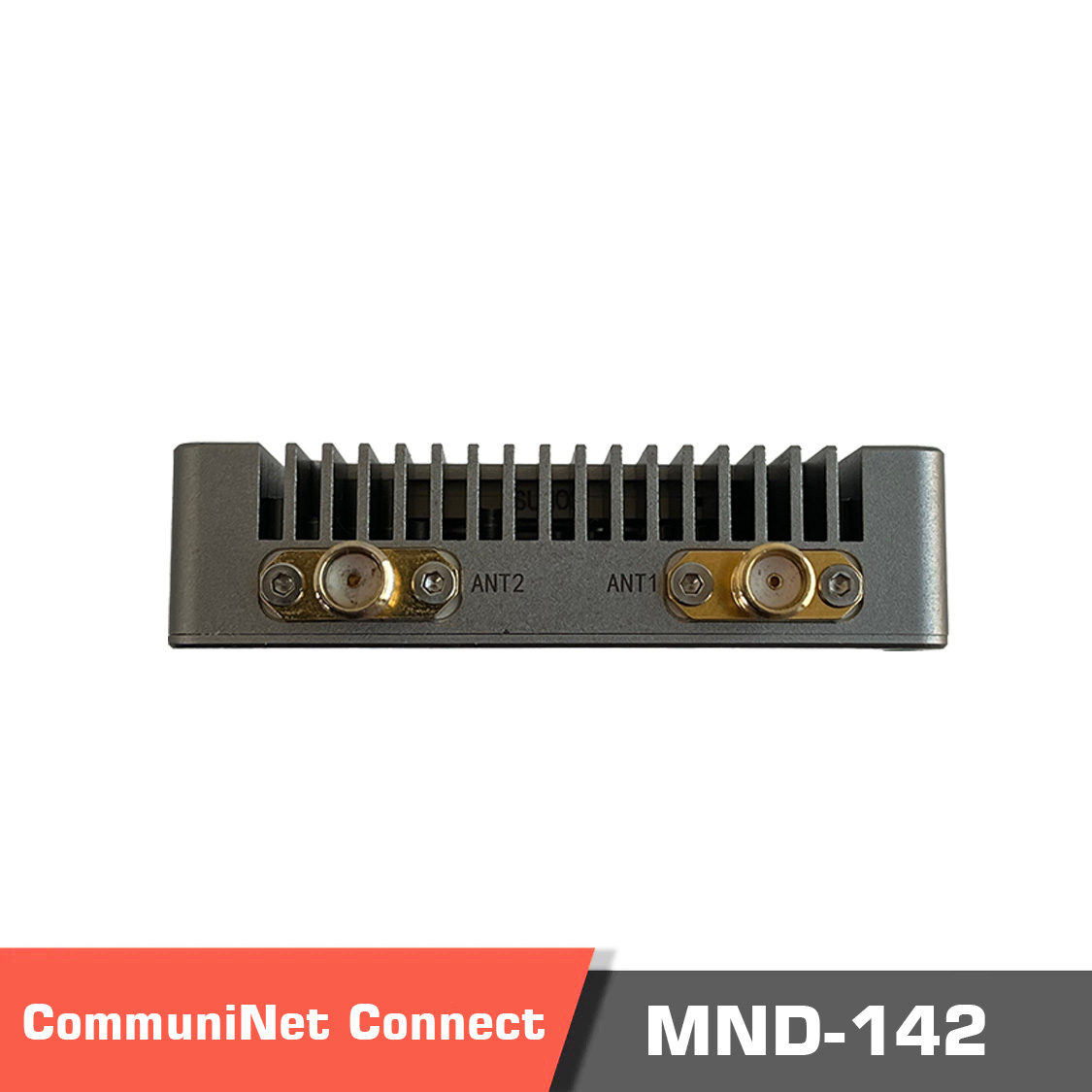

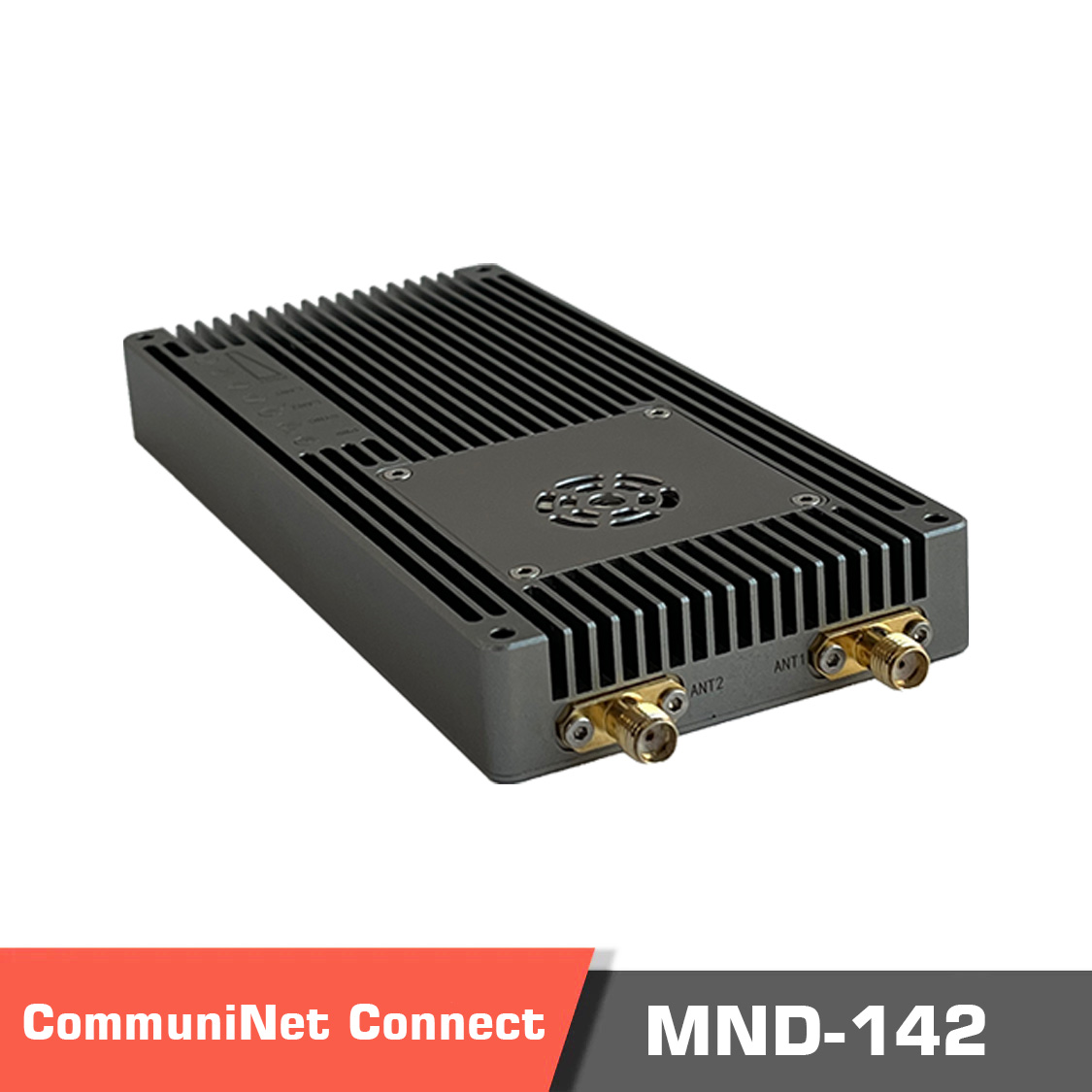

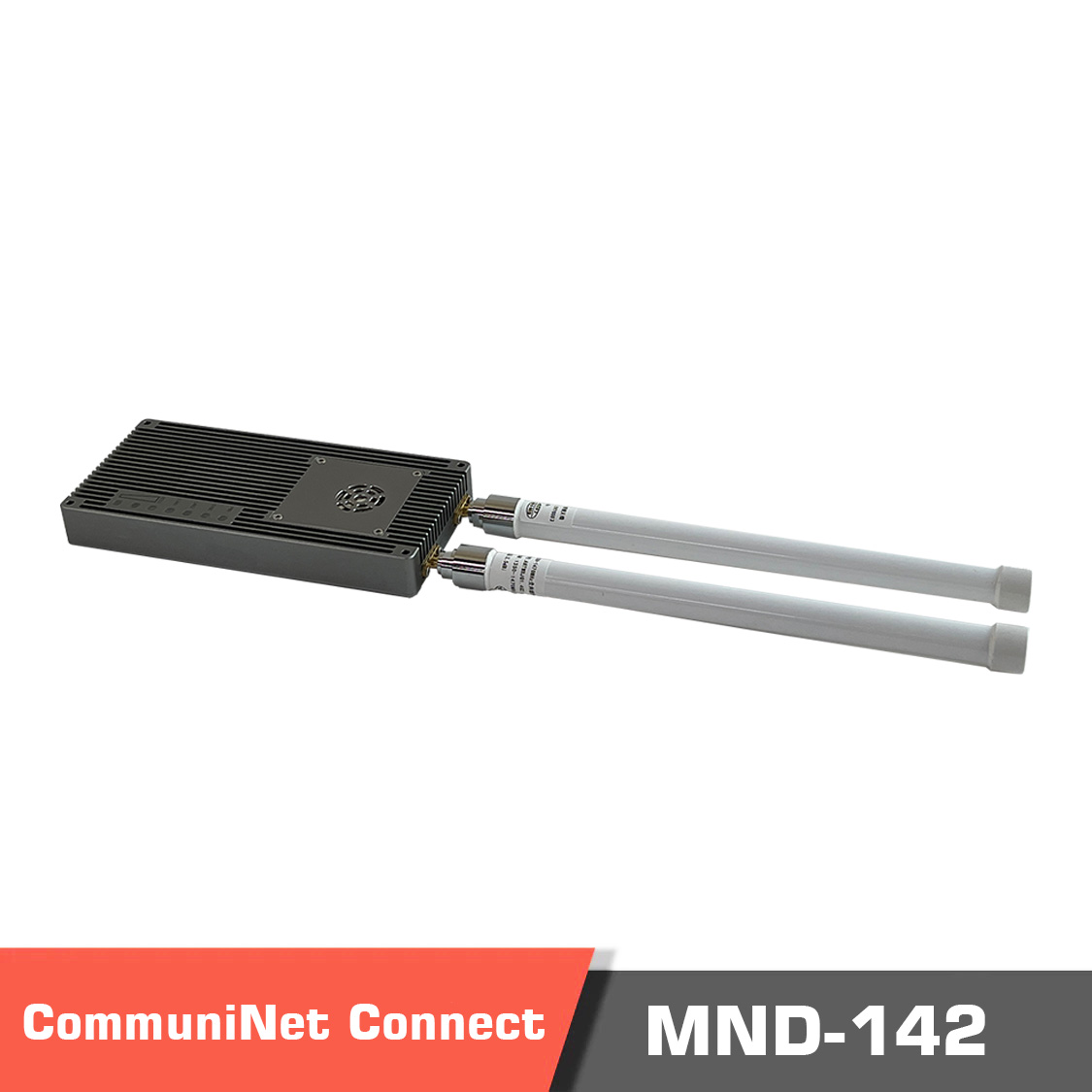

Antenna interface 2x SMA
Interface 2x Network Port, 2x TTL/RS232, SBUS
Overall power consumption Air Unit ≤ 24W, Ground Unit≤ 10W
Dimension (L*W*H) 148 x 65 x 17mm
Weight 214g
Working voltage DC 9~26V,Typical value: +12V
Working temperature -40℃~+75℃

Documents

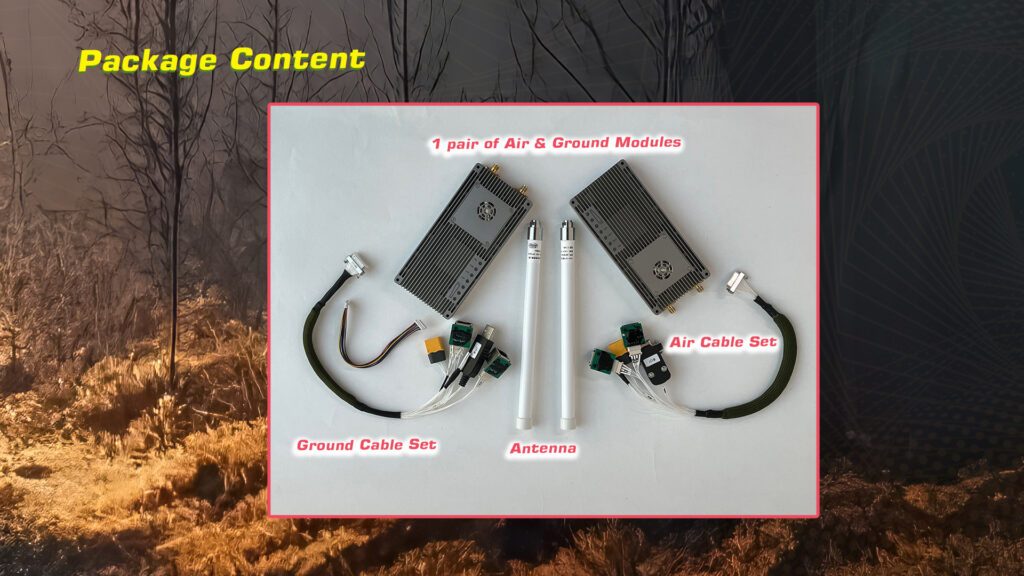

Product contents

Communinet connect mnd 142. 9 - communinet mnd-142, transmission system, dual-link transmission system, remote control, data transmission, short distance, 1400mhz frequency band, industrial grade, nlos data transmission, for uav and robot, multi indicators, telemetry, dual link transmission system, data link, radio rc, 2w transmission power, 33dbm transmission power, 2w datalink, 33dbm datalink - motionew - 26
