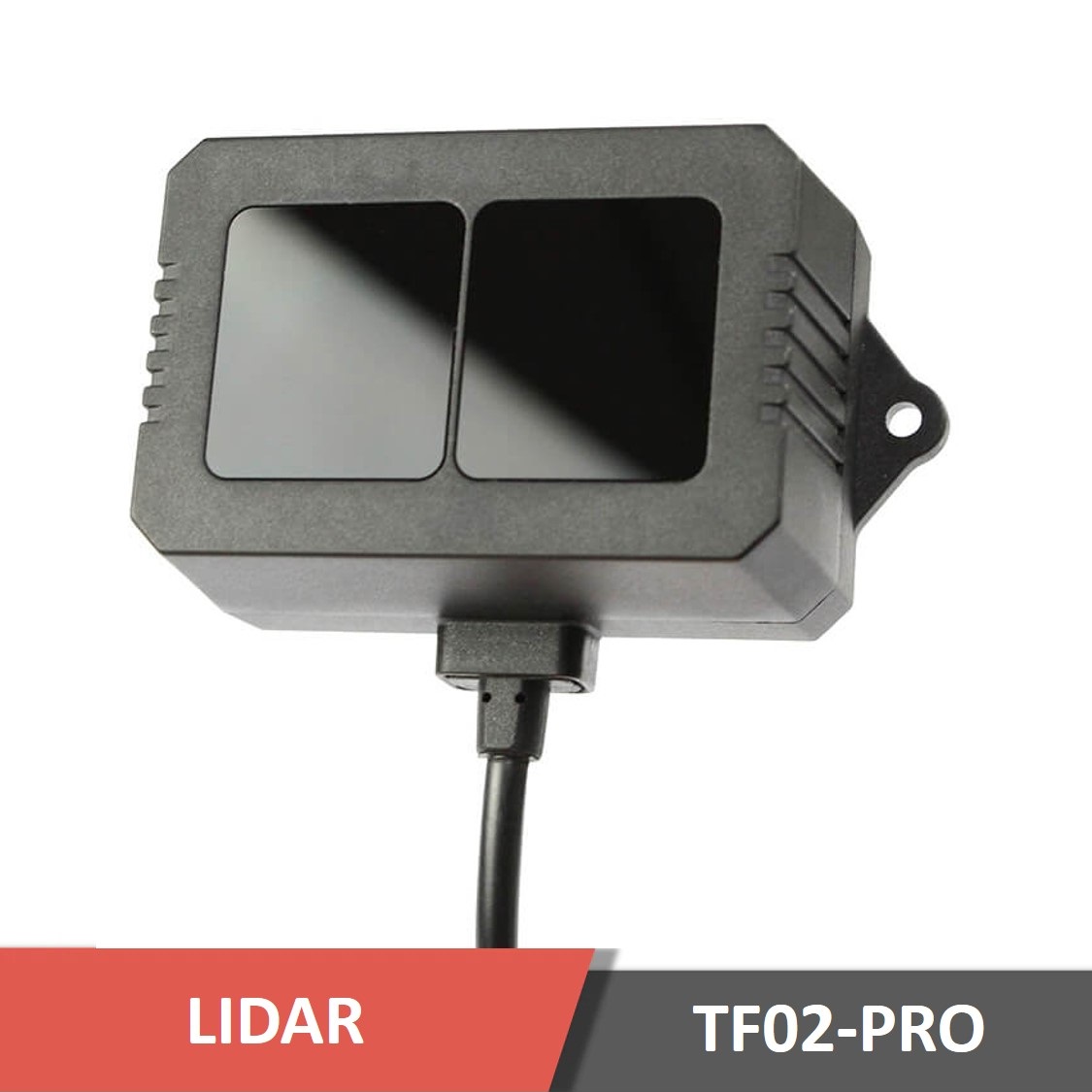

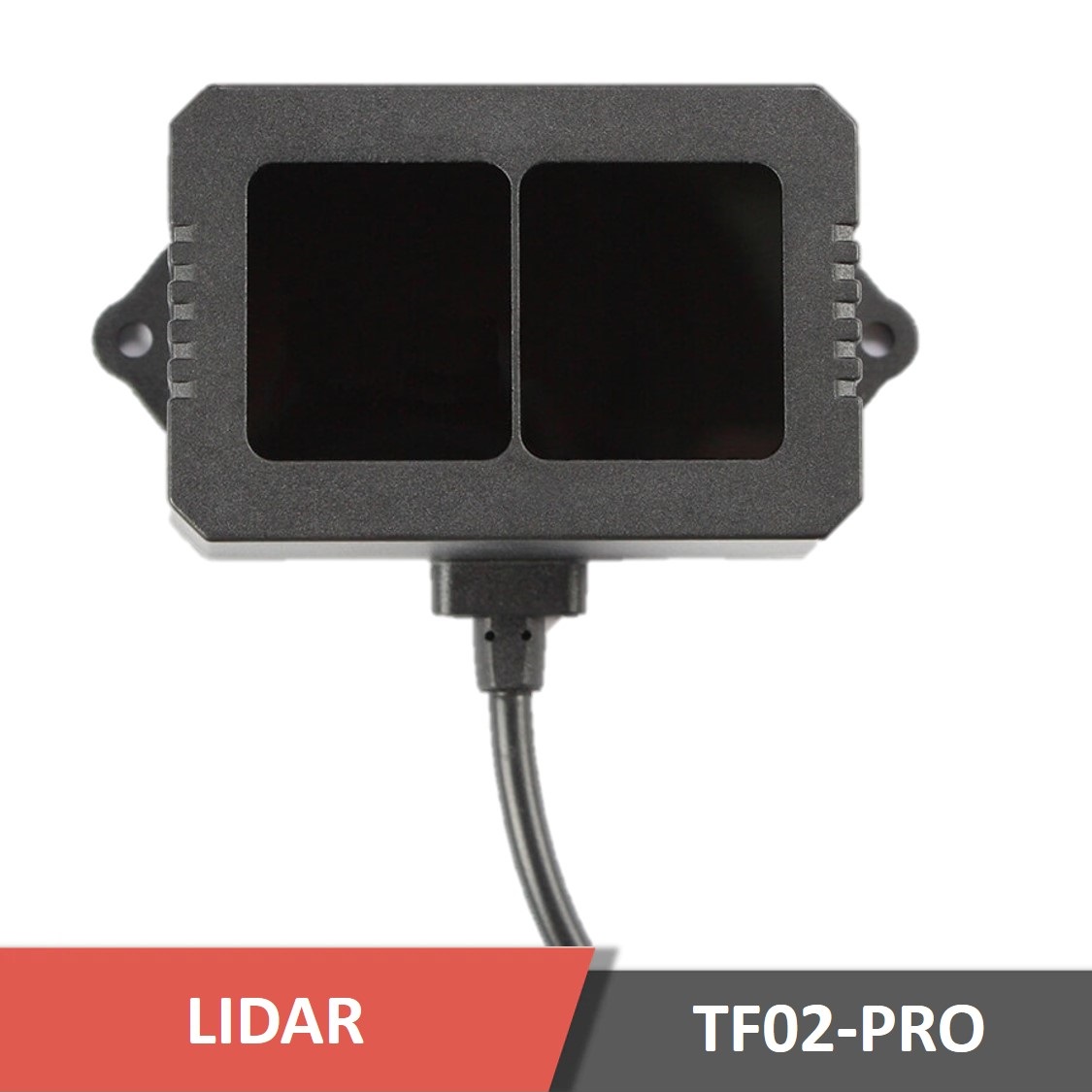

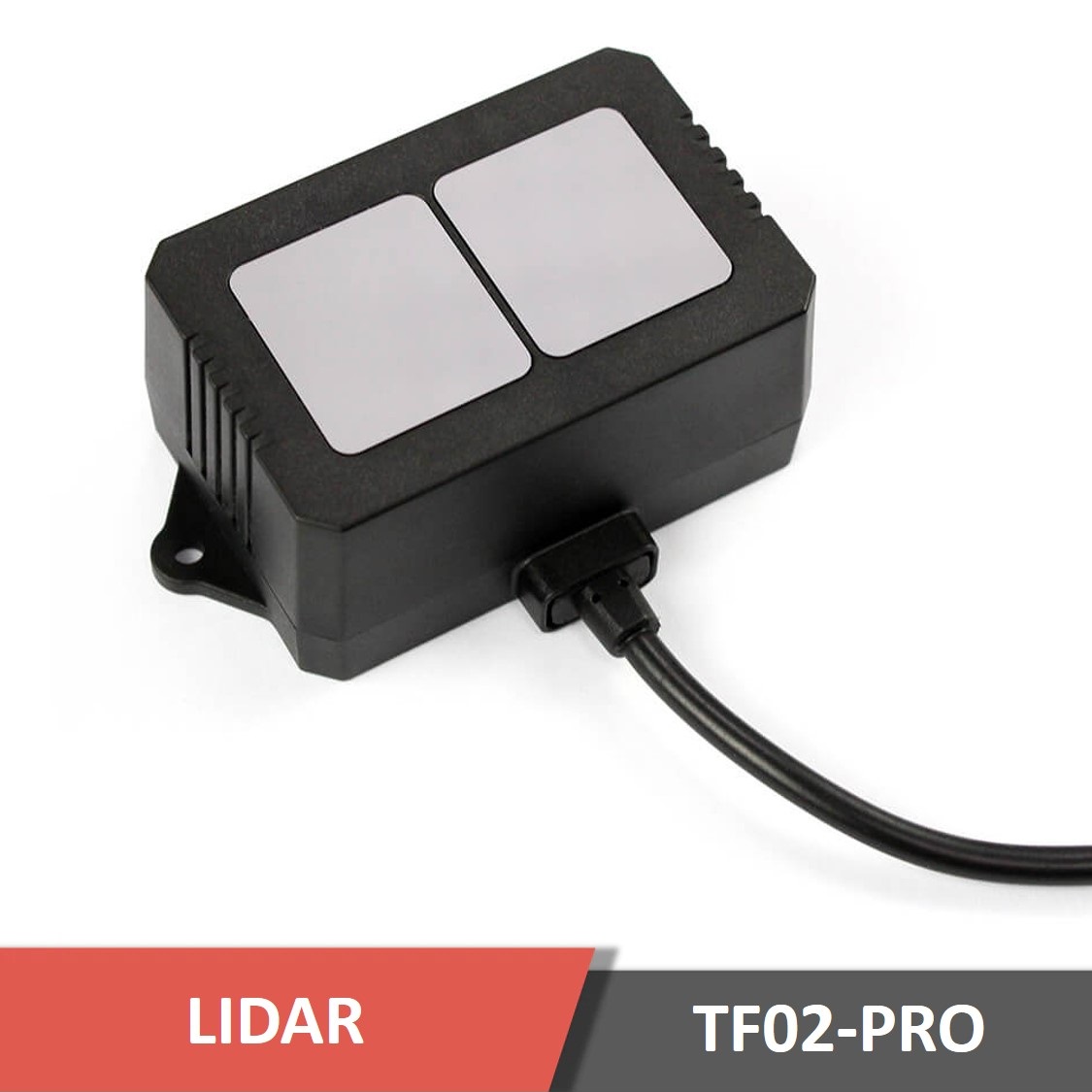

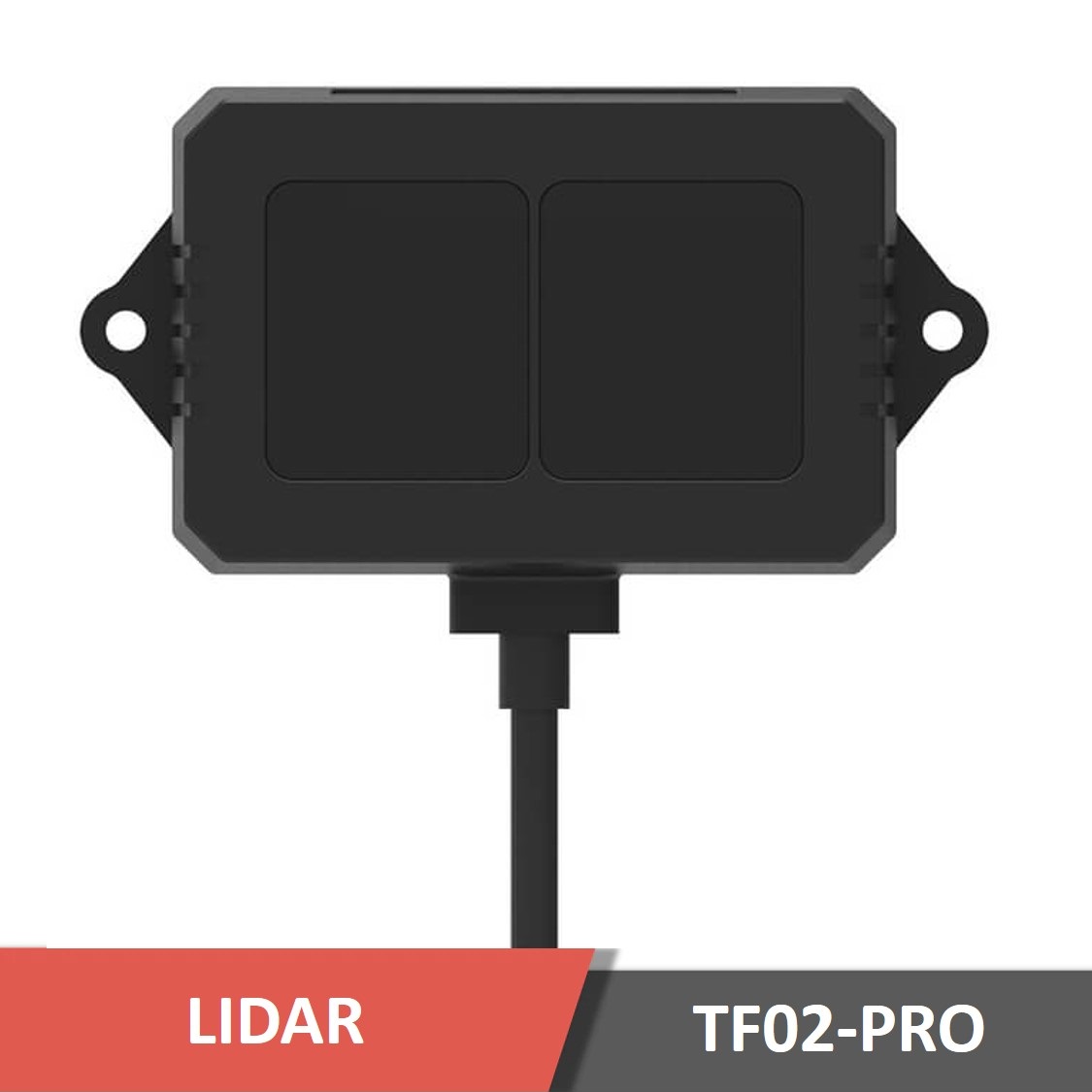

TF02-Pro LIDAR Sensor

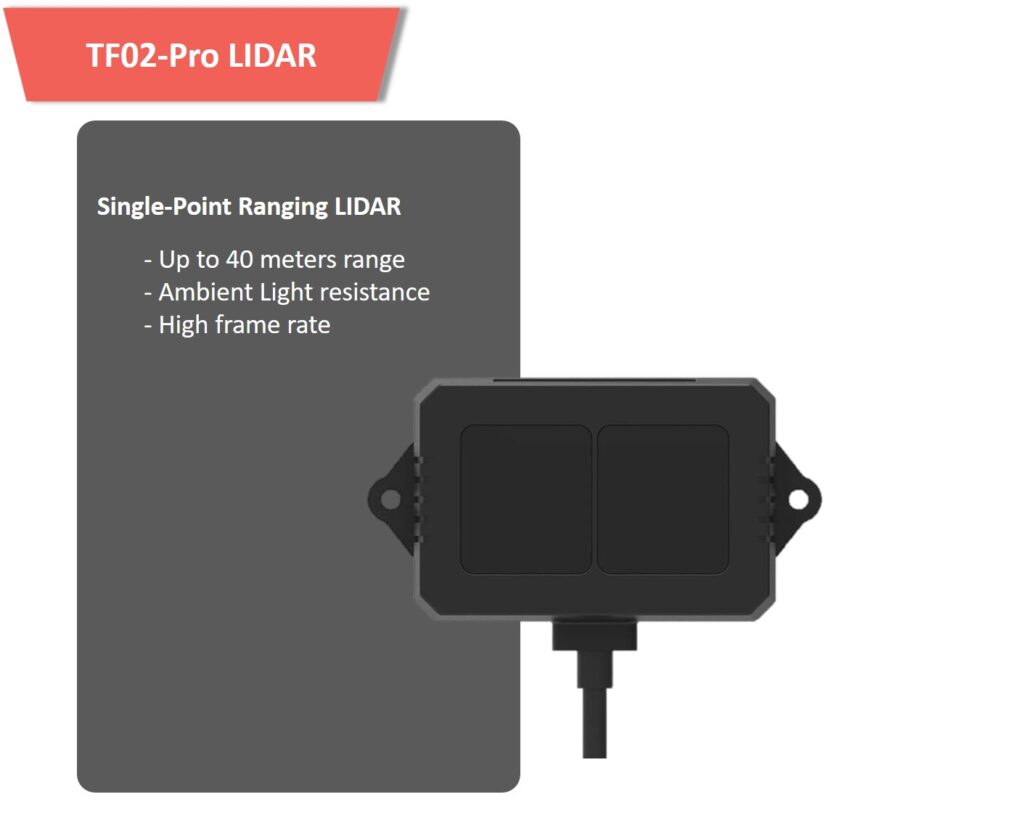

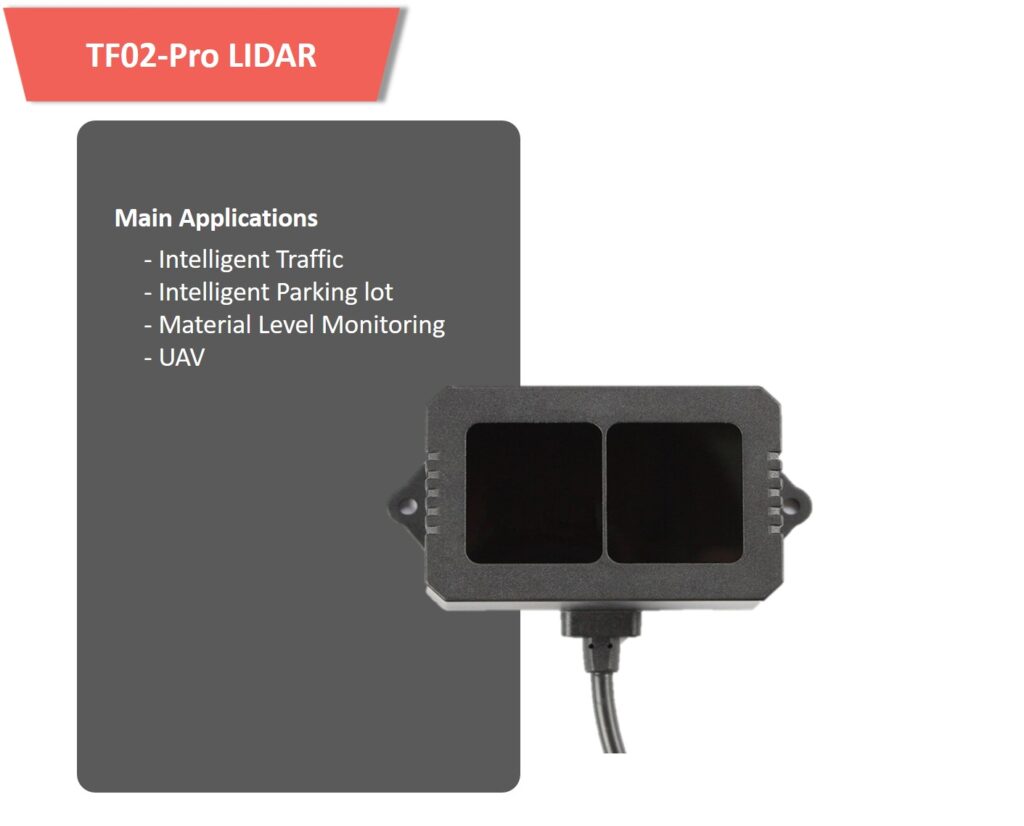

TF02-Pro LIDAR Sensor is a mid-range distance sensor which is an upgraded version of TF02 with improved performance and accuracy. The sensor has accurate, stable, sensitive, and high-frequency range detection. TF02-pro can detect up to 40 meters range while resisting ambient lights of up to 100Klux. High frame rates of up to 1000Hz combined with low power consumption make this module appropriate for many applications, including but not limited to: Intelligent traffic monitoring, Intelligent Parking lot systems to show the open lots, and being installed on UAVs and drones as an obstacle avoidance sensor. The distance resolution is 1cm, and accuracy equals 5cm under 5 meters. The minimum required distance from the sensor for objects is 10cm.
If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.
Additional information
Weight | 1 kg |
---|---|
Dimensions | 10 × 10 × 10 cm |
Specifications
Product Parameters | |
Operating Range | 0.1~40m @ 90% Reflectivity (100Klux) |
0.1~13.5m @ 10% Reflectivity (100Klux) | |
Distance Resolution | 1cm |
frame rate | 1000Hz |
Repeatability | 1σ < 2cm ([email protected]% Reflectivity) |
Ambient Light Resistance | 100Klux |
Operation Temperature | -10~60°C |
Protection Level | IP65 |
Optical Parameters | |
Light Source | VCSEL |
Central wavelength | 850nm |
FOV | 3° |
Photobiological Safe | Class 1 (EN60825) |
Electrical Parameters | |
Supply Voltage | DC 5~12V |
Average Current | ≤200mA |
Power Consumption | ≤1W |
Peak Current | 300mA |
Communication Level | LVTTL (3.3v) |
Communication Interface | UART/I2C |
Other Parameters | |

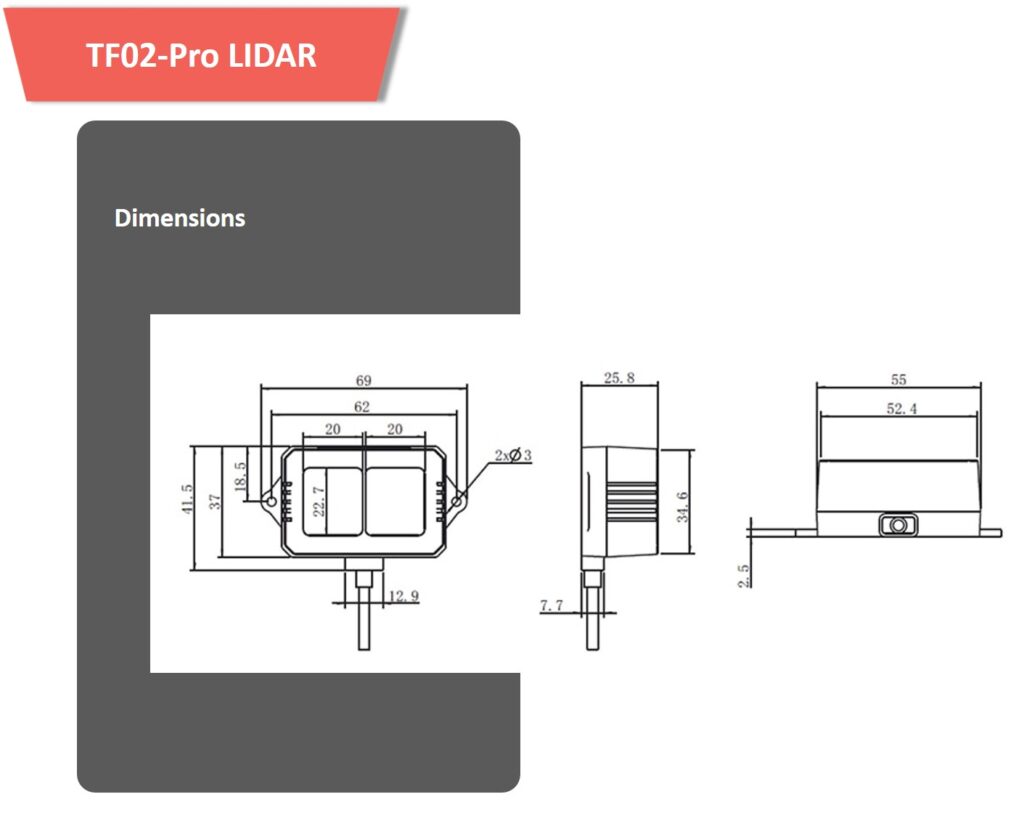

Dimensions | 69×41.5x26mm (LxWxH) |
Weight | 50g (with cables) |
Enclosure Material | PC/ABS |
Storage Temperature | -30~80°C |
Cable Length | 80cm |
Documents
Please contact us for more information.
Product contents
1x TF02-pro LIDAR Sensor
