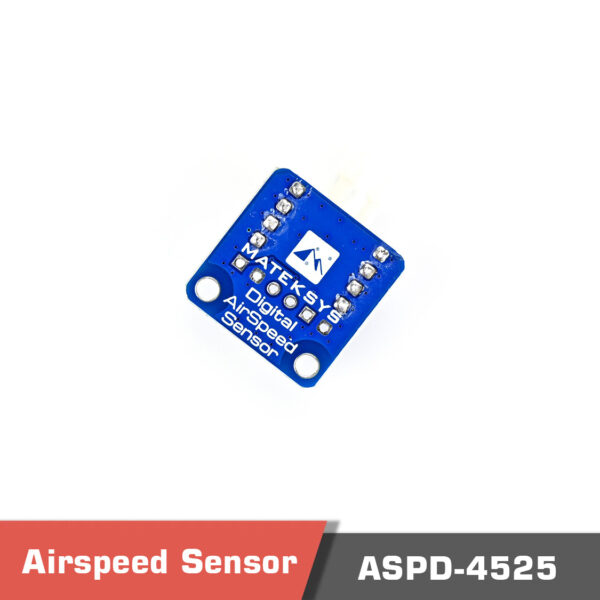

Description

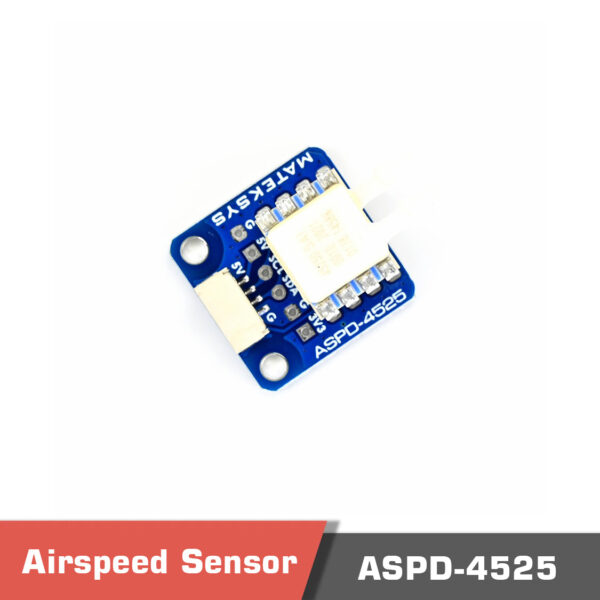

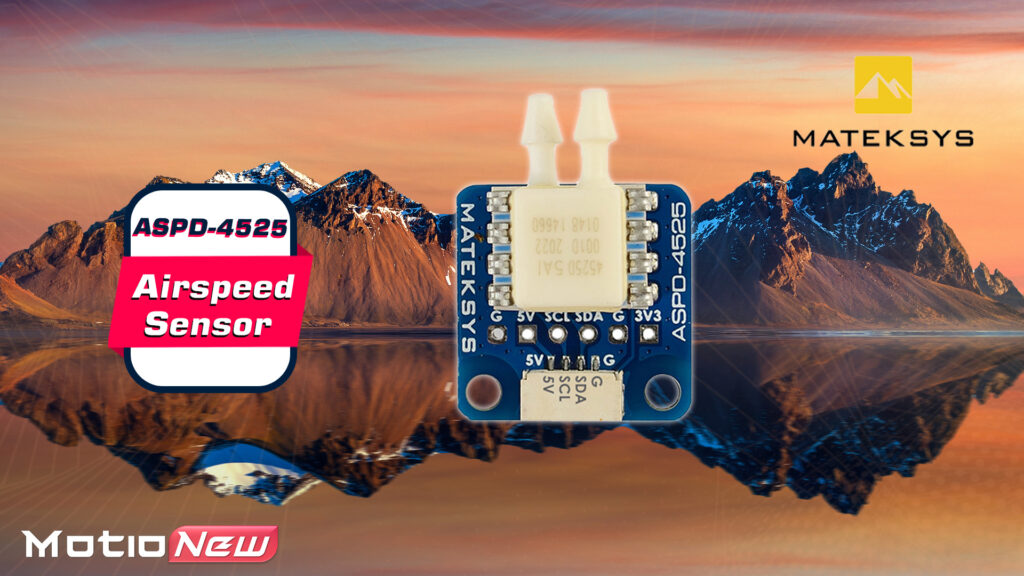

Matek ASPD-4525 features an MS4525DO sensor to be used on robots and unmanned aerial vehicles (UAV) to measure the airspeed sensor. It measures pressure ranges up to 1psi (6.89kPa).

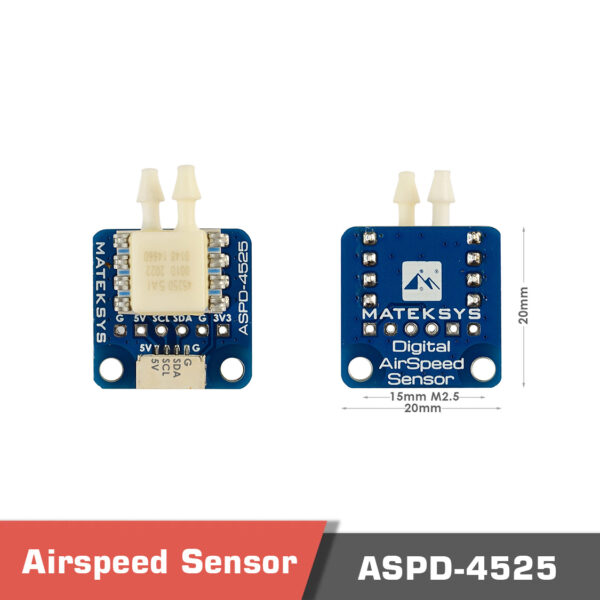

The module has a relatively small size, only 2x2cm, and weighs only 3.5g. Using I2C interface, you can connect it to your autopilot interface.
If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.
Specifications
Specifications
| Board Supply voltage | 4~5.5V DC |
| Sensor | MS4525DO |
| Working current | 5mA |

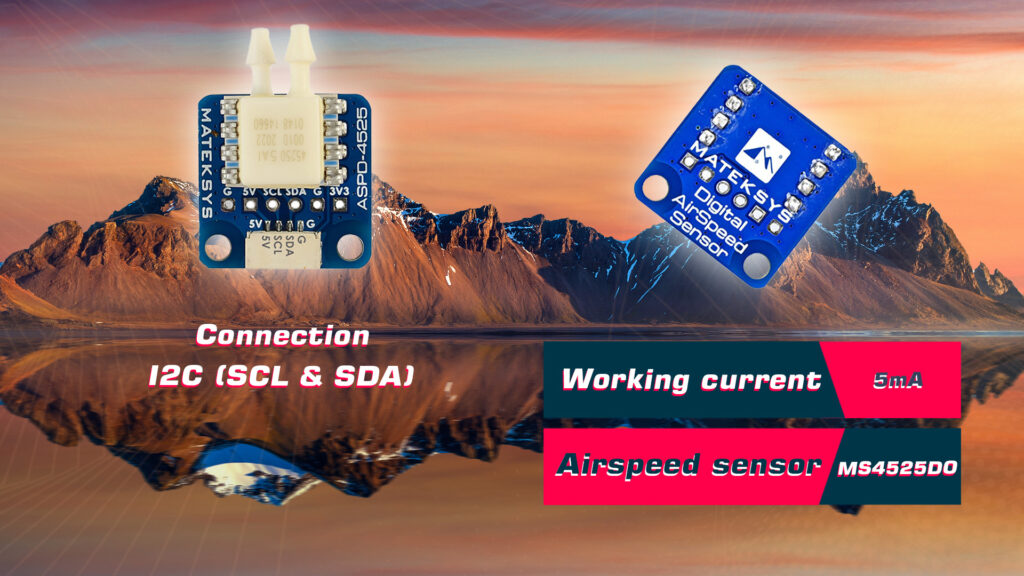

| Output | I2C (SCL & SDA) |
| Pressure Ranges | 1 PSI (6.89kPa) |
| Maximum Pressure | 20 PSI (137.9kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Accuracy | ±0.25% SPAN |
| Red LED | power indicator |
| JST-GH sequence | 5V, SCL, SDA, GND |

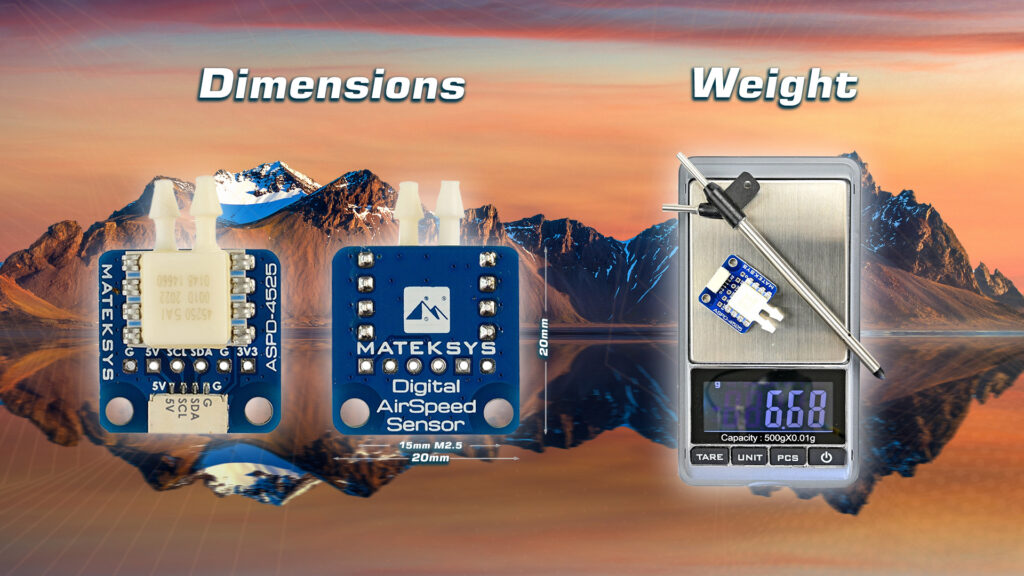

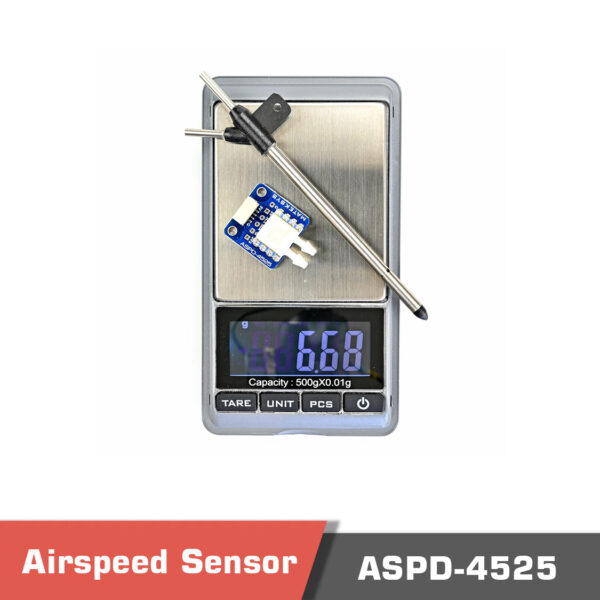

| Weight | 3.5g (sensor board) |

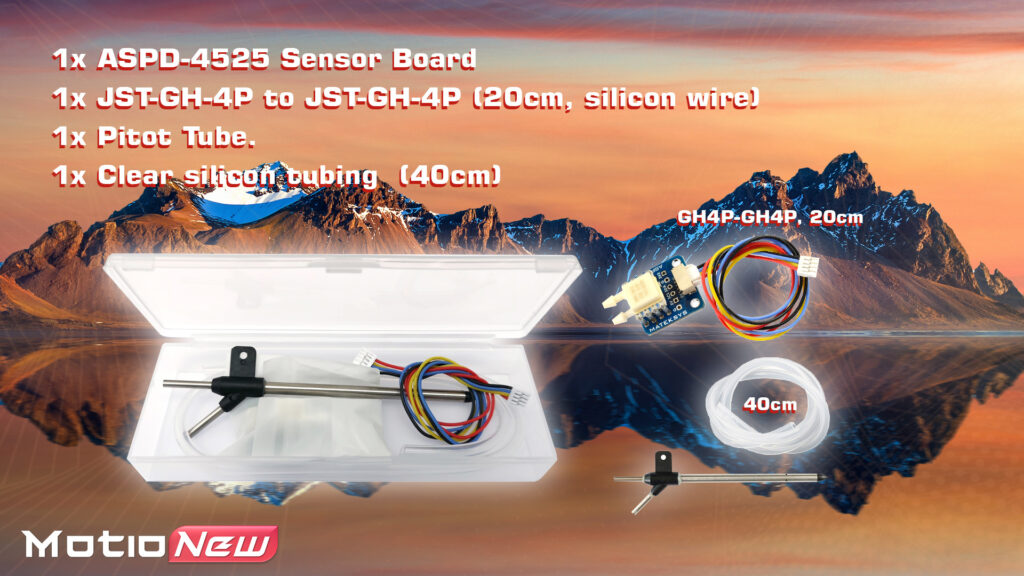

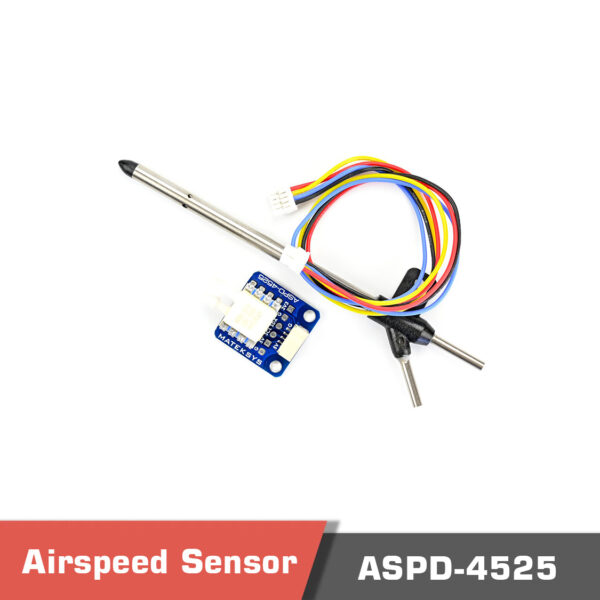

Product contents
Product contents
Documents
Documents
click here to download Airspeed Sensor ASPD-4525 Manual
