MN-GC50 GCS, UAV Ground Control Station

5599.00 $

Description

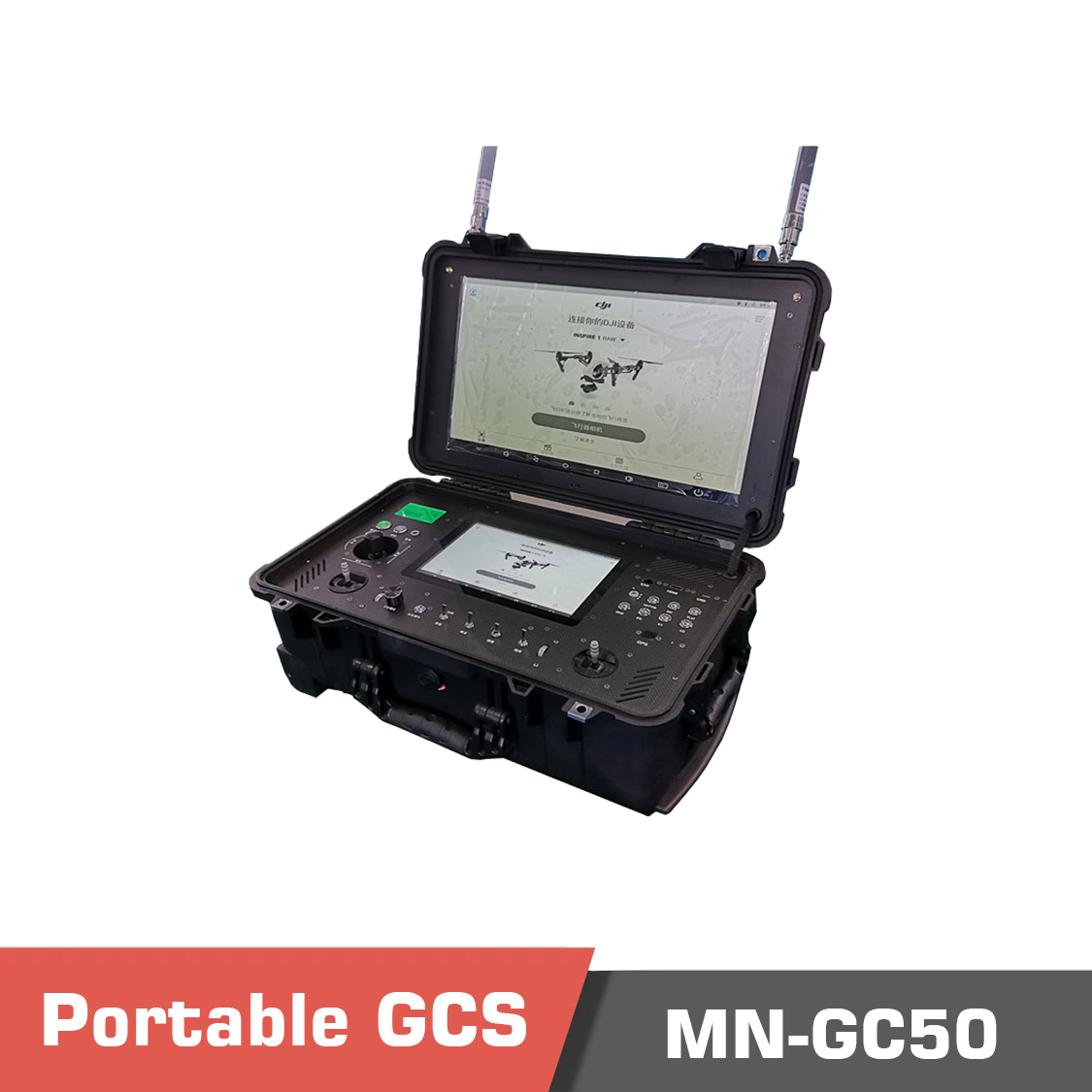

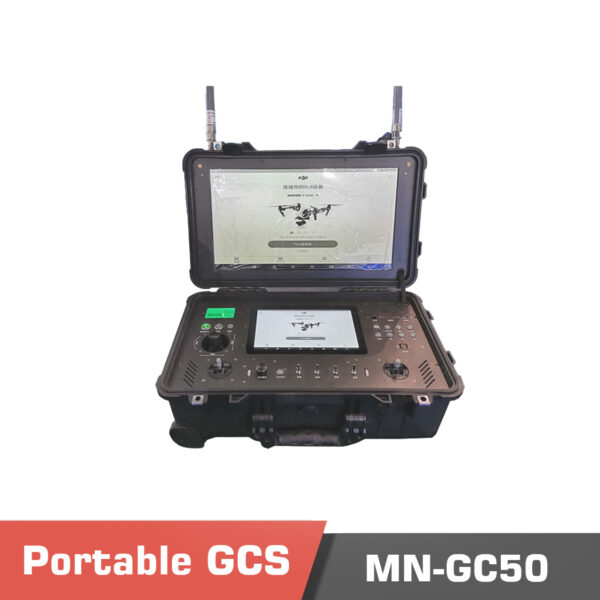

MN-GC50 GCS, UAV Ground Control Station

MN-GC50 GCS is a suitcase Ground Control Station that has all the accessories you need for a smooth flight. Sitting inside a Pelican Case made from Polypropylene, it is shockproof, waterproof, and dustproof. This allows the use of the MN-GC50 in all harsh conditions.

Running a Core i5 Intel Gen 5th CPU (i5-5500U)with 4GB of RAM, and 128GB SSD, it is a powerful system that ensures a flight without any trouble.

Two LCDs are installed on the unit. The upper one is 20″ 1920×1080, and the lower one is a 9.7″ LCD.  The maximum brightness is 1040nit which is perfect for outdoor missions.

All the physical channels required to control the Drone and the Payload are provided on the unit with the possibility of embedding a digital video and data transmission link. MN-GC5- supports Wii and Ethernet for data communication, as well as USB, RS-232, and PPM.

Mn-gc50 gcs, uav ground control station Mn gc50. 2 - mn-gc50 gcs,handheld ground control station,ground control station,suitcase gcs,gcs,radio control,high brightness,high resolution,high brightness screen,1040nit brightness,1000nit brightness,video transmission,control system,data transmission,rc access,ideal for harsh environment,long-range,transparent transmission,lan port,multiple programming mode,remote control,various external input,dual screen,dual screen gcs - motionew - 5 Mn gc50. 3 - mn-gc50 gcs,handheld ground control station,ground control station,suitcase gcs,gcs,radio control,high brightness,high resolution,high brightness screen,1040nit brightness,1000nit brightness,video transmission,control system,data transmission,rc access,ideal for harsh environment,long-range,transparent transmission,lan port,multiple programming mode,remote control,various external input,dual screen,dual screen gcs - motionew - 6 Mn gc50. 4 - mn-gc50 gcs,handheld ground control station,ground control station,suitcase gcs,gcs,radio control,high brightness,high resolution,high brightness screen,1040nit brightness,1000nit brightness,video transmission,control system,data transmission,rc access,ideal for harsh environment,long-range,transparent transmission,lan port,multiple programming mode,remote control,various external input,dual screen,dual screen gcs - motionew - 7 Mn gc50. 5 - mn-gc50 gcs,handheld ground control station,ground control station,suitcase gcs,gcs,radio control,high brightness,high resolution,high brightness screen,1040nit brightness,1000nit brightness,video transmission,control system,data transmission,rc access,ideal for harsh environment,long-range,transparent transmission,lan port,multiple programming mode,remote control,various external input,dual screen,dual screen gcs - motionew - 8 Mn gc50. 6 - mn-gc50 gcs,handheld ground control station,ground control station,suitcase gcs,gcs,radio control,high brightness,high resolution,high brightness screen,1040nit brightness,1000nit brightness,video transmission,control system,data transmission,rc access,ideal for harsh environment,long-range,transparent transmission,lan port,multiple programming mode,remote control,various external input,dual screen,dual screen gcs - motionew - 9 Mn gc50. 7 - mn-gc50 gcs,handheld ground control station,ground control station,suitcase gcs,gcs,radio control,high brightness,high resolution,high brightness screen,1040nit brightness,1000nit brightness,video transmission,control system,data transmission,rc access,ideal for harsh environment,long-range,transparent transmission,lan port,multiple programming mode,remote control,various external input,dual screen,dual screen gcs - motionew - 10 Mn gc50. 8 - mn-gc50 gcs,handheld ground control station,ground control station,suitcase gcs,gcs,radio control,high brightness,high resolution,high brightness screen,1040nit brightness,1000nit brightness,video transmission,control system,data transmission,rc access,ideal for harsh environment,long-range,transparent transmission,lan port,multiple programming mode,remote control,various external input,dual screen,dual screen gcs - motionew - 11

Additional information

Weight 13 kg
Dimensions 57 × 37 × 23 cm

Specifications

CPU Intel i5-5500u
Memory 4GB DDR4 2133Mhz
Hard disk 128G SSD
Network port WIFI/RJ45
Size 56x35x22cm
Weight 12KG
Case Material Polypropylene composite
IP Grade IP67 Dustproof, waterproof

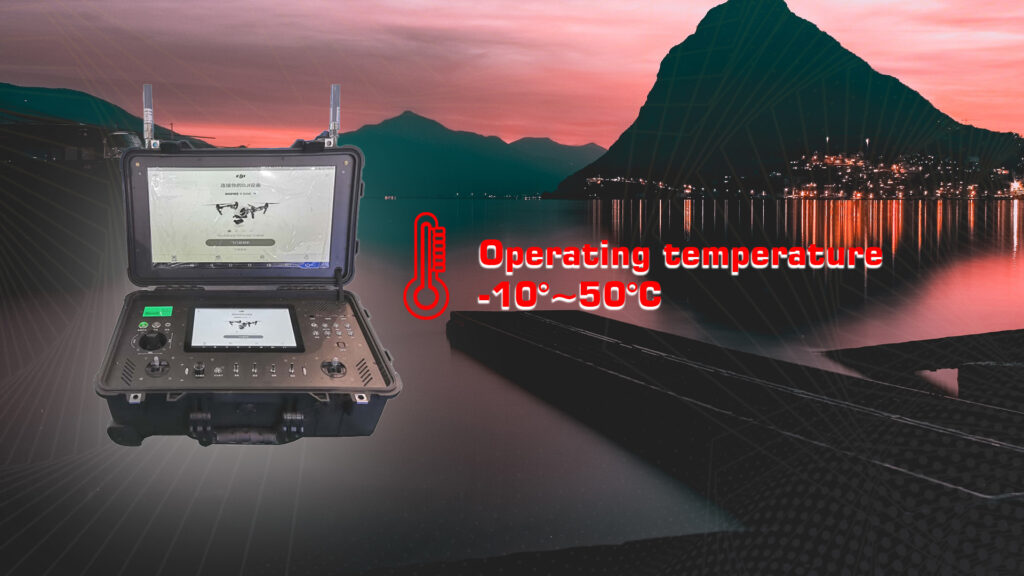

Operating temperature -10°~50°
Portable features Built-in pull rod

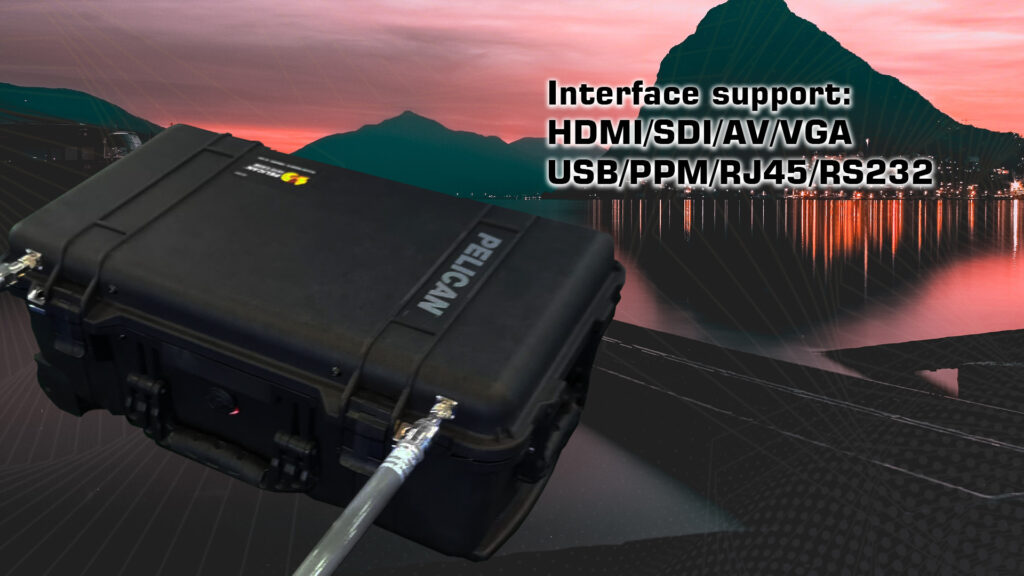

Interface support USB/HDMI/SDI/AV/PPM/RJ45/VGA/RS232/DC
Screen size 20 inch(up); 9.7 inch(down)
Resolution 1920×1080(up)
Display scale 16:9
Backlight type LED
Maximum brightness 1040nit
Color standard RGB
Working time 3-4hrs



Product contents

1 set of  MN-GC50
