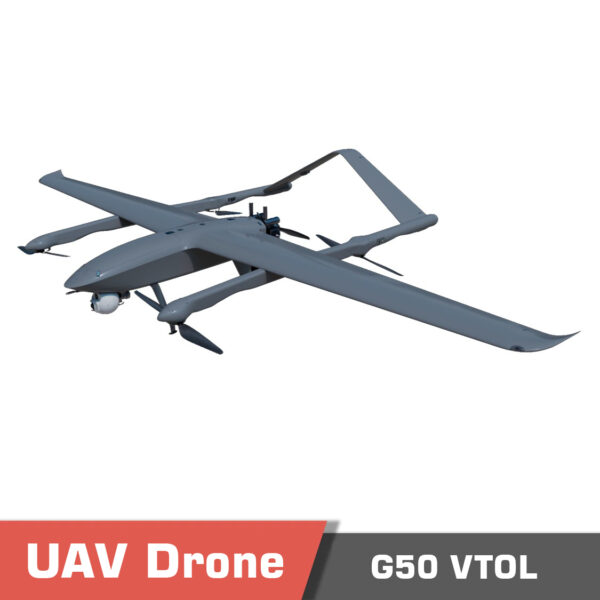

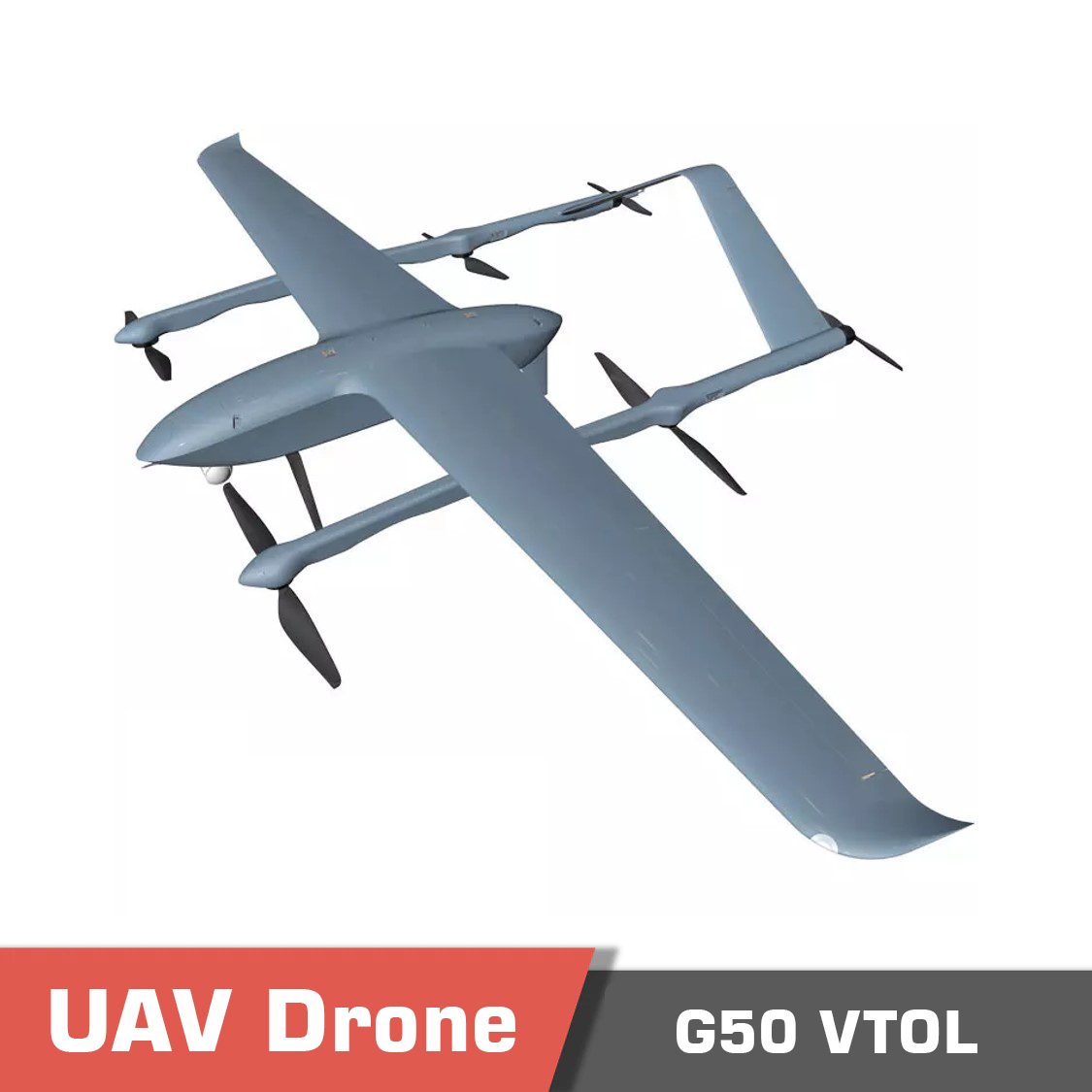

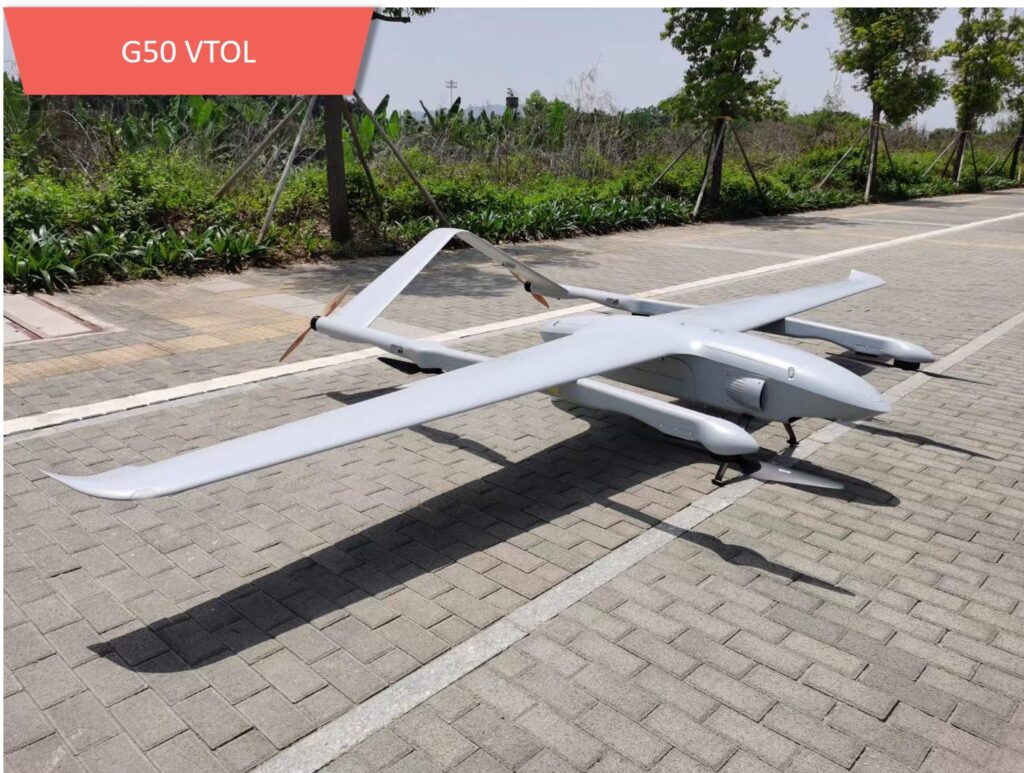

VTOL drone G50, Heavy Payload Fixed-Wing

VTOL Drone G50 Fixed-Wing VTOL is a battery-powered vertical take-off and landing (VTOL) fixed-wing UAV, offering a 4.5H endurance that is catered to the needs of a wide range of aerial surveying applications like terrain mapping, lightweight material transport, ground reconnaissance, and border patrol. G50 Fixed-Wing VTOL inverted T-tail design allows for incredible aerial maneuvers. It adopts a composite aerodynamic layout of quadrotors and fixed-wings and combines the advantages of VTOL of the quadrotors and the long range of fixed0wing drones. This flexible and lightweight aircraft features a 50Kg take-off weight and a 15Kg maximum load. The efficiency of the power system can be optimized to meet the characteristics of various surveying and mapping scenarios. Equipped with a modular design and a 4.8m wing span, the UAV can be quickly deployed in less than 90 seconds. A detachable load compartment design allows matching the center-of-mass of the cargo with that of the plane, realizing fast switching and enabling mission-matched loads.

G50 Fixed-Wing VTOL offers a parallel-to-body blade lock, reducing the aerial resistance and improving performance (you can read more about it on our blog). The cooling is provided by side air conduits direct the airflow on the internal electronics. Low-acoustic noise performance is guaranteed due to the electric power and less maintenance and life-cycle cost. The motor-tilt design improves flight stability.

Key Features

  • Waterproof
    • Good Waterproof Performance
    • Can fly under complex climatic conditions

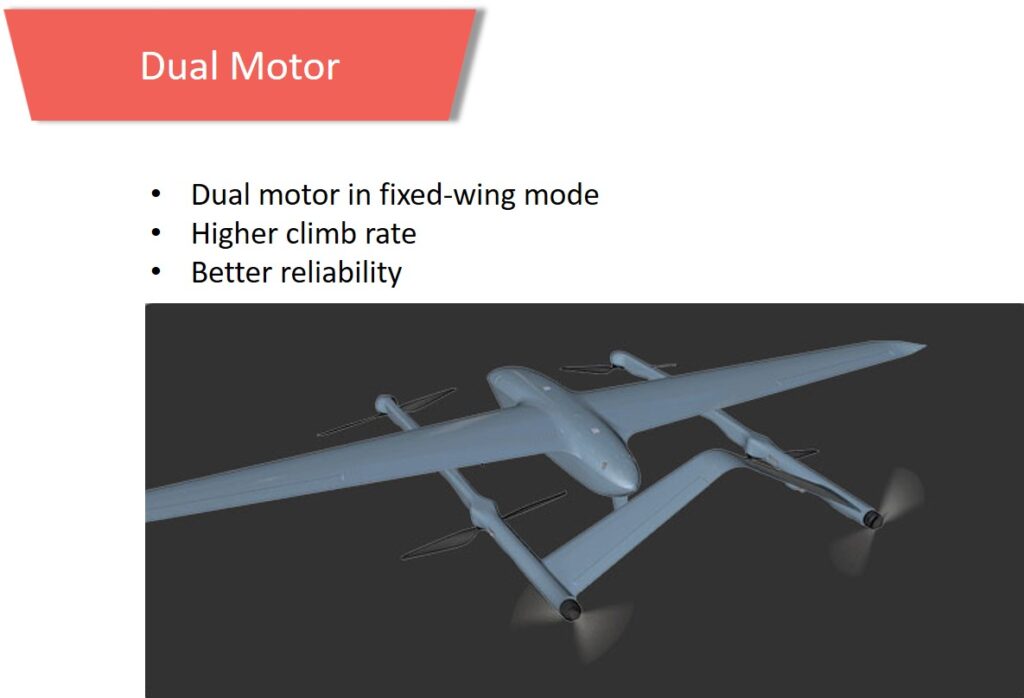

  • Dual Motor
    • The dual motor in fixed-wing mode
    • Higher climb rate
    • Better reliability

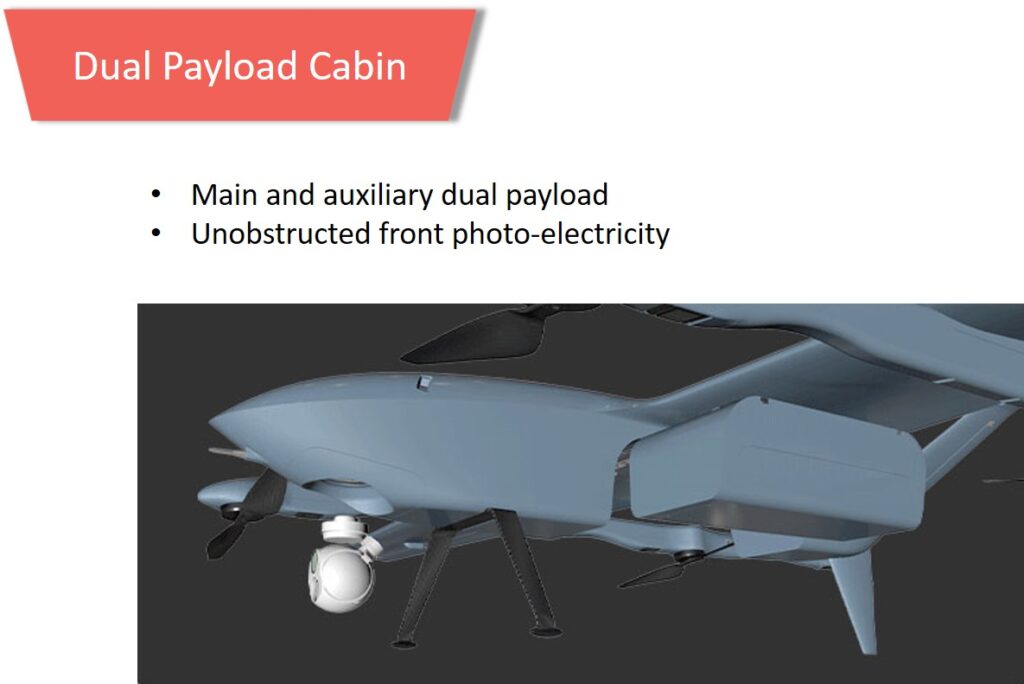

  • Dual Payload Cabin
    • Main and auxiliary dual payload
    • Unobstructed front photo-electricity

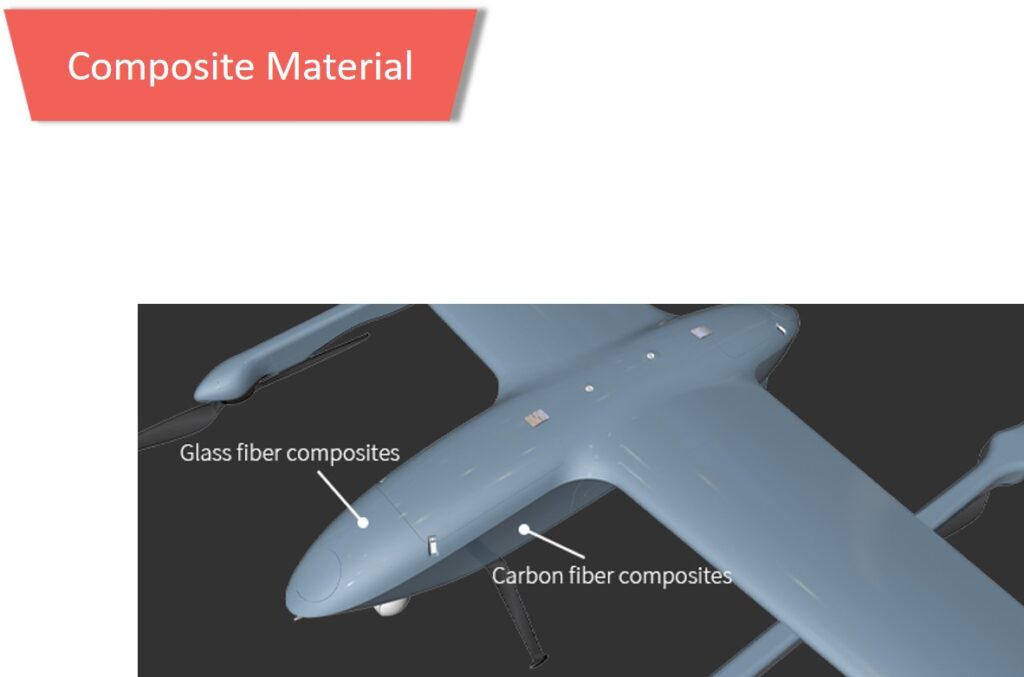

  • Composite Material

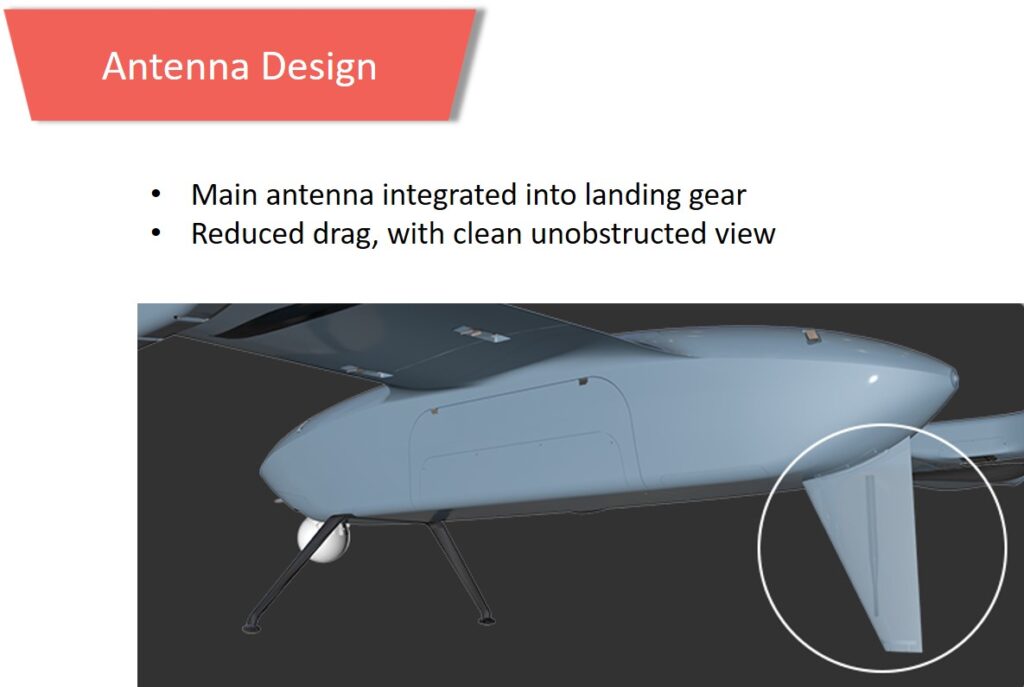

  • Antenna Design
    • The primary antenna integrated into the landing gear
    • Reduced drag, with a clean unobstructed view

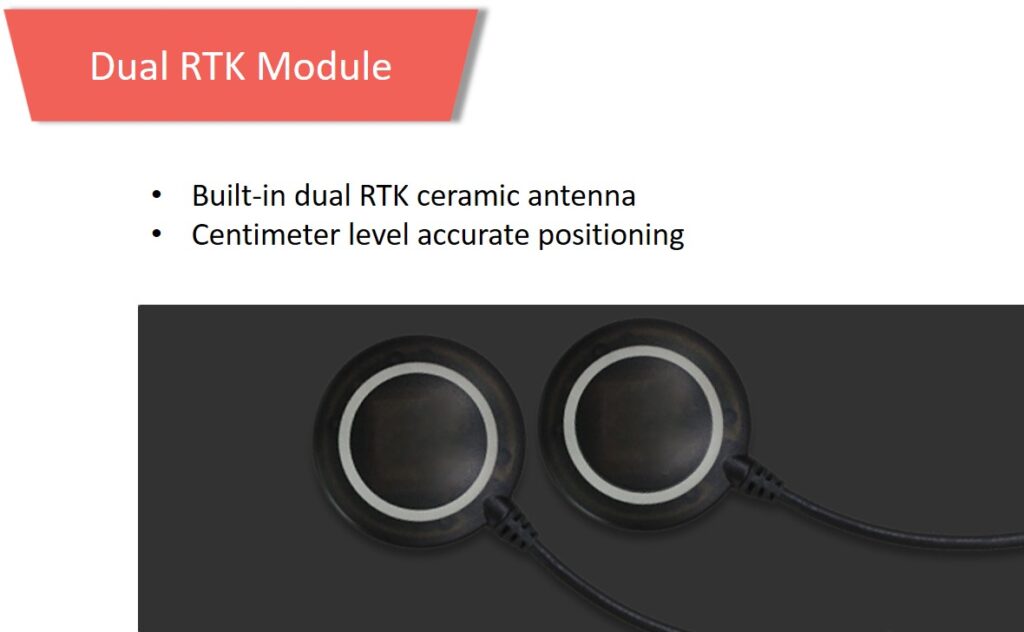

  • Dual RTK Module
    • Built-in dual RTK ceramic antenna
    • Centimeter-level accurate positioning

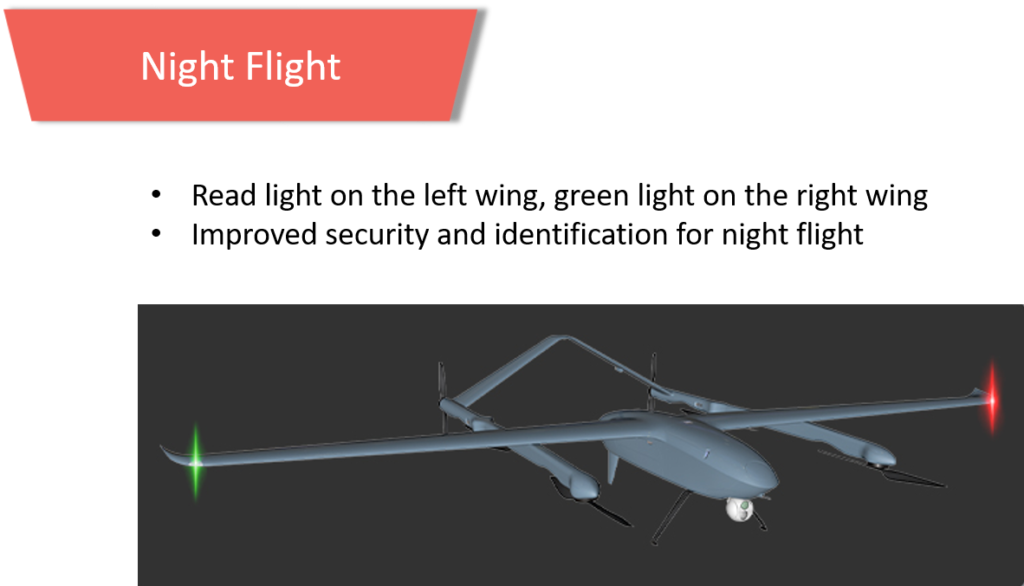

  • Night Flight
    • The red light on the left wing, green light on the right wing
    • Improved security and identification for night flight

T-tail drone vtol drone g50

G50d 7 - vtol drone g50, heavy payload, fixedwing uav, t-tail, t-tail drone, cargo drone, wind resistance, detachable load, detachable payload, mapping drone, surveying drone, fixed-wing uav - motionew - 8

G50d 8 - vtol drone g50, heavy payload, fixedwing uav, t-tail, t-tail drone, cargo drone, wind resistance, detachable load, detachable payload, mapping drone, surveying drone, fixed-wing uav - motionew - 9

G50d 9 - vtol drone g50, heavy payload, fixedwing uav, t-tail, t-tail drone, cargo drone, wind resistance, detachable load, detachable payload, mapping drone, surveying drone, fixed-wing uav - motionew - 10

G50d 10 - vtol drone g50, heavy payload, fixedwing uav, t-tail, t-tail drone, cargo drone, wind resistance, detachable load, detachable payload, mapping drone, surveying drone, fixed-wing uav - motionew - 11

G50d 11 - vtol drone g50, heavy payload, fixedwing uav, t-tail, t-tail drone, cargo drone, wind resistance, detachable load, detachable payload, mapping drone, surveying drone, fixed-wing uav - motionew - 12

G50d 12 - vtol drone g50, heavy payload, fixedwing uav, t-tail, t-tail drone, cargo drone, wind resistance, detachable load, detachable payload, mapping drone, surveying drone, fixed-wing uav - motionew - 13

G50d 13 - vtol drone g50, heavy payload, fixedwing uav, t-tail, t-tail drone, cargo drone, wind resistance, detachable load, detachable payload, mapping drone, surveying drone, fixed-wing uav - motionew - 14

G50d 14 - vtol drone g50, heavy payload, fixedwing uav, t-tail, t-tail drone, cargo drone, wind resistance, detachable load, detachable payload, mapping drone, surveying drone, fixed-wing uav - motionew - 15





Specifications

Specifications
Standard Take-off Weight 50kg
Max. payload weight 15kg
Cruise Speed 85km/h
Max. Flight Speed 120km/h
Control Radius  50km
Max. Climb Speed 6m/s
Max. Descend Speed 5m/s
Max. Altitude AMSL 4200m
Max. Wind resistance Level 7
Operating Temperature -10~60 C
Max. Flight Time > 270min
Flight Distance > 350km
UAV Dimensions 4800x2580x850mm
Mount Pod, LIDAR, SAR, Cargo Delivery

Documents

Datasheet

Product contents

PNP Version

No. Parts Name Specifications Qty
1 Composite Frame (Carbon Fiber) Composite Material 1
2 Motor for VTOL Mode V10 KV170 4
3 ESC For VTOL Mode Hobbywing 130A 4
4 Propeller for VTOL Mode (Pairs) 29×9.5 2
5 Motor for Fixed-wing Mode 7224 kv160 2
6 ESC For Fixed-wing Mode Hobbywing 130A 2
7 Propeller for Fixed-wing Mode 22×14 2
8 Servo A15-1810 4
9 Power Board GY Powerboard 1
10 Aluminum Packing Box 1

1 review for VTOL Drone G50, Heavy Payload Fixed-Wing

  1. Avatar of dmytro

    Dmytro –

    Good afternoon. Tell me, do you complete the flight module? And also a ground control station?

    • Avatar of jessica f

      Jessica F –

      Hello Dmytro, Yes, We can equip the drone with your required accessories based on your needs and your application. The accessories can include Payload, Autopilot, Datalink and GCS, and other types that you may be interested in! Please feel free to contact us on WhatsApp or Email for further discussion about your inquiry. Best.
