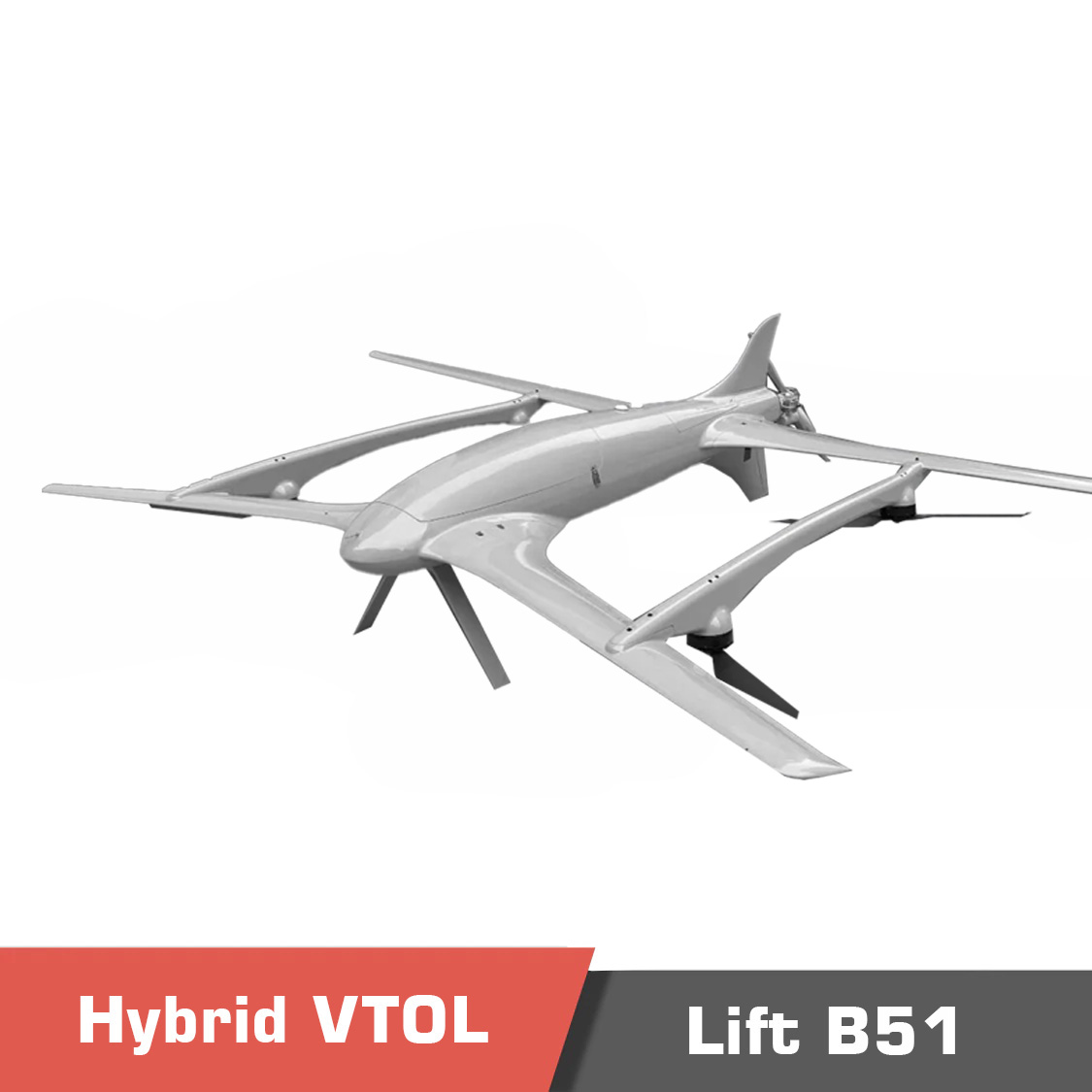

Overview of Lift VTOL B51

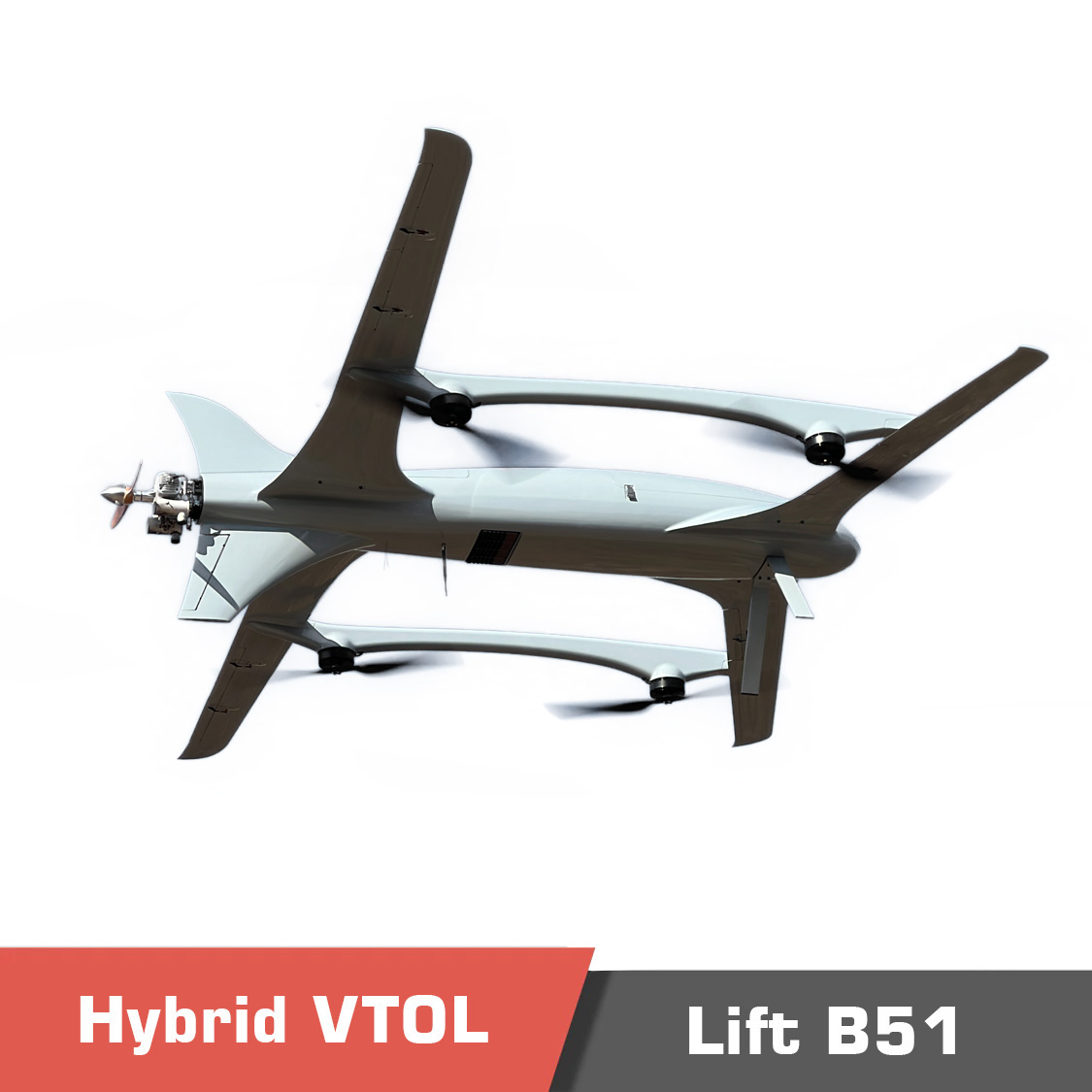

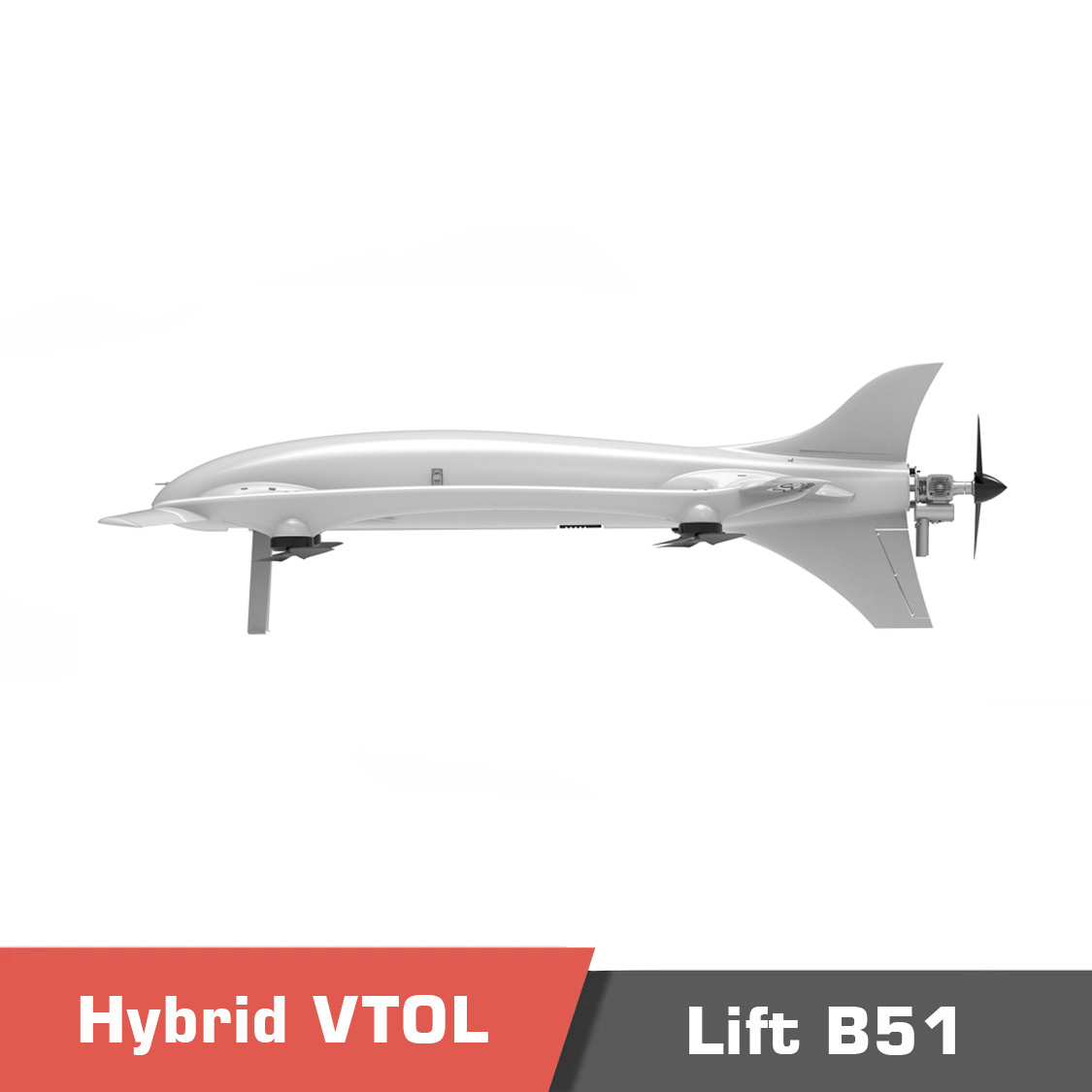

The Lift VTOL B51 is a state-of-the-art tandem wing VTOL (Vertical Take-Off and Landing) drone designed for exceptional performance and versatility in various applications. This advanced drone combines the benefits of fixed-wing efficiency with the flexibility of vertical take-off and landing capabilities, making it an ideal solution for both commercial and industrial use.

Technical Specifications

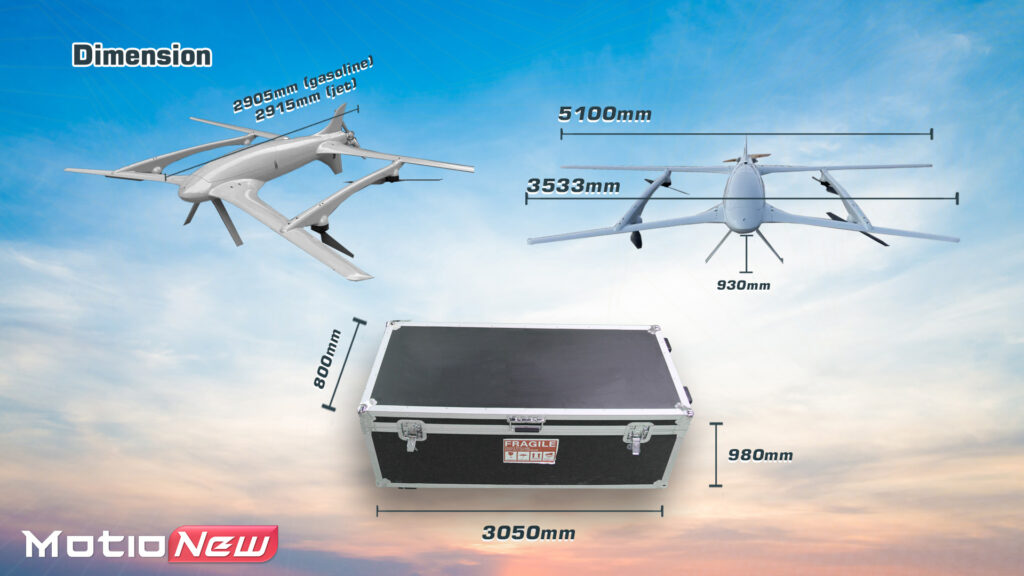

The Lift VTOL B51 boasts impressive technical specifications, starting with its substantial body length of 2905mm and body height of 930mm. The drone features a dual wingspan design, with the rear wingspan measuring 5100mm and the front wingspan 3530mm. This tandem wing configuration provides enhanced stability and aerodynamic efficiency, crucial for long-range and high-payload missions. Constructed from aviation-grade carbon fiber composites, the airframe ensures durability and lightweight performance, essential for demanding operational environments.

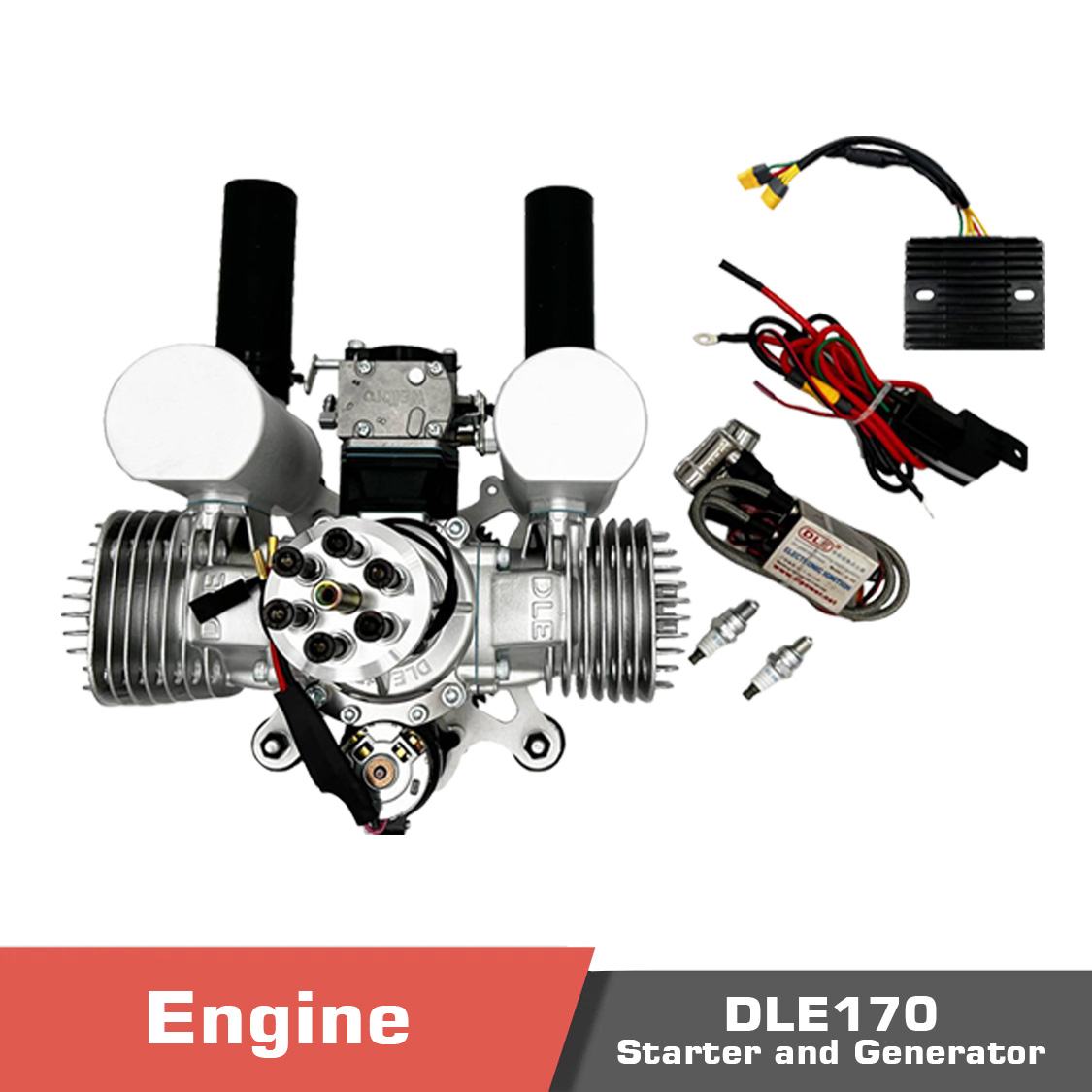

Powered by a reliable gasoline engine, the Lift VTOL B51 achieves level speeds ranging from 28 to 45 m/s, with a consistent cruising speed of 30 m/s. Its design enables it to withstand significant wind resistance, handling speeds of 8 to 10.7 m/s during take-off in VTOL mode, and 10.8 to 13.8 m/s during fixed-wing cruising. This robust wind resistance capability ensures stable and secure flights in various weather conditions.

Impressive function of Lift VTOL B51

The drone’s maximum range is an impressive 810 kilometers, allowing for extended missions without the need for frequent refueling. The Lift B51 supports a maximum take-off weight of 100 kilograms and can carry a substantial payload of up to 45 kilograms, making it suitable for transporting heavy equipment, sensors, or other payloads. The operational ceiling is equally remarkable, with the drone capable of flying at altitudes up to 5000 meters.

The unique design

Designed to perform in diverse environments, the Lift VTOL B51 operates efficiently within a working temperature range of -20°C to 45°C. Its fuel consumption rate is economical at 4 liters per hour (4L/h), providing a balance of performance and cost-efficiency. The drone’s protection degree is rated at IPX4, ensuring resistance to water splashes and offering durability in various environmental conditions.

Applications of Hybrid Tandem Wing Heavy Lift and Long Endurance VTOL

Whether for aerial surveying, mapping, monitoring, or delivery services, the Lift B51 tandem wing VTOL drone delivers unmatched performance, reliability, and versatility, setting a new standard in the UAV industry. With its cutting-edge design and advanced technical specifications, the Lift B51 is your go-to solution for high-demand aerial operations.

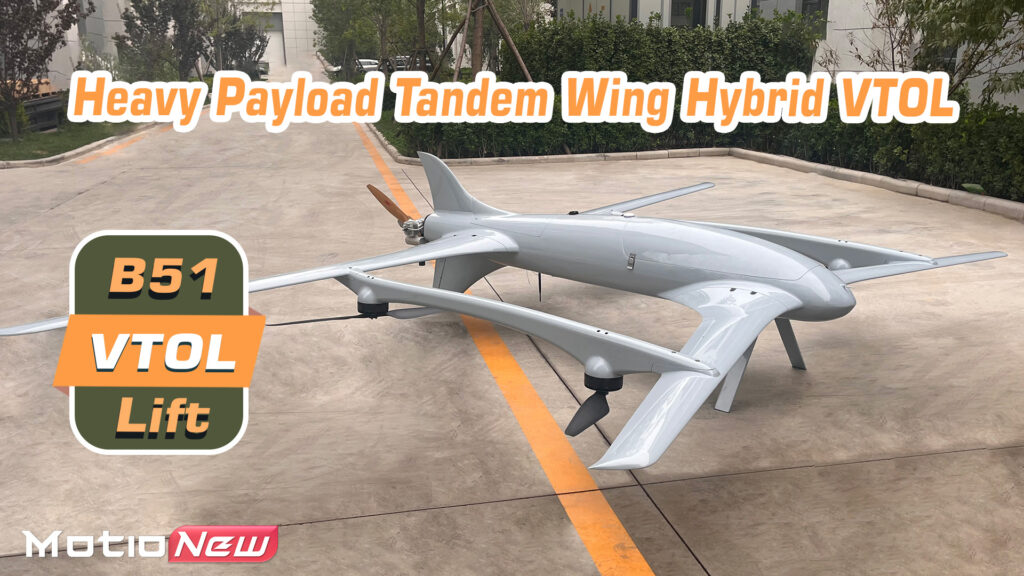

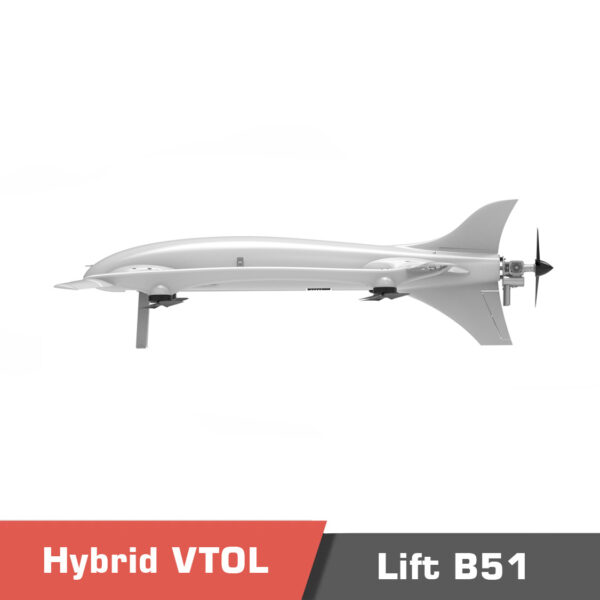

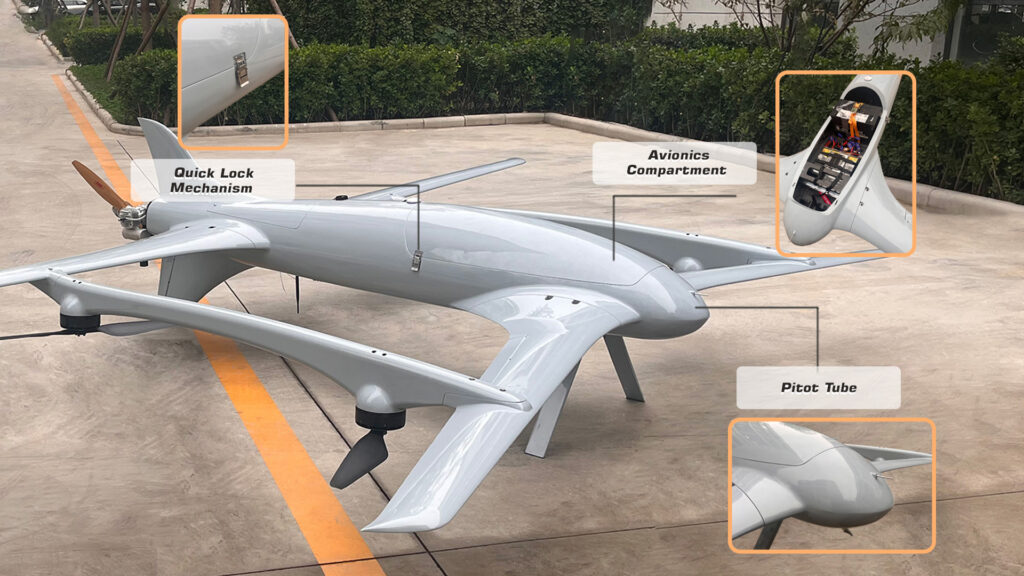

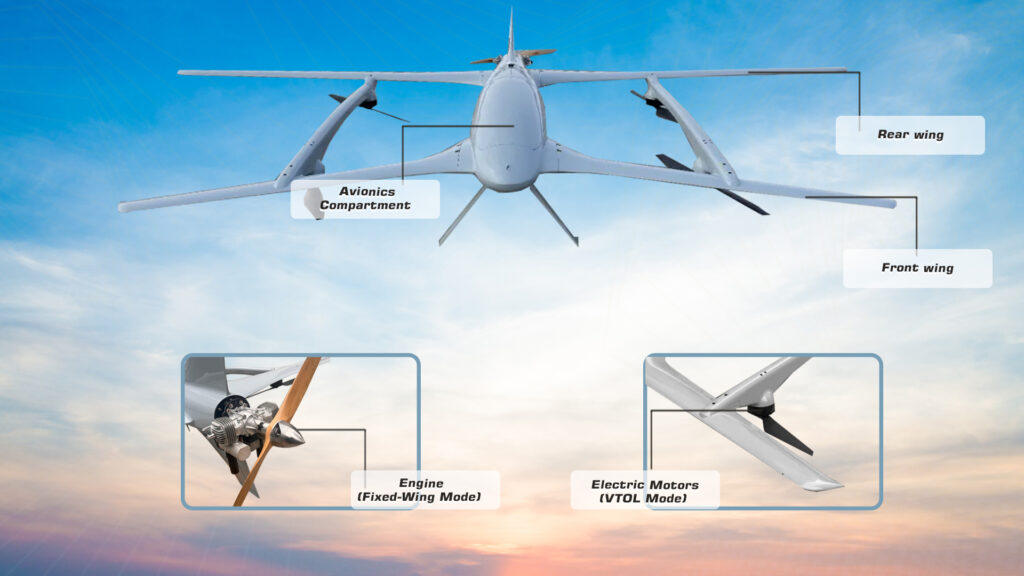

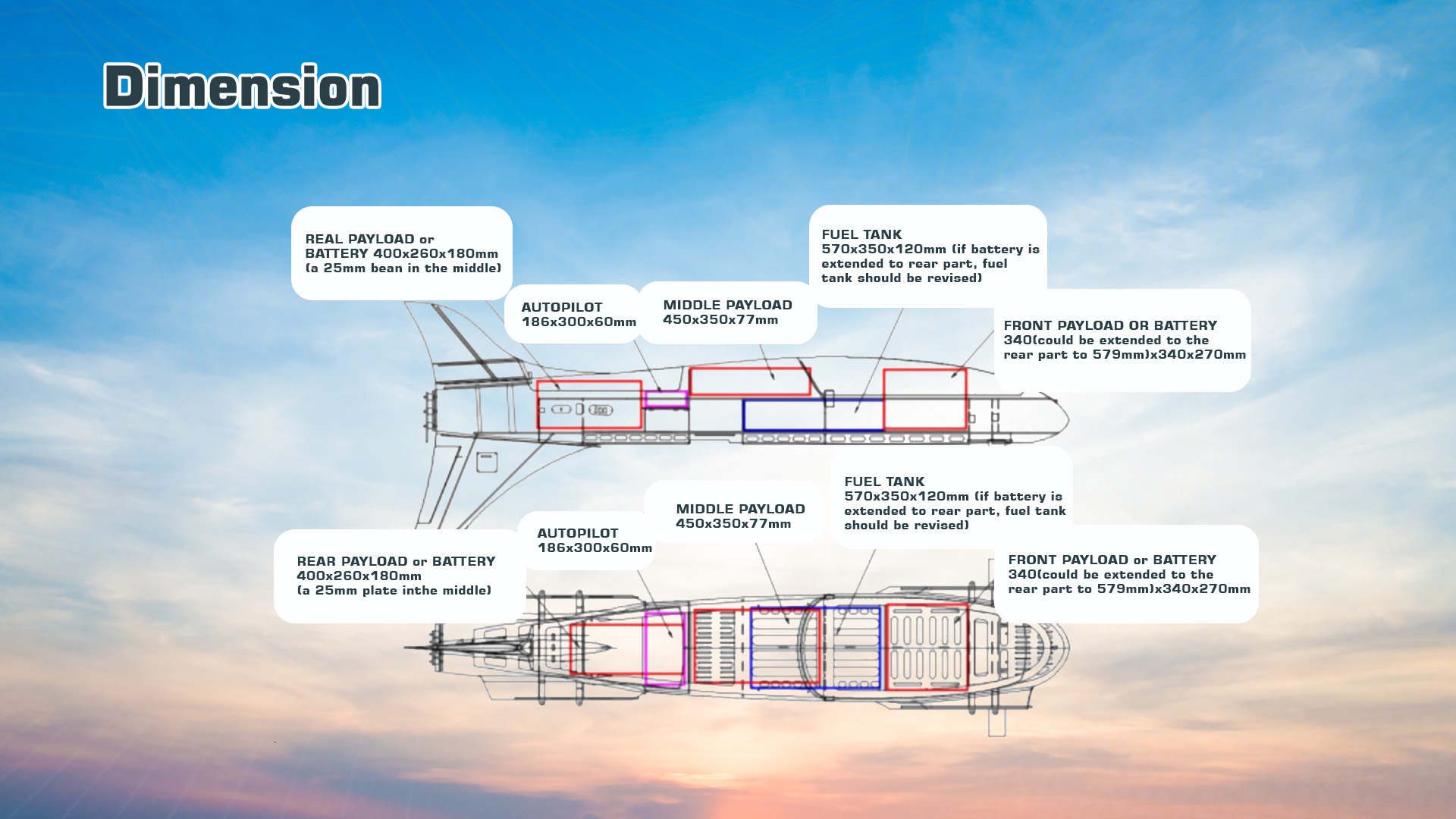

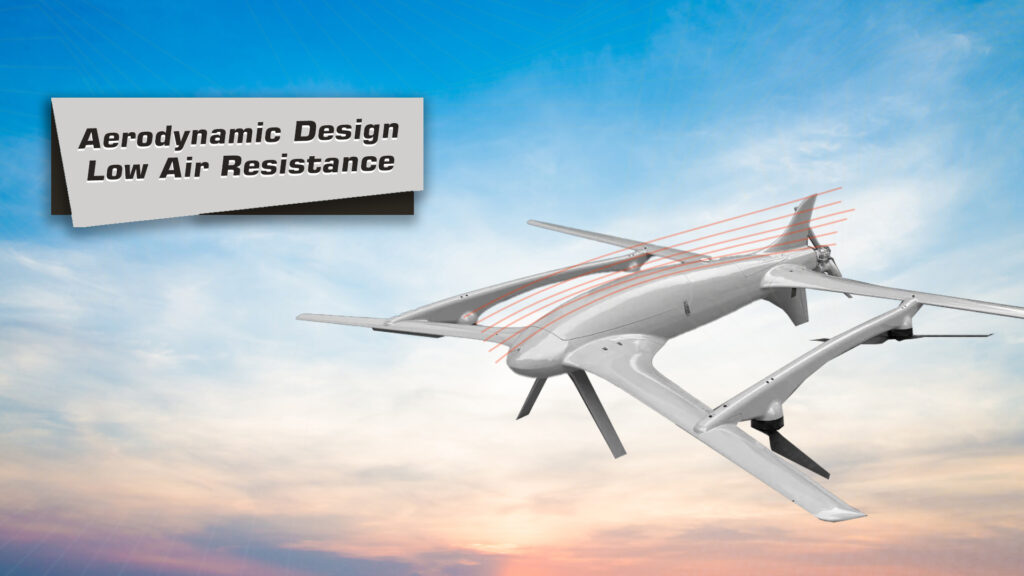

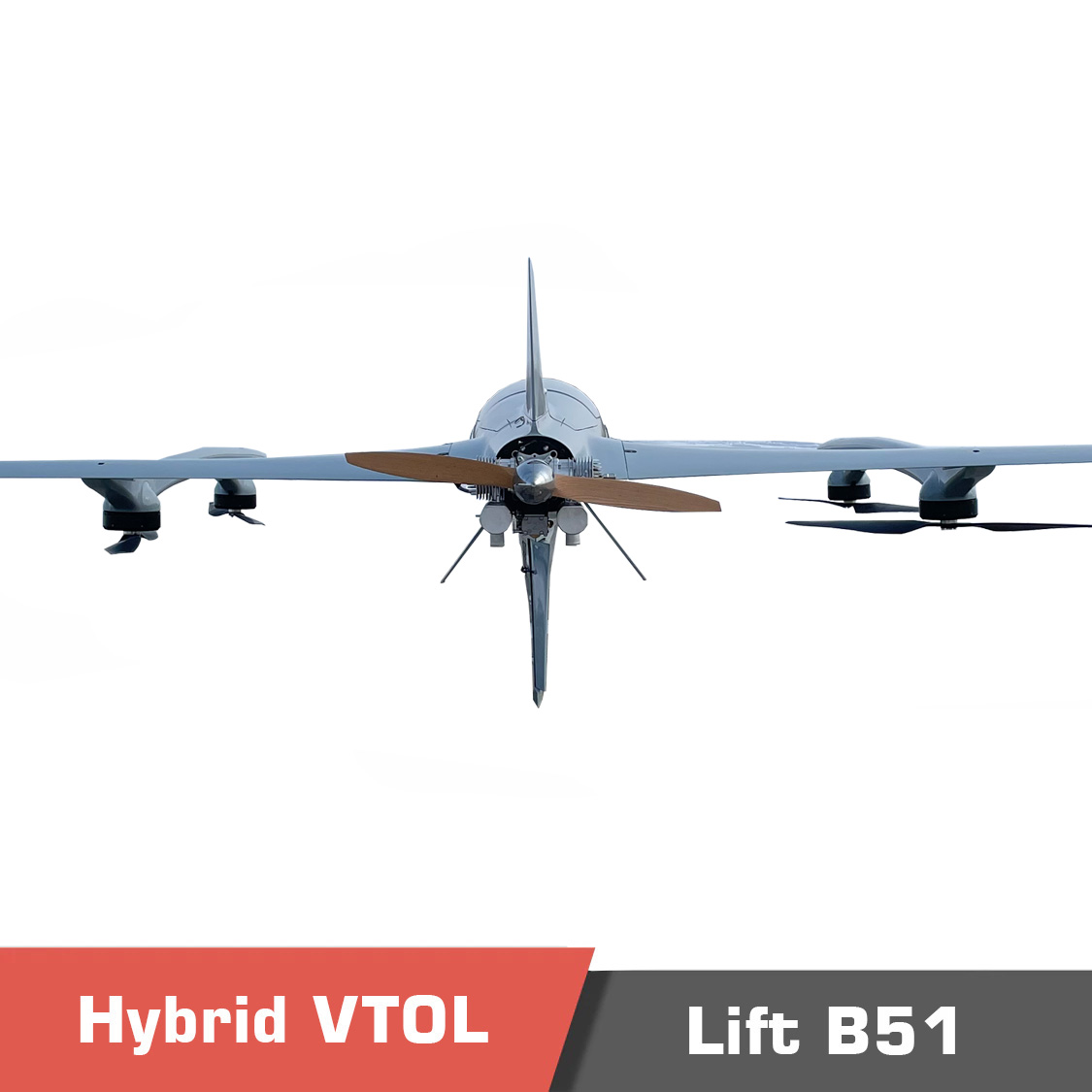

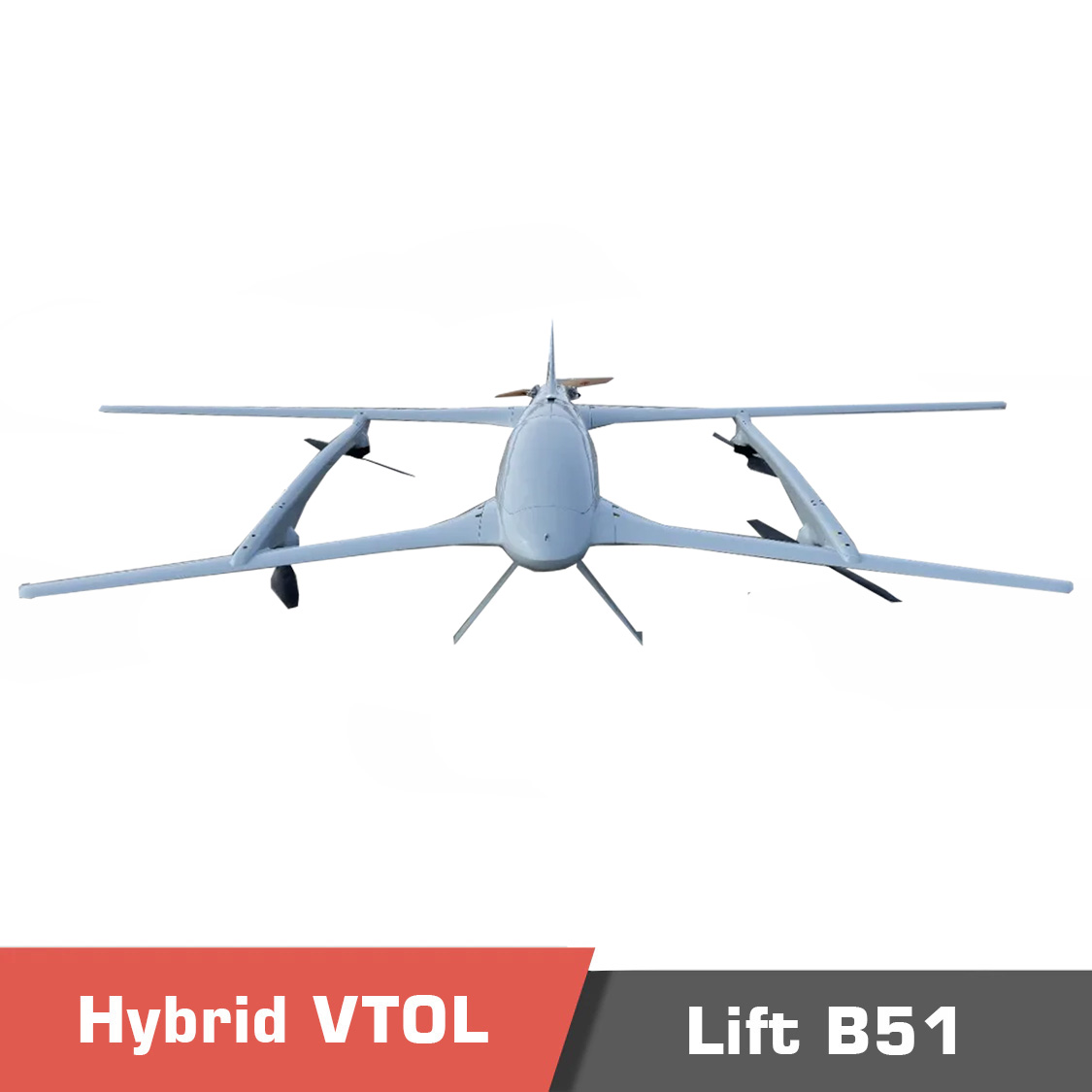

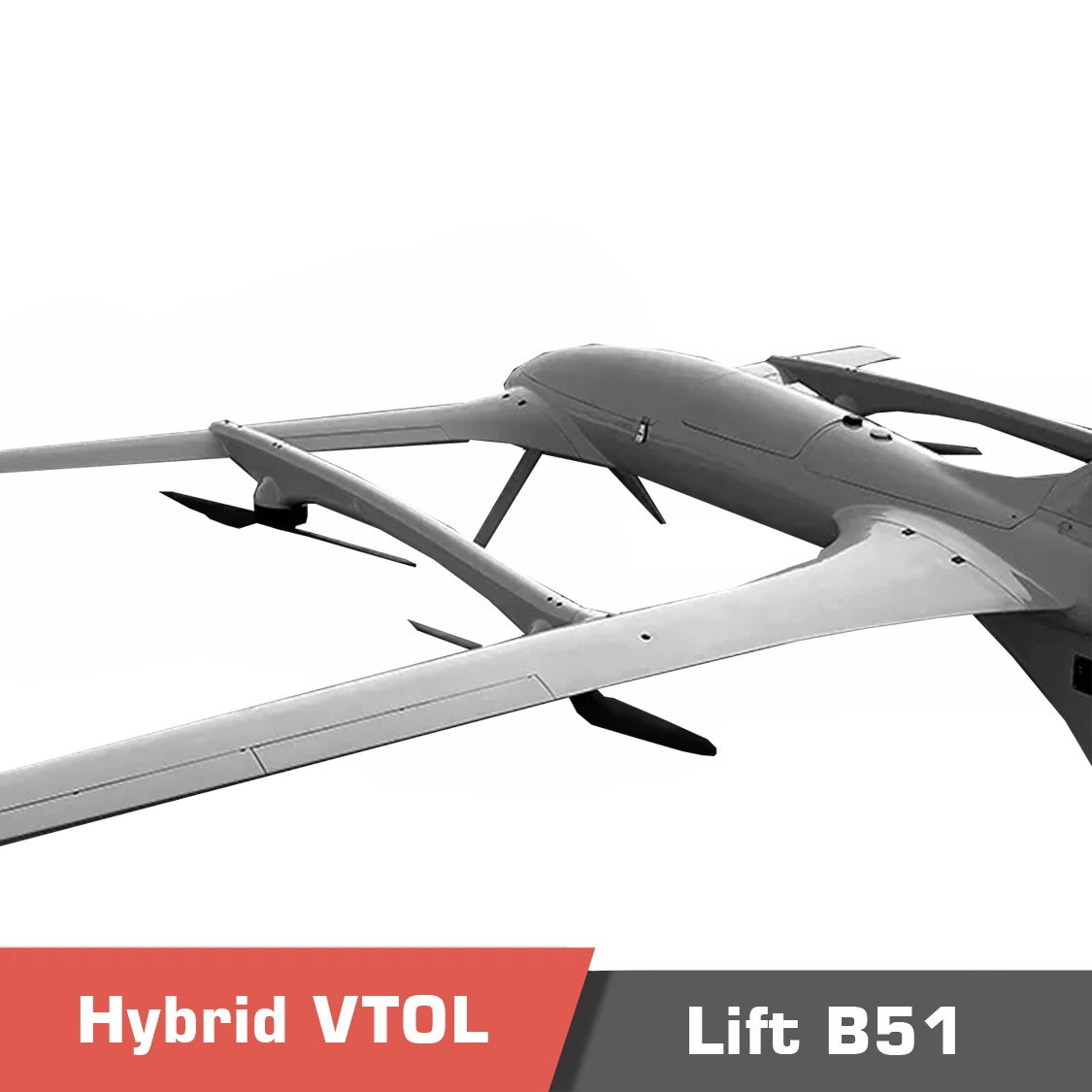

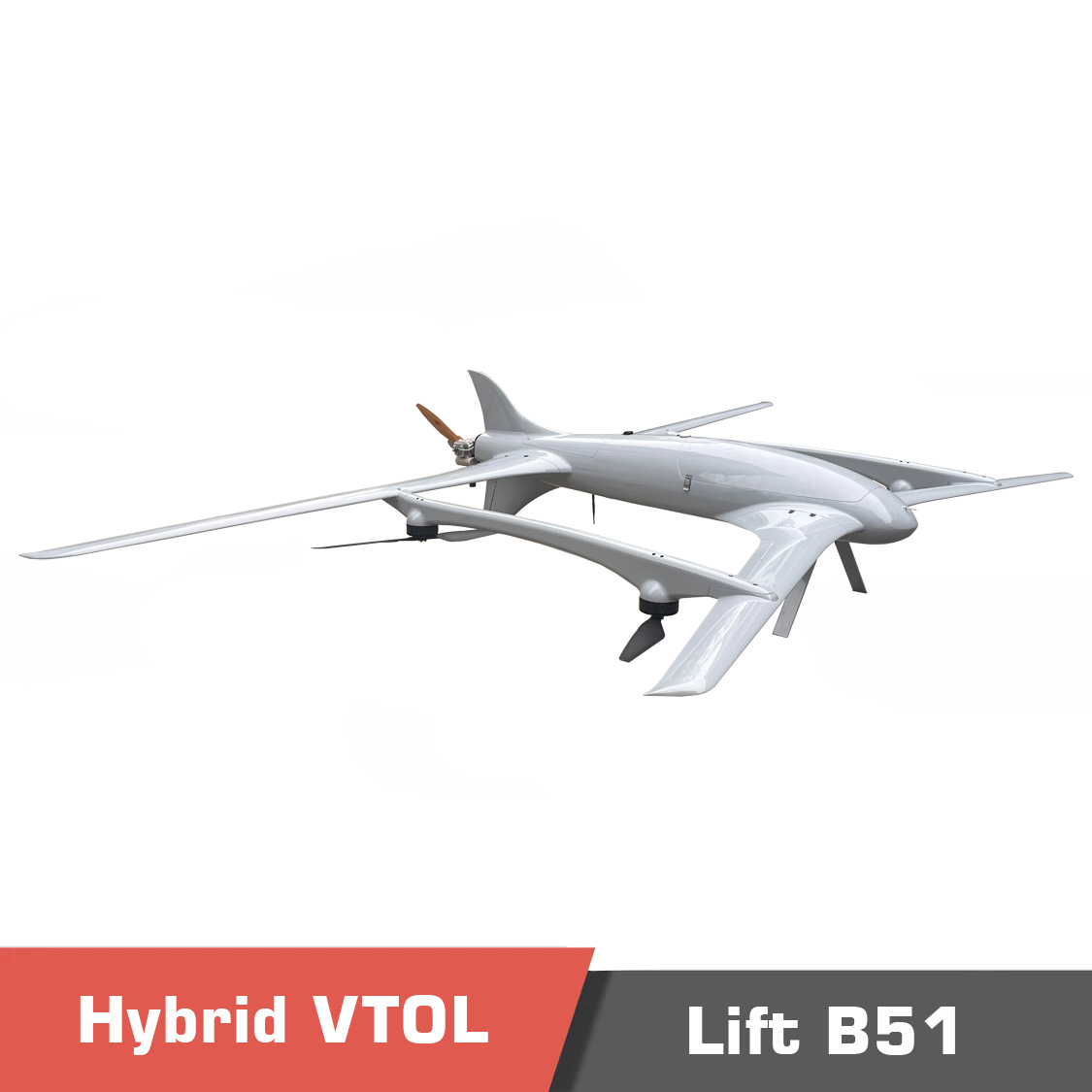

Lift vtol b51 heavy payload tandem wing hybrid vtol B51 vtol lift specification Aerodynamic design lift vtol b51 B51 vtol lift fuel consumption Close detailed view of left vtol b51 Close detailed view of left vtol b51 B51 vtol lift dimension

For a comprehensive reading of related products, please visit the Motionew website.

Additional information

Weight 100 kg
Dimensions 400 × 400 × 50 cm

Specifications

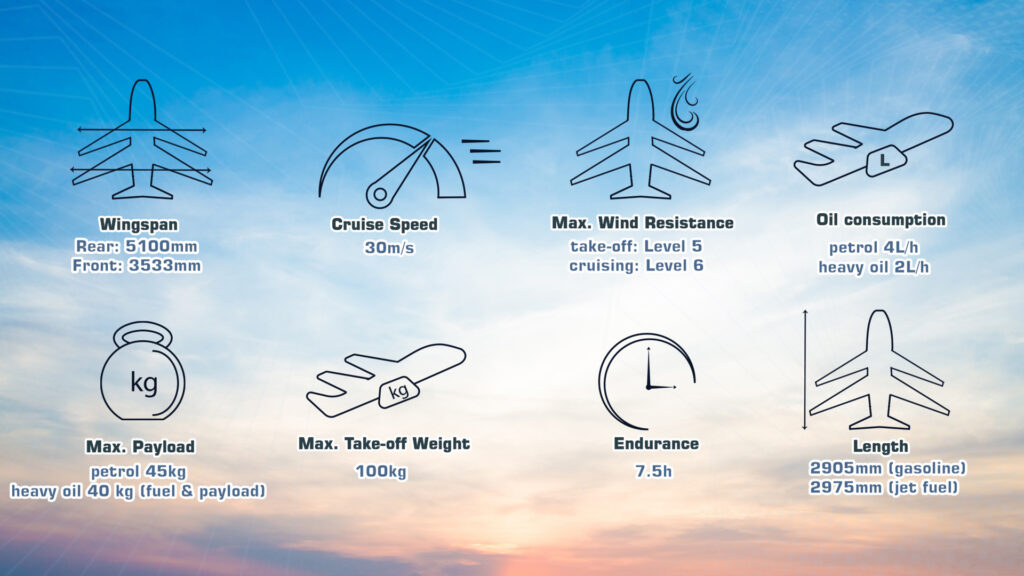

Lift B51 Technical Specifications
Body Length 2905mm
Body Height 930mm
Wingspan

Rear: 5100mm
Front: 3530mm
Airframe Material Aviation carbon fiber composites
Engine Gasoline engine
Level Speed 28~45m/s
Cruising speed 30m/s
Wind Resistance

Take-off (VTOL mode): 8~10.7m/s
Cruise (Fixed wing mode): 10.8~13.8m/s
Max Range 810km
Maximum take-off weight 100kg
Maximum Flight Altitude 5000m
Max payload 45kg
Working temperature -20°C to 45°C
Fuel Consumption 4L / h
Protection Degree IPX4
