Eule M800 Heavy Lift Long Endurance VTOL

Description

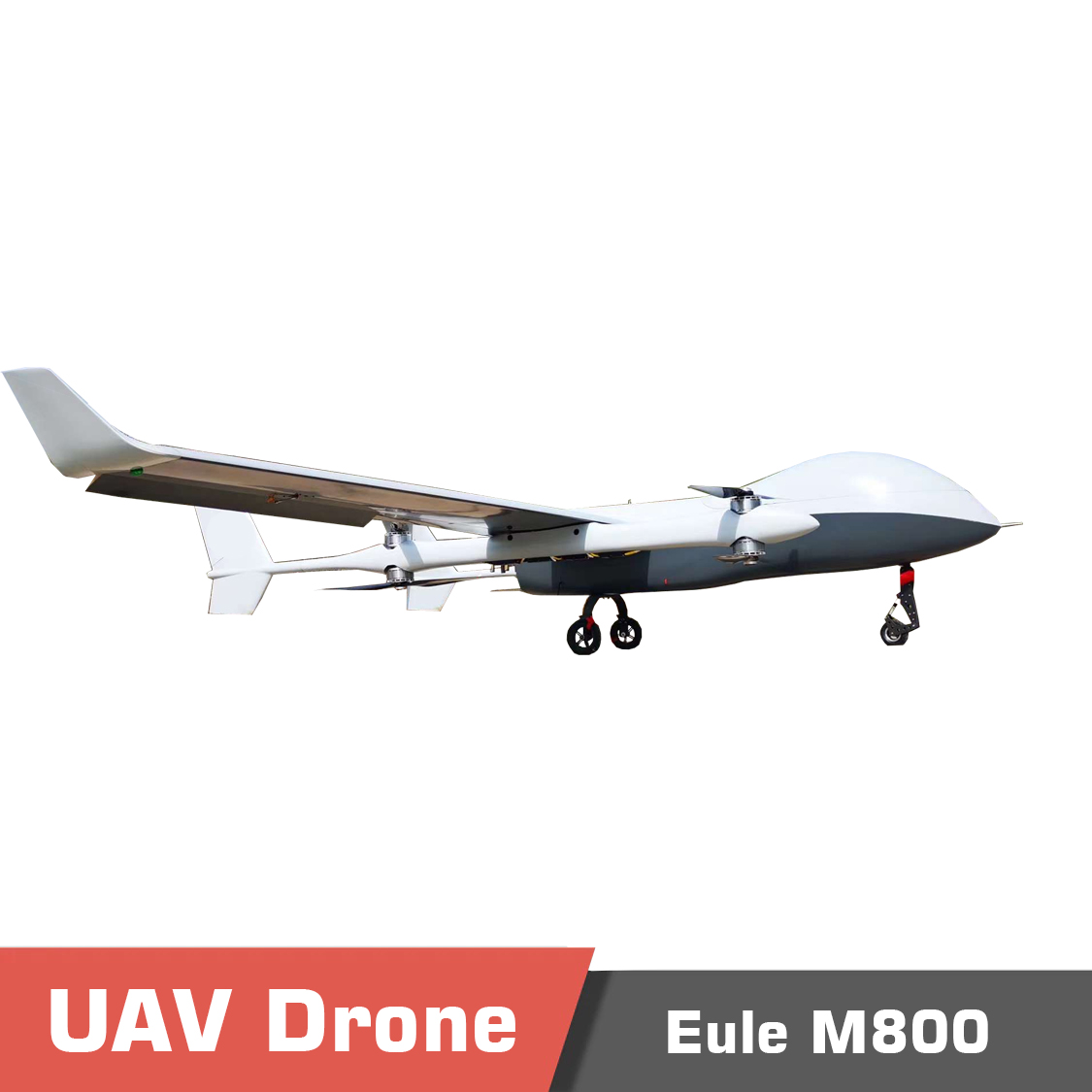

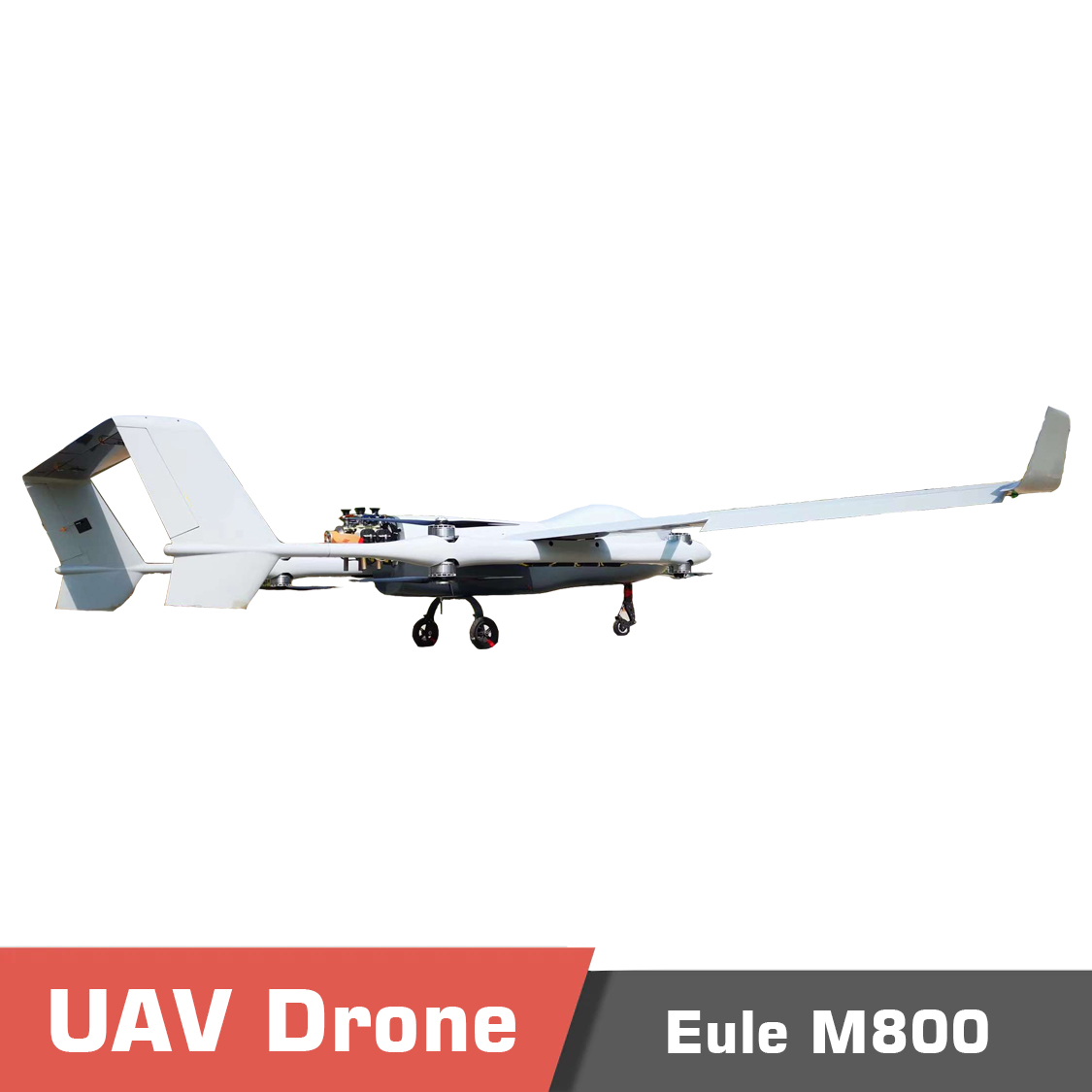

Eule M800 Heavy Lift Long Endurance VTOL

Eule M800 is a 300kg industrial-grade gasoline-electric hybrid vertical take-off and landing fixed-wing UAV. It adopts redundant sensors, redundant control surfaces, a four-axis eight-propeller rotor, and two-cylinder gasoline engines. This enables all flight safety-related sub-systems to be redundant and have the advantages of high safety and long endurance. M800 has level 6 wind resistance, is waterproof in moderate rainfalls, and is capable to operate in low temperatures. It is suitable for coastal defense patrols, customs anti-smuggling, border inspections, post-war assessments, military inspections, reconnaissance, and more.

Eule M800 is equipped with a triple-light POD, 1080P 30x optical, 60x hybrid zoom visible light, 42mm infrared, and 3000m laser ranging functions. Customized development of special functions for inspection mode is: tracking mode, vertex staring mode, line inspection mode, etc.

For the ground station, an unmanned operation vehicle can be equipped with an antenna lift rod, which can be raised to a height of 5.3 meters to expand the link communication distance. A data link with a 30-200km operation range can be included in the package. A set of M800 can be placed inside a standard 4.2m length commercial truck compartment. The rear of the truck is equipped with a lift tailboard, which is convenient for drones and equipment to get on and off the truck.

Vtol m800. 1 2 - eule m800, long endurance, fixedwing uav, cargo drone, wind resistance, detachable load, mapping drone, detachable payload, surveying drone, fixed-wing uav, heavy lift drone, vertical take-off, vertical landing, redundant sensors, four-axis, eight-propeller rotor, low temperature resistance - motionew - 5 Vtol m800. 2 2 - eule m800, long endurance, fixedwing uav, cargo drone, wind resistance, detachable load, mapping drone, detachable payload, surveying drone, fixed-wing uav, heavy lift drone, vertical take-off, vertical landing, redundant sensors, four-axis, eight-propeller rotor, low temperature resistance - motionew - 6 Vtol m800. 3 2 - eule m800, long endurance, fixedwing uav, cargo drone, wind resistance, detachable load, mapping drone, detachable payload, surveying drone, fixed-wing uav, heavy lift drone, vertical take-off, vertical landing, redundant sensors, four-axis, eight-propeller rotor, low temperature resistance - motionew - 7 Vtol m800. 4 1 - eule m800, long endurance, fixedwing uav, cargo drone, wind resistance, detachable load, mapping drone, detachable payload, surveying drone, fixed-wing uav, heavy lift drone, vertical take-off, vertical landing, redundant sensors, four-axis, eight-propeller rotor, low temperature resistance - motionew - 8 Vtol m800. 5 - eule m800, long endurance, fixedwing uav, cargo drone, wind resistance, detachable load, mapping drone, detachable payload, surveying drone, fixed-wing uav, heavy lift drone, vertical take-off, vertical landing, redundant sensors, four-axis, eight-propeller rotor, low temperature resistance - motionew - 9 Vtol m800. 6 - eule m800, long endurance, fixedwing uav, cargo drone, wind resistance, detachable load, mapping drone, detachable payload, surveying drone, fixed-wing uav, heavy lift drone, vertical take-off, vertical landing, redundant sensors, four-axis, eight-propeller rotor, low temperature resistance - motionew - 10 Vtol m800. 7 - eule m800, long endurance, fixedwing uav, cargo drone, wind resistance, detachable load, mapping drone, detachable payload, surveying drone, fixed-wing uav, heavy lift drone, vertical take-off, vertical landing, redundant sensors, four-axis, eight-propeller rotor, low temperature resistance - motionew - 11 Vtol m800. 8 - eule m800, long endurance, fixedwing uav, cargo drone, wind resistance, detachable load, mapping drone, detachable payload, surveying drone, fixed-wing uav, heavy lift drone, vertical take-off, vertical landing, redundant sensors, four-axis, eight-propeller rotor, low temperature resistance - motionew - 12 Vtol m800. 9 - eule m800, long endurance, fixedwing uav, cargo drone, wind resistance, detachable load, mapping drone, detachable payload, surveying drone, fixed-wing uav, heavy lift drone, vertical take-off, vertical landing, redundant sensors, four-axis, eight-propeller rotor, low temperature resistance - motionew - 13

Additional information

Weight 100 kg
Dimensions 400 × 400 × 50 cm

Specifications

Length 5.0 m
Cruising speed 140 km/h
Wingspan 8.0m
Max speed 160 km/h
Wind Resistance Level 6
Maximum take-off weight 300.0 kg
Ceiling 5000 m
Max payload 100.0kg (fuel+load)
Endurance time 6h@60kg payload

Documents

Please contact us for more information.
