G7 VTOL Fixed Wing UAV Drone for Survey and Rescue with power set version
12500.00 $ – 15900.00 $
Description
Important Notice!
If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. MotioNew products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information.

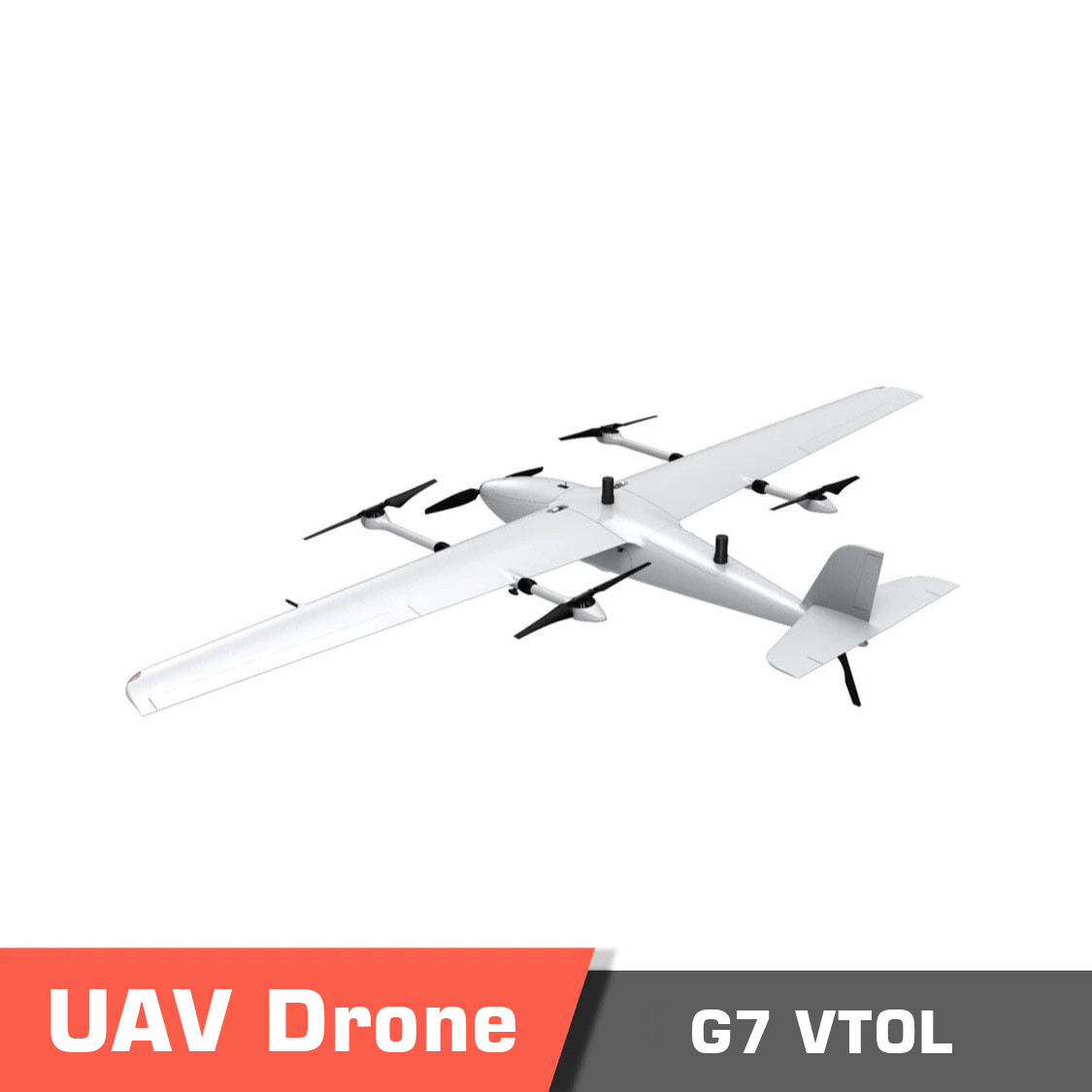

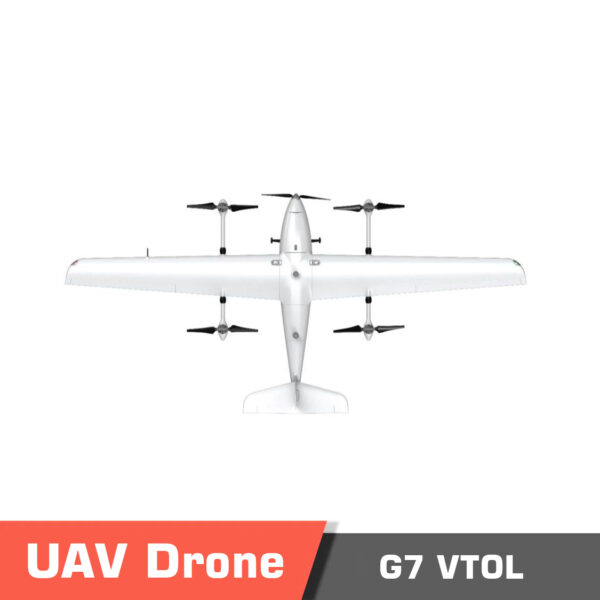

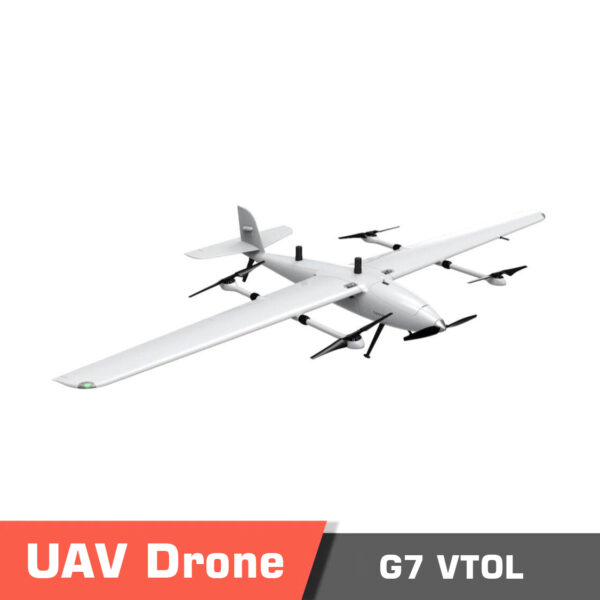

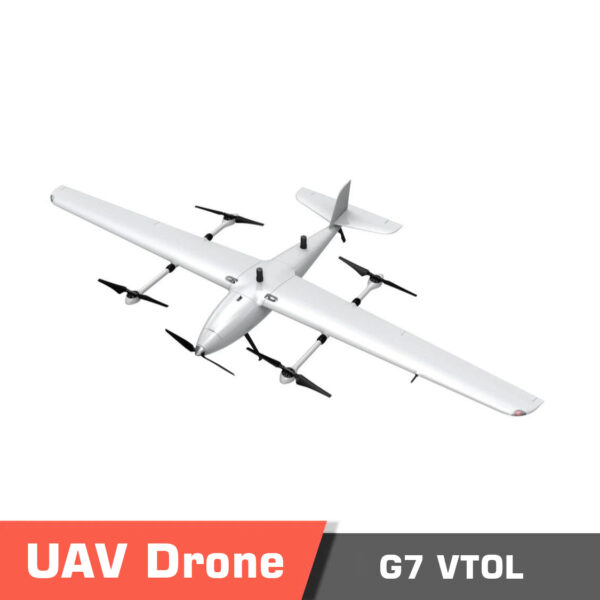

G7 VTOL fixed wing UAV Drone with power set version
G7 VTOL features aย highly advanced aerodynamic design. It is made of Carbon fiber + glass fiber material, which is very light and durableย andย lightweight. The fuselage is big enoughย to hold a flight controller, batteries or other devices. Itย can take off and land vertically withย only small areas needed. Theย max take-off weight is 7kg, theย Cruise Speed of the G7 VTOL isย 72m/s, theย Max. Flight Speed is aboutย 100km/h.
Besides the batteries, motors, ESCs, propellers and other necessary configured equipment’s , it still hasย 1kg payload capacityย left for zoom or mapping cameras.
G7 VTOL can performย long range inspection, survey and mappingย etc.

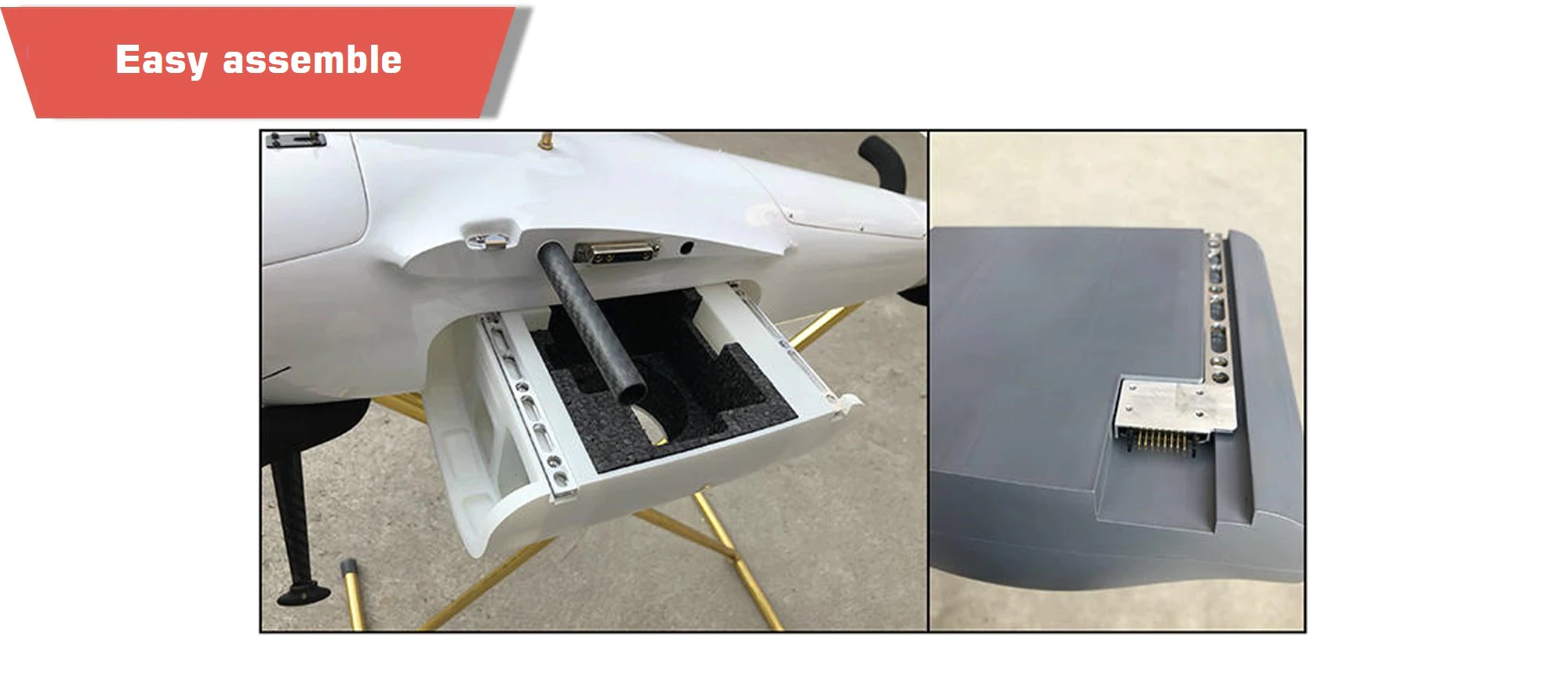

The development of this UAV was based on long-endurance and long-range requirements according to the characteristics of the application for surveying and mapping and patrol. One minute rapid deployment is achieved through modular design, which makes a better operating experience for users. With the design of independent payload cabin, users can replace the payload flexibly according to the operation requirements. , showcasing the versatility and adaptability of this VTOL drone.ย
G7 VTOL Key Features
- High reliability
- Equipped with dual engine
- Large climb rates
- Easy to deal with the flight in high drop terrain
- Intelligent control
- Low current distribution
- Efficient cruise
- Large payload cabin
- 7kg take-off weight, suitable for individual operations
- work with load 2 over hour’s
- easy control of the GCS system
Overview Table of the G7 VTOL Specifications
| Weights | |
| Maximum Take-off Weight | 7kg |
| Max. payload weight | 1kg |
| Dimensions | |
| Dimensions | Wingspan: 2400mm |
| Body Length: 1150mm | |
| Height: 300mm | |
| Performance | |
| Cruising Speed | 72km/h |
| Max Speed | 100km/h |
| Max. Wind Resistance | Level 6 |
| Flight Time | 130-160min (130min with Sony A7RII Camera) |
| Max. Flight Altitude | 4000m |
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
| Item | |
| ProdcutName | G7 VTOL fixed-wing UAV RTF version |
| Material | Carbon fiber + glass fiber |
| Color | White/gray |
| Standard take-off weight | 7 kg |
| Max. Payload Weight | 1.0 kg |
| Cruise Speed | 72km/h |
| Max. Flight Speed | 100km/h |
| Control radius | 15km |
| Max. climb speed | 4m/s |
| Max. Descend speed | 5m/s |
| Max. Altitude AMSL | 4000m |
| Max. Wind Resistance | Level 6 |
| Operating temperature | -10~60โ |
| Flight Time | 130-160min (130min with Sony A7RII Camera) |
| Flight Distance | 160-190km(160km with Sony A7RII Camera) |
| Aircraft dimensions | 2400*1150*300mm |
Product contents
| Bundle | ARF- CUAV Avionics | ARF- Holybro Avionics | RTF- Custom |
| Flight Controller | Pixhack V3 | Pixhawk Orange | EF3 |
| GPS | NEO V2 | Here3 | EF3 GNSS |
| Drone Frame | โ | โ | โ |
| VTOL Motor | 4x | 4x | 4x |
| VTOL ESC | 4x | 4x | 4x |
| VTOL Propeller | 2 Pair | 2 Pair | 2 Pair |
| Cruise Motor | 1x | 1x | 1x |
| Cruise ESC | 1x | 1x | 1x |
| Cruise Propeller | 1x | 1x | 1x |
| RC & Ground Control Station | H16 GCS | Herelink | Industrial Suitcase |
| Communication Link | / | / | OFDM Digital |
| Battery | / | / | Semi-Solid State |
| Battery Charger | UP600+ | UP600+ | UP2400 |
| Case | โ | โ | โ |
| Flight test service | / | / | โ |
| Online Training Program | / | / | โ |
Documents
Pleaseย contact usย for more information.
