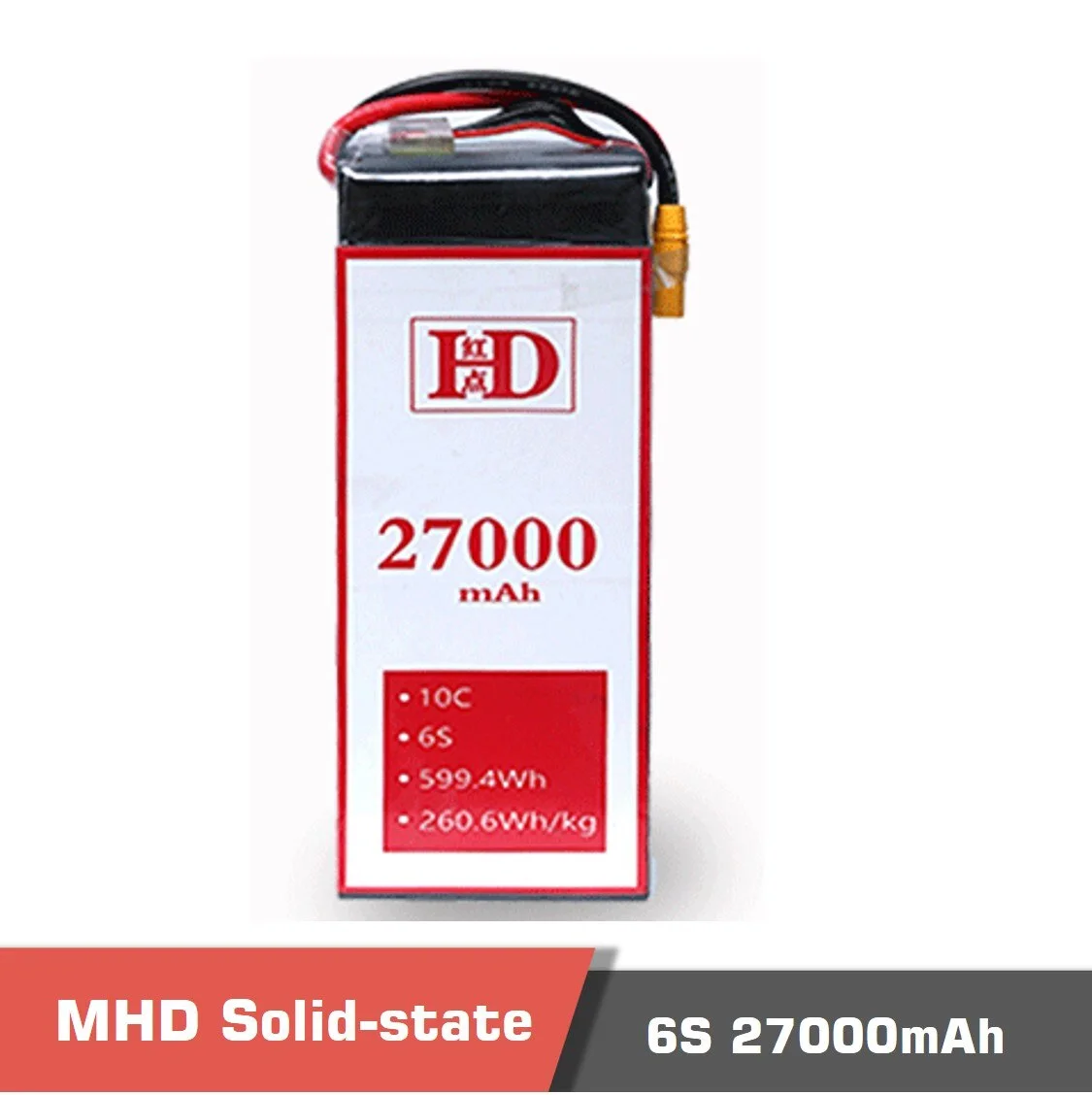

MHD battery, New Technology Solid-state Li-ion Battery 27000mAh 6s 10c
489.00 $
Description
Important Note: Due to the pure battery shipping limitations you need to get confirmation first, Please contact us before placing the order.
MHD Battery
The MHD battery is a Solid-state Li-ion battery series that has a higher discharge current than a Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.2v. But the discharge rate is about 5 times higher than that of a Li-ion battery.
6S 27000mAh solid-state li-ion battery is only 2349g, with 260.6Wh/kg energy density, the continuous discharge rate is 5C, Max. discharge rate is 10C. It also has a long cycle life, over 600 times.
Compared with a Li-ion battery, the MHD Solid-state Li-ion battery has a higher discharge current. The discharge interval of each battery cell is from 2.7v to 4.2v. But the discharge rate is about 5 times higher than that of a Li-ion battery.
Compared with traditional lipo batteries, the MHD Solid-state Li-ion battery has a lightweight and higher energy density. Its energy density increased by 30%-35%, even 20% higher than that of the high-voltage version lipo battery. So the drone endurance time will be increased by 20%-35% by using the MHD Solid-state Li-ion battery.
MHD Solid-state Li-ion battery supports Max.10C discharge and Max. 2C charge, there is no obvious heating during 7C discharge. The recommended discharge rate is 1C-5C to achieve the maximum discharge capacity, charging with a 1C current to improve battery life.
MHD Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires long endurance time: Agriculture drone, Industrial multicopter, and VTOL, Robots, Surface ship, etc.
Additional information
Weight | 4 kg |
---|---|
Dimensions | 25 × 10 × 8 cm |
Specifications
Specification
Voltage | 22.2V |
Capacity | 27000mAh |
Continuous Discharge | 5C |
Max. Discharge | 10C |
Charge | 1C |
Energy | 599.4Wh |
Size | 205x 88 x 62mm |
Weight | 2349g |
Plug | XT90 |
Working Condition Temperature: |
Charge: 0℃~45℃ Discharge: -10℃~55℃ |
Product contents
Product contents
Documents
Please contact us for more information.
