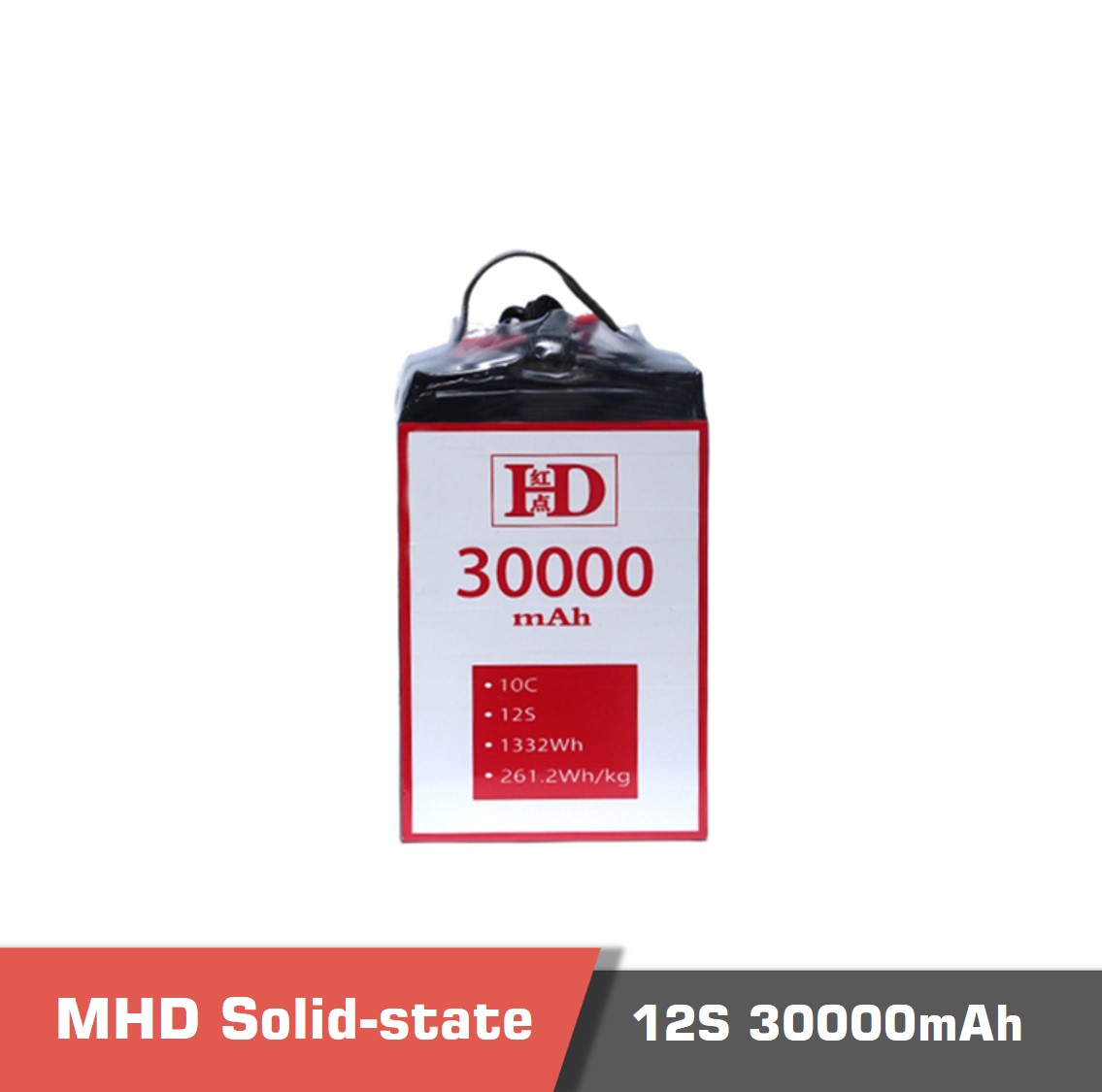

MHD Battery, New Technology Solid-state Li-ion Battery 30000mAh 12s 10c

1099.00 $

Description

Important Note: Due to the pure battery shipping limitations you need to get confirmation first, Please contact us before placing the order.

MHD Battery

The MHD battery is a Solid-state Li-ion battery series that has a higher discharge current than a Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.2v. But the discharge rate is about 5 times higher than that of a Li-ion battery.

12S 30000mAh solid-state li-ion battery is only 5100g, with 261.2Wh/kg energy density, the continuous discharge rate is 5C, Max. discharge rate is 10C. It also has a long cycle life, over 600 times.

Compared with a Li-ion battery, the MHD Solid-state Li-ion battery has a higher discharge current. The discharge interval of each battery cell is from 2.7v to 4.2v. But the discharge rate is about 5 times higher than that of a Li-ion battery.

Compared with traditional lipo batteries, the MHD Solid-state Li-ion battery has a lightweight and higher energy density. Its energy density increased by 30%-35%, even 20% higher than that of the high-voltage version lipo battery. So the drone endurance time will be increased by 20%-35% by using the MHD Solid-state Li-ion battery.

MHD Solid-state Li-ion battery supports Max.10C discharge and Max. 2C charge, there is no obvious heating during 7C discharge. The recommended discharge rate is 1C-5C to achieve the maximum discharge capacity, charging with a 1C current to improve battery life.

MHD Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires long endurance time: Agriculture drone, Industrial multicopter, and VTOL, Robots, Surface ship, etc.

Uffa8055ef0e0413fa9ac8a24ee289671j - mhd battery, solid-state li-ion battery, li-ion battery, drone battery, 12s battery, high energy density battery, uav, drone, vtol - motionew - 3U5fab74d9052d47d4b23ace778fa333a5e - mhd battery, solid-state li-ion battery, li-ion battery, drone battery, 12s battery, high energy density battery, uav, drone, vtol - motionew - 4

Mhd batteryUfe050ea277d440e2be3ce3e546ffecbcf - mhd battery, solid-state li-ion battery, li-ion battery, drone battery, 12s battery, high energy density battery, uav, drone, vtol - motionew - 5Ub6db55070a964a67abf73f4a07abe6e3z - mhd battery, solid-state li-ion battery, li-ion battery, drone battery, 12s battery, high energy density battery, uav, drone, vtol - motionew - 6

Additional information

Weight 7 kg
Dimensions 25 × 11 × 16 cm

Specifications

Specification:

Voltage 44.4V
Capacity 30000mAh
Continuous Discharge 5C
Max. Discharge 10C
Charge 1C
Energy 1332Wh
Size 213x91x139 mm
Weight 5100g
Plug XT90
Working Condition Temperature
Charge: 0℃~45℃
Discharge: -10℃~55℃

Product contents

Product contents

Documents

Please contact us for more information.
