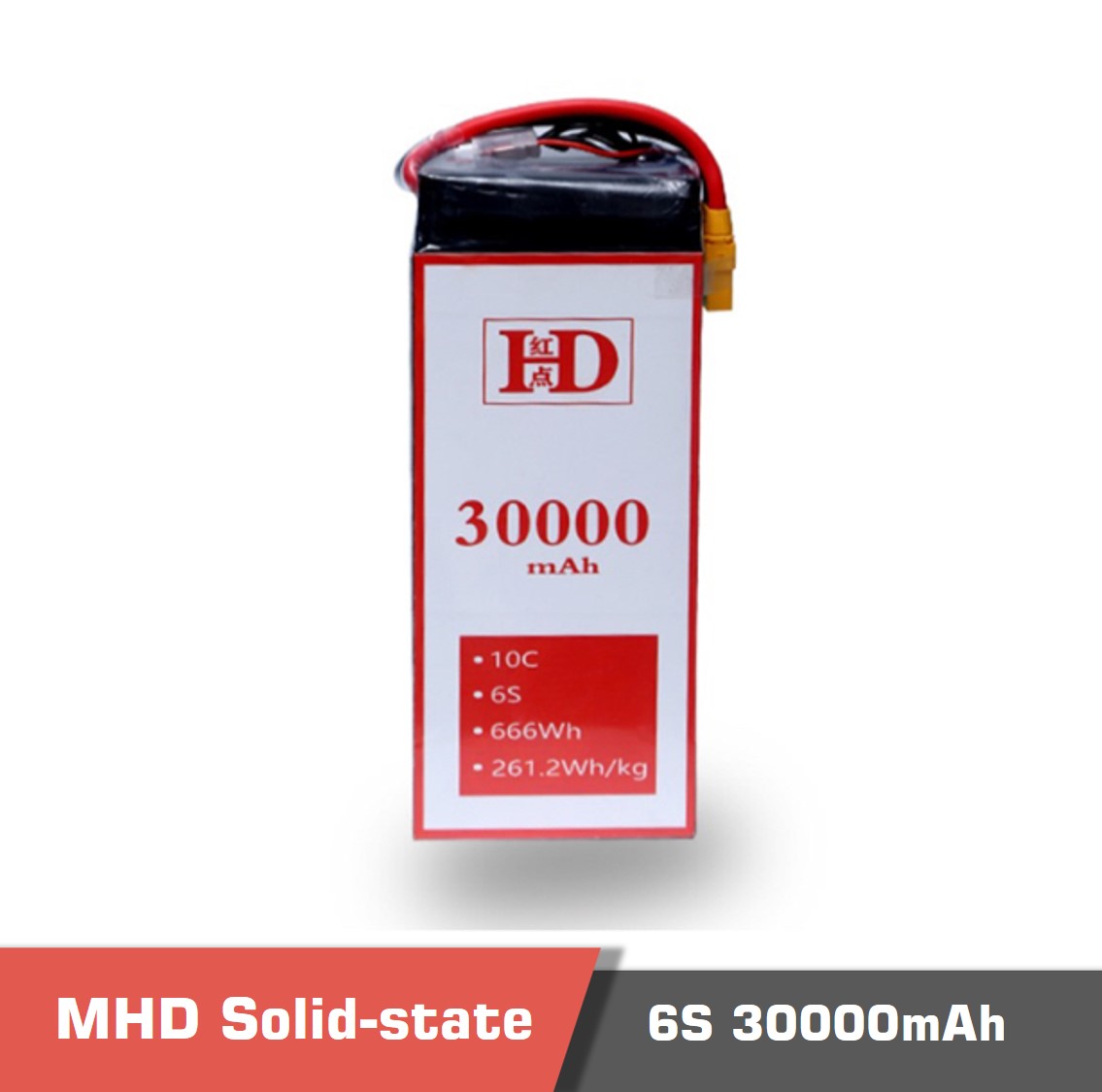

MHD Battery, New Technology Solid-state Li-ion Battery 30000mAh 6s 10c

509.00 $

Description

Important Note: Due to the pure battery shipping limitations you need to get confirmation first, Please contact us before placing the order.

MHD Battery

The MHD battery is a Solid-state Li-ion battery series that has a higher discharge current than a Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.2v. But the discharge rate is about 5 times higher than that of a Li-ion battery.

6S 30000mAh solid-state li-ion battery is only 2619g, with 261.2Wh/kg energy density, the continuous discharge rate is 5C, Max. discharge rate is 10C. It also has a long cycle life, over 600 times.

Compared with a Li-ion battery, the MHD Solid-state Li-ion battery has a higher discharge current. The discharge interval of each battery cell is from 2.7v to 4.2v. But the discharge rate is about 5 times higher than that of a Li-ion battery.

Compared with traditional lipo batteries, the MHD Solid-state Li-ion battery has a lightweightand higher energy density. Its energy density increased by 30%-35%, even 20% higher than that of the high-voltage version lipo battery. So the drone endurance time will be increased by 20%-35% by using the MHD Solid-state Li-ion battery.

MHD Solid-state Li-ion battery supports Max.10C discharge and Max. 2C charge, there is no obvious heating during 7C discharge. The recommended discharge rate is 1C-5C to achieve the maximum discharge capacity, charging with a 1C current to improve battery life.

MHD Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires long endurance time: Agriculture drone, Industrial multicopter, and VTOL, Robots, Surface ship, etc.

Mhd battery

Uf1b1da91fe9d41c59434b3c863d998d8w - mhd battery,solid-state li-ion battery,li-ion battery,drone battery,6s battery,high energy density battery,uav,drone,vtol - motionew - 4Ub6db55070a964a67abf73f4a07abe6e3z - mhd battery,solid-state li-ion battery,li-ion battery,drone battery,6s battery,high energy density battery,uav,drone,vtol - motionew - 5

Additional information

Weight 5 kg
Dimensions 25 × 11 × 9 cm

Specifications

Specification

Voltage 22.2V
Capacity 30000mAh
Continuous Discharge 5C
Max. Discharge 10C
Charge 1C
Energy 666Wh
Size 207×90.5x67mm
Weight 2619g
Plug XT90
Working Condition Temperature
Charge: 0℃~45℃
Discharge: -10℃~55℃

Product contents

Product contents

Documents

Please contact us for more information.
