G25 VTOL Fixed Wing for Survey and Rescue with Easy Changeable Payload Bin

21499.00 $25000.00 $

Description

G25 VTOL Fixed Wing Overview

G25 VTOL has a 3.9-meter wingspan and features a highly advanced aerodynamic design. The fuselage of this fixed wing VTOL is made of Carbon fiber + glass fiber which is very light and durable.

Although the G25 VTOL is so big, it adopts a quick-detach design which makes the plane easy to assemble and disassemble, and easy to transport. The fuselage also has big inner space for the flight controllers, batteries, or other types of equipment, like oblique cameras, Multisensor gimbal cameras, etc.

The G25 VTOL can fly longer and load more payload. This VTOL has a long flight time endurance by using a high voltage supported propulsion system that makes up to 140min flight time with 6.5Kg payload, obviously, it can be used for ultra-long-range flight distances by using lighter payloads and a reliable long-range data and video link system. This VTOL Standard take-off weight is about 25kg, The suggested max payload is 10kg. The cruising speed of the G25 VTOL can reach 75km/h. The G25 fixed wing drone can take off and land vertically in a very small area and use as a rescue drone and survey drone.

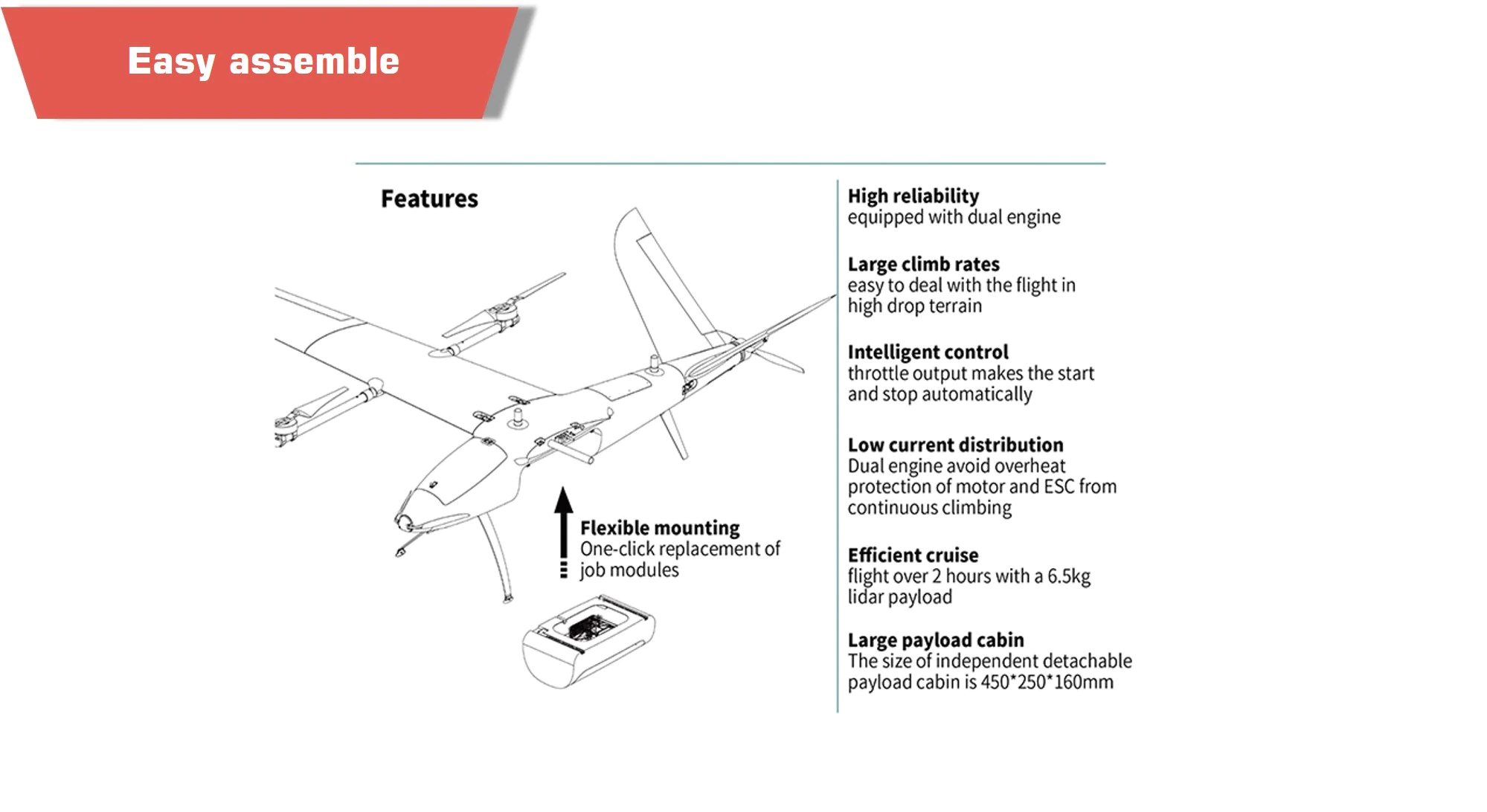

Key Features

  • High reliability
  • Equipped with dual engine
  • Large climb rates
  • Easy to deal with the flight in high drop terrain
  • Intelligent control
  • Low current distribution
  • Dual engine avoid overheating protection of motor and ESC from continuous climbing(optional)
  • Efficient cruise
  • Flight over 2hours with a 6.5kg lidar payload
  • Large payload cabin
  • The size of an independent detachable payload cabin is 450*250*160mm

G25 vtol fixed wing uav drone for survey and rescue with easy changeable payload bin p1 motionew

G25 vtol fixed wing uav drone for survey and rescue with easy changeable payload bin p2 motionew

G25 vtol fixed wing uav drone for survey and rescue with easy changeable payload bin p3 motionew

G25 vtol fixed wing uav drone for survey and rescue with easy changeable payload bin p4 motionew

G25 vtol fixed wing uav drone for survey and rescue with easy changeable payload bin p5 motionew

G25 vtol fixed wing uav drone for survey and rescue with easy changeable payload bin p6 motionew

G25 vtol fixed wing uav drone for survey and rescue with easy changeable payload bin p7 motionew



If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Weight N/A
Dimensions N/A
Bundle

ARF- CUAV Avionics, ARF- Holybro Avionics, RTF- Custom Avionics

Specifications

Product Name

G25 VTOL Fixed Wingd-wing UAV RTF version

Material

Carbon fiber + glass fiber

Color

White/gray

Standard take-off weight

25kg

Max. Payload Weight

10 kg

Cruise Speed

75km/h

Max. Flight Speed

100km/h

Control radius

30km

Max. climb speed

8m/s

Max. Descend speed

5m/s

Max. Altitude AMSL

4000m

Max. Wind Resistance

Level 6

Operating temperature

-10~60℃

Flight Time

140min(140min with 6.5kg lidar)

Flight Distance

176km(176km with 6.5kg lidar)

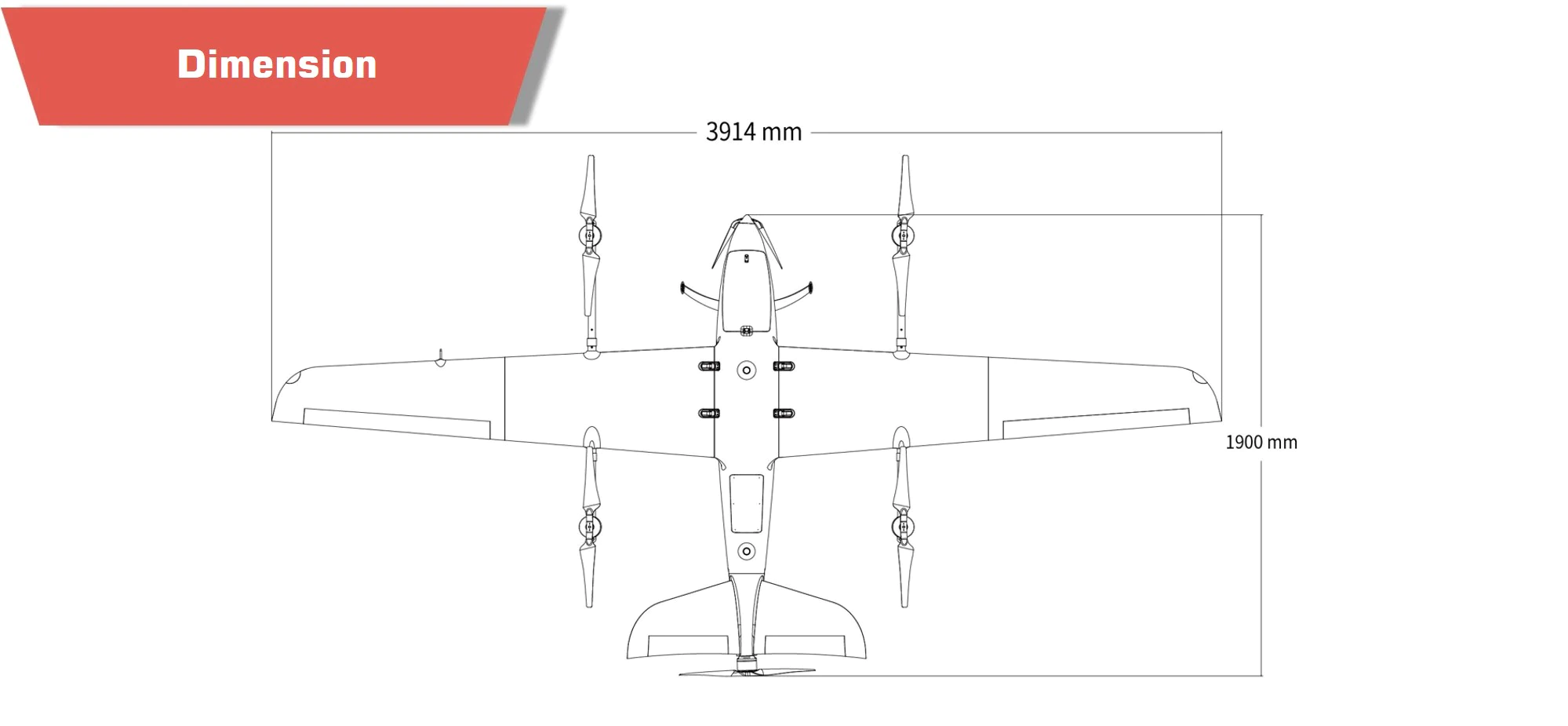

Aircraft dimensions

3914*1920*750mm

Product contents

Bundle ARF- CUAV Avionics ARF- Holybro Avionics RTF- Custom
Flight Controller Pixhack V3 Pixhawk Orange EF3
GPS NEO V2 Here3 EF3 GNSS
Drone Frame
VTOL Motor 4x 4x 4x
VTOL ESC 4x 4x 4x
VTOL Propeller 2 Pair 2 Pair 2 Pair
Cruise Motor 1x 1x 1x
Cruise ESC 1x 1x 1x
Cruise Propeller 1x 1x 1x
RC & Ground Control Station H16 GCS Herelink Industrial Suitcase
Communication Link / / OFDM Digital
Battery / / Semi-Solid State
Battery Charger UP600+ UP600+ UP2400
Case
Flight test service / /
Online Training Program / /

Documents

Please contact us for more information.
