X6 series light load flying platform

7000.00 $

Description

Overview of X6 Series Light Load Flying Platform

The fuselage frame is integrally formed, with a simplified structure and convenient assembly and the main body of the fuselage adopts a modular design. The key features of this product are presented below.

Modular Integrated Fuselage

The main body of the fuselage adopts a modular design, and the fuselage frame is integrally formed, with a simplified structure and convenient assembly.

Note: X6100 body adopts nylon + glass fiber material while X6120 body adopts nylon + carbon fiber material.

Ufde81874d1914c70accbcb28995ad5ae6 - x6 series light load flying platform, integrated fuselage, x6100, agriculture drone, multirotor drone - motionew - 1

Separate Arm Disassembly

The arm adopts a separate disassembly design and ingeniously designed breakpoints to reduce damage to the parts of the bomber and reduce maintenance costs.

Note: X6100 arm disassembly and carbon tube diameter 25mm, X6120 arm disassembly and carbon tube diameter 30mm.

U4eeb0afc63eb4b74b7ef9954bc4c4dc89 - x6 series light load flying platform, integrated fuselage, x6100, agriculture drone, multirotor drone - motionew - 2

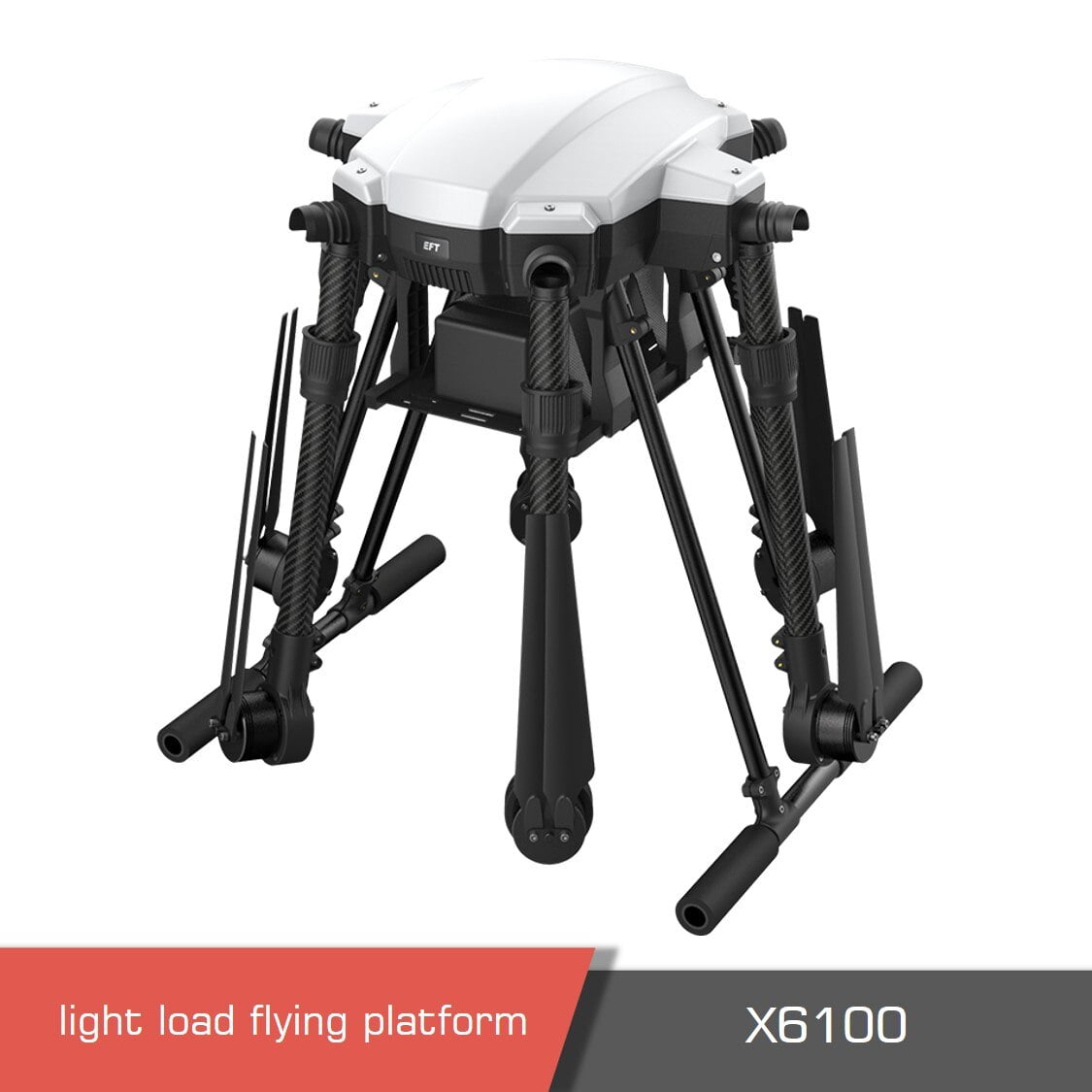

Umbrella Folding Design

The whole machine adopts the classic umbrella-shaped folding method, which minimizes the size after folding, and is convenient for storage.

Quick Release Battery Track

The battery guide rail cooperates with the spring positioning knob to realize the tool-free replacement of the battery compartment, making the battery installation and replacement more convenient and quick.

Ub4624059df1247178153aced857743c1d - x6 series light load flying platform, integrated fuselage, x6100, agriculture drone, multirotor drone - motionew - 3



Full Waterproof Body

The design of the whole machine is dustproof and waterproof, and the protection grade is IP65, which can fly normally in the rain.

U748a32a9bd2c4056bbfa33eecf4037845 - x6 series light load flying platform, integrated fuselage, x6100, agriculture drone, multirotor drone - motionew - 4

Scalable Mounting Platform

The expandable mounting platform can be adapted to equipment used in different industries, such as carrying PTZ, pod, megaphone, throwing device, etc.

U5ffa123787c34a83ab3fc10351fba55bo - x6 series light load flying platform, integrated fuselage, x6100, agriculture drone, multirotor drone - motionew - 5

- x6 series light load flying platform, integrated fuselage, x6100, agriculture drone, multirotor drone - motionew - 6U0a3e524f64a04678b51a396e449e2530k - x6 series light load flying platform, integrated fuselage, x6100, agriculture drone, multirotor drone - motionew - 7U9c3691fb09a842248e4023b583d2c41as - x6 series light load flying platform, integrated fuselage, x6100, agriculture drone, multirotor drone - motionew - 8

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Specifications

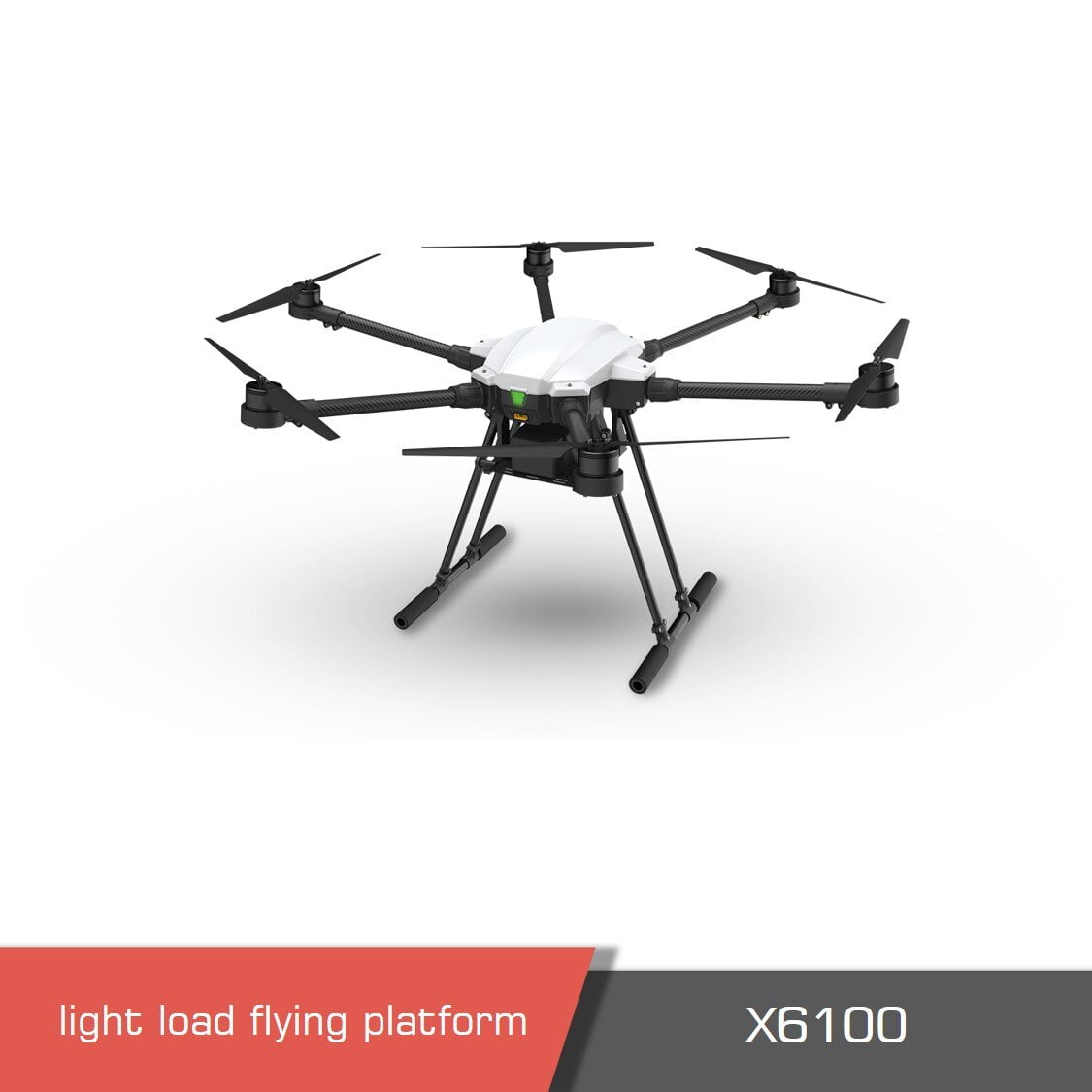

X6100
WHEELBASE 1000mm
RACK WEIGHT 2.75kg
EMPTY WEIGHT 4.85kg
FULL LOAD WEIGHT 12kg
EFFECTIVE LOAD 3-5kg
RECOMMENDED MOTOR 4216/5008
RECOMMENDED ESC 40A ESC
RECOMMENDED BLADE 17-18 inches
RECOMMENDED BATTERY 16-22Ah(6S)

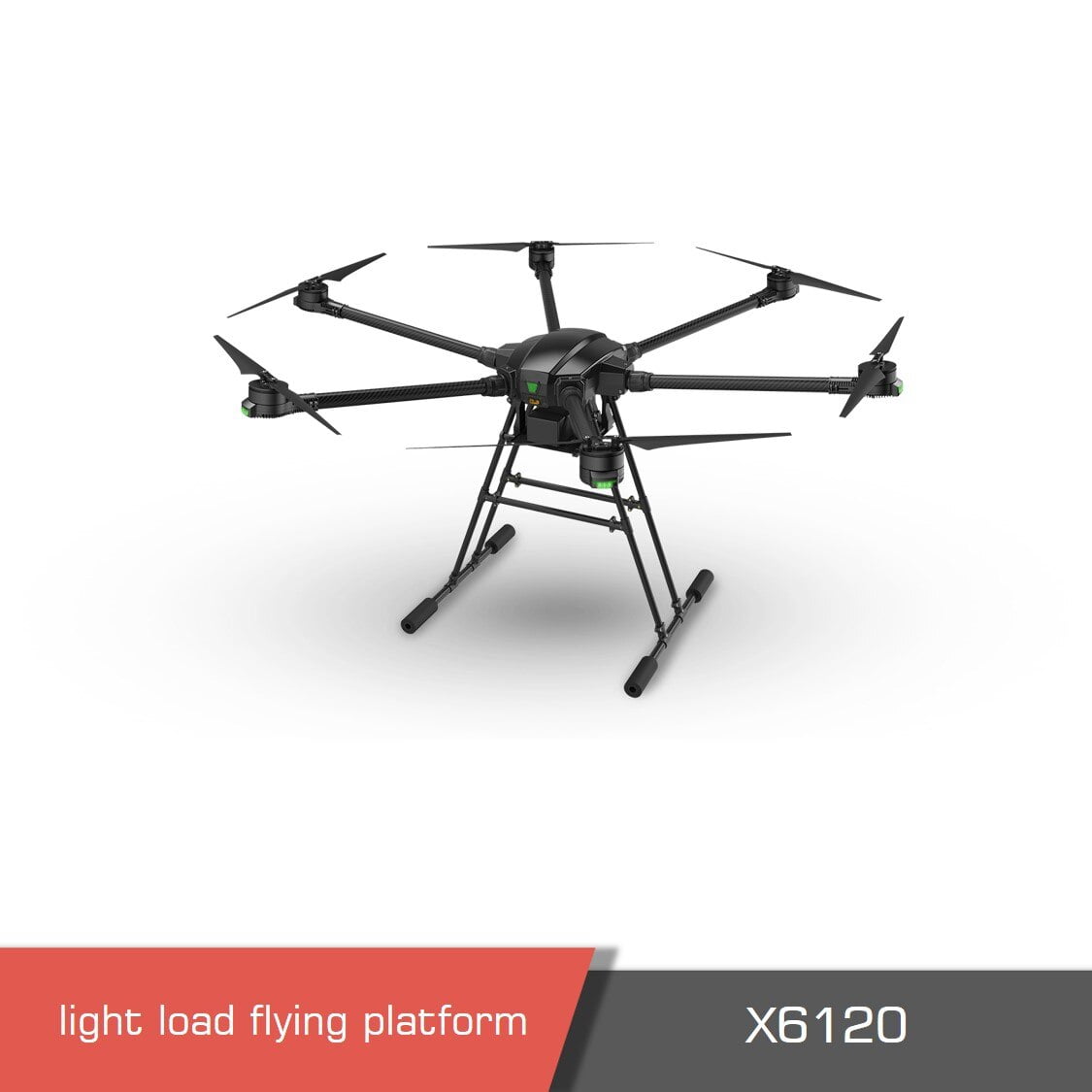

X6120
WHEELBASE 1290mm
RACK WEIGHT 3.18kg
EMPTY WEIGHT 7.5kg
FULL LOAD WEIGHT 18kg
EFFECTIVE LOAD 4-6kg
RECOMMENDED MOTOR 6015/6215/X6
RECOMMENDED ESC 60A ESC
RECOMMENDED BLADE 22-24 inches
RECOMMENDED BATTERY 16-22Ah(12S)
