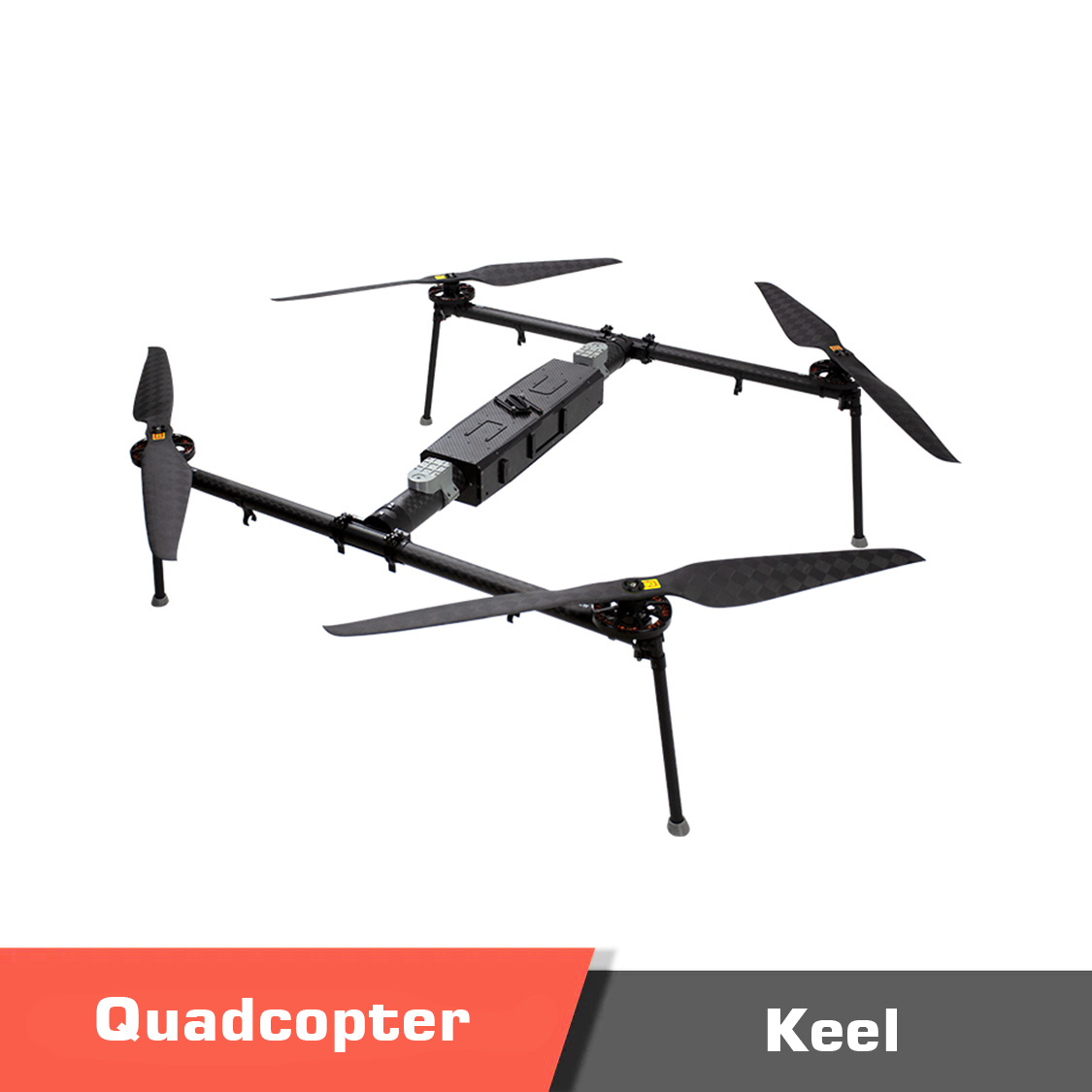

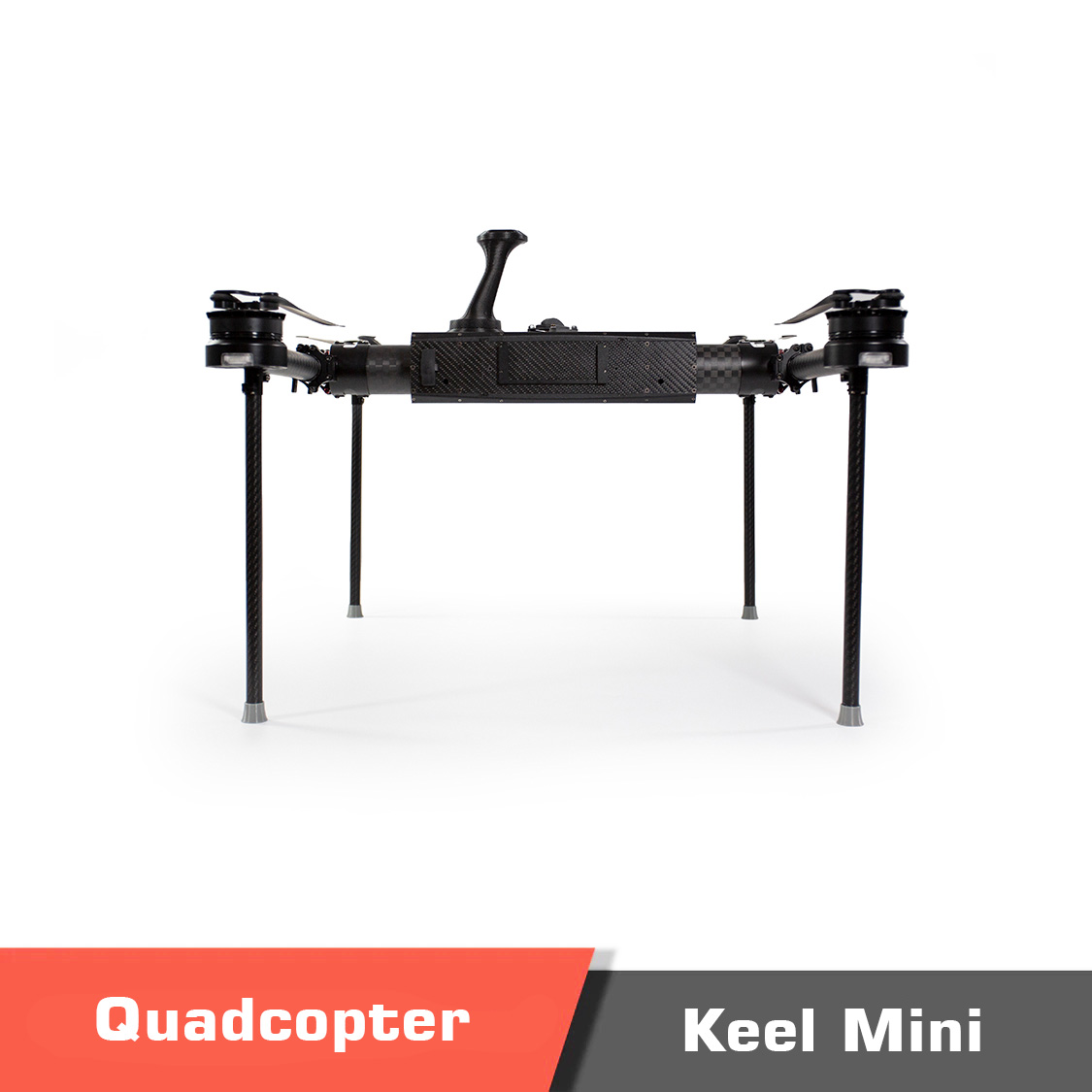

ZHT KEEL Mini Quadcopter Long Endurance Industrial Drone

(1 customer review)
PayPal
Visa
Master

Description

Important Notice!
If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. MotioNew products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information.

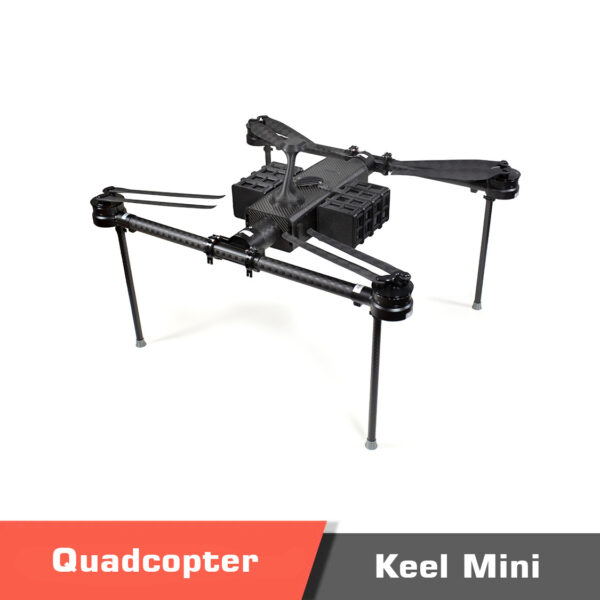

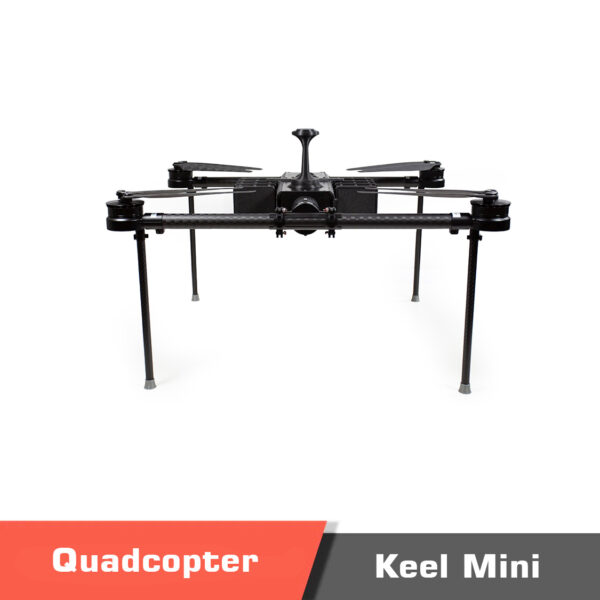

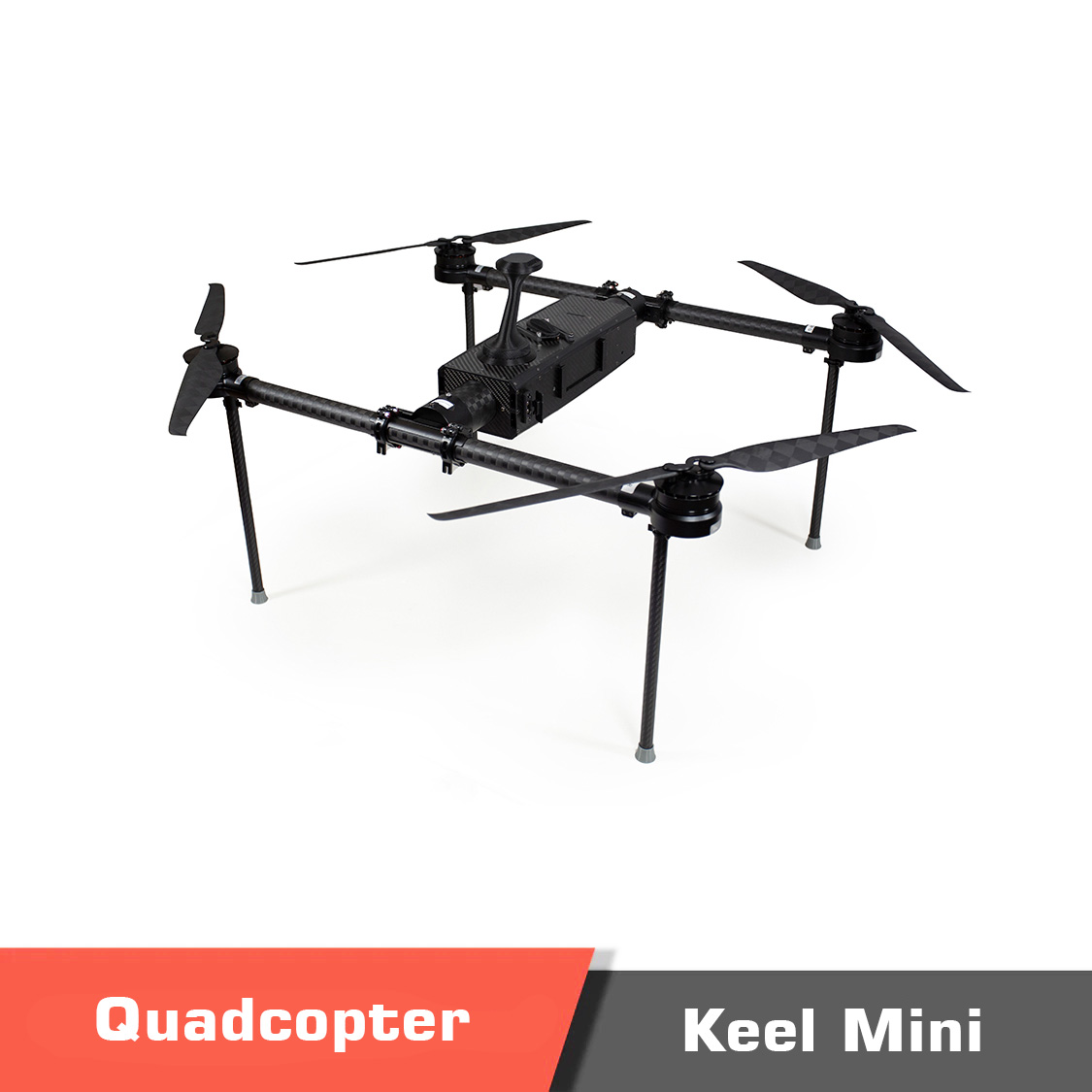

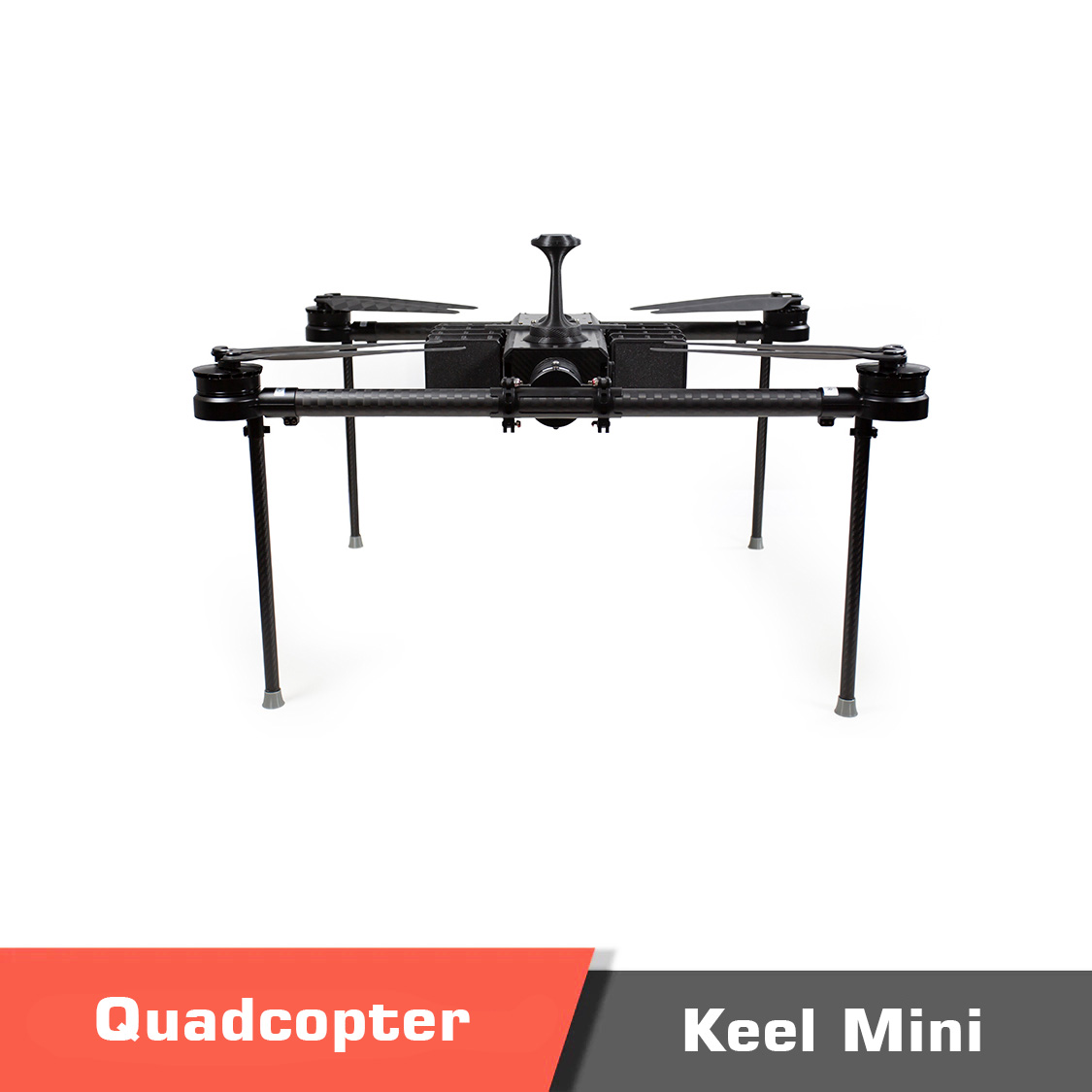

ZHT KEEL Mini Quadcopter Overview

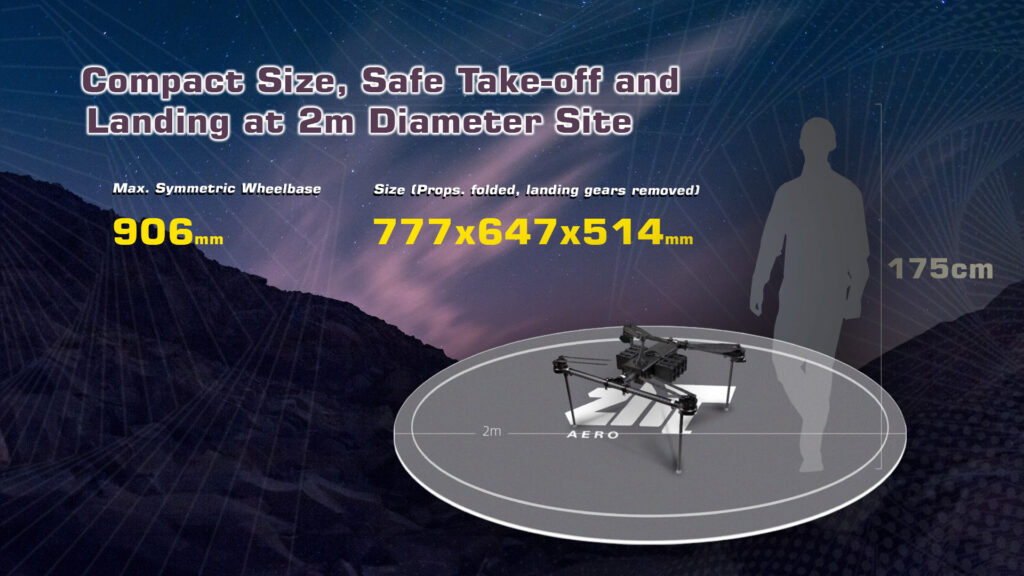

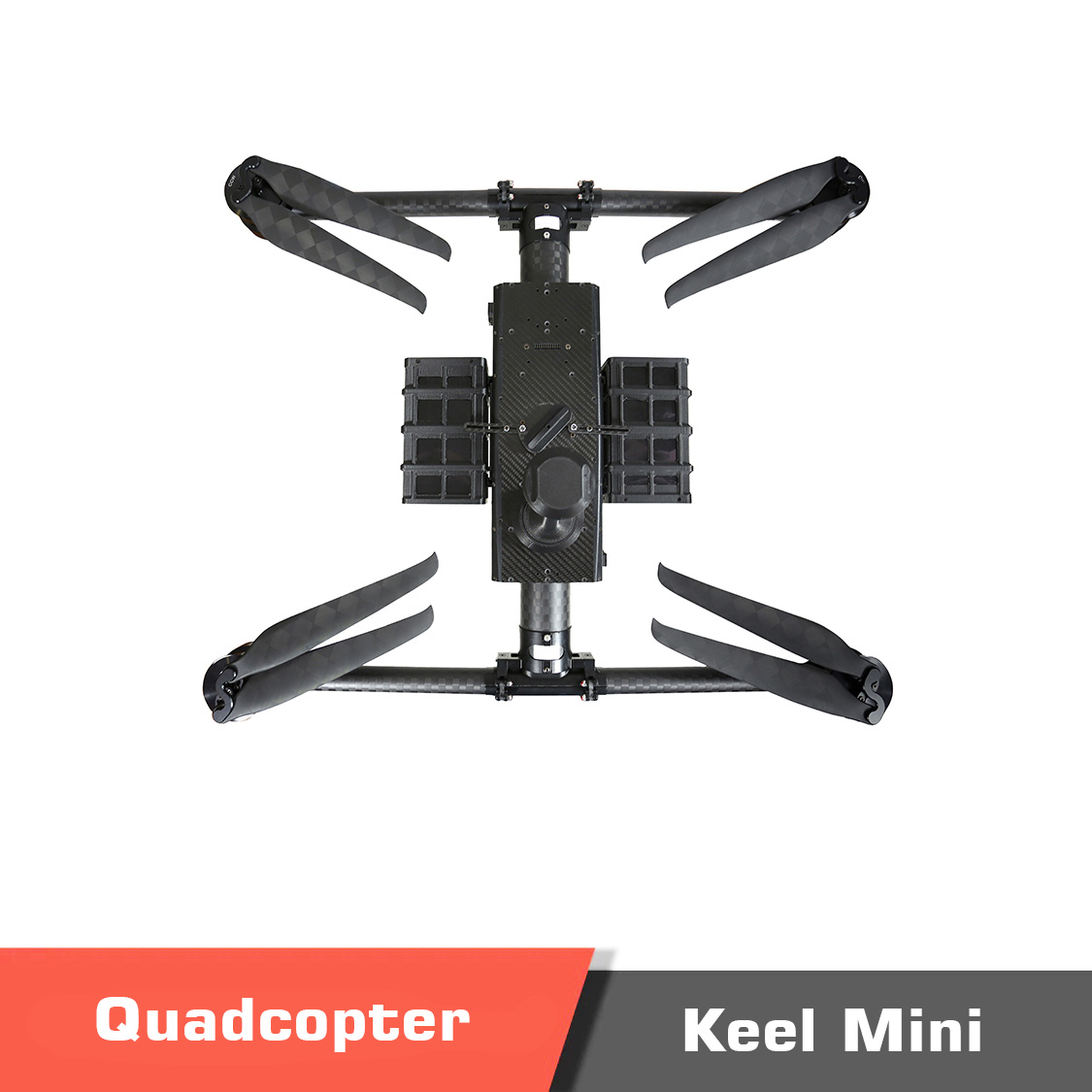

The ZHT KEEL Mini Quadcopter is designed for versatility and high performance, featuring a symmetric wheelbase of 906mm. Constructed from carbon fiber composite and aircraft aluminum, this multirotor drone ensures durability and lightweight characteristics. When the propellers are folded and the landing gears removed, the dimensions are 777x647x131mm, while the dimensions extend to 966x1053x443mm with props and landing gears unfolded. The quadcopter weighs approximately 3.7kg without the battery and 7.7kg with two batteries installed.

KEEL Mini Quadcopter Video

Ability to carry loads and move of KEEL Mini Quadcopter

The ZHT KEEL Mini Quadcopter can carry a maximum load of up to 8kg and has a maximum takeoff weight of 16kg. Its endurance varies based on the payload: up to 70 minutes with no payload, 40 minutes with a 3kg payload, 31 minutes with a 5kg payload, and 25 minutes with a 6kg payload. It maintains excellent hovering accuracy, with vertical precision of ยฑ0.2m and horizontal precision of ยฑ0.1m in moderate or no wind conditions.

Performance Capabilities

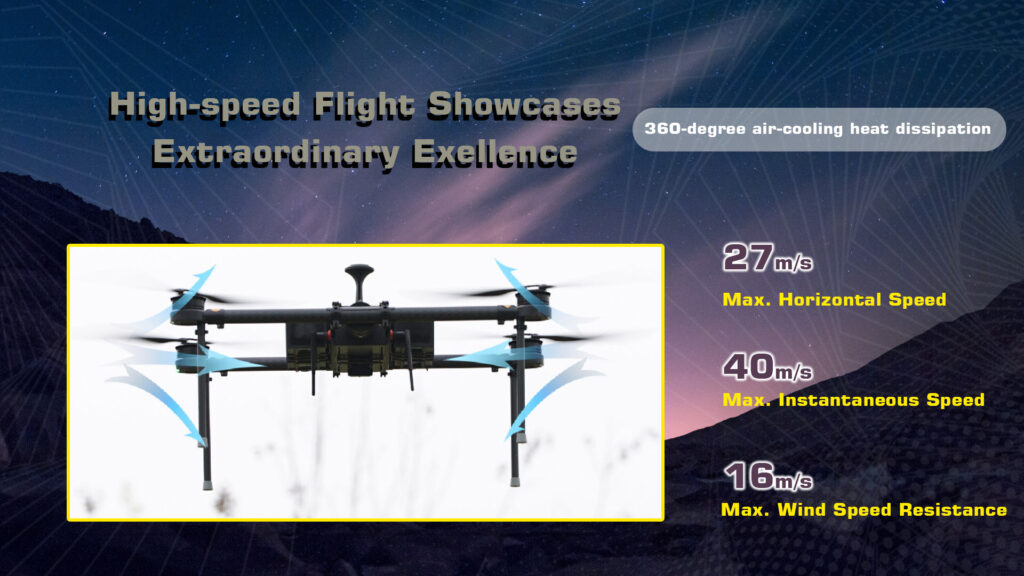

Performance capabilities of the ZHT KEEL Mini Quadcopter include a maximum angular velocity of 150ยฐ/s, a maximum pitch angle of 25ยฐ, an ascent speed of 3m/s, and a descent speed of 2.5m/s. It can reach a maximum horizontal speed of 27m/s and operate at a flight altitude of up to 5500m. The drone can resist wind speeds up to 16m/s and has an ingress protection rating of IP55, ensuring reliable operation in harsh environments. The operating temperature range is from -20โ„ƒ to +55โ„ƒ.

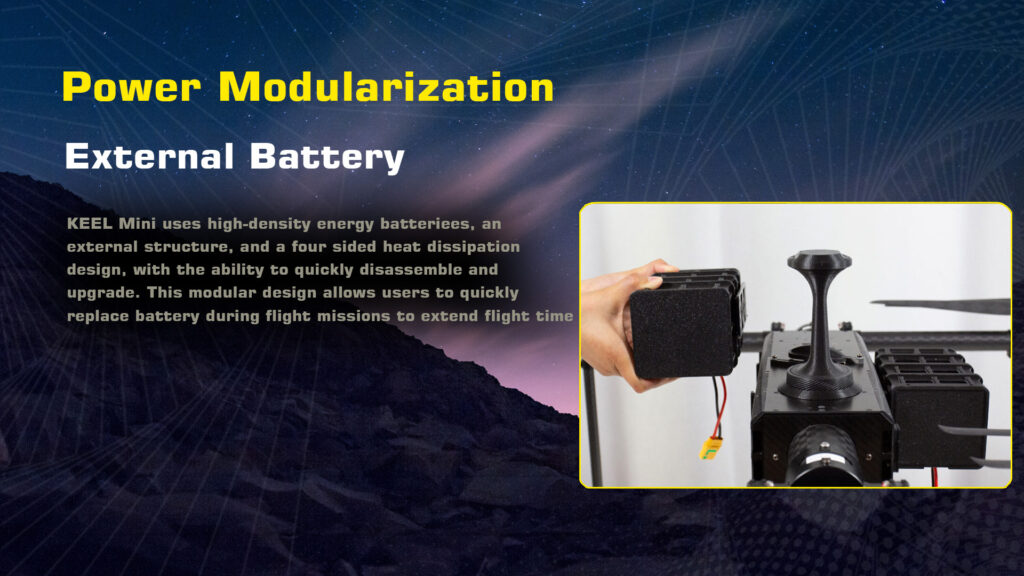

Power System

The quadcopter is powered by a 14S, 19200mAh battery, weighing approximately 2kg and measuring 150x70x75mm. This configuration provides the necessary power for its extensive capabilities. Note that the size and weight may vary according to customer customization requirements. Please refer to the actual product for precise specifications.

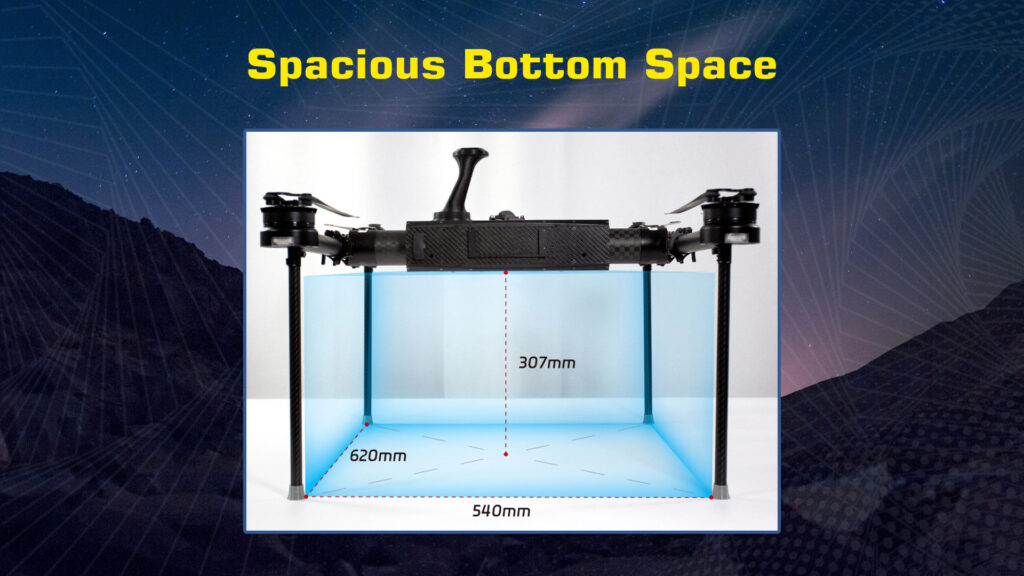

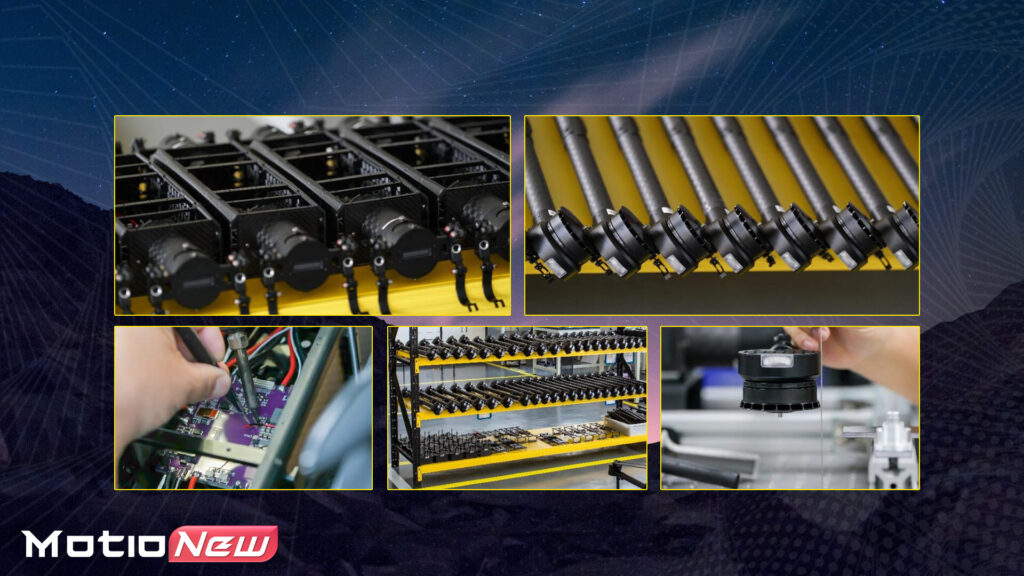

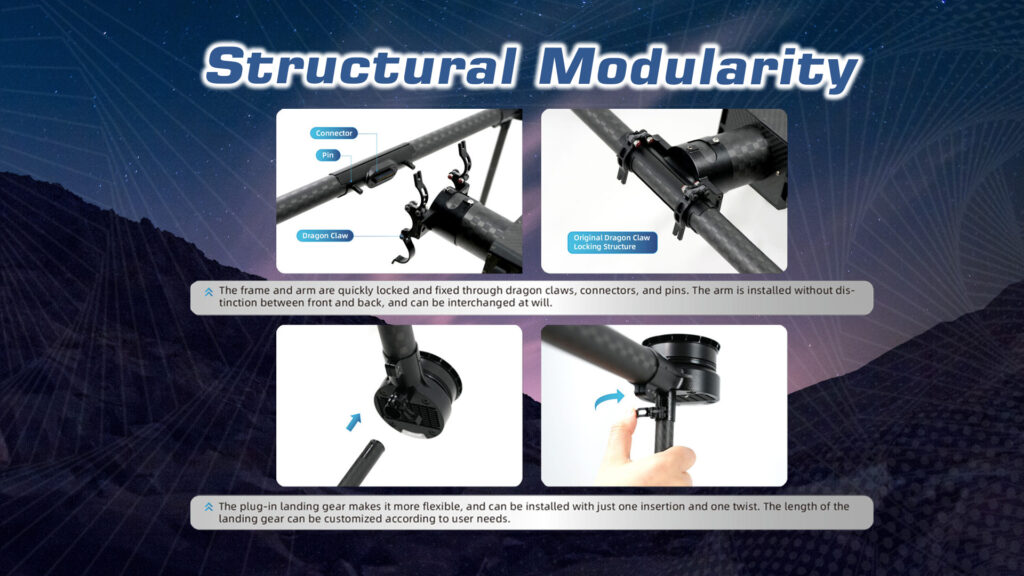

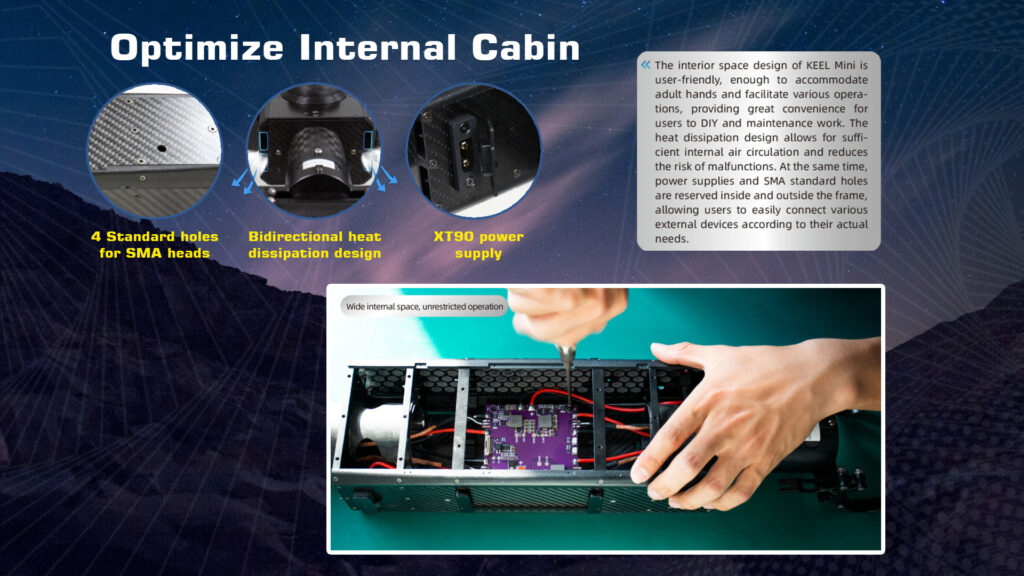

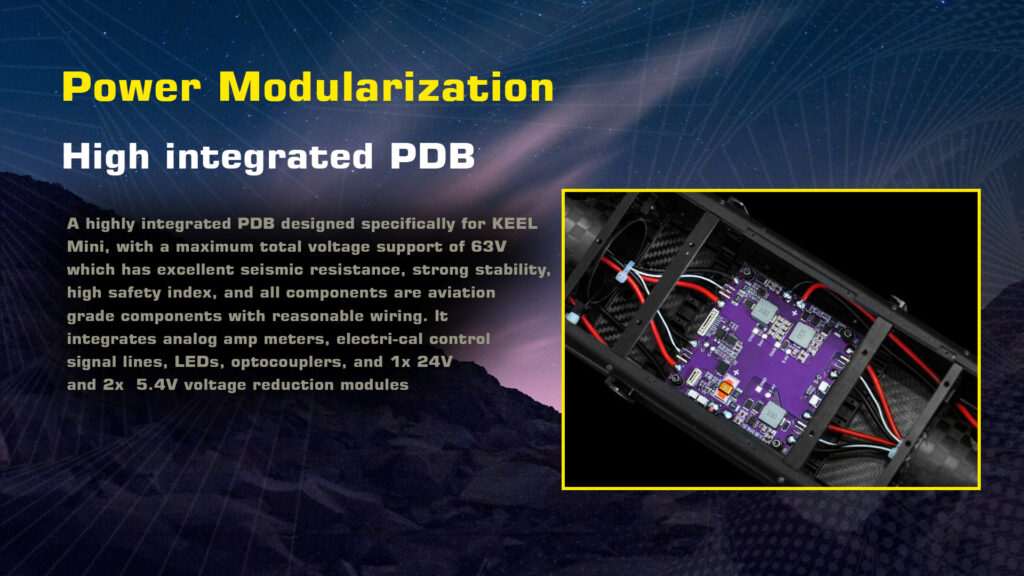

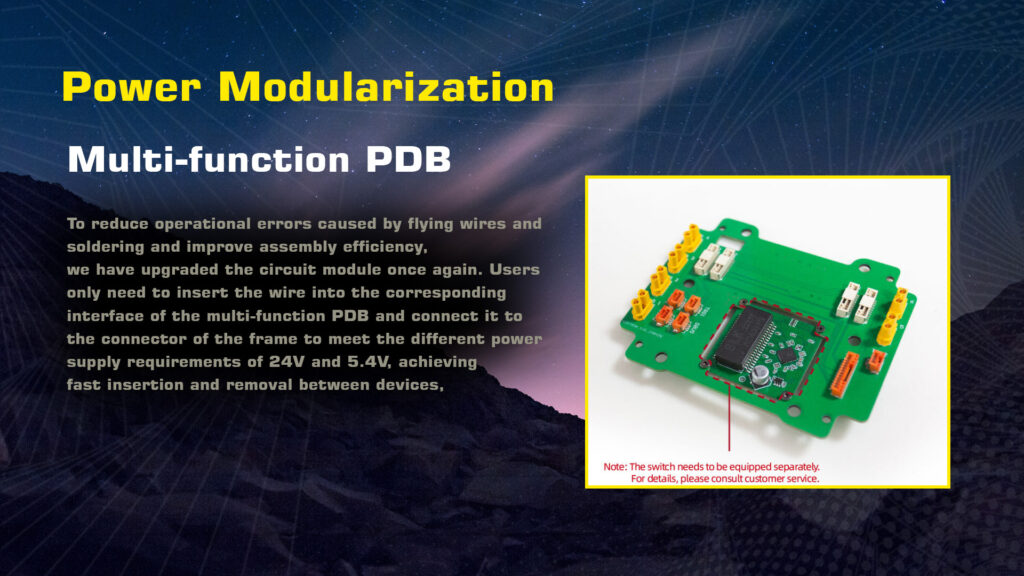

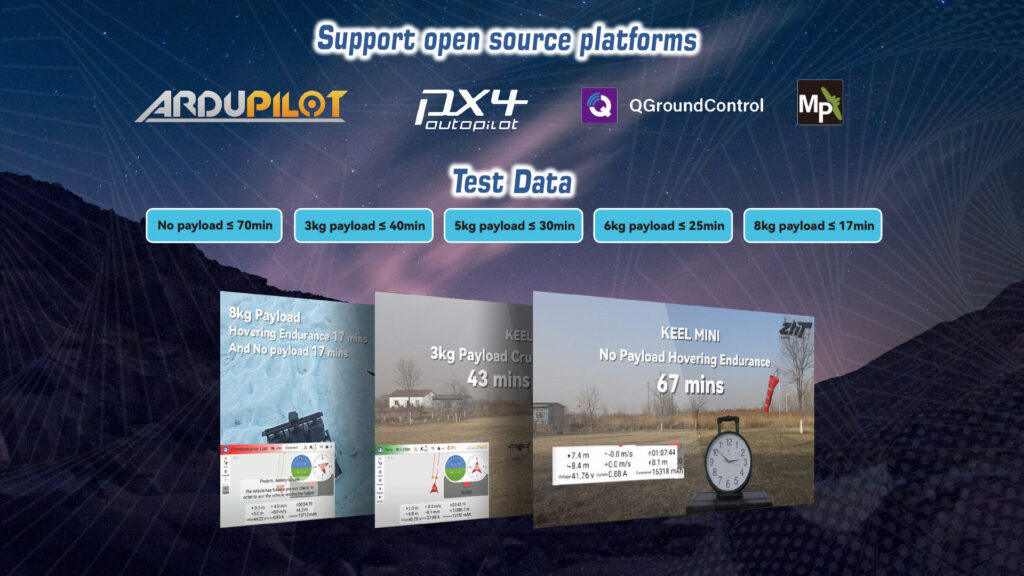

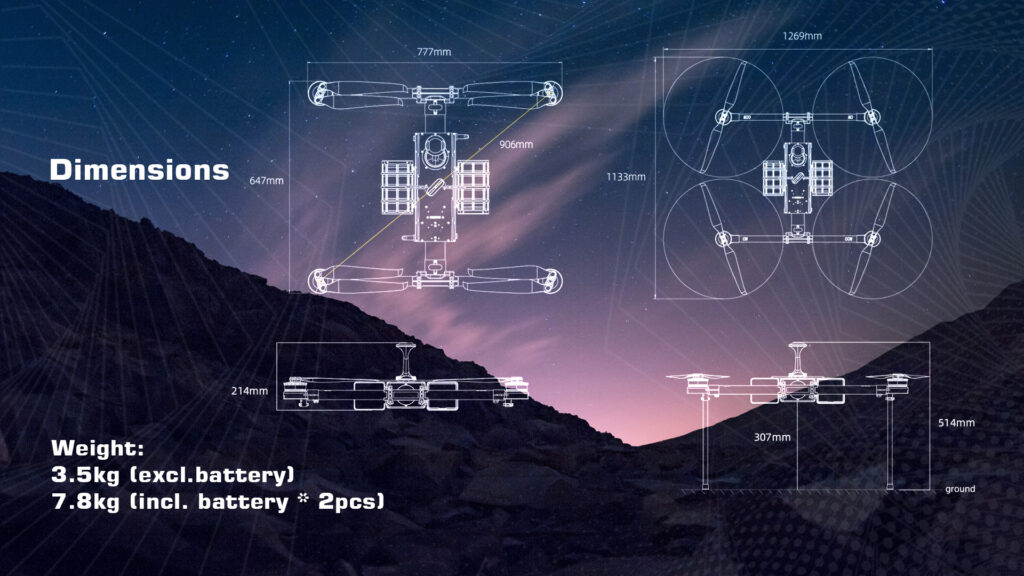

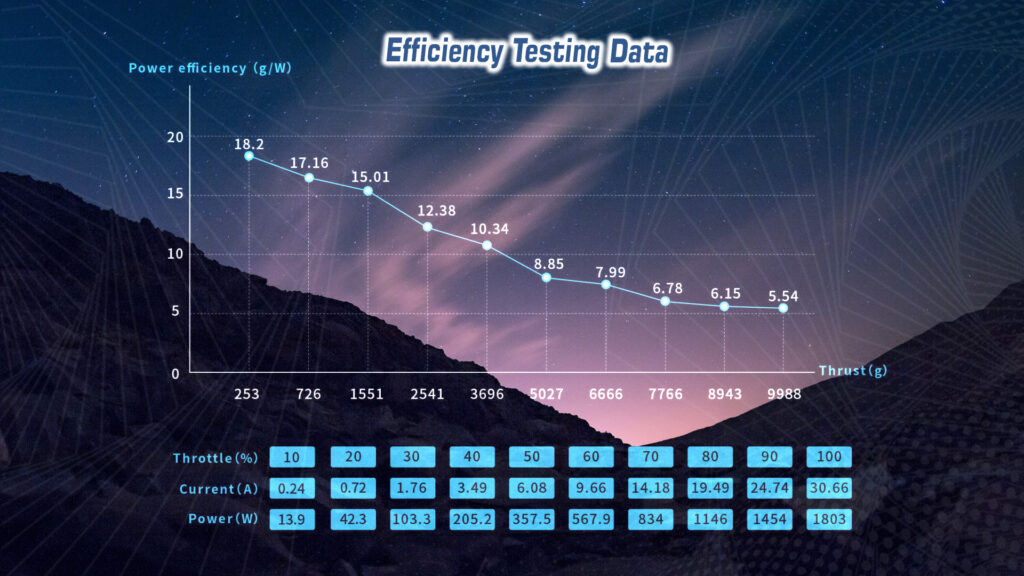

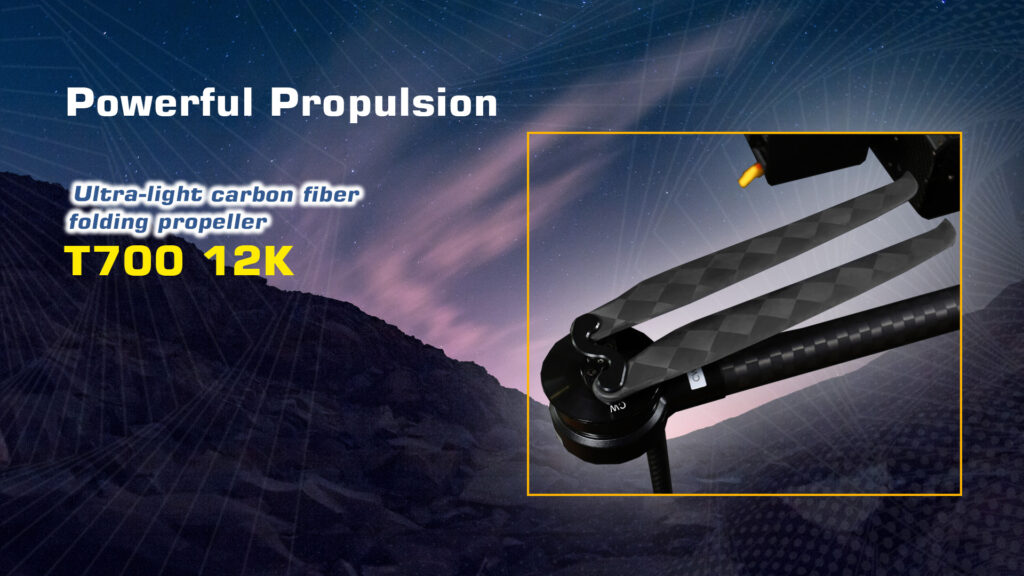

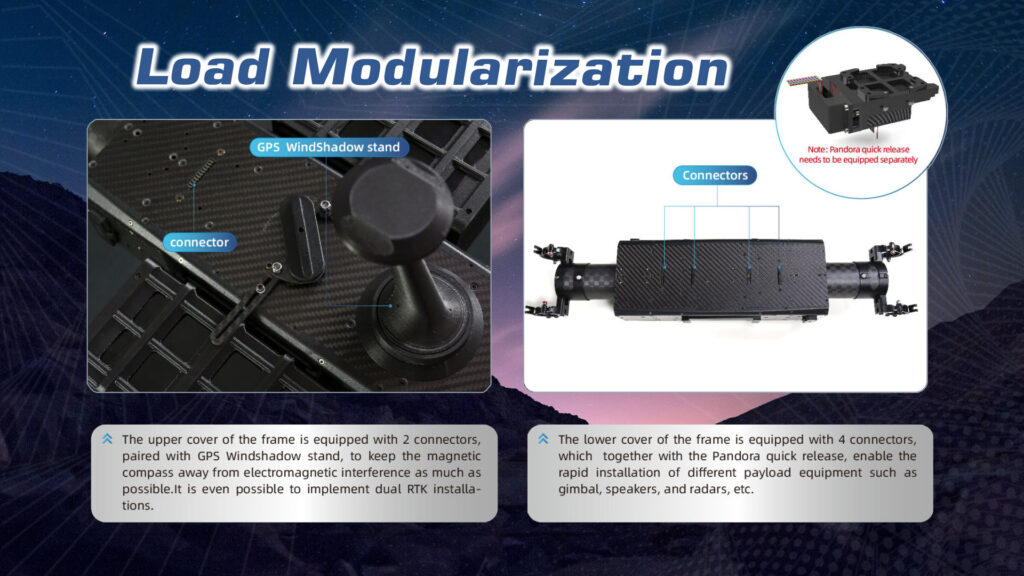

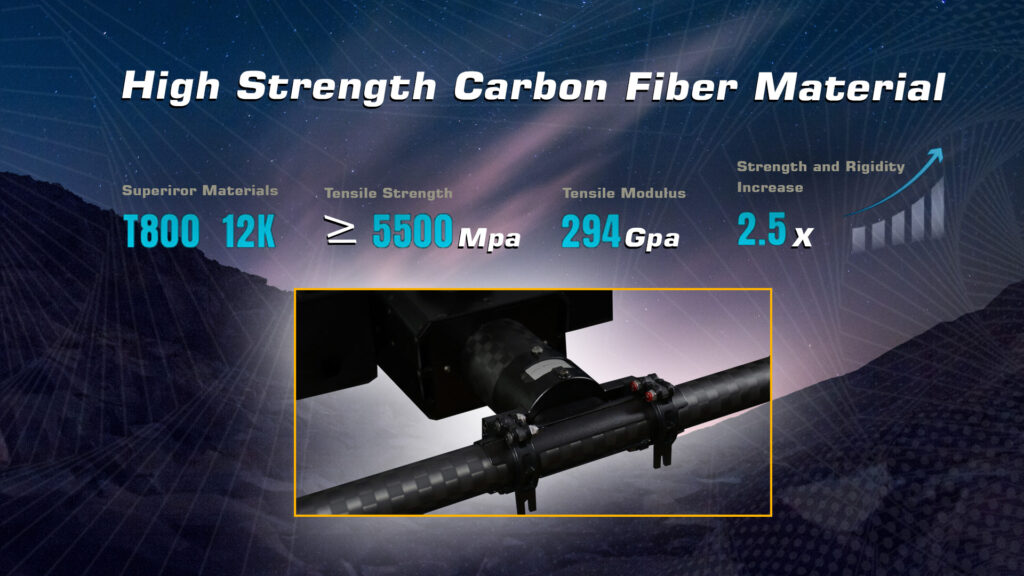

Zht keel mini quadcopter modular design Zht keel mini pnp specification Zht keel mini quadcopter carbon fiber material Aero keel mini quadcopter Structural modularity keel mini quadcopter Optimize internal cabin of keel mini quadcopter Power modularization of keel mini quadcopter (external battery) High integrated pdb keel mini quadcopter Keel mini quadcopter multi function pdb Keel mini quadcopter load modularization Keel mini spacious bottom space Keel mini quadcopter propellers Keel mini quadcopter speed Applications of keel mini quadcopter Keel mini quadcopter efficiency testing data Keel mini quadcopter dimensions and weight ย Mass production of keel mini quadcopter



For a comprehensive reading of related products, please visit the Motionew website.

Specifications



KEEL Mini PARAMETER
Model No KEEL Mini
Max. Symmetric Wheelbase 906mm
Material Carbon fiber composite and Aircraft Aluminum
Size 777x647x131 mm (Props folded, landing gears removed)
966x1053x443 mm (Props unfolded, landing gears unfolded๏ผ‰
Weight โ‰ˆ 3.7kg๏ผˆexcl. battery๏ผ‰
โ‰ˆ 7.7kg๏ผˆincl. battery x2 pcs๏ผ‰
Max. Loading Capacity โ‰ค 8kg
Max. Takeoff Weight โ‰ค 16kg
Endurance โ‰ค 70min @ no payload โ‰ค 40 min @ 3kg payload โ‰ค 31 min @ 5kg payload โ‰ค 25 min @ 6kg payload
Hovering Accuracy (with moderate or no wind) vertical ยฑ0.2m๏ผ› horizontal ยฑ0.1m
Max. Angular Velocity 150ยฐ/s
Max. Pitch Angle 25ยฐ
Max. Ascent Speed 3m/s
Max. Descent Speed 2.5m/s
Max. Horizontal Speed 27m/s
Max. Flight Altitude 5500m
Max. Wind Speed Resistance 16m/s
Ingress Protection Rating IP55
Operating Temperature ๏นฃ20โ„ƒ ~ +55โ„ƒ
Battery Capacity 14S , 19200mAh
Battery Weight 2kg
Battery Size 150x70x75xmm
Notes: The size and weight may be changed according to customerโ€™s personalized customization requirements. Please refer to the actual object.

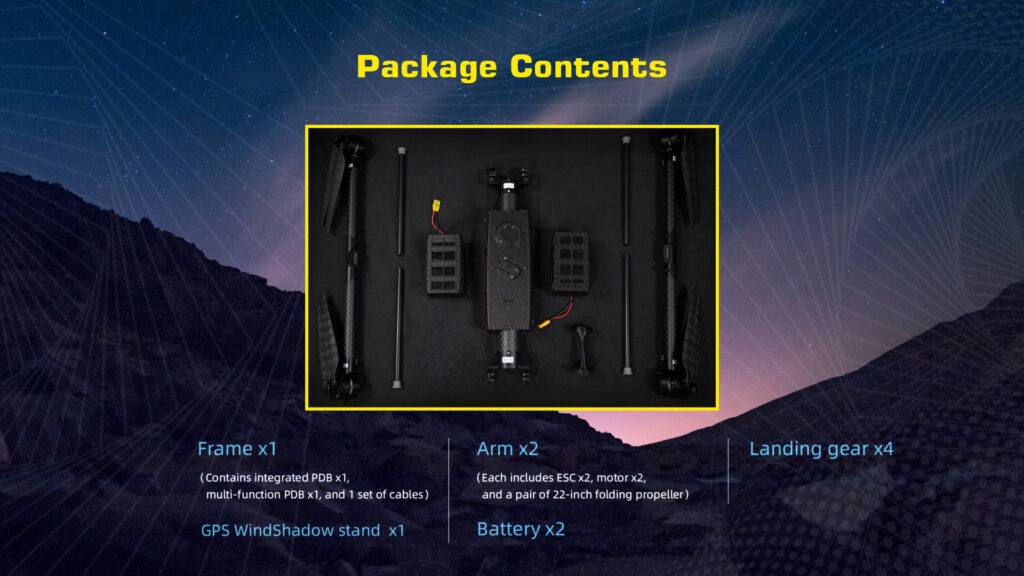

Product contents

1x Drone Frame

2x Arm

2x Battery

4x Landing gear

1x GPS WindShadow

1x Carry Case



Keel mini quadcopter package contents

Documents

Pleaseย contact usย for more information.
