Description

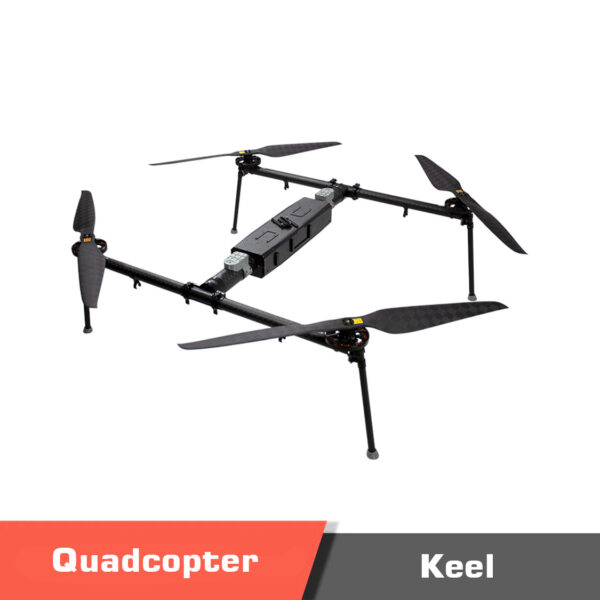

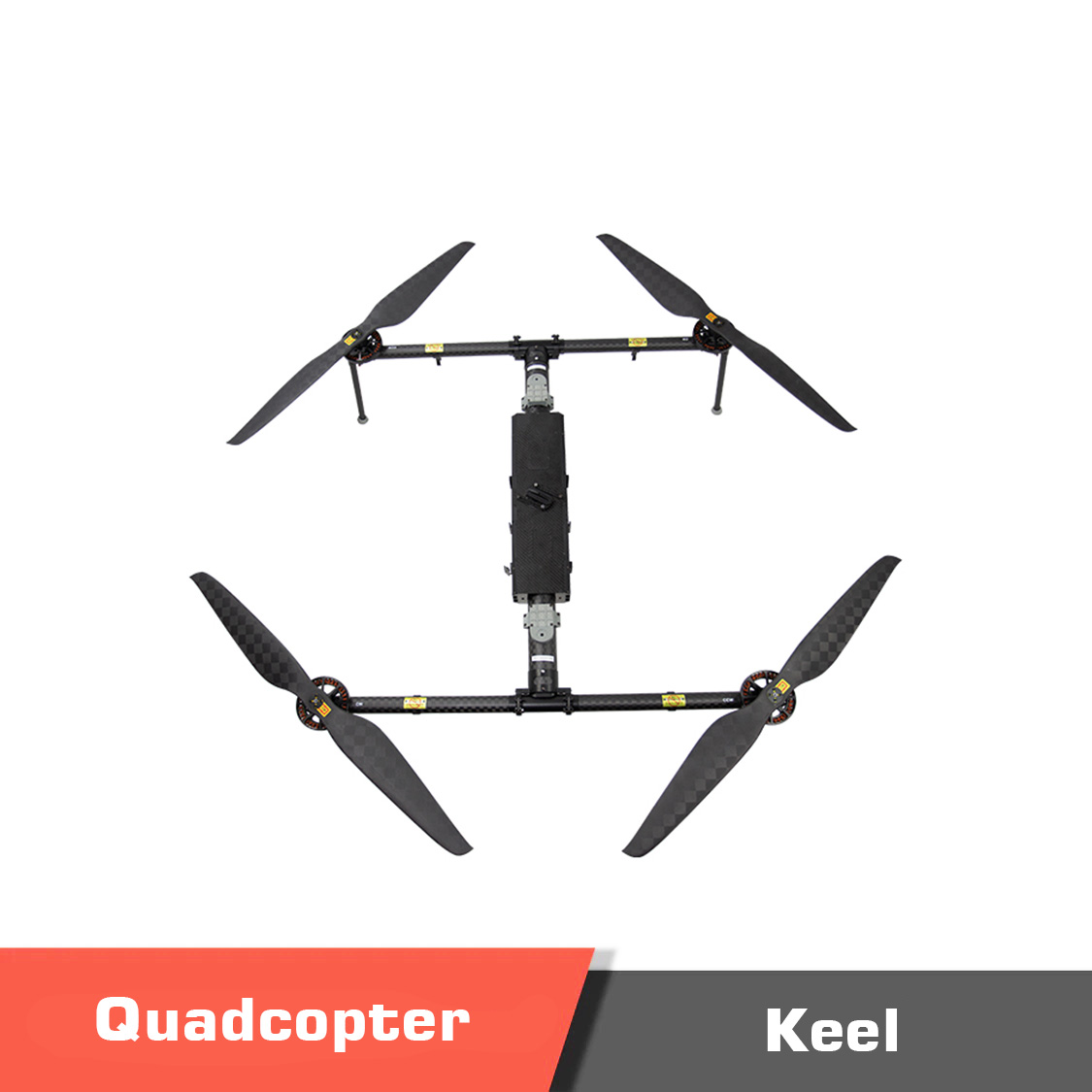

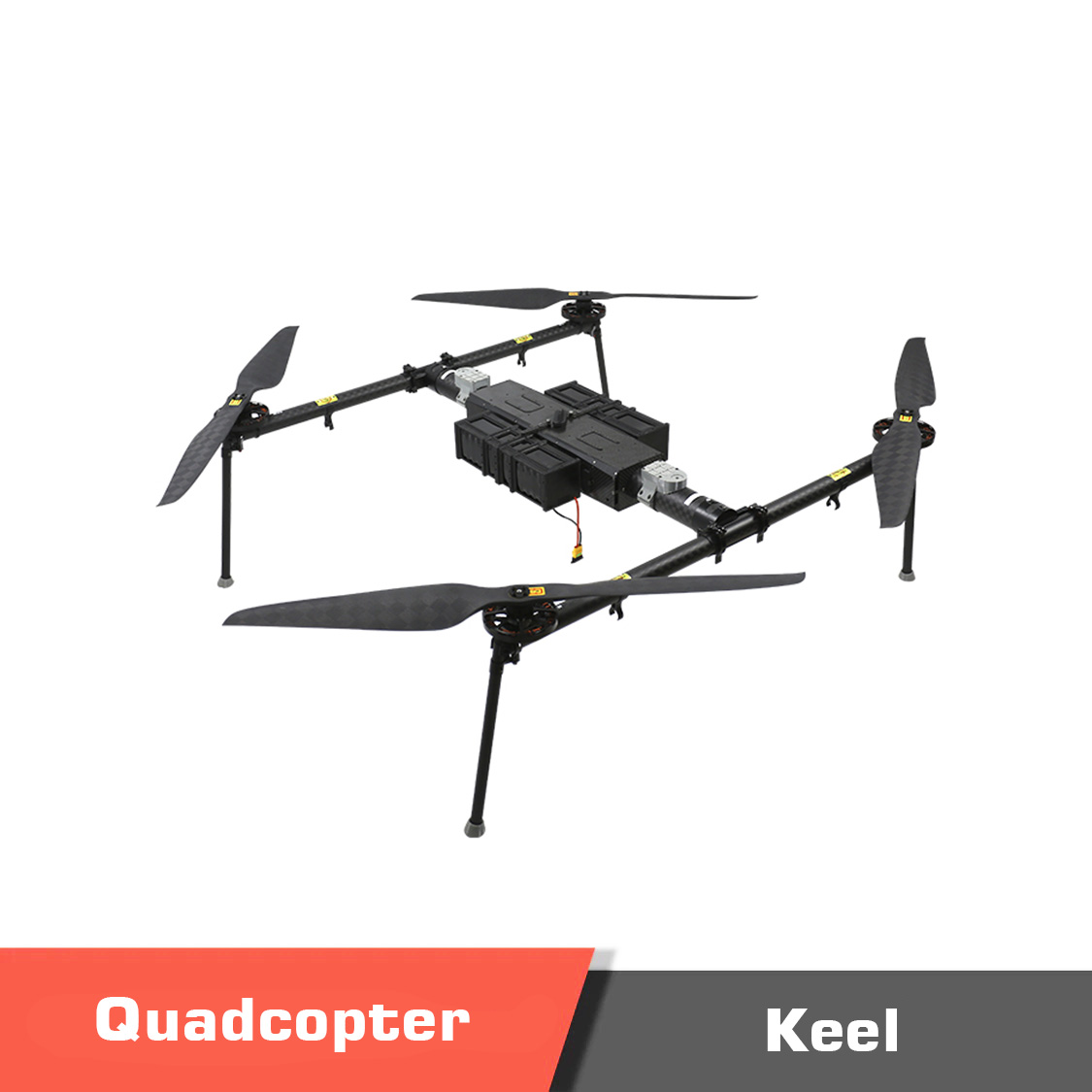

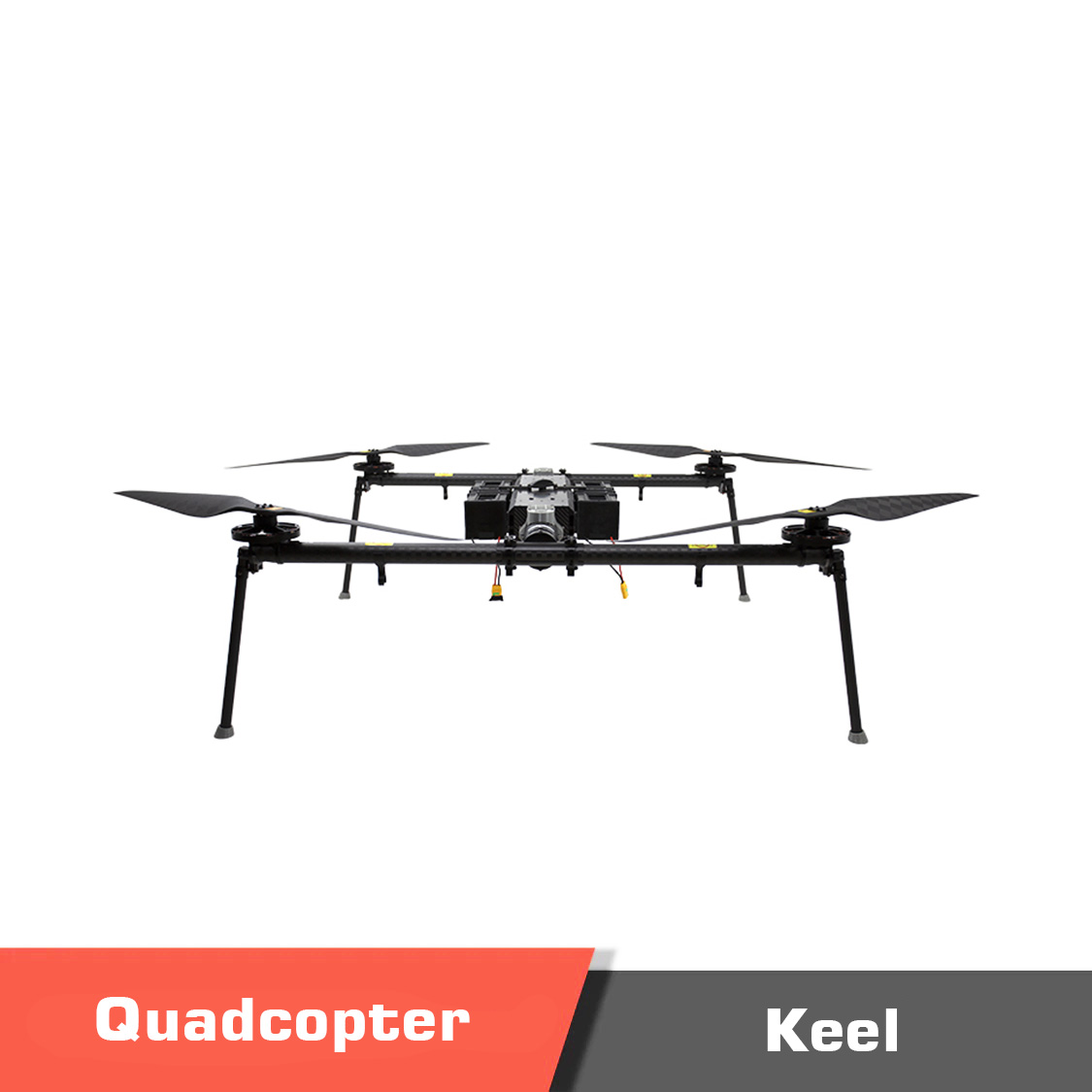

KEEL Quadcopter Overview

The KEEL Quadcopter is designed for high performance and versatility, featuring a symmetric wheelbase of 1250mm. It is constructed from carbon fiber composite and aircraft aluminum, ensuring both strength and lightweight properties. When unfolded with the landing gears and props removed, its dimensions are approximately 1040x1040x270mm, while it folds down to 1150x420x355mm for easy packing. The quadcopter weighs around 4kg without the battery and 10kg with two batteries installed.

Ability to carry loads and move of KEEL Quadcopter

The KEEL Quadcopter can carry a maximum load of up to 10kg and has a maximum takeoff weight of 20kg. Its endurance varies based on the payload: up to 120 minutes with no payload, 90 minutes with a 1.2kg payload, 60 minutes with a 5kg payload, and 30 minutes with a 10kg payload. It maintains excellent hovering accuracy, with vertical precision of ±0.2m and horizontal precision of ±0.1m in moderate or no wind conditions.

Performance Capabilities

Performance capabilities of the KEEL Quadcopter include a maximum angular velocity of 150°/s, a maximum pitch angle of 25°, an ascent speed of 3m/s, and a descent speed of 2.5m/s. It can reach a maximum horizontal speed of 15m/s and operate at a flight altitude of up to 5500m. The drone can resist wind speeds up to 12m/s and has an ingress protection rating of IP55, ensuring reliable operation in harsh environments. The operating temperature range is from -20℃ to +55℃.

Power System

The KEEL quadcopter is powered by a 14S, 28000mAh battery, weighing approximately 2.9kg and measuring 273×92.5×82.5mm. This configuration provides the necessary power for its extensive capabilities. Note that the size and weight may vary according to customer customization requirements. Please refer to the actual product for precise specifications.

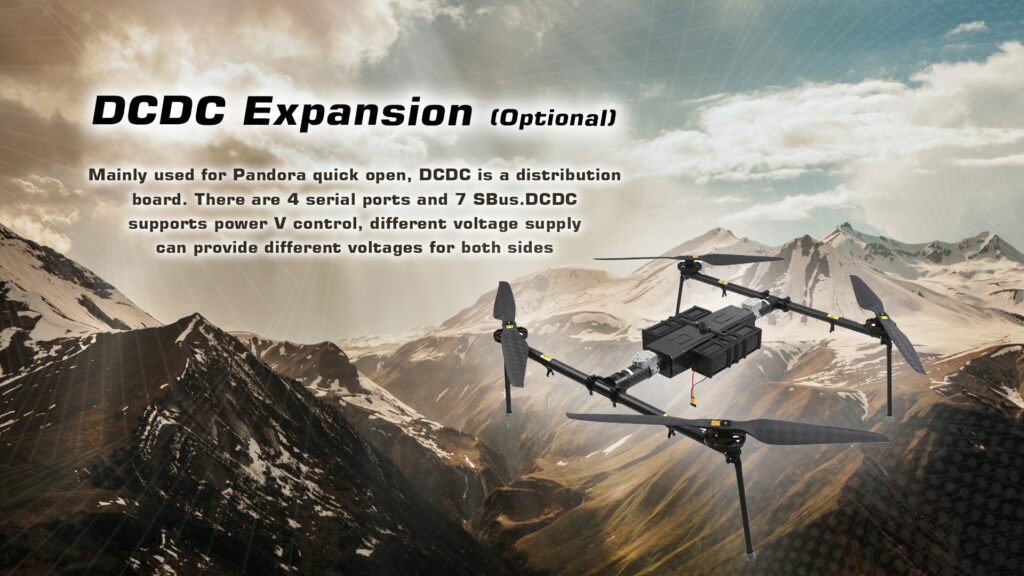

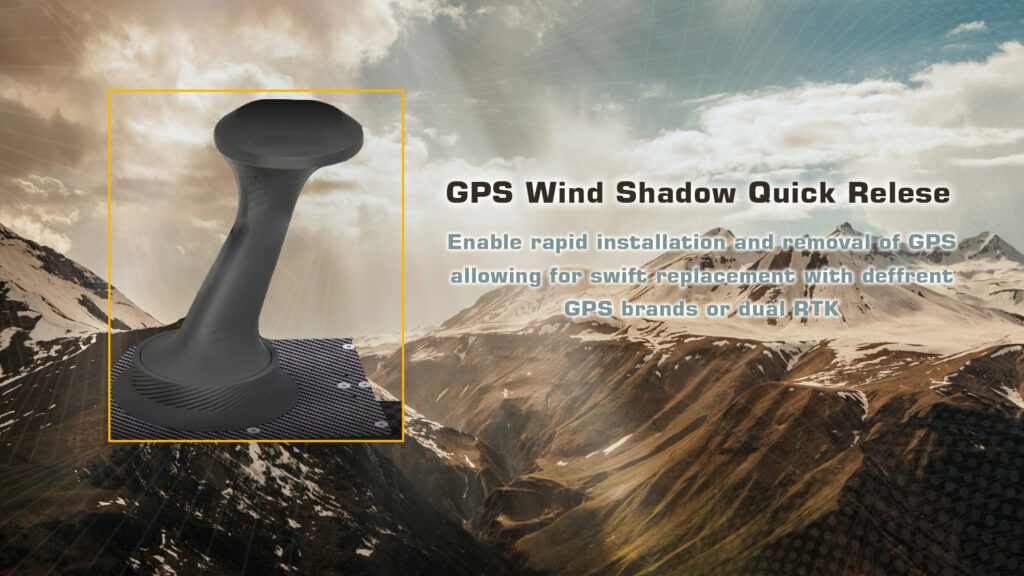

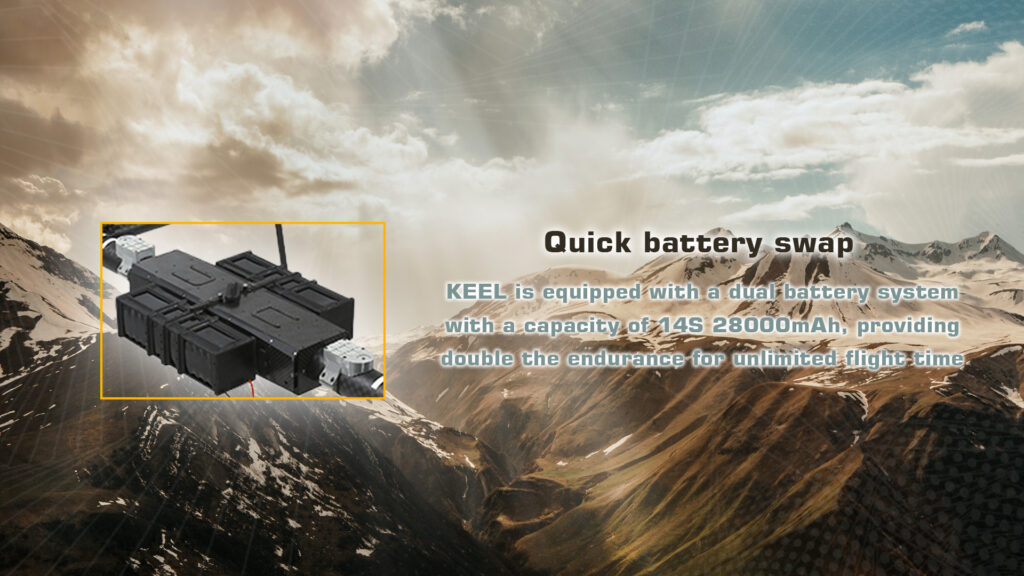

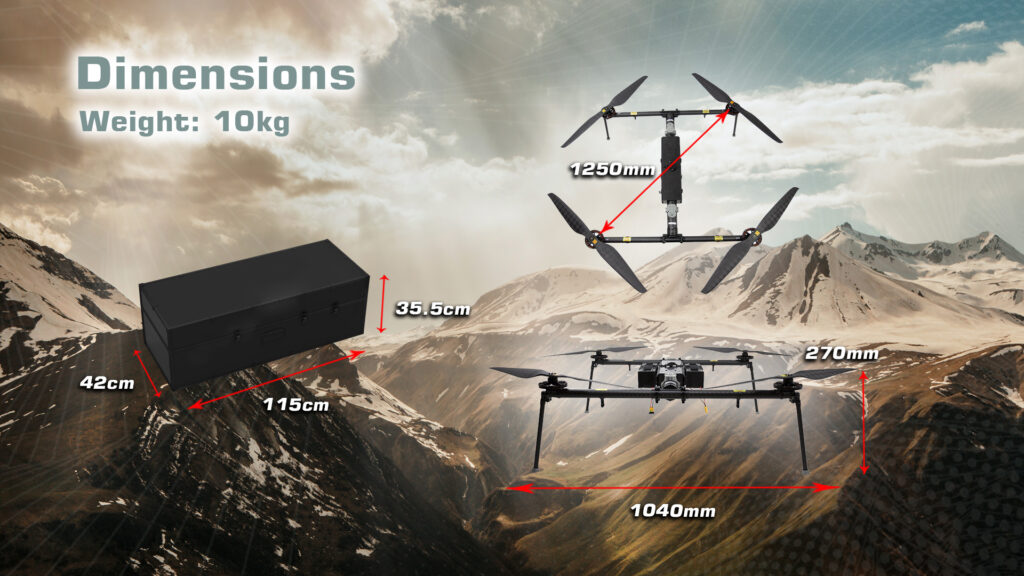

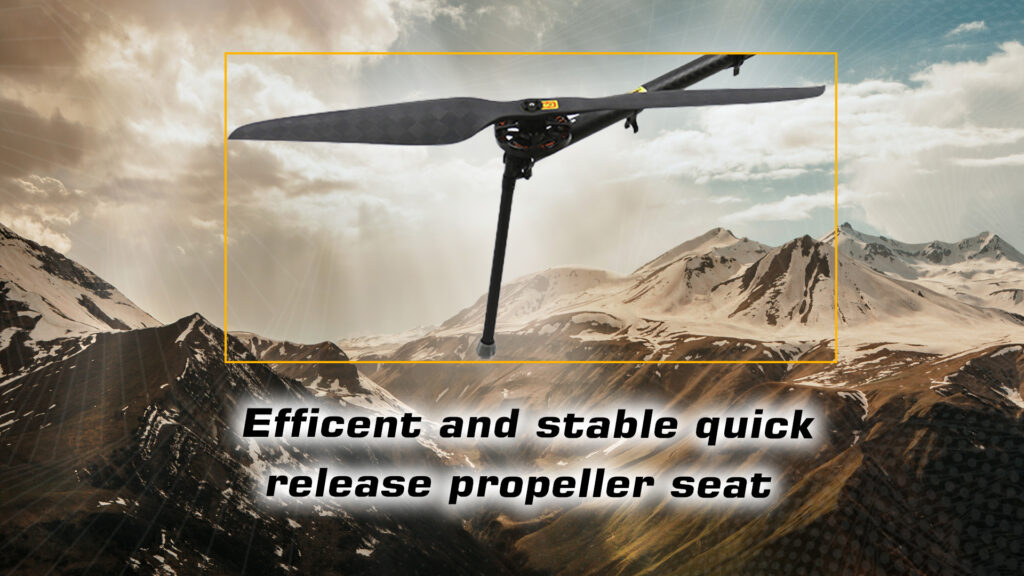

Keel quadcopter long endurance rtk positioning industrial drone for mapping and inspection Specifications of keel quadcopter Innovative quick release of keel quadcopter Efficent and stable quick release propeller seat of keel quadcopter Gps wind shadow quick release of keel quadcopter Quick battery swap of keel quadcopter Keel quadcopter highly integrated power module Dcdc expansion of keel quadcopter Dimensions of of keel quadcopter



For a comprehensive reading of related products, please visit the Motionew website.

Additional information

Weight 20 kg
Dimensions 54 × 54 × 62 cm

Specifications



KEEL PARAMETER
Model No KEEL
Max. Symmetric Wheelbase 1250mm
Material Carbon fiber composite and Aircraft Aluminum
Size ≈1040x1040x270 mm (Arms & landing gears Unfolded, Props removed)
≈1150x420x355 mm (Folded and pack in box)
Weight ≈ 4kg(excl. battery)
≈ 10kg(incl. battery x2 pcs)
Max. Loading Capacity ≤ 10kg
Max. Takeoff Weight ≤ 20kg
Endurance ≤ 120min @ no payload ≤ 90 min @ 1.2kg payload ≤ 60 min @ 5kg payload ≤ 30 min @ 10kg payload
Hovering Accuracy (with moderate or no wind) vertical ±0.2m; horizontal ±0.1m
Max. Angular Velocity 150°/s
Max. Pitch Angle 25°
Max. Ascent Speed 3m/s
Max. Descent Speed 2.5m/s
Max. Horizontal Speed 15m/s
Max. Flight Altitude 5500m
Max. Wind Speed Resistance 12m/s
Ingress Protection Rating IP55
Operating Temperature ﹣20℃ ~ +55℃
Battery Capacity 14S , 28000mAh
Battery Weight ≈2.9kg
Battery Size 273×92.5×82.5mm
Notes: The size and weight may be changed according to customer’s personalized customization requirements. Please refer to the actual object.

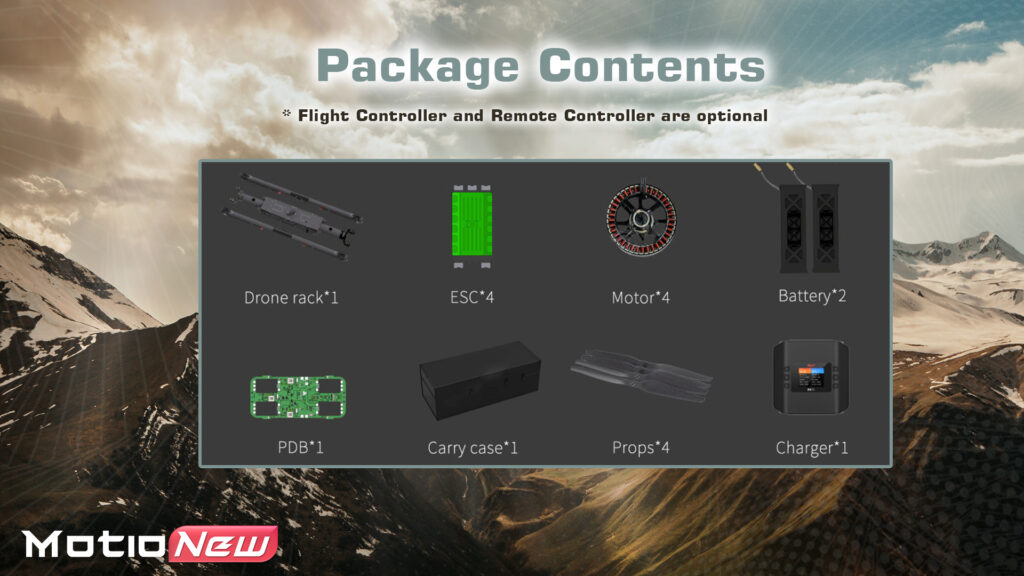

Product contents

1x Drone Frame

4x Motors

4x ESC

2x Battery

4x Propellers

1x Charger

1x PDB

1x Carry Case

Zht keel. 10 - keel quadcopter - motionew - 7

Documents

Please contact us for more information.
