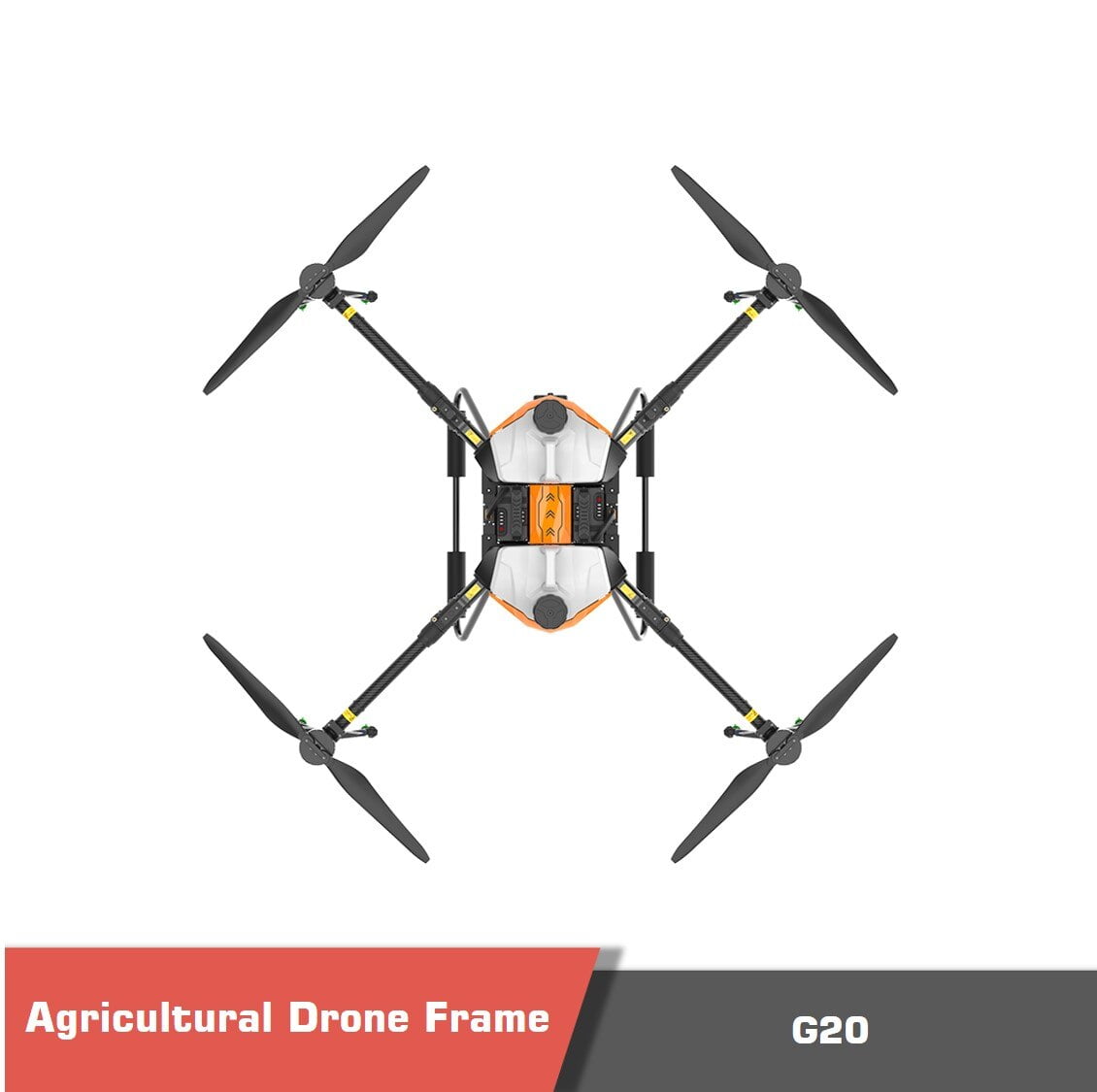

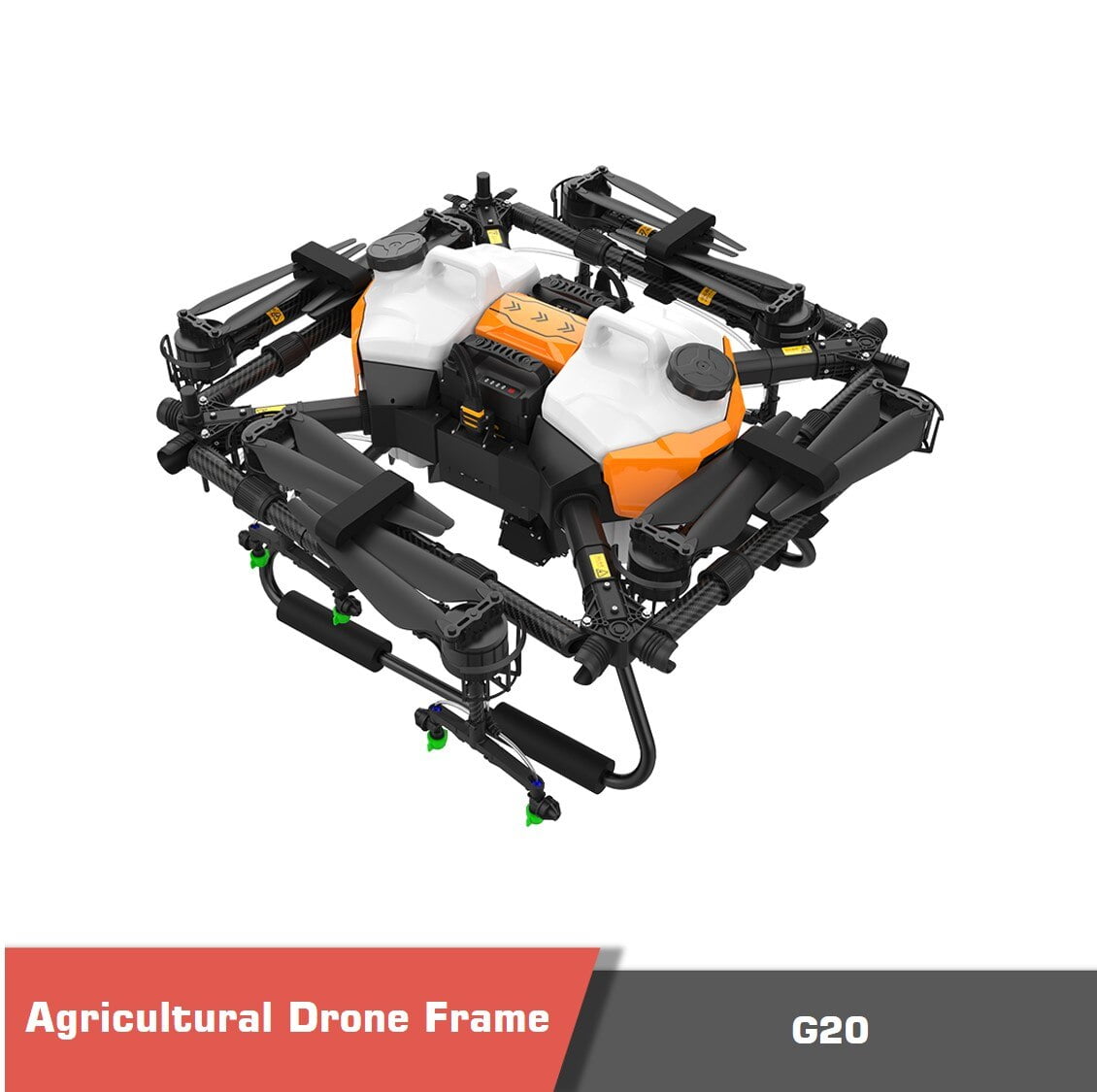

G20 Agricultural Drone Frame

900.00 $1000.00 $

Description

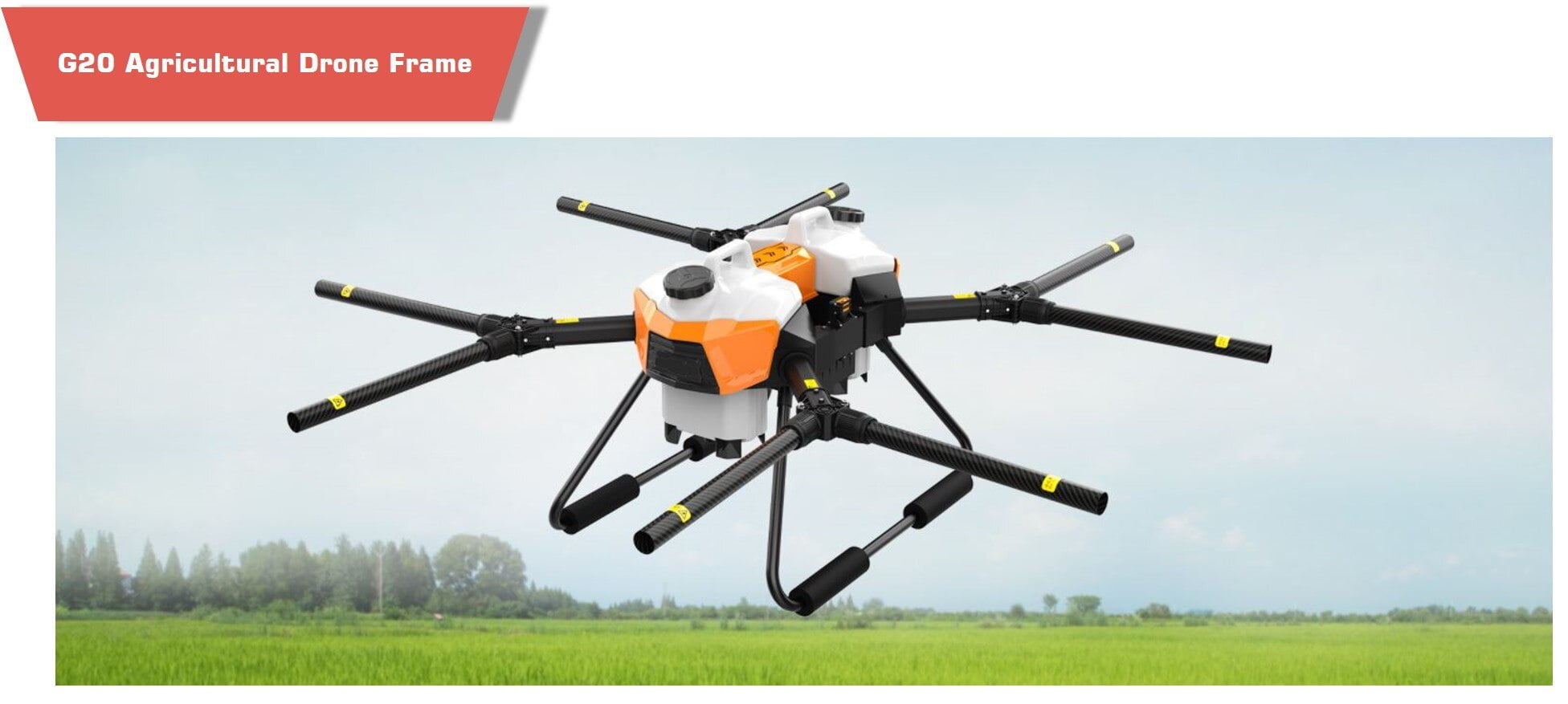

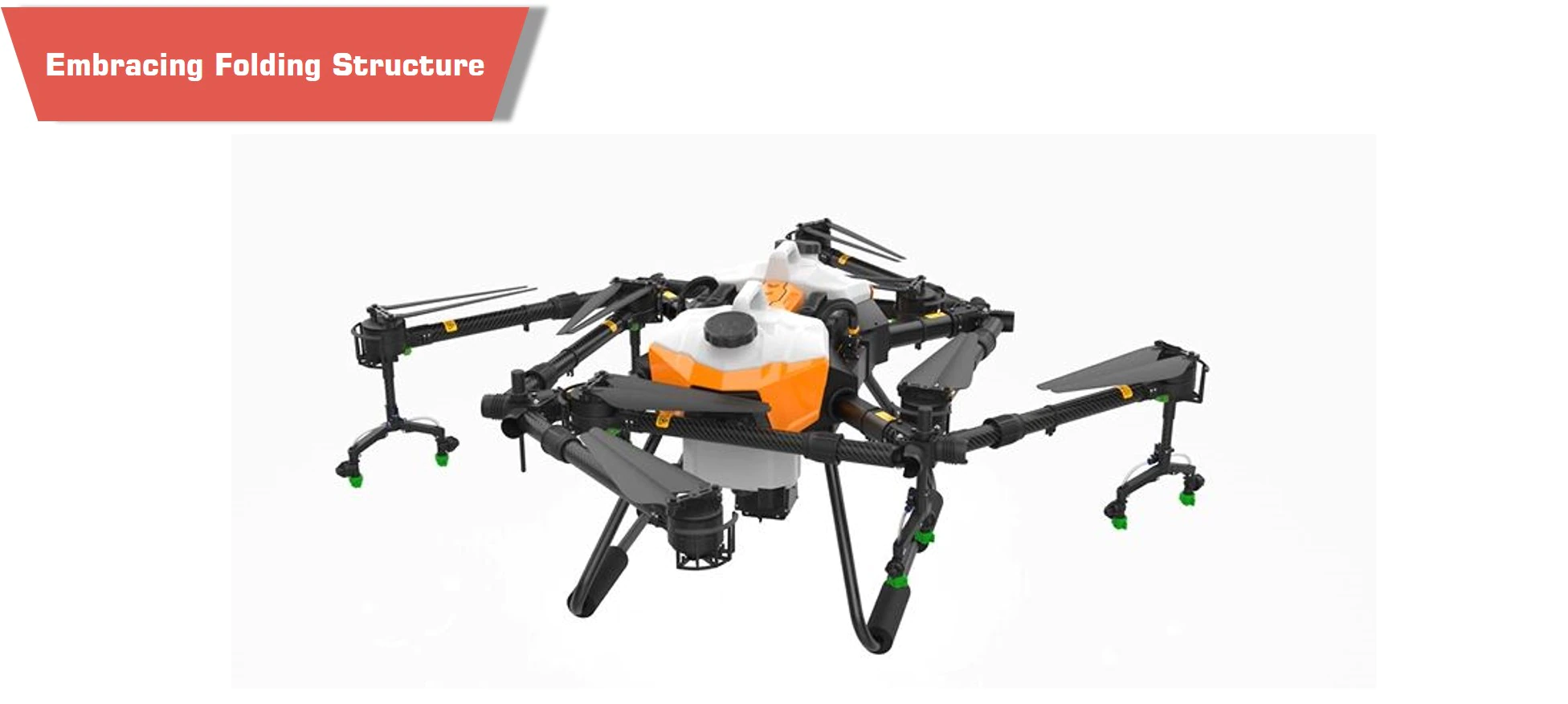

G20 Frame is developed for agricultural drone management. The G20 drone frame flight platform is fully customizable with a capacity of 22L, with 7 adjustable airflow ports, unique quick-release dual tanks, dual battery layout scheme, eight-axis surrounding folding structure, optional four-water pump + eight nozzle spraying system; abundant peripheral expansion abilities, option RTK, three-way radar, FPV cameras, etc.



G20 agricultural drone frame p1 motionew

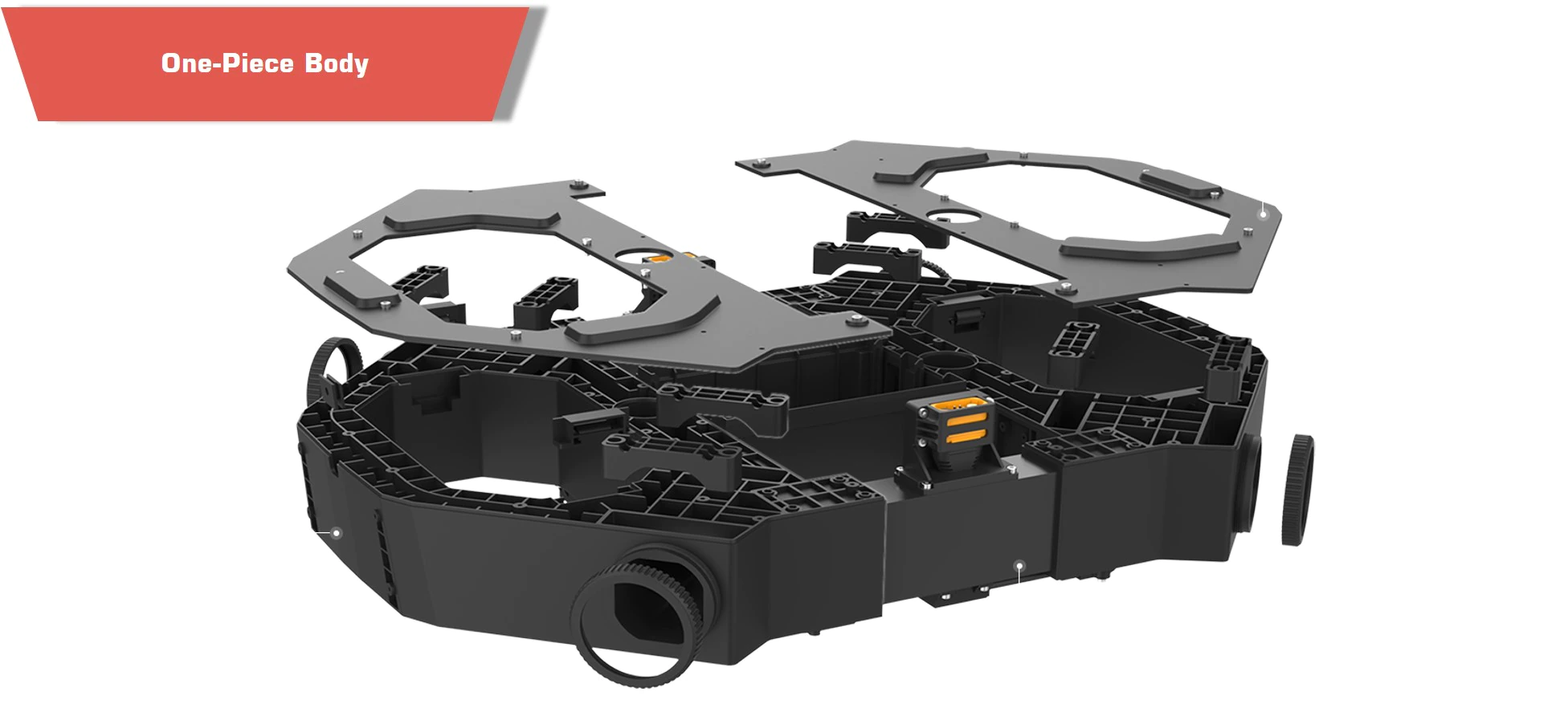

One-Piece Body

G20 adopts an integrated body design, which greatly reduces the number of parts while having higher strength and better waterproof performance

G20 agricultural drone frame p2 motionew

G20 agricultural drone frame p3 motionew

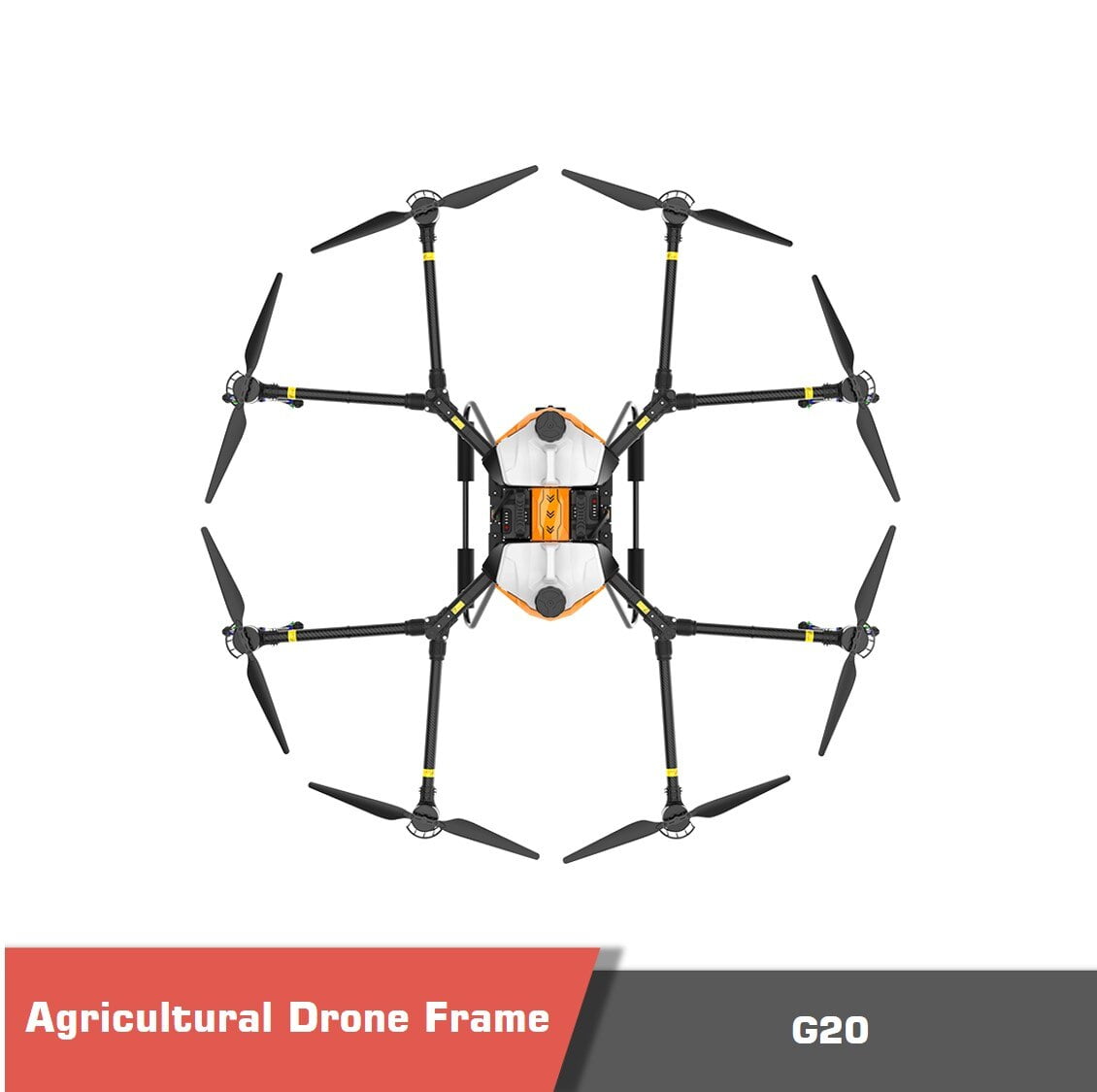

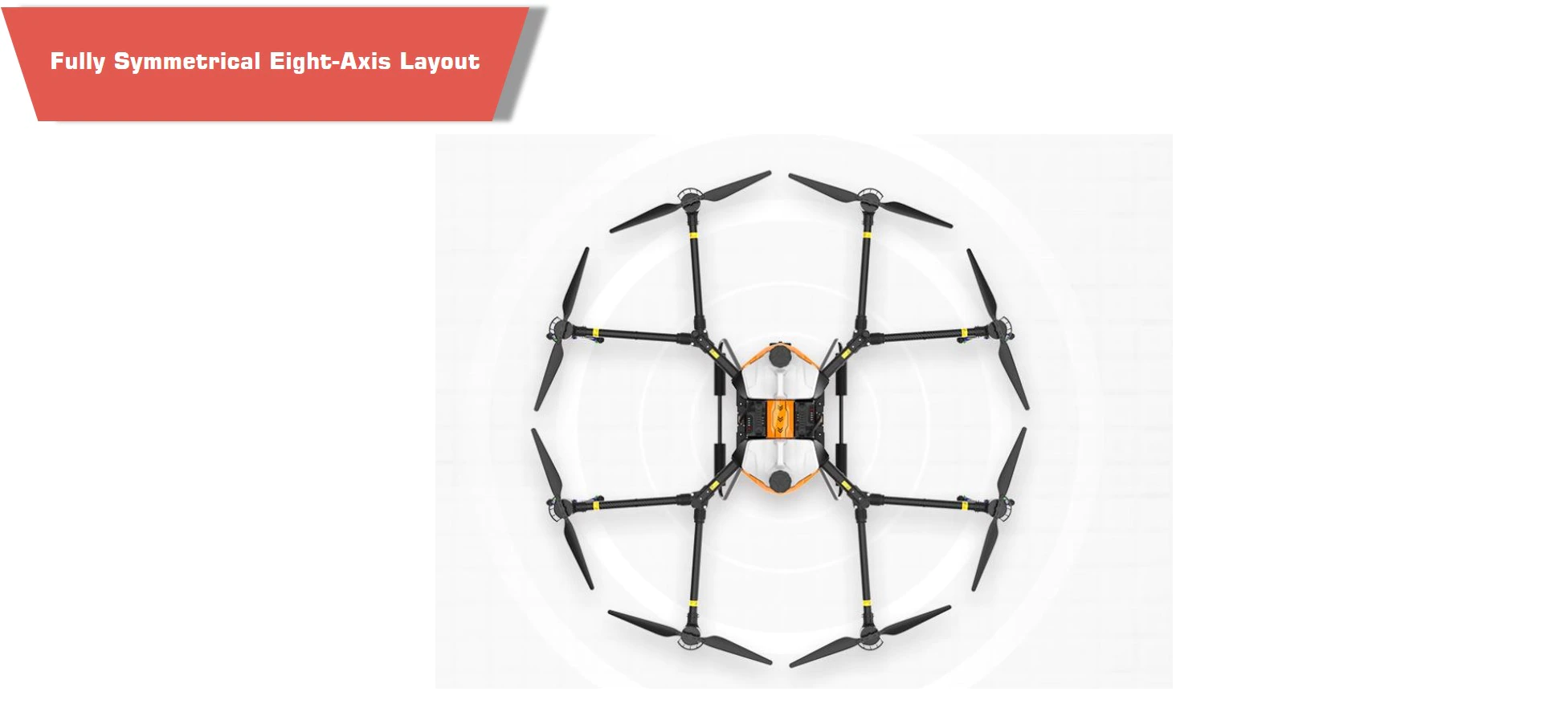

Fully Symmetrical Eight-Axis Layout

G20 adopts a fully symmetrical eight-axis layout, with double front and rear tanks + left and right batteries, which can ensure a stable center of gravity of the fuselage and dual redundancy for power and batteries

G20 agricultural drone frame p4 motionew

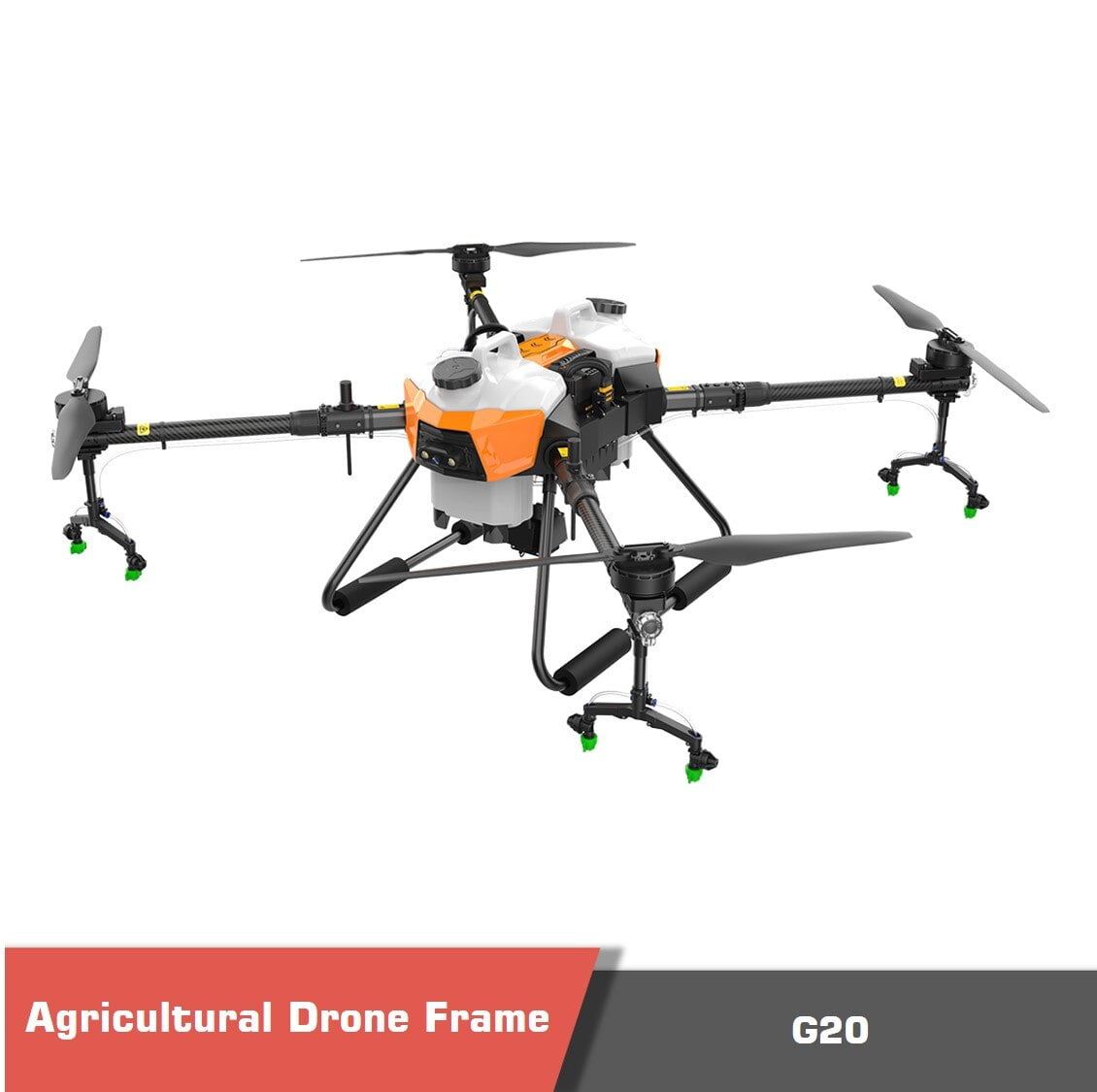

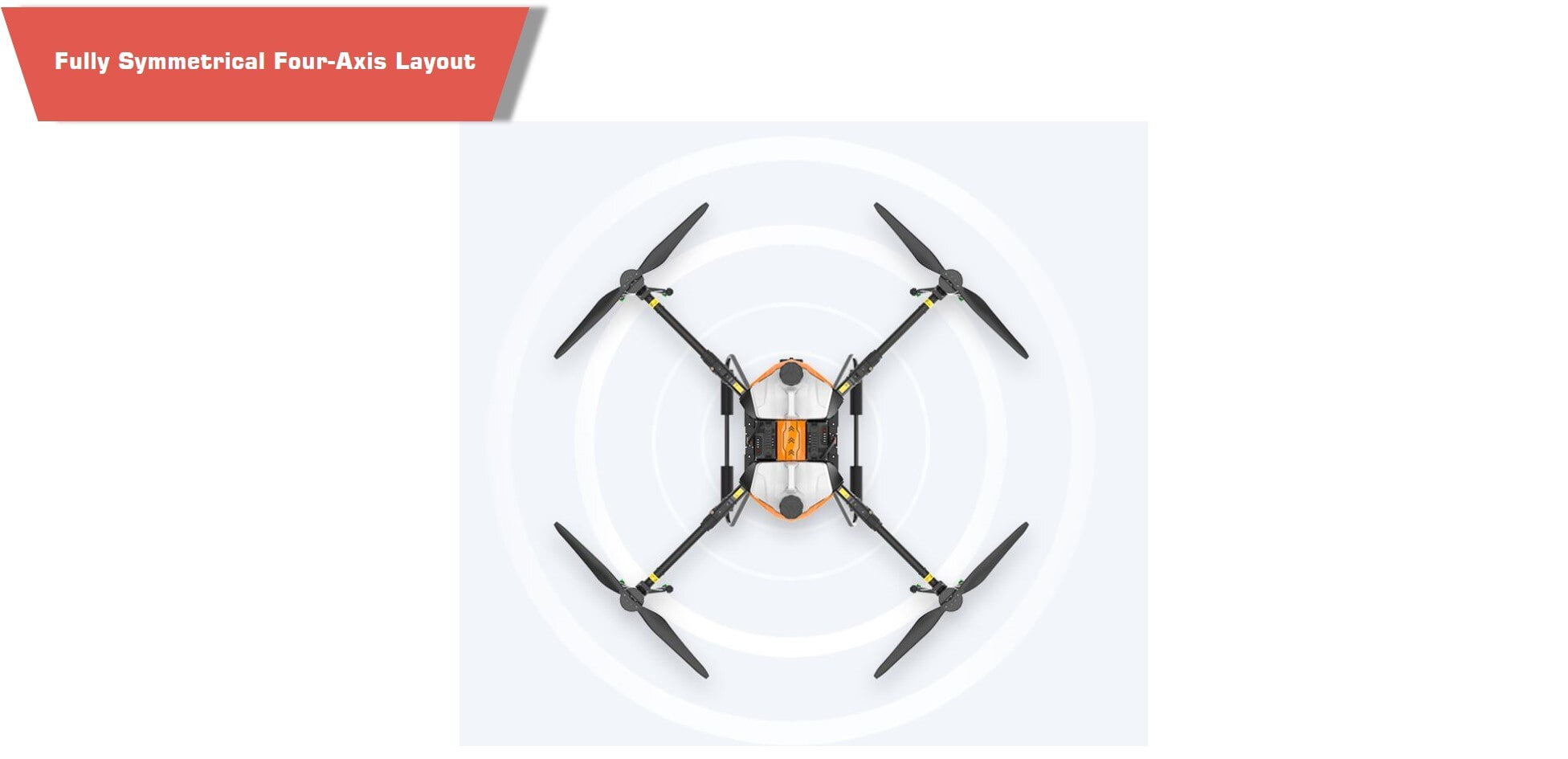

Fully Symmetrical Four-Axis Layout

G20-Q multirotor drone adopts a fully symmetrical four-axis layout scheme with dual front and rear medicine tanks + dual left and right batteries, which can ensure a stable center of gravity of the fuselage, and dual redundancy for power and batteries

G20 agricultural drone frame p5 motionew

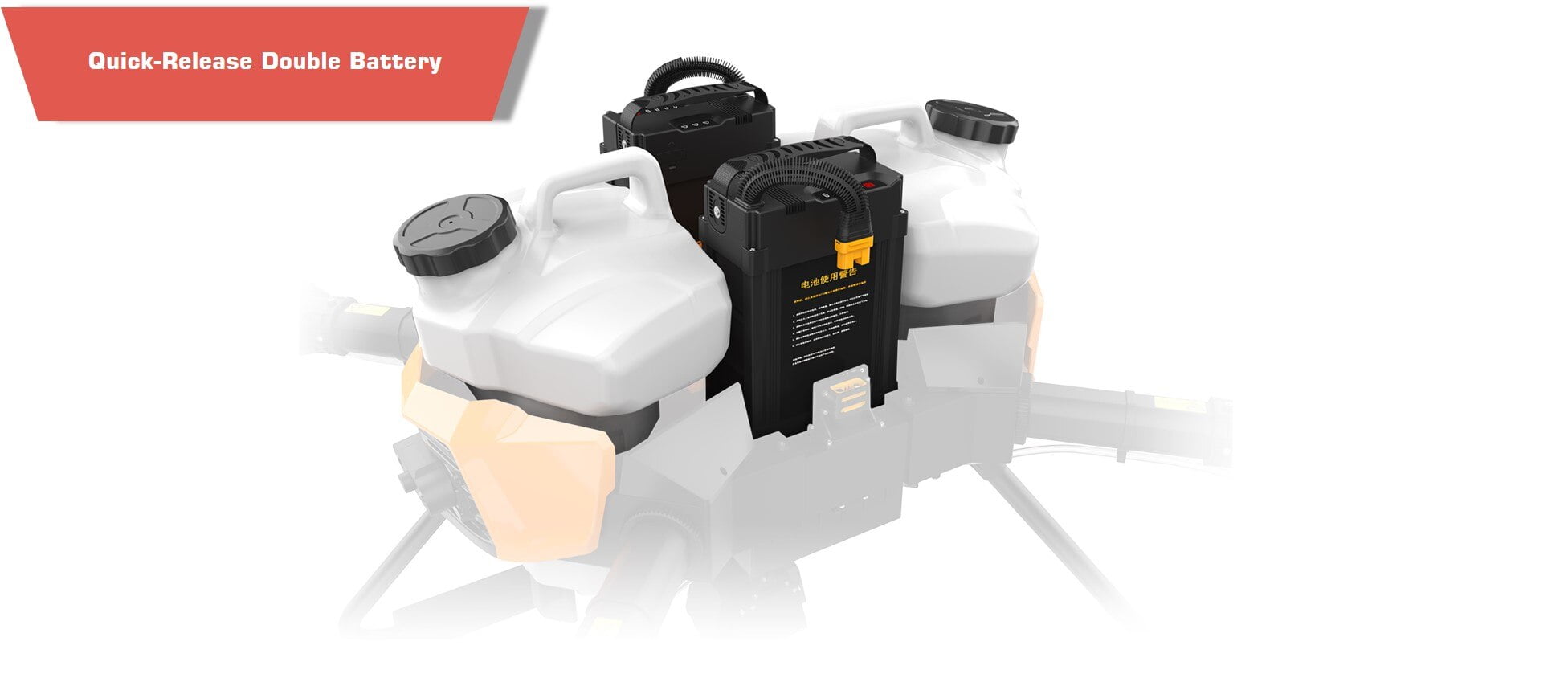

Quick-Release Double Battery + Double Tanks

Quick-release double battery + double tank, which can realize rapid medicine change and battery replacement, which greatly shortens the waiting time of operation

G20 agricultural drone frame p6 motionew

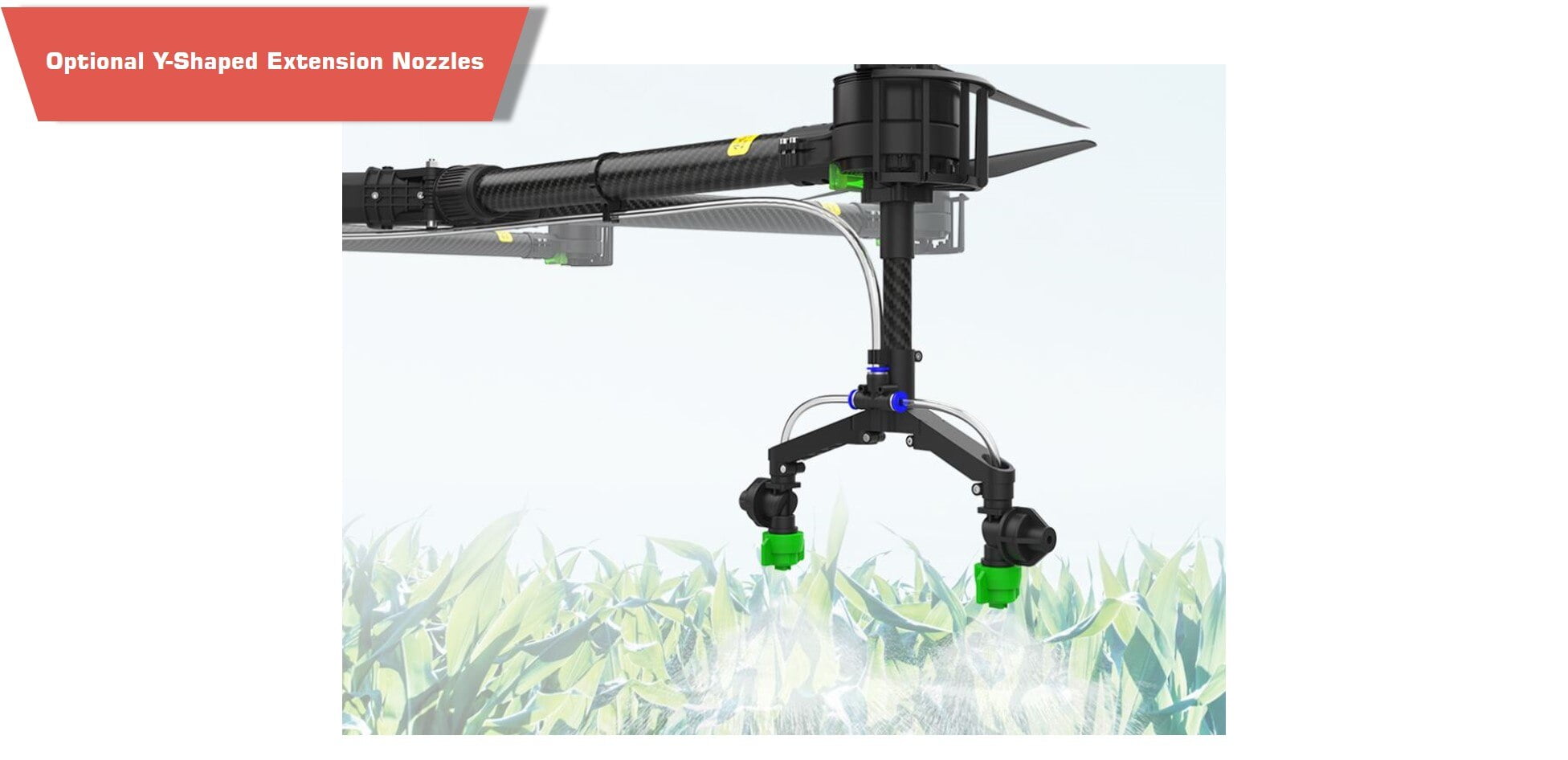

Optional Y-Shaped Extension Nozzles

G20 can be equipped with four Y-shaped extension rod nozzles, with high-pressure water pumps, and a powerful spray system can ensure the fine particles of the liquid atomization and reduce droplet drift

G20 agricultural drone frame p7 motionew

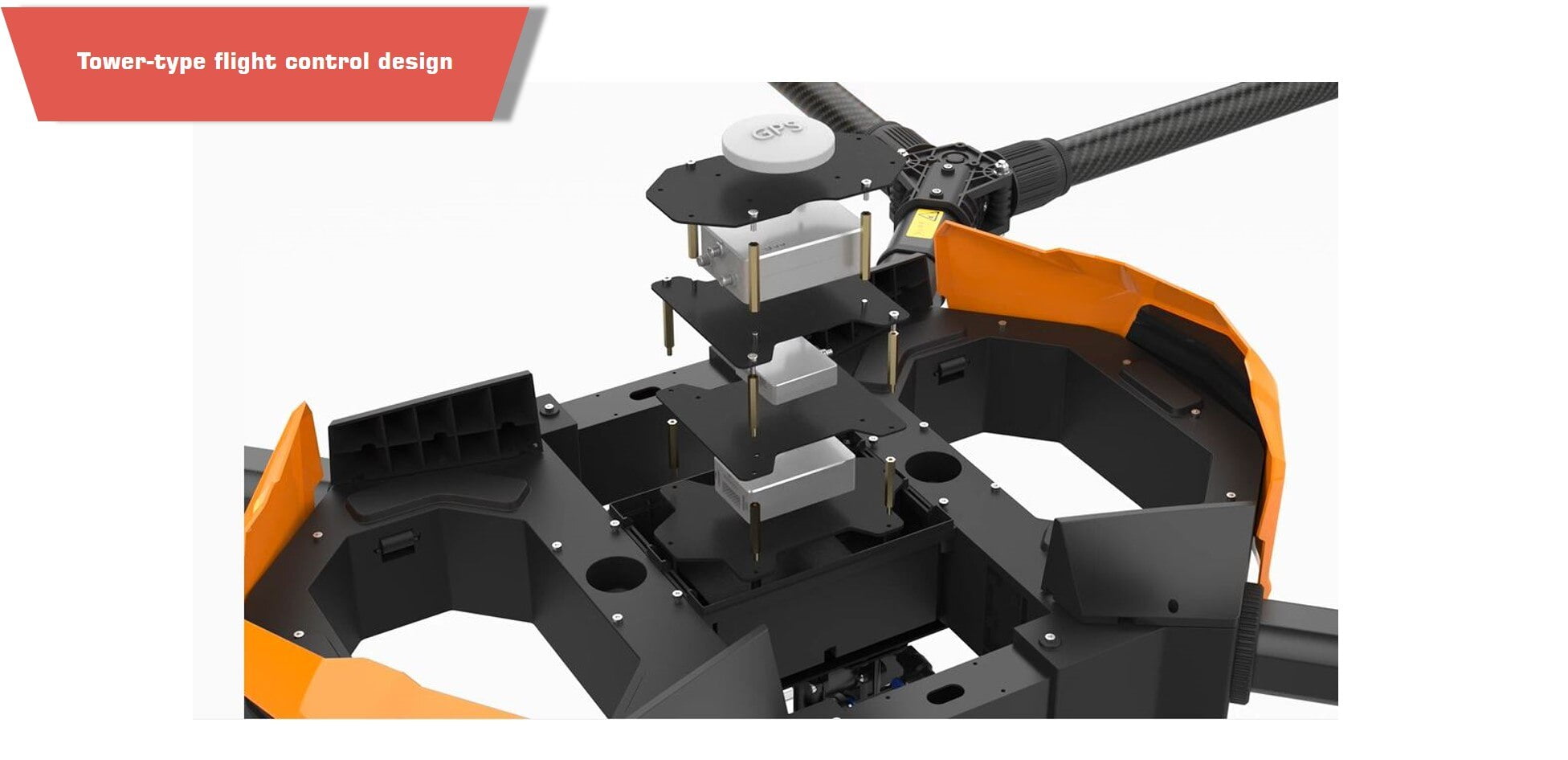

Tower-type flight control design

G20 agricultural drone frame adopts a stacked tower-type flight control warehouse, which arranges flight control modules with different functions in a stacked manner, with clear wiring and easy maintenance

G20 agricultural drone frame p8 motionew

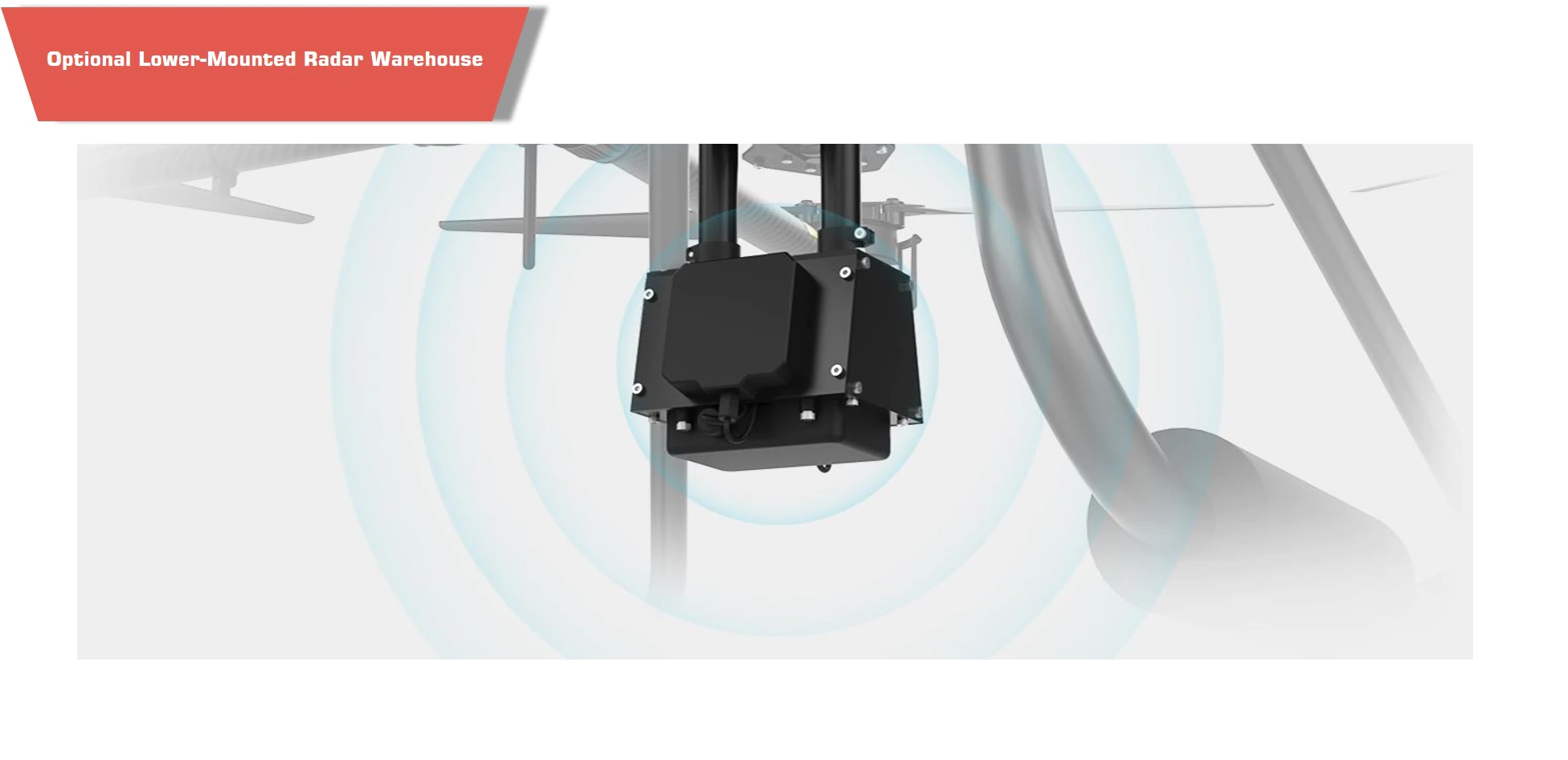

Optional Lower-Mounted Radar Warehouse

A lower-mounted radar warehouse is optional at the bottom of the G20, and fixed-height radar and obstacle avoidance radar are optional to achieve more accurate height-fixing ground imitation and obstacle avoidance effects

G20 agricultural drone frame p9 motionew

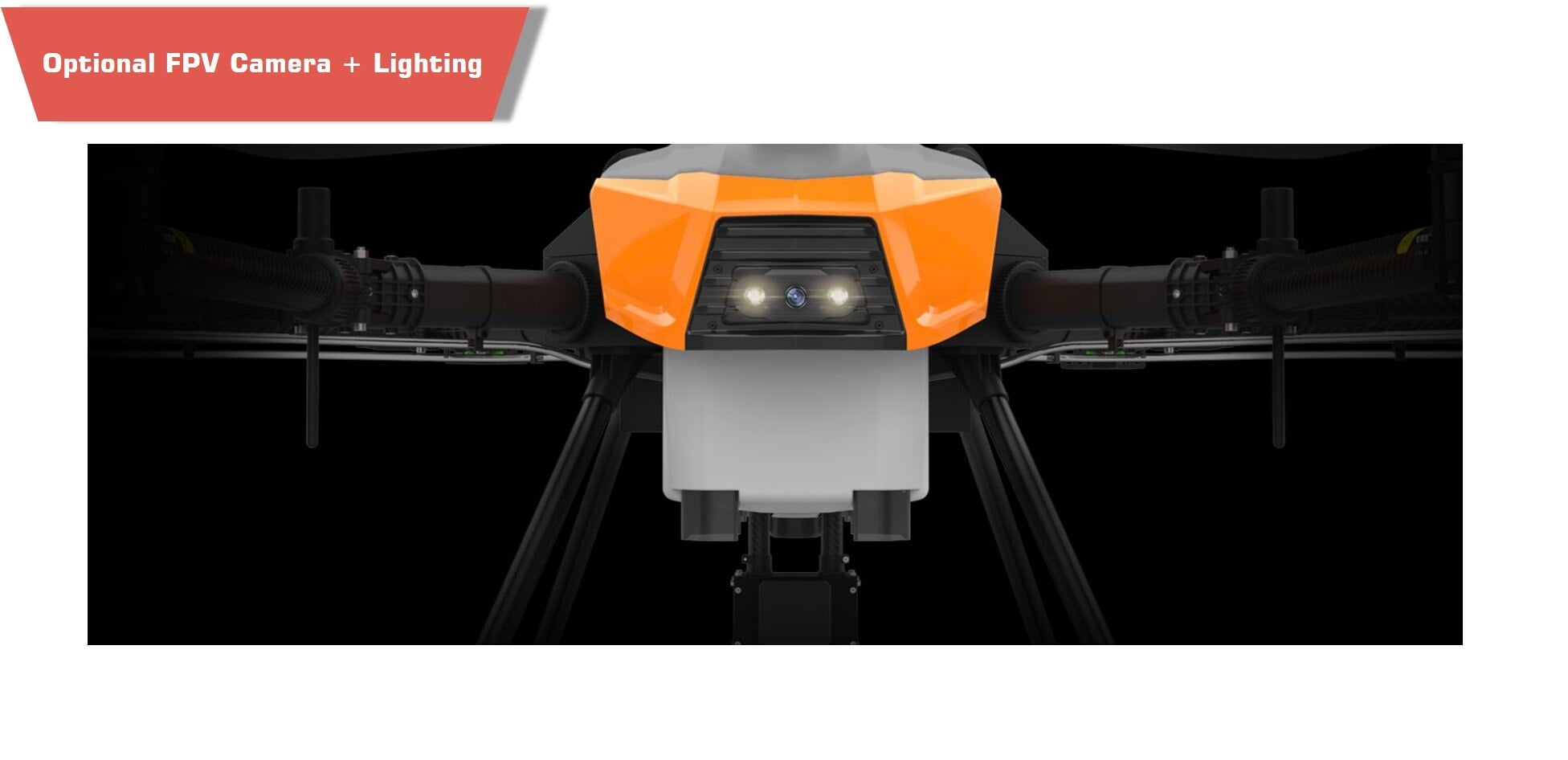

Optional FPV Camera + Lighting

Optional high-definition FPV camera can meet the needs of long-distance operation visualization, with night flight LED searchlight, day and night, guarding the farmland

G20 agricultural drone frame p10 motionew

G20 agricultural drone frame p11 motionew

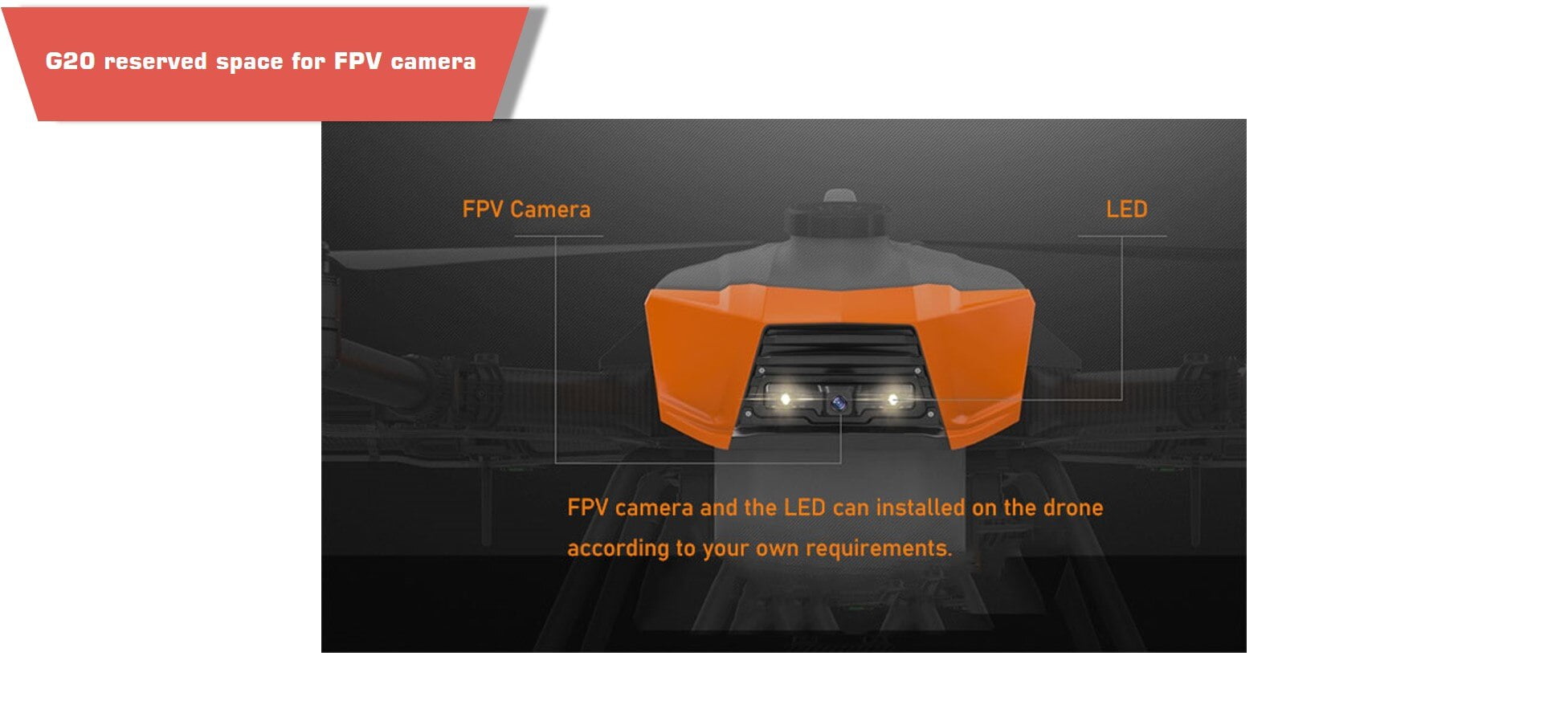

G20 reserved space for the FPV camera and the LED. You can install them according to your own requirements.

G20 agricultural drone frame p12 motionew

G20 agricultural drone frame p13 motionew

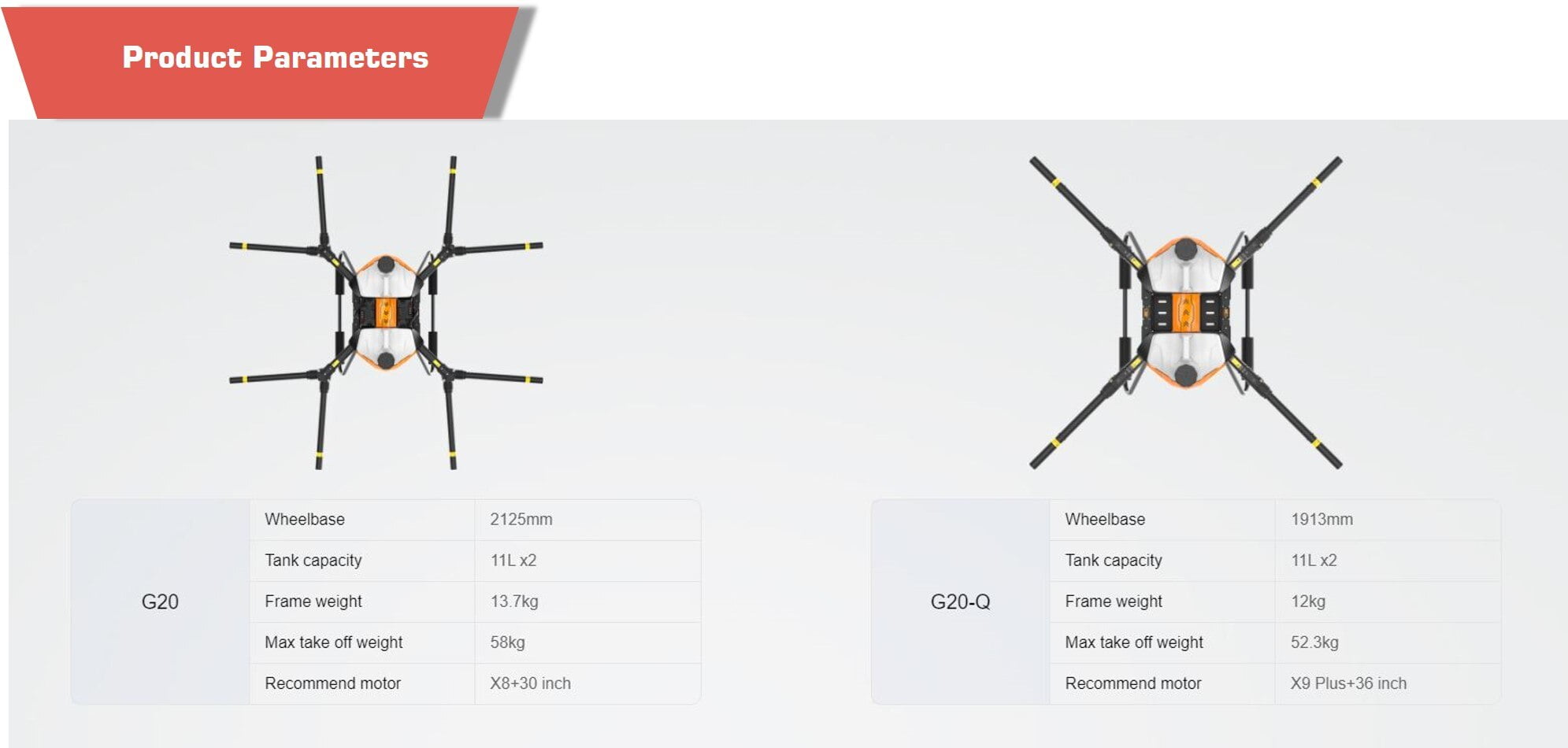

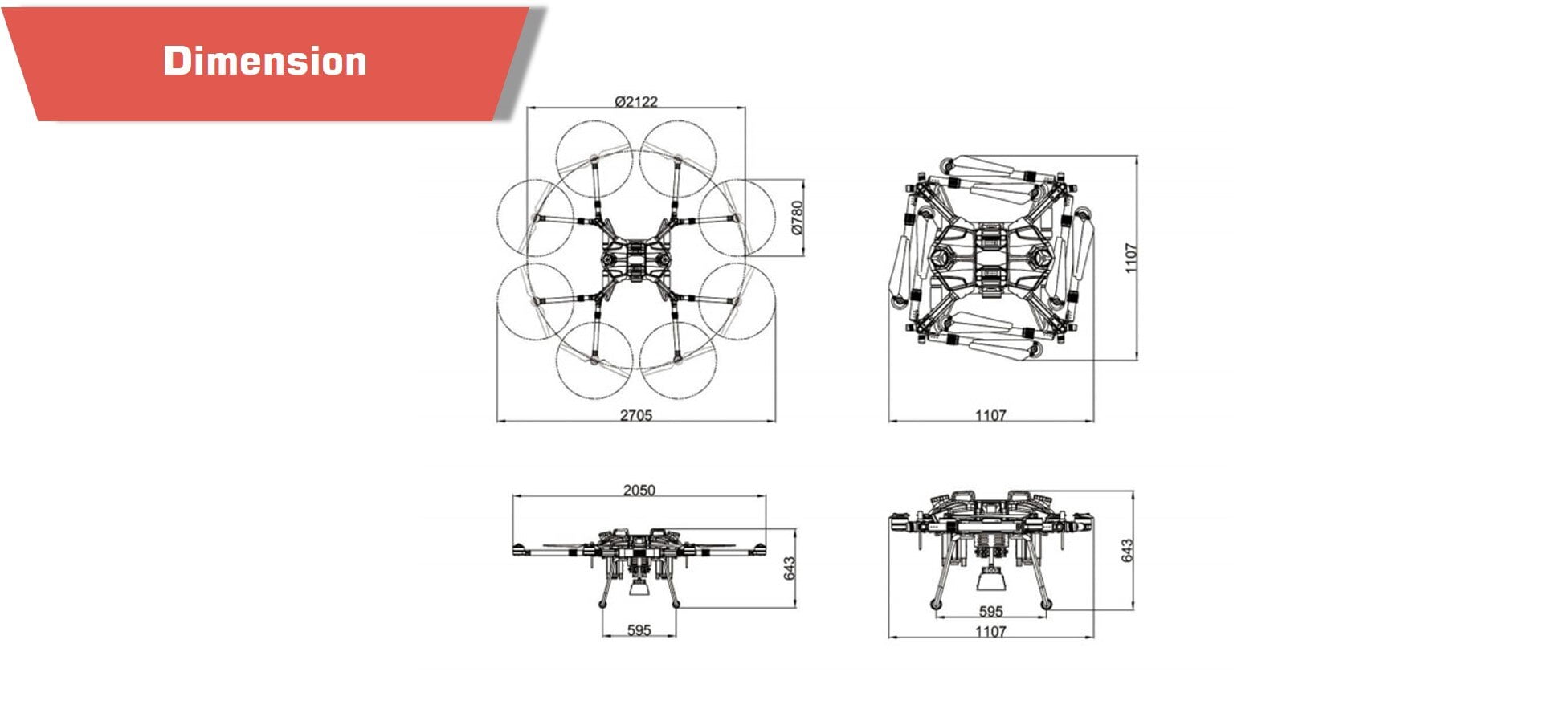

Specifications



Item Model G20 8 Axis G20Q 4 Axis
Wheelbase 2122mm 1913mm
Size 2050x2050x643mm 2266x2266x661mm

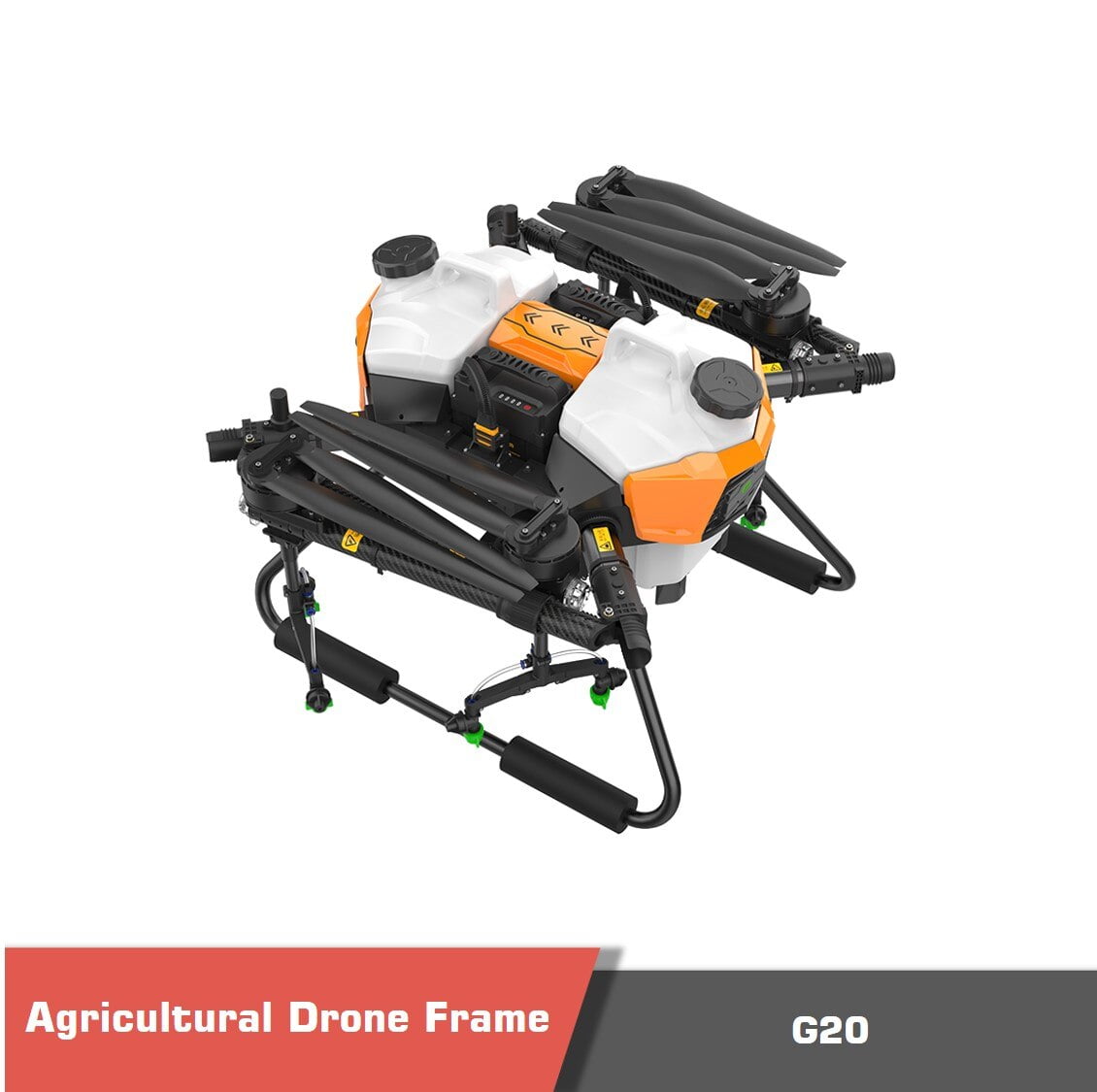

Folded Size 1107x1107x643mm 1005x802x661mm
Package Size 850x550x600mm
Tank Capacity 11L x 2 11L x 2
Frame Weight 13.3kg (included 2 water tanks, 4x12S water pump) 12kg (included 2 water tanks, 4x12S water pump)
Frame+Spraying system 13.8kg 14kg
Frame+Spraying system+Power System 23.4kg 20.3kg
Full Payload Weight 55kg 51.8kg
No Load Hovering Time 24 minutes 43V (2x12S 16000mah Smart Battery) NA
Full Load Hovering Time 9 minutes 42 seconds 43V (2x12S 16000mah Smart Battery)
Working Time 5 minutes 55 seconds 20L liquid (with 4 water pumps) 5min



Note: The drone can work with two water pumps or 4 pumps, you can use them according to your requirements. When the 2 water pump works, one water pump controls 4 nozzles, and when the four water pump works, one water pump controls 2 nozzles. Four pumps can support independent spraying in front and back, and the atomization effect is better. Two pumps do not support independent spraying in front and back, which has a better cost and other functions are consistent;

Product contents

G20:
G20 8 Axis Drone Frame Kit x 1
11L Water Tank x 2
Accessory Bag x 1
The accessory bag includes the RTK fixed parts, AS150U power connector, FPVcamera
mount plate and screw bag.

G20Q:

G20Q 4 Axis Drone Frame Kit x 1
11L Water Tank x 2
Accessory Bag x 1
The accessory bag includes the RTK fixed parts, AS150U power connector, FPVcamera
mount plate and screw bag.

Recommended parts:

G20:X8+30 inch

G20Q: X9 Plus+36 inch

2 Water Pump Spraying System (Optional):
12S brushless water pump x 2
Water Pump shock-absorbing bracket
Extension Rod with Dual nozzle x 4
Pipe and other Connectors

4 Water Pump Spraying System (Optional):
12S brushless water pump x 4
Water Pump shock-absorbing bracket
Extension Rod with Dual nozzle x 4
Pipe and other Connectors
