Eule MH440, Hybrid Heavy Lift Long Endurance VTOL

Description

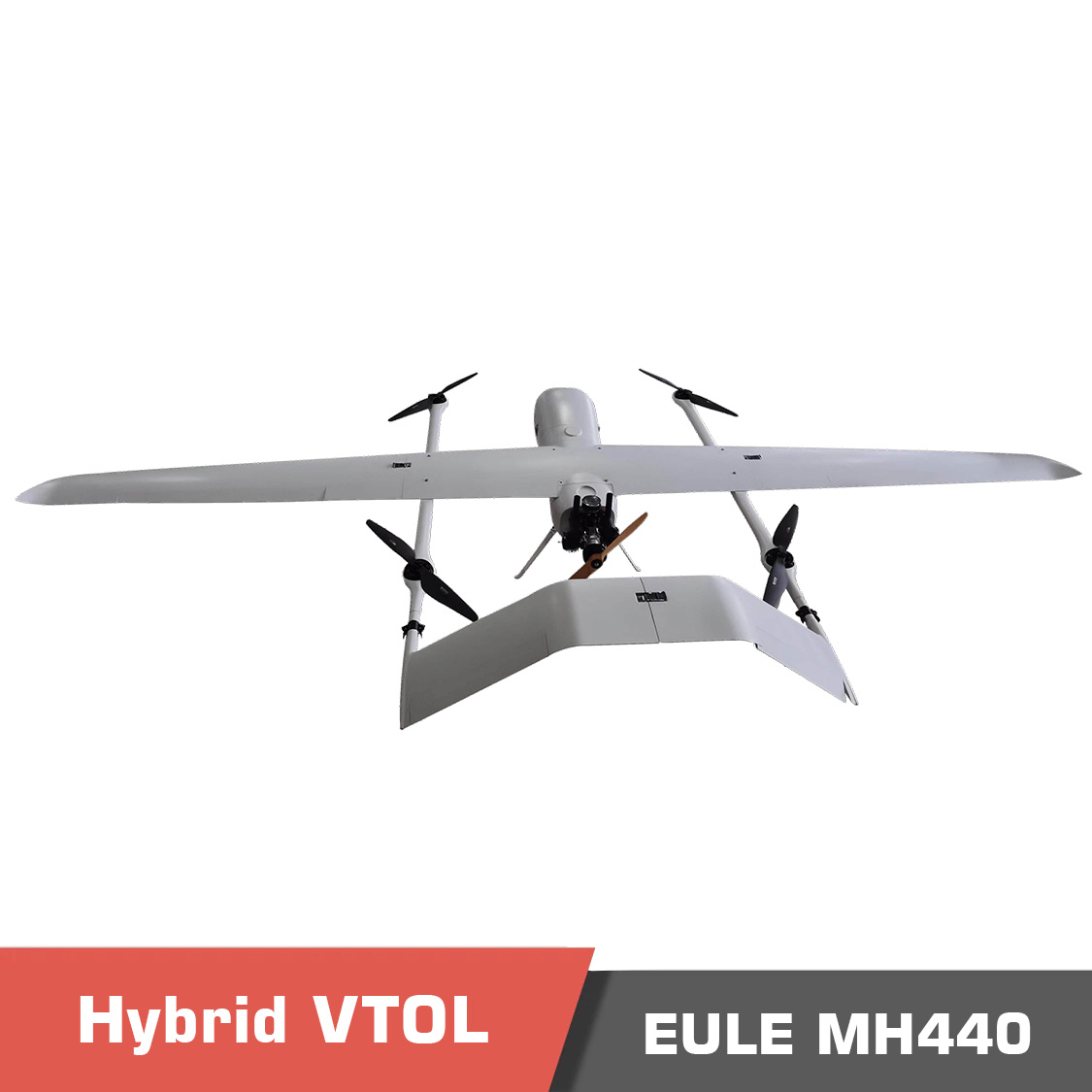

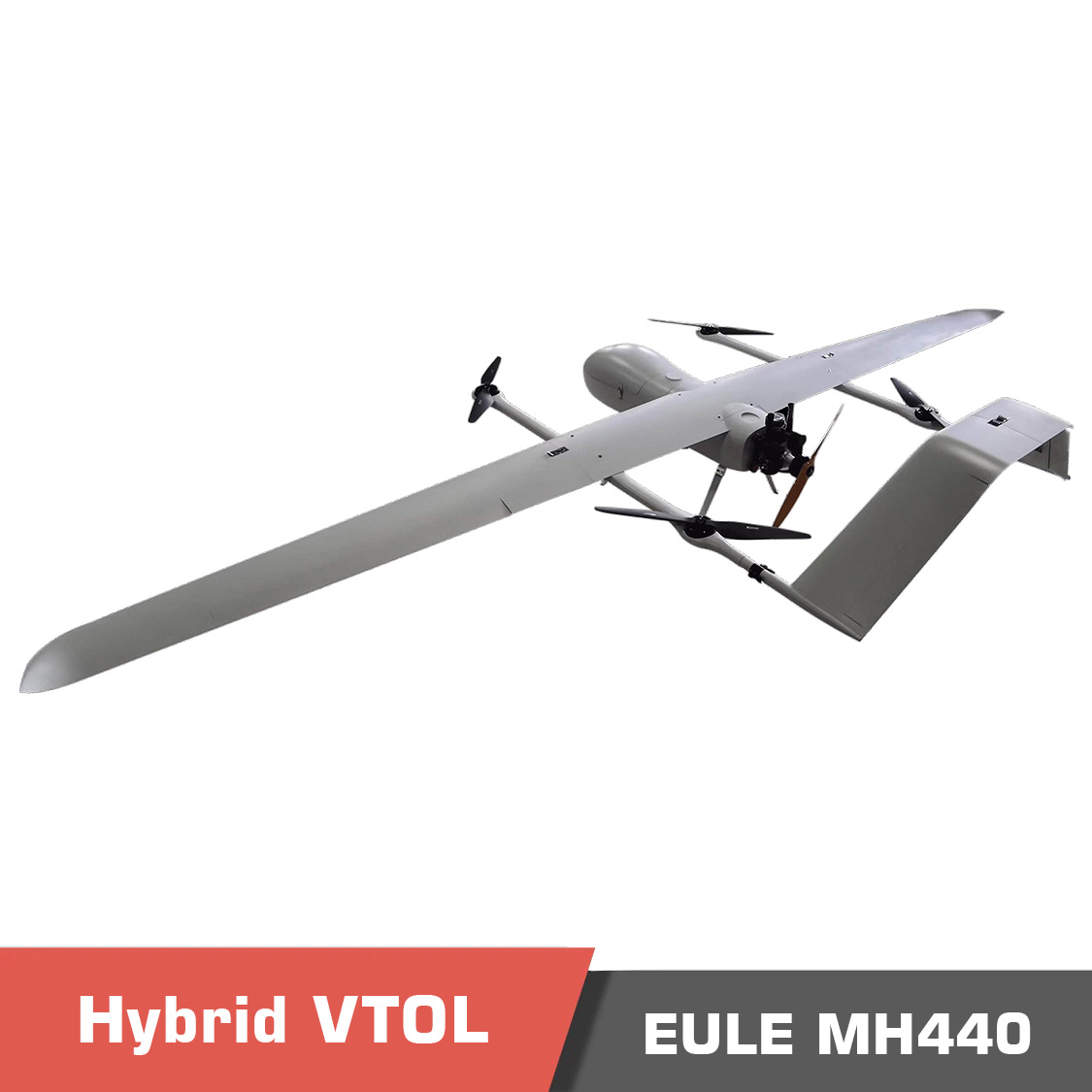

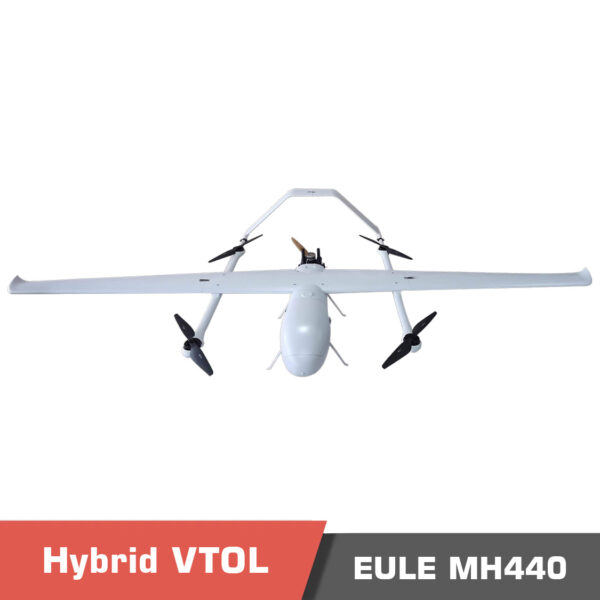

Eule MH440, Hybrid Heavy Lift Long Endurance VTOL

A Revolutionary Long-Endurance, Fuel-Electric Hybrid UAV

Experience the pinnacle of unmanned aerial vehicle (UAV) technology with the Eule MH440 UAV platform, an engineering marvel designed for exceptional versatility and performance. This fuel-electric hybrid UAV boasts a unique fixed-wing and four-rotor composite wing design, seamlessly blending the advantages of fixed-wing and rotary-wing UAVs. The result is an aerial powerhouse capable of vertical take-off and landing (VTOL) while maintaining the impressive flight time, high speed, and long-range capabilities of fixed-wing UAVs.
The Eule MH440 UAV platform sets a new standard in the industry for VTOL drones, offering unparalleled versatility and performance.

Unleash Unparalleled Versatility

The Eule MH440 UAV platform redefines the boundaries of UAV applications. Its adaptability allows for seamless operation in challenging terrains, including mountains, hills, and jungles, making it an ideal choice for industrial-grade drone operations. Whether you’re conducting reconnaissance, border patrol, oil and gas pipeline inspections, power line inspections, forest firefighting, or surveying and mapping, the Eule MH440 is ready to take on any task.

Advanced Flight Control and Navigation for Autonomous Operation

The MH440 platform is equipped with an industrial-grade vertical take-off and landing fixed-wing flight control and navigation system, ensuring autonomous flight throughout the entire mission. With support for automatic route planning for up to 1,000 waypoints and emergency backup plans for 100 waypoints, the MH440 delivers unparalleled mission flexibility and reliability.

With a 4420mm wingspan, while featuring a 70cc EFI BG270 Fuel Engine, and an 8L fuel tank, the UAV can reach 5 hours of flight time when fully loaded. It can carry up to 10kg payload, and its maximum take-off weight is 35kg. MH440 can resist wind levels up to level 6 (12m/s).

Key Features and Advantages

  • Practical and Efficient: Fixed-wing design for long flight time, high speed, long distance, and large load capacity
  • Vertical Take-Off and Landing: Rotary-wing drone takeoff and landing capabilities for enhanced adaptability
  • Low Cost of Use: Eliminate the need for complex and bulky launch and recovery equipment
  • Easy to Operate: Specialized flight control and navigation system for fully autonomous operation
  • Compact System: Effortless transportation, deployment, maintenance, and removal

The Eule MH440 UAV Platform: Elevate Your UAV Operations to New Heights

With its groundbreaking design, advanced features, and exceptional versatility, the Eule MH440 UAV platform is the premier choice for those seeking the ultimate in UAV technology. Experience the freedom and efficiency of autonomous flight, conquer challenging terrains, and expand the scope of your UAV applications with the Eule MH440 – your gateway to a world of limitless possibilities.

Eule mh440 Mh440 2 - eule mh440 - motionew - 6 Mh440 3 - eule mh440 - motionew - 7 Mh440 4 - eule mh440 - motionew - 8 Mh440 5 - eule mh440 - motionew - 9 Mh440 6 - eule mh440 - motionew - 10

Additional information

Weight 100 kg
Dimensions 400 × 400 × 50 cm

Specifications

Body Length 2075mm
Body Height 788mm
Wingspan 4420mm
Cruising speed 20m/s~25m/s (72km/h~90km/h)
Max speed 40m/s (145km/h)
Stall Speed 20m/s (72km/h) @ fully loaded
Wind Resistance 12m/s (level 6 wind)
Maximum take-off weight 35kg
Maximum Flight Altitude 6500m
Max payload 10kg
Fuel Tank Capacity 8L
Endurance time 5h @ fully loaded
IP protection level
IP55
Working temperature -20°C to 50°C
tail thrust engine B2G70 EFI, 70cc, 1800~8500rpm

Documents

Please contact us for more information.

Product contents

Please contact us for more information.
