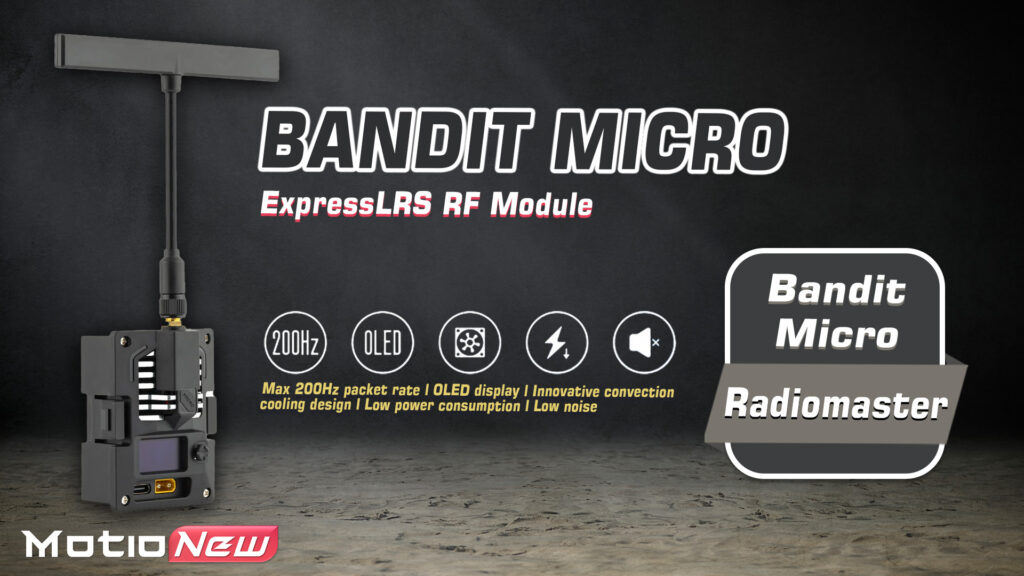

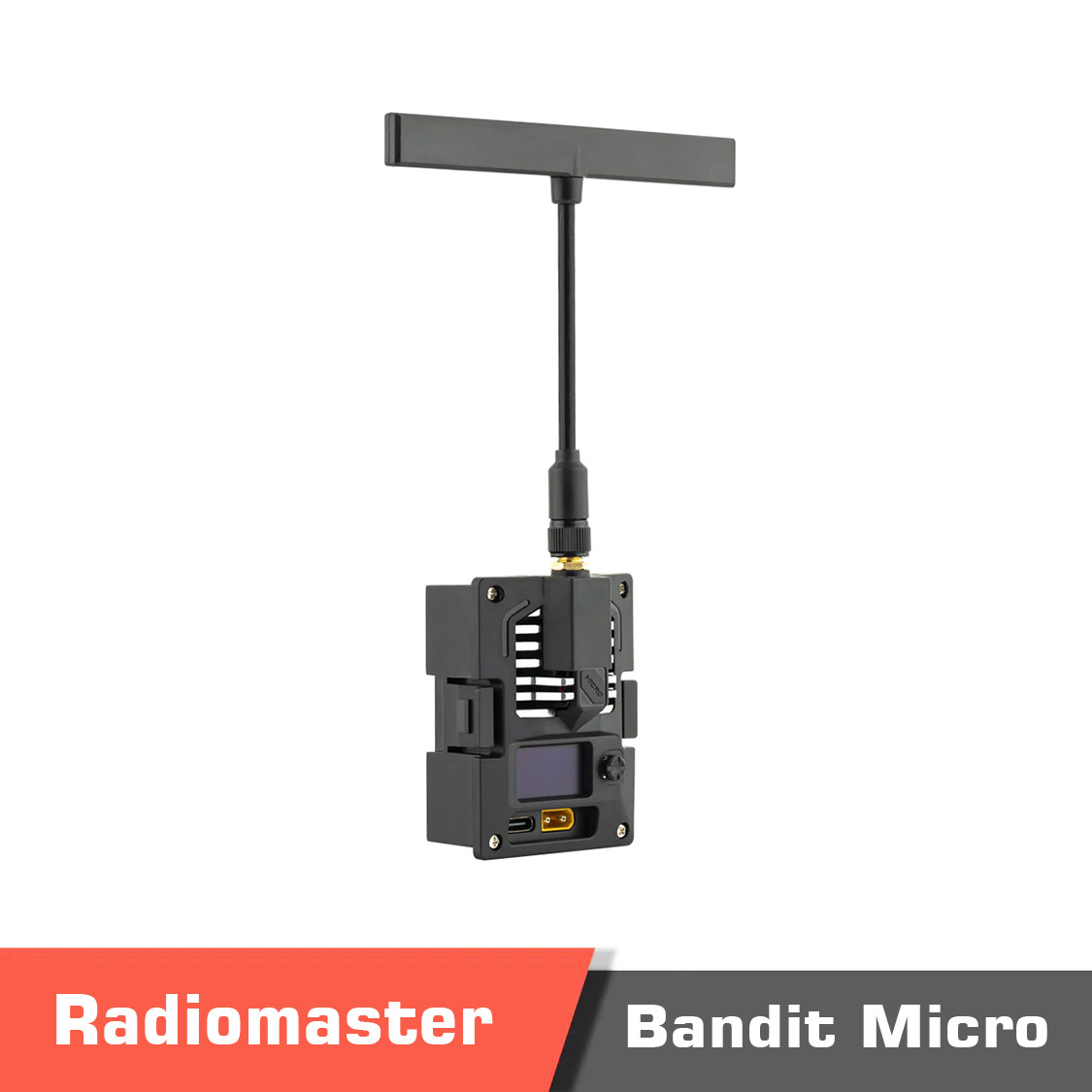

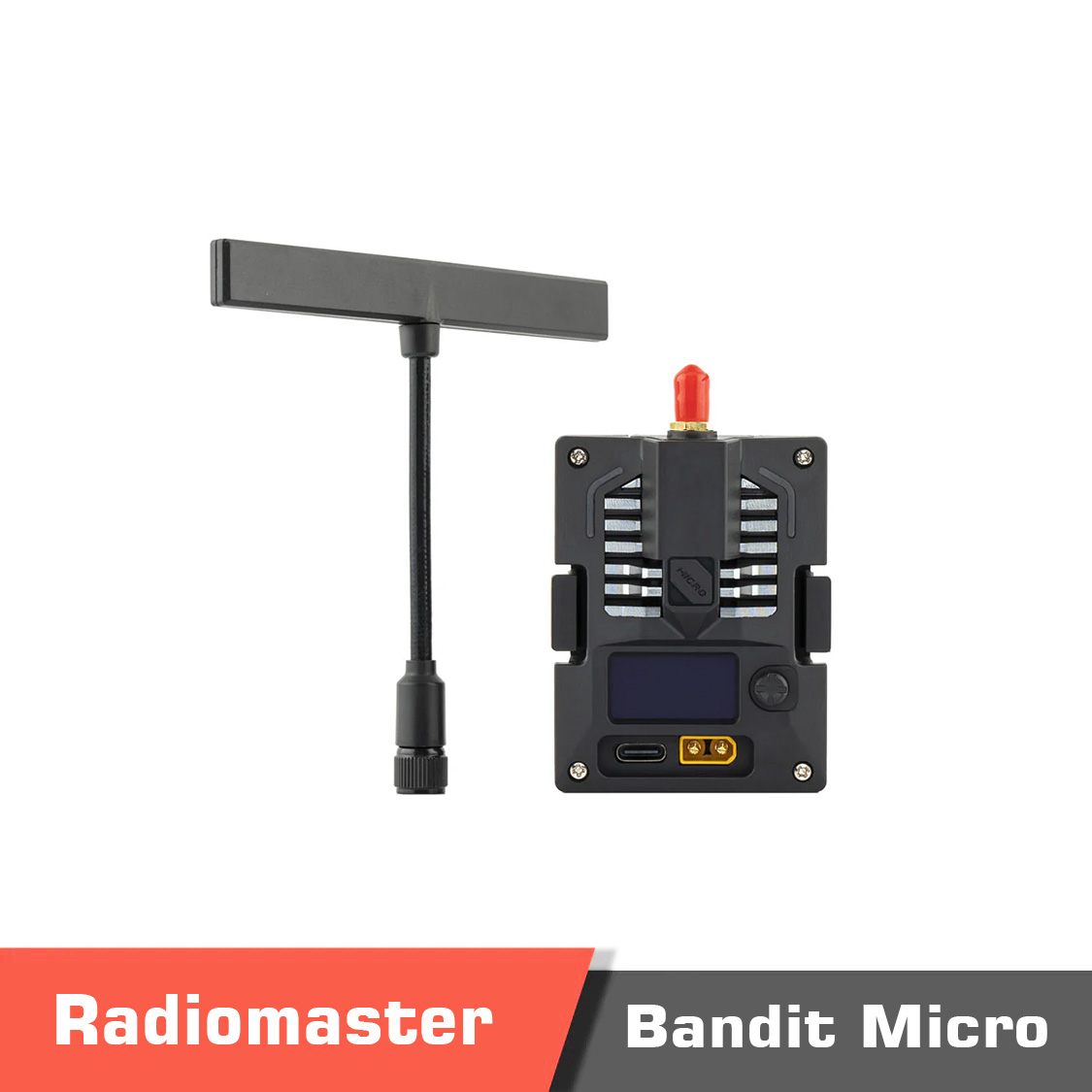

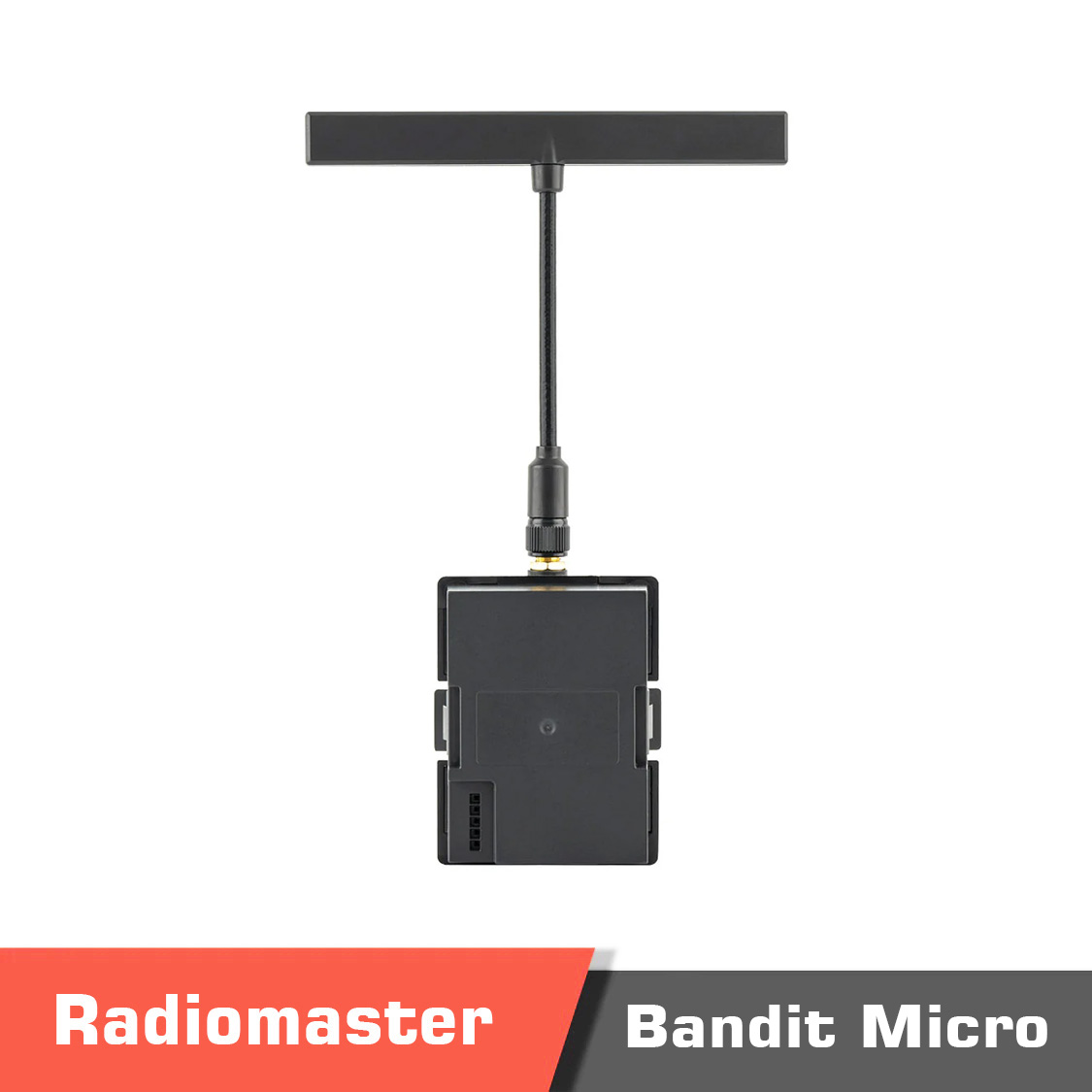

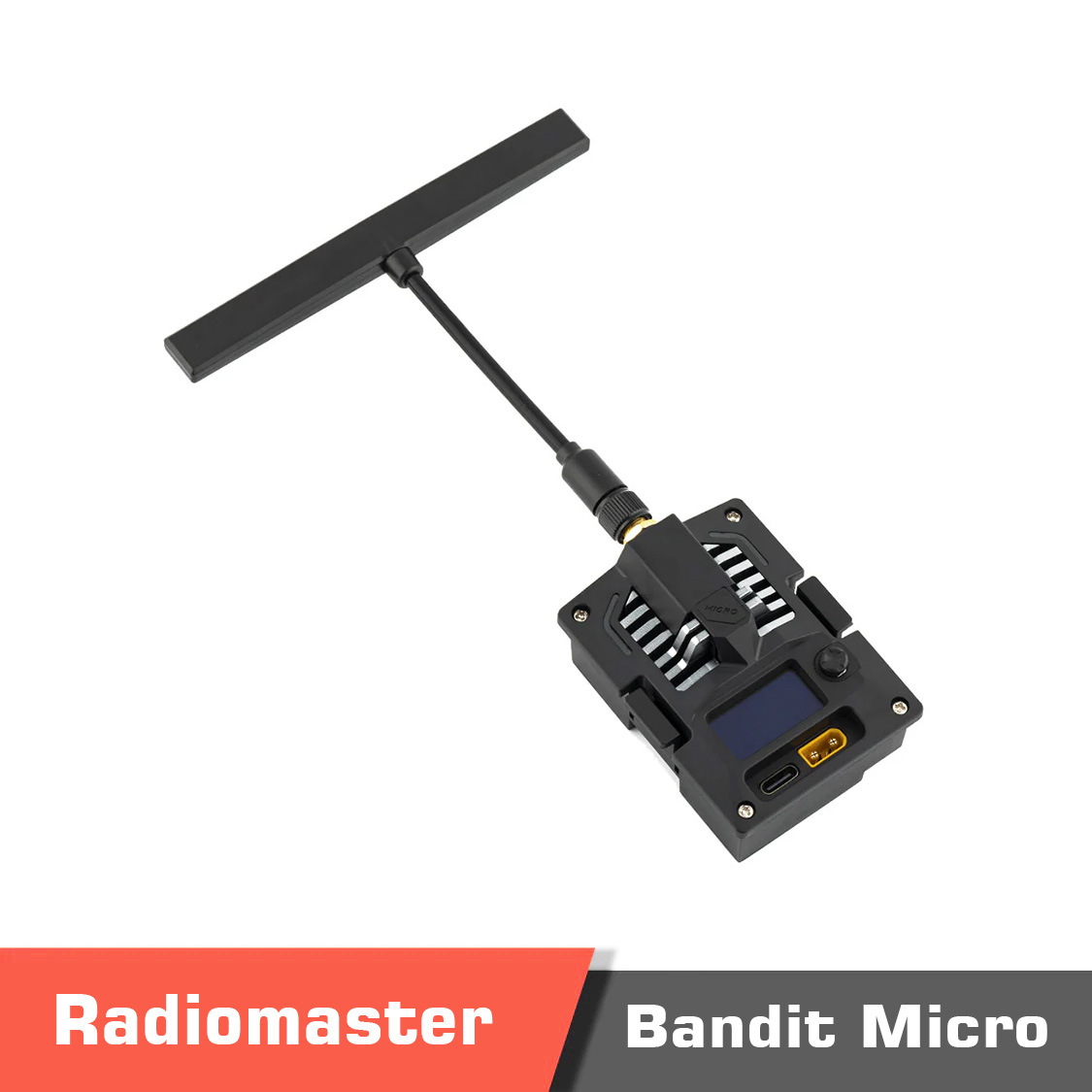

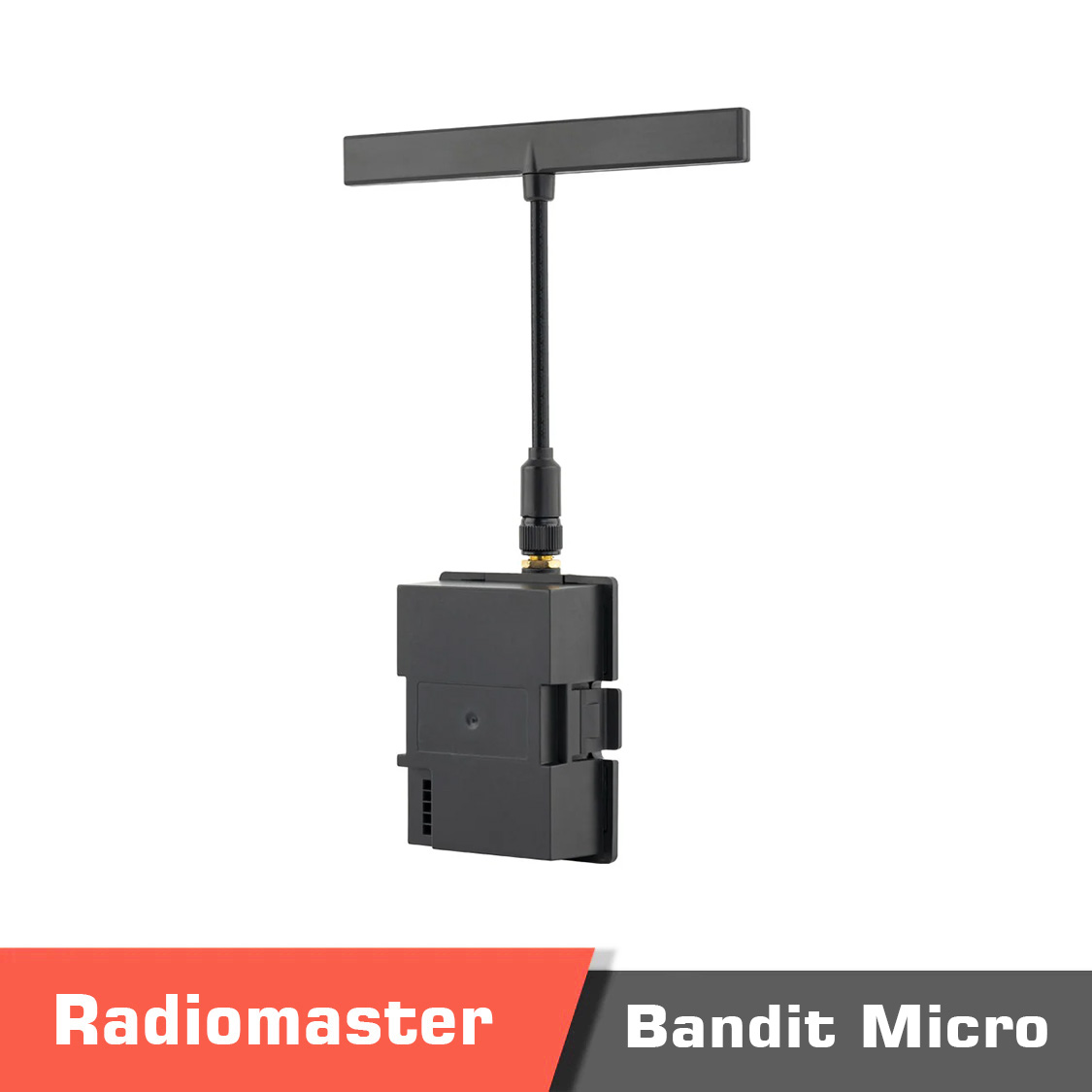

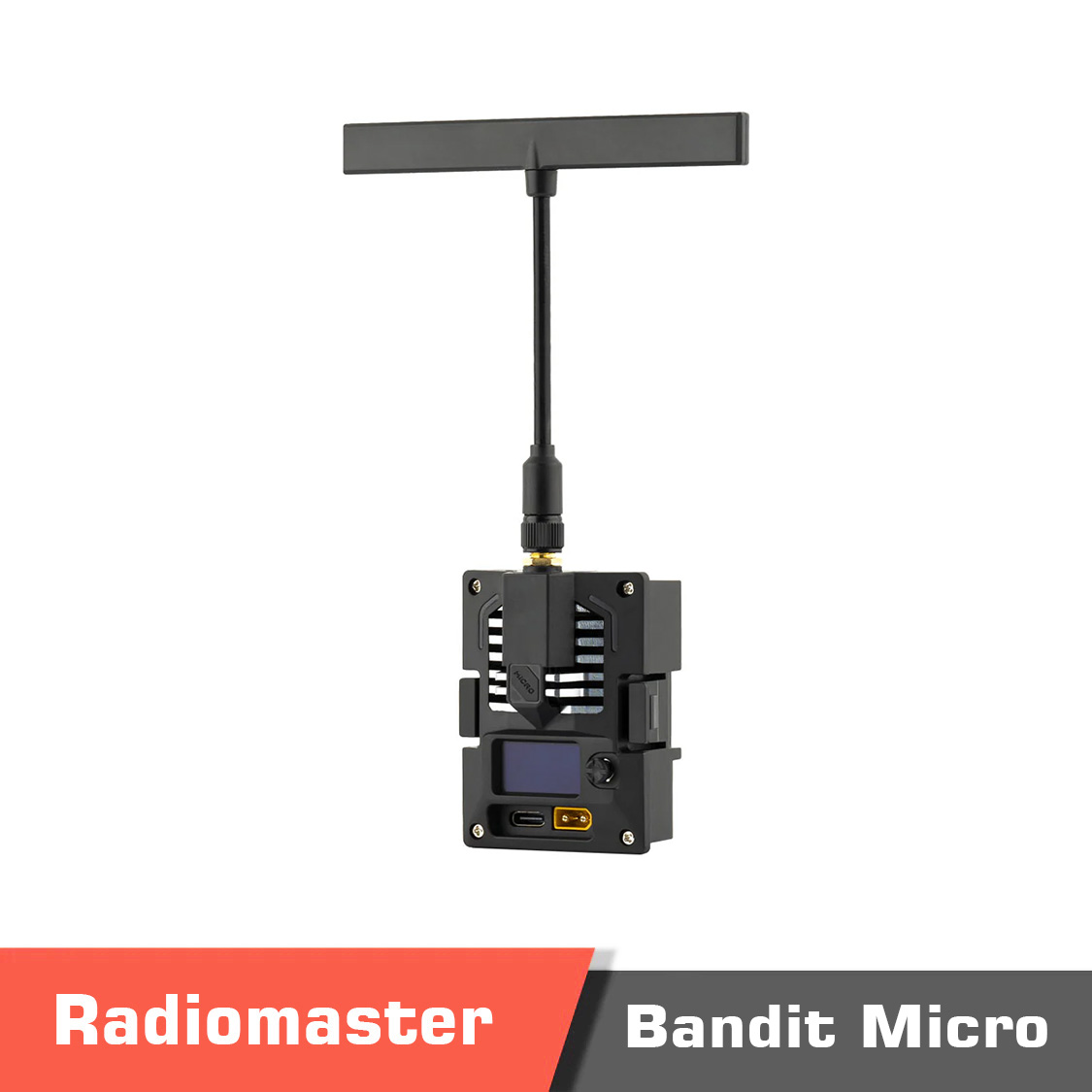

Bandit Micro ExpressLRS 915MHz RF Module

49.99 $

PayPal
Visa
Master

Description

Features of Bandit Micro ExpressLRS 915MHz RF Module

  • Up to 1 Watt power output

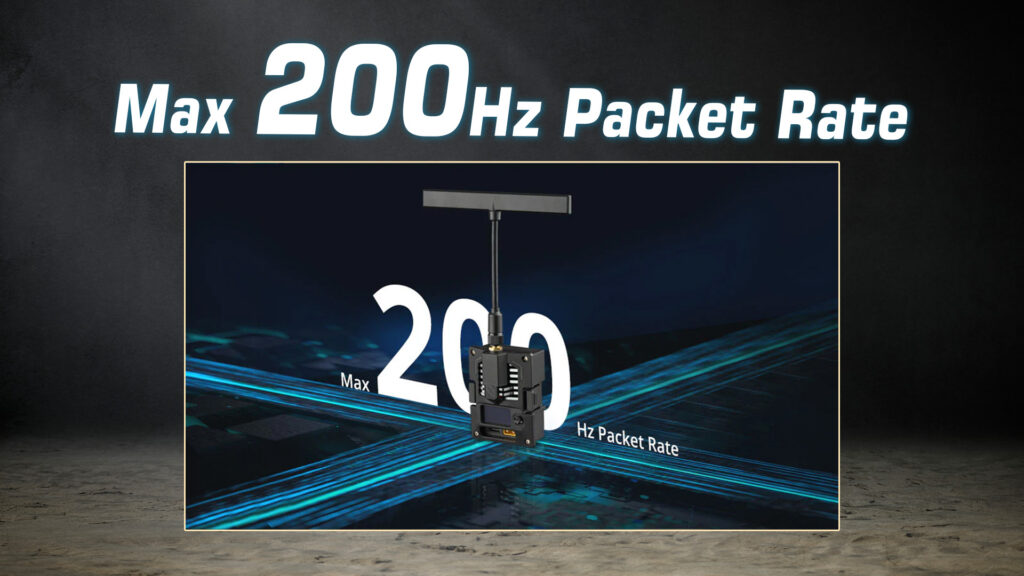

  • Packet rates up to 200Hz

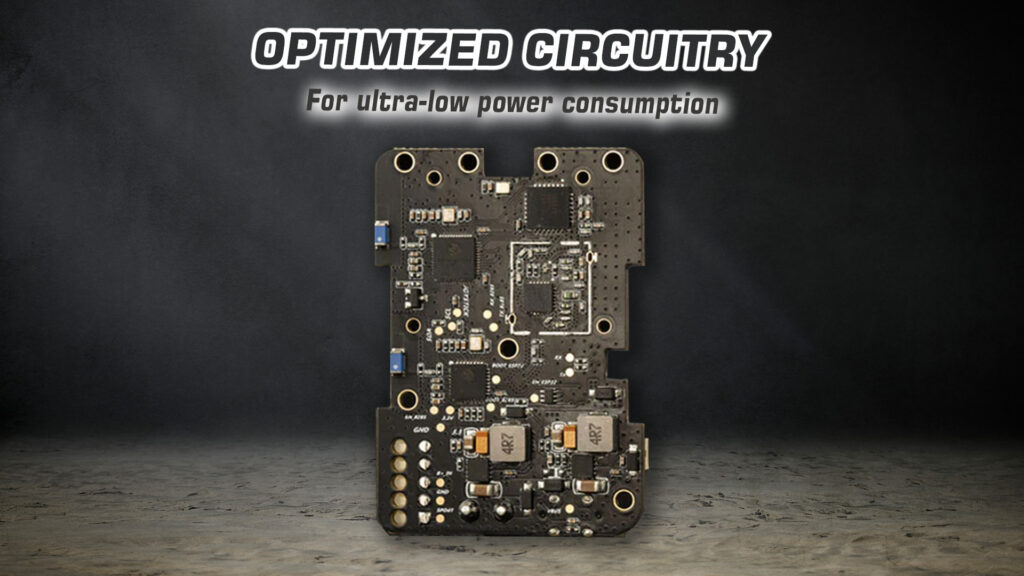

  • Optimized circuitry for ultra-low power consumption

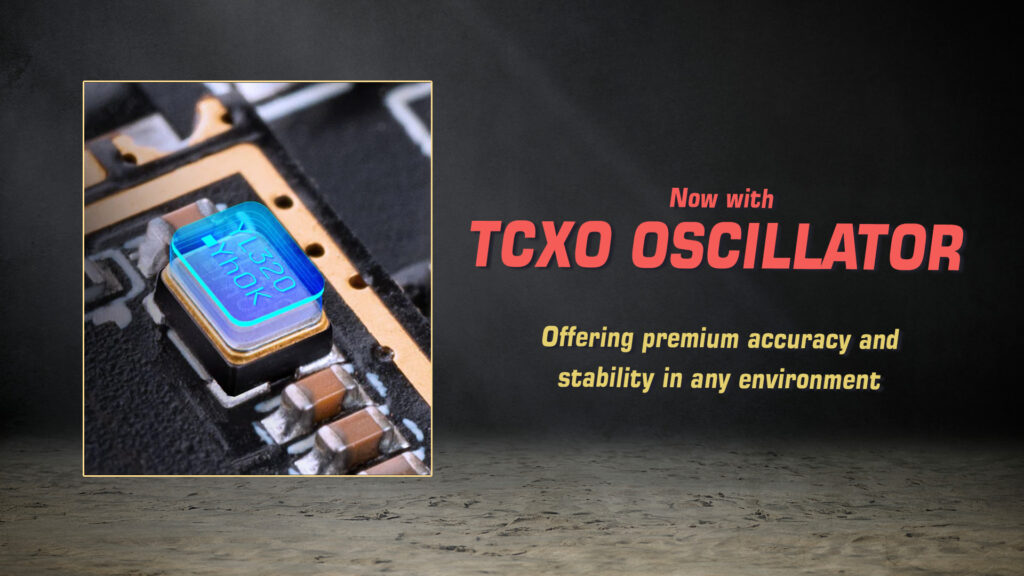

  • Built-in TCXO oscillator

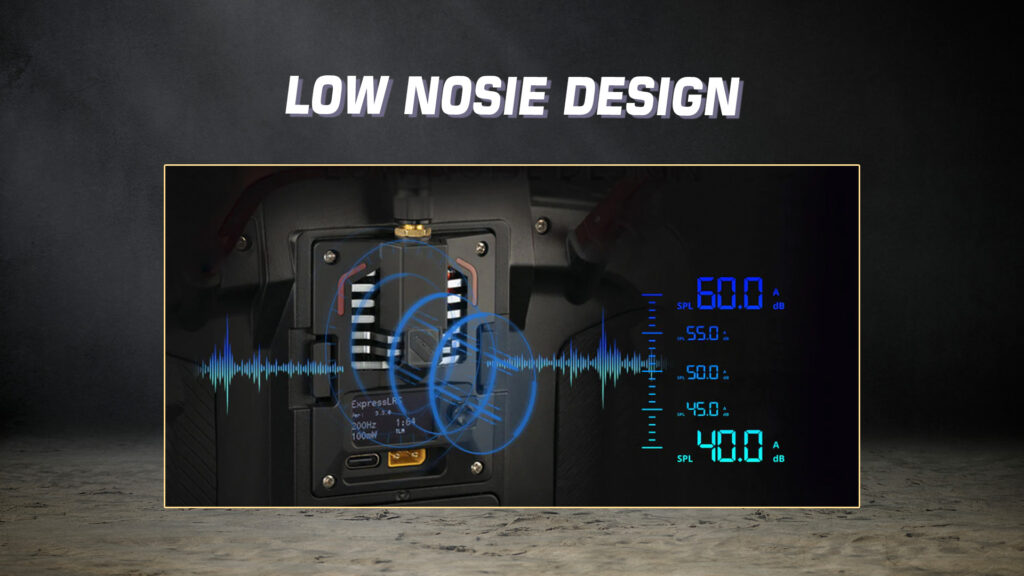

  • Low noise, high comfort

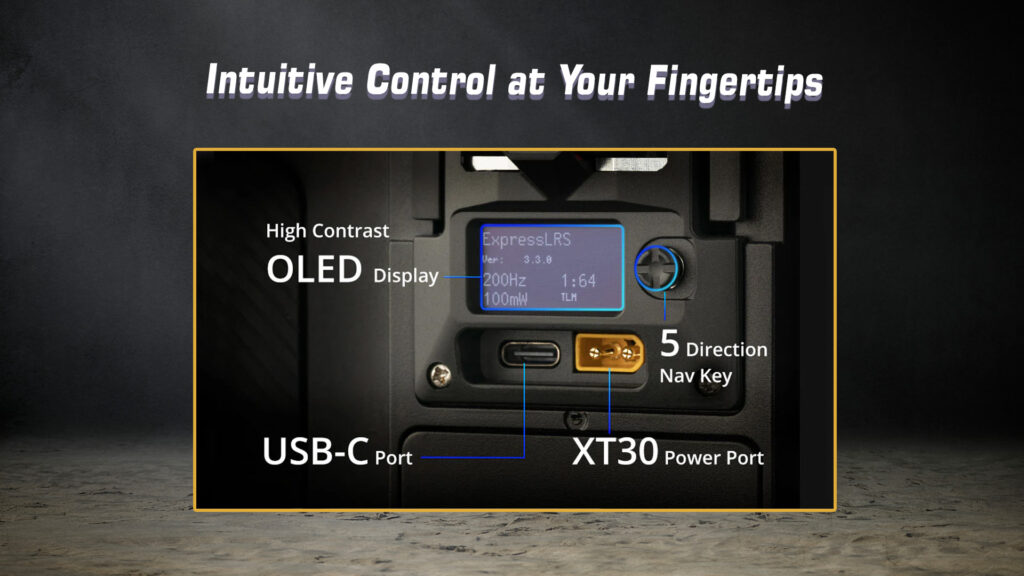

  • High contrast OLED display

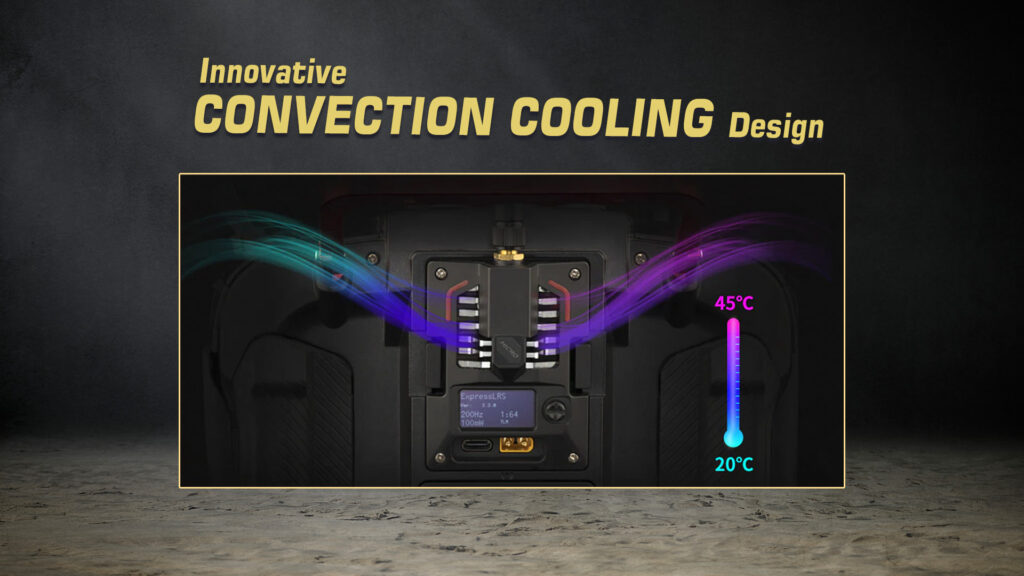

  • Innovative convection cooling design

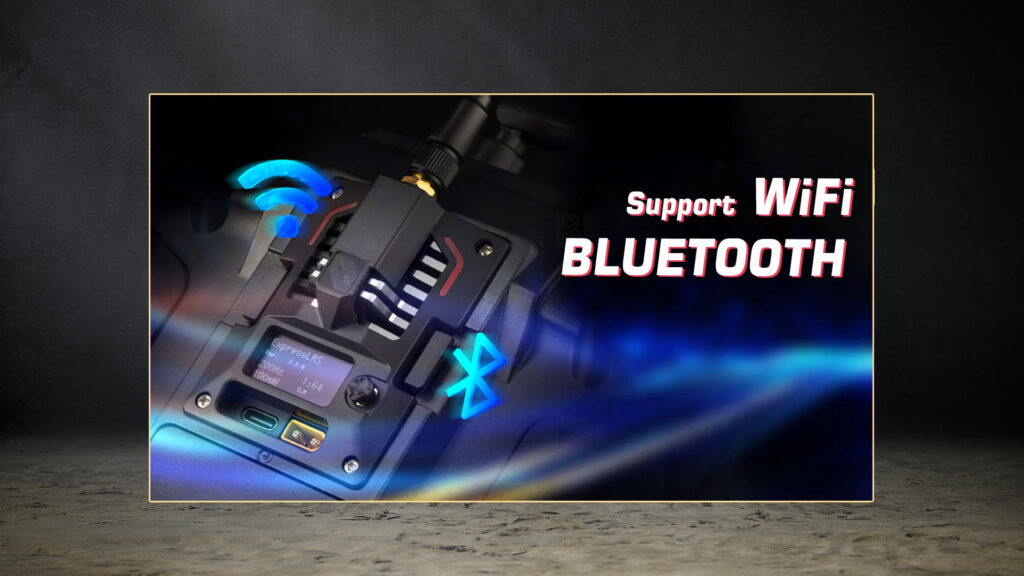

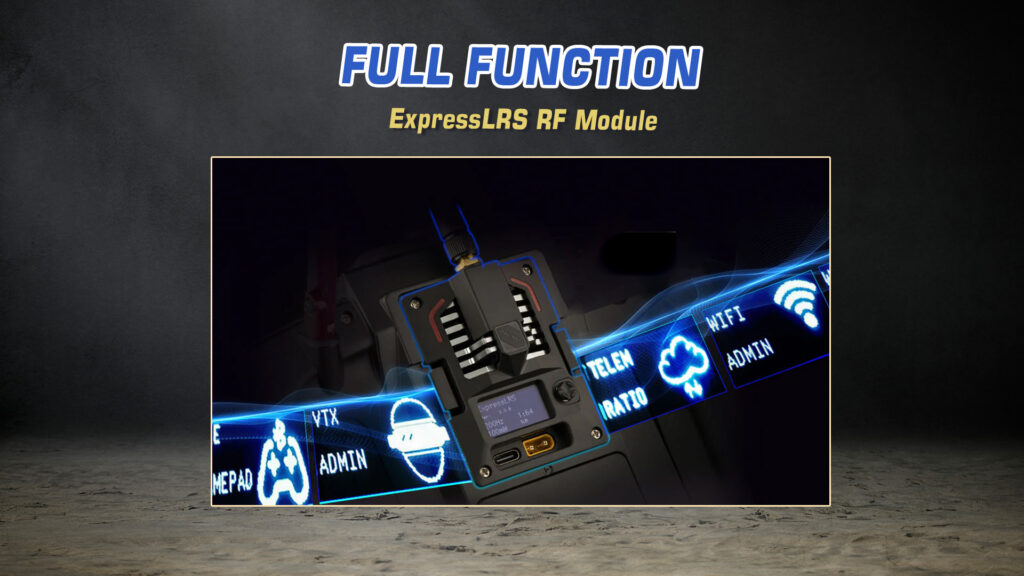

  • Wifi and Bluetooth support
  • Built-in ExpressLRS backpack
  • 5 Directional nav key

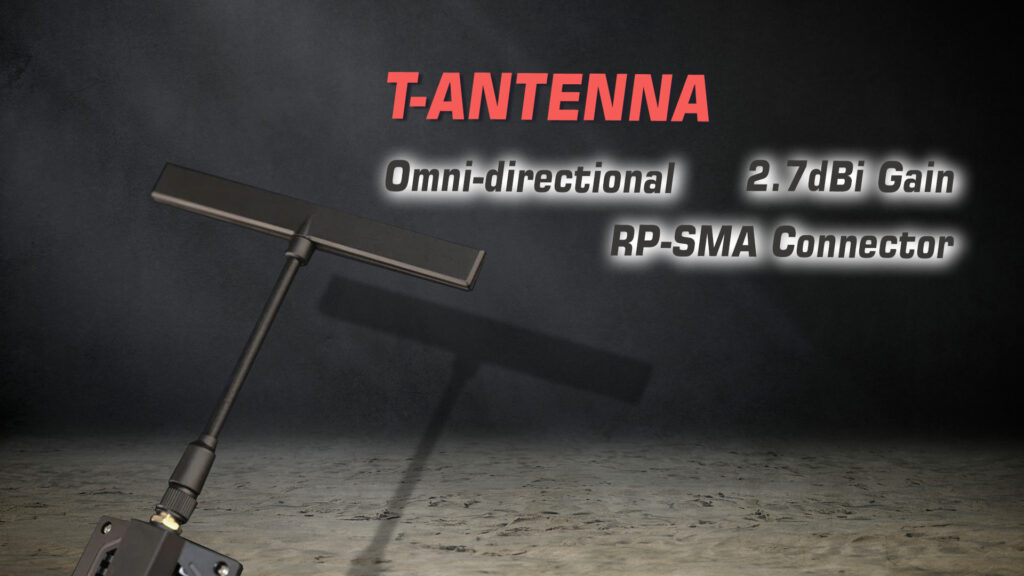

  • 915/868MHz T Antenna included

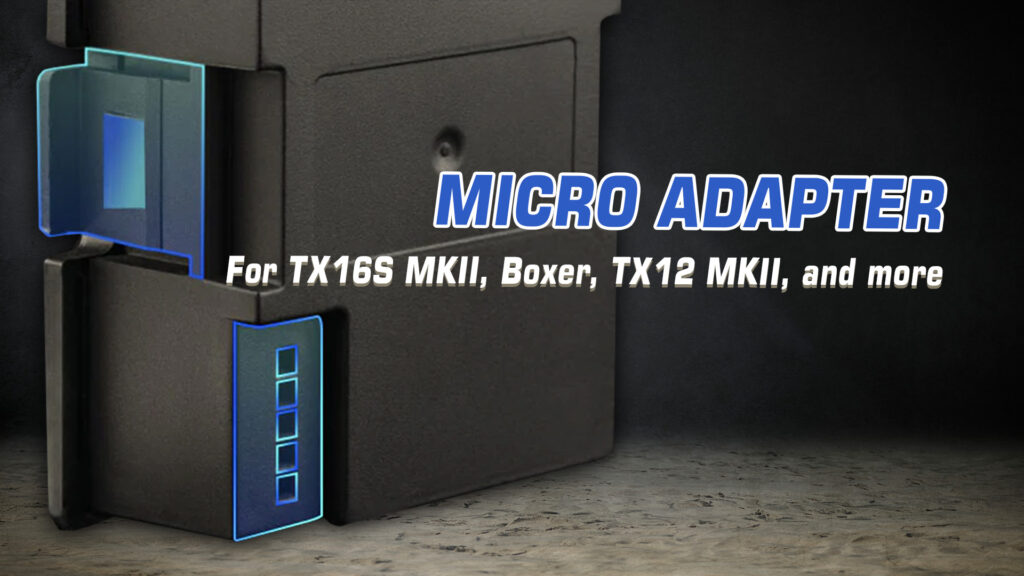

  • With the Micro connector, support TX16S MKII, Boxer, and TX12 MKII radio

Specifications

Bandit micro expresslrs 915mhz rf module Bandit. 2 - bandit micro expresslrs 915mhz rf module - motionew - 10 Bandit. 3 - bandit micro expresslrs 915mhz rf module - motionew - 11 Bandit. 4 - bandit micro expresslrs 915mhz rf module - motionew - 12 Bandit. 5 - bandit micro expresslrs 915mhz rf module - motionew - 13 Bandit. 6 - bandit micro expresslrs 915mhz rf module - motionew - 14 Bandit. 7 - bandit micro expresslrs 915mhz rf module - motionew - 15 Bandit. 8 - bandit micro expresslrs 915mhz rf module - motionew - 16 Bandit. 9 - bandit micro expresslrs 915mhz rf module - motionew - 17 Bandit. 10 - bandit micro expresslrs 915mhz rf module - motionew - 18 Bandit. 11 - bandit micro expresslrs 915mhz rf module - motionew - 19 Bandit. 12 - bandit micro expresslrs 915mhz rf module - motionew - 20 Bandit. 14 - bandit micro expresslrs 915mhz rf module - motionew - 21

For a comprehensive reading of related products, please visit the Motionew website.

Additional information

Weight 0.4 kg
Dimensions 9 × 8 × 6 cm
Region

FCC, LBT

Specifications

Item
Bandit Micro ExpressLRS RF Module
Regulatory Domain
FCC915
MCU
ESP32(main), ESP8285(aux, as ESP backpack)
RF Chip+
SEMTECH SX1276
Refresh Rate Min/Max+ 25Hz/200Hz
Micro standard 5pin connector
Built-in
OLED screen
RF Output Power+ 1000mW/30dBm
XT30 Power Supply Voltage+ DC 6V ~ 16.8V
Weight+ 78.0grams (with T antenna)

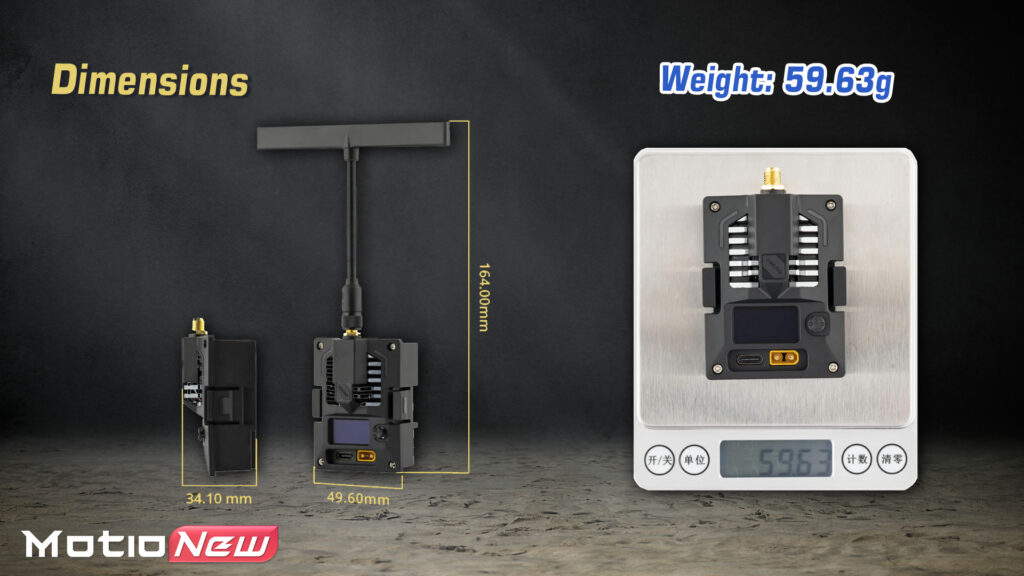

Dimension+ 64.1*49.6*34.1mm

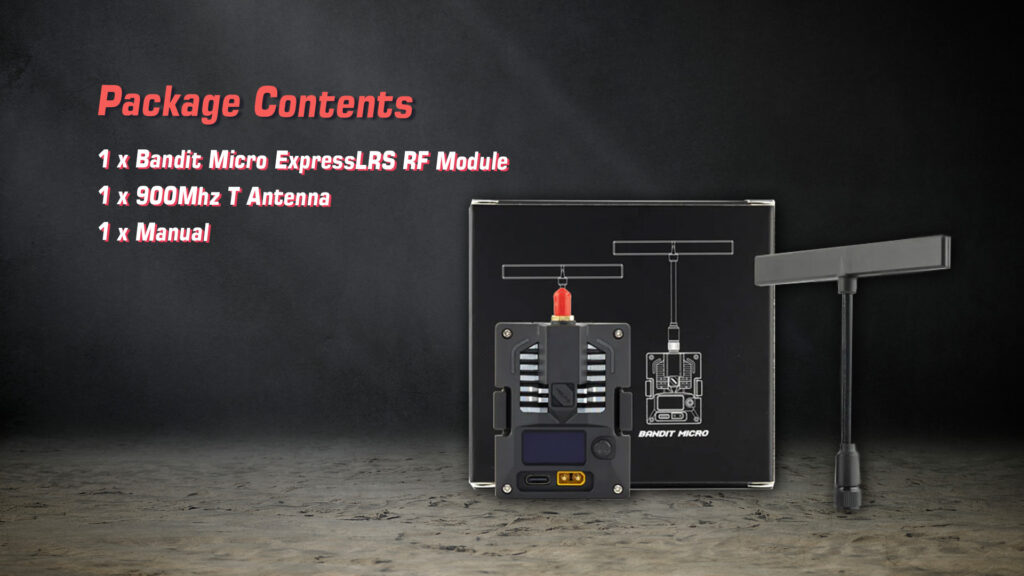

Product contents



Bandit. 13 - bandit micro expresslrs 915mhz rf module - motionew - 22
