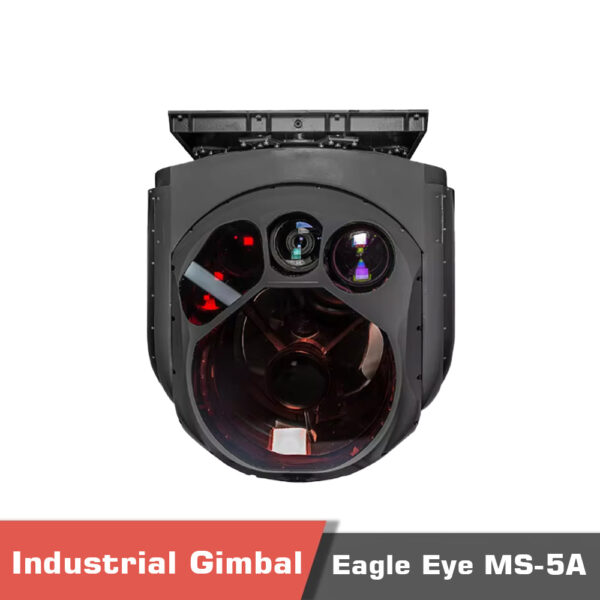

Eagle Eye MS-5A industrial multi-sensor gimbal, Zoom MWIR and SWIR

(1 customer review)
PayPal
Visa
Master

Description

Overview of Eagle Eye MS-5A

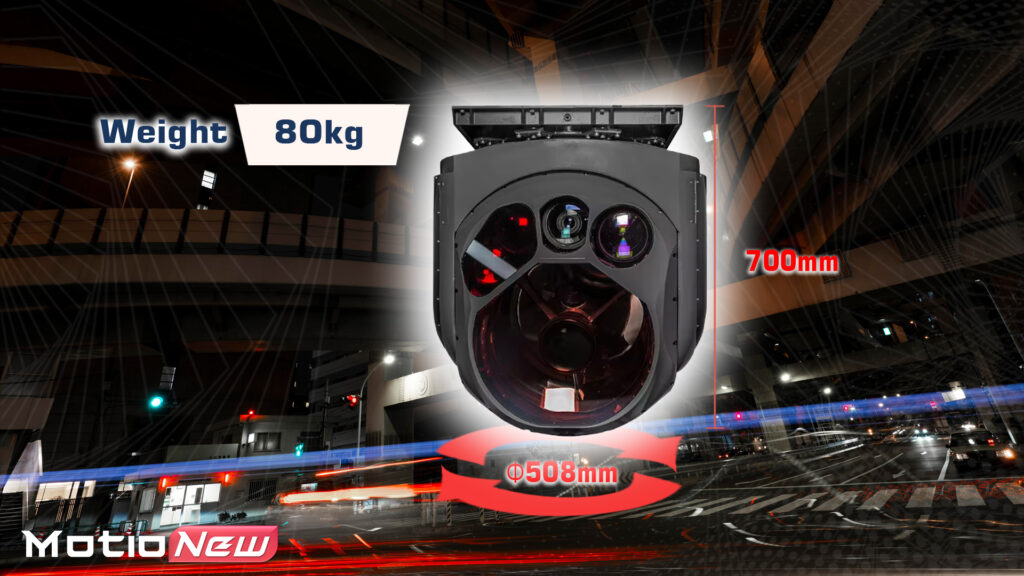

The Eagle Eye MS-5A is a high-performance industrial gimbal camera designed to meet the demanding requirements of modern aerial surveillance and reconnaissance missions. This advanced gimbal boasts a robust design, with a maximum diameter of 508mm and a height of 700mm, weighing in at less than 80kg. It is engineered to operate in extreme temperatures, ranging from -45ยฐC to 60ยฐC, ensuring reliable performance in a wide variety of environmental conditions. It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution.

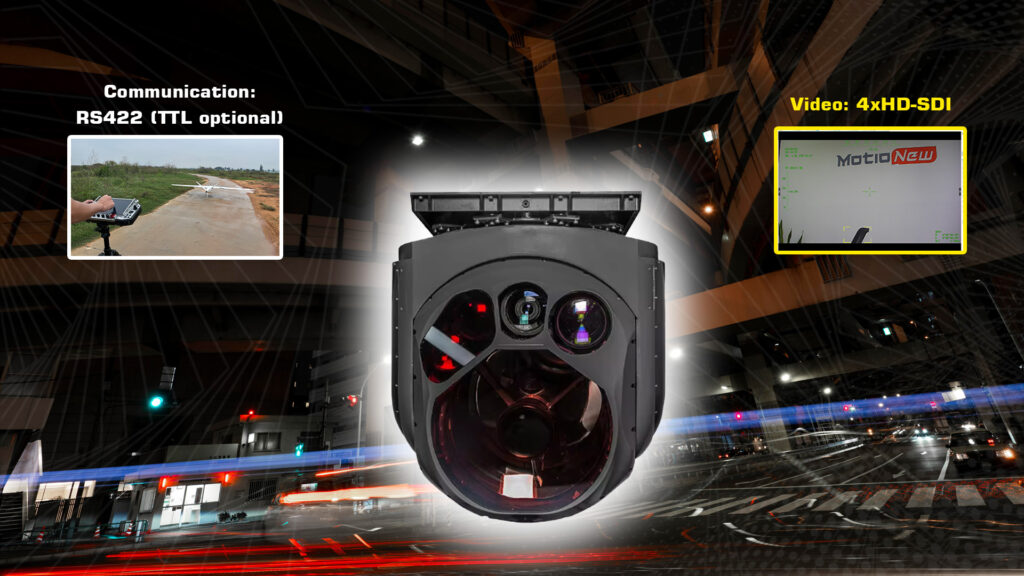

The Eagle Eye MS-5A features multiple communication interfaces, including 1x RS422 and 4x HD-SDI outputs, providing versatile connectivity options. It operates on a 28V power supply, with an average power consumption of less than 400W and a peak consumption of 700W, making it energy efficient for extended missions.

MWIR Sensor

Equipped with a state-of-the-art MWIR sensor with optical zoom, the Eagle Eye MS-5A covers a wavelength range of 3.7ฮผm to 4.8ฮผm with a resolution of 640 x 512 pixels. It offers multiple fields of view (FOV) configurations, including 30ยฐ x 24ยฐ for navigation, 7.44ยฐ x 6ยฐ for long-range, 1.86ยฐ x 1.5ยฐ for medium-range, and 0.47ยฐ x 0.37ยฐ for short-range, allowing for detection at distances up to 30km and recognition at 20km.

NIR and SWIR Sensors

The NIR sensor operates within a wavelength range of 0.65ฮผm to 0.9ฮผm, providing 1080P resolution. It features a continuous zoom horizontal FOV from 30.6ยฐ x 17.2ยฐ to 1.53ยฐ x 0.86ยฐ, and a short-range FOV of 0.47ยฐ x 0.37ยฐ, with a detection range of 45km and recognition range of 30km. The SWIR sensor covers wavelengths from 0.95ฮผm to 1.7ฮผm, with a resolution of 640 x 512 pixels, and similar FOV configurations to the MWIR sensor, supporting detection up to 30km and recognition up to 20km.

EO Sensor

The EO sensor, operating in the 0.486ฮผm to 0.656ฮผm wavelength range, delivers 1080P resolution and a continuous zoom horizontal FOV from 30.6ยฐ x 17.2ยฐ to 1.53ยฐ x 0.86ยฐ, enabling detection up to 12km and recognition up to 7km.

Servo System

The servo system of the Eagle Eye MS-5A allows for 360ยฐ continuous panning and pitch adjustments from +45ยฐ to -120ยฐ. It boasts maximum angular speeds of โ‰ฅ40ยฐ/s in elevation and โ‰ฅ60ยฐ/s in pan, with an angular speed acceleration of โ‰ฅ60ยฐ/sยฒ. The gimbal ensures exceptional line-of-light stabilization accuracy of โ‰ค10urad and geo-positioning accuracy of โ‰ค20m per 10km.

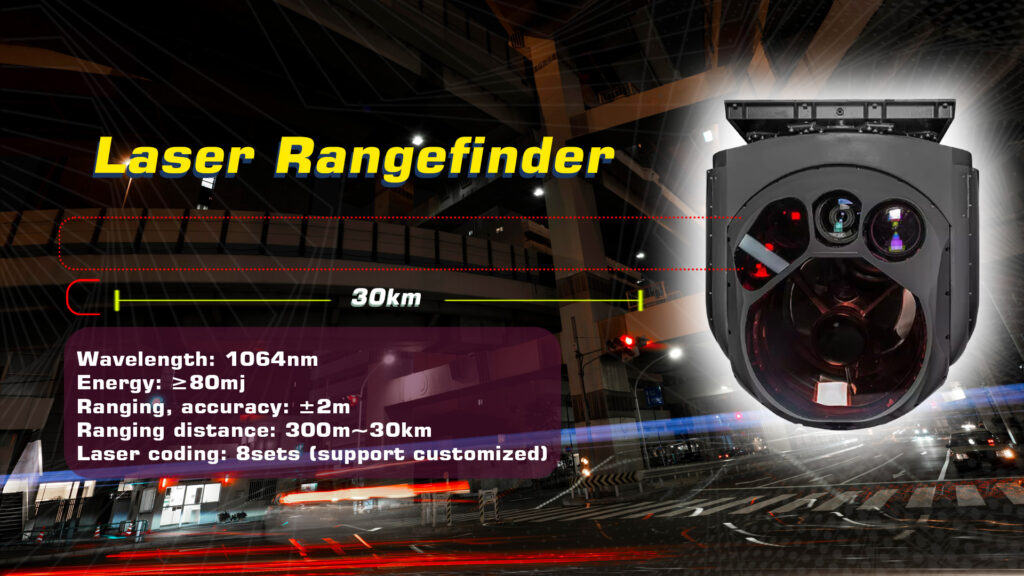

Laser rangefinder

Additionally, the integrated laser rangefinder operates at a wavelength of 1064nm, with energy output of โ‰ฅ80mj. It offers a ranging accuracy of ยฑ2m and can measure distances from 300m to 30km.ย

Overall, the Eagle Eye MS-5A gimbal combines advanced sensor technologies, robust mechanical design, and versatile communication interfaces to deliver superior performance for demanding aerial applications.

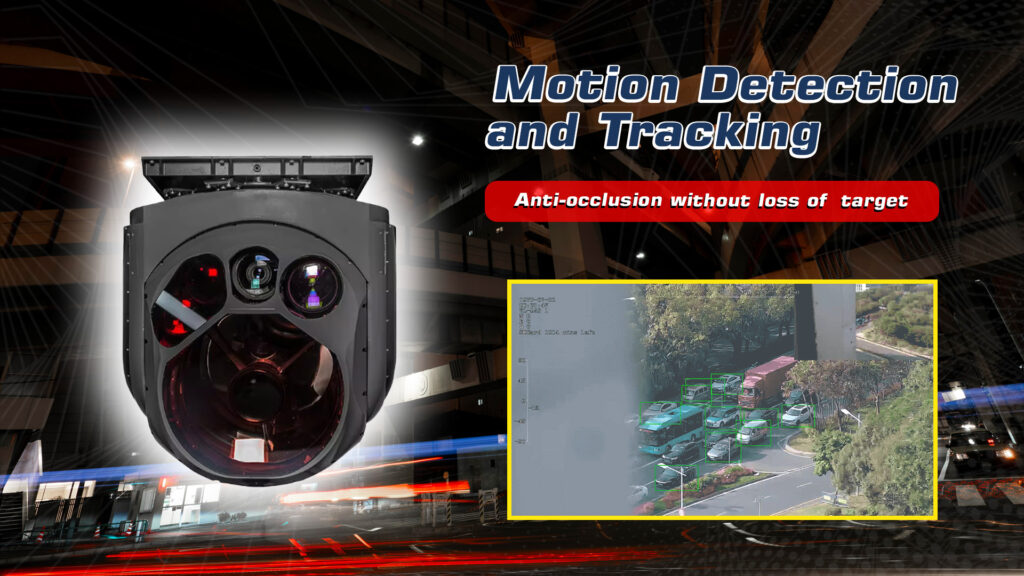

Eagle eye ms-5a (multiple sensor gimbal camera with zoom mwir sensor) Specifications of eagle eye ms-5a Object tracking of eagle eye ms-5a Communication interfaces of eagle eye ms-5a Eagle eye ms-5a laser rangefinder Applications of eagle eye ms-5a Specifications of eagle eye ms-5a mwir, swir, and nir sensors Eagle eye ms-5a dimensions and weight

For a comprehensive reading of related products, please visit the Motionew website.



Specifications

Specifications

Physical and electrical performance parameters
Size
โ‰คฮฆ508mmร—700mm
weight
โ‰ค80kg
Working temperature
-45โ„ƒ๏ฝž60โ„ƒ
communication interface
1x RS422(TTL optional) 4x HD-SDIย
Power supply 28V
Power consumption(Average) โ‰ค400W
Power consumption(Peak) โ‰ค700W



MWIR
Wavelength 3.7ฮผm-4.8ฮผm
Resolution 640 x 512
FOV (Navigation) 30ยฐ x 24ยฐ
FOV(L) 7.44ยฐ x 6ยฐ
FOV(M) 1.86ยฐ x 1.5ยฐ
FOV(S) 0.47ยฐ x 0.37ยฐ
Distance detection 30km, Recognition 20km



NIR
Wavelength 0.65ฮผm-0.9ฮผm
Resolution 1080P
Horizontal FOV( Continuous Zoom) 30.6ยฐ x 17.2ยฐ ~ 1.53ยฐ x 0.86ยฐ
FOV(S) 0.47ยฐ x 0.37ยฐ
Distance detection 45km, Recognition 30km



SWIR
Wavelength 0.95ฮผm-1.7ฮผm
Resolution 640 x 512
FOV(L) 7.44ยฐ x 6ยฐ
FOV(M) 1.86ยฐ x 1.5ยฐ
FOV(S) 0.45ยฐ x 0.36ยฐ
Distance detection 30km, Recognition 20km



EO sensor
Wavelength 0.486ฮผm-0.656ฮผm
Resolution 1080P
Horizontal FOV( Continuous Zoom) 30.6ยฐ x 17.2ยฐ ~ 1.53ยฐ x 0.86ยฐ
Distance detection 12km, Recognition 7km



Servo System
Rotation limits 360ยฐ continuous Pan

Pitch: +45ยฐ~-120ยฐ

Max. angular speed elevationโ‰ฅ40ยฐ/s

Pan:โ‰ฅ60ยฐ/s

Max. angular speed acceleration โ‰ฅ60ยฐ/sยฒ
Line of light stabilization accuracyย  โ‰ค10urad
GEO-positioning accuracy โ‰ค20m/10km



Laser Rangefinderย
Wavelength 1064nm
Energy โ‰ฅ80mj
Ranging accuracy ยฑ2m
Ranging distance 300m~30km
Laser coding 8sets( support customized)
