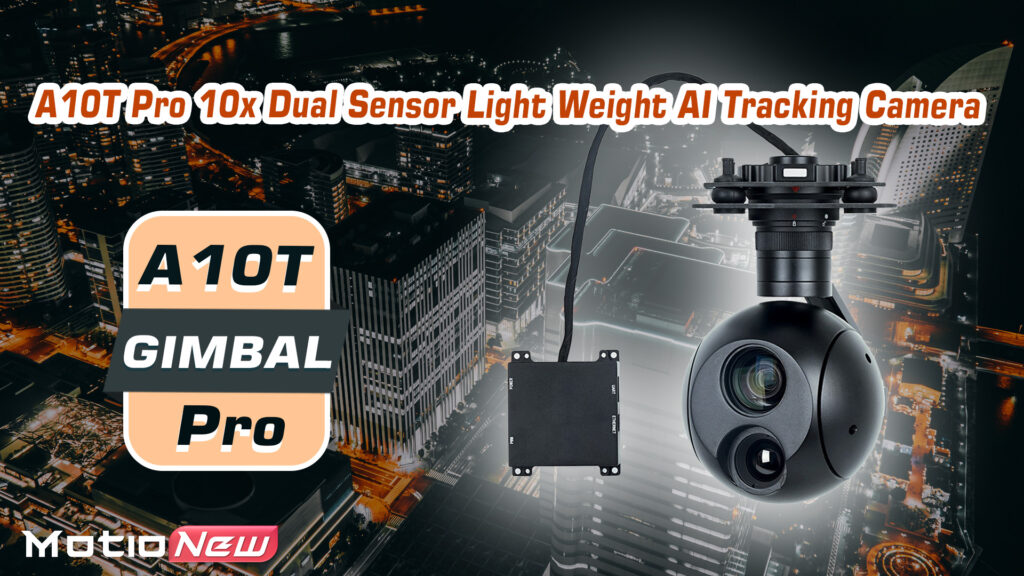

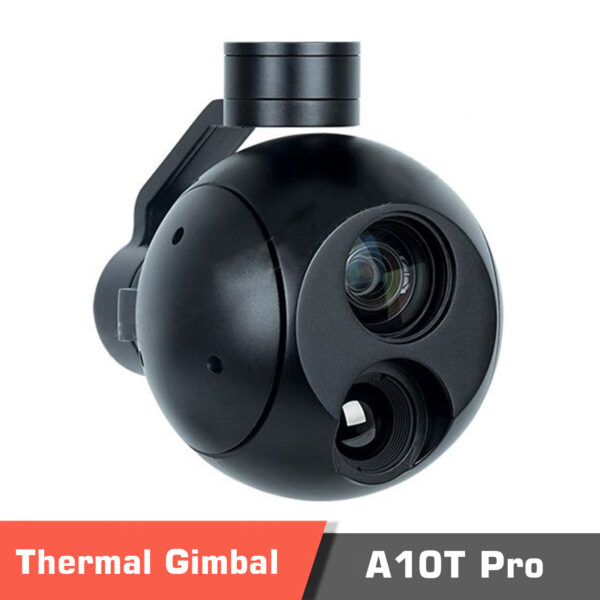

A10T Pro 10X Dual Sensor Light Weight AI Tracking Gimbal Camera

4400.00 $

(1 customer review)
PayPal
Visa
Master

Description

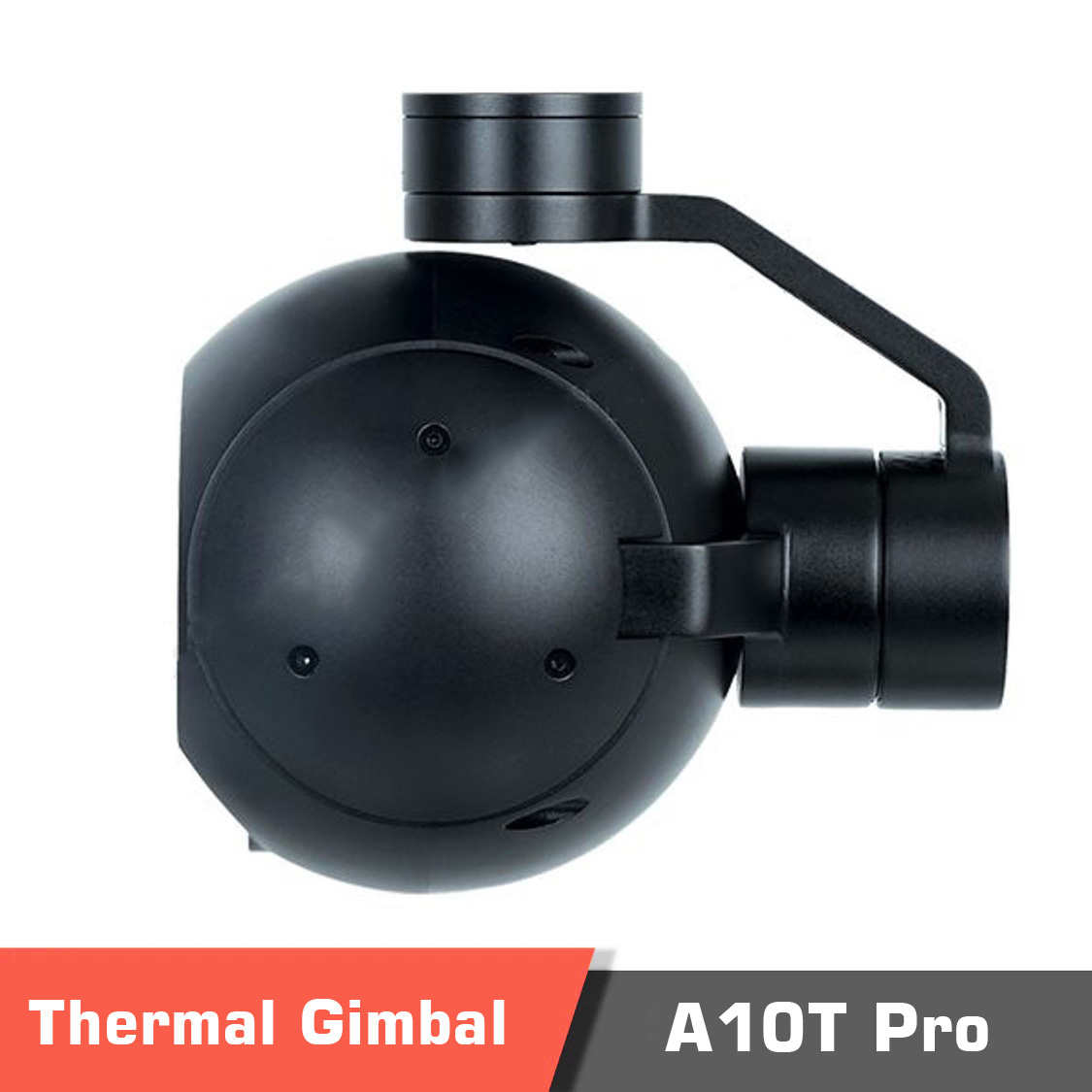

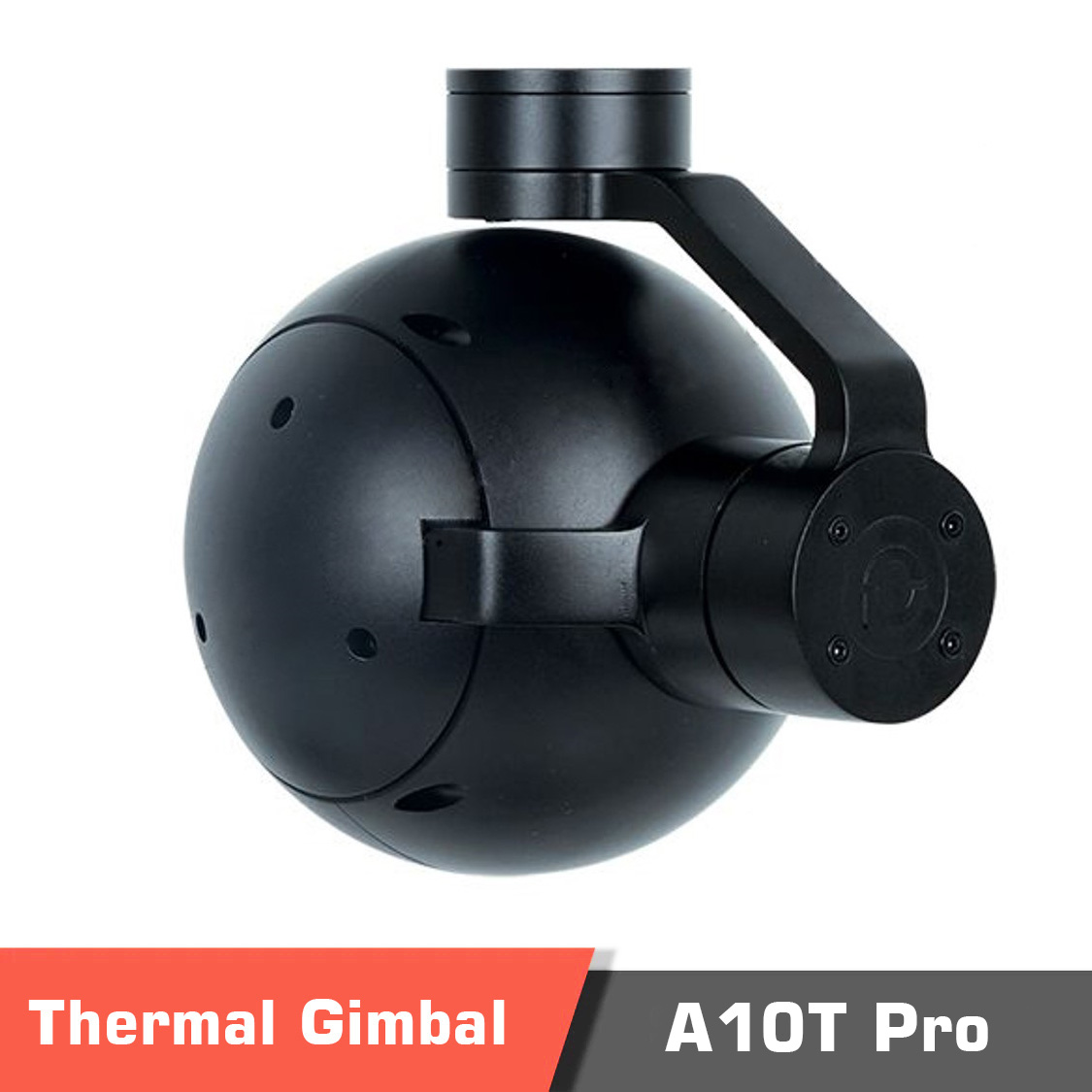

A10T Pro Overview

The A10T Pro 10x Dual Sensor Light Weight AI Tracking gimbal camera is the latest technology that brings artificial intelligence (AI tracking) to the drone industry. “It is a gimbal drone camera with a 3-axis gimbal that integrates AI tracking and detection algorithms with a 10x optical zoom camera โ€” SONY 1/2.8″ IMX462LQR CMOS, a 19mm lens IR thermal sensor with 640ร—512 resolution. It has an aluminum alloy housing to give it a sophisticated look and anti-interference ability, as well as thermal cooling. The 3 axis gimbal camera stabilizes yaw, roll, and pitch. The integrated damping system and gimbal design can significantly reduce mechanical vibration (using four damping balls and a lightweight damping board).

Gimbal Camera AI object detection and Trackingย Video

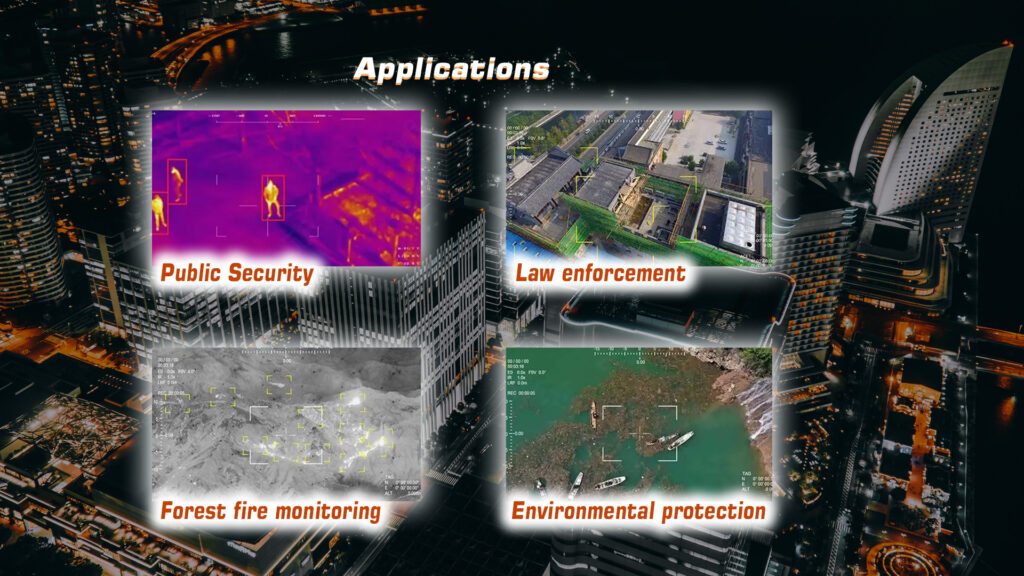

A10T pro applications

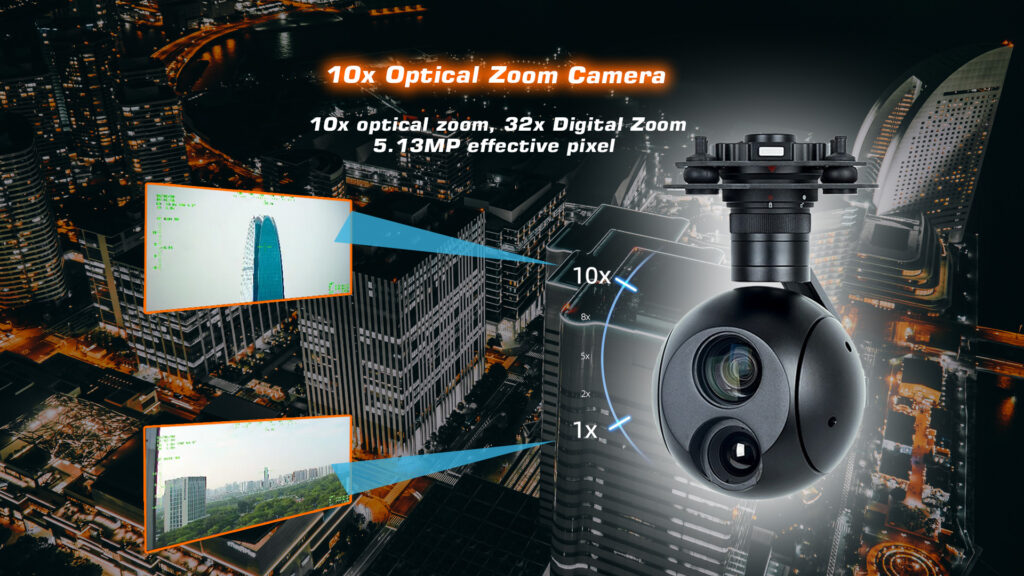

A10T pro has a SONY 1/2.8″ IMX462LQR CMOS module inside, which has 5.13 megapixels, which is combined with 10x advanced optical zoom technology, more than enough for a lot of applications in different domains including surveying, monitoring and so on. 10x optical zoom means the drone can maintain a safe distance from the target in case of a dangerous incident like a fire hazard while capturing enough details of the scene.

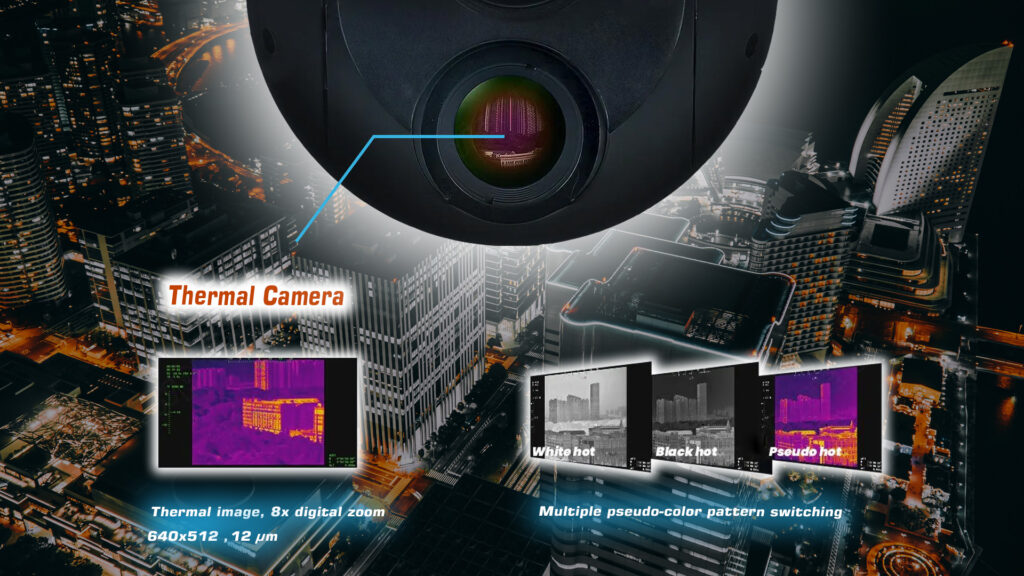

Thermal Camera

The thermal camera is a ULIS uncooled long wave (8ฮผm ~14ฮผm) image sensor, and has a higher resolution of 640ร—512 pixels compared to its predecessors, with each pixel size of 12ฮผm. It is possible to record and transmit thermal and visible images at the same time in PIP format. With a temperature measuring sensor (optional), it could accurately measure the temperature of objects in the scene.ย

AI object detection and tracking module

The best thing about A10T pro is its AI object detection and tracking module, which can detect more than 10 simultaneous cars, humans, and boats automatically. With Built-in tracking algorithms, combined with an object missing recapture algorithm, stable tracking of the targets is possible. You can define custom characters to be shown on OSD to show trace information display. The tracking speed is up to 48pixel/frame, and object size can be from 16*16 pixels to 256*256 pixels.

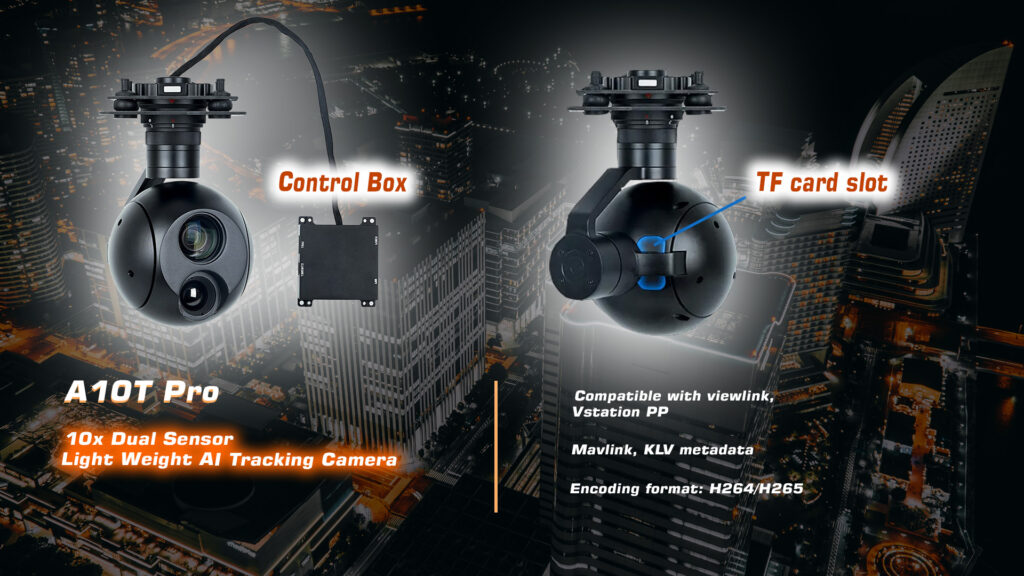

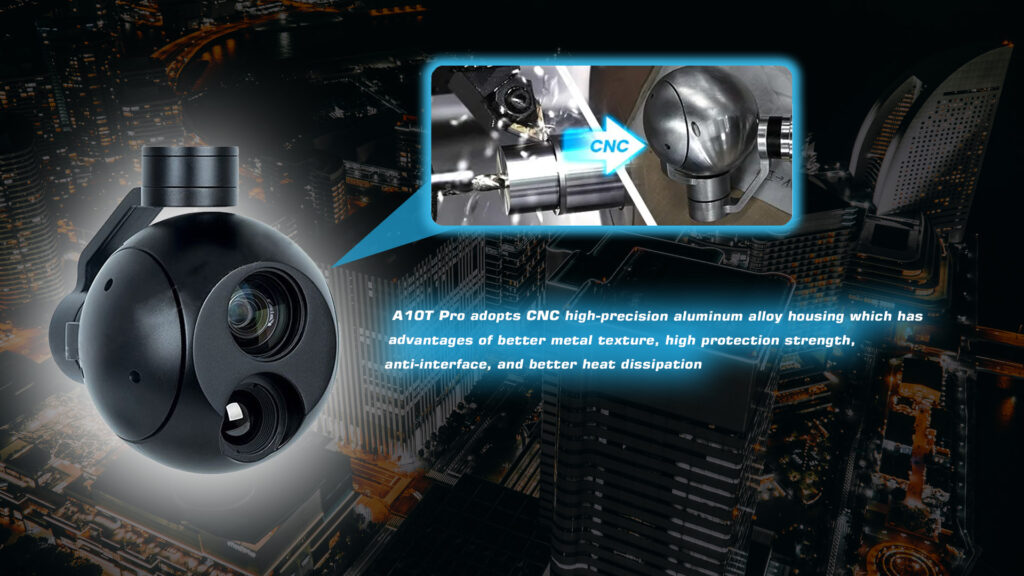

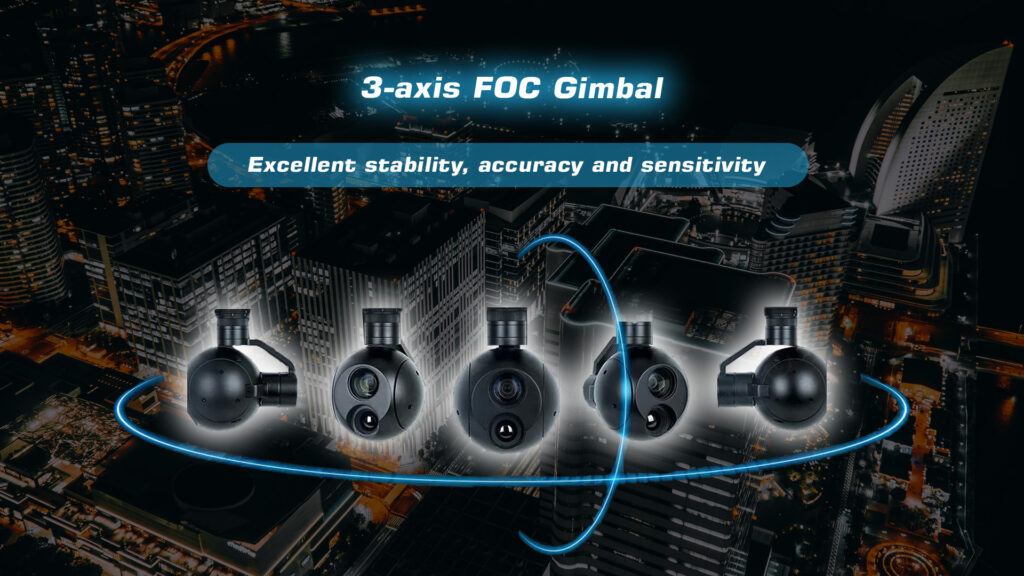

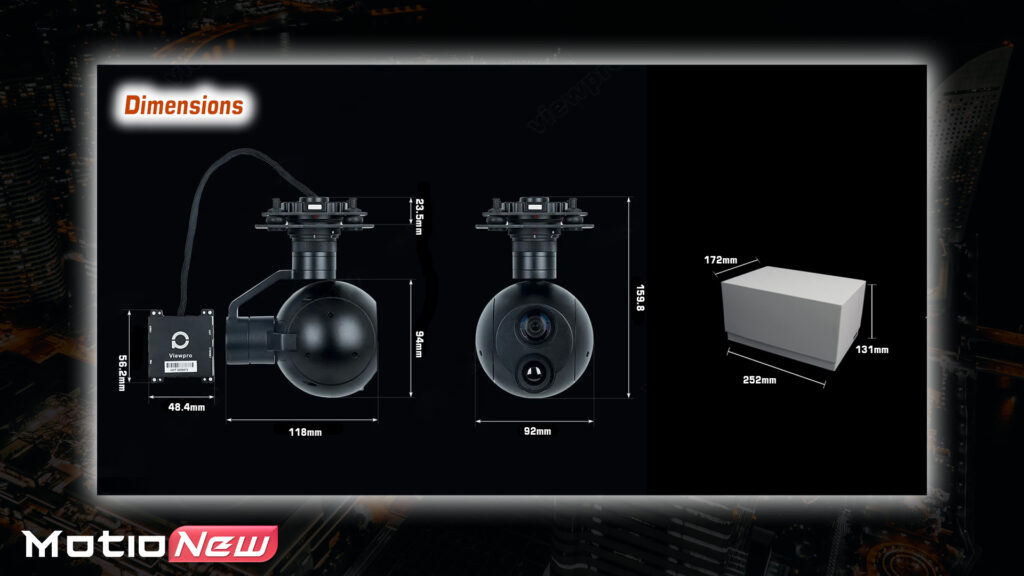

A10t pro 10x dual sensor light weight ai tracking gimbal camera Specifications of a10t pro Compact structure of a10t pro A10t pro adopts cnc high-precision aluminum alloy 3-axis foc of a10t pro gimbal camera 10x optical zoom camera of a10t pro A10t pro thermal camera Ai object identification and tracking a10t pro Communication interfaces of a10t pro A10t pro control box and tf card slot Applications of a10t pro Dimensions of a10t pro



For a comprehensive reading of related products, please visit theย Motionewย website.

Specifications

Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S (14.8V~25.2V)
Output voltage 5V (connect with PWM)
Dynamic current 700~1250mA @ 16V
Power consumption Average 11.2W, Max 20W
Working environment temp. -20โ„ƒย ~ +50โ„ƒ
Output micro HDMI(1080P 30fps/60fps) /ย  IP (RTSP/UDP 720p/1080p 30fps H264/H265)ย
Local-storage SD card (Up to 256G,class 10, FAT32)
Photo storage format JPG(1920*1080)
Video storage format MP4ย  (1080P 30fps)
Control method PWMย  / TTL / S.BUS / TCP / UDP





Gimbal Spec
Angle scope of structure design Pitch/Tilt: -50ยฐ๏ฝž135ยฐ,ย ย ย  Roll: ยฑ70ยฐ,ย ย  Yaw/Pan: ยฑ300ยฐ / ยฑ360ยฐ*N (IP output version)
Angle scope of software design Pitch/Tilt: -45ยฐ๏ฝž130ยฐ,ย ย  Yaw/Pan: ยฑ290ยฐ / ยฑ360ยฐ*N (IP output version)
Vibration angle Pitch/Roll/Yaw: ยฑ0.02ยฐ
One-key to center โˆš



IR Thermal Imager Spec
Focus Length 19mm
Horizontal FOV 22.9ยฐ
Vertical FOV 18.4ยฐ
Diagonal FOV 29.0ยฐ
Detective Distance (Man: 1.8×0.5m) 792 meters
Recognize Distance (Man: 1.8×0.5m) 198 meters
Verified Distance (Man: 1.8×0.5m) 99 meters
Detective Distance (Car: 4.2×1.8m) 2428 meters
Recognize Distance (Car: 4.2×1.8m) 607 meters
Verified Distance (Car: 4.2×1.8m) 303 meters
Working mode Uncooled VOx long wave (8ฮผm~14ฮผm) thermal imager
Detector pixel 640*512
Pixel size 12ฮผm
Focusing method Athermal prime lens
NETD โ‰ค50mK@25โ„ƒ, F#1.0 (<=40mkย  Optional)
Color palette White, iron red, pseudo color
Digital zoom 1x~4xย continuousย zoomย (ย stepย lengthย 0.1)ย
Radiometric function(optional) Optionalย ๏ผˆ-20โ„ƒ~+150โ„ƒ, +100โ„ƒ~+550โ„ƒ๏ผ‰



EO Camera Spec
Imager Sensor 1/2.8″ SONY CMOS Sensor
Total pixel 5.13MP
Picture quality 22.9ยฐ
Optical zoom 10x, f = 4.7mm ~ 47mm, F1.7~F3.1
Digital zoom 32x
Angle of View (H) 69.9ยฐ(Wide end) ~ 8.7ยฐ (Tele end)
Min target distance 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m
Min illumination Color(1/30s, 72.0dB): 0.02 lux , BW(1/30s, 72.0dB): 0.005lux

Color DSS(1/1s, 72.0dB): 0.002 lux , BW DSS(1/1s, 72.0dB): 0.0005 lux

White balance Auto / One Push / Manual / Indoor / Outdoor
Shutter speed 1/1sec ~ 1/100,000 sec
Focus Auto / One Push / Manual
Exposure Auto / Manual / Priority Mode (Shutter priority & aperture priority)
Backlight compensation Yes
Auto ICR Yes
Image stabilization Yes
Defog Yes



EO / IR Camera Object Tracking
Update rate of deviation pixel 30Hz
Output delay of deviation pixel <30ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 256*256 pixel
Tracking speed ยฑ48 pixel/frame
Object memory time 100 frames
EO Camera AI Performance
Targets type Car and human
Simultaneous detection quantity โ‰ฅ 10 targets
Min contrast ratio 5%
Min target size 5ร—5 pixel
Car detection rate โ‰ฅ85%
False alarm rate โ‰ค10%



Features
OSDย  Display the gimbalโ€™s yaw and pitch angle, magnification, card recording duration, aircraft GPS and altitude, target ranging point GPS and altitude, date and time
Geotagging Display time and GPS coordinate in picture exif
Card reading online HTTP read pictures or videos
KLV (UDP) Card recording or Viewlink video playback
ArduPilot / PX4 Support(Mavlink protocol )
Optional: Support Ardupilot Follow me feature
Video stitching EO1+EO2 / EO2+EO1 / EO1 / EO2
Dual video stream output (optional) Support(EO1 and EO2 two stream output, notes: unable to record once the dulal video stream output activated)



Packing Information
N.W. 745ยฑ10g(Viewport version with Viewport)
Product meas. 121.5*96*161.6mm / 121.5*96*167.3mm(Viewport Version)
Accessories 1pc gimbal camera device, screws, USB to TTL cableย  / Hight quality box with foam cushion
G.W. 1815g
Package meas. 300*250*200mm

Product contents

gimbal camera A10T Pro, screws, copper cylinders, damping balls, damping boards
Hight quality plastic box with foam cushion.
