Eagle Eye MS-3C industrial multi-sensor gimbal

(1 customer review)
PayPal
Visa
Master

Description

Overview of Eagle Eye MS-3C

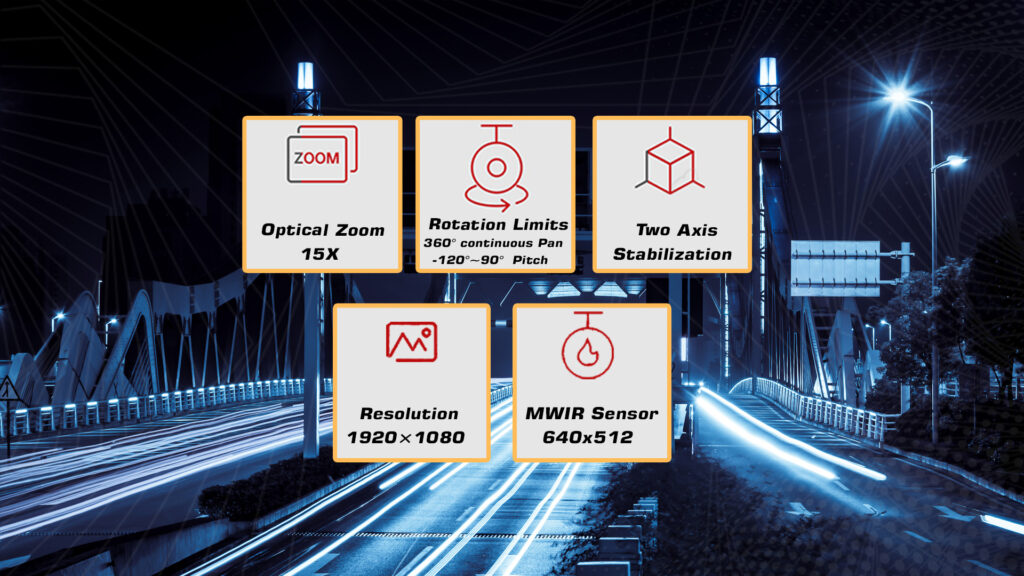

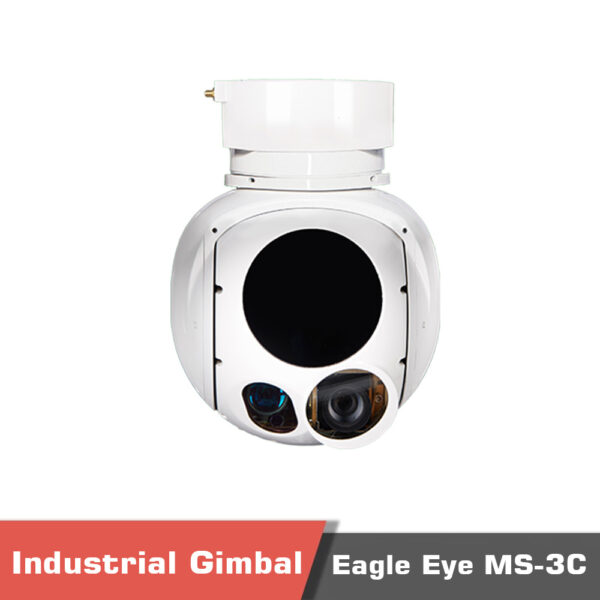

Eagle Eye MS-3C industrial gimbal camera adopts a two-axis gyro stabilized platform, has the ability to rotate 360 continuously on yaw, and has a built-in 15x high-definition daylight camera. It is mainly used for airborne ground imaging detection, identification, tracking, etc., and meets the needs of aerial mapping, monitoring, and investigation.

General Specifications

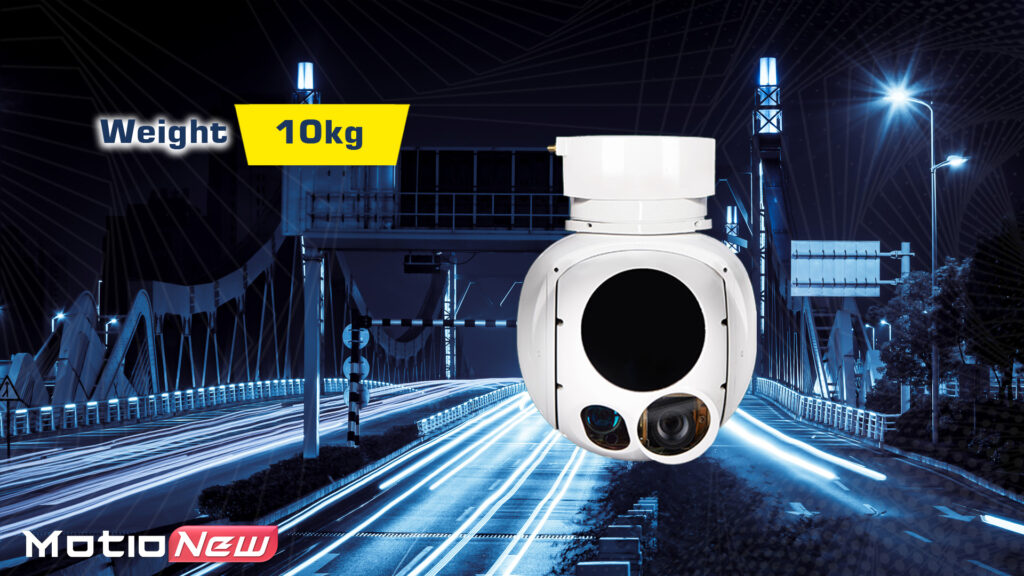

The Eagle Eye MS-3C gimbal is a high-performance, lightweight solution designed for advanced aerial surveillance applications. Weighing in at less than 10kg, it operates effectively in temperatures ranging from -40โ„ƒ to 60โ„ƒ, ensuring reliable performance in extreme environments. The product is compact in structure, light in weight, mature and reliable, and can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution.

For connectivity, the gimbal features 2x RS422 communication interfaces (TTL optional) and 1x HD-SDI video interface. It is powered by a DC24V supply, with a voltage range of 18V to 32V. The average power consumption is โ‰ค80W, while the peak power consumption reaches โ‰ค300W, ensuring efficient energy use during operations.

The Eagle Eye MS-3C offers robust tracking functions, including target imaging contrast at 8%, motion speed of 30 pixels per frame, target imaging pixels of 4×3, and anti-occlusion without loss of function.

MWIR Sensor

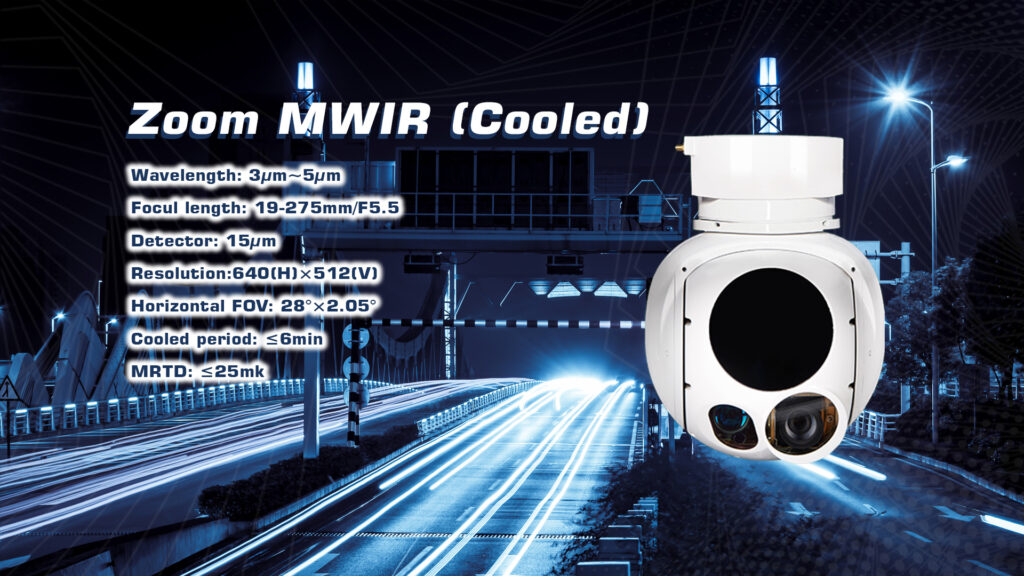

The embedded zoom MWIR sensor operates within a wavelength range of 3ฮผm to 5ฮผm, with a focal length of 19-275mm/F5.5 and a detector size of 15ฮผm. It provides a horizontal field of view (FOV) of 28ยฐx2.05ยฐ and a resolution of 640(H)x512(V). The sensorโ€™s cooled period is โ‰ค6 minutes, with an MRTD of โ‰ค25mk.

EO Sensor

The EO sensor operates within a wavelength range of 0.4ฮผm to 0.9ฮผm, offering a resolution of 1920(H)x1080(V) and a horizontal FOV of 35ยฐ~2.3ยฐ x 0.86ยฐ. The focal length ranges from 10-150mm, ensuring high-quality visual data capture.

Servo System

The servo system of the Eagle Eye MS-3C allows for 360ยฐ continuous pan rotation and a pitch range from +90ยฐ to -120ยฐ. The line of sight stabilization accuracy is โ‰ค100ฮผrad, with an angular accuracy (1ฯƒ) of โ‰ค2mrad. The system supports a maximum angular rotation speed of โ‰ฅ60ยฐ/s for both elevation and pan, and a maximum angular acceleration of โ‰ฅ90ยฐ/s for both elevation and pan.

Laser rangefinder

The integrated laser rangefinder has an energy output of 60mj, a ranging distance of 180m to 10km, and an accuracy of 2m, providing precise distance measurements essential for surveillance and targeting applications.

Overall, the Eagle Eye MS-3C gimbal is an advanced, lightweight, and highly reliable solution for various aerial surveillance needs, offering excellent performance and precision in a compact design.

Eagle eye ms-3c (multiple sensor gimbal camera with full hd cooled mwir sensor) Specifications of eagle eye ms-3c Object tracking of eagle eye ms-3c Communication interfaces of eagle eye ms-3c Eagle eye ms-3c laser rangefinder Applications of eagle eye ms-3c Specifications of eagle eye ms-3c mwir, swir, and nir sensors Eagle eye ms-3c dimensions and weight



For a comprehensive reading of related products, please visit the Motionew website.



Specifications

Specifications

Physical and electrical performance parameters
weight
โ‰ค10kg
Working temperature
-40โ„ƒ๏ฝž60โ„ƒ
communication interface
2x RS422(TTL optional)
Video 1x HD-SDIย
Power supply DC24V
Voltage Rangeย  18V~32V
Power consumption(Average) โ‰ค80W
Power consumption(Peak) โ‰ค300W



Tracking Functions
Target imaging contrast 8%
Motion speed 30pixel/frame
Target imaging pixel 4×3 pixels
Anti-occlusion without loss of function



MWIR
Wavelength 3ฮผm-5ฮผm
Focal length 19-275mm/F5.5
Detector 15ฮผm
Horizontal FOV 28ยฐx2.05ยฐ
Resolution 640(H)x512(V)
Cooled period โ‰ค6min
MRTD โ‰ค25mk



EO sensor
Wavelength 0.4ฮผm-0.9ฮผm
Resolution 1920(H)x1080(V)
Horizontal FOV 35ยฐ~2.3ยฐ x 0.86ยฐ
Focal Length 10-150mm



Servo System
Rotation limits 360ยฐ continuous Pan

Pitch: +90ยฐ~-120ยฐ

Line of light stabilization accuracy โ‰ค100ฮผrad
angular accuracy(1ฯƒ) โ‰ค2mrad
Max. angular rotation speed elevationโ‰ฅ60ยฐ/s

Pan:โ‰ฅ60ยฐ/s

Max. angular acceleration elevationโ‰ฅ90ยฐ/s

Pan:โ‰ฅ90ยฐ/s



Laser Rangefinderย
Energy 60mj
LRF range 180m~10km
Ranging accuracy 2m



Product contents

1x Eagle Eye MS-3C gimbal set with box.
