Eagle Eye MS-5D industrial multi-sensor gimbal, Full HD Zoom MWIR

(1 customer review)
PayPal
Visa
Master

Description

Overview of Eagle Eye MS-5D

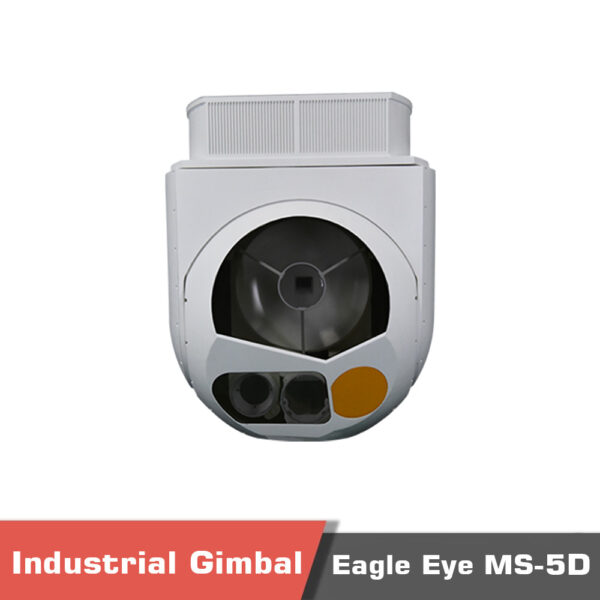

Eagle Eye MS-5D industrial gimbal camera adopts a two-axis gyro stabilized platform, has the ability to rotate 360 continuously on yaw, and has a built-in 15x high-definition daylight camera. It is mainly used for airborne ground imaging detection, identification, tracking, etc., and meets the needs of aerial mapping, monitoring, and investigation.It operates on a 28V power supply, with an average power consumption of less than 700W, making it energy efficient for extended missions.

General Specifications

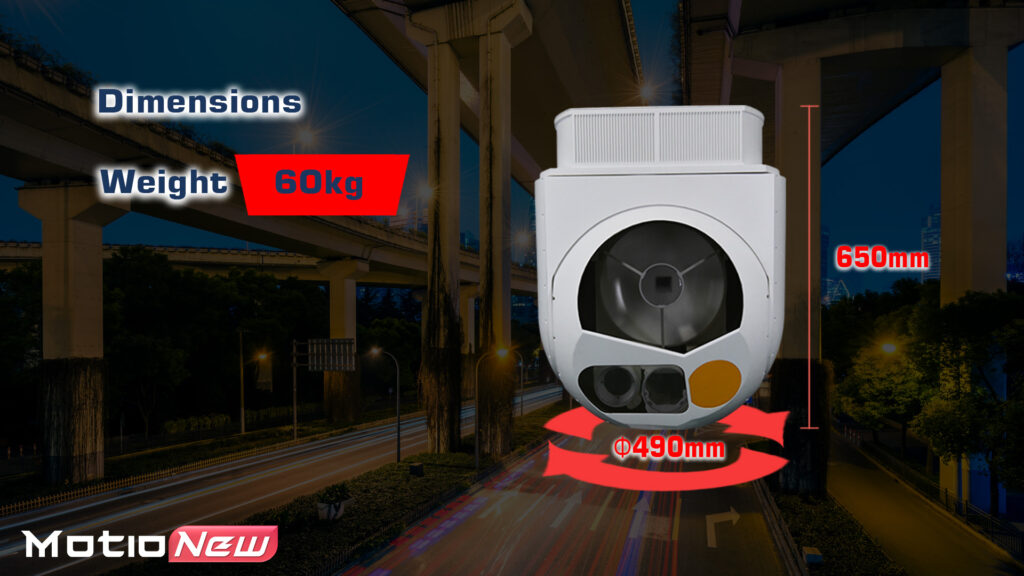

Theย Eagle Eye MS-5D is a high-performance industrial gimbal camera designed to meet the demanding requirements of modern aerial surveillance and reconnaissance missions. This advanced gimbal boasts a robust design, with a maximum diameter of 490mm and a height of 650mm, weighting in at less than 60kg.It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution.

MWIR Sensor

Equipped with a state-of-the-art MWIR sensor with optical zoom, the Eagle Eye MS-5D covers a wavelength range of 3ฮผm to 5ฮผm with a resolution of 1280 x 1024 pixels. It features a continuous FOV is 24ยฐ x 19ยฐ to 3.6ยฐ x 2.8ยฐ, and a short-range FOV of 1.2ยฐ x 0.96ยฐ, allowing for detection at distances up to 22km and recognition at 19km.

NIR & SWIR Sensor

The NIR sensor operates within a wavelength range of 0.7ฮผm to 0.9ฮผm, providing 1920x1080P resolution. It features a FOV is 1.2ยฐ x 0.7ยฐ . The SWIR sensor covers wavelengths from 1ฮผm to 1.7ฮผm, with a resolution of 640 x 512 pixels, It features a continuous FOV is 27ยฐ x 21.6ยฐ to 2ยฐ x 1.6ยฐ, and a short-range FOV of 0.5ยฐ x 0.4ยฐ .

EO Sensor

The EO sensor, operating in the 0.4ฮผm to 0.9ฮผm wavelength range, delivers 1920x1080P resolution and a continuous zoom horizontal FOV from 24ยฐ x 13.5ยฐ to 1.6ยฐ x 0.9ยฐ, enabling detection up to 24km and recognition up to 19km.

Servo System

The servo system of the Eagle Eye MS-5D allows for 360ยฐ continuous panning and pitch adjustments from +20ยฐ to -110ยฐ. It boasts maximum angular rotation speeds of โ‰ฅ70ยฐ/s in elevation and โ‰ฅ35ยฐ/s in pan, with an angular speed acceleration of โ‰ฅ185ยฐ/sยฒ in elevation and โ‰ฅ132ยฐ/sยฒ in pan. The gimbal ensures exceptional line-of-light stabilization accuracy of โ‰ค0.00057ยฐ(10ฮผrad).

Laser rangefinder

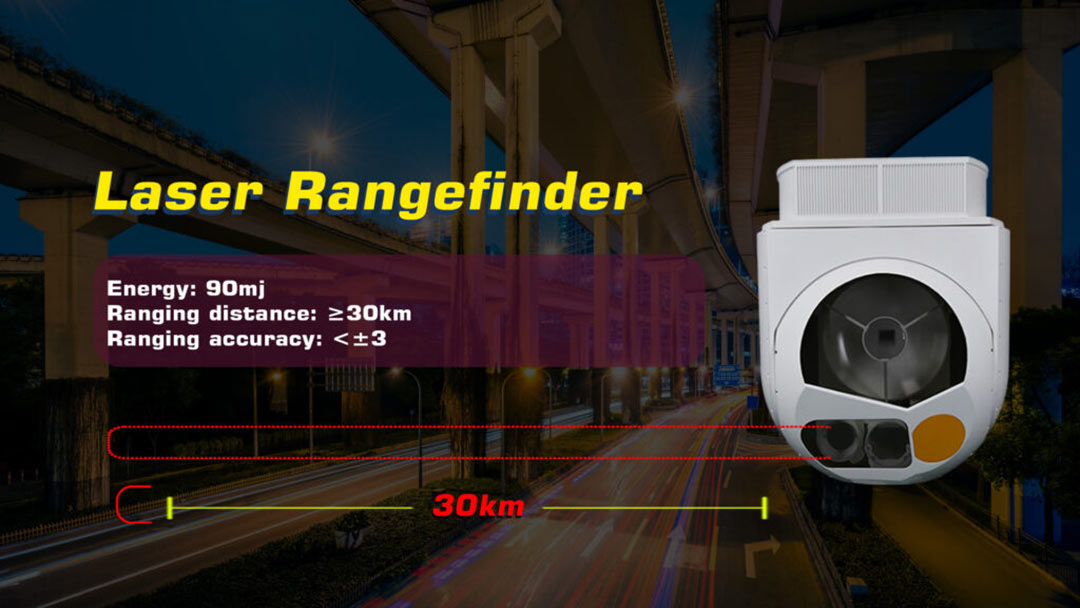

Additionally, the integrated laser rangefinder operates at a wavelength of 1064nm, with energy output of โ‰ฅ90mj. It offers a ranging accuracy of ยฑ3m and can measure distances โ‰ฅ30km.

Overall, the Eagle Eye MS-5D gimbal combines advanced sensor technologies, robust mechanical design, and versatile communication interfaces to deliver superior performance for demanding aerial applications.



Eagle eye ms-5d (multiple sensor gimbal camera with full hd mwir sensor) Specifications of eagle eye ms-5d Object tracking of eagle eye ms-5d Communication interfaces of eagle eye ms-5dMs 5d. 5 1024x576 1 - eagle eye ms-5d - motionew - 4Ms 5d. 6 1024x576 1 - eagle eye ms-5d - motionew - 5 Specifications of eagle eye ms-5d mwir, swir, and nir sensors Eagle eye ms-5d dimensions and weight

For a comprehensive reading of related products, please visit the Motionew website.



Specifications

Specifications

Physical and electrical performance parameters
weight
โ‰ค60kg
Size
โ‰ค490mmx650mm
Power supply 28V
Voltage Rangeย  18V~30V
Power consumption โ‰ค700W



Interface
Power J599
Communication J599
Signal and image output fiber-optic output



MWIR
Wavelength 3ฮผm-5ฮผm
Resolution 1920×1080
FOV 24ยฐx19ยฐ~3.6ยฐx0.96ยฐ
Target 2.3mx2.3m
detection distance โ‰ฅ22km
recognization distance โ‰ฅ19km



SWIR
Wavelength 1ฮผm-1.7ฮผm
Resolution 640×512
FOV 27ยฐx21.6ยฐ~2ยฐx1.6ยฐ,0.5ยฐx0.4ยฐ



NIR
Wavelength 0.7ฮผm-0.9ฮผm
Resolution 640×512
FOV 1.2ยฐx0.7ยฐ



EO sensor
Wavelength 0.4ฮผm-0.9ฮผm
Resolution 1920×1080
FOV 24ยฐx13.5ยฐ~1.6ยฐx0.9ยฐ
Target 2.3mx2.3m
detection distance โ‰ฅ24km
recognization distance โ‰ฅ19km



Servo System
Rotation limits 360ยฐ continuous Pan

Pitch: +20ยฐ~-110ยฐ

Max. angular rotation speed elevationโ‰ฅ70ยฐ/s

Pan:โ‰ฅ35ยฐ/s

Max. angular acceleration elevationโ‰ฅ180.5ยฐ/s

Pan:โ‰ฅ132ยฐ/s

Stabilization accuracy โ‰ค0.00057ยฐ(10ฮผrad)



Laser Rangefinderย
Wavelength 1064nm
Ranging distance โ‰ฅ30km
Ranging accuracy <ยฑ3m
Energy 90mj
Irradiation distanceย  โ‰ฅ16km
Divergence angle โ‰ค0.15mrad



Product contents

1x Eagle Eye MS-5D gimbal set with box.

Documents

Pleaseย contact usย for more information.
