A10T Gimbal Camera for Drone

6299.00 $

Description

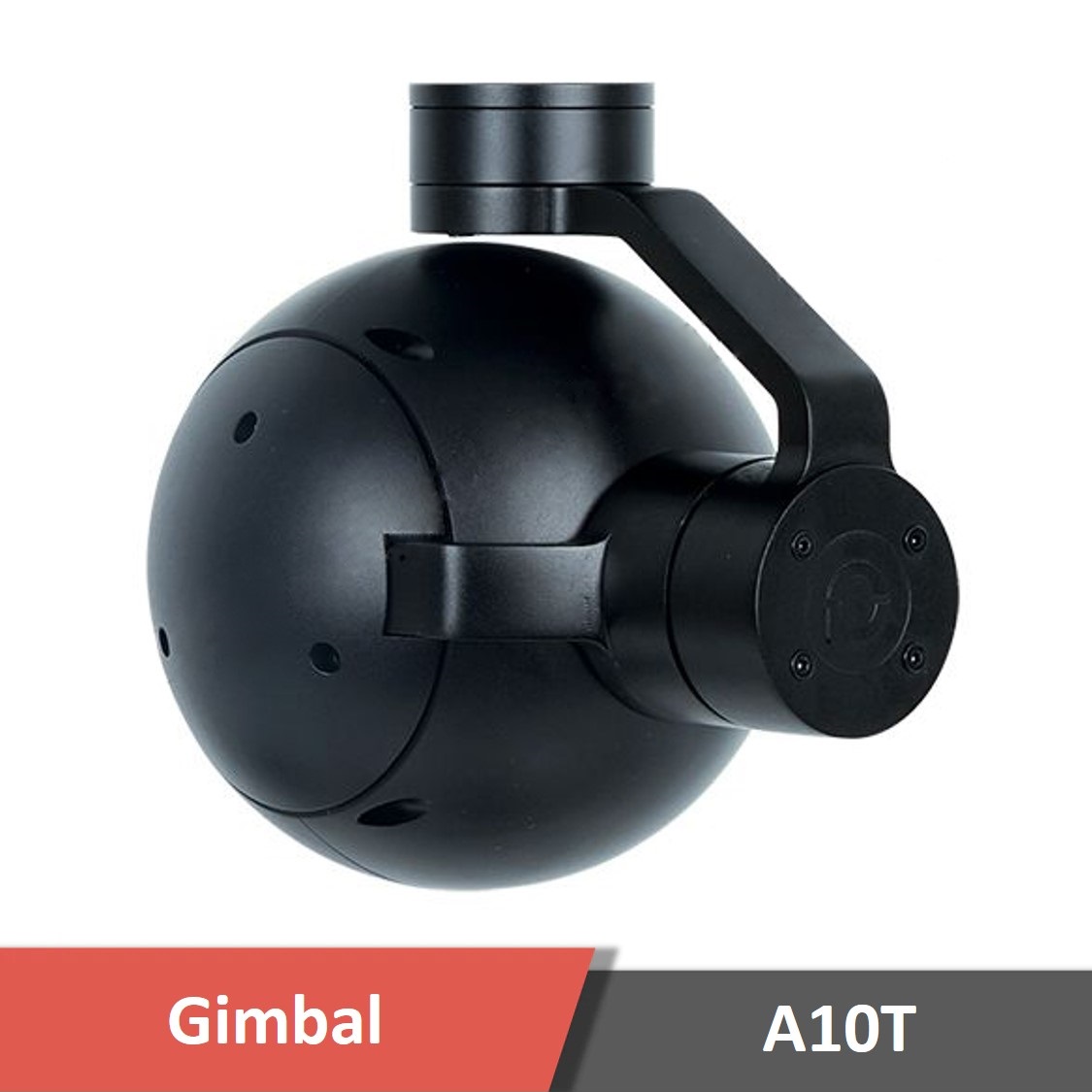

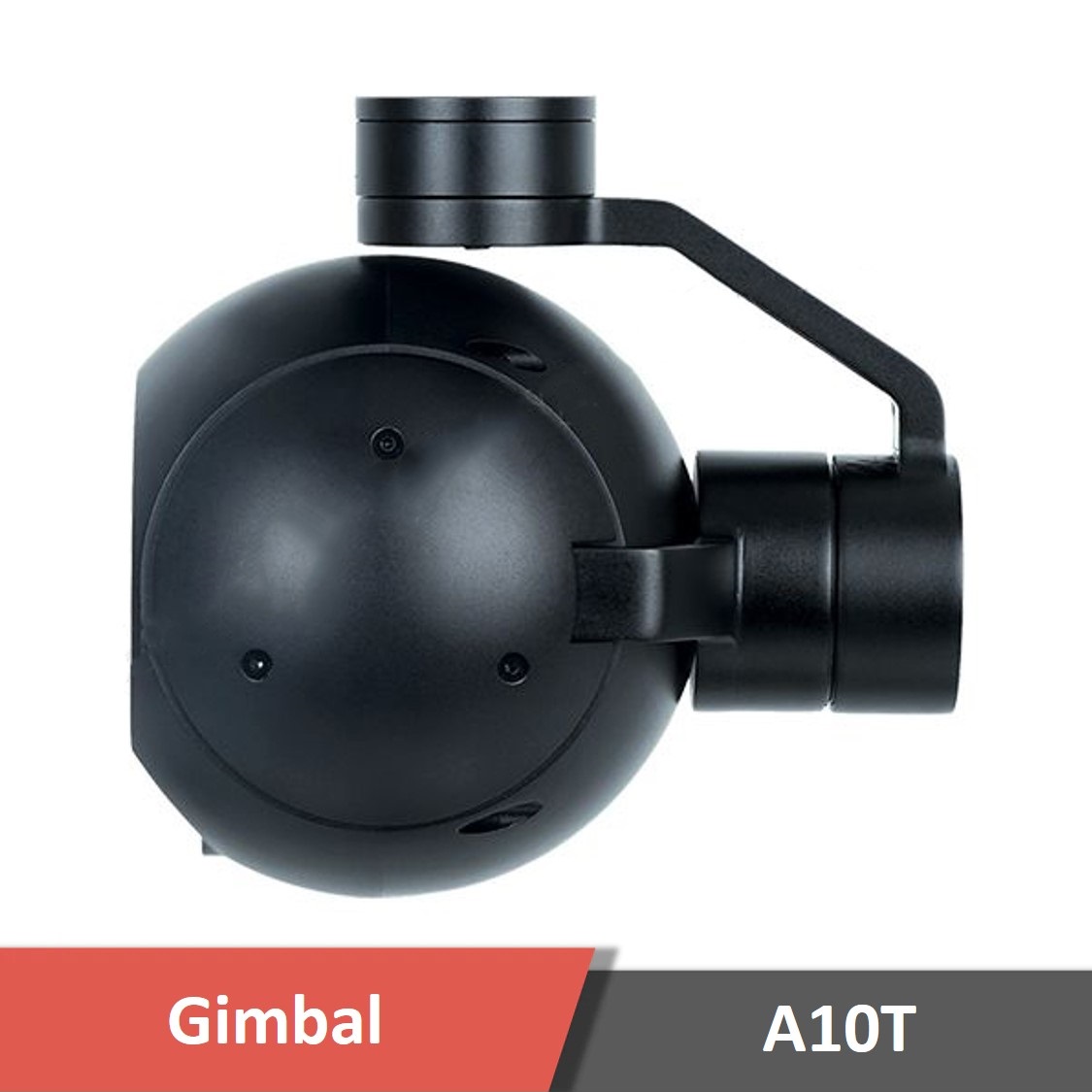

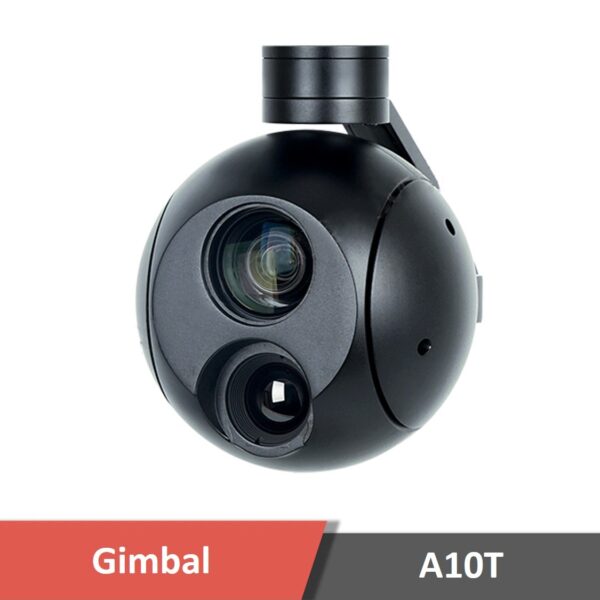

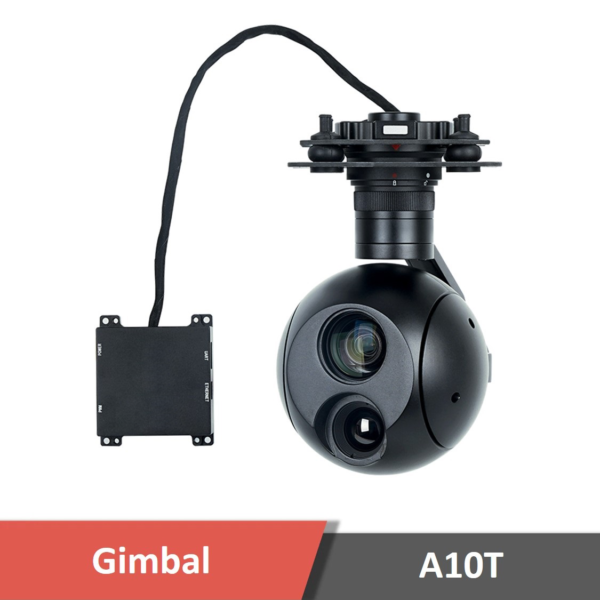

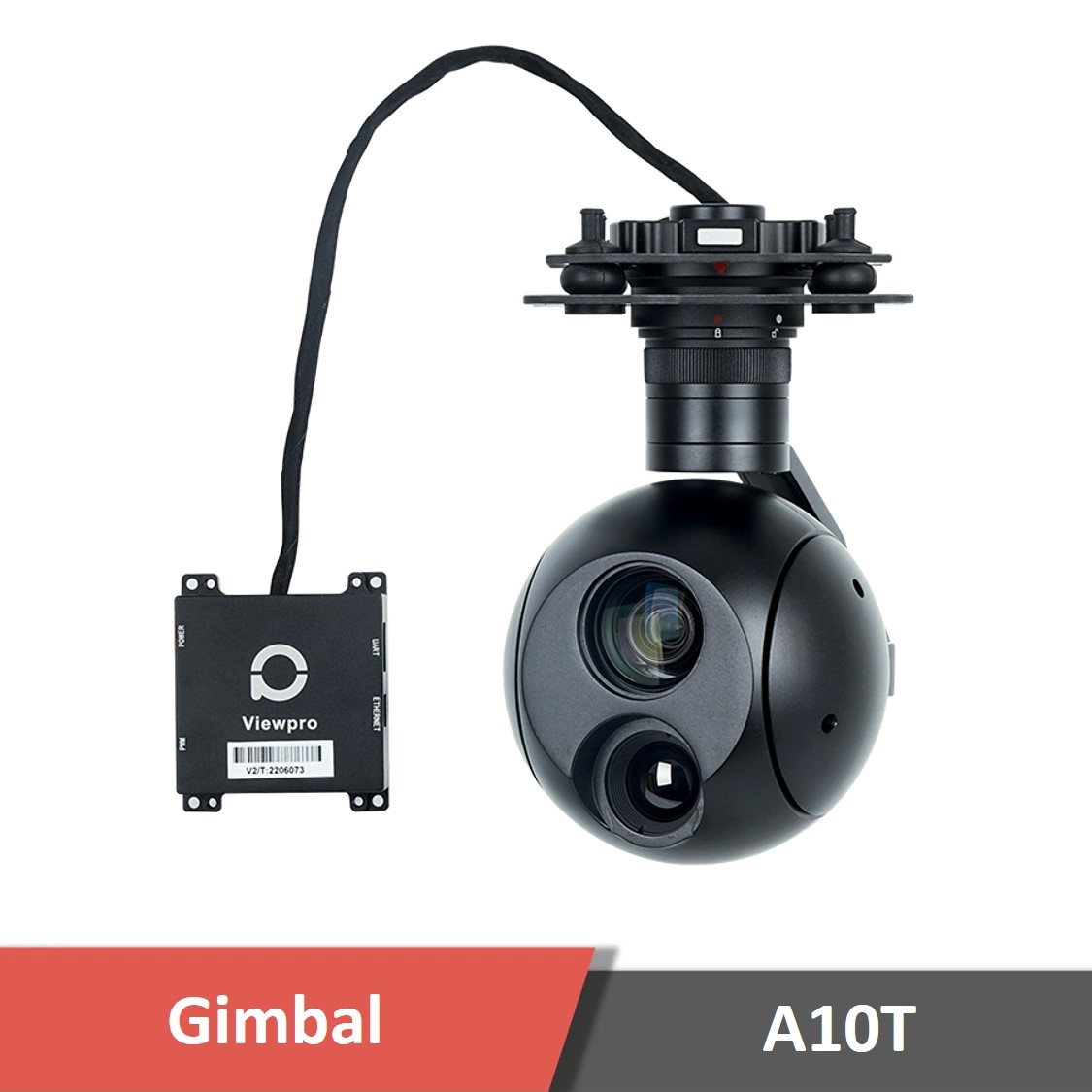

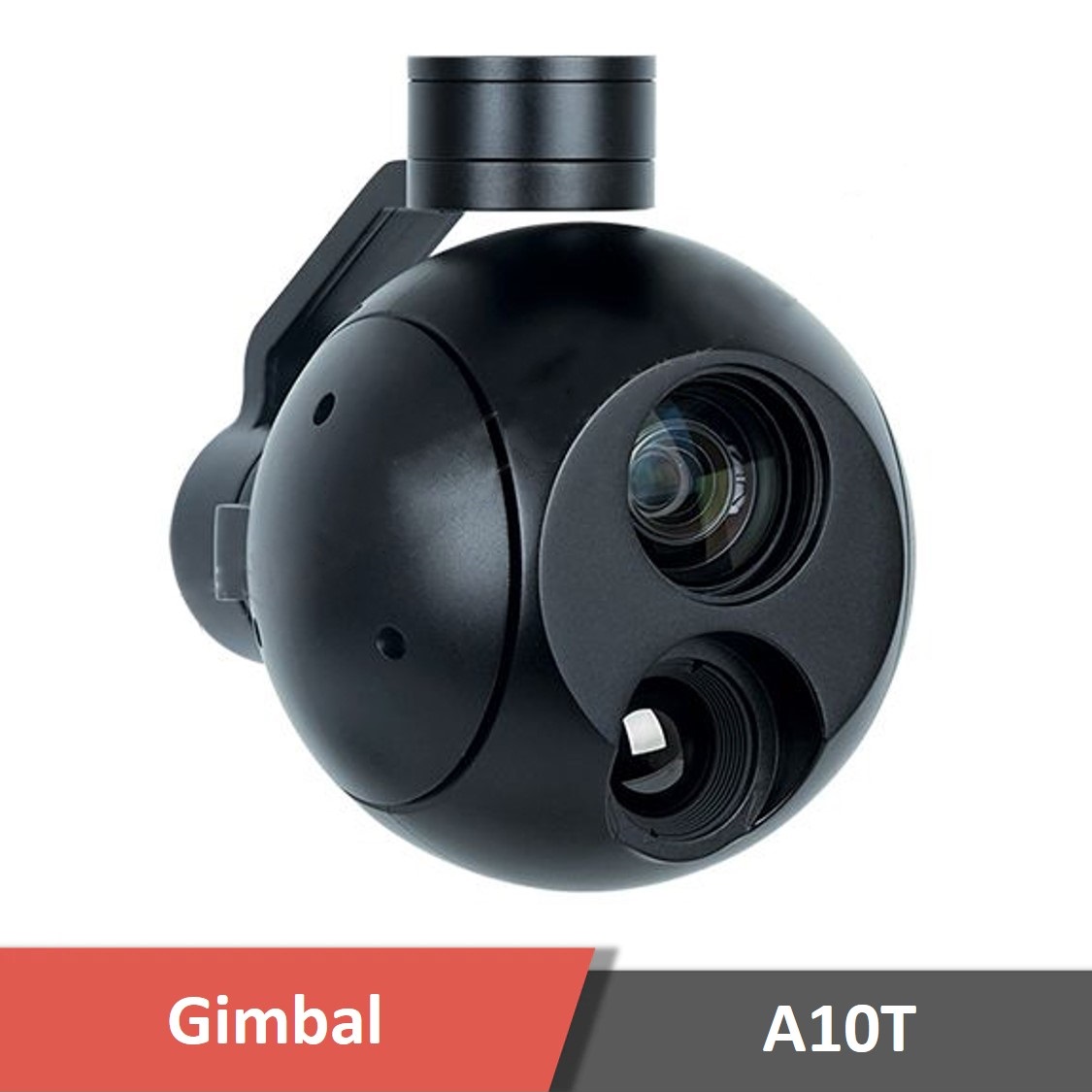

A10T Gimbal Camera for Drone

The A10TR gimbal camera is the latest technology that brings artificial intelligence (AI tracking) to the drone industry. It is a drone camera with a 3-axis gimbal that integrates AI tracking and detection algorithms with a 10x optical zoom camera — 1/3″ Panasonic CMOS Sensor, and a 19mm lens IR thermal sensor with 640×512 resolution. It has an aluminum alloy housing to give it a sophisticated look and anti-interference ability, as well as thermal cooling. The 3 axis gimbal camera stabilizes yaw, roll, and pitch. The integrated damping system and gimbal design can significantly reduce mechanical vibration (using four damping balls and a lightweight damping board). The camera is lightweight (only 539g), and can be carried by a lot of drones with small payloads.

A10T has a 1/3″ Panasonic CMOS Sensor module inside, which has 2.48 megapixels, which is combined with 10x advanced optical zoom technology, to increase the observation range, suitable for a lot of applications in different domains including surveying, monitoring, public security, law enforcement, and so on. 10x optical zoom means the drone can maintain a safe distance from the target in case of a dangerous incident like a fire hazard while capturing enough details of the scene.

The thermal camera is an uncooled long wave (8μm ~14μm) image sensor, and has a higher resolution of 640×512 pixels compared to its predecessors, with each pixel size of 12μm. The camera is able to do 8x digital zoom on the thermal sensor.

The best thing about A10T is its AI object detection and tracking module, which can detect more than 10 simultaneous cars, humans, and boats automatically. With Built-in tracking algorithms, combined with an object missing recapture algorithm, stable tracking of the targets is possible. The tracking speed is up to 32pixel/frame, and object size can be from 16*16 pixels to 160*160 pixels.



Gimbal camera, 10x optical zoom

Drone camera

Ai tracking

Additional information

Weight 2.5 kg
Dimensions 35 × 30 × 30 cm

Specifications

Hardware Parameter
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 630~2000mA @ 12V
Idle current 630mA @ 12V
Working environment temp. -20 ~ +60
Output micro HDMI(1080P 30fps/60fps) / IP (1080p  25fps/30fps)
Local-storage SD card (Up to 128G,class 10, FAT32 or ex FAT format)
Photo storage format JPG (1920*1080)
Video storage format MP4  (1080P/720P 25fps/30fps)
Control method PWM  / TTL / S.BUS/ TCP (IP output version)



Gimbal Spec
Mechanical Range Pitch/Tilt: -45°~95°,    Roll: ±70°,   Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range Pitch/Tilt: -40°~90°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center



Camera spec
Imager Sensor 1/3″ Panasonic CMOS Sensor
Total pixel 2.48MP
Picture quality Full HD 1080 (1920*1080)
Lens optical zoom 10x, f = 5.1mm ~ 51mm
Digital zoom 32x
Angle of View (D, H, V) D:  68° (Wide end) ~ 6.7° (Tele end)
H: 54° (wide end) ~ 4.9° (Tele end)
V: 31° (wide end) ~ 4.0° (Tele end)
Sync system Progressive Scan
S/N ratio more than 50dB
Min illumination Color: 0.5 lux, BW : 0.1lux
Color DSS: 0.125 lux, BW DSS: 0.025 lux
Gain Control (AGC) Off / On
White balance Auto / One Push / Manual / Indoor / Outdoor
Shutter speed 1/30(25) ~ 1/30,000 sec
Focus Auto / One Push / Manual
Iris 0 ~ 20 steps
Exposure Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N
Defog Yes



IR Thermal Imager Spec
Focus Length 19mm
Coating Film DLC
Horizontal FOV 22.9°
Vertical FOV 18.4°
Diagonal FOV 29.0°
Detective Distance (Man: 1.8×0.5m) 792 meters
Recognize Distance (Man: 1.8×0.5m) 198 meters
Verified Distance (Man: 1.8×0.5m) 99 meters
Detective Distance (Car: 4.2×1.8m) 2428 meters
Recognize Distance (Car: 4.2×1.8m) 607 meters
Verified Distance (Car: 4.2×1.8m) 303 meters
Working mode Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel 640*512
Pixel size 12μm
Focusing method Athermal prime lens
NETD [email protected] @25
Color palette White, iron red, pseudo color
Digital zoom 1x ~ 8x
Sync correct time Yes



EO / IR Camera Object Tracking
Update rate of deviation pixel 30Hz
Output delay of deviation pixel <30ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 256*256 pixel
Tracking speed > 32 pixel/frame
Object memory time 100 frames



EO Camera AI Recognition Performance
Targets type Car and human
Simultaneous detection quantity ≥ 10 targets
Min contrast ratio 5%
Min target size 5×5 pixel
Car detection rate ≥85%
False alarm rate ≤10%



Packing Information
N.W. 690g (Viewport version)
Product measurements 117.2*92*154.1mm / 117.2*92*159.8mm (Viewport Version)
G.W. 1800g
Package measurements 300*250*200mm

Product contents

gimbal camera A10T, screws, USB to TTL cable  / Hight quality plastic box with foam cushion

Documents

Please contact us for more information.
