10x Single Sensor AI Gimbal Zoom Camera for Drone

1290.00 $1885.00 $

Description

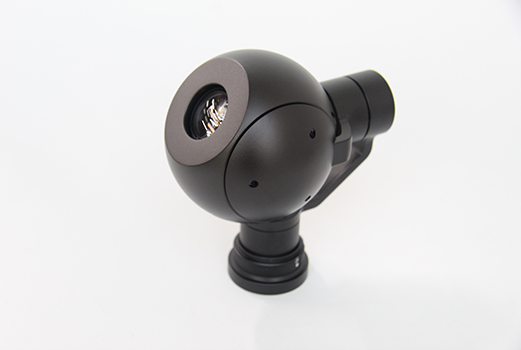

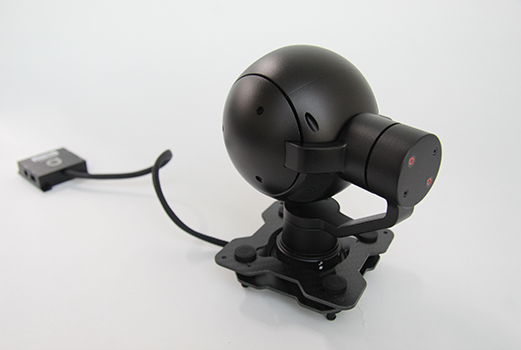

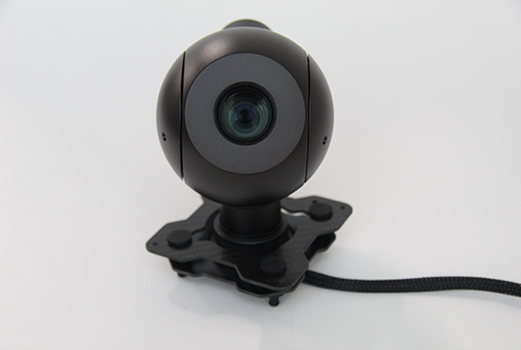

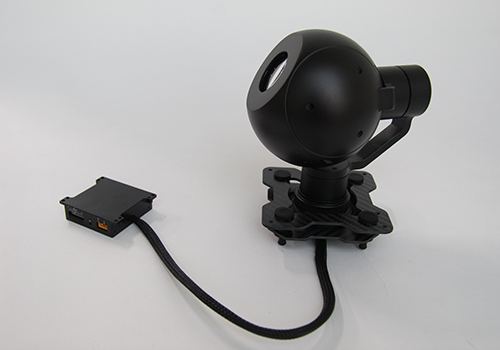

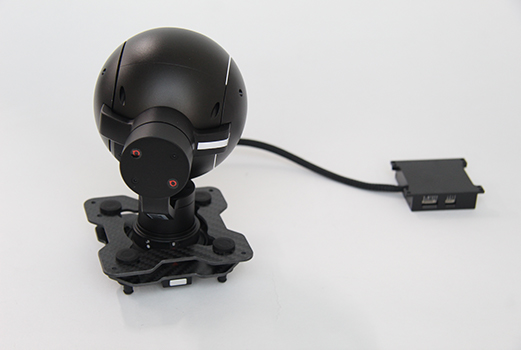

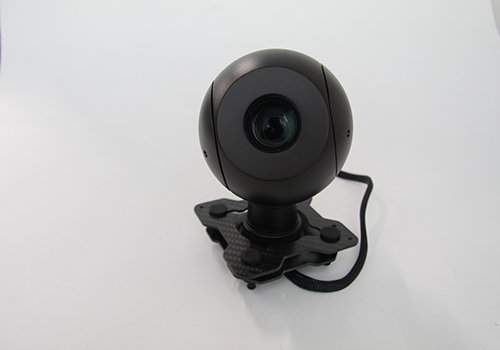

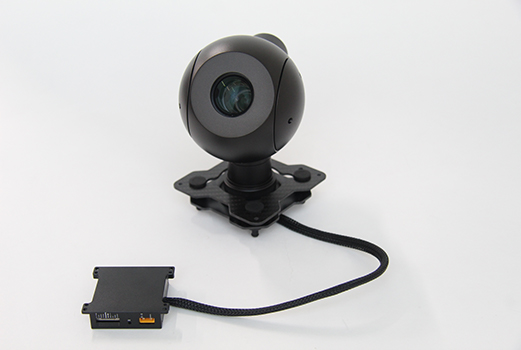

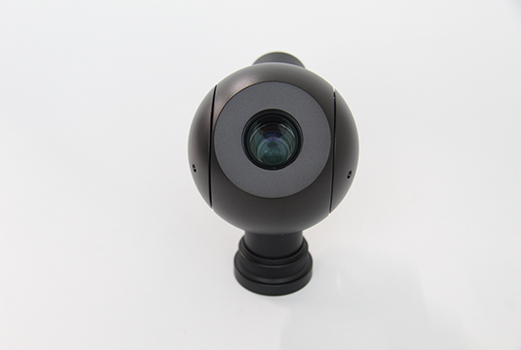

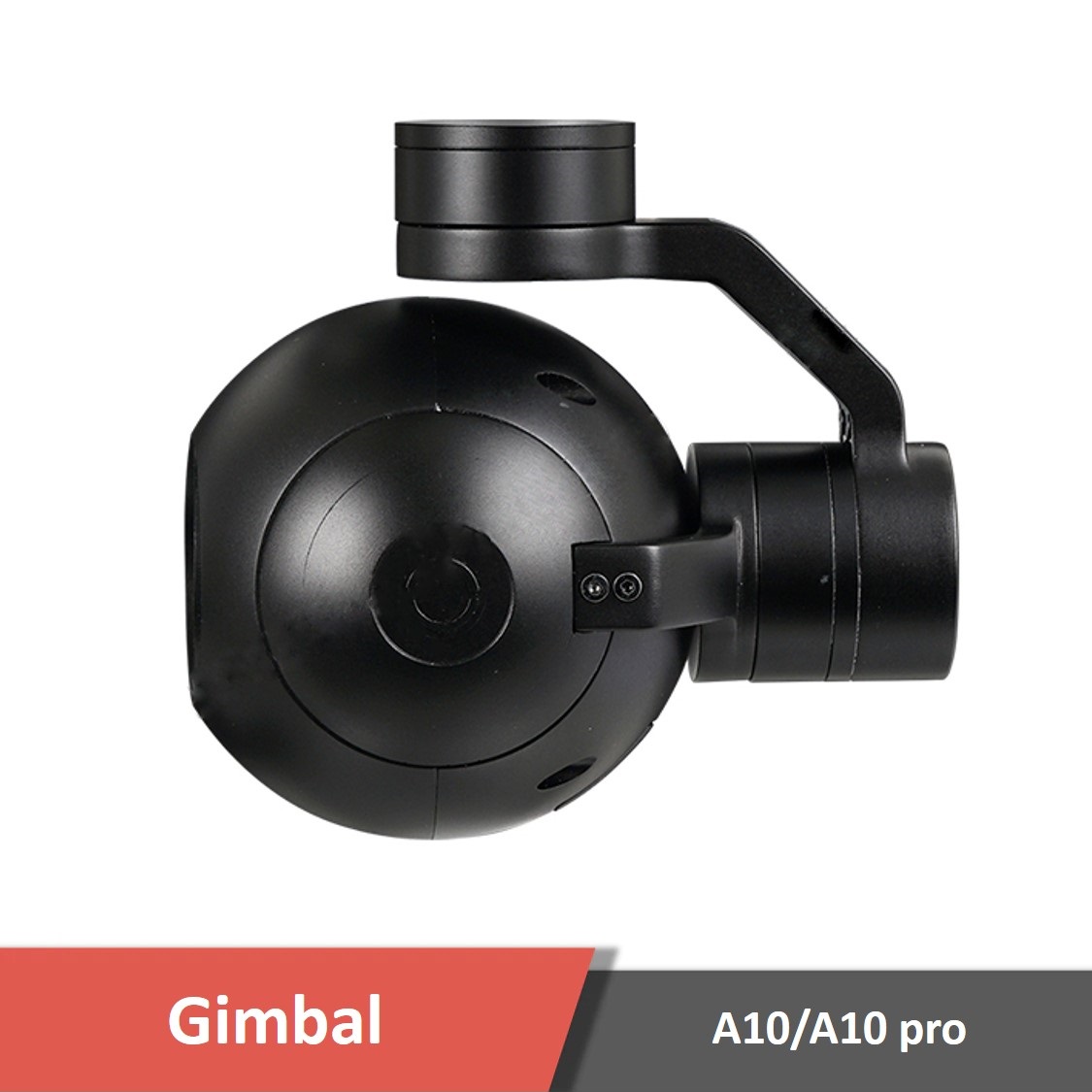

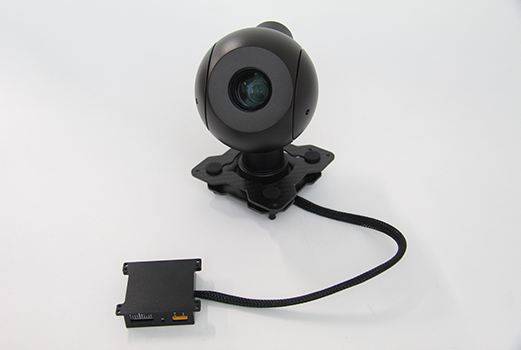

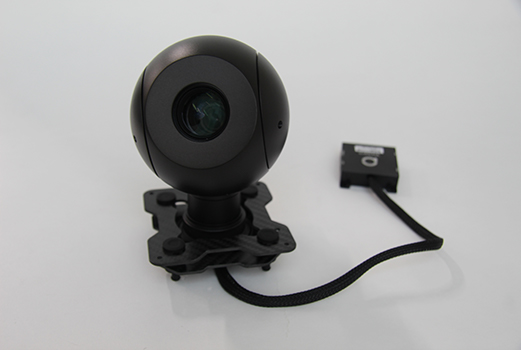

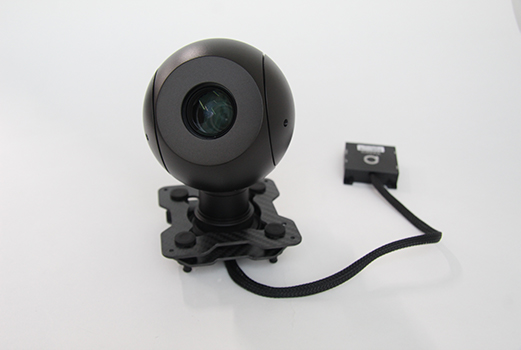

10x Single Sensor AI Gimbal Zoom Camera for Drone

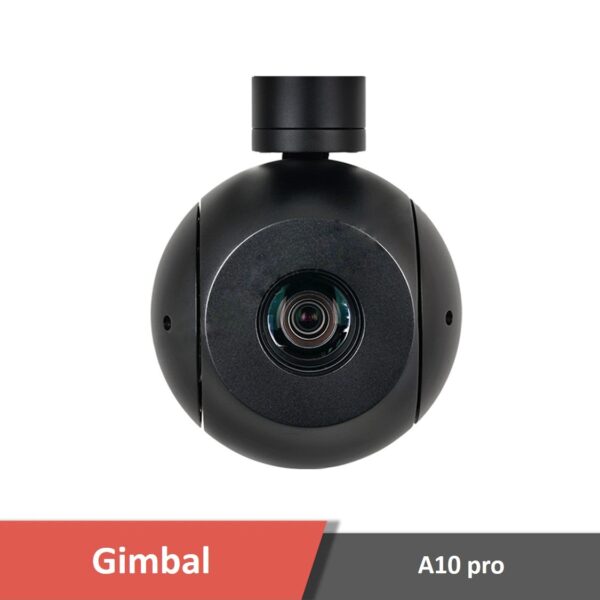

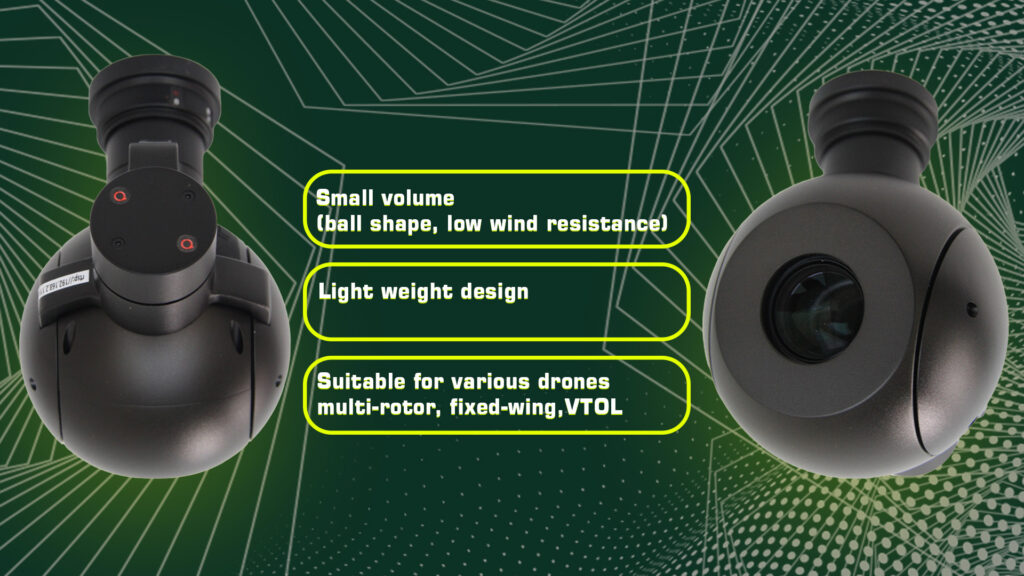

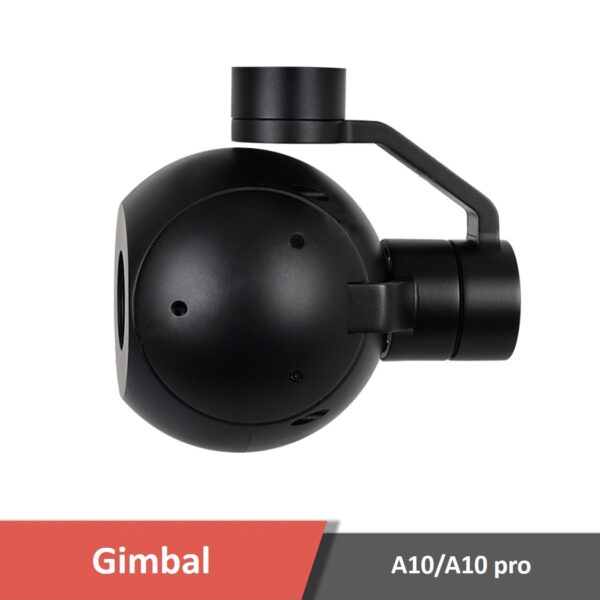

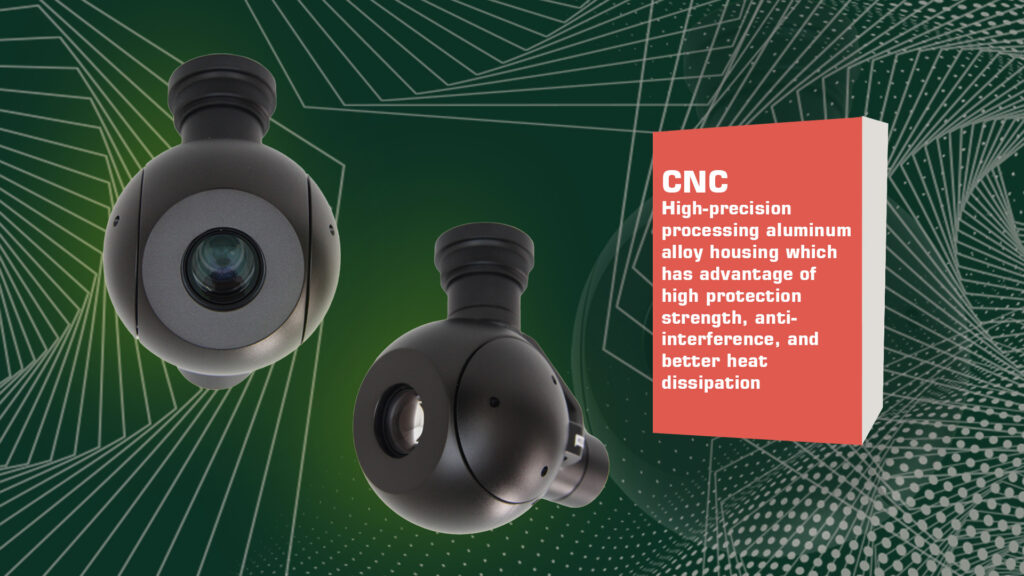

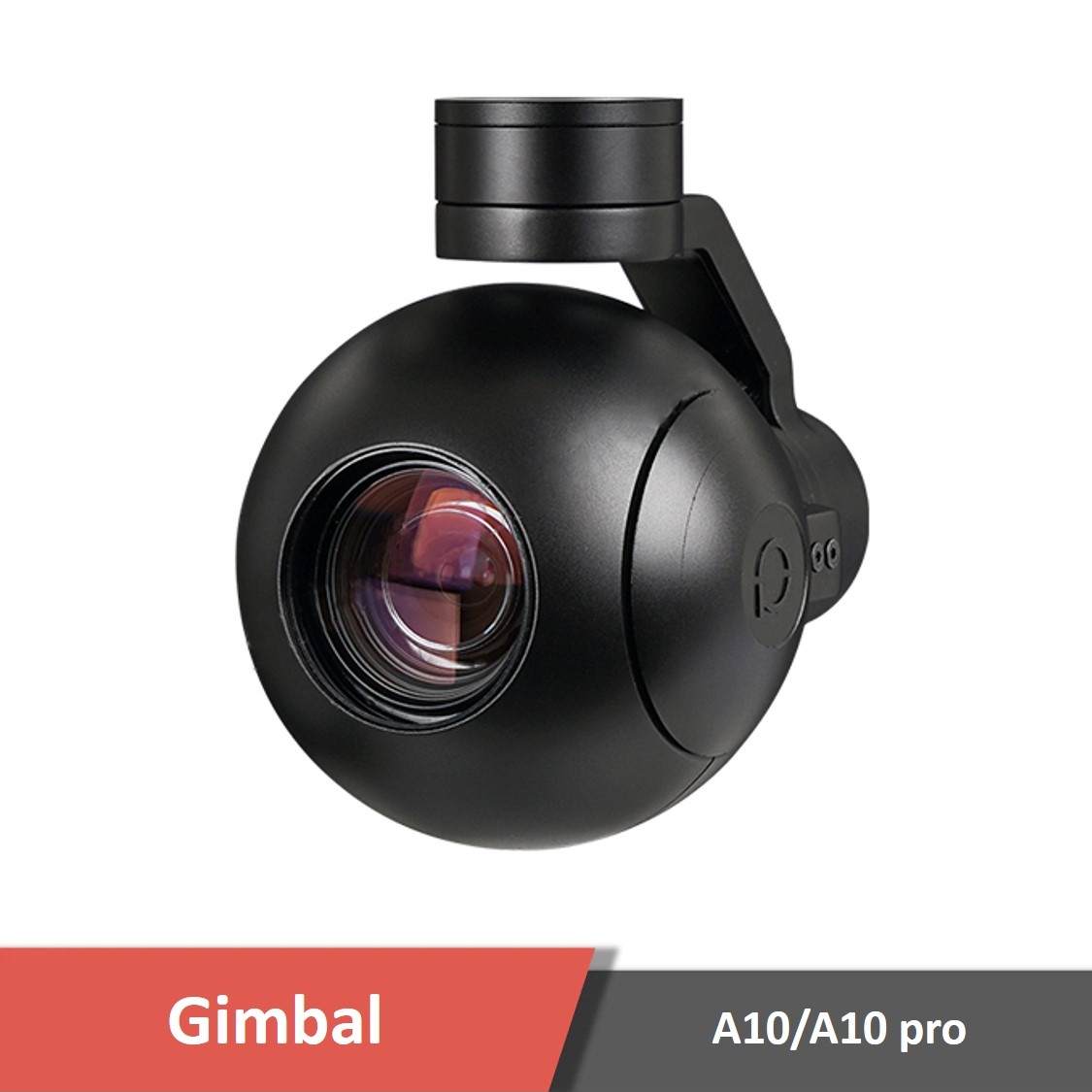

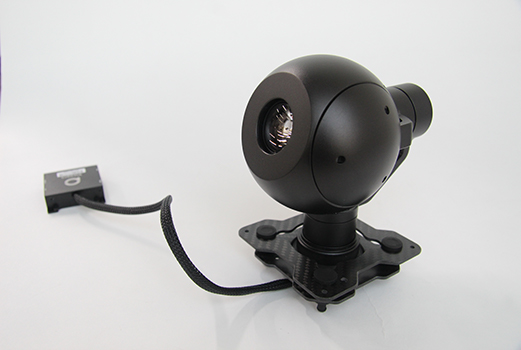

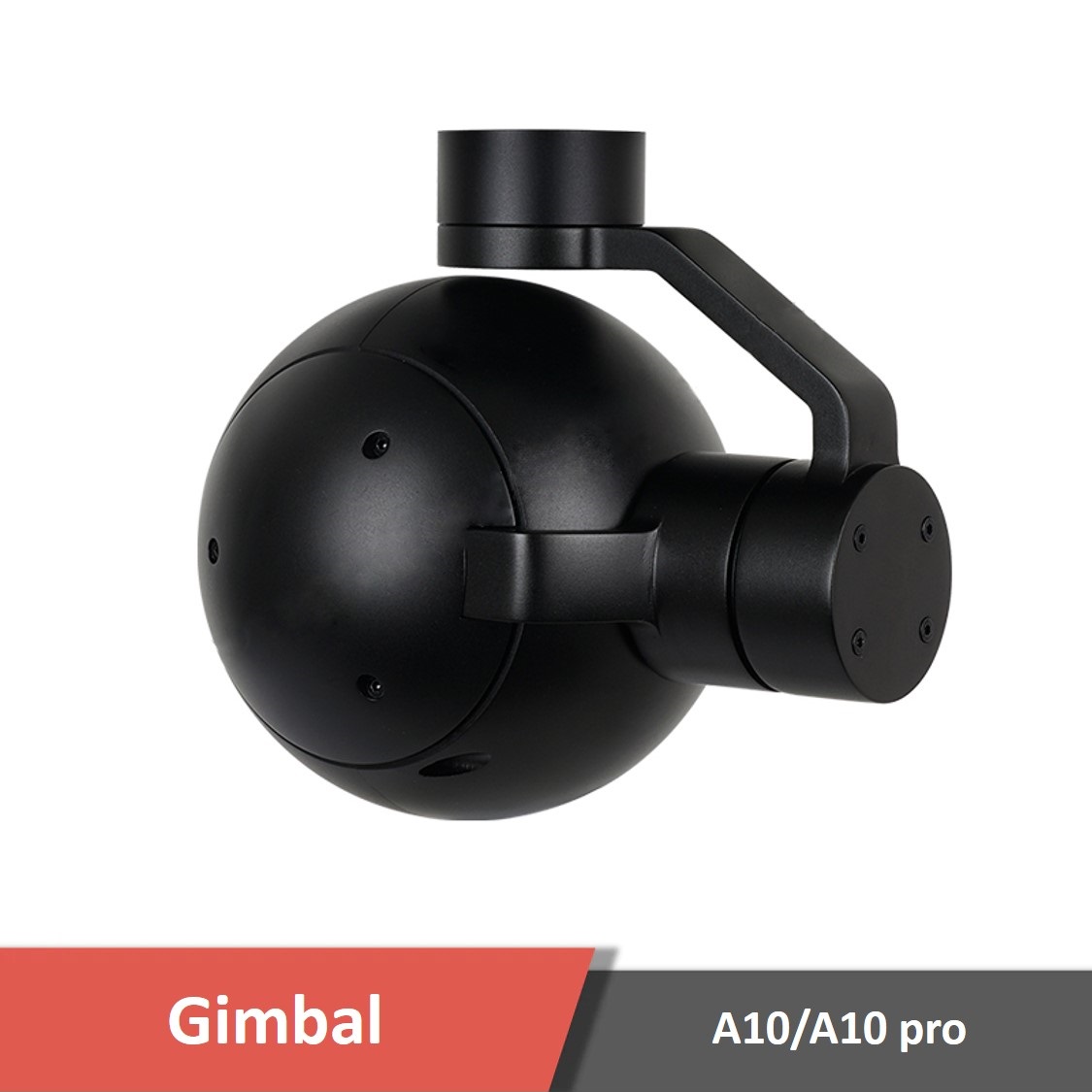

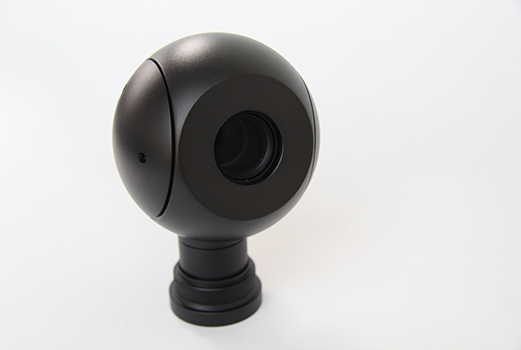

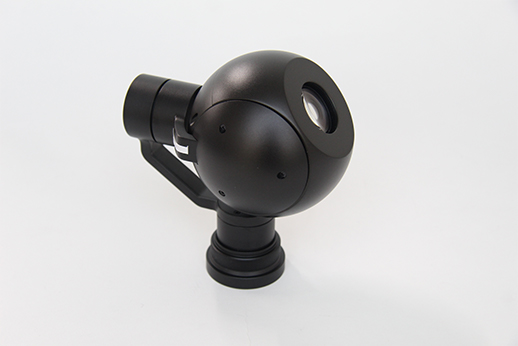

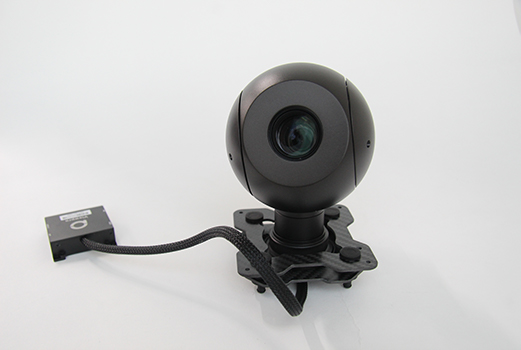

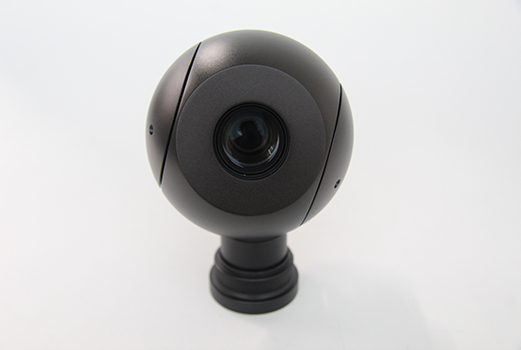

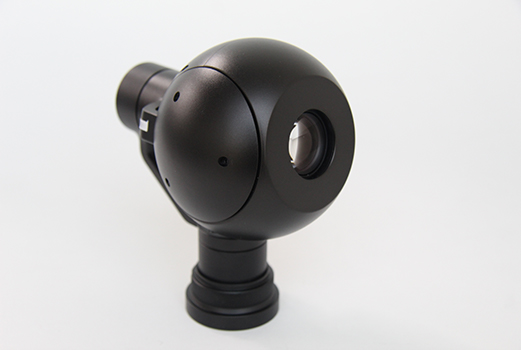

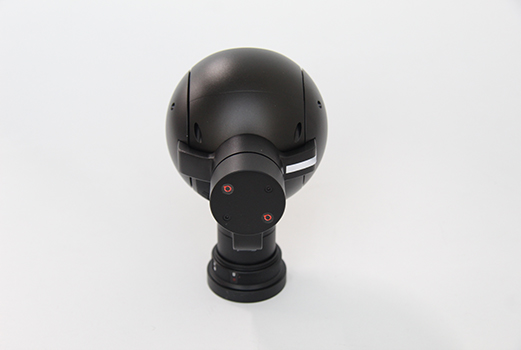

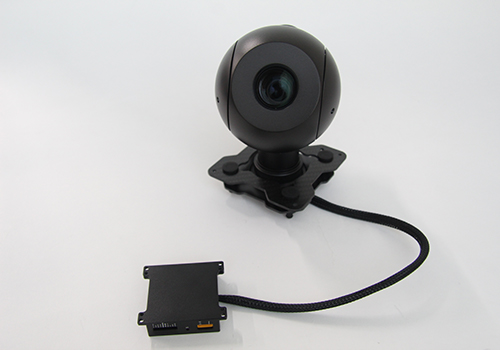

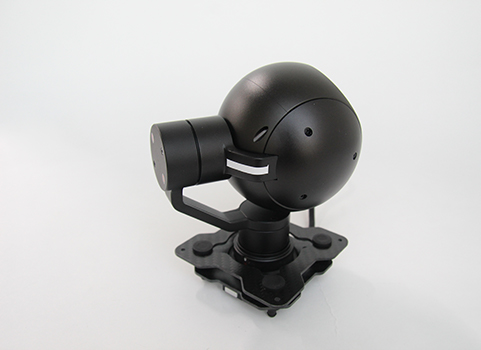

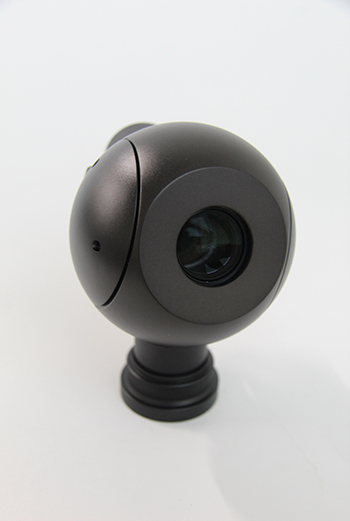

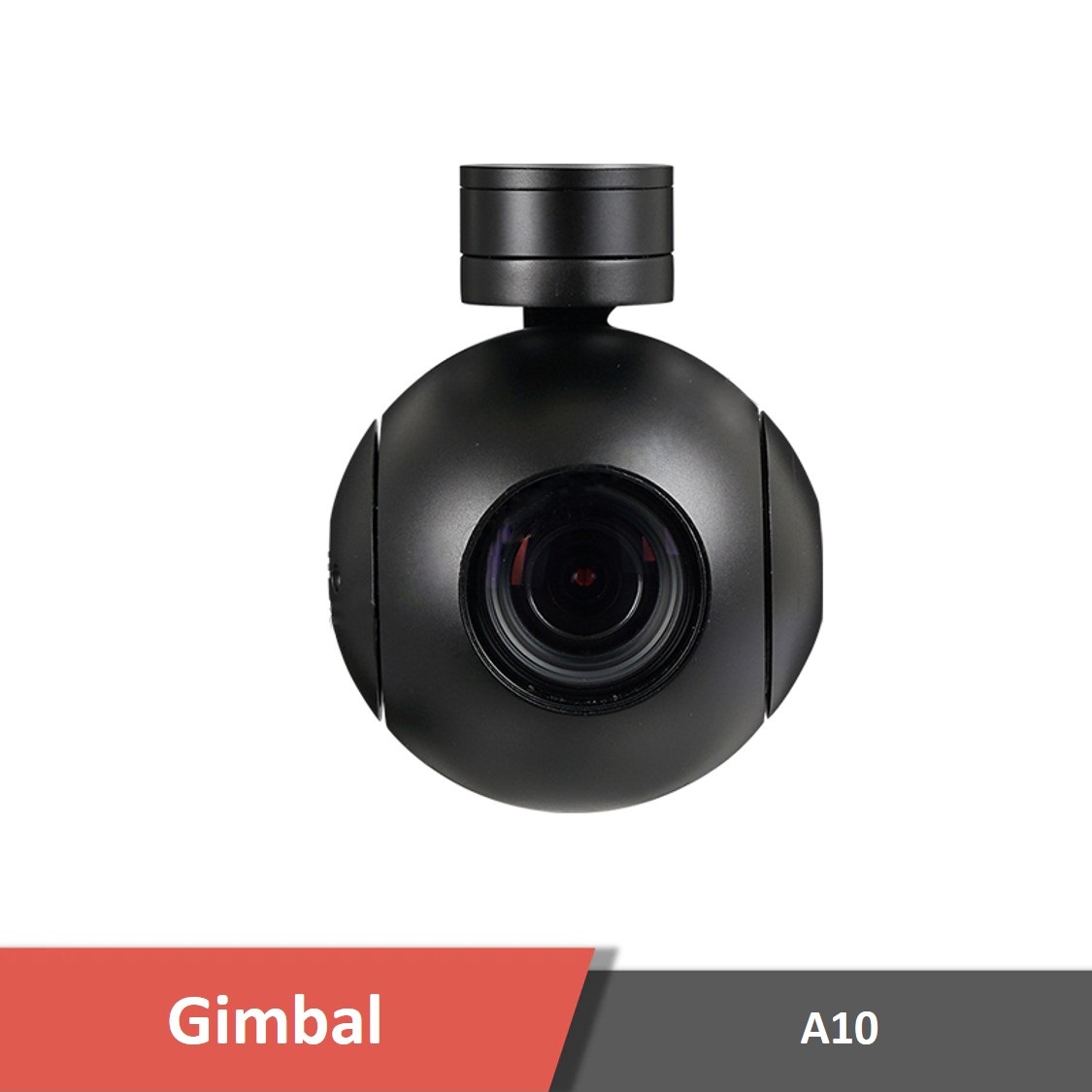

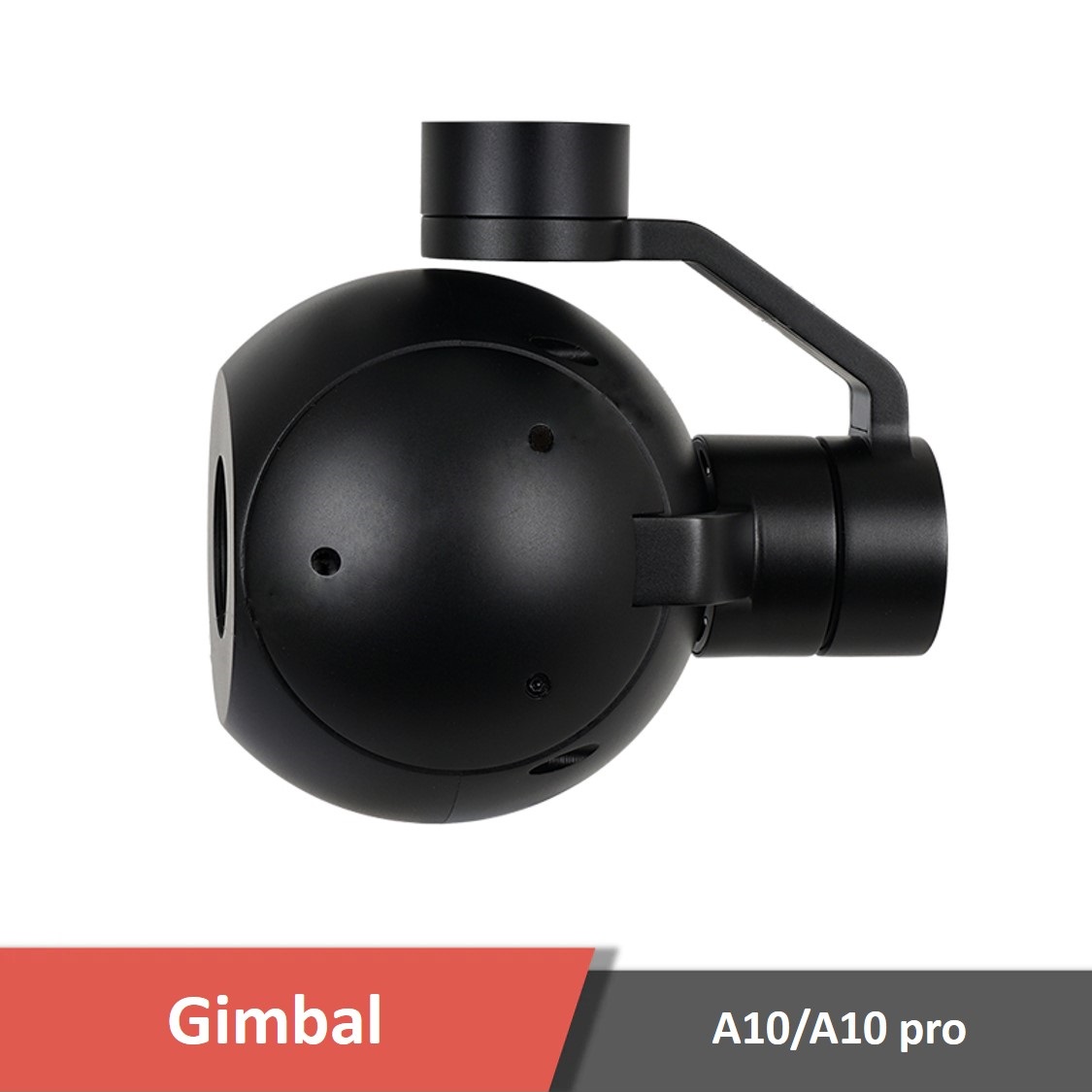

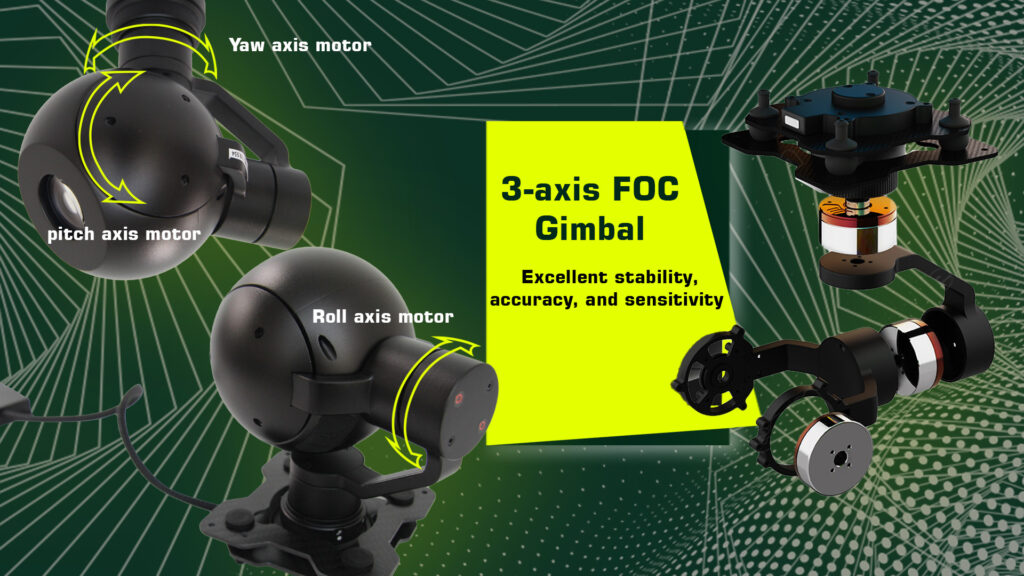

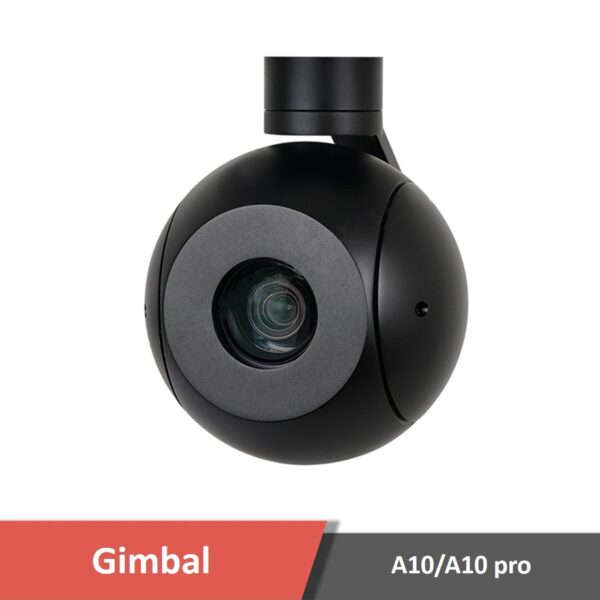

A10 / A10 pro is a 10x Single sensor gimbal zoom camera with a lightweight and small design. The compact structure integrates a 10x optical zoom camera and tracking functionality of objects and humans. The gimbal has a 3-axis stabilization mechanism to remove perturbations from the drone during flight to have a higher-quality image. The aluminum alloy design creates a sophisticated look while helping in better heat dissipation and ant-interference.

With its integrated AI object identification and tracking module, car and humans are recognized and tracked automatically. This feature is widely used in UAV industries in different applications including inspection, surveillance, search and rescue, and other industrial applications.

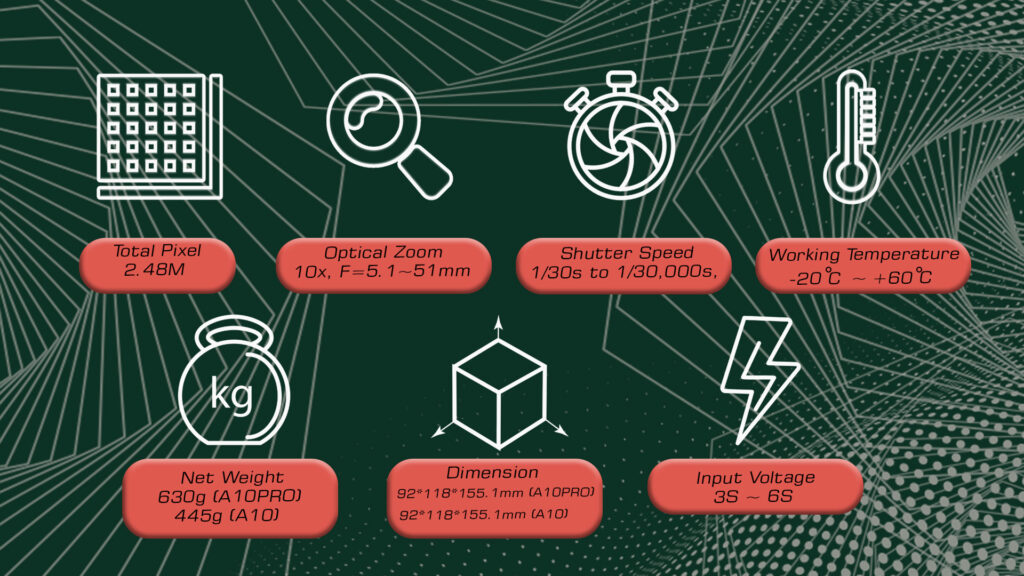

Gimbal zoom camera Gimbal a10. 2 1 - gimbal zoom camera,gimbal camera,zoom camera,optical zoom camera,10x optical zoom,ai tracking,thermal camera,laser rangefinder,drone camera,artificial intelligence,starlight gimbal camera,a10,a10 pro,car tracker,human tracker,boat tracker,flight tracker,human tracking devices,car tracking device - motionew - 9 Gimbal a10. 3 - gimbal zoom camera,gimbal camera,zoom camera,optical zoom camera,10x optical zoom,ai tracking,thermal camera,laser rangefinder,drone camera,artificial intelligence,starlight gimbal camera,a10,a10 pro,car tracker,human tracker,boat tracker,flight tracker,human tracking devices,car tracking device - motionew - 10 Gimbal a10. 4 - gimbal zoom camera,gimbal camera,zoom camera,optical zoom camera,10x optical zoom,ai tracking,thermal camera,laser rangefinder,drone camera,artificial intelligence,starlight gimbal camera,a10,a10 pro,car tracker,human tracker,boat tracker,flight tracker,human tracking devices,car tracking device - motionew - 11 Gimbal a10. 5 - gimbal zoom camera,gimbal camera,zoom camera,optical zoom camera,10x optical zoom,ai tracking,thermal camera,laser rangefinder,drone camera,artificial intelligence,starlight gimbal camera,a10,a10 pro,car tracker,human tracker,boat tracker,flight tracker,human tracking devices,car tracking device - motionew - 12 Gimbal a10. 6 - gimbal zoom camera,gimbal camera,zoom camera,optical zoom camera,10x optical zoom,ai tracking,thermal camera,laser rangefinder,drone camera,artificial intelligence,starlight gimbal camera,a10,a10 pro,car tracker,human tracker,boat tracker,flight tracker,human tracking devices,car tracking device - motionew - 13  Gimbal a10. 7 1 - gimbal zoom camera,gimbal camera,zoom camera,optical zoom camera,10x optical zoom,ai tracking,thermal camera,laser rangefinder,drone camera,artificial intelligence,starlight gimbal camera,a10,a10 pro,car tracker,human tracker,boat tracker,flight tracker,human tracking devices,car tracking device - motionew - 14Gimbal a10. 7. 7 - gimbal zoom camera,gimbal camera,zoom camera,optical zoom camera,10x optical zoom,ai tracking,thermal camera,laser rangefinder,drone camera,artificial intelligence,starlight gimbal camera,a10,a10 pro,car tracker,human tracker,boat tracker,flight tracker,human tracking devices,car tracking device - motionew - 15



Additional information

Weight 1.5 kg
Dimensions 30 × 30 × 30 cm

Specifications

Hardware Parameter
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 630~1500mA @ 12V
Idle current 600mA @ 12V
Working environment temp. -20℃ ~ +60℃
Output micro HDMI(1080P 30fps/60fps) / IP (1080p  25fps/30fps)
Local-storage SD card (Up to 128G, class 10, FAT32, or ex-FAT format)
Photo storage format JPG (1920×1080)
Video storage format MP4  (1080P/720P 25fps/30fps)

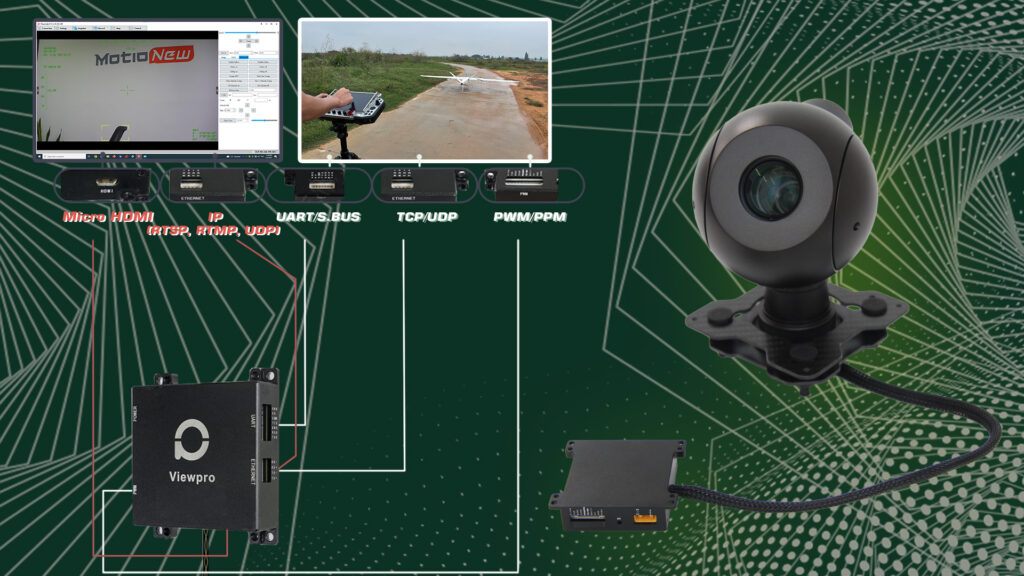

Control method PWM  / TTL / S.BUS/ TCP (IP output version)



Gimbal Spec
Angle scope of structure design Pitch/Tilt: -45°~95°,    Roll: ±70°,     Yaw/Pan: ±300° / ±360°*N (IP output version)
Angle scope of software design Pitch/Tilt: -40°~90°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center



Camera Spec
Image Sensor 1/3″ Panasonic CMOS Sensor
Total pixel 2.48M
Picture quality Full HD 1080 (1920*1080)
Optical zoom 10x, f = 5.1mm ~ 51mm
Digital zoom 32x
Angle of View (D, H, V) D:  68°(Wide end) ~ 6.7° (Tele end)
H: 54°(wide end) ~ 4.9°(tele end)
V: 31°(wide end) ~ 4.0°(tele end)
Sync system Progressive Scan
Sync. System Internal Internal
S/N ratio more than 50dB
Min illumination Color : 0.5 lux , BW : 0.1lux
Color DSS : 0.125 lux , BW DSS : 0.025 lux
Gain Control (AGC) Off / On
White balance Auto / One Push / Manual / Indoor / Outdoor
Shutter speed 1/30(25) ~ 1/30,000 sec
Focus Auto / One Push / Manual
Iris 0 ~ 20 steps
Exposure  Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N
Defog Yes



EO Camera Object Tracking
Update rate of deviation pixel 30Hz
Output delay of deviation pixel <30ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 256*256 pixel
Tracking speed >32 pixel/frame
Object memory time 100 frames



EO Camera AI Performance
Targets type Car and human
Simultaneous detection quantity ≥ 10 targets
Min contrast ratio 5%
Min target size 5×5 pixel
Car detection rate ≥85%
False alarm rate ≤10%

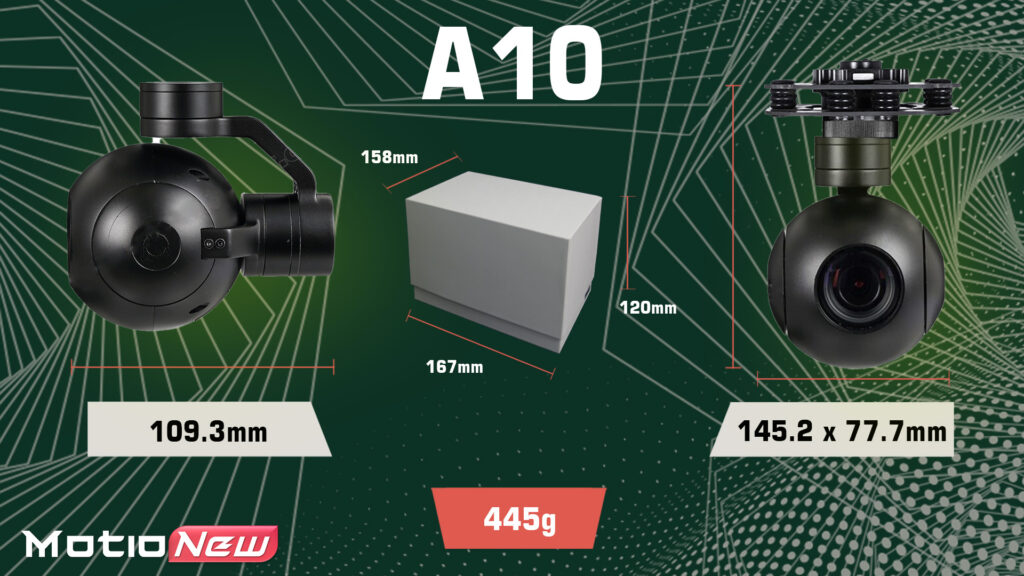

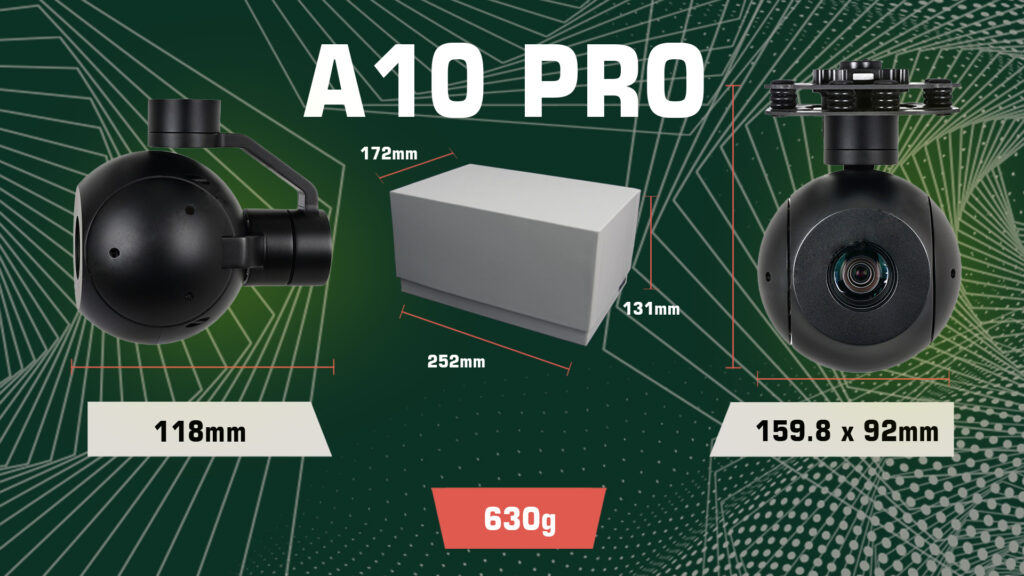

Packing Information
N.W. 630g (Viewport version)
Product dimensions 92x118x155.1mm (Viewport Version)
G.W. 1740g
Package dimensions 300x250x200mm

Product contents

Gimbal camera A10 (standard version) or A10 pro (standard version), screws, USB to TTL cable / Hight quality plastic box with foam cushion



* Quick Release version is also available upon customer request.
