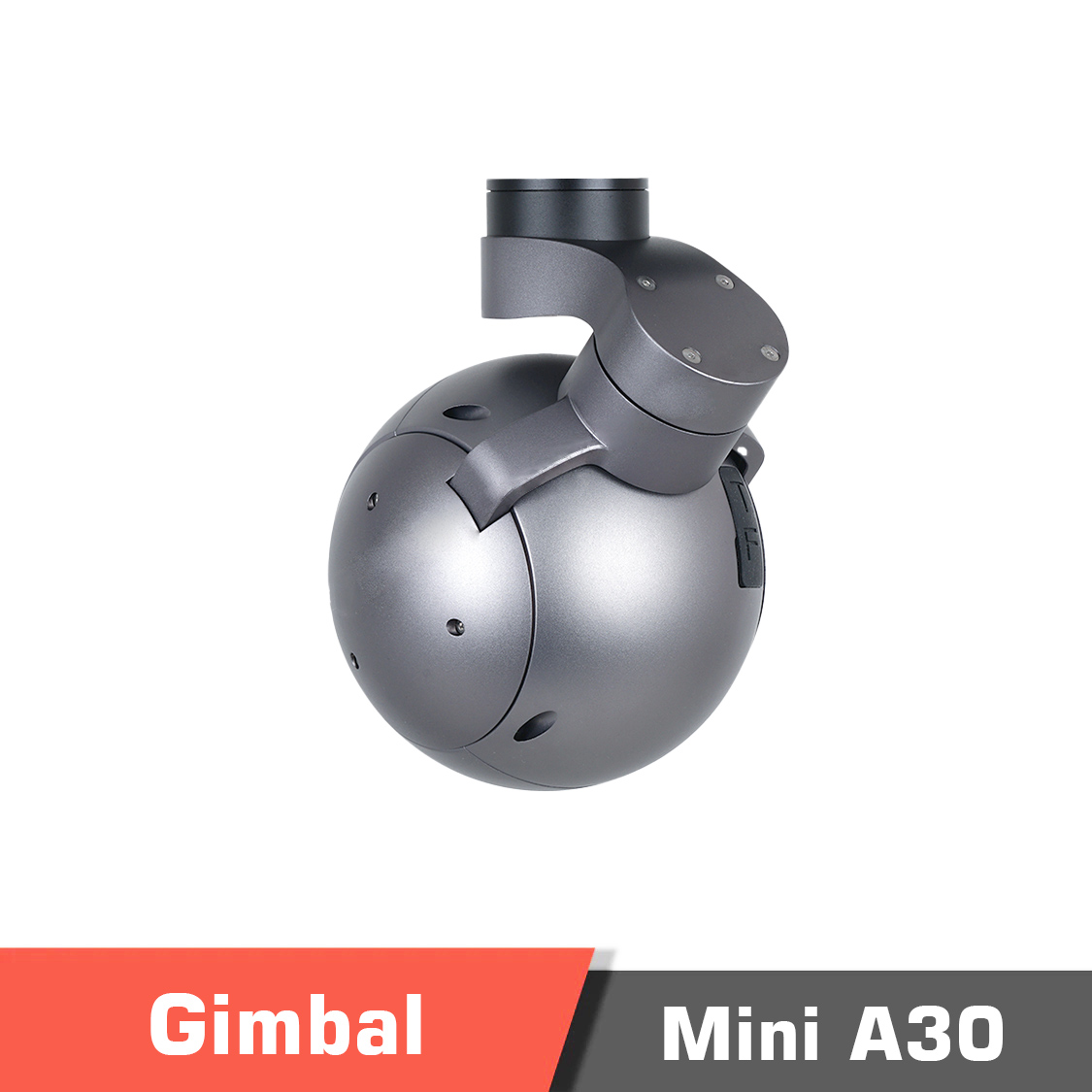

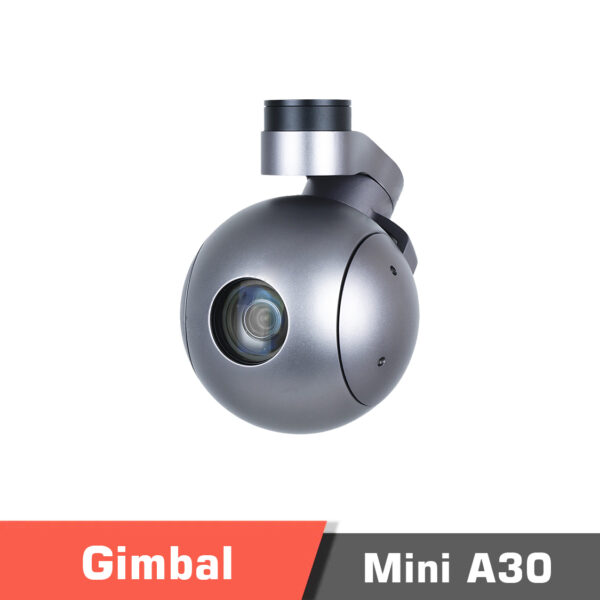

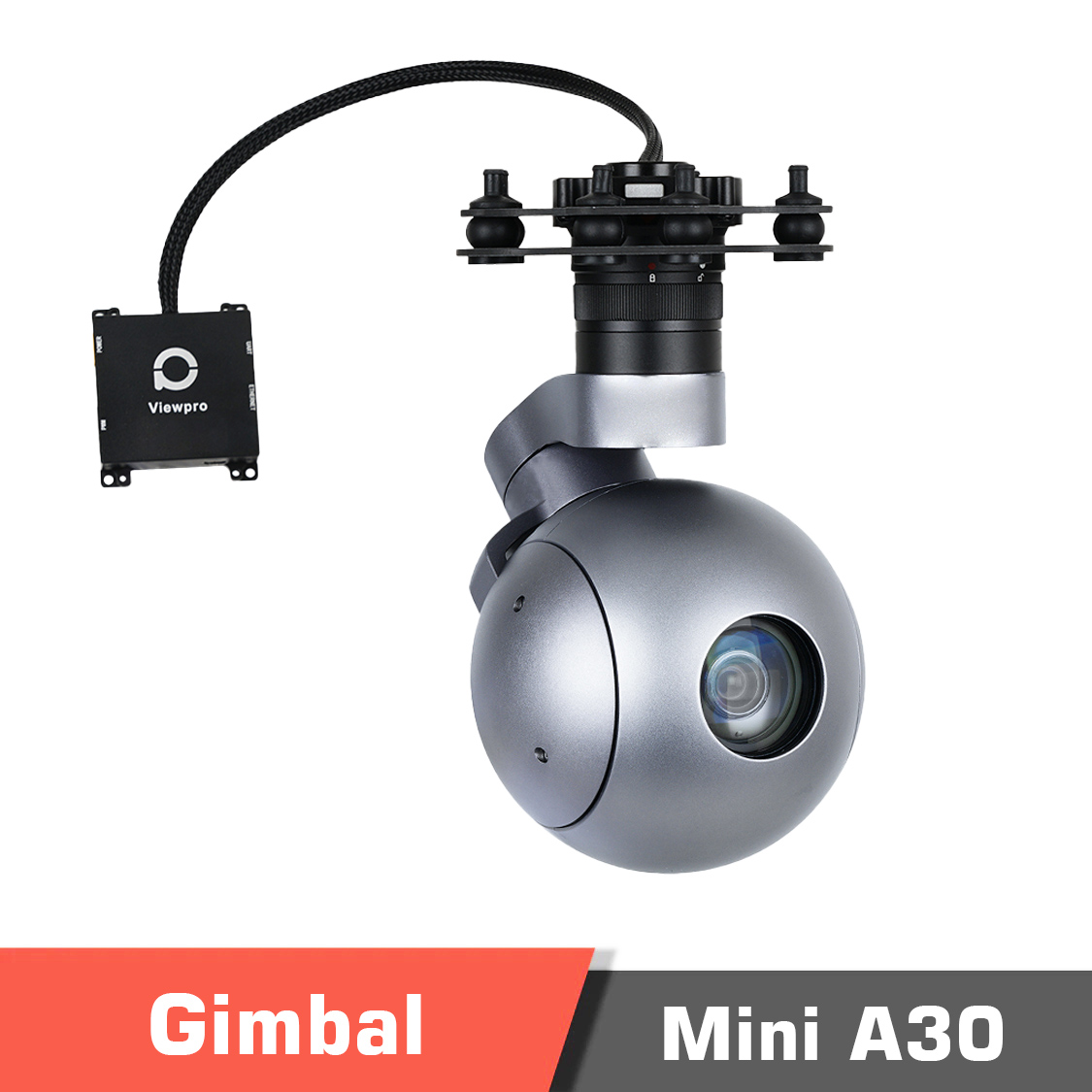

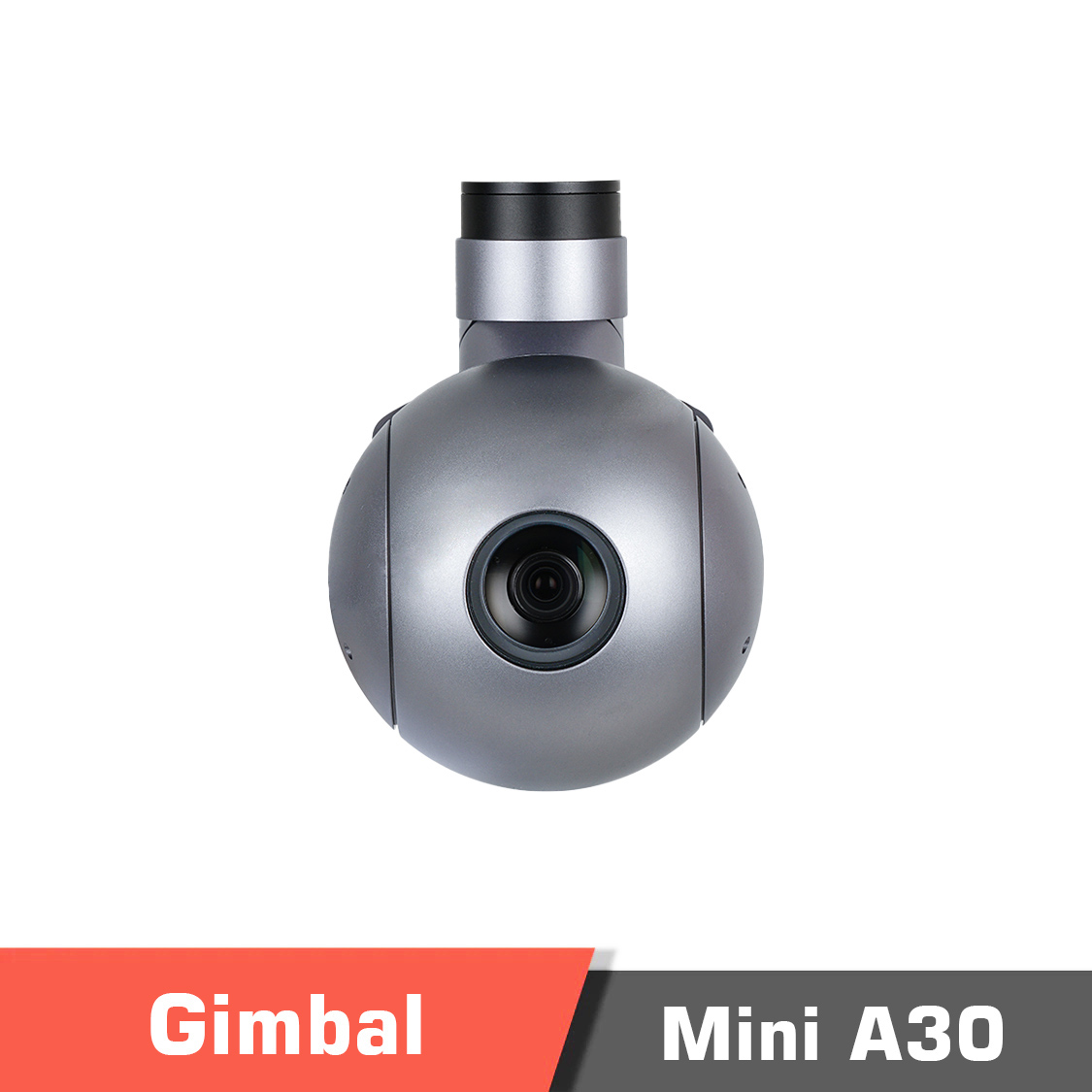

Mini A30 30x Optical Zoom AI Tracking 3-axis Gimbal Camera

4390.00 $ – 4740.00 $

Description

Mini A30 30x Optical Zoom AI Tracking 3-axis Gimbal Camera

Mini A30 30x is an upgraded model of Q30N with an AI tracking function. It has a built-in 30x optical zoom SONY camera and a powerful AI module that supports autonomous car and human detection and stable tracking. The aluminum alloy housing structure and 3-axis gimbal bring high performance to the device.

Aluminum alloy housing manufactured by high-precision CNC procedure adds excellent heat dissipation, and anti-interference capability while giving the gimbal a sophisticated look.

SONY 1/2.8″ “Exmor R” CMOS can output Full HD 1080 pictures. With onboard integrated Artificial Intelligence (AI), it is easier to track targets. The gimbal can detect simultaneously more than 10 objects in its field of view, and the user just needs to select among them. After the tracking starts, even if the subject’s view is occluded by an obstacle, the gimbal estimates the direction of movement and will easily find and re-track it after it becomes to the camera again.

Moreover, if the AI auto zoom is enabled, when tracking a subject, the gimbal’s tracking algorithm adjusts the best level of zoom for the most stable tracking.

Mini A30 has an aerodynamic design. The ball shape design and its compact structure achieve low wind resistance to have the least effect on the performance of the drone.



Mini a30 30x 30x optical zoom Aerodynamic design Mina30. 4 - mini a30 30x,ai tracking,3-axis,30x optical zoom,gimbal,camera,mini camera,a30 camera,human tracker,car tracker,flight tracker,ai camera,mini gimbal,ai gimbal,ship tracker,boat tracker,aerodynamic design - motionew - 7 Mina30. 5 - mini a30 30x,ai tracking,3-axis,30x optical zoom,gimbal,camera,mini camera,a30 camera,human tracker,car tracker,flight tracker,ai camera,mini gimbal,ai gimbal,ship tracker,boat tracker,aerodynamic design - motionew - 8 Mina30. 6 - mini a30 30x,ai tracking,3-axis,30x optical zoom,gimbal,camera,mini camera,a30 camera,human tracker,car tracker,flight tracker,ai camera,mini gimbal,ai gimbal,ship tracker,boat tracker,aerodynamic design - motionew - 9 Mina30. 7 - mini a30 30x,ai tracking,3-axis,30x optical zoom,gimbal,camera,mini camera,a30 camera,human tracker,car tracker,flight tracker,ai camera,mini gimbal,ai gimbal,ship tracker,boat tracker,aerodynamic design - motionew - 10

A30 - mini a30 30x,ai tracking,3-axis,30x optical zoom,gimbal,camera,mini camera,a30 camera,human tracker,car tracker,flight tracker,ai camera,mini gimbal,ai gimbal,ship tracker,boat tracker,aerodynamic design - motionew - 11

Minia30 ins 14 1 - mini a30 30x,ai tracking,3-axis,30x optical zoom,gimbal,camera,mini camera,a30 camera,human tracker,car tracker,flight tracker,ai camera,mini gimbal,ai gimbal,ship tracker,boat tracker,aerodynamic design - motionew - 12

Additional information

Weight 2 kg
Dimensions 30 × 25 × 20 cm

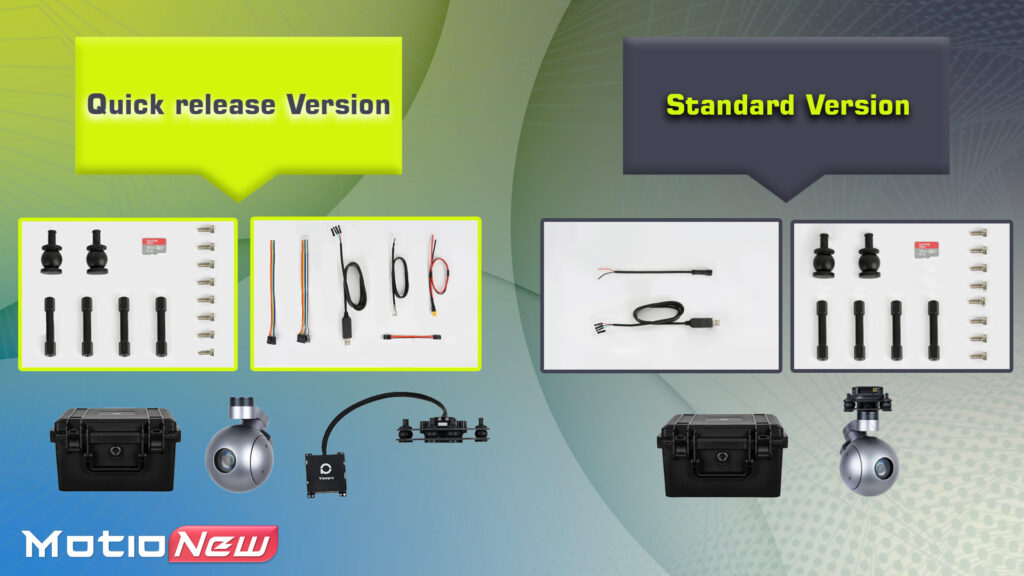

Bundle

quick release version, standard version

Specifications

Hardware Parameter
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 650~1200mA @ 12V
Idle current 650mA @ 12V
Working environment temp. -20℃ ~ +60℃
Output micro HDMI(1080P 30fps/60fps) / IP (1080p  25fps/30fps)
Local-storage SD card (Up to 128G, class 10, FAT32, or ex-FAT format)
Photo storage format JPG (1920×1080)
Video storage format MP4  (1080P/720P 25fps/30fps)
Control method PWM  / TTL / S.BUS/ TCP (IP output version)



Gimbal Spec
Angle scope of structure design Pitch/Tilt: -45°～95°,    Roll: ±70°,     Yaw/Pan: ±300° / ±360°*N (IP output version)
Angle scope of software design Pitch/Tilt: -40°～90°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center √



Camera Spec
Image Sensor SONY 1/2.8″ “Exmor R” CMOS
Effective pixel 2.13MP
Picture quality Full HD 1080 (1920*1080)
Optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color [email protected]
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/
Auto/Outdoor Auto)
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
OSD Yes
Defog Yes



EO Camera Object Tracking
Update rate of deviation pixel 30Hz
Output delay of deviation pixel <30ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 256*256 pixel
Tracking speed ＞32 pixel/frame
Object memory time 100 frames



EO Camera AI Performance
Targets type Car and human
Simultaneous detection quantity ≥ 10 targets
Min contrast ratio 5%
Min target size 5×5 pixel
Car detection rate ≥85%
False alarm rate ≤10%



Packing Information
N.W. 888g(Viewport version)
Accessories 1pc gimbal camera device, screws, USB to TTL cable  / Hight quality plastic box with foam cushion
G.W. 1988g
Package dimensions 300*250*200mm

Product contents

1x Mini A30 30x Optical Zoom AI Tracking 3axis Gimbal Camera

1 set of screws, USB to TTL cable  / Hight quality plastic box with foam cushion
