Pixhawk 4 Holybro UAV Flight Controller

179.97 $ – 257.95 $

Description

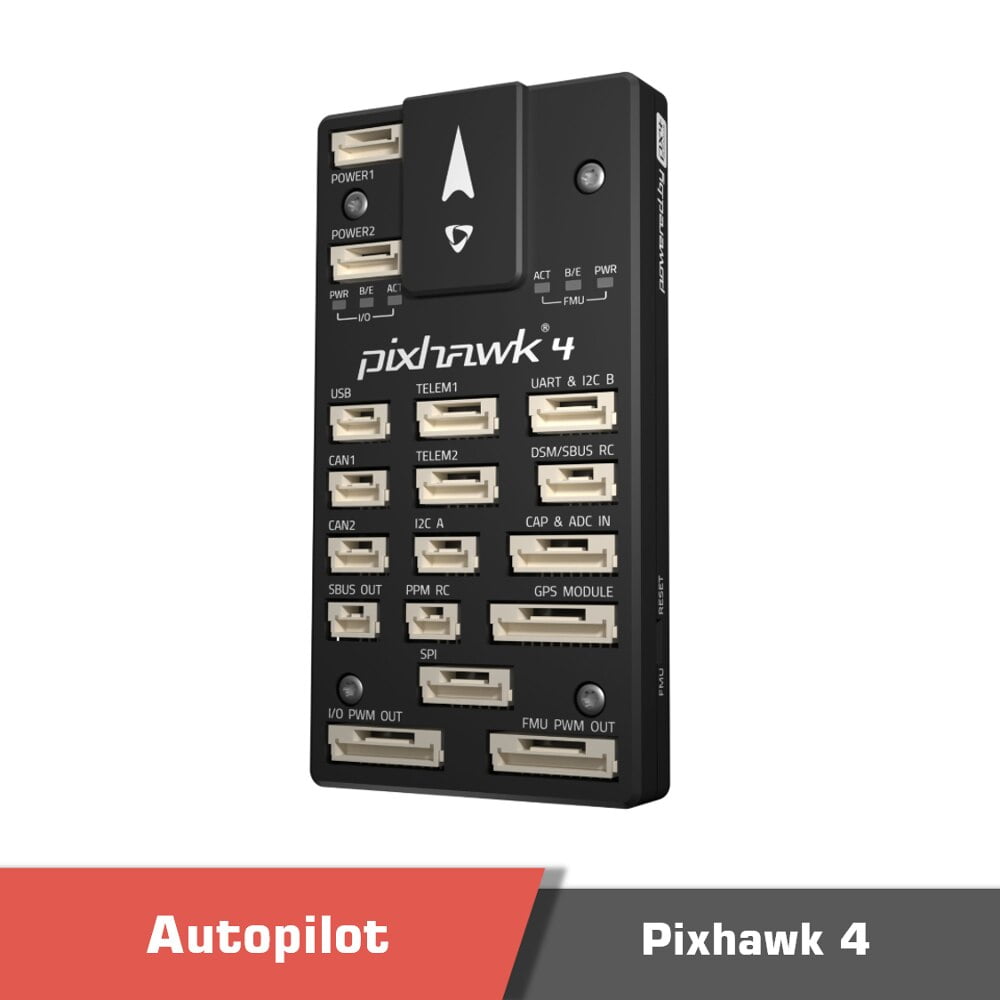

Pixhawk 4 Holybro UAV Flight Controller

Pixhawk 4® is an advanced autopilot designed and made in collaboration with Holybro® and the PX4 team. It is optimized to run PX4 version 1.7, suitable for academic and commercial developers.

It is based on the Pixhawk-project FMUv5 open hardware design and runs PX4 on the NuttX OS.

Features

  • 8-16 PWM outputs (8 from IO, 8 from FMU)
  • 3 dedicated PWM/Capture inputs on FMU
  • Dedicated R/C input for CPPM
  • Dedicated R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
  • Dedicated S.Bus servo output
  • 5 general purpose serial ports
  • 3 I2C ports
  • 4 SPI buses
  • Up to 2 CAN Buses for dual CAN with serial ESC
  • Analog inputs for voltage / current of 2 batteries
Uc646d74def25420caafe4903e4d74b4fq - pixhawk 4 holybro,uav flight controller,ardupilot flight controller,holybro pixhawk 4,pixhawk 4 - motionew - 6 U3f36c7f38b0d4319913c32e608f06314i - pixhawk 4 holybro,uav flight controller,ardupilot flight controller,holybro pixhawk 4,pixhawk 4 - motionew - 7 U830a833a074945b291046553c40e49072 - pixhawk 4 holybro,uav flight controller,ardupilot flight controller,holybro pixhawk 4,pixhawk 4 - motionew - 8 Ua93675b7728f41068a3082940db8cb78a - pixhawk 4 holybro,uav flight controller,ardupilot flight controller,holybro pixhawk 4,pixhawk 4 - motionew - 9 U2747638f80c44a39ac7796d530b5dd5c5 1 - pixhawk 4 holybro,uav flight controller,ardupilot flight controller,holybro pixhawk 4,pixhawk 4 - motionew - 10

If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.

Additional information

Weight 0.033 kg
Dimensions 5 × 8 × 2 cm

Specifications

Weight  33.3g
Dimension  44x84x12mm
Operating temperature -40 ~ 85°c
Case Material  Plastic
Main FMU Processor STM32F765

32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM
IO Processor STM32F100

32 Bit Arm® Cortex®-M3, 24MHz, 8KB SRAM
On-board sensors Accel/Gyro: ICM-20689
Accel/Gyro: BMI055
Magnetometer IST8310
Barometer MS5611
GPS ublox Neo-M8N GPS/GLONASS receiver; integrated magnetometer IST8310
Power module output 4.9~5.5V
USB Power Input 4.75~5.25V
Servo Rail Input 0~36V

U093b0f06a5f248be86d5d82bf094868f0 - pixhawk 4 holybro,uav flight controller,ardupilot flight controller,holybro pixhawk 4,pixhawk 4 - motionew - 11

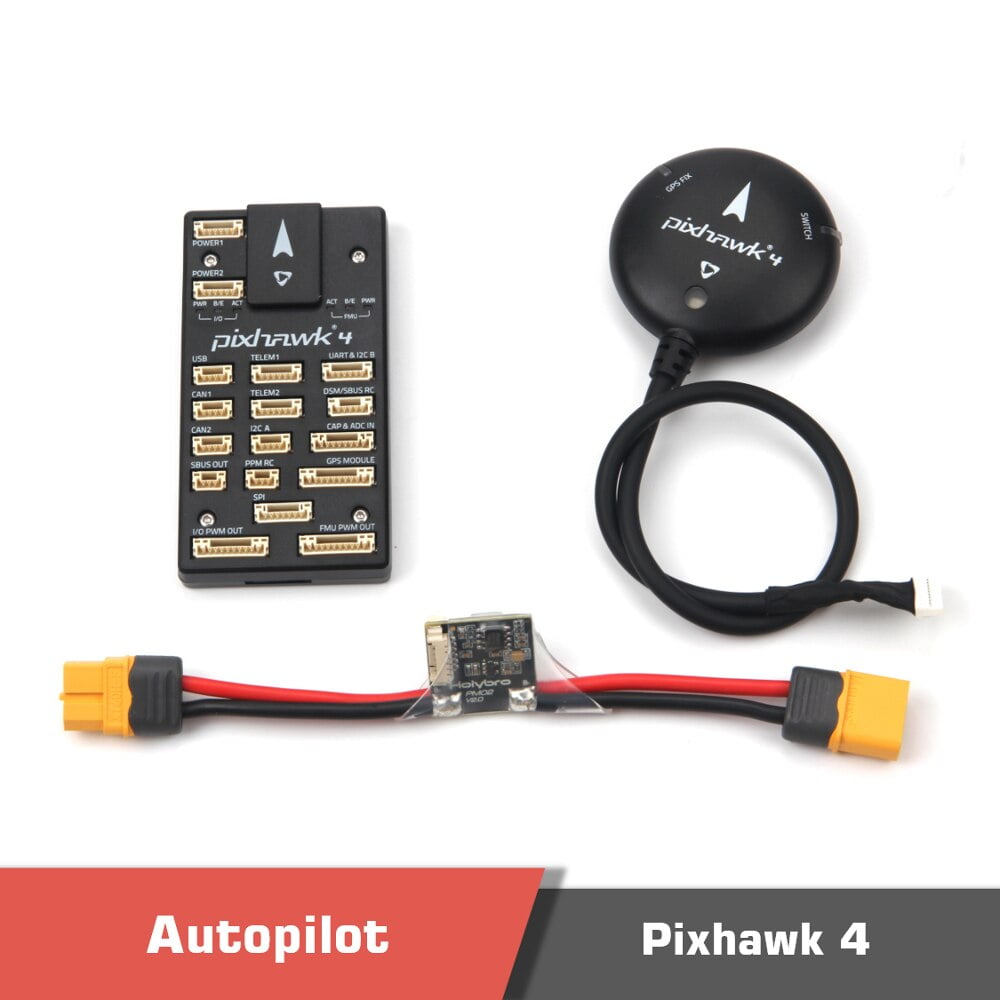

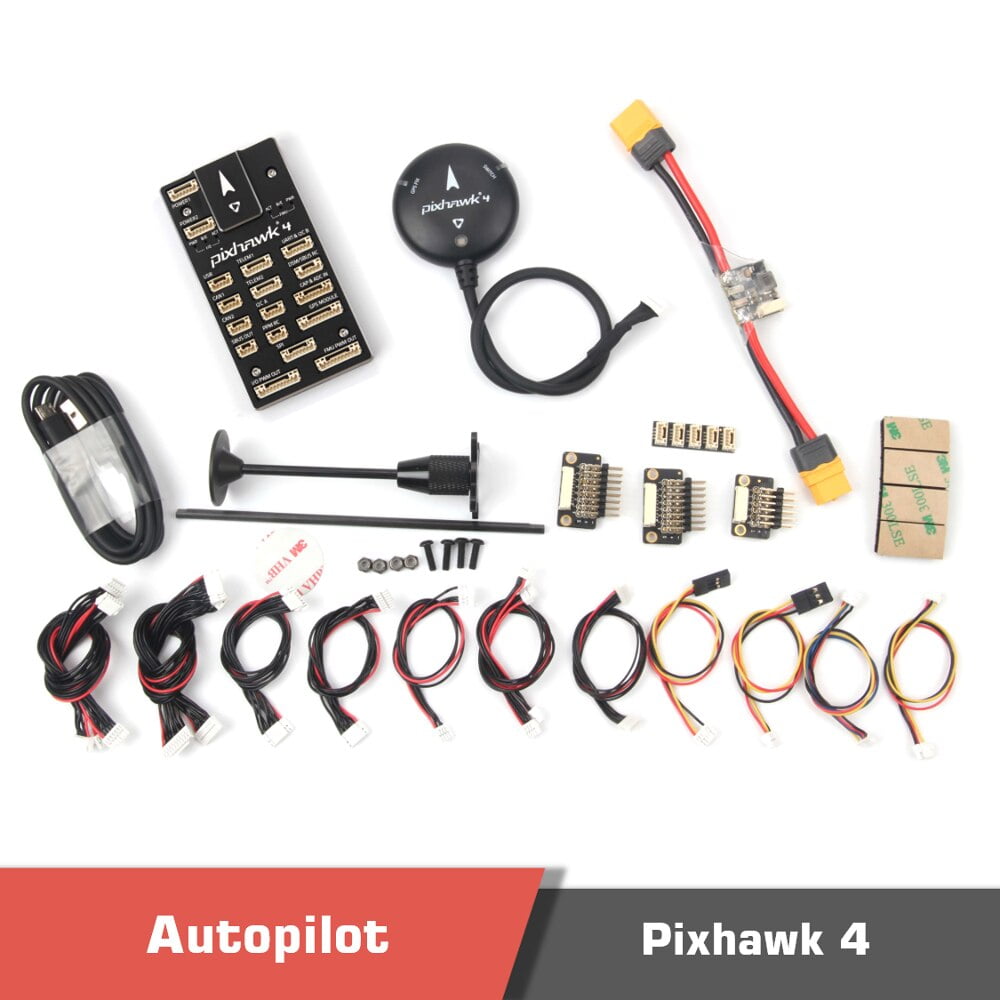

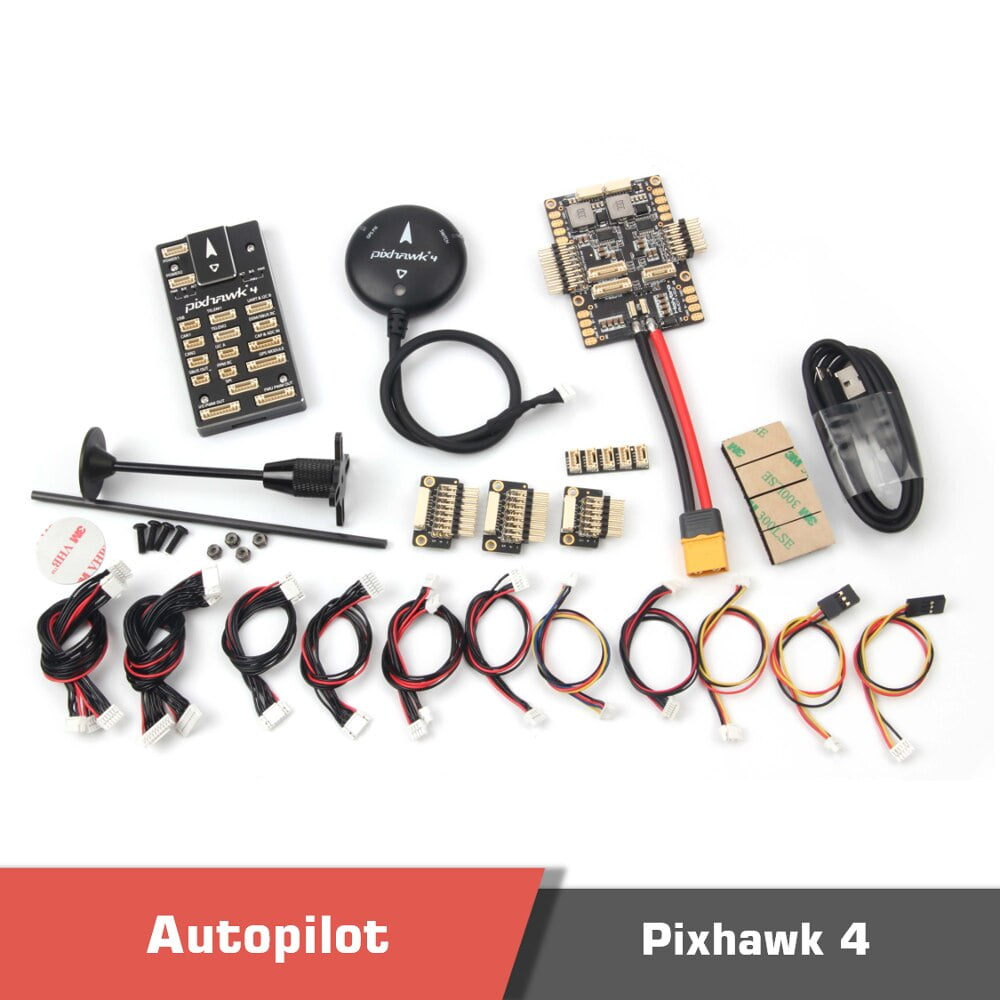

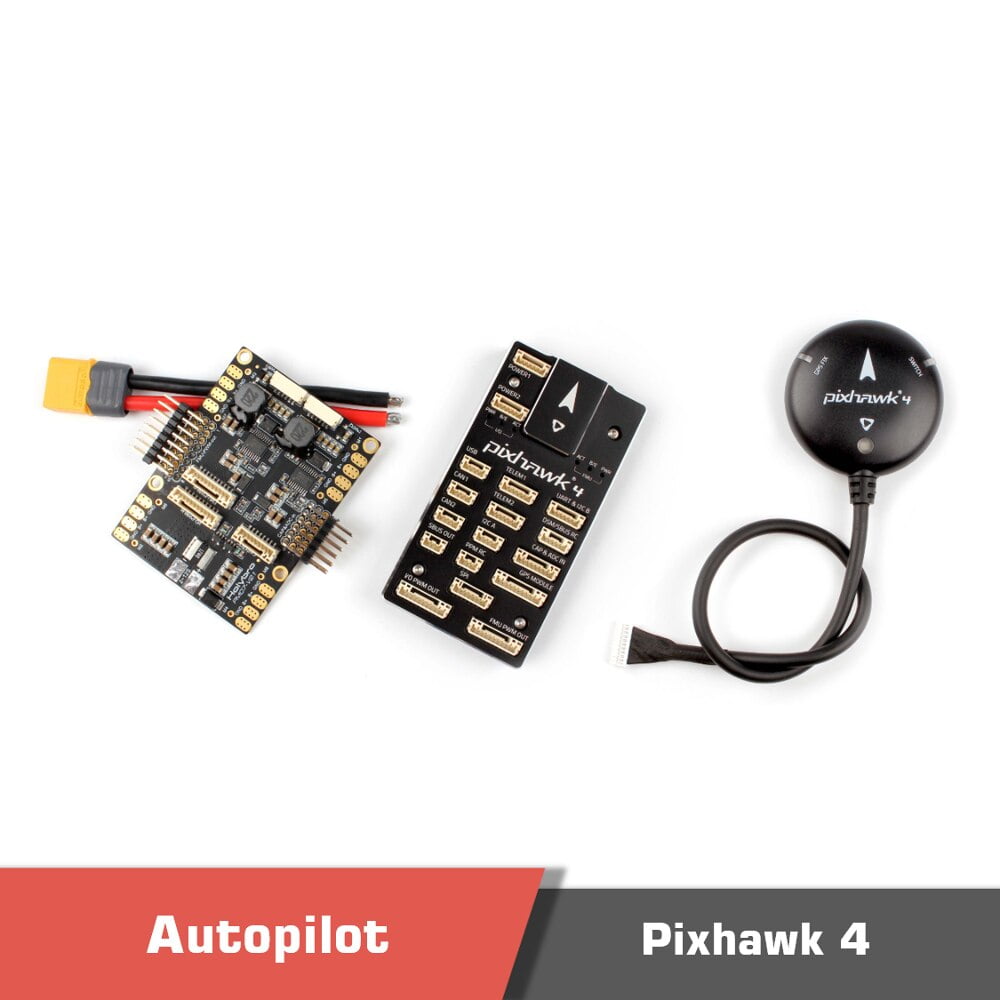

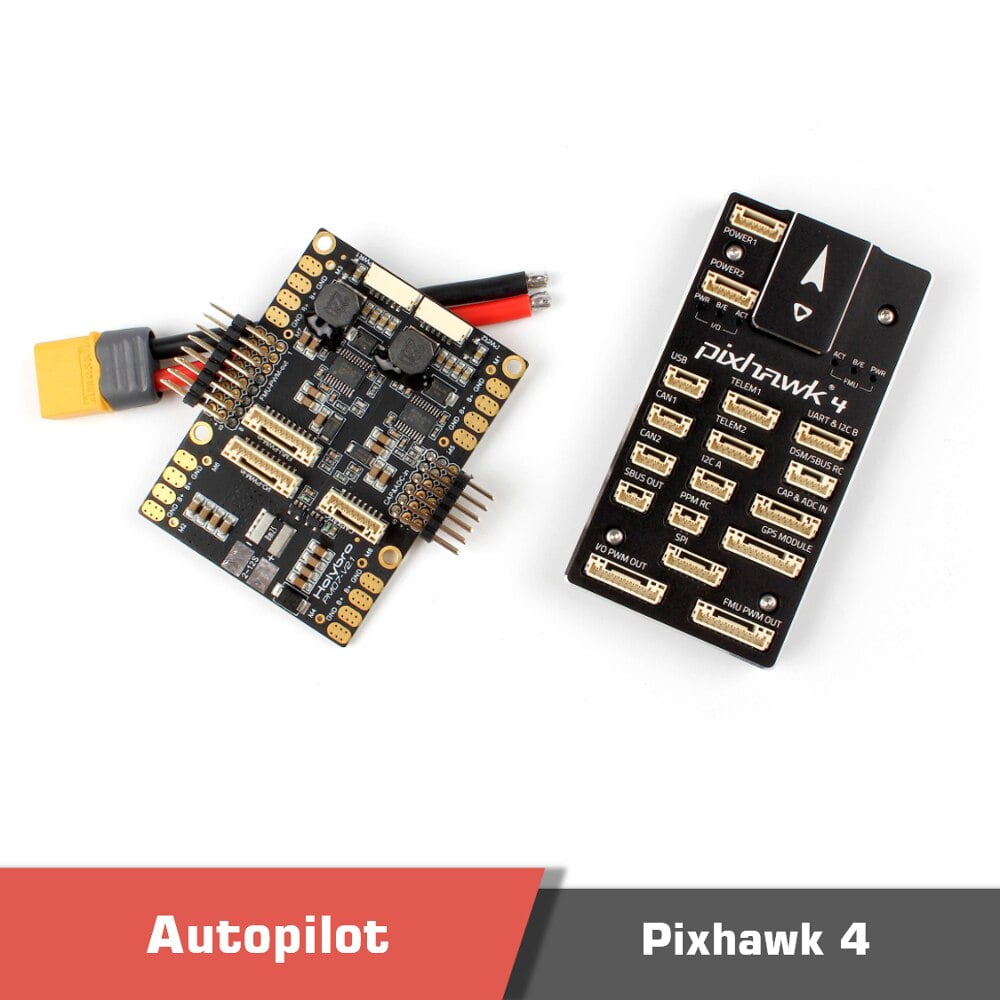

Product contents

Product contents

Documents

User manual
