Pixhawk 1 Radiolink UAV Flight Controller

163.50 $189.90 $

Description

Pixhawk 1 Radiolink UAV Flight Controller Overview

Pixhawk 1 Radiolink UAV Flight Controller, is a DIY Open Source Autopilot Drone designed by following the FMUv3 guide rules. Using a 32bit ARM Cortex M4, STM32F427, several sensors are embedded inside to facilitate the flight mission. A MEMS gyroscope and accelerometer (MPU6000), magnetometer (IST8310), and barometer (MS5611) are used to monitor and control the different states of the drone including speed, attitude, altitude, heading, and more. Using an external GPS module, you can design missions and waypoints for automatic flights.

The autopilot has 8 PWM outputs, and 6 PWM auxiliary ports, all of which are configurable.

SDCard slot is provided for logging the flight data for further analysis in case of a crash. You can use Ardupilot and MissionPlanner to control and monitor your drone.

An RGB LED indicator on the flight controller shows different states of the autopilot. You can connect the safety switch to the controller for a safer flight. The buzzer is programmed for alarming a different sound for different errors.

Pixhawk 1 Radiolink UAV Flight Controller, is a DIY Open Source Autopilot Drone.

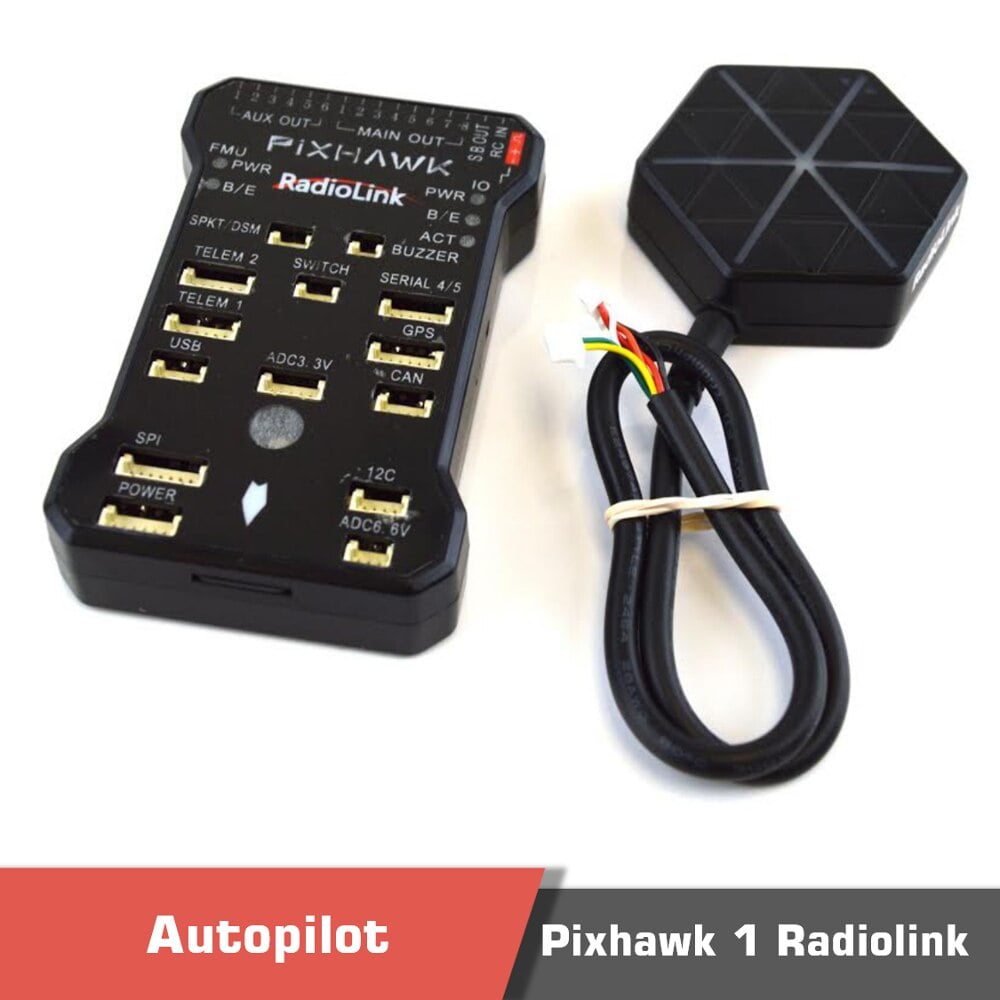

GPS

  • Radiolink M8N GPS SE100
  • Positioning 20 satellites in 6 seconds at Open Ground
  • Supper Valley Station-Keeping Ability
  • Concurrent reception of GPS/QZSS L1 C/A, GLONASS L10F, Beidou B1, SBASL1 C/A:WAAS, ENOS, MSAS

Processor

  • 32bit 32F427 ARM Cortex M4 Core + FPU (floating point unit)
  • 168MHz / 256KB RAM / 2MB Flash
  • 32bit fault protection coprocessor
  • ST Micro L3GD20H 16 bit gyroscope
  • ST Micro LSM303D 14 bit Accelerometer/magnetometer
  • MPU 6000 3-axis accelerometer/gyroscope
  • MEAS MS5611 barometer

Easy to Setup

  • No complicated setup for beginner and professional players
  • Download the Mission planner from radiolink website
  • Connect via USB cable to the computer
  • Easy calibration settings

Top Configuration

32 bit 32F427 ARM Cortex M4 Core + FPU (floating point unit)
168 MHZ / 256 KB RAM / 2 MB Flash
32bit Fault Protection Coprocessor
ST Micro L3GD20H 16 bit gyroscope
ST Micro LSM303D 14 bit accelerometer/magnetometer
MPU 6000 3-axis accelerometer/gyroscope
MEAS MS5611 barometer

Easy to Set Up
No complicated setup for beginner and professor player, download the Mission Planner from Radiolink website. Via USB cable connect PIX and computer, easy to operation calibration settings on Mission Planner. Then, enjoy your fly.

A Good Choice for DIY Drone

Complete installation tutorial, easy to set up, eliminating the cumbersome and complicated installation and calibration process, making your DIY racing drone easier. The Mission Planner can be downloaded from the official website of the Radiolink brand for debugging.

Radiolink PIXHAWK supports a variety of fixed-wing and helicopters, vehicle models and boat models. Supporting Alt hold, Stabilize, Loiter, Pose hold, Return, and other flight modes.

Udd931494a4cd4ba7aab64c036b86038e4 - pixhawk 1 radiolink,flight controller,uav - motionew - 5 U7e0b0065fcfb4963a1585fe7b435588fy - pixhawk 1 radiolink,flight controller,uav - motionew - 6 U355eb654b54a4860ac6c767e0067895di - pixhawk 1 radiolink,flight controller,uav - motionew - 7
Pixhawk flight controller Uav flight controller Autopilot



If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.

Additional information

Weight 1 kg
Dimensions 10 × 6 × 10 cm

Specifications

Processors & Sensors
Dimension 82.2*51.8*16.5mm(3.2*2*0.65″)
Weight 38g(PIXHAWK only)
Main Processor STM32F427VIT6
Coprocessor STM32F100C8T6
Gyro MPU6000
E-compass IST8310
Barometer MS5611
FRAM 256 Kb(718 waypoints for multicopter, 724 waypoints for airplane, car and boat )

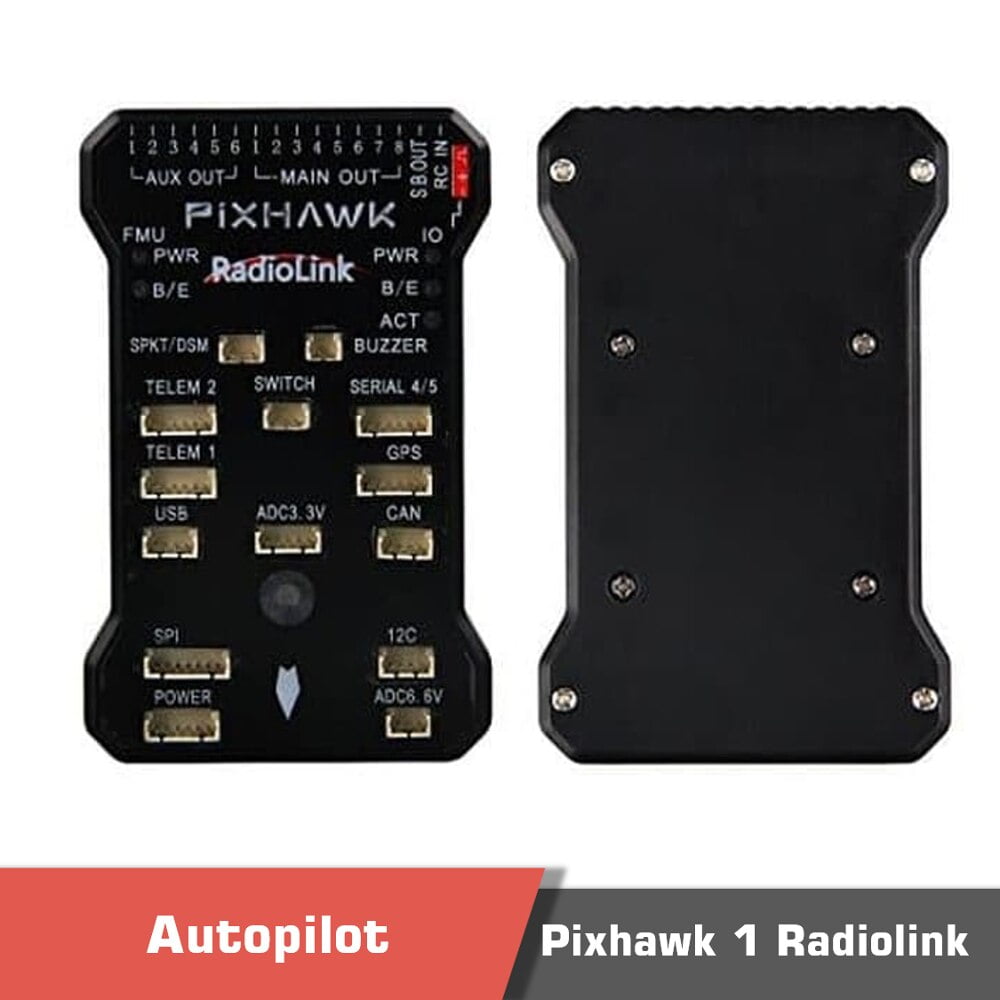

Port XH socket
SPK/DSM 1
Mavlink UART 2 (with CTSRTS)
USB Port 2
Buzzer 1
Safety Switch 1
ADC Port 3.3V*1&6.6V*1
SERIAL4/5 Port 1
GPS UART 1
CAN Port 1
SPI Port 1
I2C 1
RC In (TX Signal Supported) SBUS/PPM
RSSI Signal Strength Input PWM/3.3V
PWM Output 8 OneShot/PWM Output (Configurable)
DSHOT Protocol Support (must upgrade the firmware to V4.0 or above)
Aux Output 6 PWM Output (Configurable)
SD Port 1
Input Voltage 2-12s
Input Current 90A
Output Voltage 5.1V
Output Current (BEC) 2A
USB Voltage 5V±0.3V
Servo Voltage Input Non-Applicable

Operating Temperature

-40~80℃



Weight 30g
Dimension 8.2×4.3X1.7cm
Operating temperature -40 ~ 80°c
Case Material Plastic
RAM 256 KB
Flash 2 MB
Accelerometer/Gyroscope MPU 6000 3-axis
Core 32bit STM32F427 ARM Cortex M4
Package Dimensions 6.65 x 4.25 x 1.93 inches
Connector Port JST GH connector
Receiver In PPM/SBUS
Transmitter 6 oneshot/PWM
USB Voltage 5v+-0.3v
Work Voltage 5.1v
Work Temperature Rang -40~80°
Support Models Long-wheelbase Quadcopter/6-8 Axis Multirotor
Mini Pix Size 8.2*4.3*1.7cm

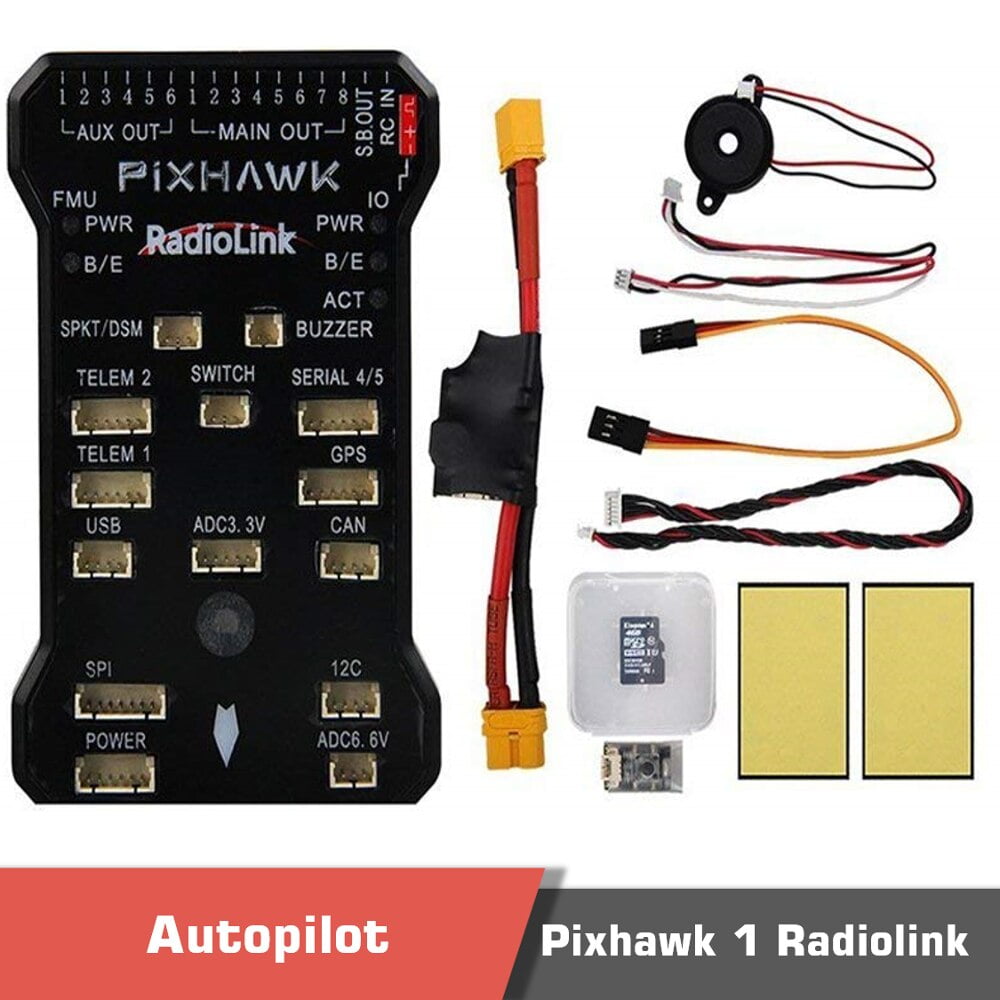

Product contents

1x Pixhawk autopilot

1x Power module (2~12s)

1x Buzzer

1x Safety Switch

1x TF Card

2x Double-sided Adhesive tape

1x receiver connect cable

1x power module connect cable

1x safety switch connect cable

1x USB cable

1x User manual

1x Packaging box

Optional: 1x GPS SE100 (if chosen during purchase)
