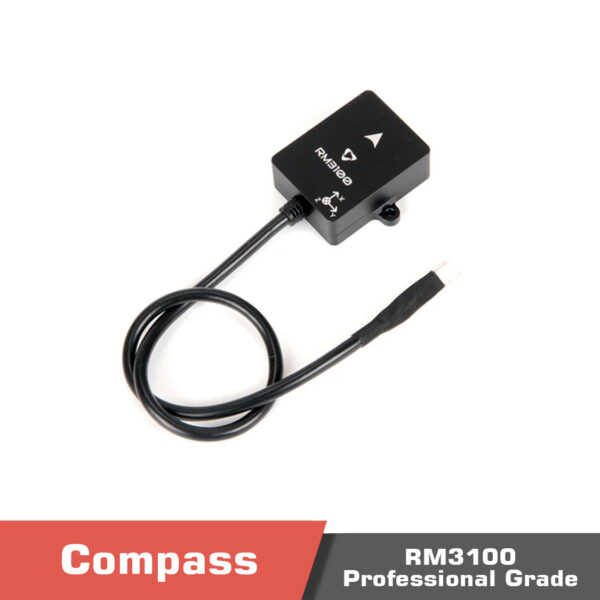

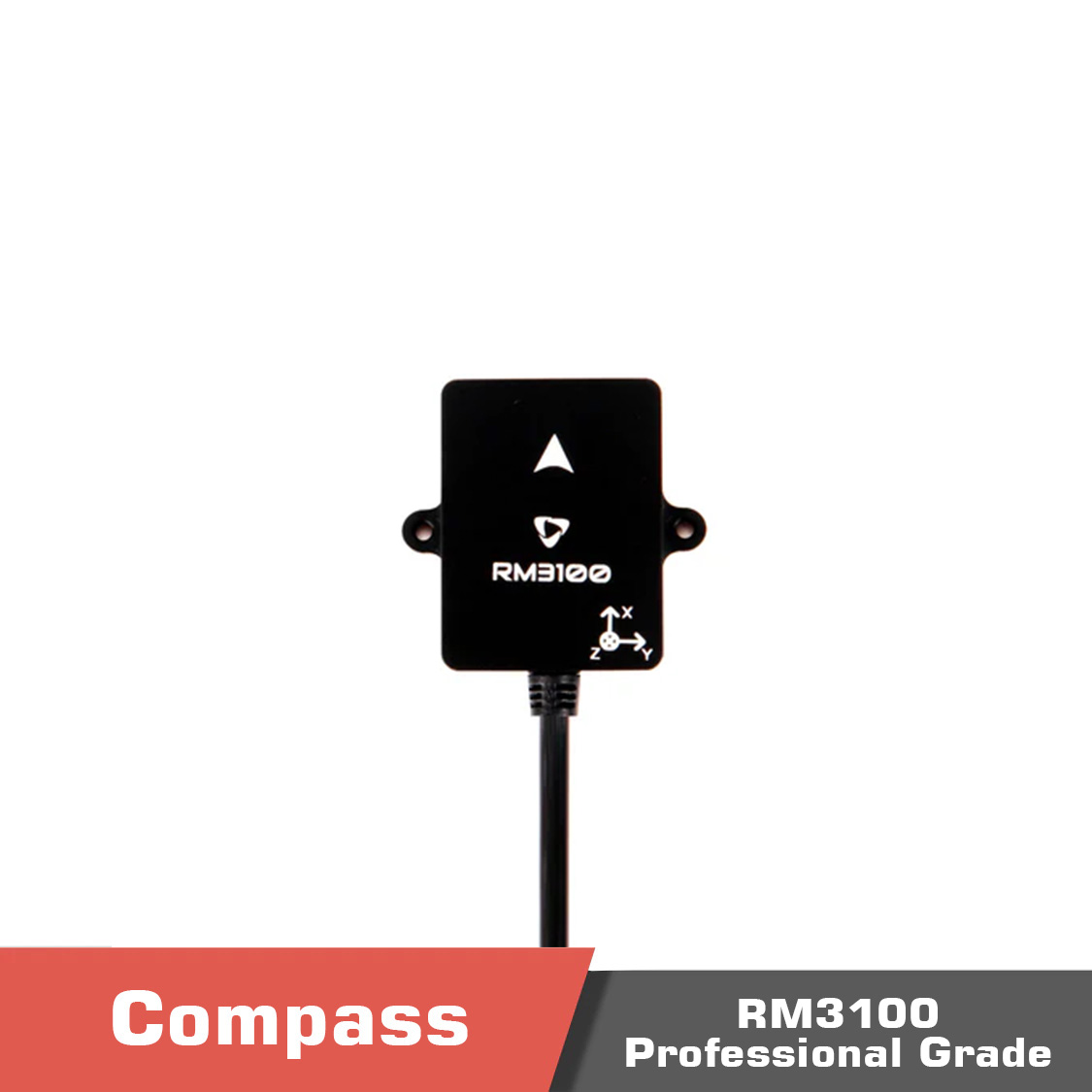

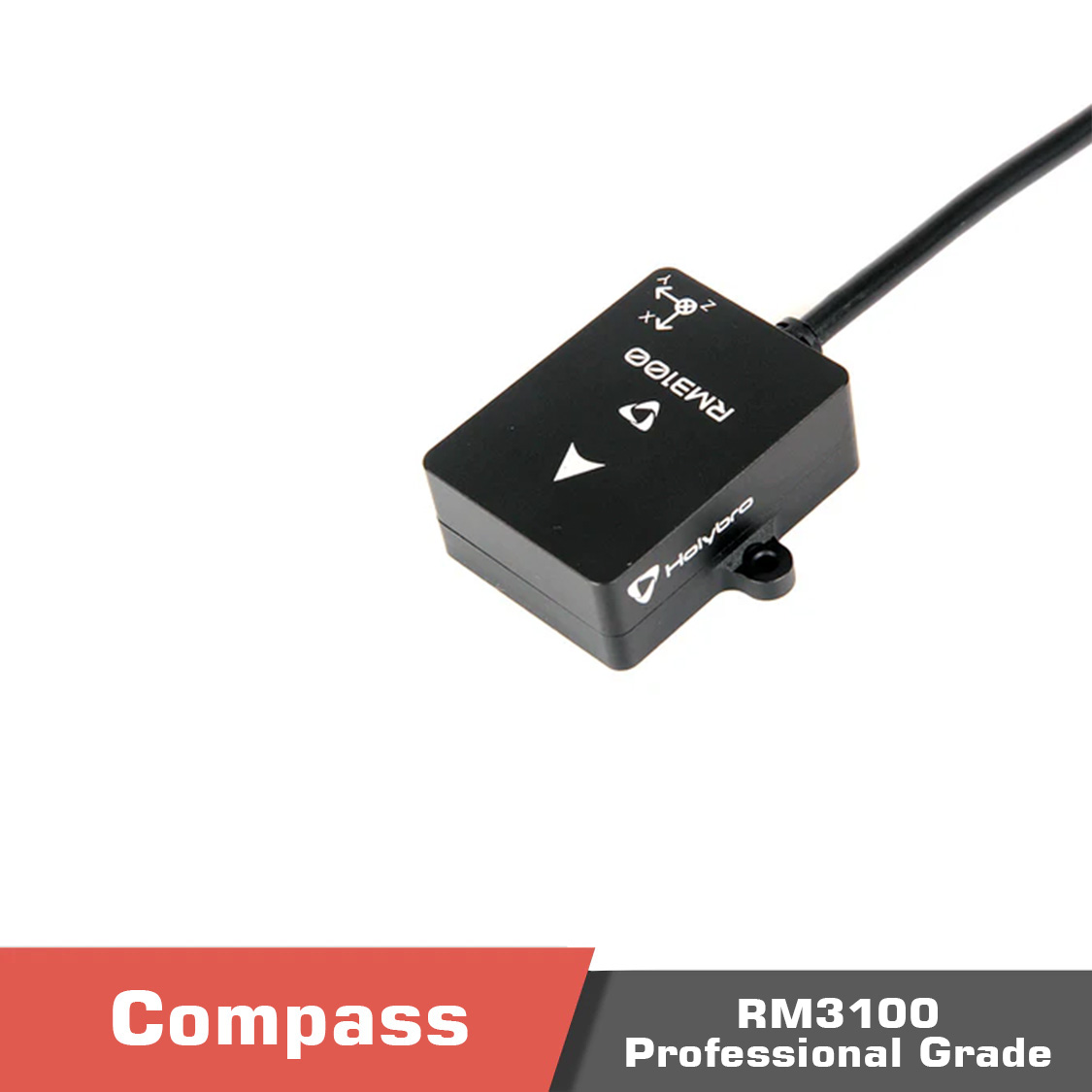

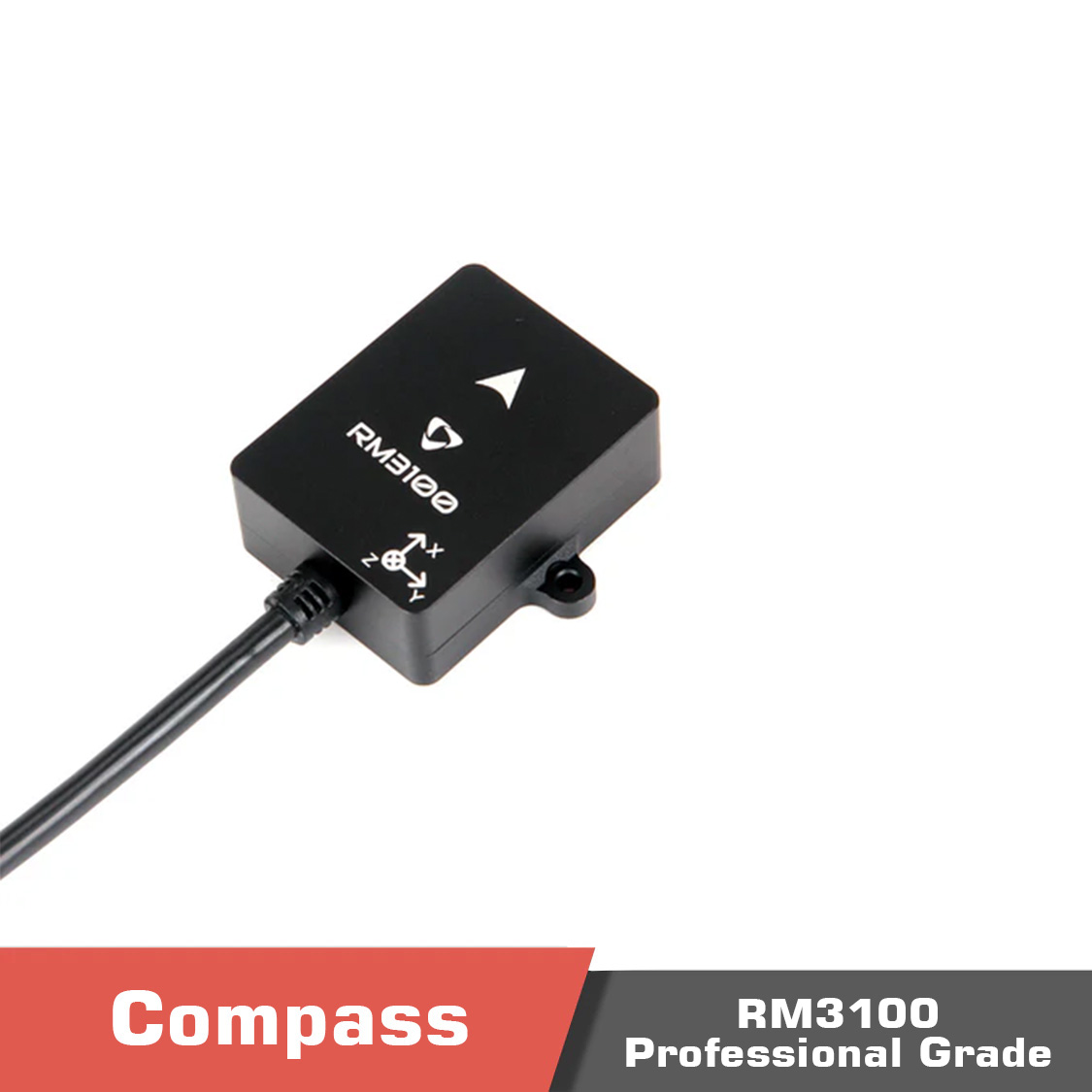

Professional Grade DroneCAN RM3100 Compass
The DroneCAN RM3100 compass/magnetometer is a professional-grade instrument known for its impeccable signal-to-noise ratios, lack of drift, and precise magnetic field measurements. The Professional Grade DroneCAN RM3100 Compass ensures professional-grade heading accuracy and orientation calculations for your vehicle, allowing it to navigate through waypoints with minimal magnetic interference from motor coils and metal parts. Optimal performance is achieved by placing the module far from these potential sources of interference, eliminating a significant point of failure in unmanned vehicles.
High-Resolution 3-Axis Magnetometer with DroneCAN Connectivity
Based on PNI’s proprietary magneto-inductive technology, this 3-axis magnetometer offers exceptional resolution (10 nT) and ultra-low magnetic hysteresis, making it ideal for applications demanding high heading accuracy. Its DroneCAN output protocol ensures robust and reliable connectivity over relatively large distances. The simplified wiring system allows for a single bus connection for all DroneCAN peripherals, freeing up serial ports on the flight controller.
If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.
DroneCAN RM3100 Compass – FAQ
1. What is the main function and design of the DroneCAN RM3100 Compass?
The DroneCAN RM3100 Compass is a high-precision 3-axis magnetometer designed for UAV navigation systems. It provides accurate magnetic field measurements and reliable heading information via the DroneCAN communication protocol.
2. What sensor technology is used in the RM3100 module?
It uses the PNI RM3100 magneto-inductive sensor, offering high resolution, low noise, and excellent stability compared to conventional Hall-effect sensors, ensuring precise and drift-free magnetic field detection.
3. What communication and integration features does it support?
The module operates over the DroneCAN protocol, allowing reliable and noise-resistant data transmission between the compass and flight controller. It is compatible with Pixhawk, CUAV, and other PX4-based autopilot systems.
4. What are the available purchasing and delivery options for the DroneCAN RM3100 Compass?
It is sold as a standalone module including cables and mounting accessories. Motionew provides global shipping with delivery tracking and estimated lead times displayed during checkout.
5. Does Motionew support OEM and bulk purchasing for this model?
Yes. OEM and bulk purchasing options are available for UAV manufacturers and integrators. Buyers can request custom cable lengths, connector types, and volume-based pricing through Motionew’s sales department.
6. What documentation and support resources are provided?
Comprehensive wiring diagrams, setup manuals, and configuration guides are available in the product documentation section. Firmware updates and technical assistance are provided through Motionew and DroneCAN developer support channels.
Specifications
Specifications
Specification
| Parameter | Cycle Counts | Units | ||
| 50 | 100 | 200 | ||
| Field Measurement Range | -800 to +800 | μT | ||
| Gain | 20 | 38 | 75 | LSB/μT |
| Sensitivity | 50 | 26 | 13 | nT |
| Noise | 30 | 20 | 15 | nT |
| Max Single-Axis Sample Rate (Divide by 3 for Max. 3-Axis Sample Rate) |
1600 | 850 | 440 | Hz |
| Operating Temperature | -40 to +85 | C | ||
Documents
Product contents
Product contents
Package Includes：
1x DroneCAN RM3100 Compass (27cm cable)
