Description

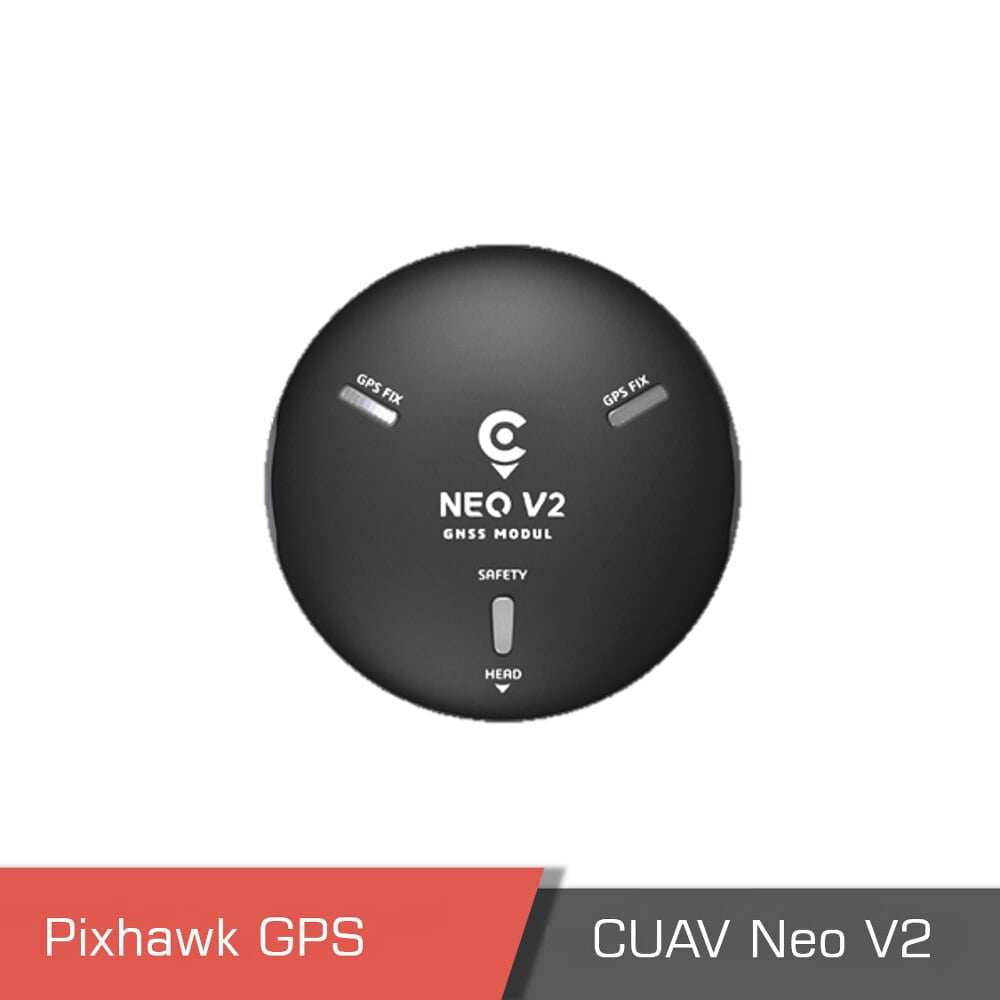

CUAV NEO GPS V2 with 3D Overview

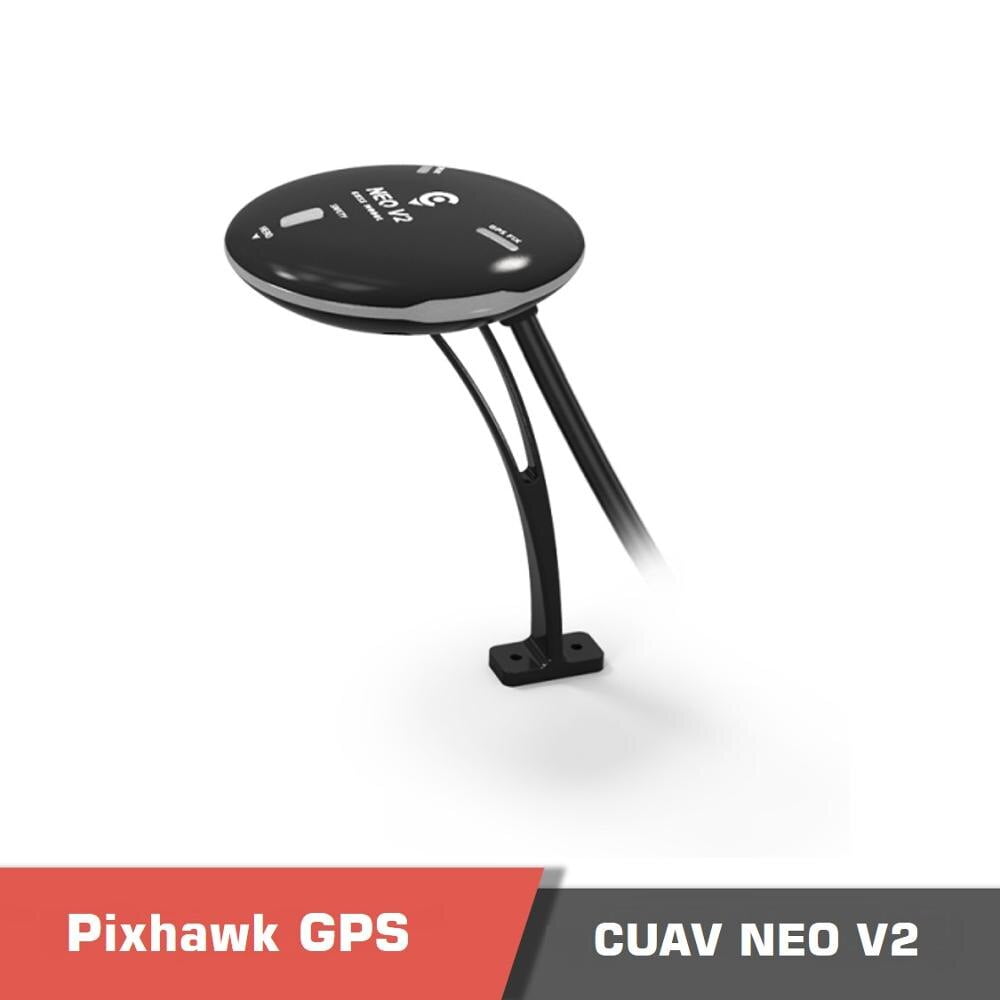

CUAV NEW Ublox NEO M8N GPS Module is equipped with a plastic shell and a stand holder for Flight Controllers. It is a GPS Compass for different available flight controllers in the market, including Pixhack, CUAV V5+, and compatible with both PX4 and ardupilot-based flight controllers.

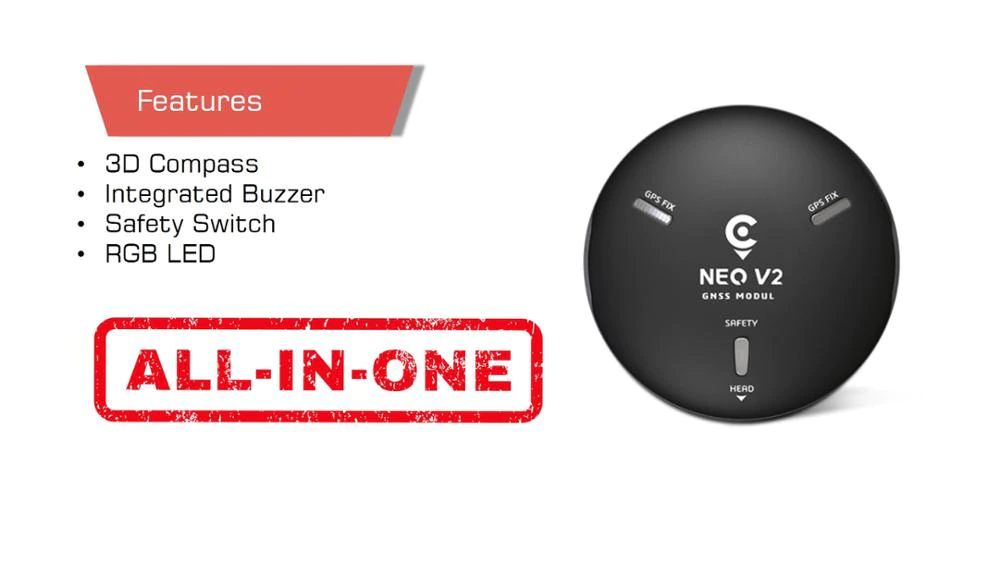

All-in-one compact 3D compact, with an integrated buzzer for audio alarms, a safety switch to enable arming of the vehicle, and RGB LED which shows the status of the GPS, and changes the color in case of 3D fix. Based on the ublox m8n GPS module. IST8310 IC is used as the compass.
If you have any questions regarding our products, use the Motionew team of experts page to consult our engineering team.
FAQ – CUAV NEO GPS V2 with 3D
1. What is the NEO V2 with 3D used for?
It is a GNSS and compass module designed for UAVs, providing accurate positioning and heading in a single unit.
2. What satellite systems and sensor capabilities does it support?
It supports multiple satellite constellations such as GPS, GLONASS, BeiDou, and Galileo, and includes a 3-axis compass for reliable heading data.
3. What are key hardware or performance specifications?
It uses a Ublox M8N GNSS receiver, an IST8310 compass, provides horizontal positioning accuracy of about 2.5 m, and supports update rates up to 10 Hz.
4. What are the power, size, and environmental specifications?
It operates at about 5 V input, measures around 60 × 60 × 16 mm, weighs about 33 g, and functions in a temperature range of roughly -10 °C to +70 °C.
5. What should be considered during installation for optimal performance?
It should be mounted with a clear sky view for GNSS reception, away from motors, power wiring, and metal parts to avoid compass interference, and oriented correctly for heading.
6. Is it suitable for professional or industrial UAV deployments?
Yes, its multi-GNSS support, integrated compass, and compact design make it suitable for mapping, inspection, and industrial UAV applications.
Specifications
Specifications
| Weight | 48g |

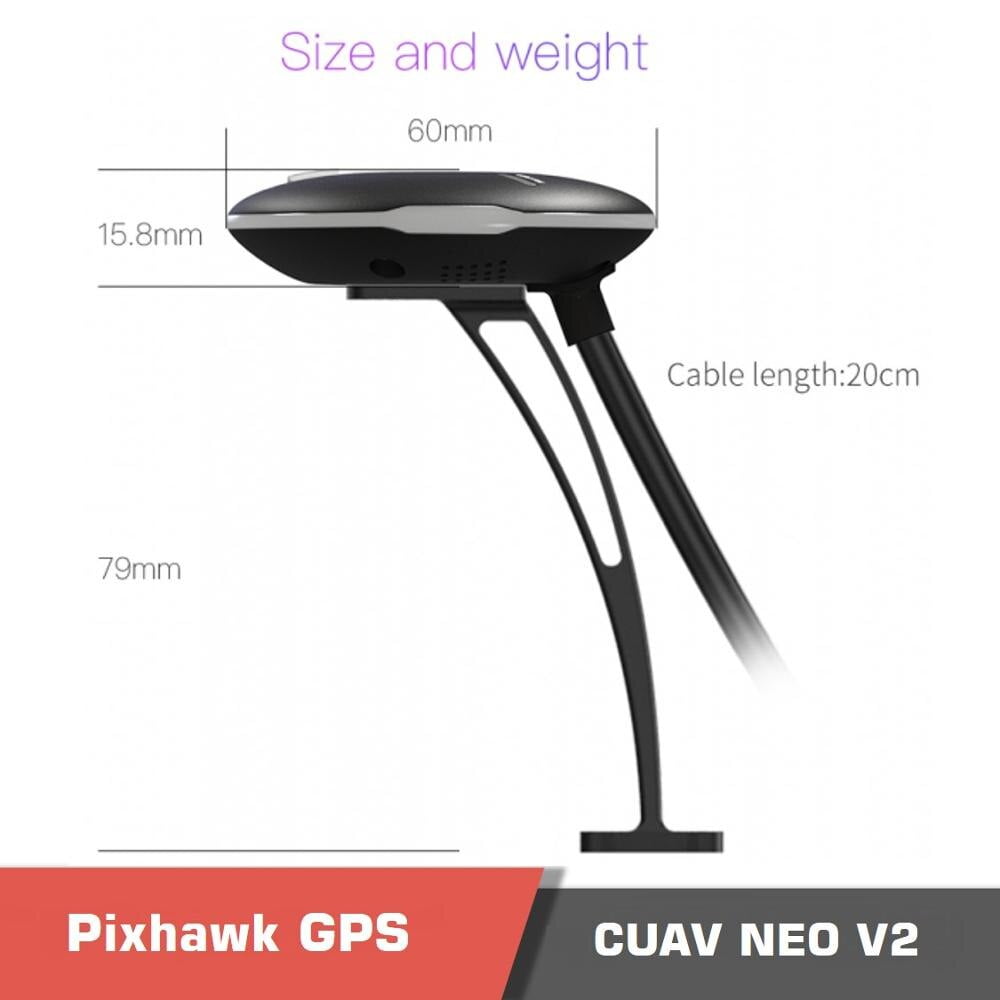

| Dimension | 60*15.8mm |
| Operating temperature | -20 ~ 85°C |
| GPS Location | UBLOX M8N |
| Accuracy | 3D Fix |
| Update rate | 10Hz(Max) |
| Input voltage | 5V |

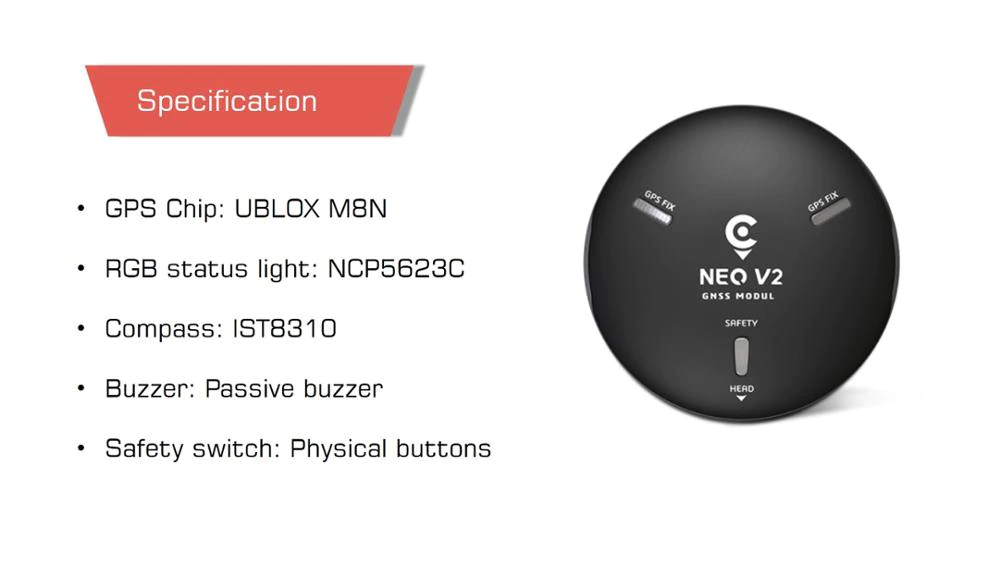

| GPS Chip | UBLOX M8N |
| RGB status light | NCP5623C |
| Compass | IST8310 |
| Buzzer | Passive buzzer |
| Safety switch | Physical buttons |
| Accuracy | 3D positioning |
| Update rate | 10Hz (Max) |
| Acquisition | Cold Start 26S | Hot Start 1.5S | Aided Start 2S | Reacquisition 1S |
| Receiver type | 72 Channels |
| Sensitivity | Tracking & Navigation -167dBm |
| Cold Start | -148dBm |
| Hot Start | -156dBm |
| Reacquisition | -160dBm |
| Functional | Advanced jamming |
| Input voltage | 5V |
| Temperature | -10-70 ° C |
Product contents
Product contents
1xNEO GPS V2 Module
1XNEO GPS V2 Stand
Documents
Documents
Please contact us for more information.
