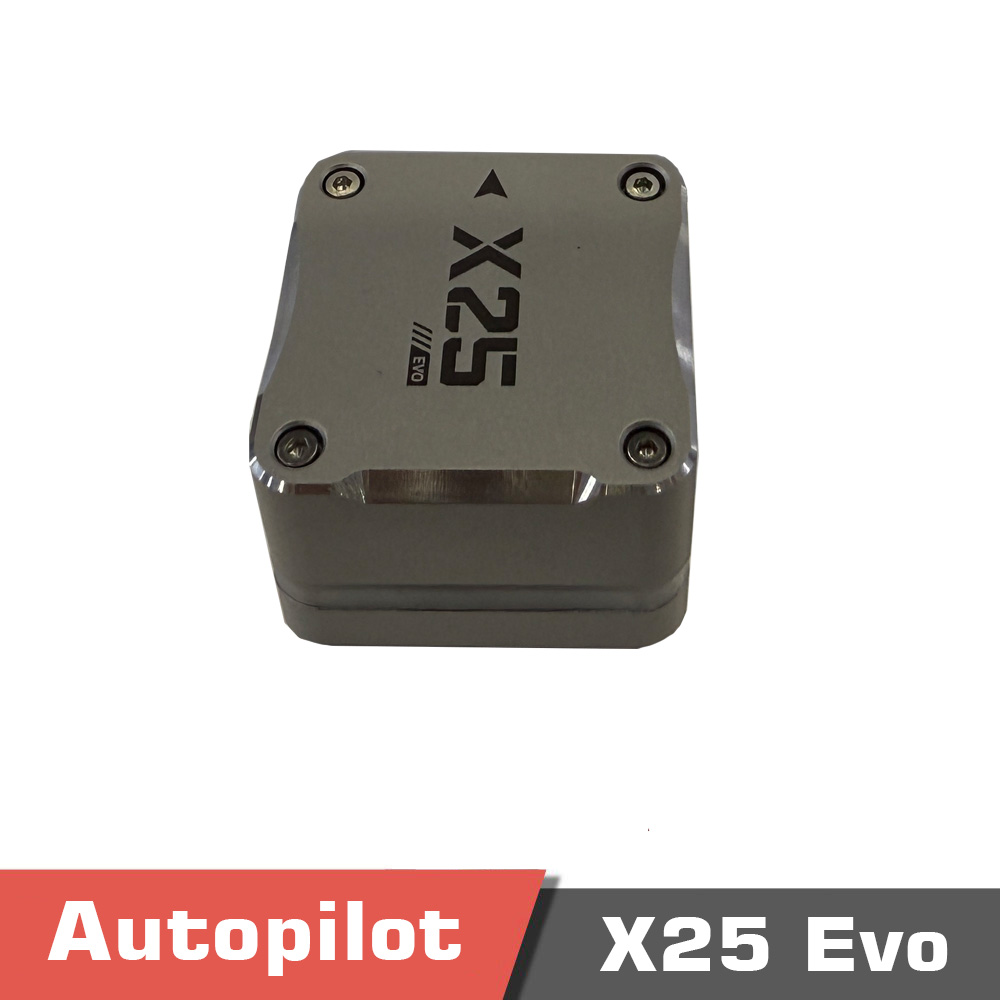

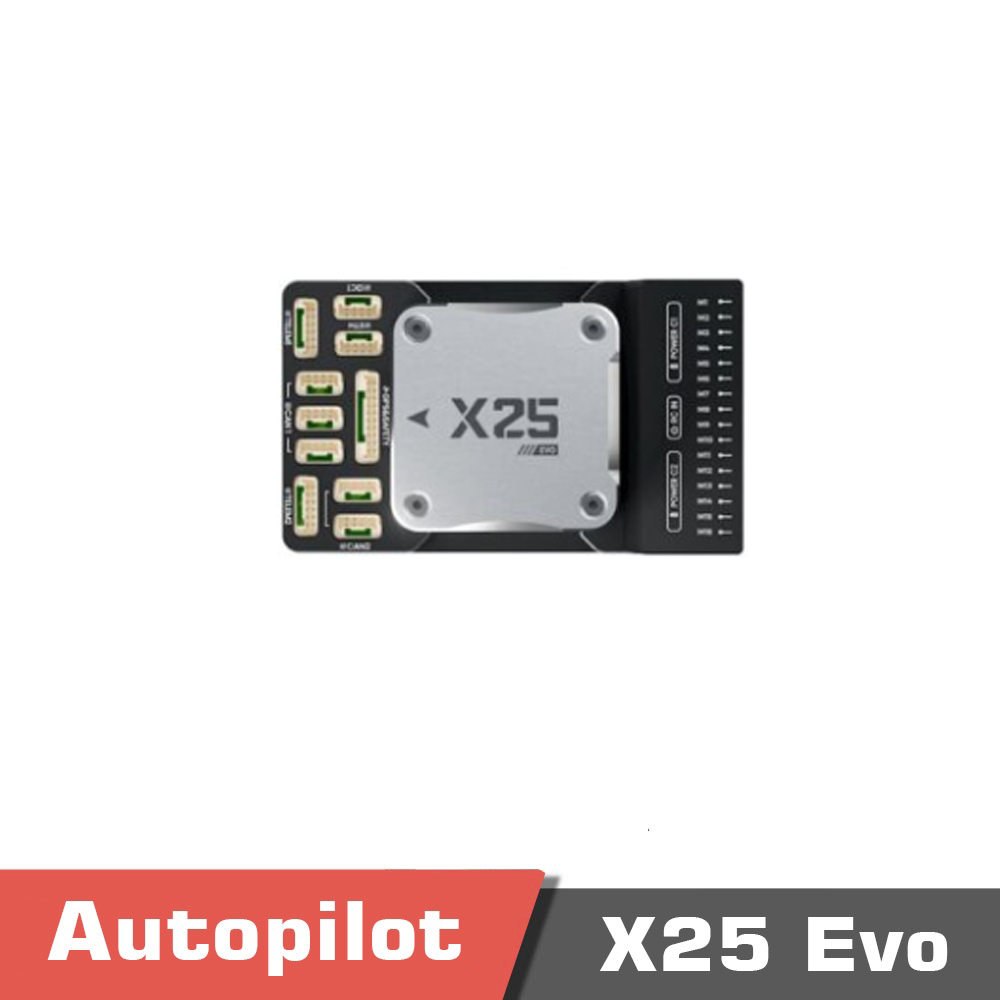

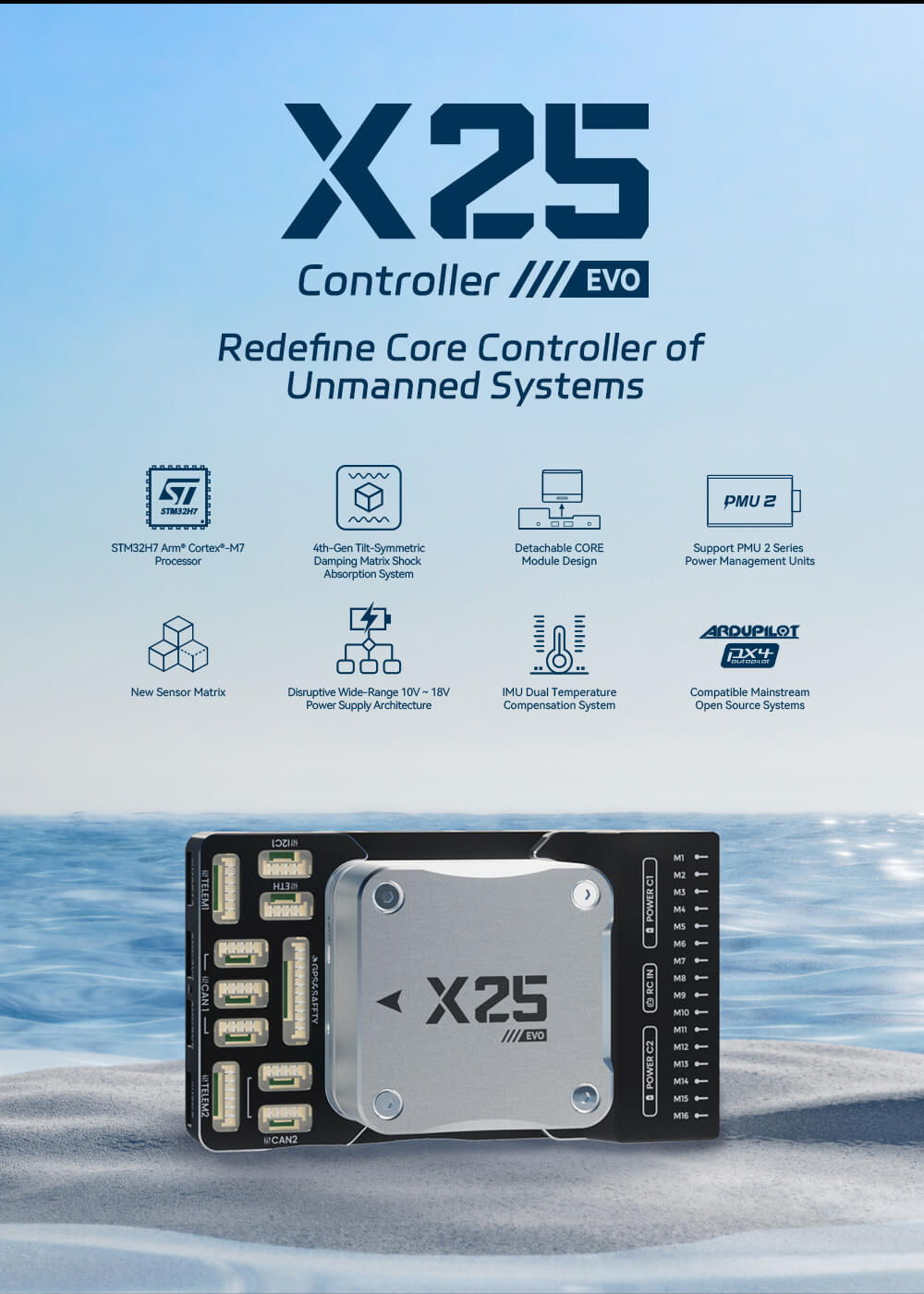

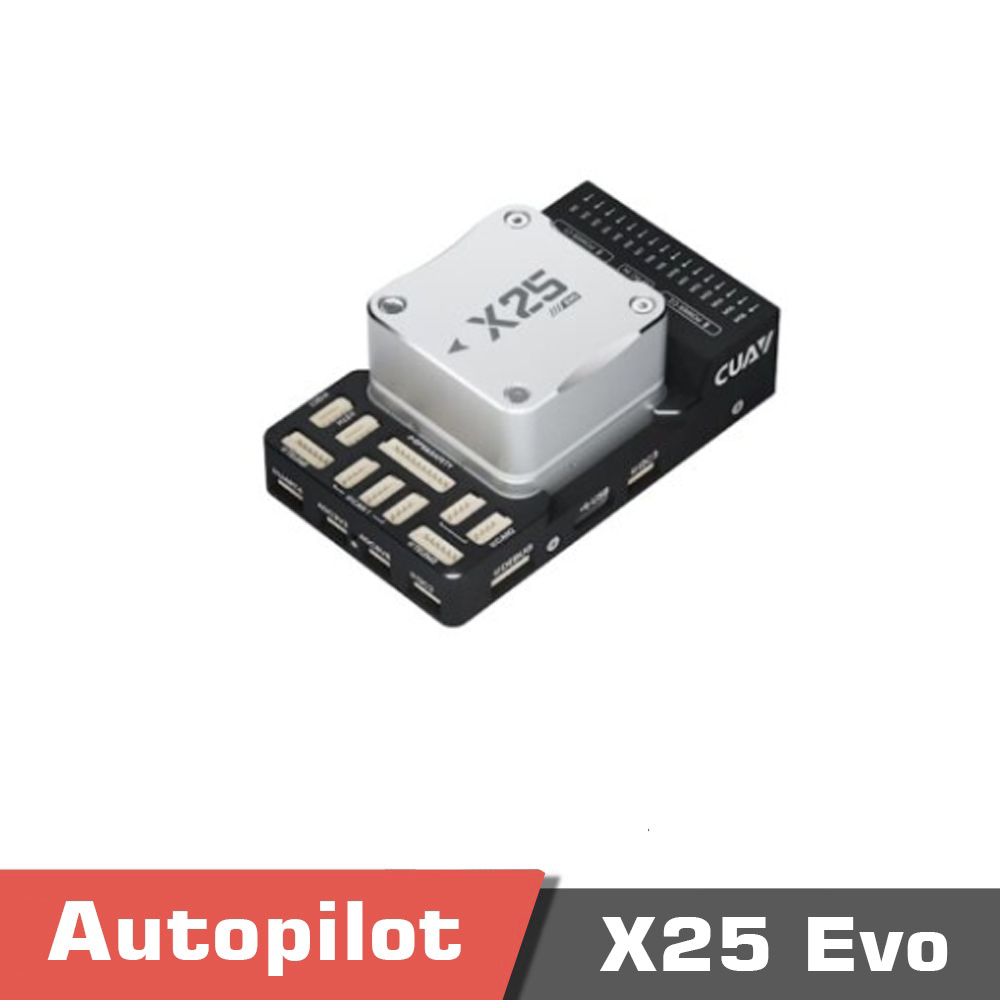

CUAV X25 Evo – Next-Gen Flight Controller for Advanced UAV Systems

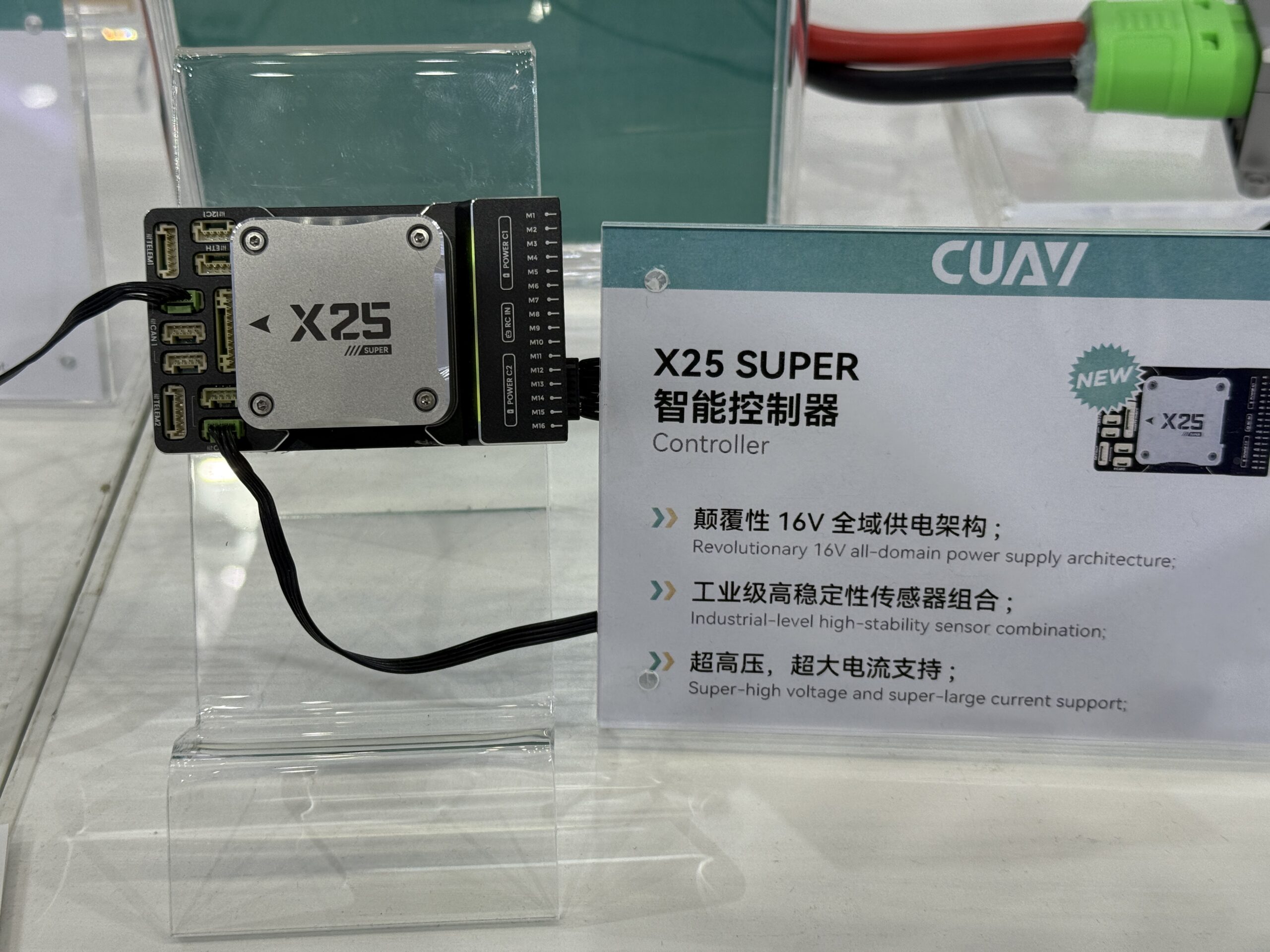

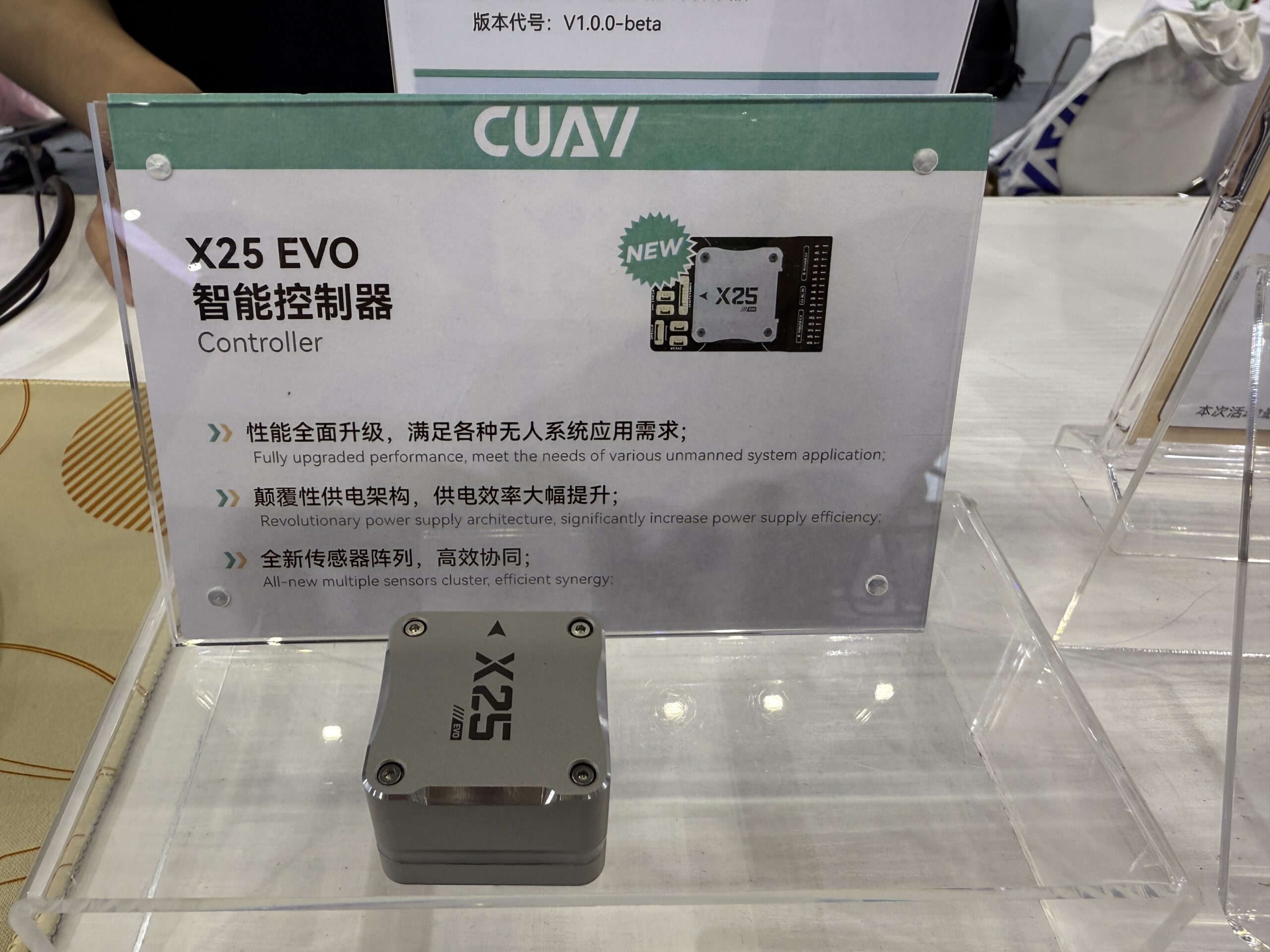

Unveiled at Shenzhen UASE 2025, the CUAV X25 Evo is a fully upgraded, high-performance flight controller designed for demanding unmanned system applications. Featuring a revolutionary power architecture, advanced sensor fusion, and optimized processing, the X25 delivers exceptional reliability, efficiency, and integration for next-gen UAV platforms.

Key Features:

  •  Fully Upgraded Architecture
    Designed to meet the needs of aerial, ground, and hybrid unmanned systems with expanded performance headroom.

  •  Revolutionary Power Supply Design
    Redefined power architecture offering significantly improved efficiency and stable operation under load.

  •  All-New Sensor Array
    Advanced sensor fusion using multiple synchronized IMUs, magnetometers, and barometers for ultra-precise navigation.

  •  High Compatibility
    Seamlessly integrates with PX4 and ArduPilot, supports CAN protocol for peripherals, GPS modules, and companion computers.

  •  Industrial Reliability
    Built for mission-critical operations with redundant systems, environmental protection, and real-time telemetry.

Whether used in professional multirotor, VTOL aircraft, or UGVs, the CUAV X25 sets a new benchmark in flight control performance for modern unmanned platforms.

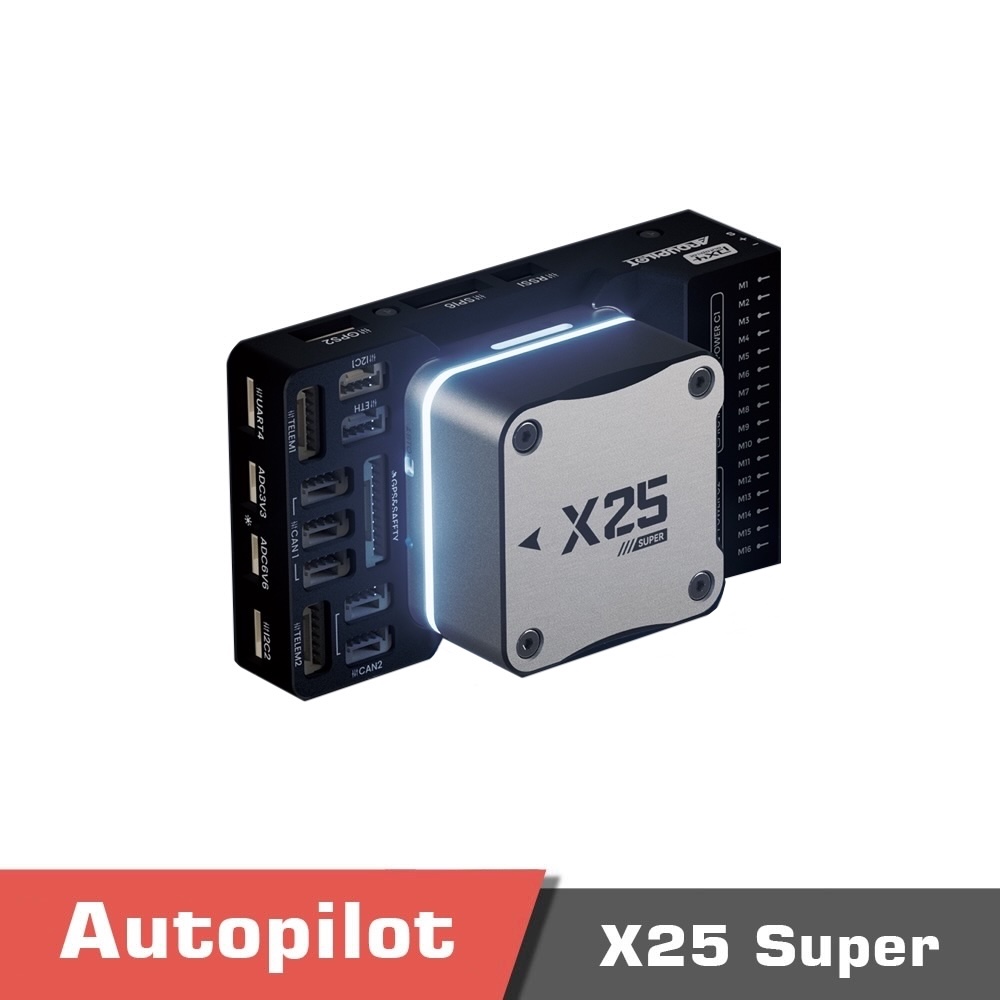

Cuav x25 super drone controller

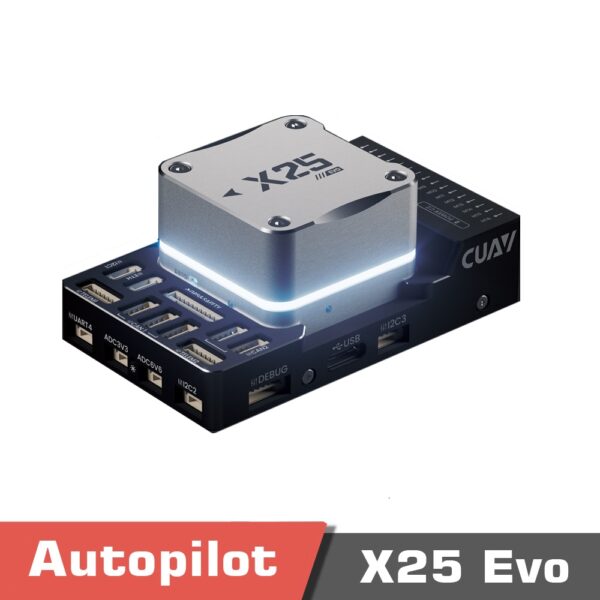

Advanced cuav x25 evo autopilot

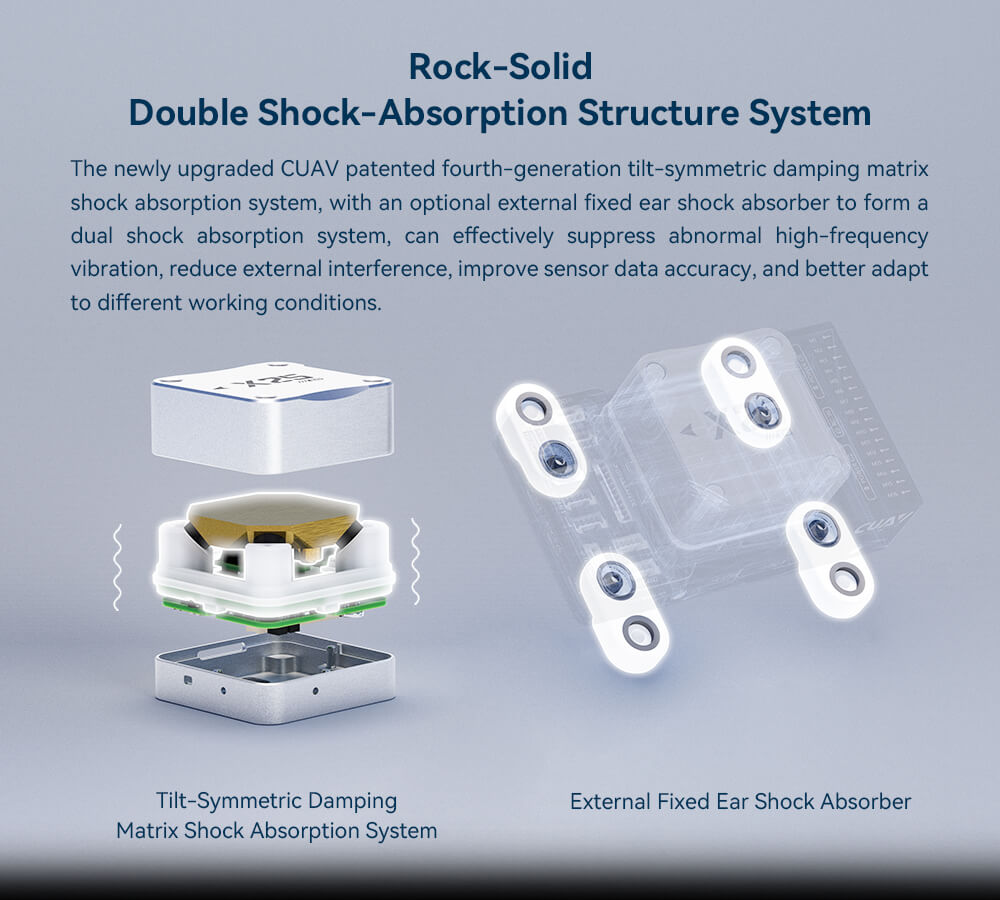

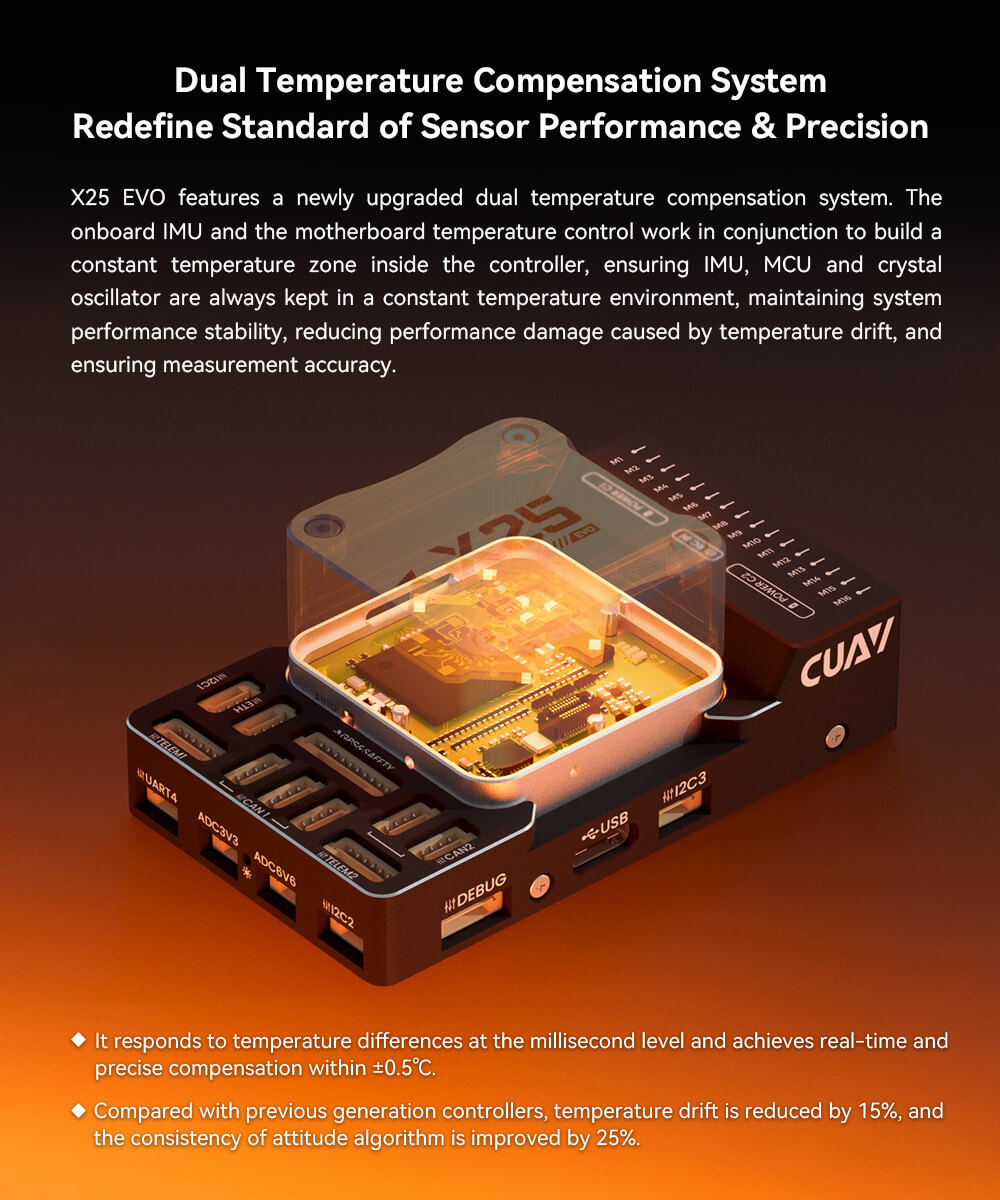

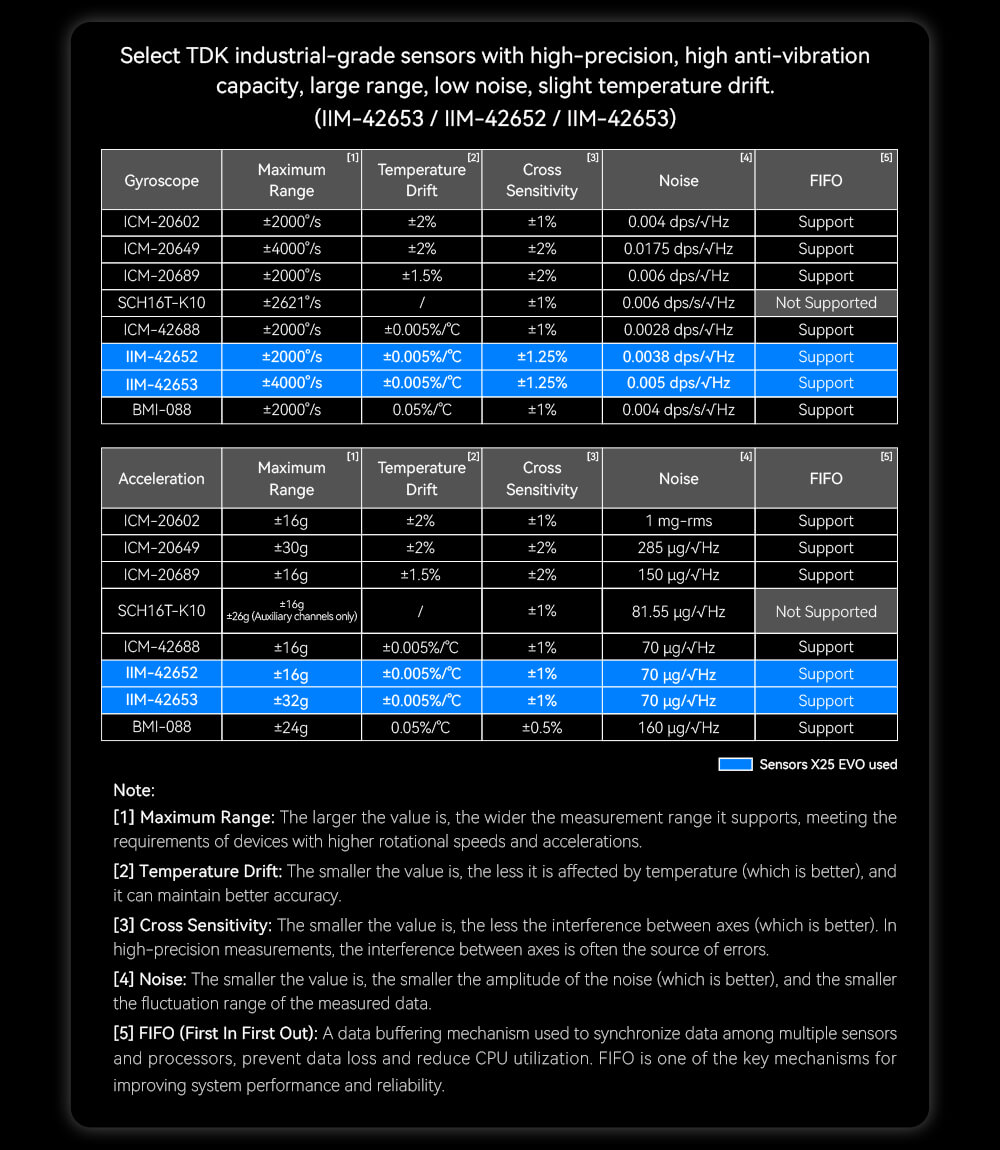

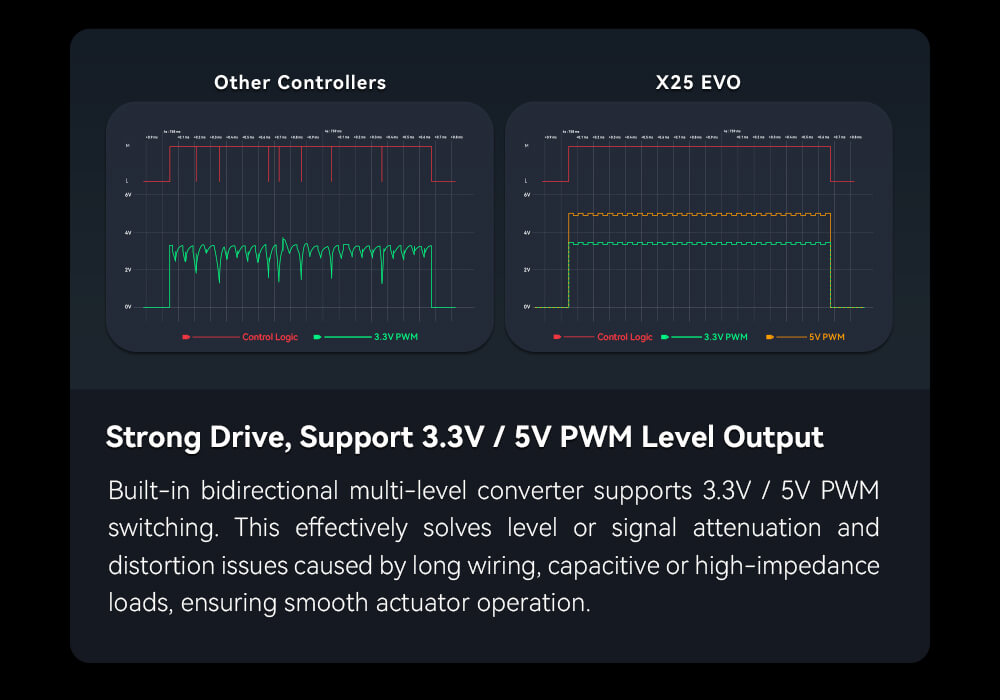

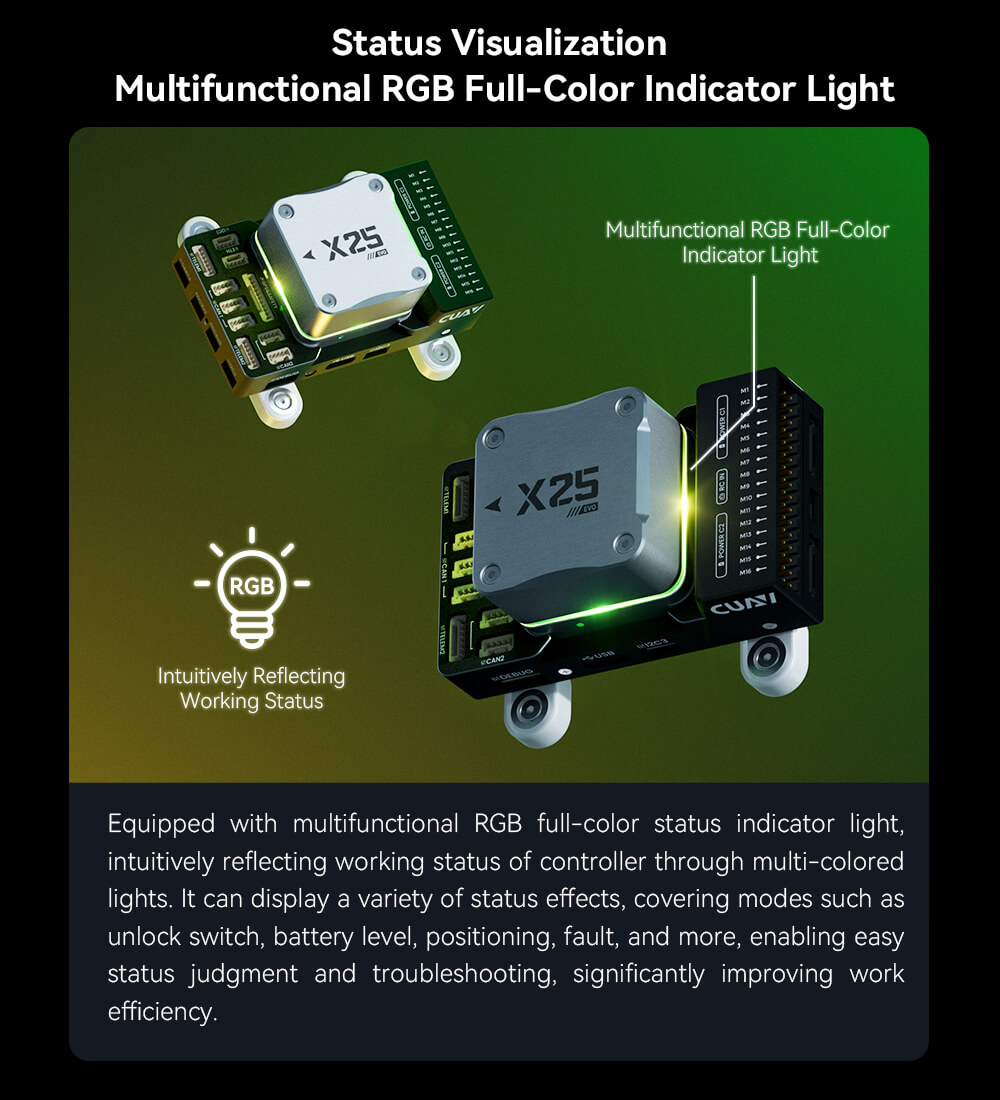

X25 evo autopilot flight moduleCuav x25 evo power architectureAdvanced imu barometer magnetometerTdk imu sensor performance chartStm32h7 processor 480mhz controllerTilt-symmetric shock absorption moduleDual temperature compensation flight controllerCan bus, ethernet, x25 evo, uav, monitoringX25 evo, pwm, can, uav, compatibilityCuav x25evo pmu voltage currentCuav x25evo pwm level outputCuav x25evo rgb status lightCuav x25evo six innovative details
If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

CUAV Pixhawk X25 Evo – FAQ

1.What is the Pixhawk X25 Evo used for?

The CUAV Pixhawk X25 Evo is a professional flight controller designed for multirotor, VTOL, and fixed-wing UAVs. It provides reliable navigation, advanced sensing, and rich connectivity for industrial, research, and commercial applications.

2.What processor does it use?

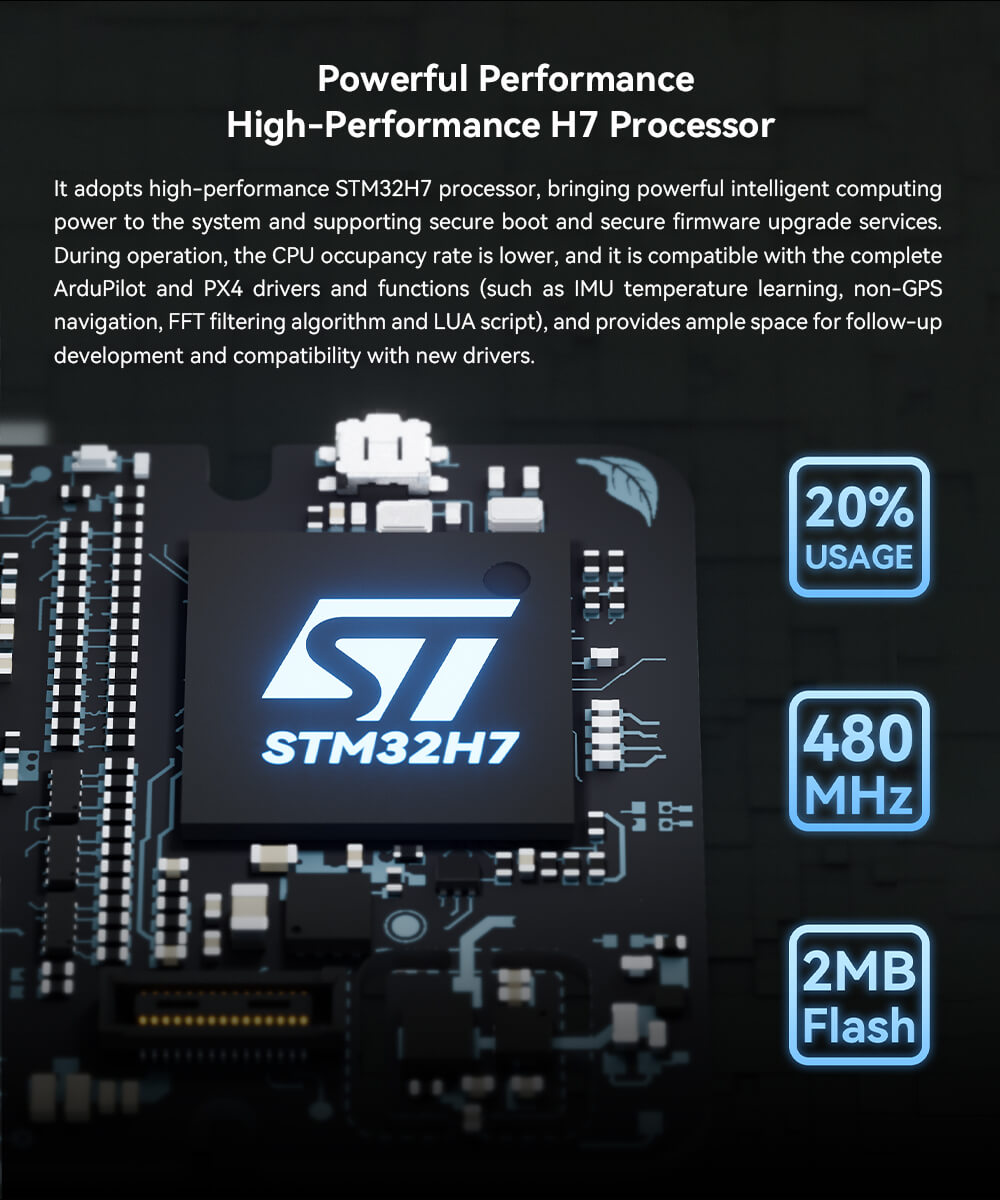

It runs on an STM32H7 Cortex-M7 processor at 480 MHz, ensuring high-speed data handling and stable autopilot performance.

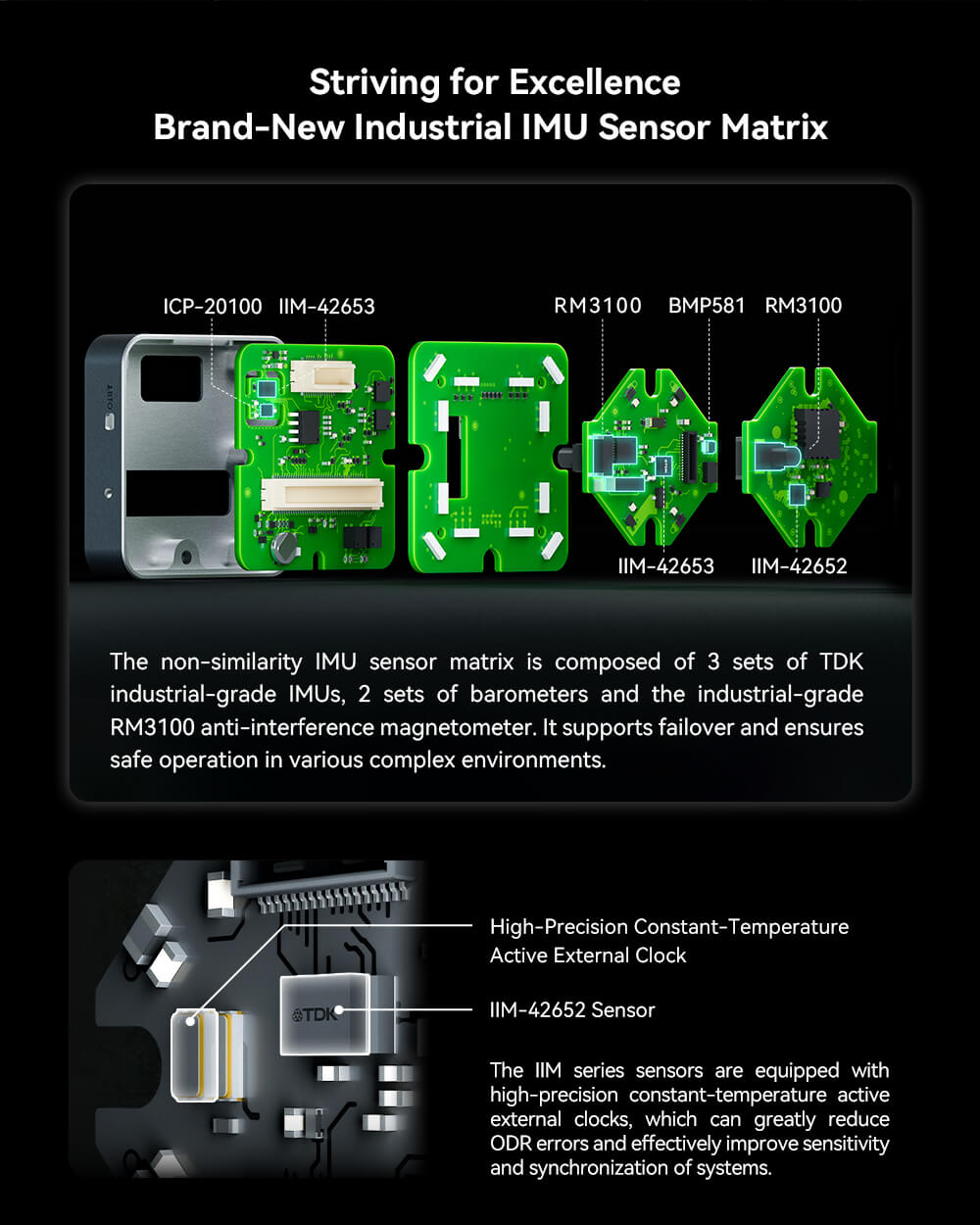

3.What sensors are included?

  • Dual IIM-42653 IMUs (gyro ±4000°/s, accel ±32 g)

  • Secondary IIM-42652 IMU (gyro ±2000°/s, accel ±16 g)

  • RM3100 magnetometer

  • Dual barometers (TDK ICP20100 + Bosch BMP581)

This redundancy improves stability and reliability during flight.

4.How many output channels does it support?

It supports 16 PWM outputs, allowing control of multiple motors, servos, and payload systems.

5.What connectivity options are available?

  • 2× GPS ports

  • 2× Telemetry ports

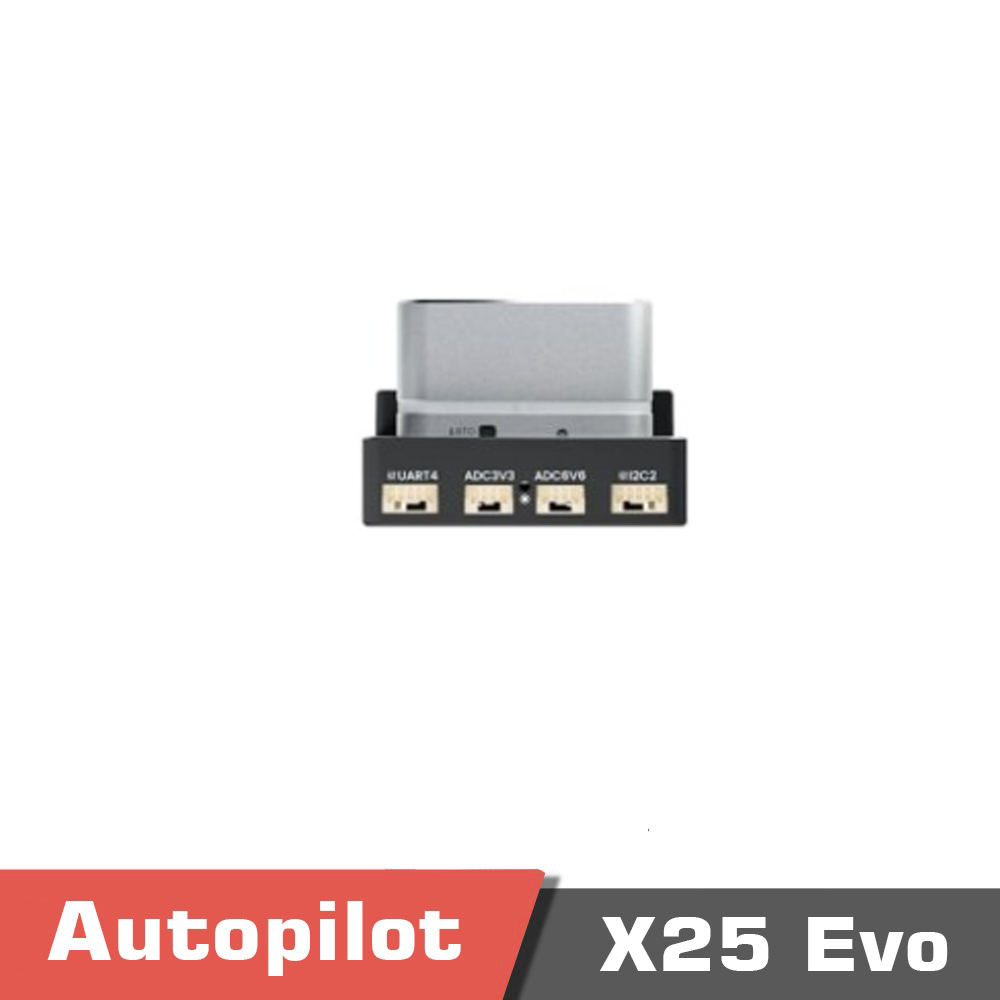

  • 1× UART4

  • 1× RC input (PPM/SBUS/DSM, etc.)

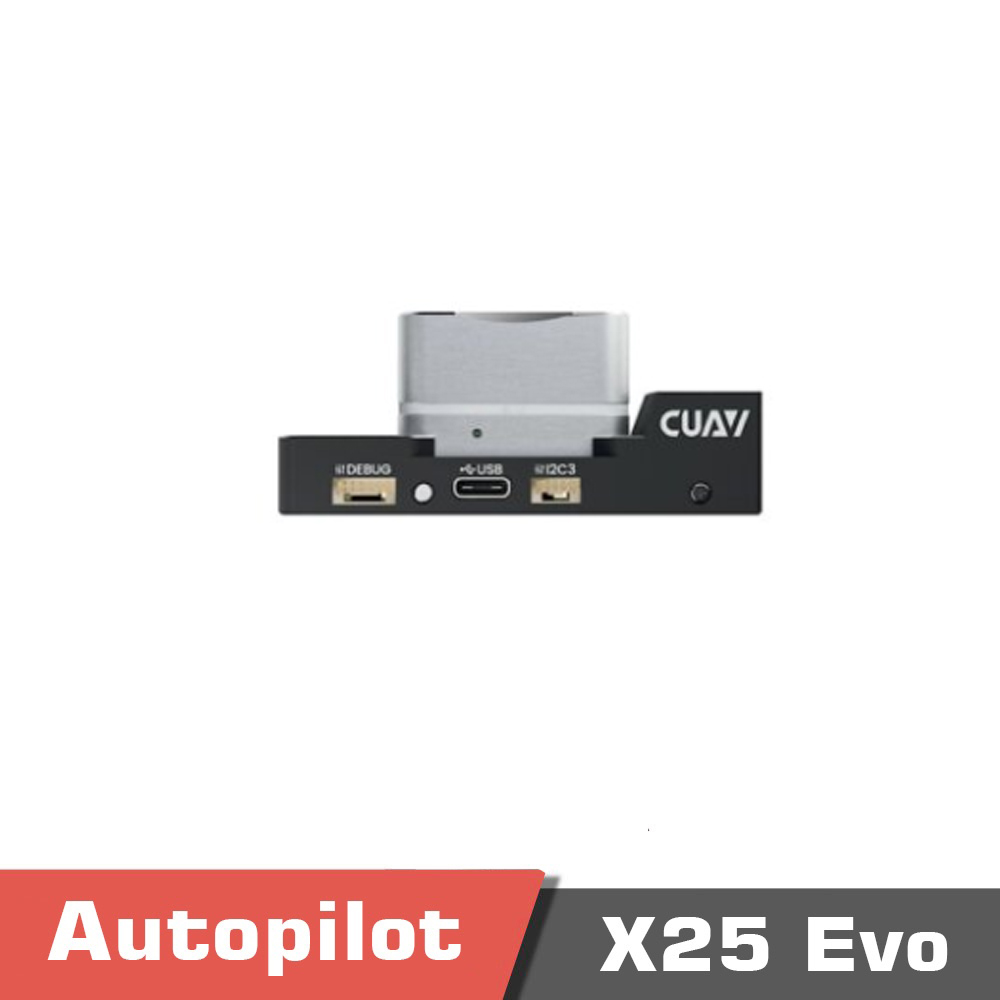

  • 1× Debug (DSU)

  • 1× Ethernet port

  • 3× CAN (CAN1) + 2× CAN (CAN2)

  • 1× SPI6 expansion

  • 1× USB Type-C

  • 3× I2C ports

  • RSSI, ADC (3V3 & 6V6)

6.What power supply does it use?

  • USB input: 4.75 V – 5.25 V

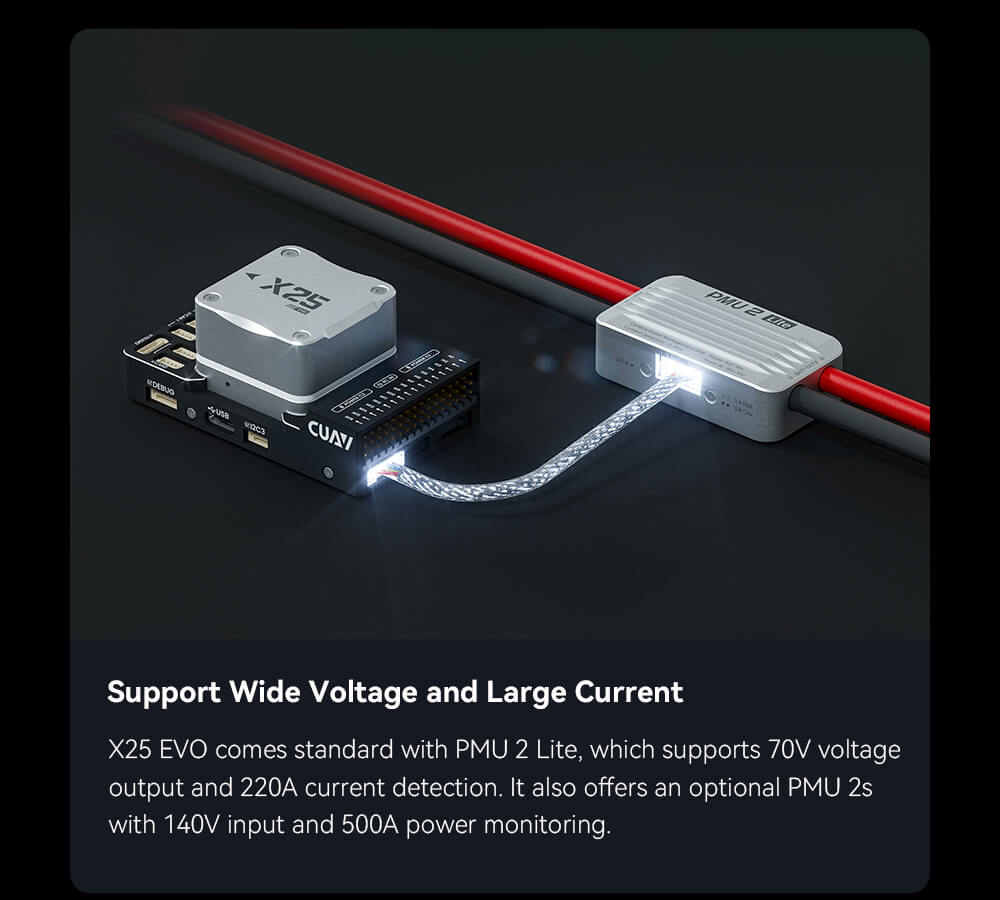

  • PMU 2 Lite module: 20 V – 70 V (typical 10–18 V)

Specifications

Specifications

Parameter Details
Processor STM32H7 Arm® Cortex®-M7, 480 MHz
Version x25Evo
Gyro & Accel IIM-42653 ×2Gyro Range: ±4000°/sAccel Range: ±32g
Secondary Gyro & Accel IIM-42652Gyro Range: ±2000°/sAccel Range: ±16g
Compass RM3100
Barometer TDK ICP20100 / Bosch BMP581
Port Type Quantity / Details
PWM OUT 16
Power IN (CAN) 2 (5055670871 / 505565001)
GPS Ports 2
TELEM Ports 2
UART4 Ports 1
RC IN 1 (PPM / SBUS / DSM, etc.)
DEBUG (DSU) 1
Ethernet (ETH) 1
CAN Bus CAN1 ×3, CAN2 ×2
SPI6 Expansion 1
ADC 3V3 1
ADC 6V6 1
USB Ports 1 (Type-C)
I2C Ports 3
RSSI Ports 1
Power Module PMU 2 Lite
Parameter Details
Input Voltage USB: 4.75V–5.25VPMU 2 Lite: 20V–70VPower: 10V–18V
Operating Temperature –20°C to +85°C
Size 76.5 × 45.45 × 32.2 mm
Weight 0.3kg
Product contents

Product contents

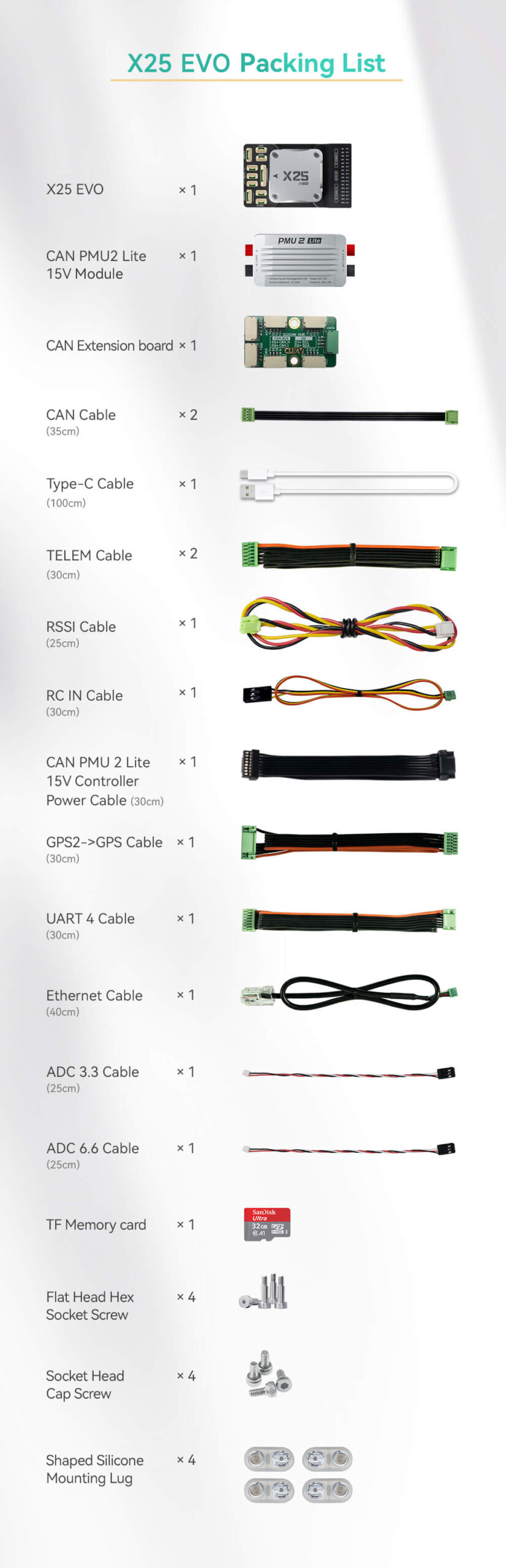

x25 EVO Packing List

  • X25 EVO × 1
  • CAN PMU2 Lite 15V Module × 1

  • CAN Extension Board × 1

  • CAN Cable (35 cm) × 2

  • Type-C Cable (100 cm) × 1

  • TELEM Cable (30 cm) × 2

  • RSSI Cable (25 cm) × 1

  • RC IN Cable (30 cm) × 1

  • CAN PMU2 Lite 15V Controller Power Cable (30 cm) × 1

  • GPS2 → GPS Cable (30 cm) × 1

  • UART4 Cable (30 cm) × 1

  • Ethernet Cable (40 cm) × 1

  • ADC 3.3 Cable (25 cm) × 1

  • ADC 6.6 Cable (25 cm) × 1

  • TF Memory Card (SanDisk Ultra 32GB) × 1

  • Flat Head Hex Socket Screw × 4

  • Socket Head Cap Screw × 4

  • Shaped Silicone Mounting Lug × 4
