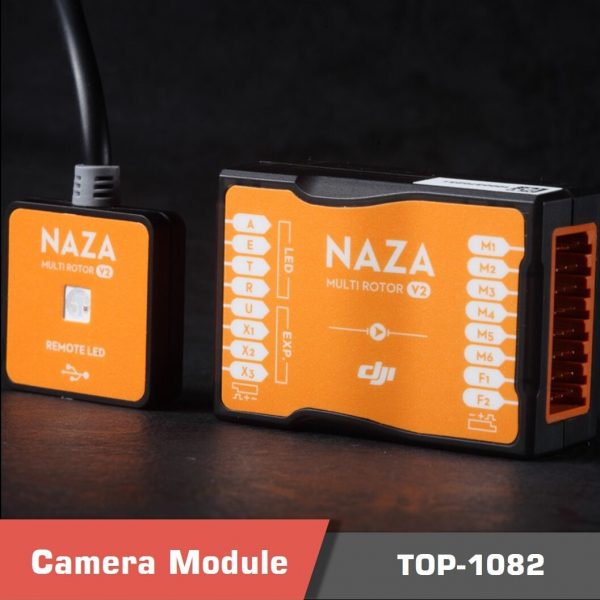

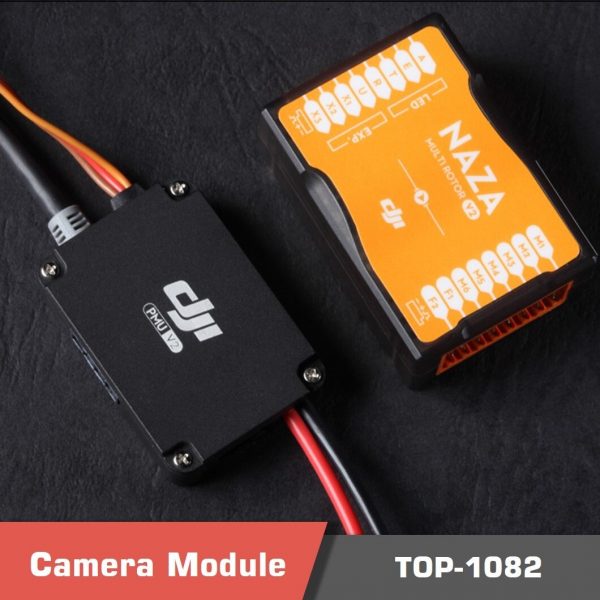

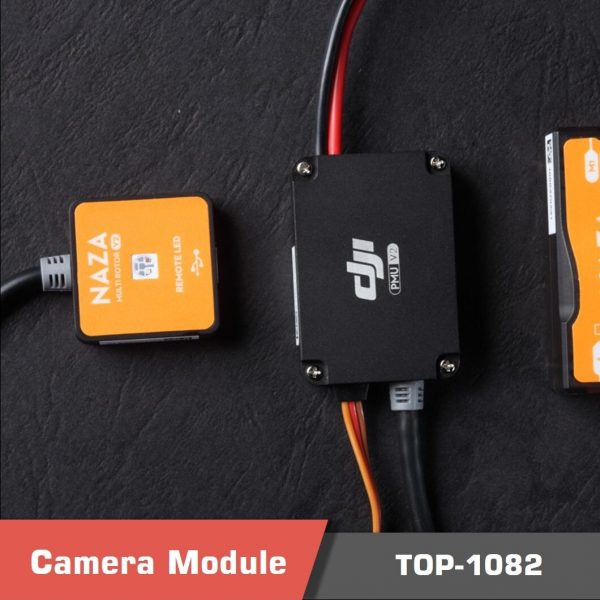

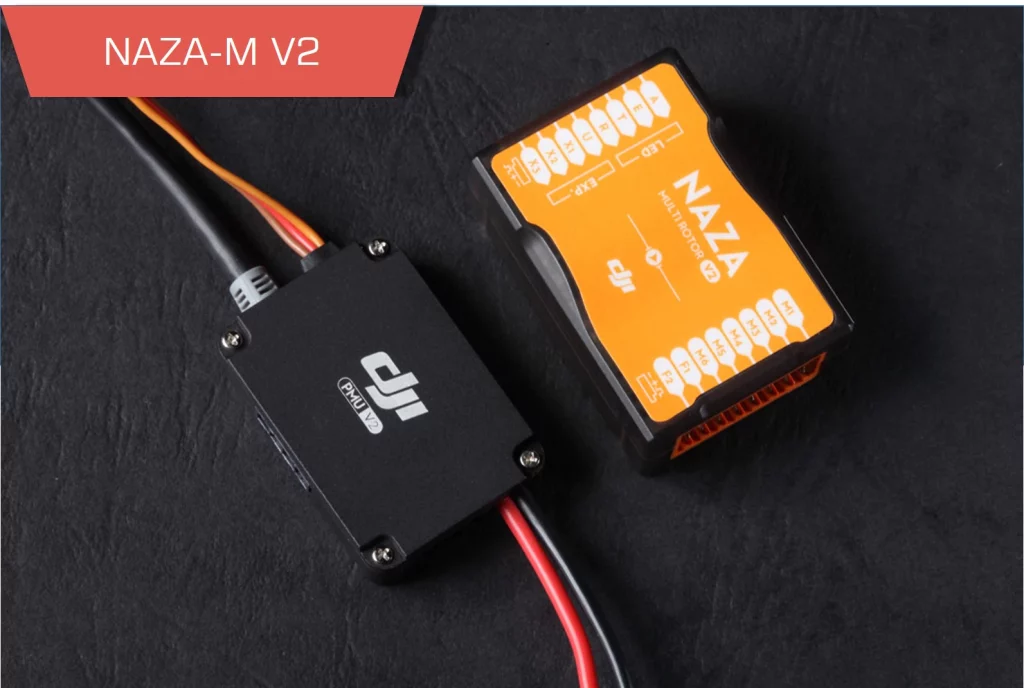

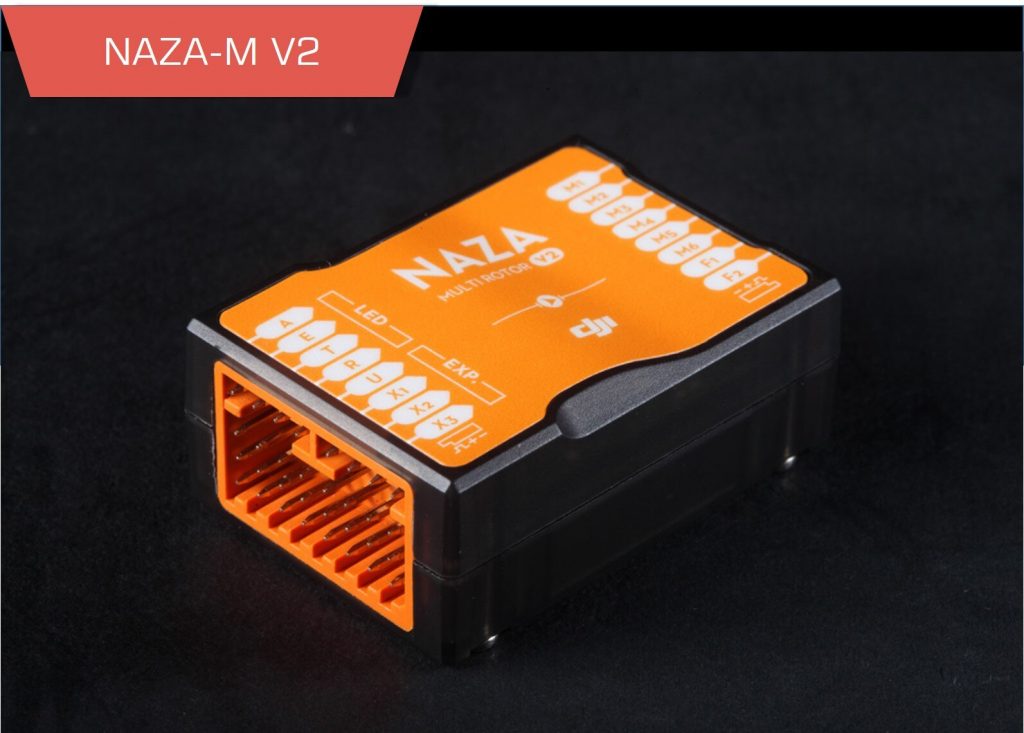

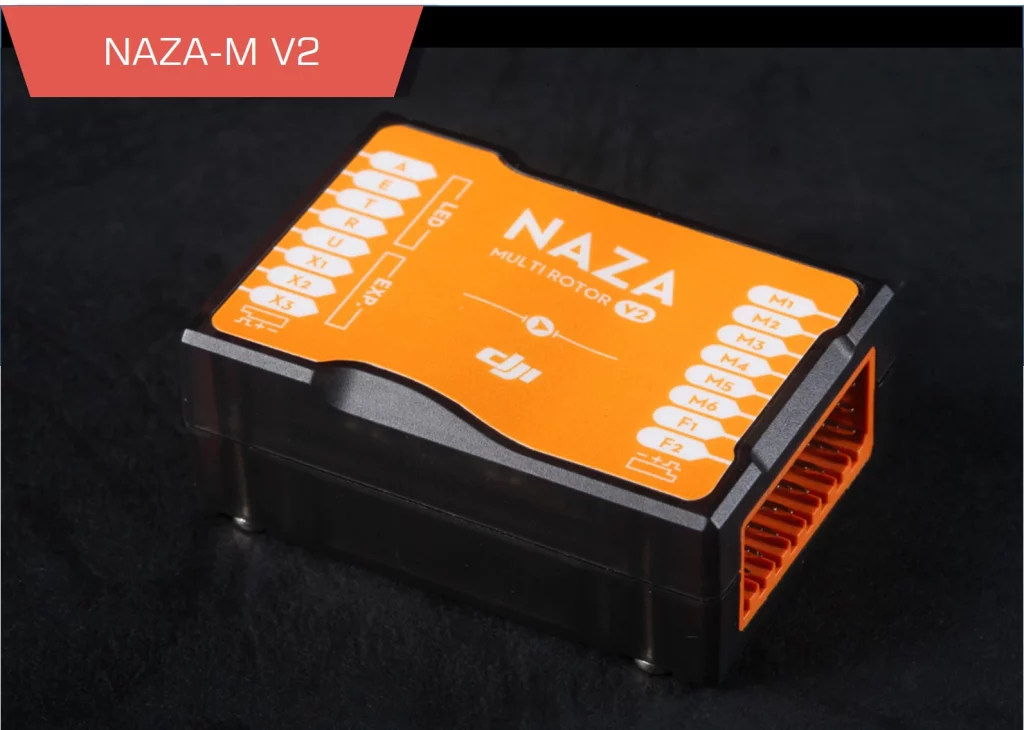

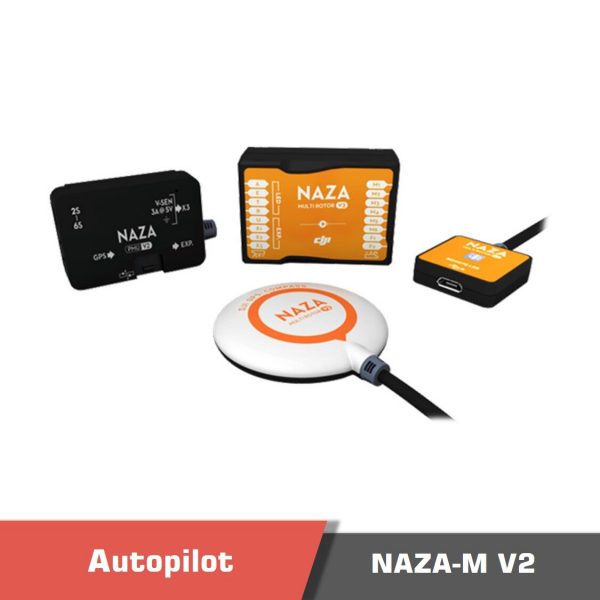

DJI Naza V2 Flight Controller with GPS
Description
Overview
The Naza-M V2 is a powerful drone flight controller for enthusiast, commercial and industrial flyers. It’s easy to install, simple to configure and above all, extremely stable. Nine types of traditional motor mixes are supported, making it ideal for every setup.
FREE GROUND STATION SUPPORT
16 point Ground Station is available free for both iPad and PC, without serial number verification. 2.4G Bluetooth Datalink required.
ADVANCED ATTITUDE STABILIZATION ALGORITHMS
The Naza-M V2 autopilot drone boasts the extraordinary stability you would expect of all DJI flight control systems and combines it with unparalleled maneuverability with and without GPS. Built into it are automatic GPS course correction plus GPS and compass interference monitoring, which combine to offer more stable flight and minimal magnetic interference.
TAKEOFF ASSISTANCE
Drift-free, stable take offs on different surfaces is ensured with Takeoff Assistance.
NTELLIGENT ORIENTATION CONTROL (IOC)
Forward on a multirotor is normally the direction the nose is facing, which can get confusing when turning, but with IOC switched on, direction is hugely simplified.
In Home Lock mode, forward is the direction from the multirotor’s current position back to home. See below for details.
MOTOR FAILURE PROTECTION
If a hexrotor or octorotor equipped with a Naza-M V2 suffers a motor failure in flight in attitude or GPS mode, it will maintain its altitude and rotate around the stopped motor. This allows it to fly safely back to home and land.
FAILSAFE AND AUTO GO HOME SUPPORT
If the connection between the multirotor and the remote control are disconnected during flight, a failsafe system will activate. Provided there was enough GPS signal at the time of the disconnection, the multirotor will fly back to its point of takeoff and land automatically. This feature can also be triggered manually using the One-Key Go-Home function activated using Assistant.
Naza-M V2 Features
- All-in-one Design
- Nine Types of Multi-rotors Supported
- Free Ground Station Function
- New Assistant Software for Smartphone

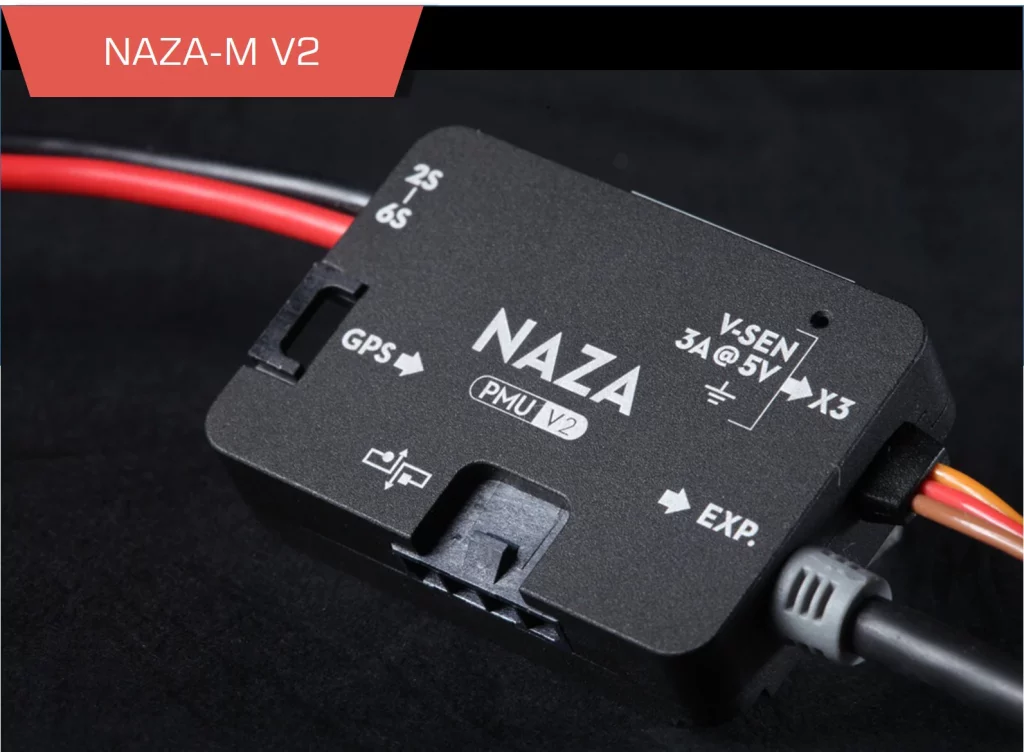

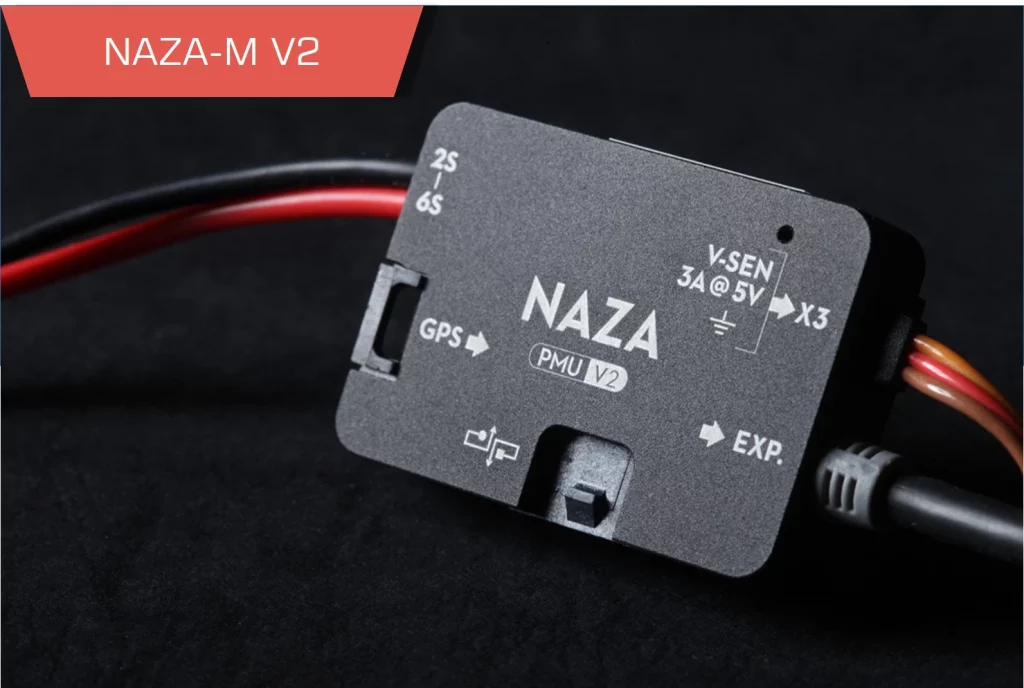

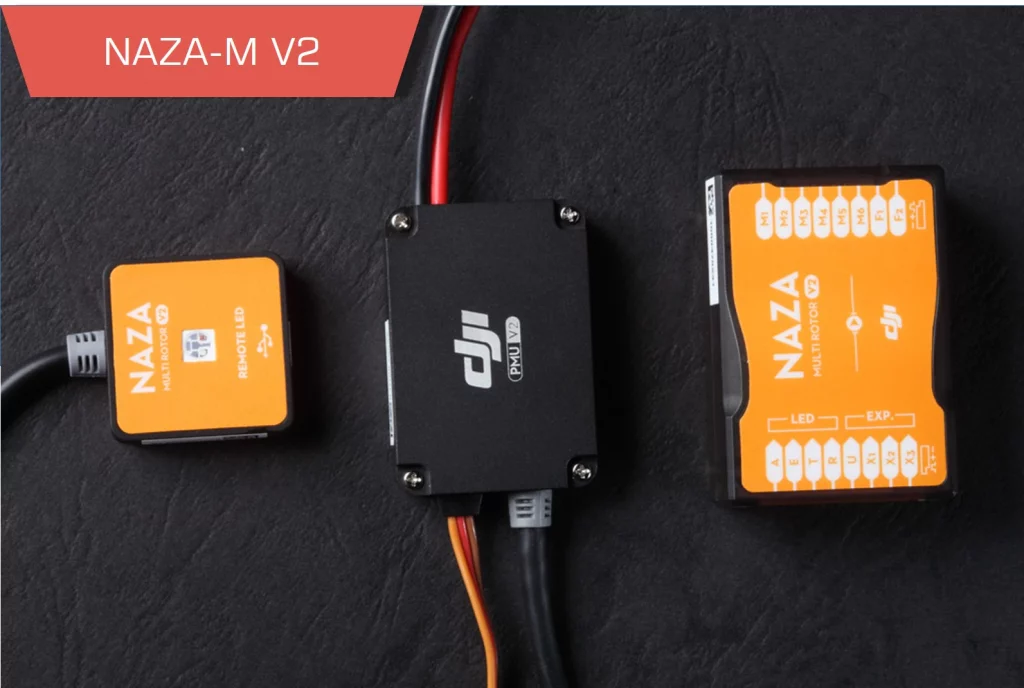

- Independent PMU with amazing function extension
- Enhanced Failsafe Mode
- Two Levels of Low Voltage Protections
- Multi-rotor One-power Output Fail Protection
- Advanced & Improved Attitude Stabilization Algorithm
- Multiple Flight Control Modes/Intelligent Switching
- New Assistant Software & Firmware Online Update
- GPS Module Available/Accurate Position Hold
- iOSD mini supported
- Intelligent Orientation Control
- Motor Arm and Motor Dis-arm
- PPM, S-BUS & Ordinary Receiver Supported

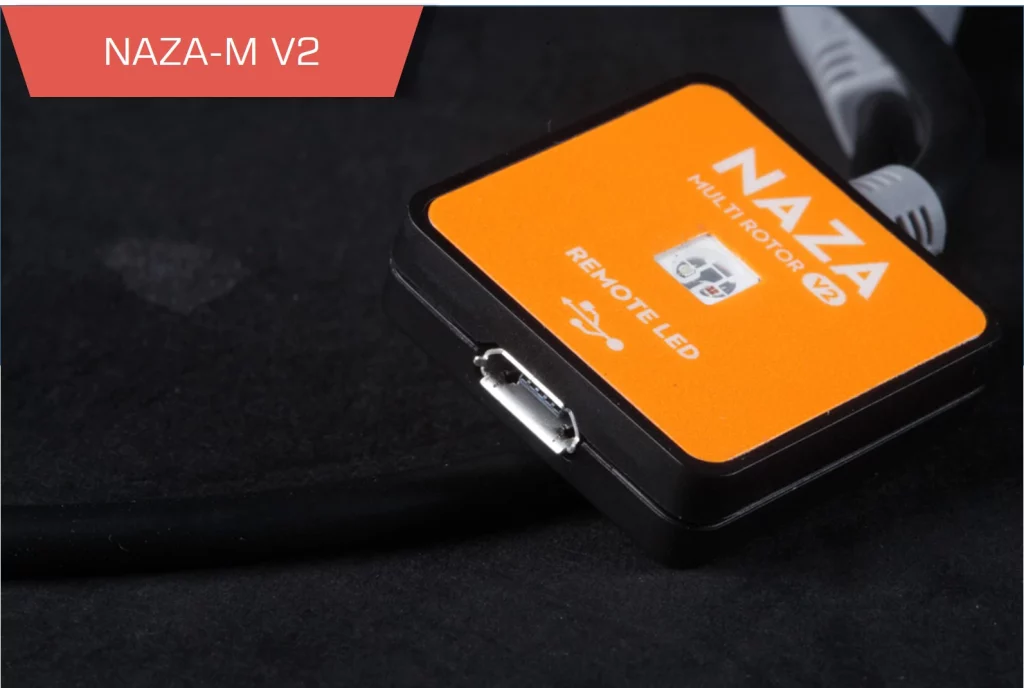

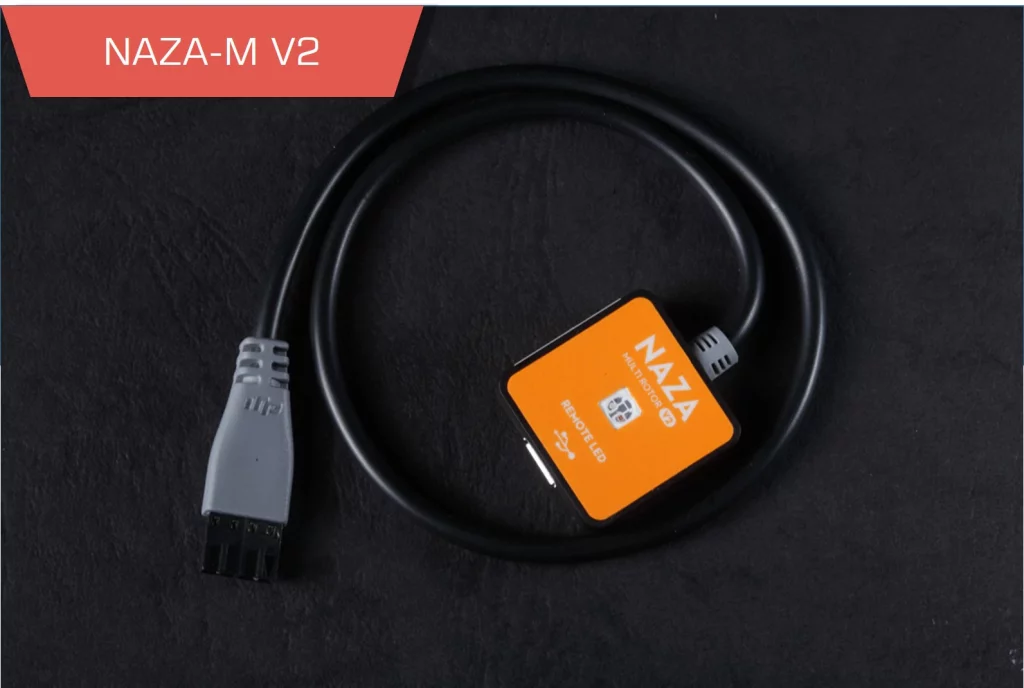

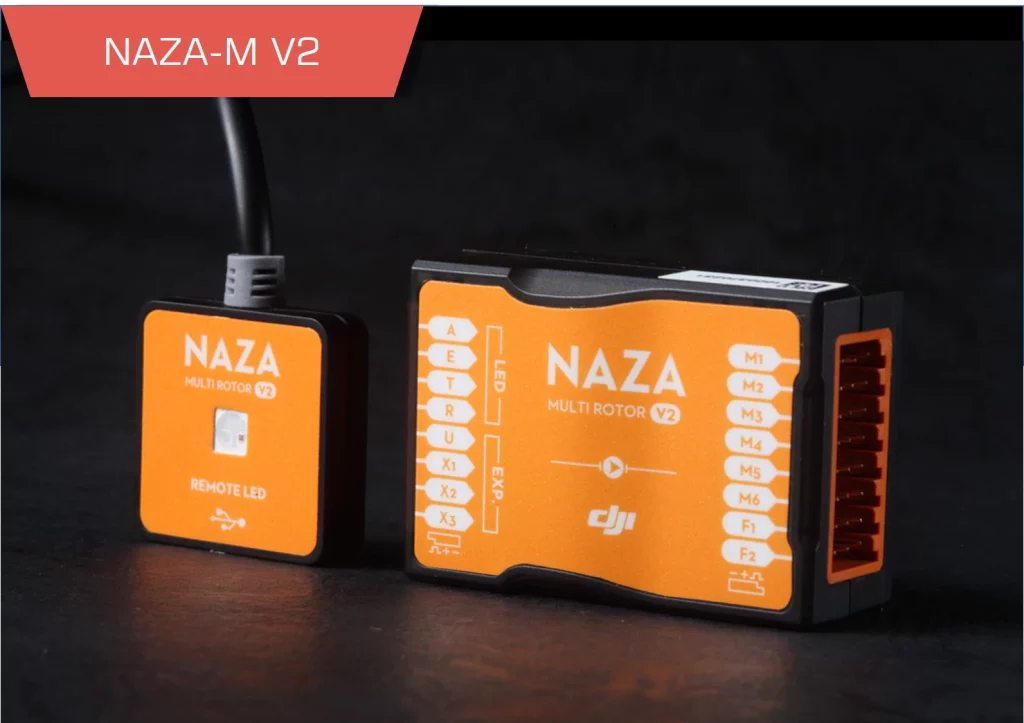

- Independent LED Module
- Built-in Gimbal Stabilization Function
- Remote Gain Adjustment
DJI Naza V2 Flight Controller with GPS – FAQ
1. What is the main function and design of the DJI Naza V2?
The DJI Naza V2 is a compact, reliable flight controller designed for multirotors and small UAVs. It offers exceptional stability, precise control, and easy setup, supporting up to nine different motor configurations.
2. What core technologies and stabilization features are included?
It features advanced attitude stabilization algorithms, GPS course correction, compass interference monitoring, and takeoff assistance for smooth, drift-free launches and stable flight in varying environments.
3. What intelligent flight modes are available?
The Naza V2 includes Intelligent Orientation Control (IOC), GPS Hold, Return-to-Home, and failsafe protection, providing intuitive flight and enhanced safety for new and experienced pilots alike.
4. What are the purchasing and delivery options for the DJI Naza V2?

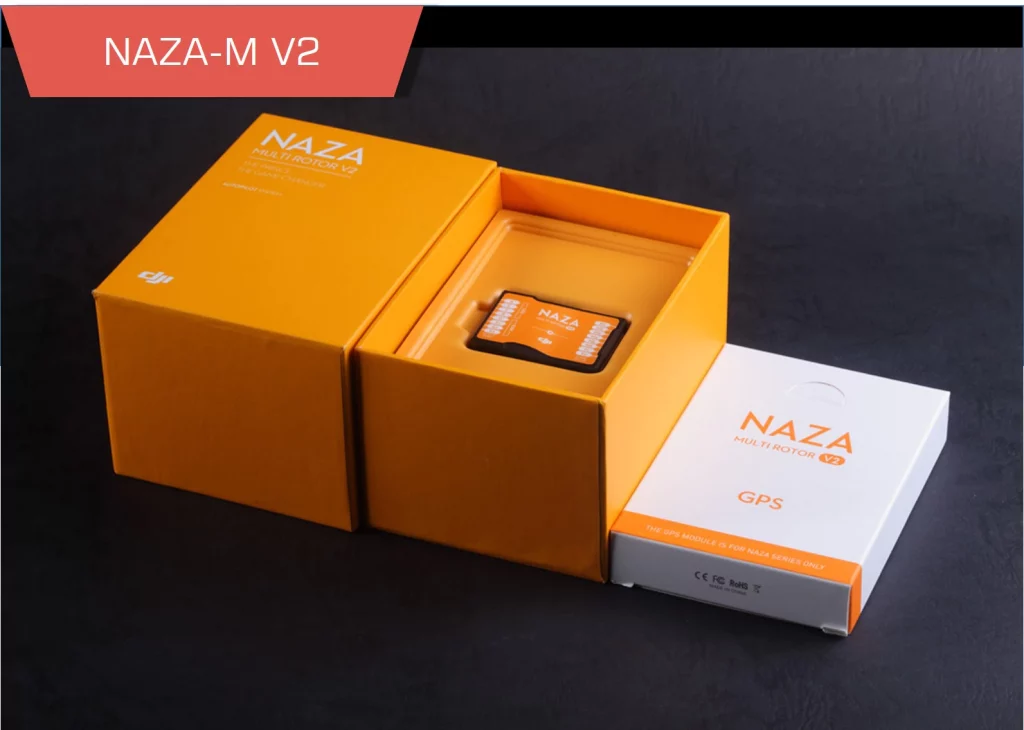

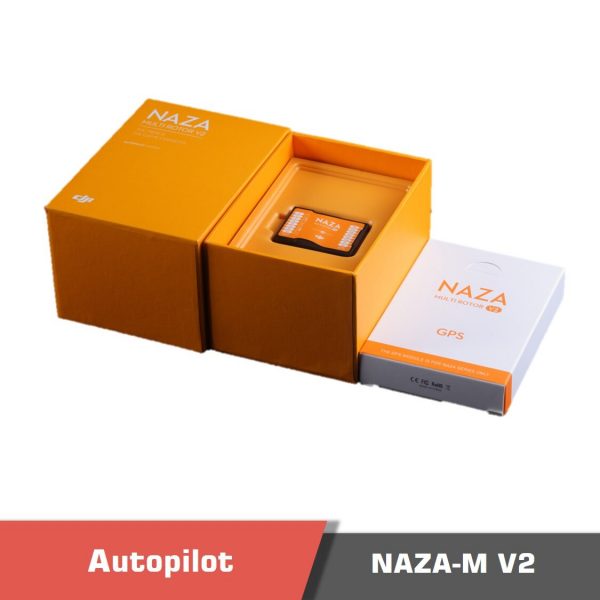

The package includes the Naza V2 flight controller and GPS module. Motionew provides international shipping with full tracking and estimated delivery times displayed during checkout.
5. Does Motionew support OEM and bulk purchasing for this model?
Yes. OEM and volume purchasing programs are available for UAV manufacturers and professional integrators. Buyers can request custom wiring options and bulk pricing through Motionew’s sales department.
If you have any questions regarding our products, use the Motionew team of experts page to consult our engineering team.
Specifications
Specifications
| Basic Performance | Supported Multi-Rotor | Quad-rotor I4, X4 Hex-rotor I6, X6, IY6, Y6 Octo-rotor I8，V8，X8 |
| Supported ESC Output | 400Hz refresh frequency | |
| Recommended Transmitter | PCM or 2.4GHz with minimum 4 channels | |
| Working Voltage Range | MC:4.8V~5.5V
VU Input: 7.4V ~ 26.0 V (burst current:7.5A) |
|
| Power Consumption | MAX: 1.5W(0.3A@5V) Normal:0.6W(0.12A@5V) |
|
| Operating Temperature | -10°C ~ 50°C | |
| Assistant Software System Requirement | Windows XP sp3 / Windows 7 / Windows 8 | |
| Flight Performance | Hovering Accuracy (GPS Mode) | Vertical:±0.8m Horizontal:±2.5m |
| Max Yaw Angular Velocity | 200°/s | |
| Max Tilt Angle | 35° | |
| Ascent / Descent | 6m/s，4.5m/s | |
| Hardware | Weight | MC:27g PMU:28g GPS:27g LED:13g |
| Dimensions | MC: 45.5mm x 32.5mm x 18.5mm PMU: 39.5mm x 27.5mm x 10.0mm GPS & Compass 46mm(diameter)x10mm LED: 25mm x 25mm x 7.0mm |
|
| Built-In Functions | Multiple Autopilot Control Mode Enhanced Fail-safe Low Voltage Protection S-Bus Receiver Support PPM Receiver Support Independent PMU Module 2-axle Gimbal Support |
