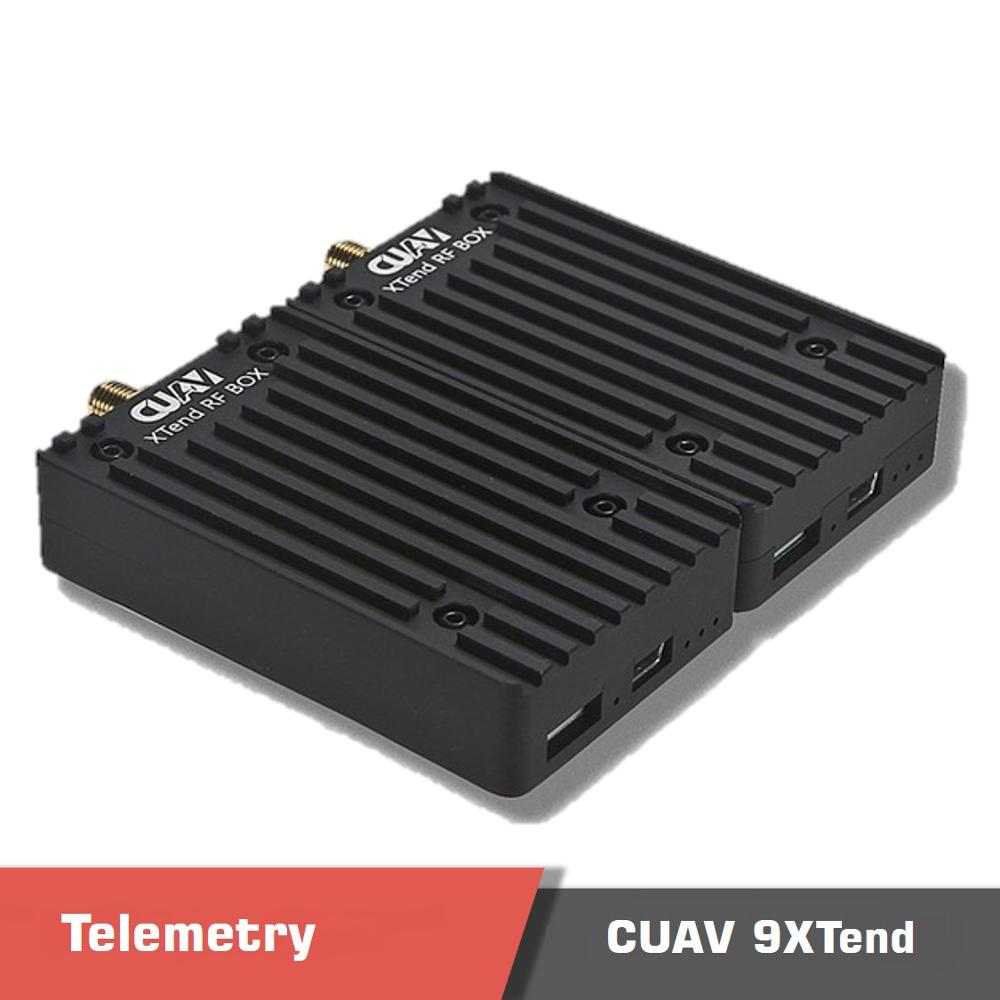

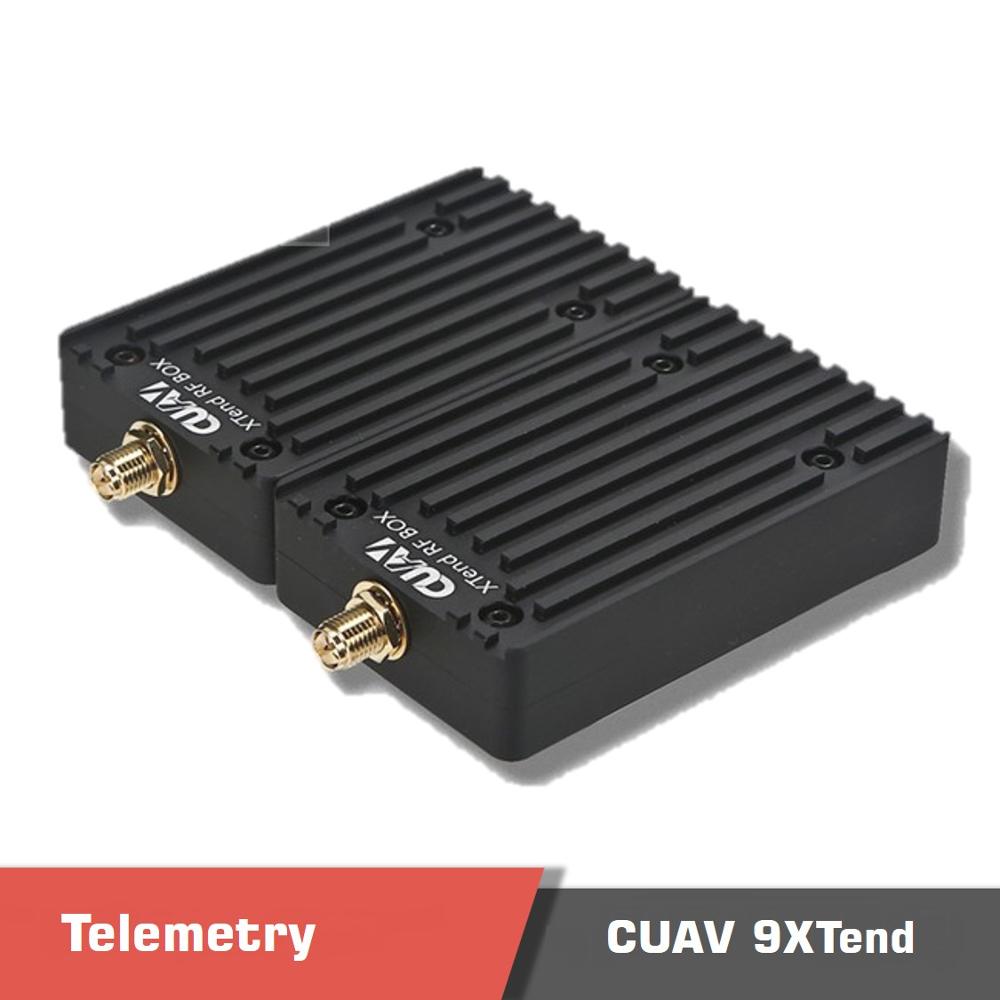

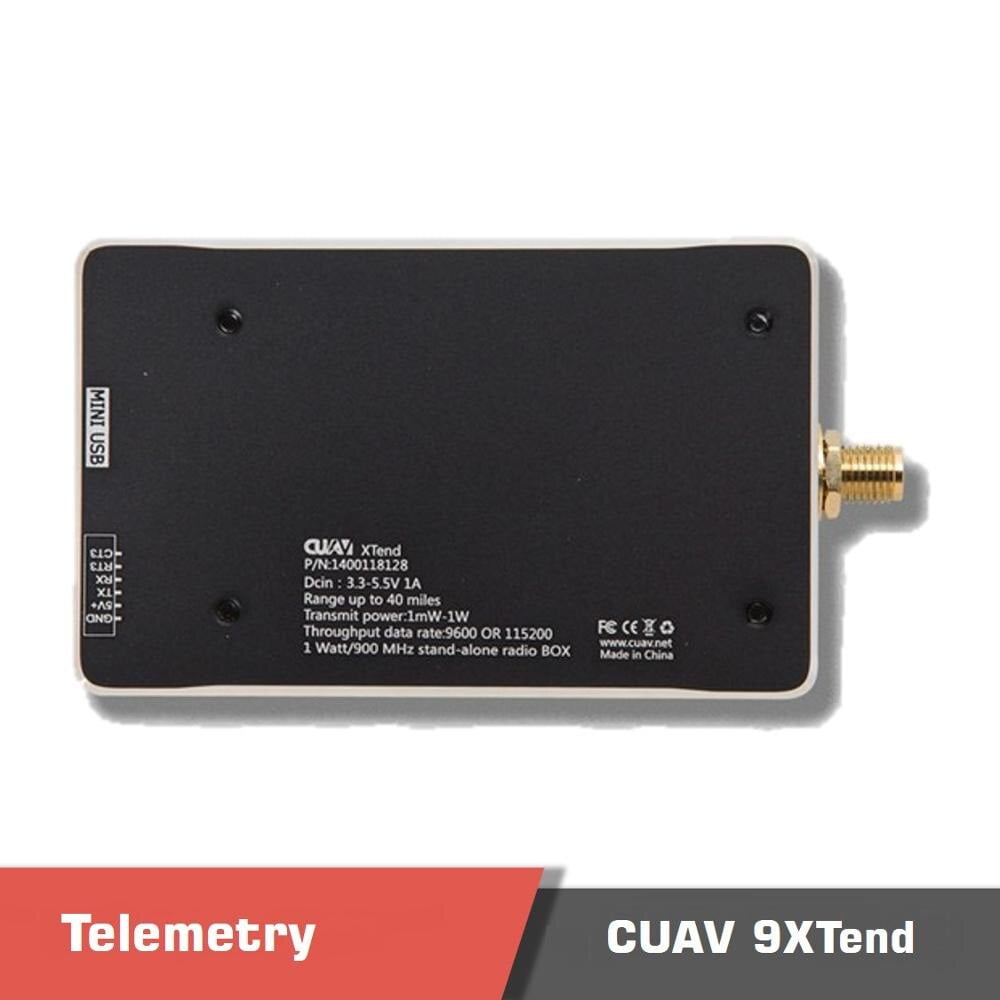

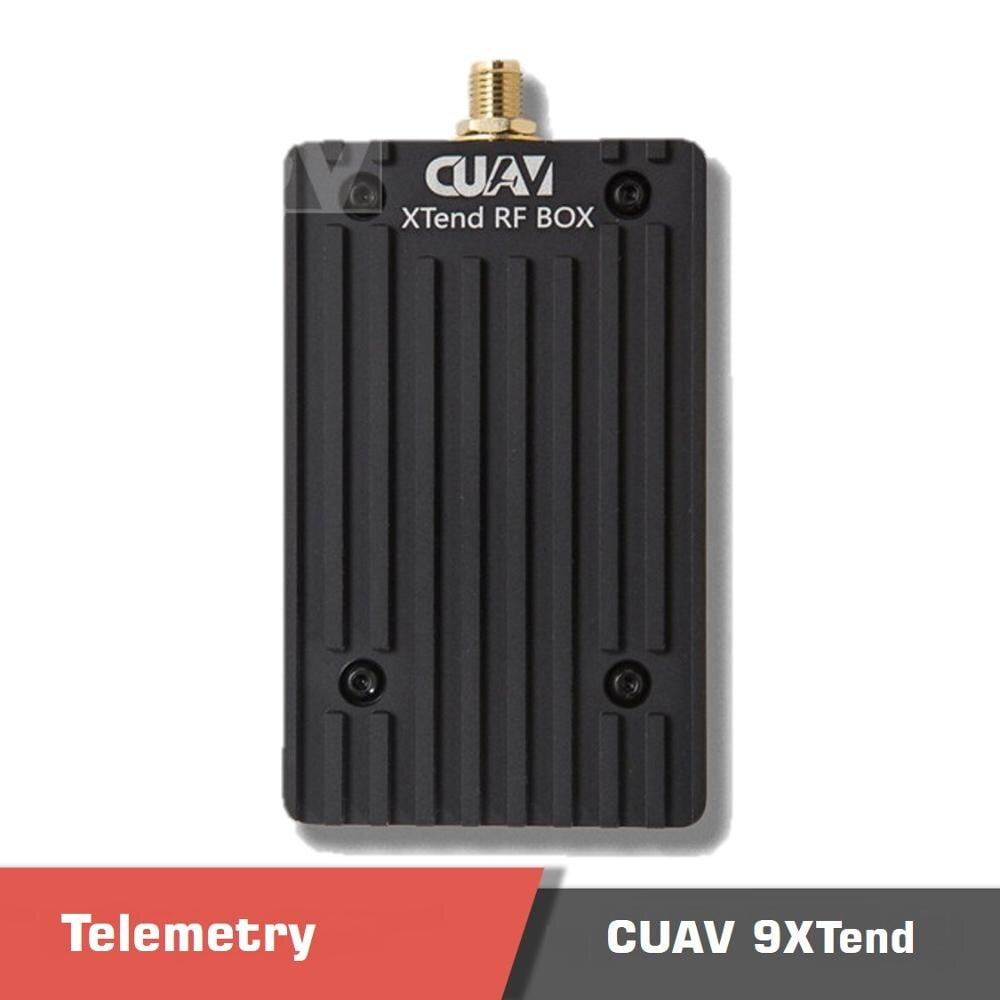

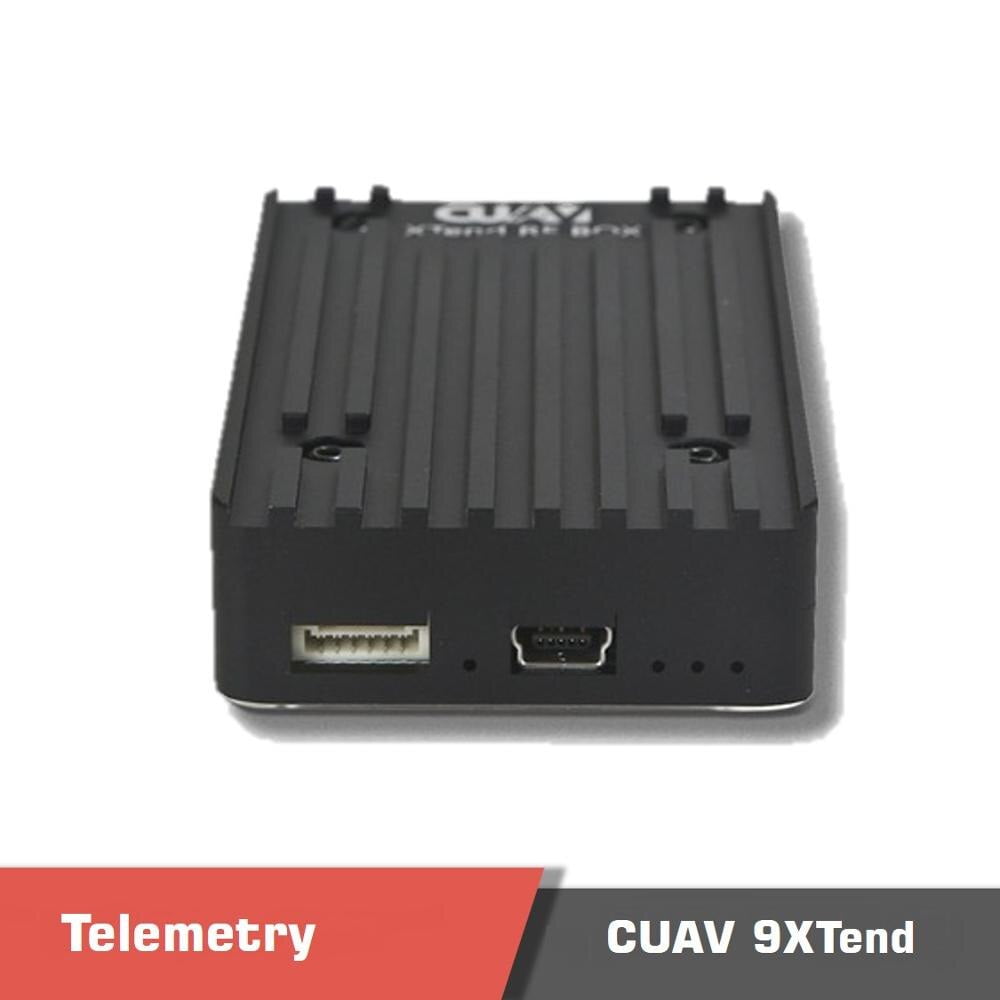

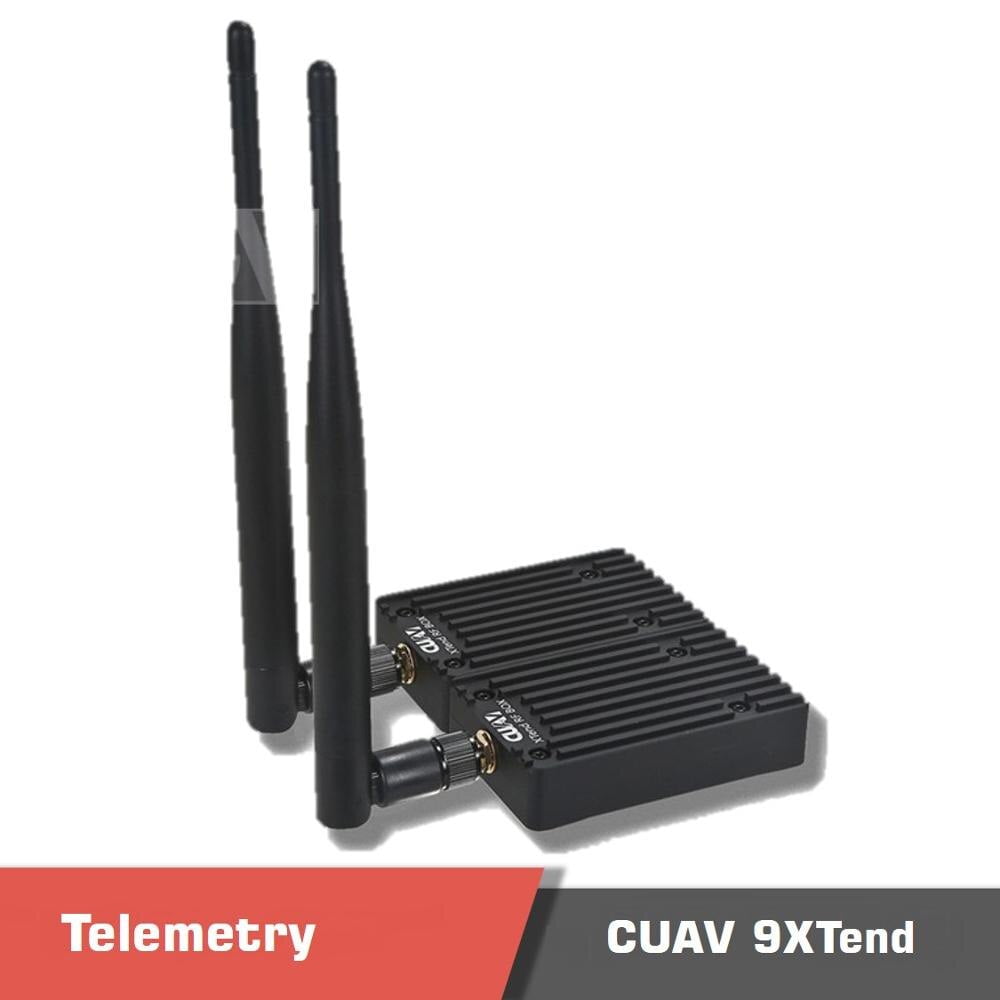

CUAV XTend Radio Telemetry Module 900MHz
Description
CUAV XTend Radio Telemetry Module 900MHz Overview
CUAV XTEND Radio is a high-power, high-speed, high-reception sensitivity datalink drone transmission module. It has built-in XTEND RF module of USA DIGI Company, launches the power up to 1000mw, ISM 900MHZ legal frequency, supports many advanced network options and topological modes. The CUAV XTEND Radio module offers an unprecedented range of low-cost wireless data solutions. This module is easy to use, especially suitable for unmanned unit networks and point-to-point over-the-horizon transmission, providing stable, critical data transmission between drones and equipment. Their small size saves valuable on-board space. Consult Motionew Online Shop to see the full range of our products.
Features
- Frequency bands: 902 – 928 MHz
- Serial Data Interface: 3V – 5V CMOS UART – no configuration required (RS232 is not supported at this time)
- Physical Properties
- Size: 84*46*17 (without antenna)
- Weight: 73 g (without antenna)
- Antenna Options: RPSMA
- Operating temperature: -40° C to 85° C (industrial)
Certification
United States (FCC): OUR-9XTEND
Canada (IC): 4214A-9XTEND
Australia: Approved (XTH9)
If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.
FAQ – CUAV Xtend 900MHz Radio Telemetry Module
1. What is the operating frequency and communication range of the CUAV Xtend module?
The CUAV Xtend operates in the 902–928 MHz ISM band and offers long-range communication of up to 40 km in ideal line-of-sight conditions. It uses frequency-hopping spread spectrum (FHSS) technology for robust, interference-resistant performance.
2. What are the key technical specifications?
The module supports adjustable transmit power up to 1 W, a receiver sensitivity near –110 dBm, and serial data rates up to 230 kbps. It operates from 2.8 V – 5.5 V DC with low current consumption, making it suitable for UAV, UGV, and remote telemetry applications.
3. What protocols and interfaces are supported?
It communicates via UART and supports both point-to-point and mesh network configurations. The module uses DigiMesh technology for multi-node networking and is fully compatible with flight controllers running MAVLink such as Pixhawk and Ardupilot.
4. How is the module shipped and what are the delivery times?
Motionew ships worldwide through DHL, FedEx, and UPS. Orders are usually processed within 1–2 business days and delivered within 5–10 business days, depending on destination and stock status.
5. Is OEM customization or bulk purchasing available?
Yes. OEM customization options include private labeling, pre-configured firmware, and custom cable or connector setups. Bulk orders can be tailored for industrial or fleet applications with dedicated integration support.
6. What documentation and payment options are provided?
Each unit includes a datasheet, configuration manual, and compliance certificates such as CE and FCC. Payment options include PayPal, bank transfer (T/T), and major credit cards such as Visa and MasterCard.
Specifications
Specifications
- Power output: 1 mW – 1 W (0 – 30 dBm), software selectable
- Indoor/city distance: up to 3000 ft (900 m)
- Outdoor/RF range: Up to 40 miles (64 km) depending on the environment
- RF data rate: 9.6 or 115.2 Kbps
- Interface data rate: up to 230.4 Kbps
- Receiver sensitivity: -110 dBm (at 9600 bps)
- Network Spread Spectrum Type: FHSS (Frequency Hopping Spread Spectrum)
- Network Topology: DigiMesh®, Peer-to-peer networking, Point-to-Multipoint and Repeater
- Error handling: Retry and confirm, multiple transfers
- Filtering options: VID (vendor ID number), channel and addressing
- Channel capacity: 10 hop sequences share 50 frequencies
- Address assignment: 65000 network addresses per channel
- Encryption: 256-bit AES
- Power Supply voltage: 2.8 – 5.5 VDC (adjusted)
- Emission current: 730 mA (1W transmit power output at 5V)
- Receive current: 80 mA (1W transmit power output at 5V)
- Power-down current: Generally 5 μA
| Weight | 100g |
| Dimension | 7.5*4.6*1.7cm |
| Operating temperature | -20 ~ 85°C |
| Operating Ferequency | ISM 902-928MHz |
| RF data rate | 9.6 or 115.2 Kbps |
| Supply voltage | 2.8 – 5.5 VDC |
| Outdoor/RF range | Up to 40 miles |
