Description

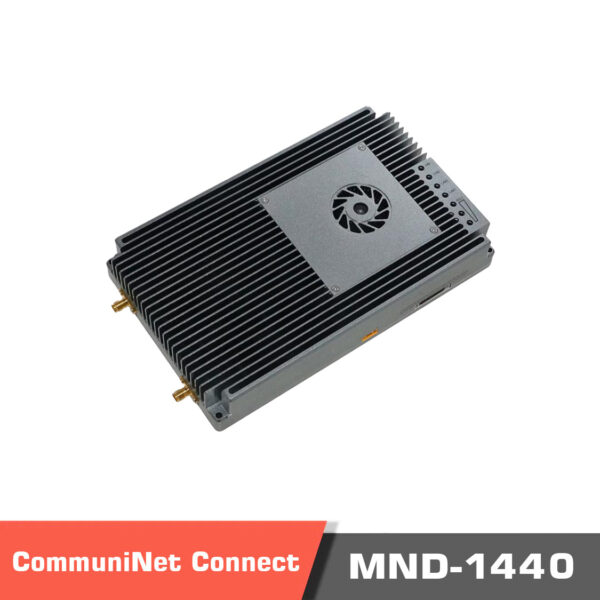

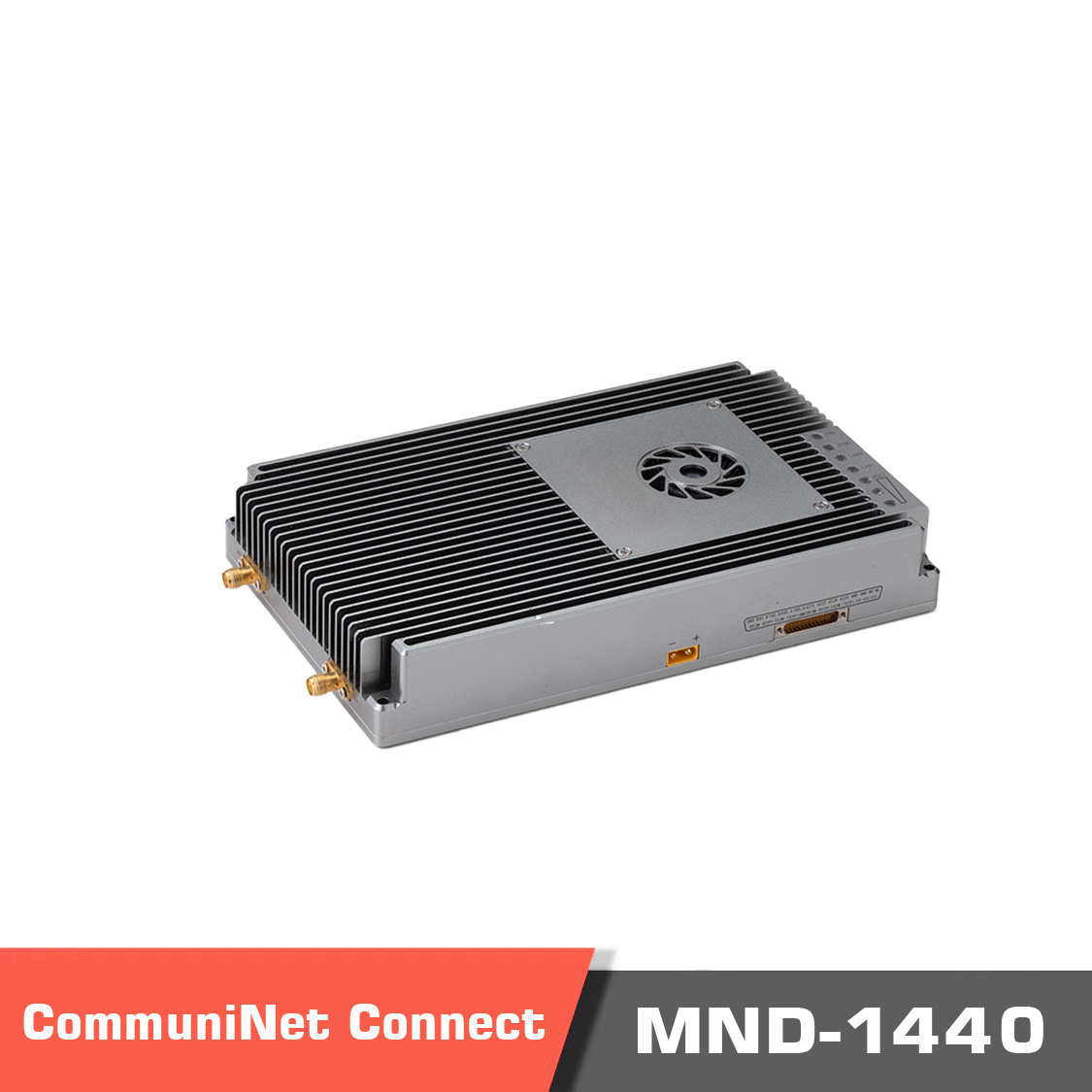

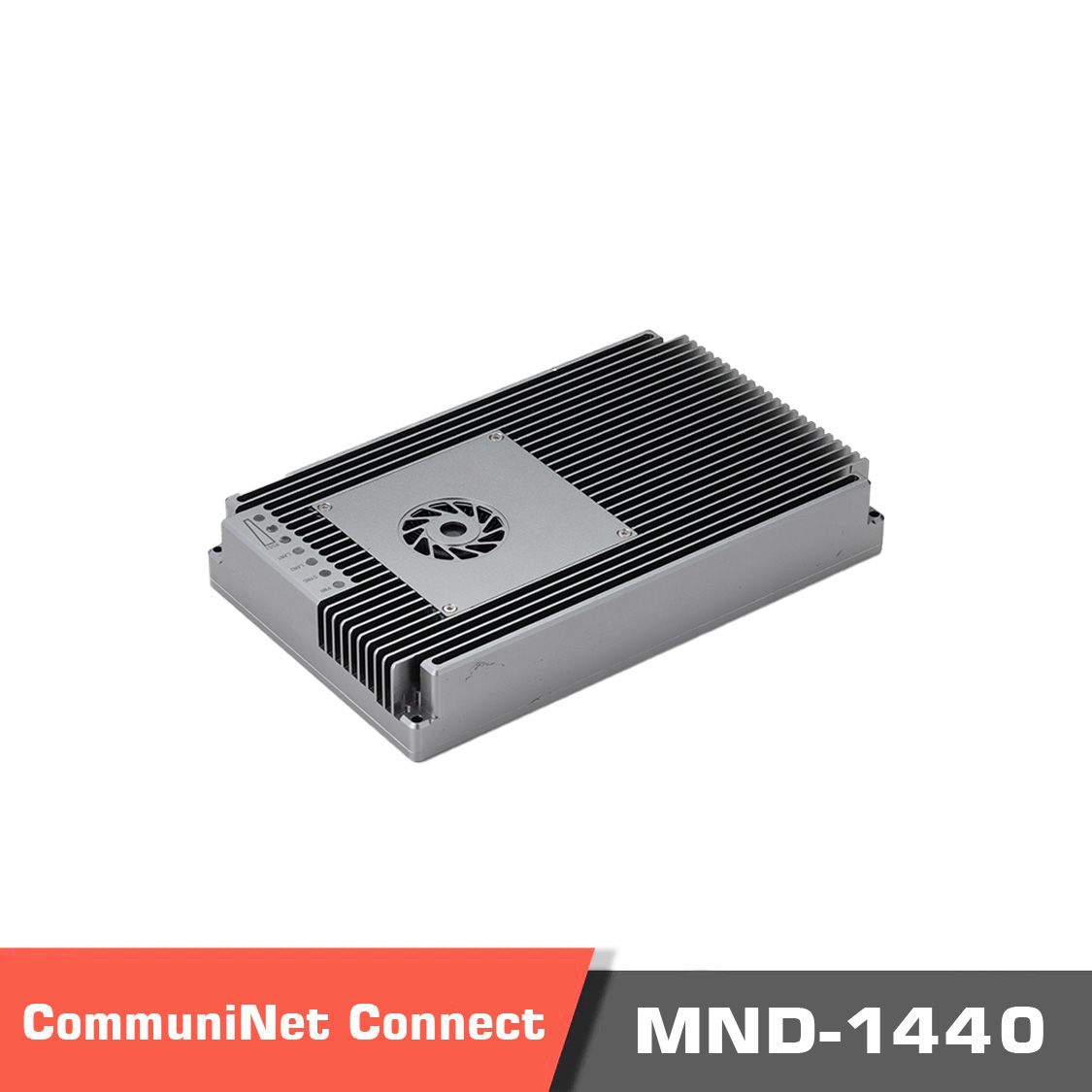

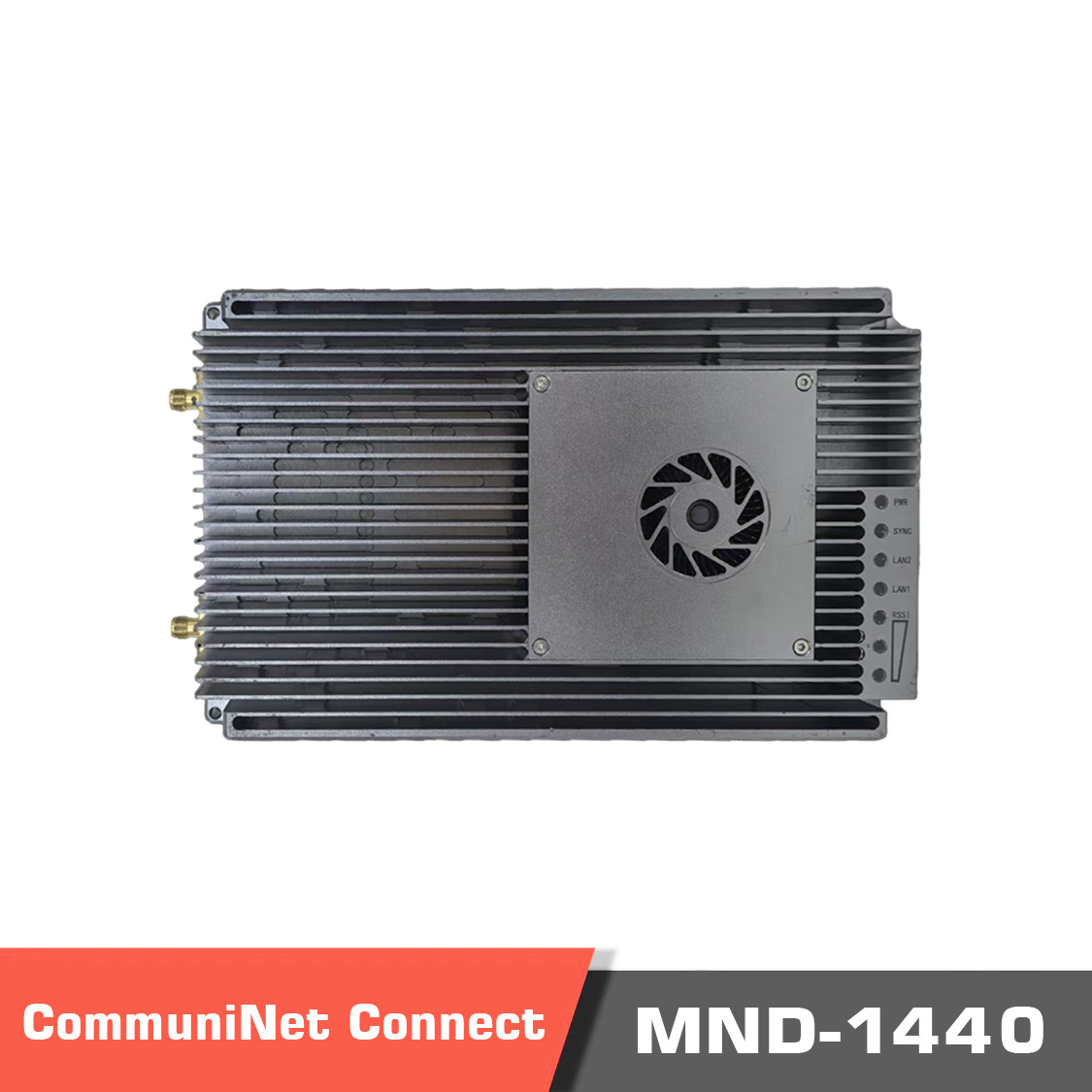

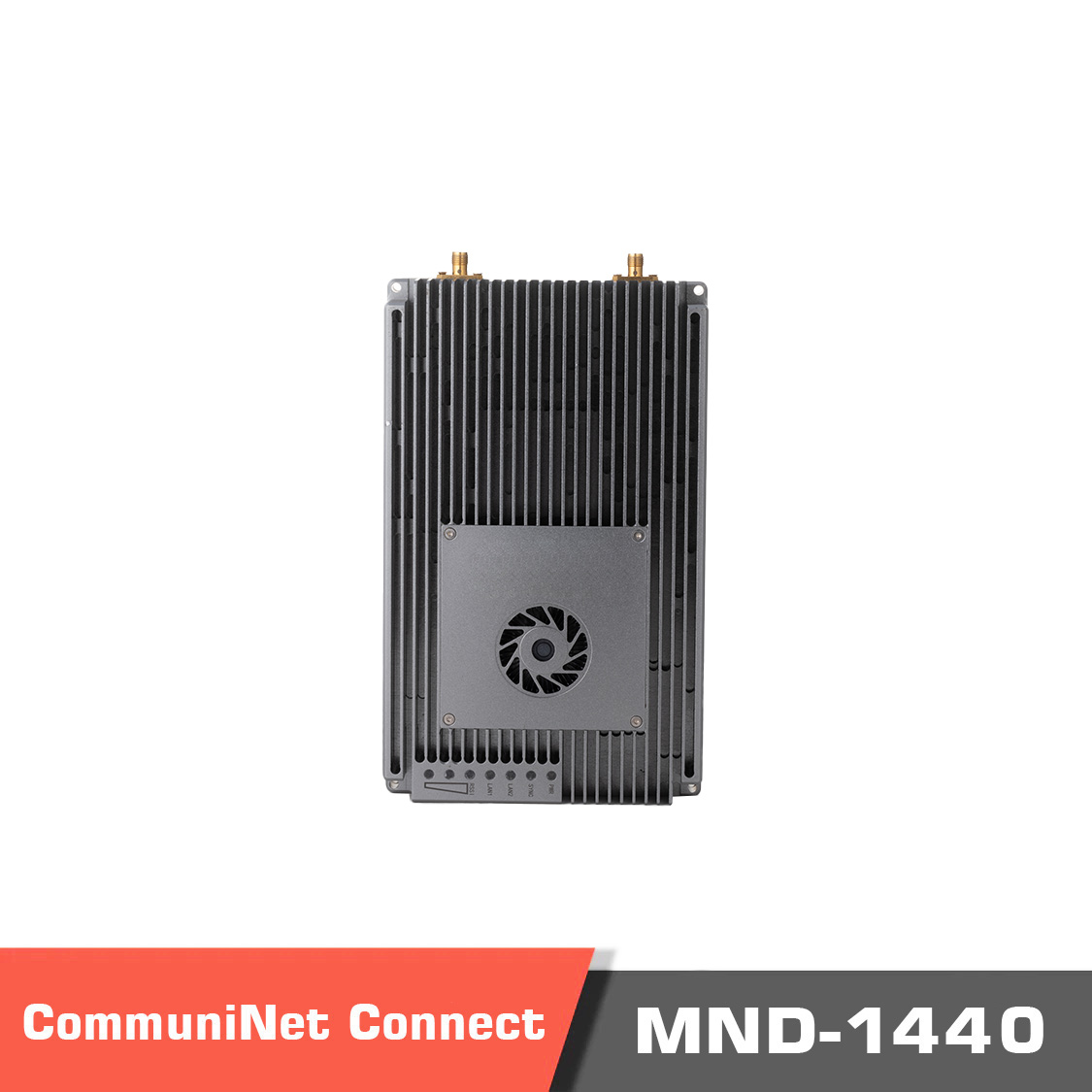

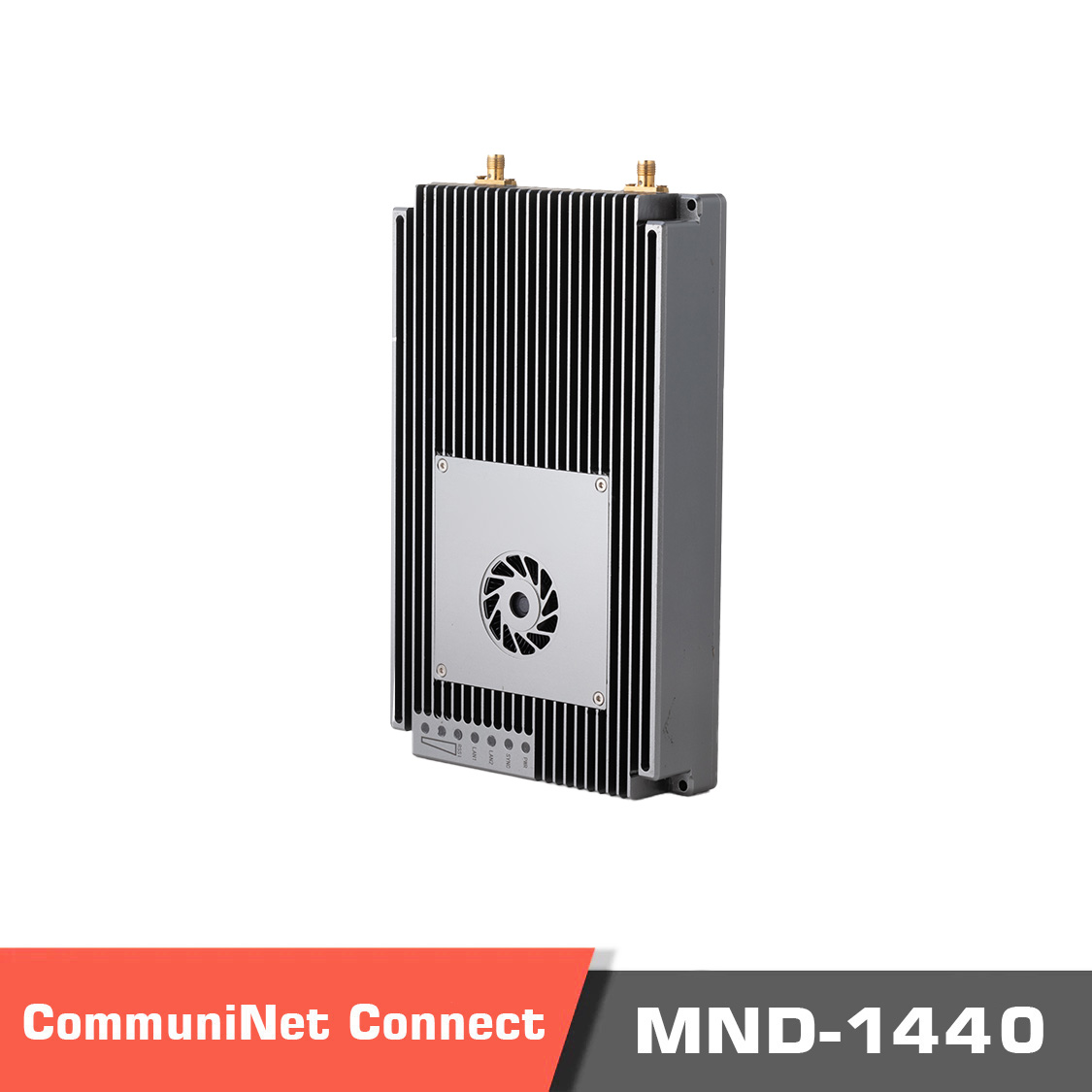

CommuniNet MND-1440 long range 40W wireless transmission system

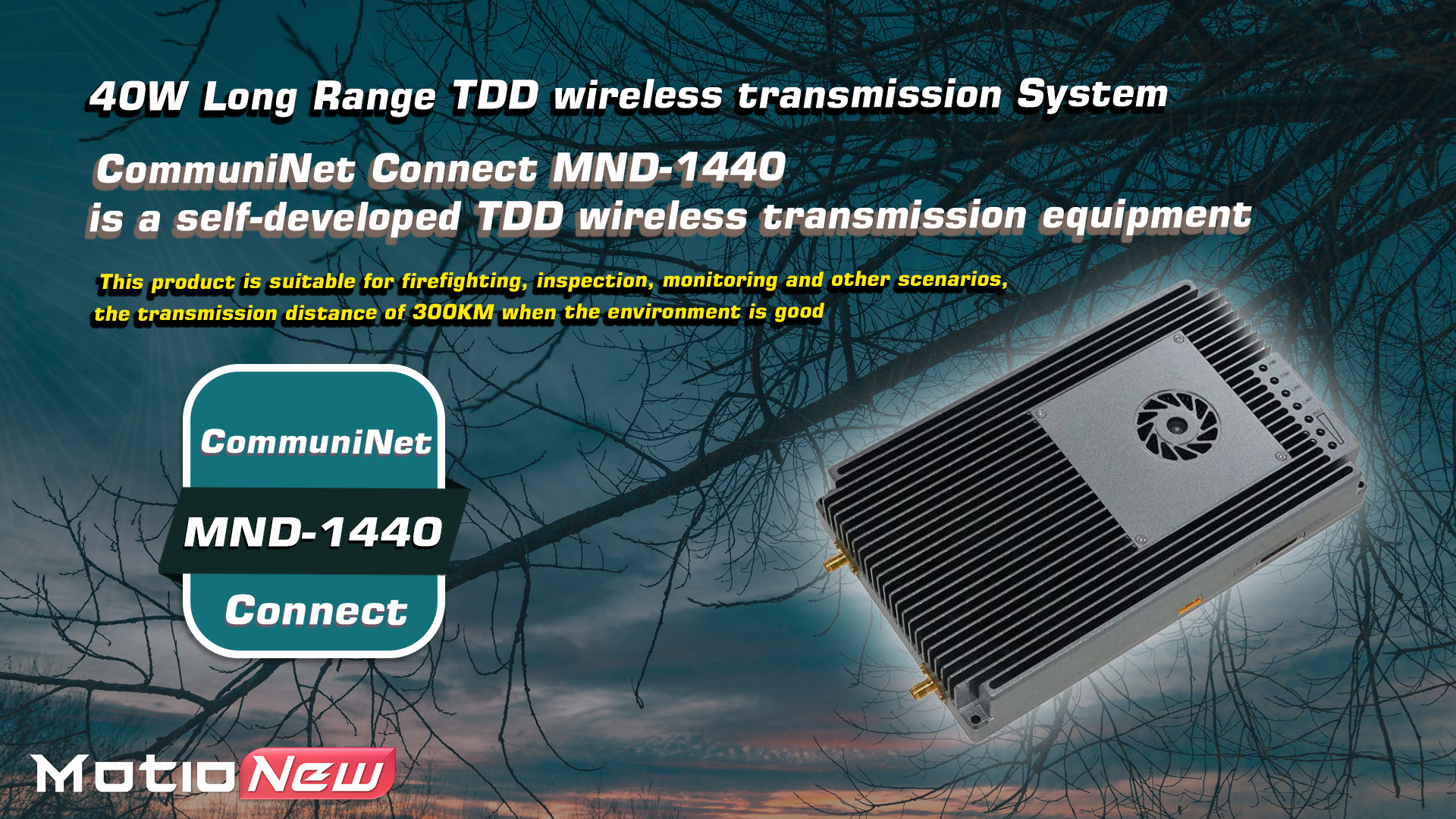

CommuniNet MND-1440 is the 40W model from the CommuniNet series datalink and videolink modules. It is a long range LTE-TDD wireless transmission equipment. Operating in Multiple transmission frequencies, having high interference resistance and supporting multiple transmission bandwidth allocations at the same time makes this module a robust and reliable solution in complex environments. The system architecture is flat and easy to operate, no need to download software to configure the device. It has the characteristics of moderate size, large transmission data, low delay, low power consumption and long transmission distance. It is suitable for medium and long distance audio, video and data transmission needs in complex scenarios.

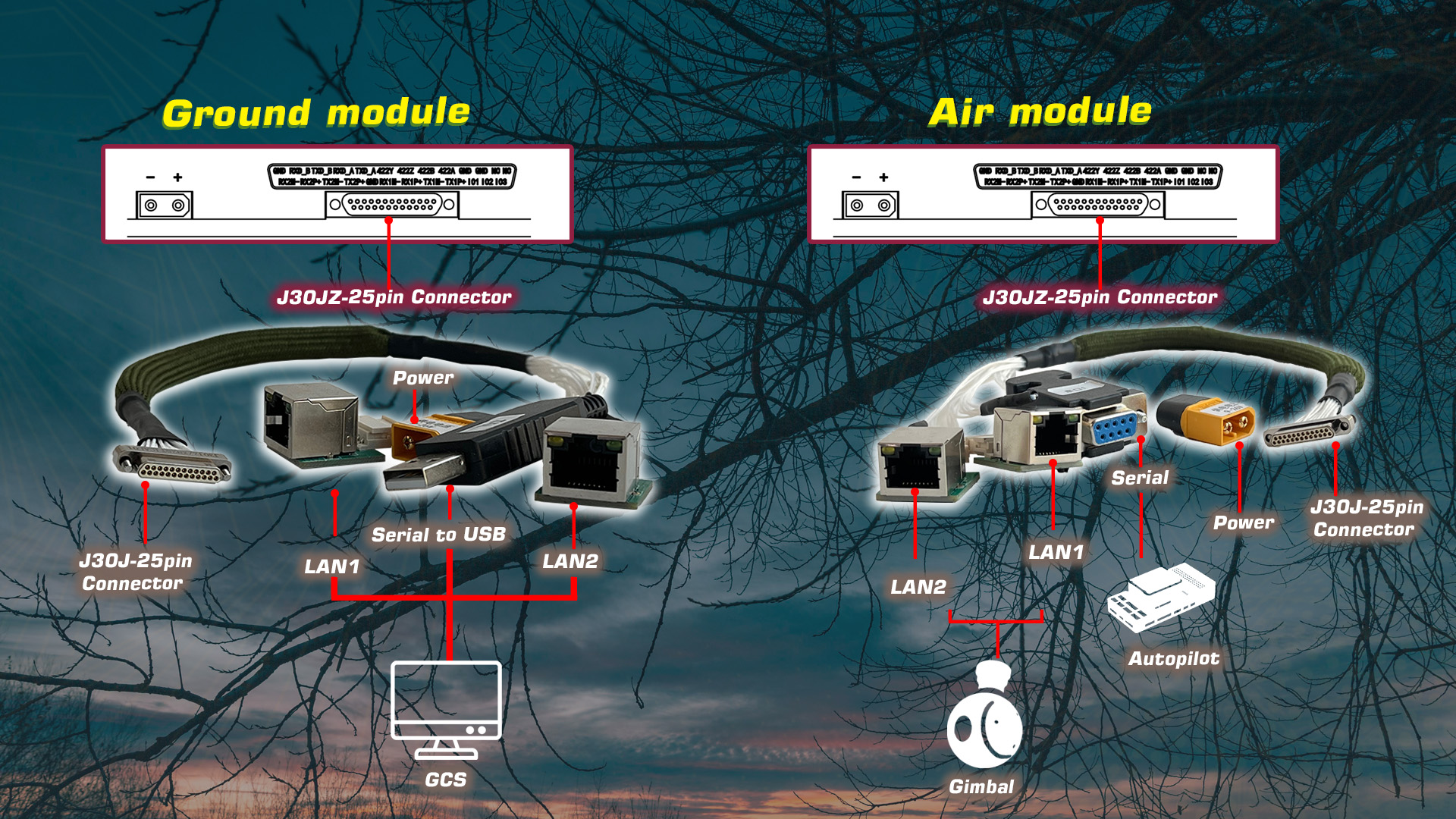

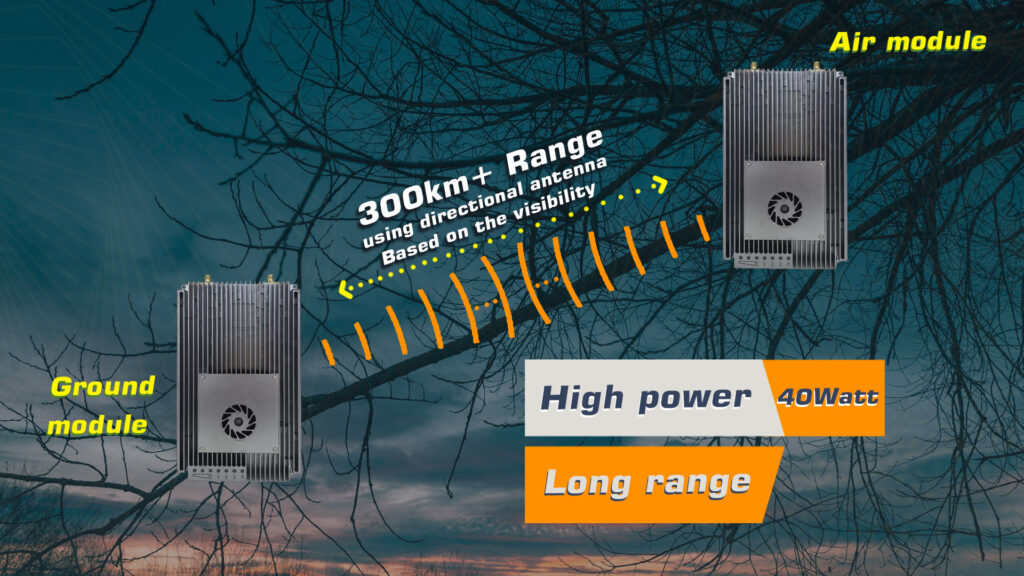

With less than 10ms transmission delay, in the case of good air-to-ground visibility, the transmission distance can be up to 300km. MND-1440 adopts a J30 aviation connector, having a total of 2x ethernet ports (network ports), 2x SBUS ports, and 2x serial ports.

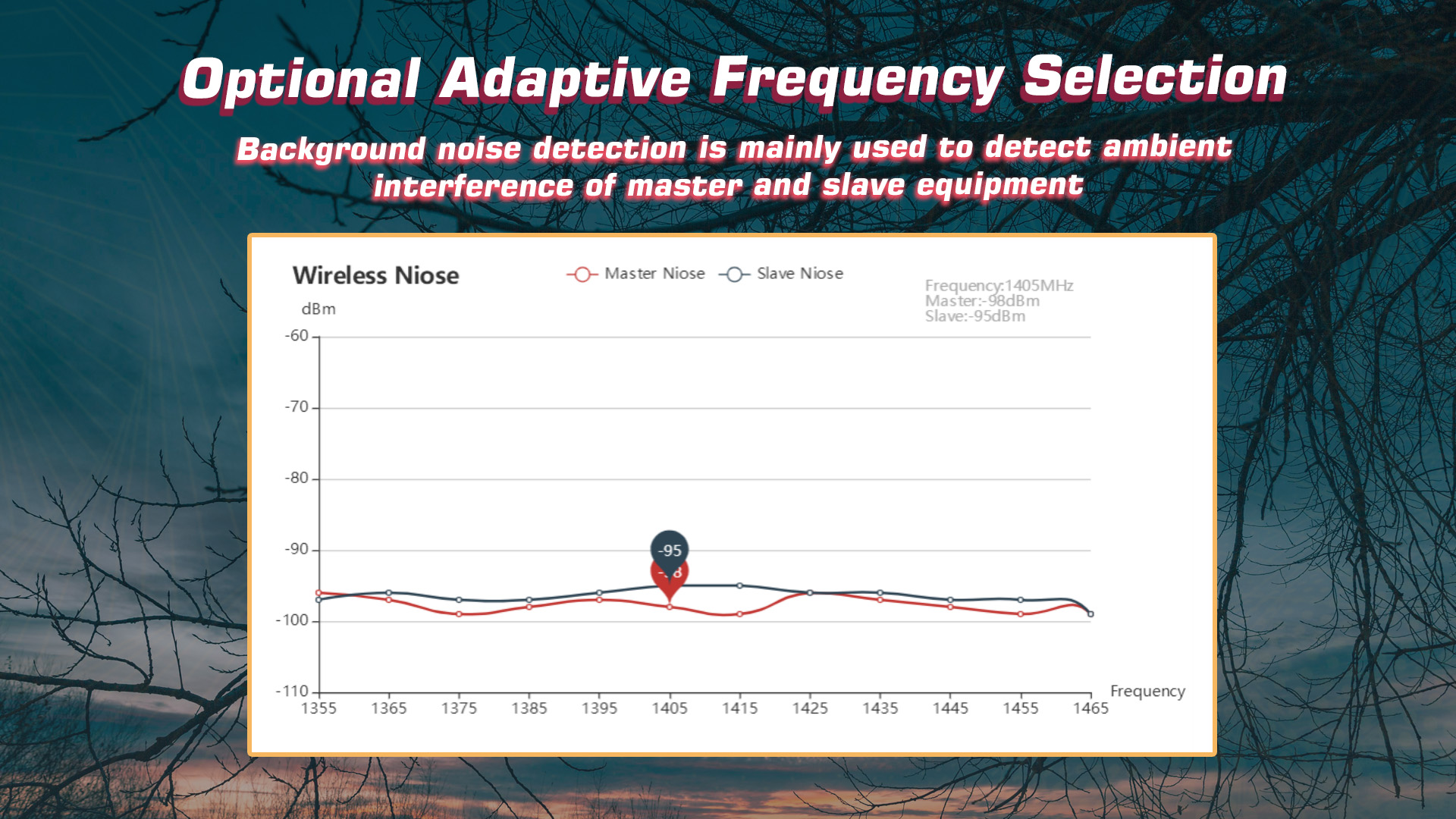

The device supports point-to-point, point-to-multipoint medium and long distance communication, to do power and water pattern inspection, fire emergency security communication, and other scenarios. It is based on LTE-TDD (Long-Term Evolution Time-Division Duplex) and Frequency hopping (FHSS) Spread spectrum mode, performing automatic frequency hopping in specific frequency bands to avoid interference. Data transmission can be encrypted using AES encryption.

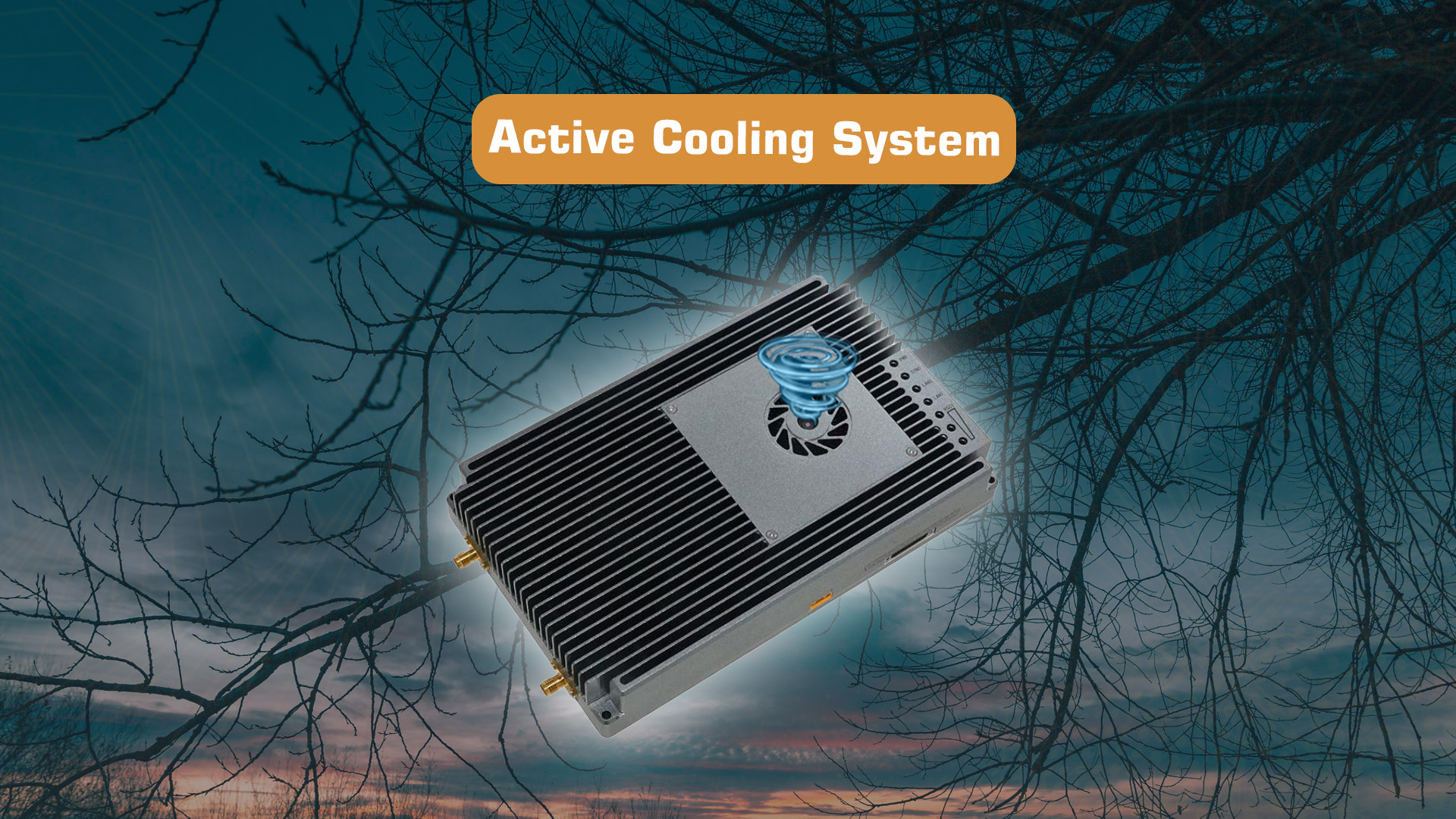

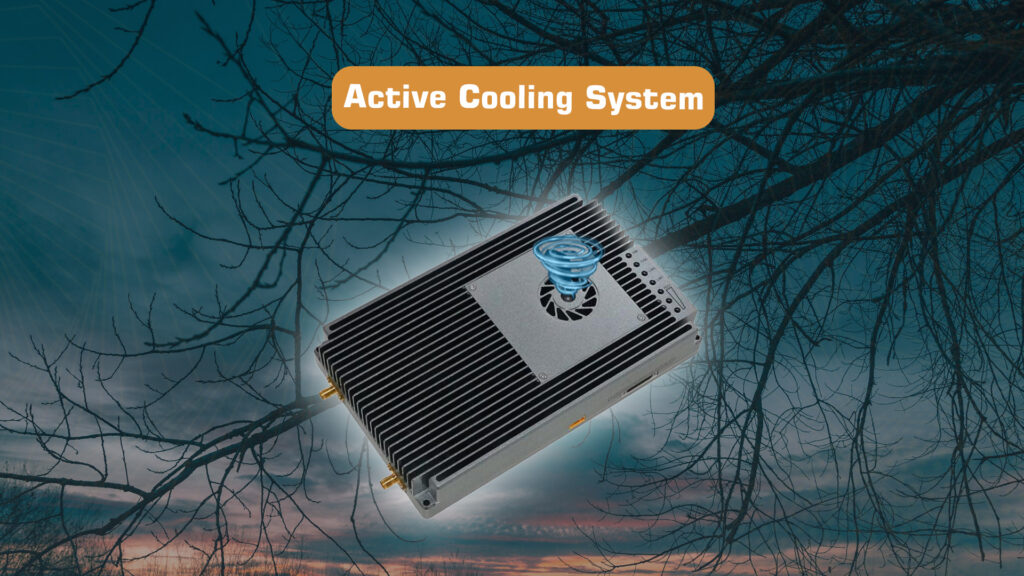

40w long range data link 40w long range data link specification 40w long range data link part 40w long range data link 300km range 40w long range data link interface Communinet connect mnd 1440. 6 - communinet mnd-1440 - motionew - 3 40w long range data link cooling system 40w long range data link frequency 40w long range data link package content 40w long range data link dimension



If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Specifications

Specifications

Working frequency
1350~1470MHz
Transmission power
46dBm(40W)
Transmission distance
300km(Directional antenna) 200km (Omni antenna)
Channel bandwidth
10MHz
Modulation mode
QPSK/16QAM
Receiving sensitivity
-99dBm@10MHz@QPSK1/3
Data rate
Up to 15Mbps@16QAM3/4
Transmission delay
10ms
Radio frequency interface
SMA*2

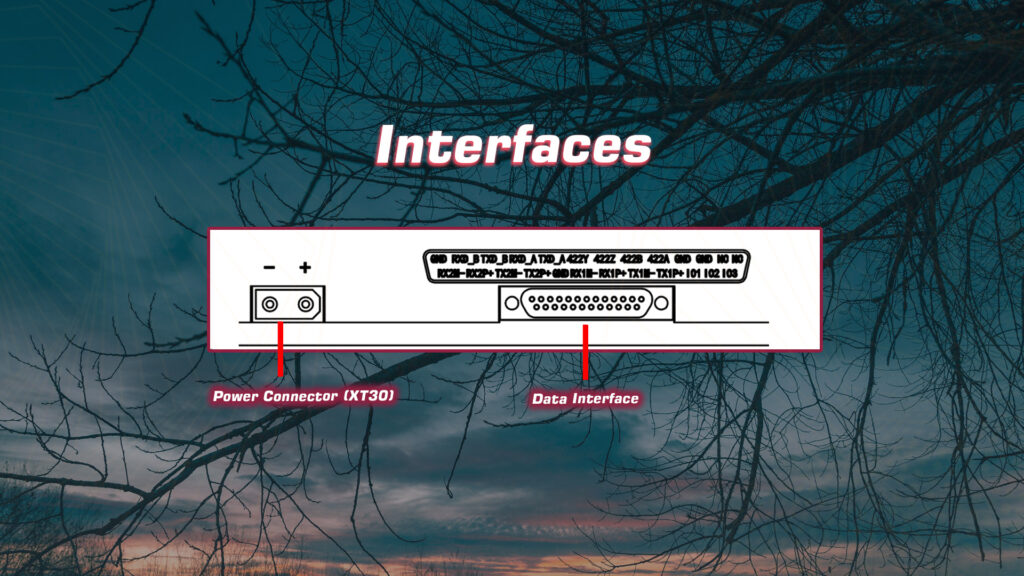

Equipment interface
Network Port *2 + TTL/RS232 *2 + 422 + SBUS
Overall power consumption
Air Unit ≤ 200W Ground Unit≤ 20W
Working voltage
DC 22~30V,Typical value: 28V@8A

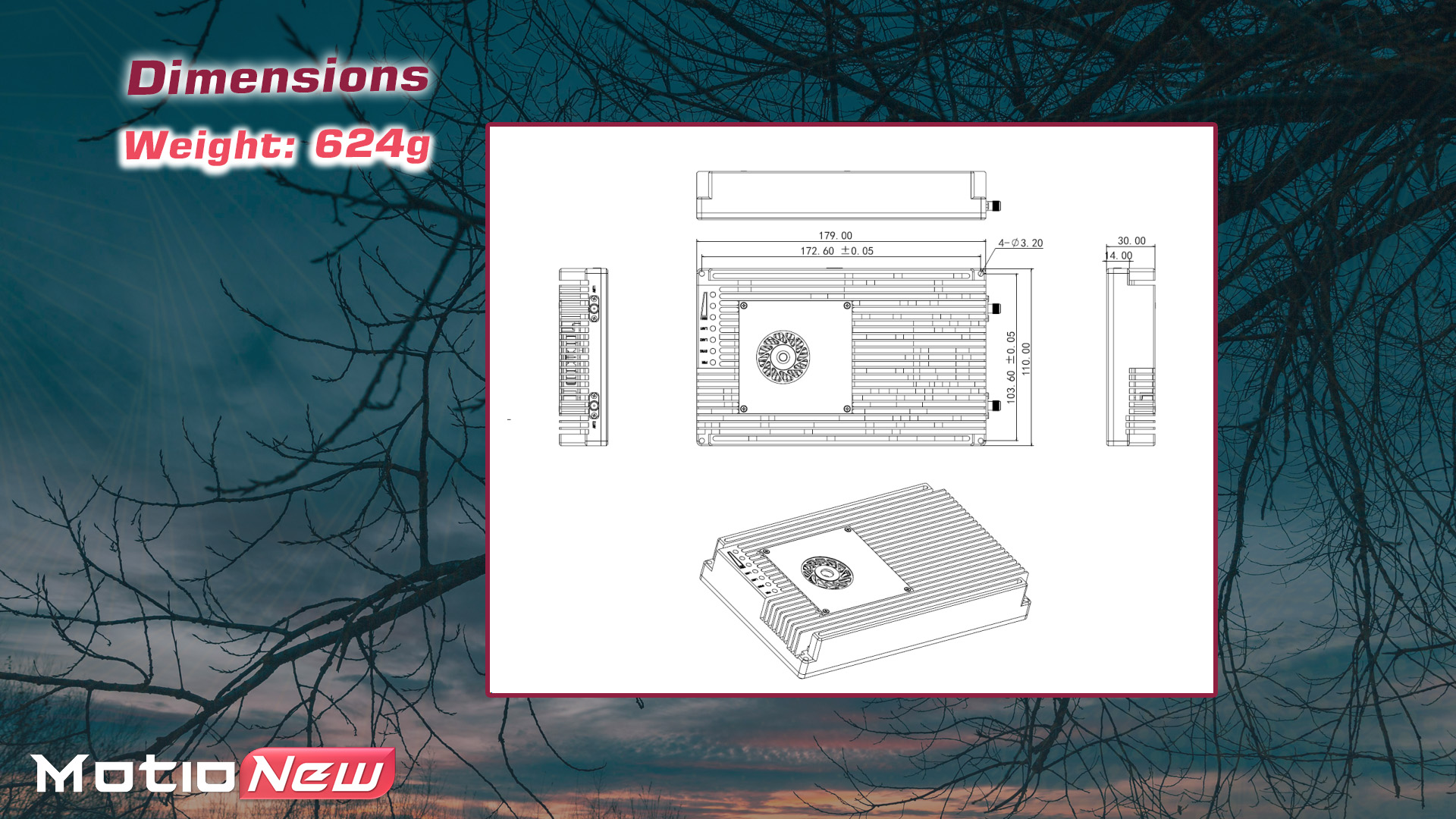

Dimension(L*W*H)
189mm*110mm*30mm
Weight
624g
Working temperature
-40℃~+65℃
Documents

Documents

Please Click Here to download the user manual.

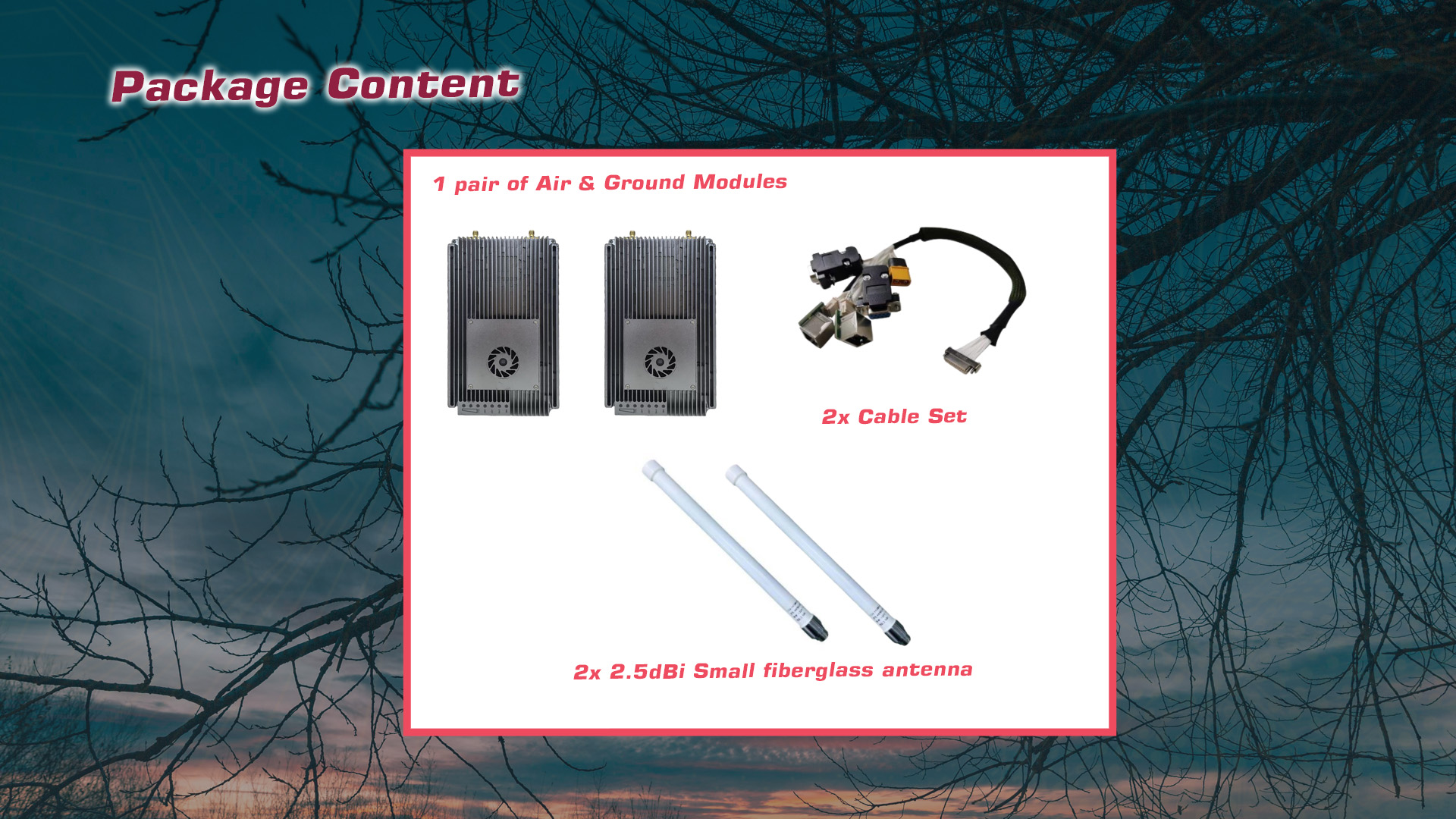

Product contents

Product contents

1 pair of ground and air unit with antenna and cable sets.

Communinet connect mnd 1440. 9 - communinet mnd-1440 - motionew - 4

Reviews
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “CommuniNet MND-1440 long range 40W wireless transmission system”

Specification:

Transmission Power

40W

Communication Range

300km

Operating Frequency

1.4GHz

Transmission System Type

Video Link / Data Link

Transmission System Interfaces

Ethernet

,

SBUS

,

Serial

Data Encryption

AES256

Transmission System Dimensions

189 x 110 x 30mm

Transmission System Weight

624g

Channel Bandwidth

10MHz
