Description

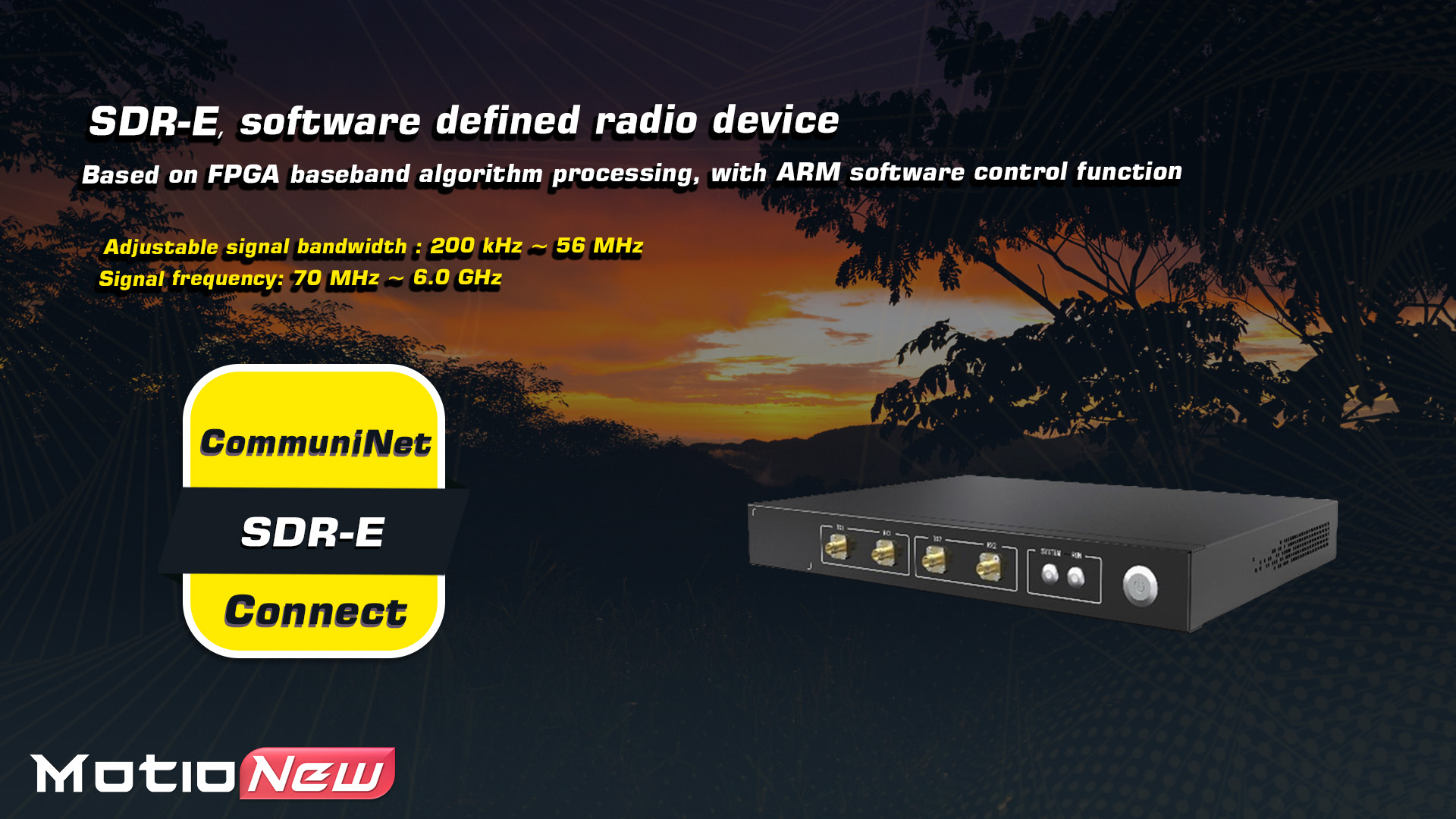

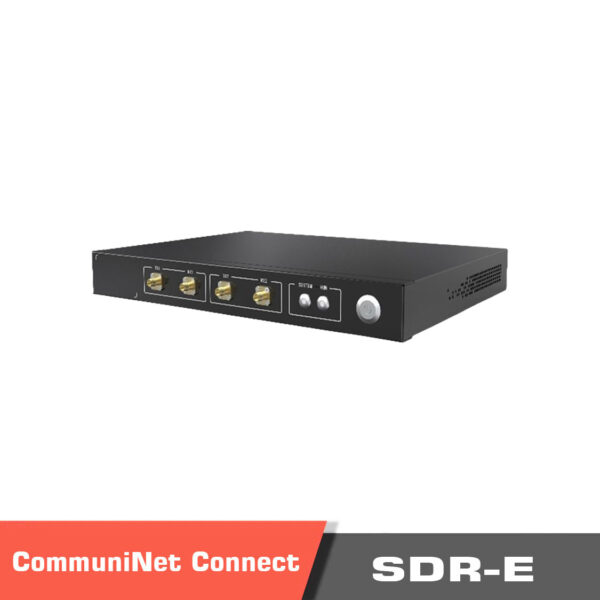

CommuniNet SDR-E, Software Defined Radio

The SDR-E software radio equipment supports the MATLAB software platform and supports the development and verification of various custom functions. Based on FPGA baseband algorithm processing, with ARM software control function, it can fully realize RF to baseband and baseband to RF wireless communication transceiver link system. It can assist in teaching experiments on real signals, build real-time communication links, and truly present theoretical knowledge. The equipment is equipped with complete teaching experiment cases and instructions, the case content is easy to use, can be tailored and expandedใ€‚

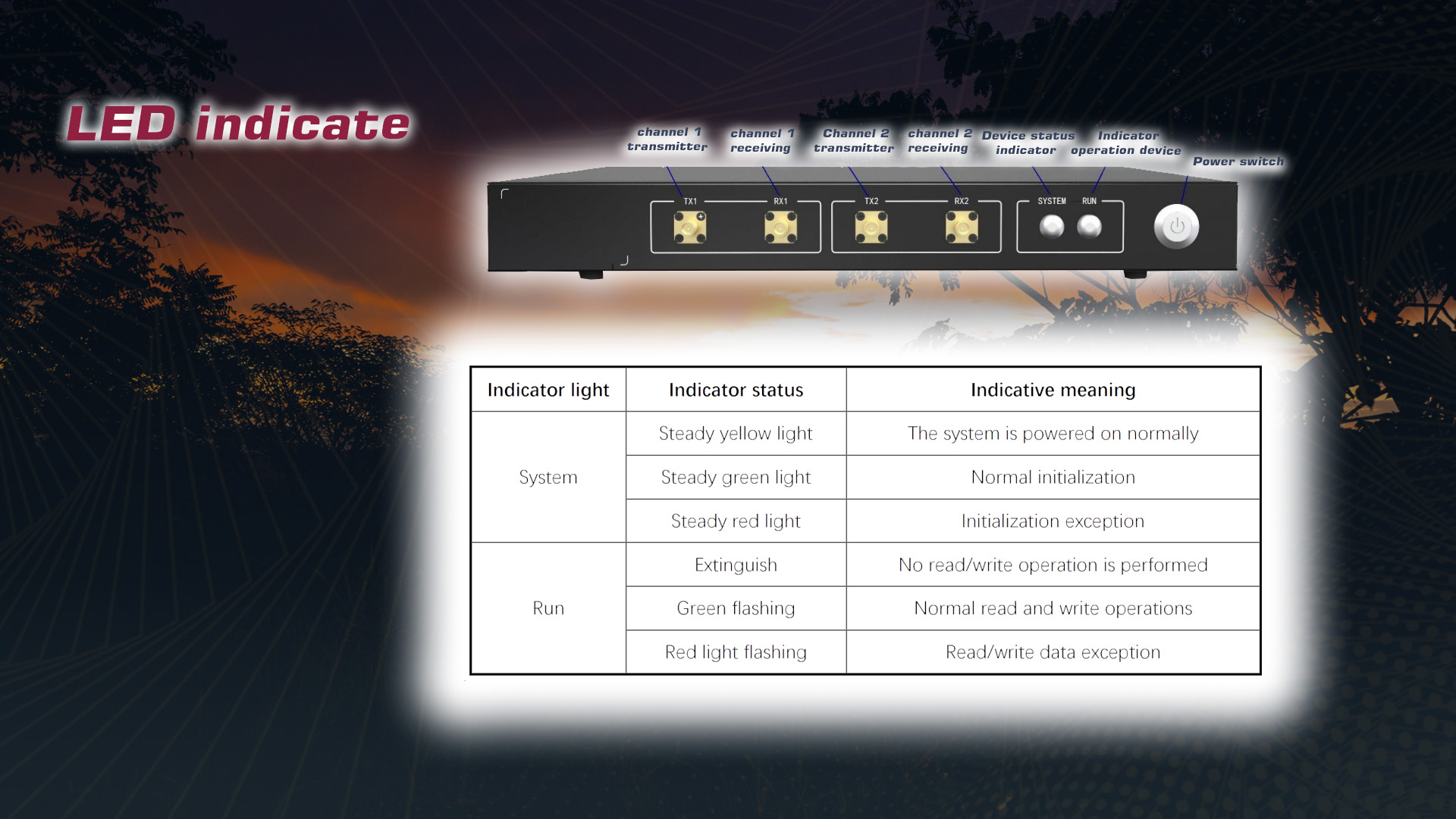

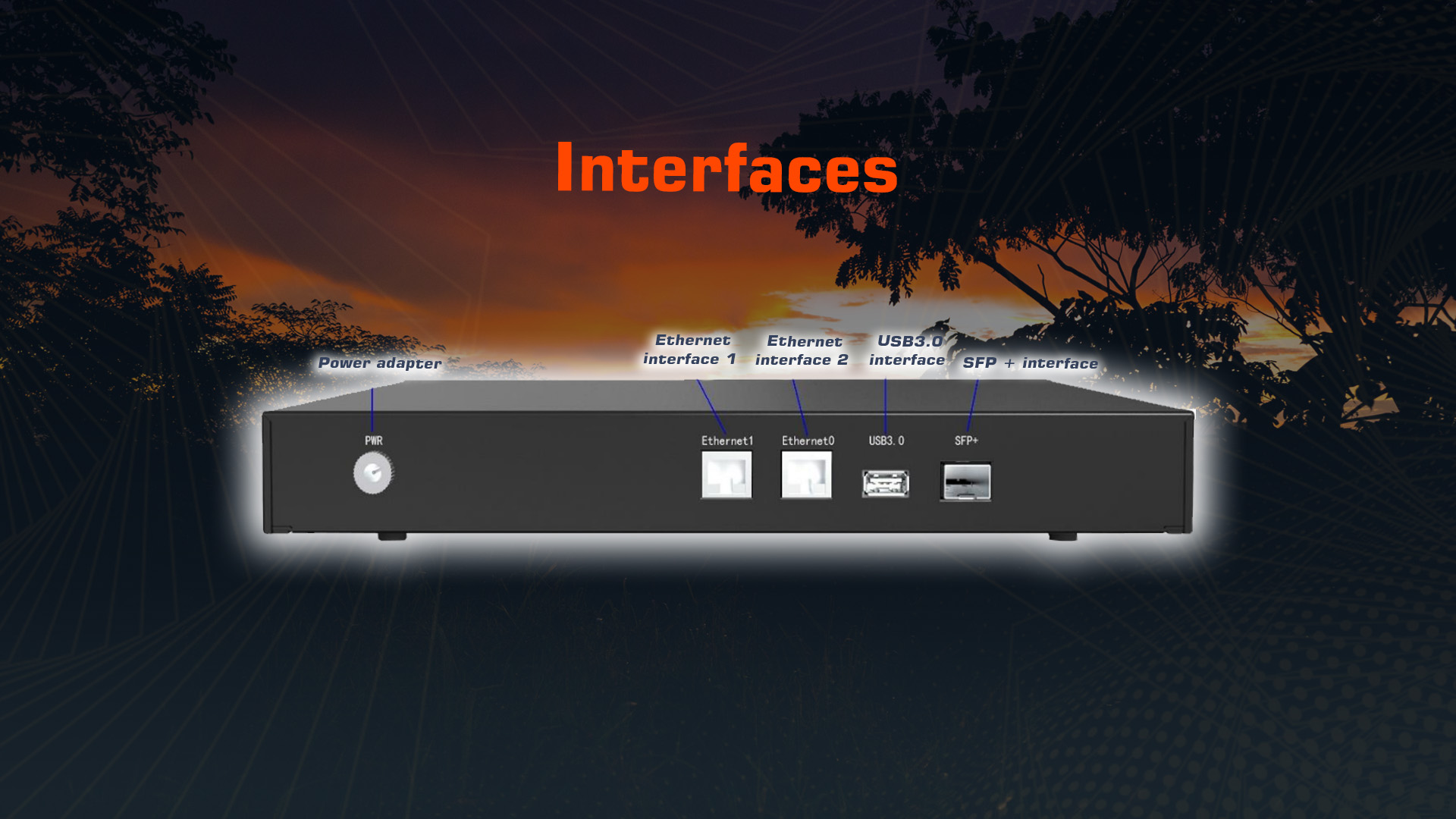

Sdr-e connection Sdr-e specification Sdr-e interfaces Sdr-e led indicate Sdr-e dimention



If you have any questions regarding our products, use theย Motionew Contact usย page to consult our engineering team.

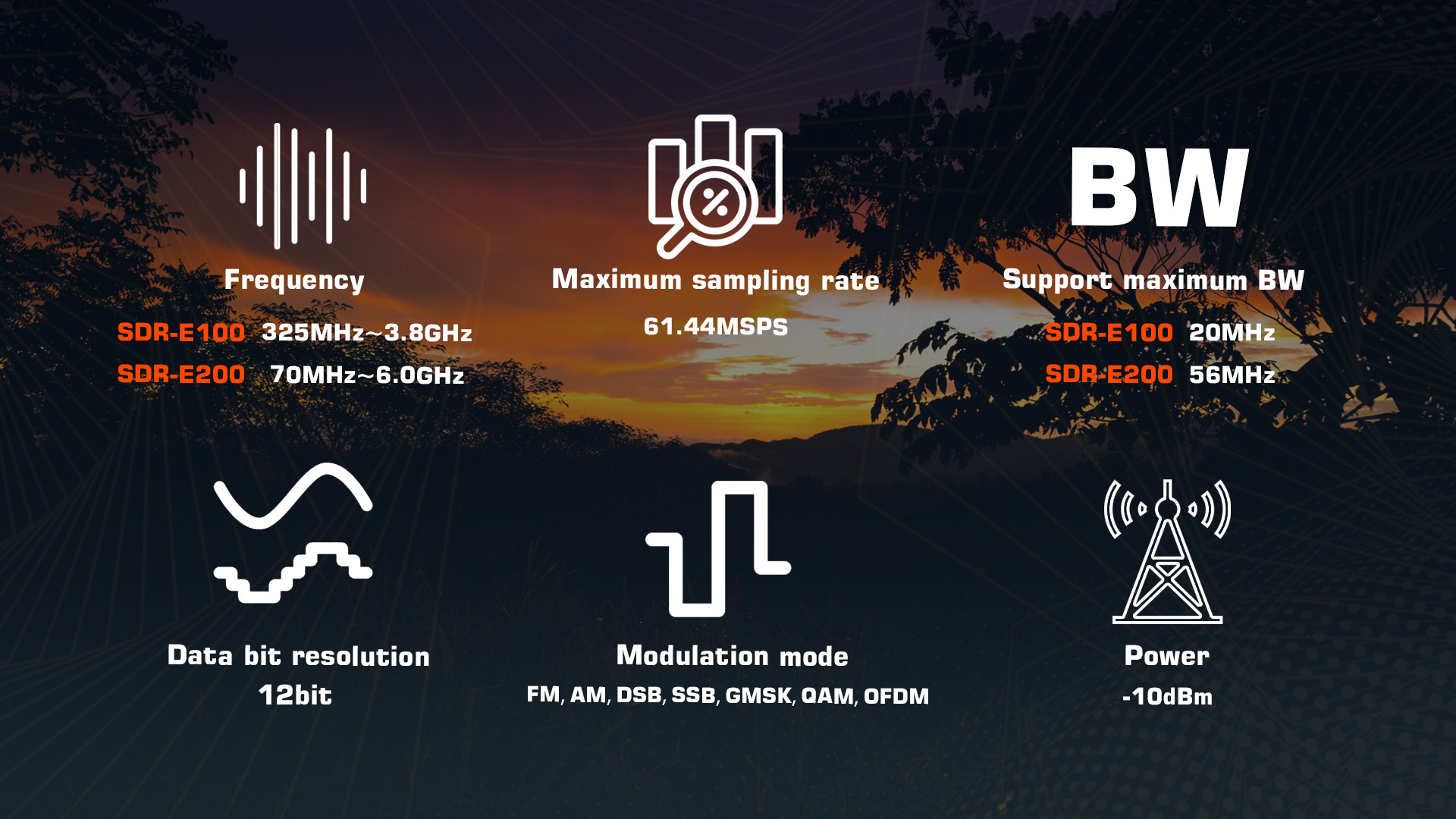

Specifications

Number of channels 2 TX/2 RX MIMO
Modulation mode FMใ€AMใ€DSBใ€SSBใ€GMSKใ€QAMใ€OFDM
Maximum output power -10dBm
Maximum input power -10dBm
Maximum sampling rate 50.00MSPS
Maximum supported bandwidth 35.8MHz
Data bit width 12bit
Working current โ‰ค1A@12V
Working voltage DC12ยฑ3V
Ethernet rate 1000M

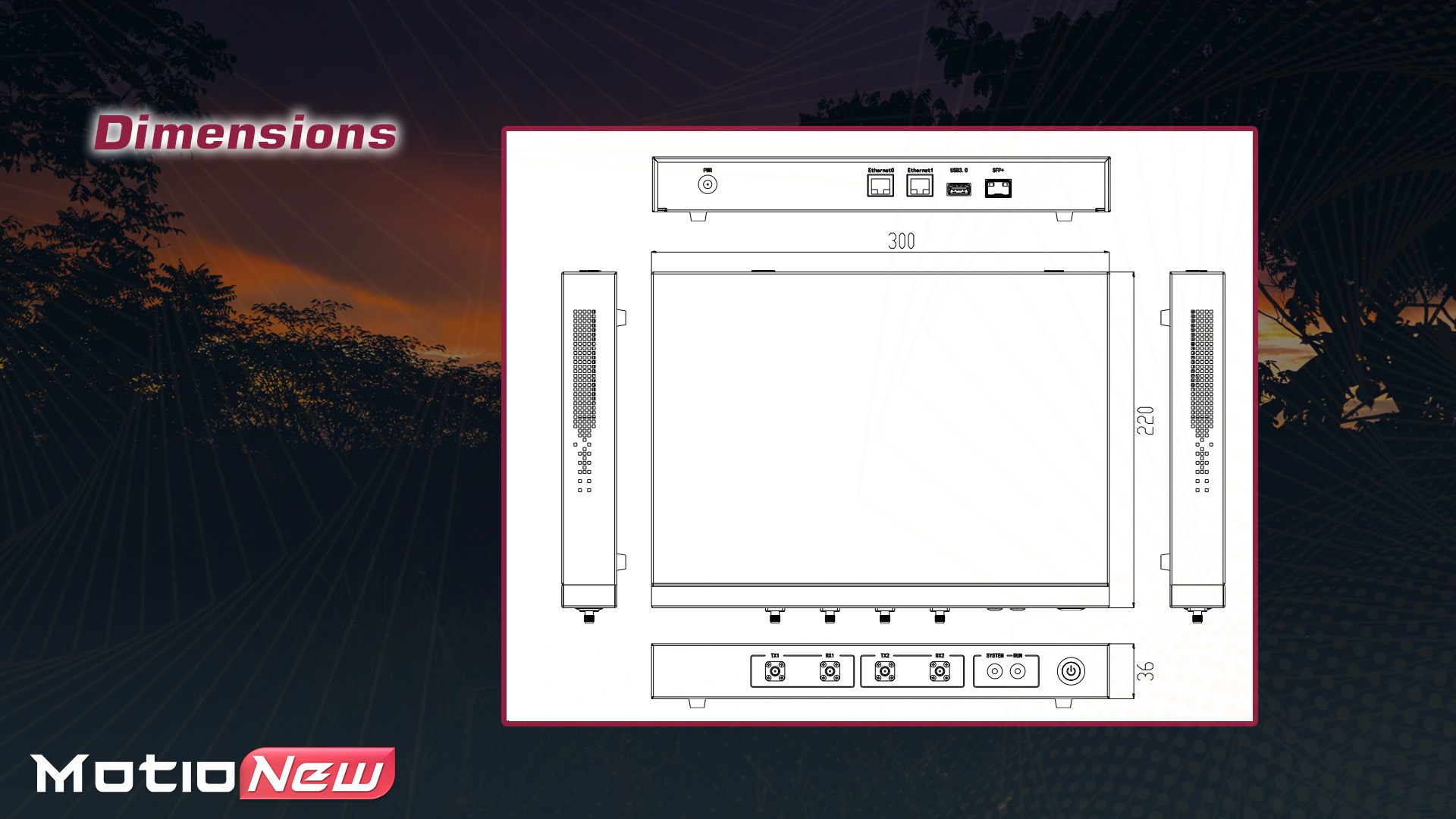

Dimension 300mm*220mm*36mm
Working temperature -20โ„ƒ ~ +45โ„ƒ
Heat dissipation mode Natural heat dissipation

Documents

Please contact us for more information.

Product contents

Please contact us for more information.
