CommuniNet MND-1410 long range 10W TDD wireless transmission system

Original price was: 18385.00 $.Current price is: 17599.00 $.

(1 customer review)
PayPal
Visa
Master

Description

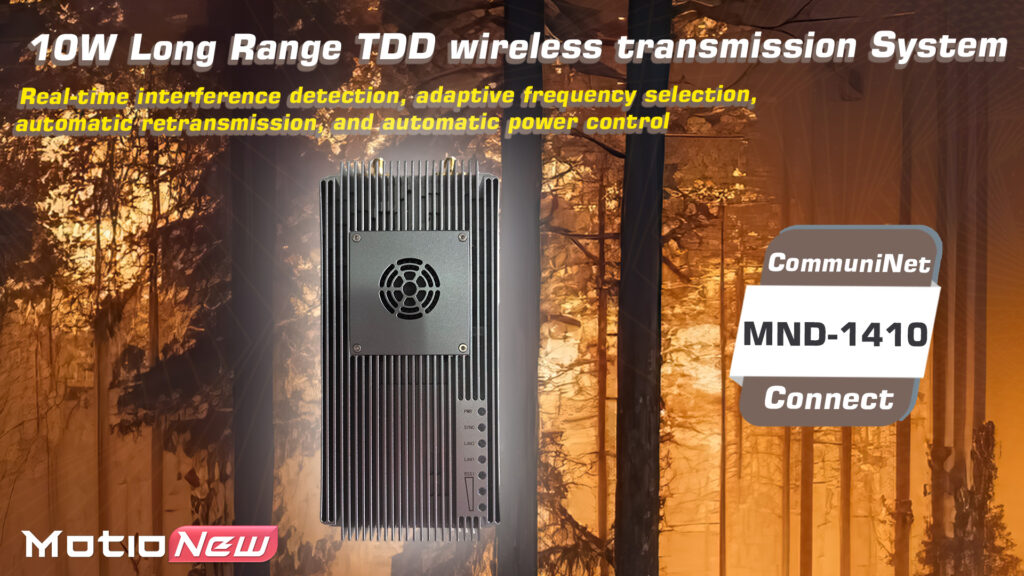

CommuniNet MND-1410 long range 10W Overview

CommuniNet MND-1410 long range is the 10W model from the CommuniNet series long range uav data linkย and videolink modules (please take a look at CommuniNet 20W MND-1420 and CommuniNet 8W MND-148 if you are interested). It is a long-range TDD wireless transmission equipment.

Advanced Real-Time Interference Detection and Adaptive Technologies for Reliable Communication

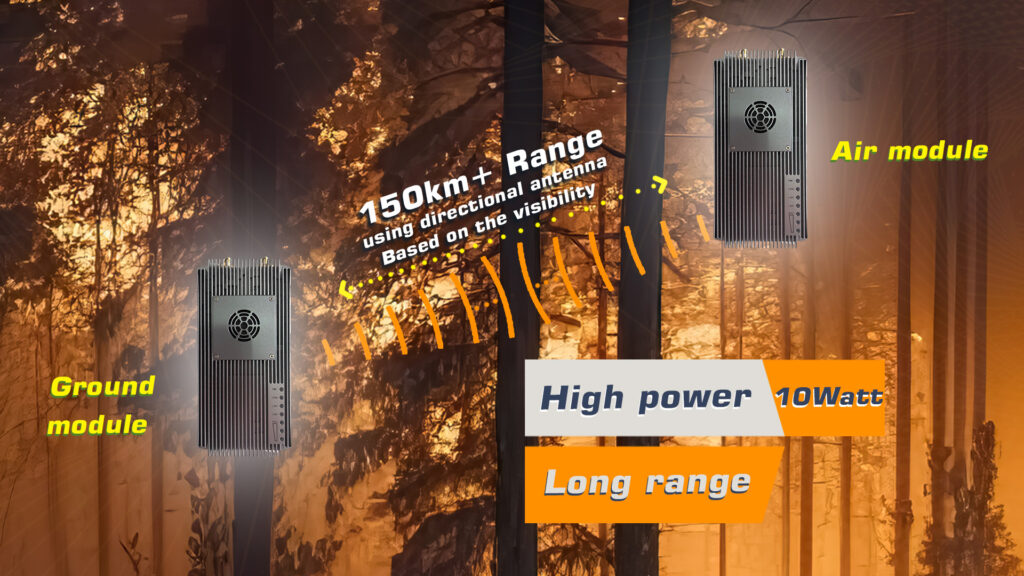

The product has the functions of real-time interference detection, adaptive frequency selection, adaptive stream, automatic retransmission, and automatic power control, which greatly improves the ability of anti-multipath and anti-interference. It has high reliability, good stability, and low delay. This product is suitable for firefighting, inspection, monitoring, and other scenarios. In the case of good air-to-ground visibility, the transmission distance is 150 km in a good environment with a good air-to-ground visibility.

Comprehensive Connectivity and LED Indicators for Enhanced Signal Monitoring and Synchronization

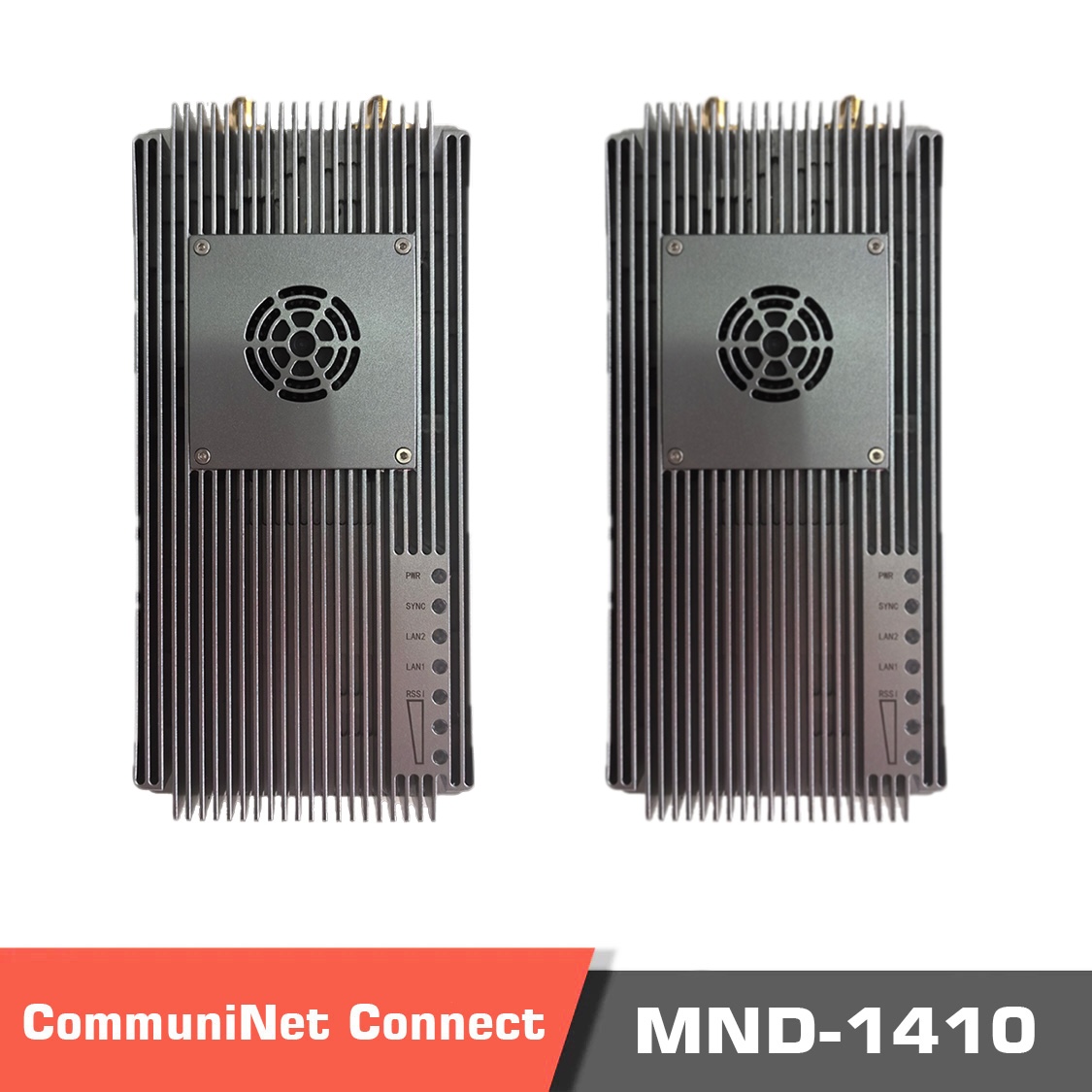

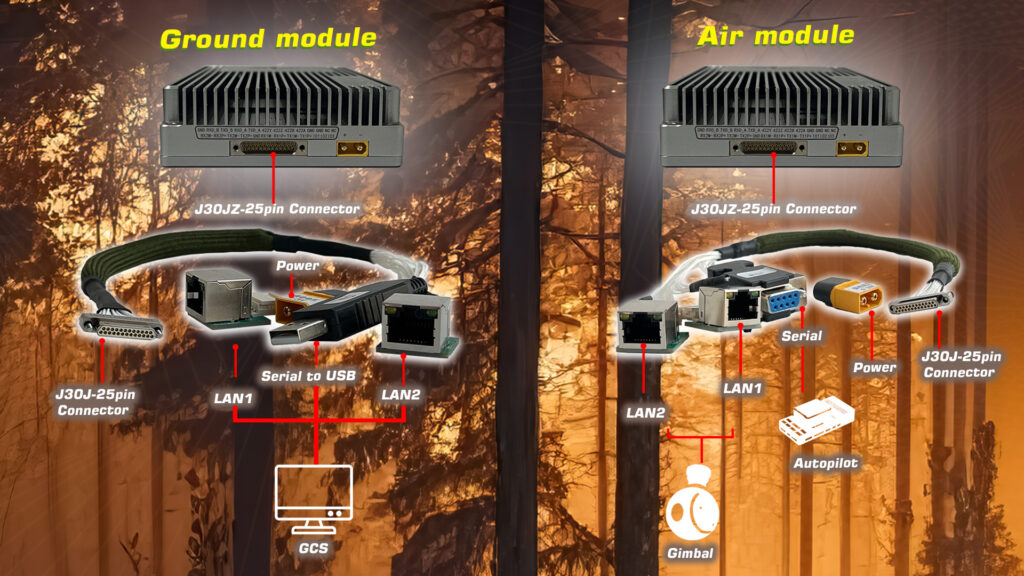

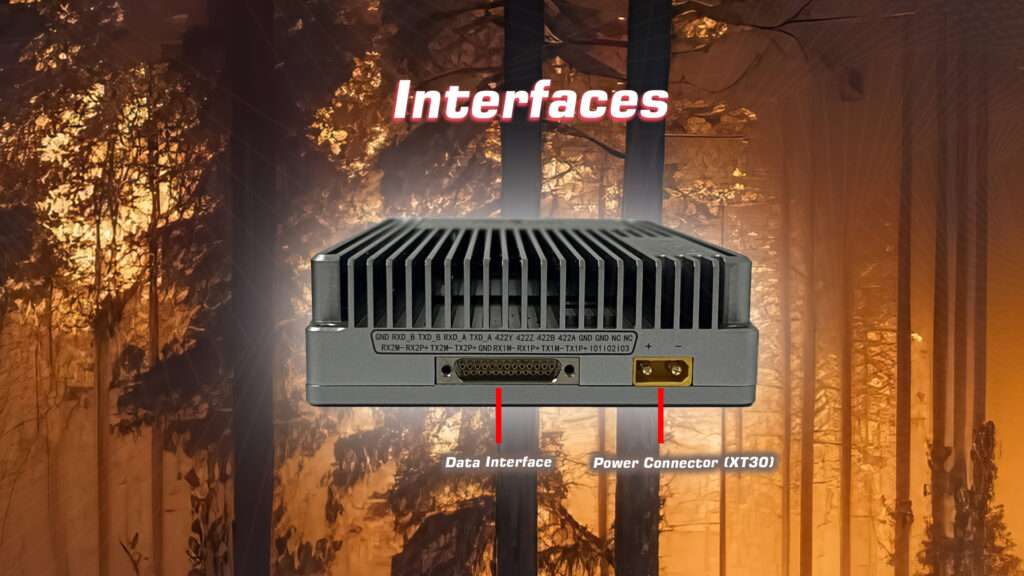

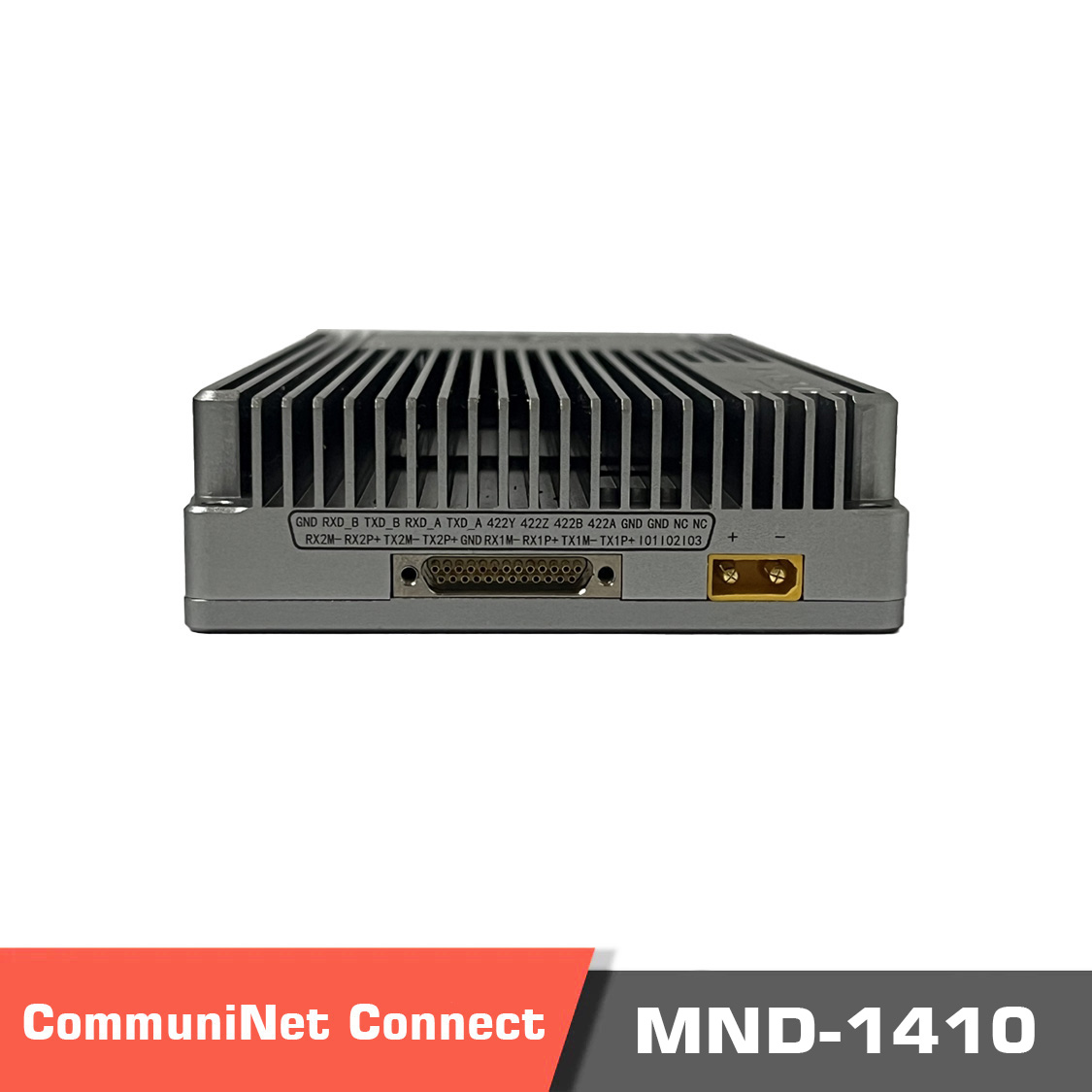

The device adopts a J30JZ-25pin aviation connector, and the product interface has a total of 1 power supply, 2 ethernet ports, and 3 serial ports. The serial ports are divided into 1x RS-422 and 2x RS232/TTL.

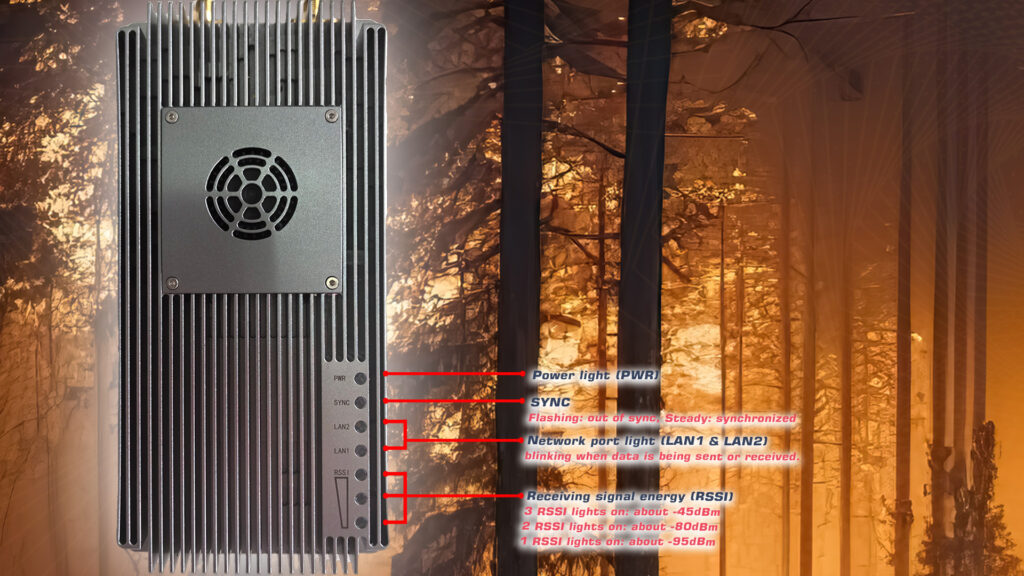

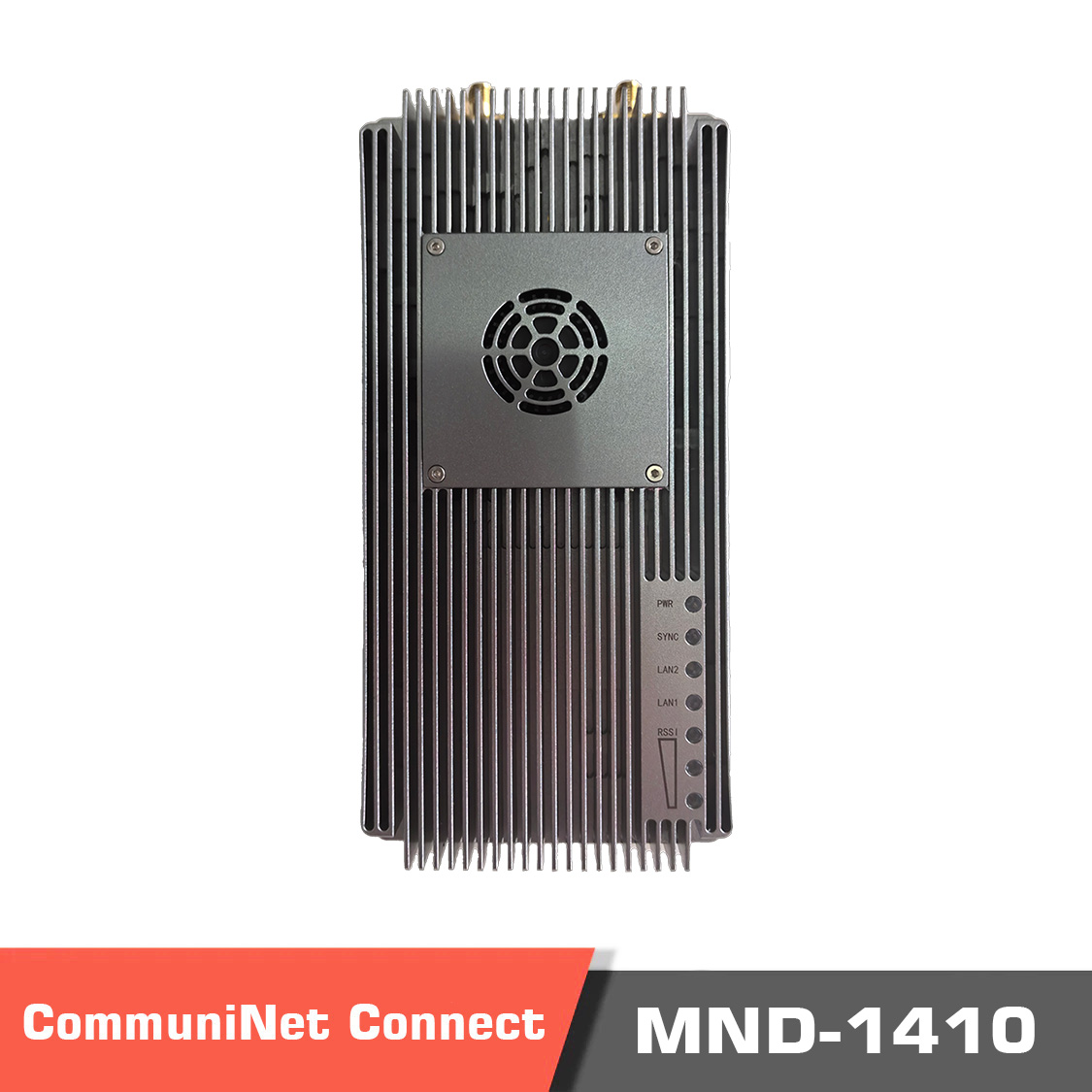

There are multiple LED light indicators on the device. Power light PWR (green) which is turned on when the device is powered on. SYNC (green) will flash if the air and ground modules are in the out-of-sync state, and it will be steady on after synchronization. There are two indicators for network ports LAN1 and LAN2 which start blinking in case of data transmission between the module and an external accessory.

The 3 green lights for the RSSI show the received signal strength. Based on the number of lights that are turned on, the RSSI can be -45dBm, -80dBm, or -95dBm. The greater the number of turned on lights, the greater the signal reception strength.

Master-Slave Synchronization and Noise Detection for Optimal Device Performance

When the master and slave devices are not synchronized, the PWR indicator of the master and slave devices is steady on, the SYNC indicator is blinking, and the RSSI indicator of the master device is off. The RSSI of the slave device will always be in the search state. After the master/slave synchronization, the SYNC indicator of the master/slave is steady on. The master-slave RSSI LED displays the received signal energy intensity. When the network port is sending or receiving data, the master and slave devices correspond to LAN1, and LAN2 indicator blinks.

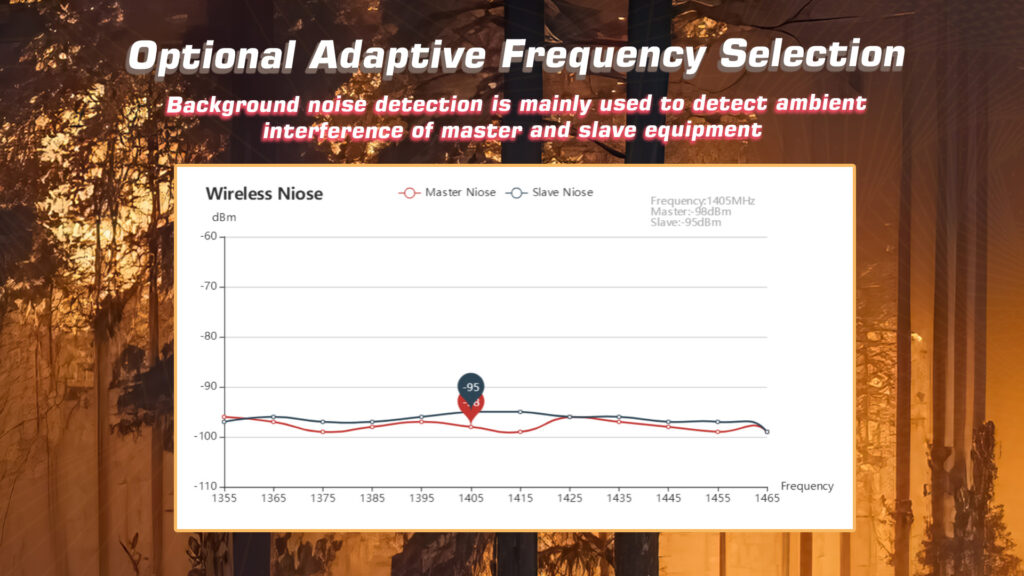

Background noise detection is mainly used to detect ambient interference of master and slave equipment. The red line in the web analyzer represents the bottom noise at the primary end and the blue line represents the bottom noise at the secondary end. The lower the absolute value, the cleaner the floor noise, that is, the smaller the interference source.

Example

For example, -100dBm is better than -90dBm. Background noise detection can help users quickly eliminate interference sources around the device after power-on, when the absolute value is large, such as -70dBm. At this time, on behalf of serious interference around the equipment, you can pull the far antenna position or away from the electromagnetic wave equipment on the side of the equipment to see whether the bottom noise has become better.

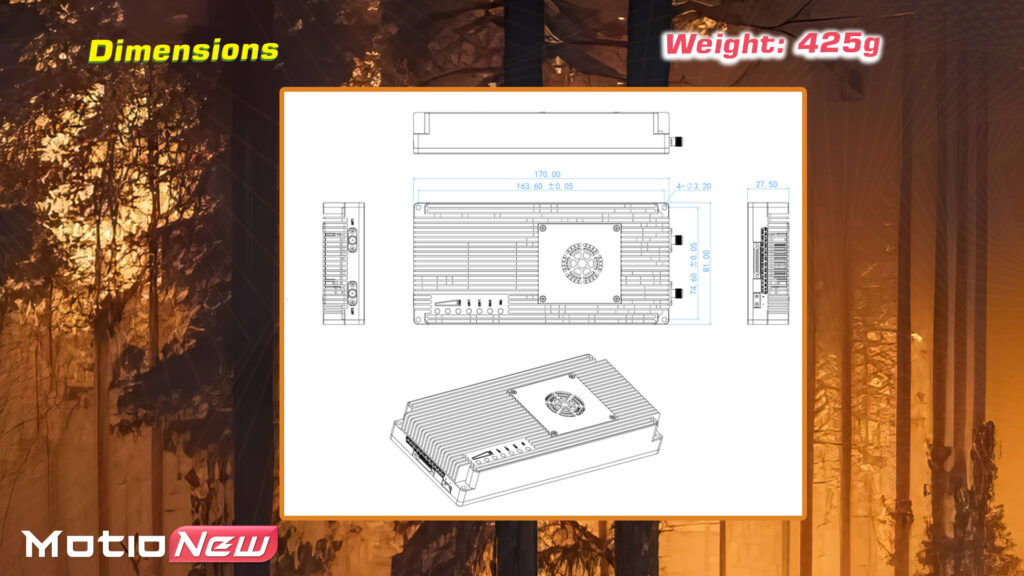

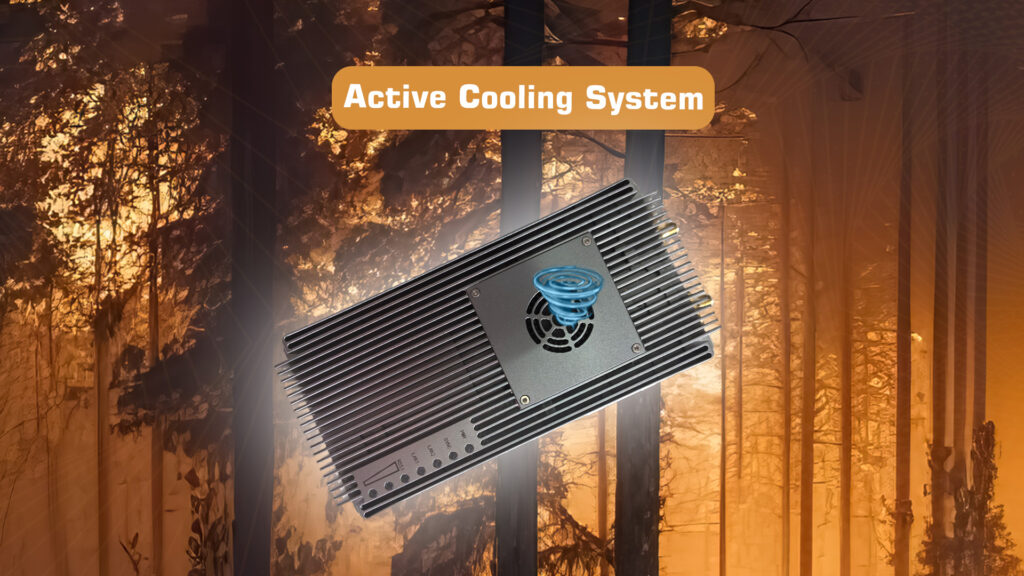

Data link communinet mnd -1410 Data link communinet mnd -1410 specification Data link communinet mnd -1410 parts Communinet connect mnd 1410. 4 - communinet mnd-1410 - motionew - 6 Communinet connect mnd 1410. 5 - communinet mnd-1410 - motionew - 7 Data link communinet mnd -1410 parts Data link communinet mnd -1410 acctive colling system Data link communinet mnd -1410 wireless noise ย Data link communinet mnd -1410 dimensions
