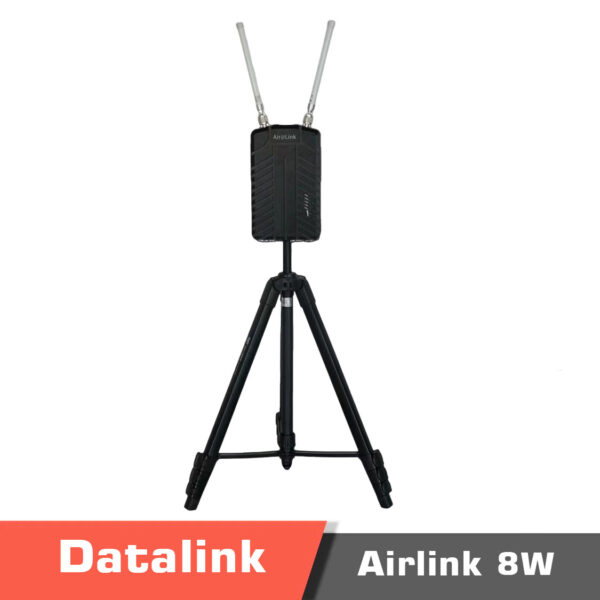

AirLink-8W

(1 customer review)

Original price was: 14,199.00 $.Current price is: 13,900.00 $.

Payment Methods:

Payment methods - airlink-8w - motionew - 19
Description

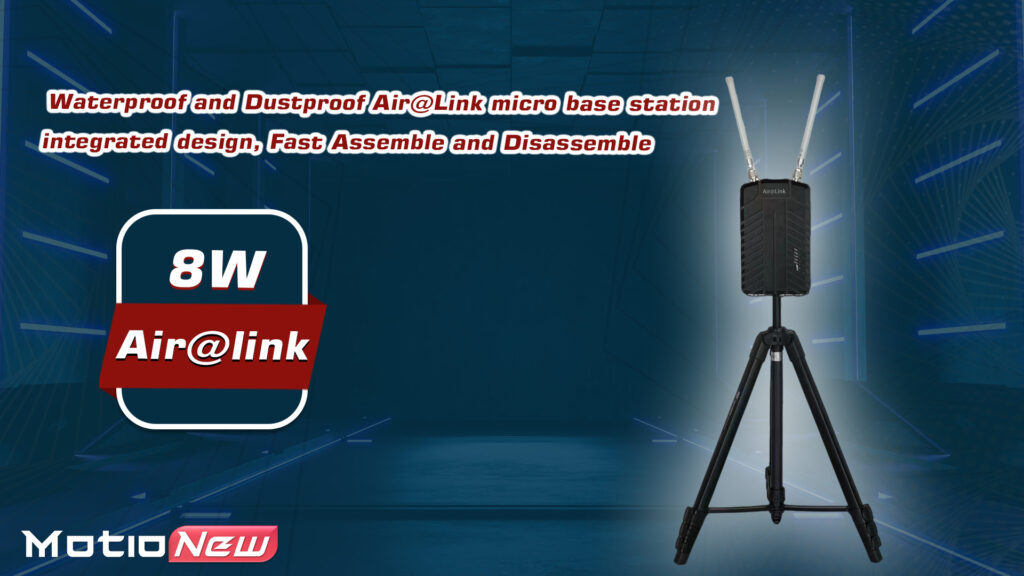

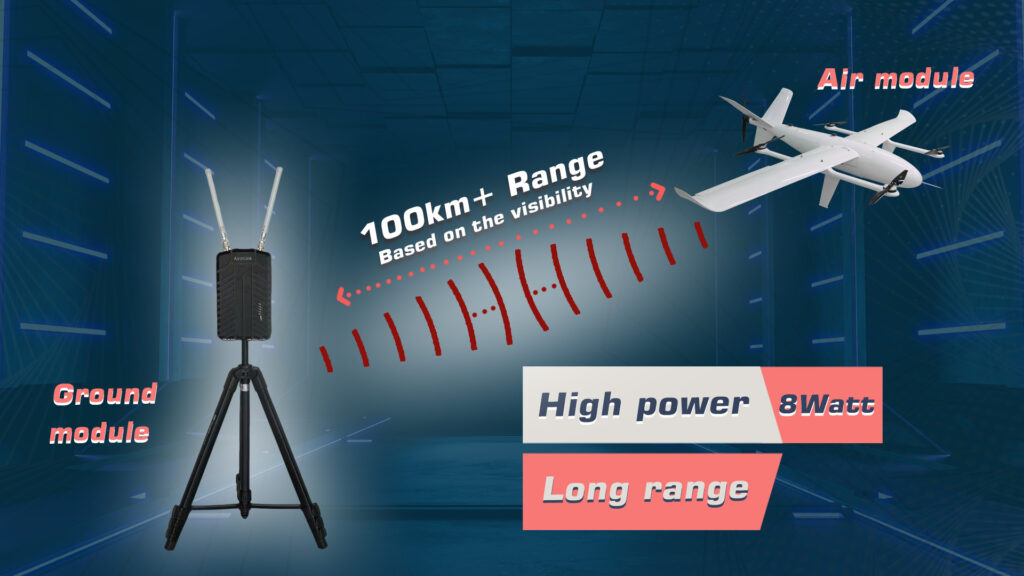

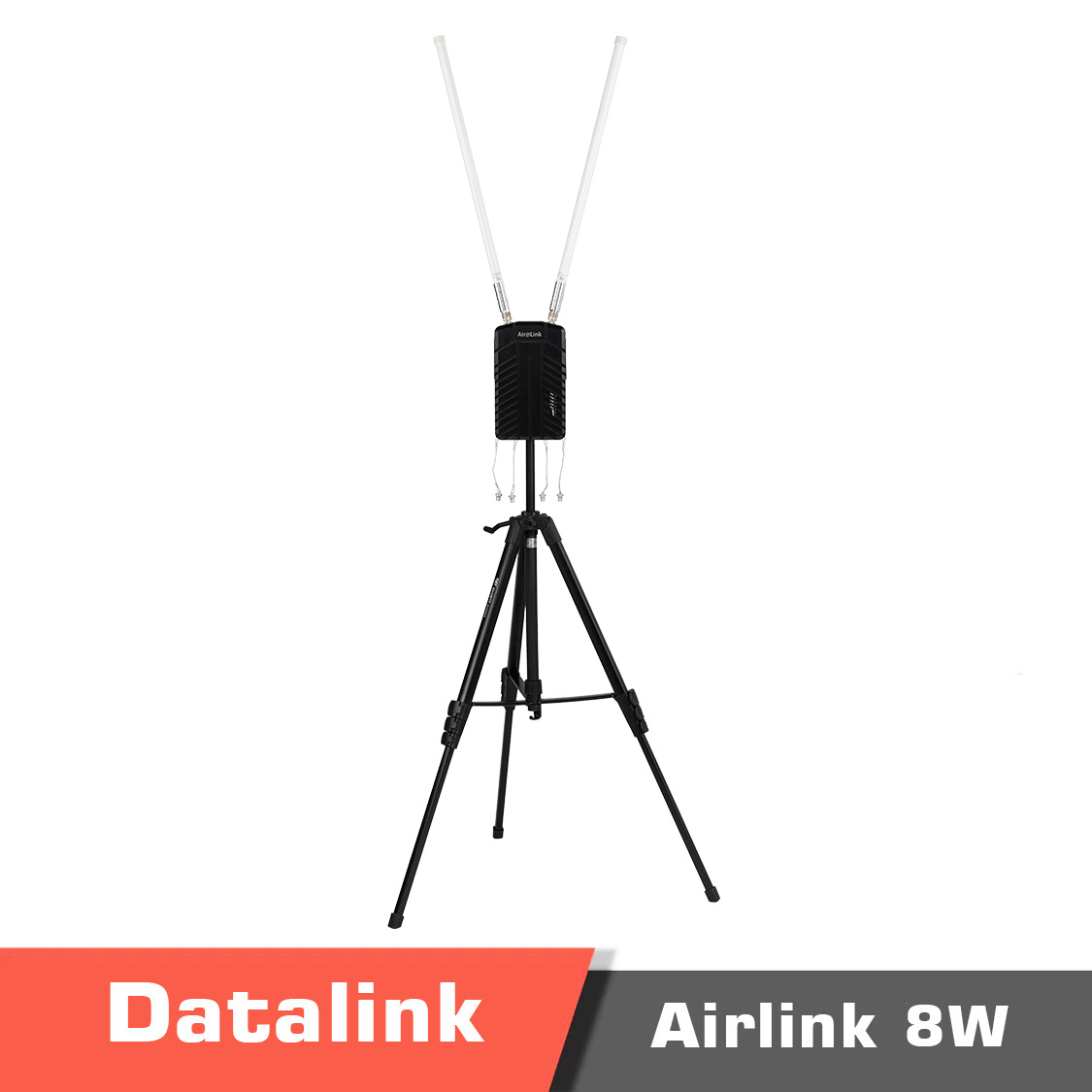

Airlink microbase station adopts an integrated, all-in-one design. Waterproof, dustproof and anti-corrosion design, support independent battery power supply, simple assembly, easy to disassemble. Airlink is a TDD bidirectional digital remote wireless small ground station. With wifi, network port, serial port, SBUS and RS422 and other interfaces. Support real-time environment noise detection adaptive stream, automatic frequency selection, automatic retransmission mechanism, automatic antenna selection, automatic power control, manual frequency mode, multiple sets of coexistence and a series of features. Airlink has a transmission power of 8W, and can support a maximum transmission distance of 100KM from air-to-ground under viewable conditions.

PRODUCT FEATURE

• One solution for video, command and control, and telemetry

• Air-to-ground visibility 60km+ when using omni antennas

• Air-to-ground visibility 100km+ when using directional antennas

• Adaptive channel selection (ACS)

• Real-time interference detection and anti-interference algorithm processing

• Automatic power control (APC)

• Adaptive modulation mode based on Shannon limit (Auto MCS)

• High reliability, good stability, and low delay

• Dual network ports, four serial ports

• IP65 protection

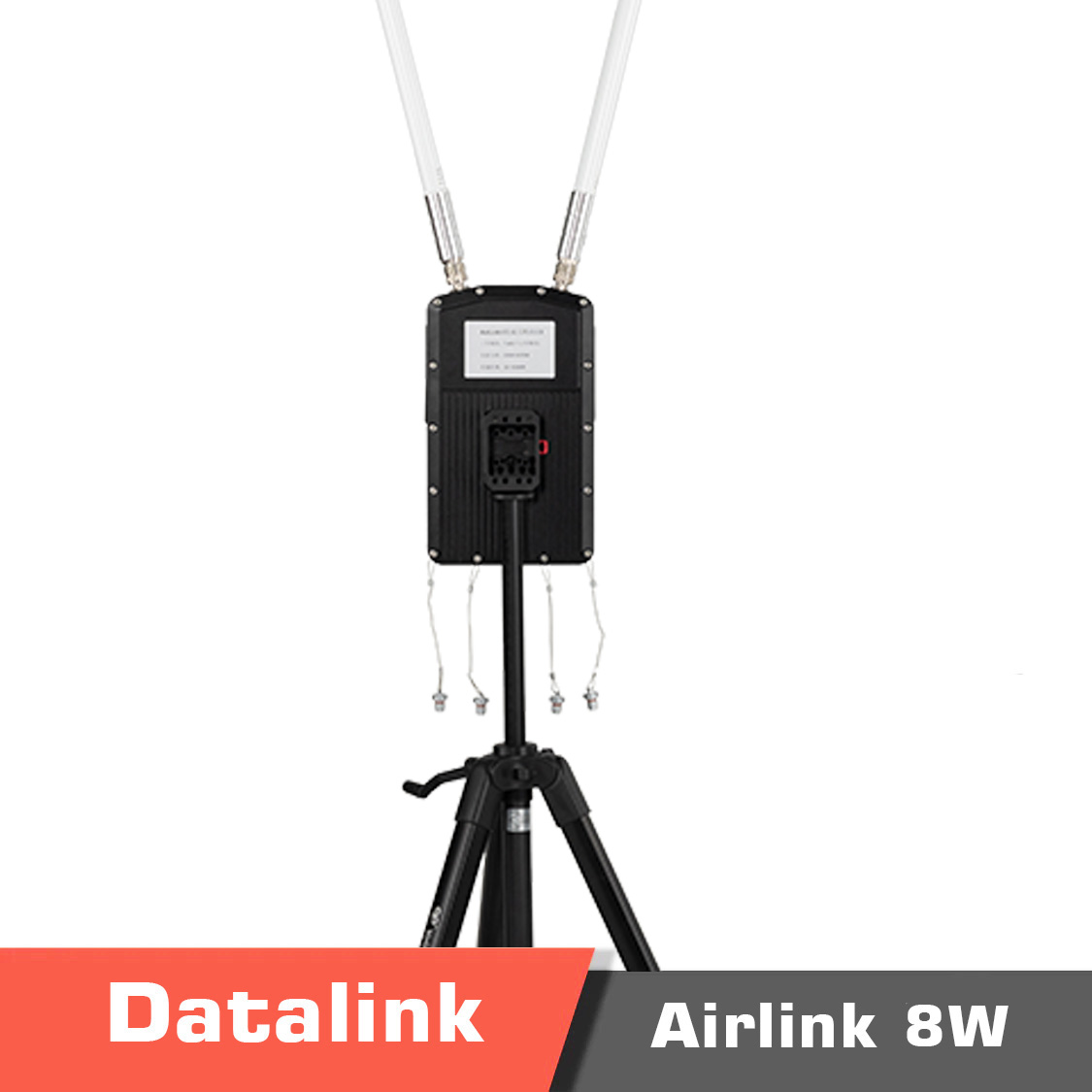

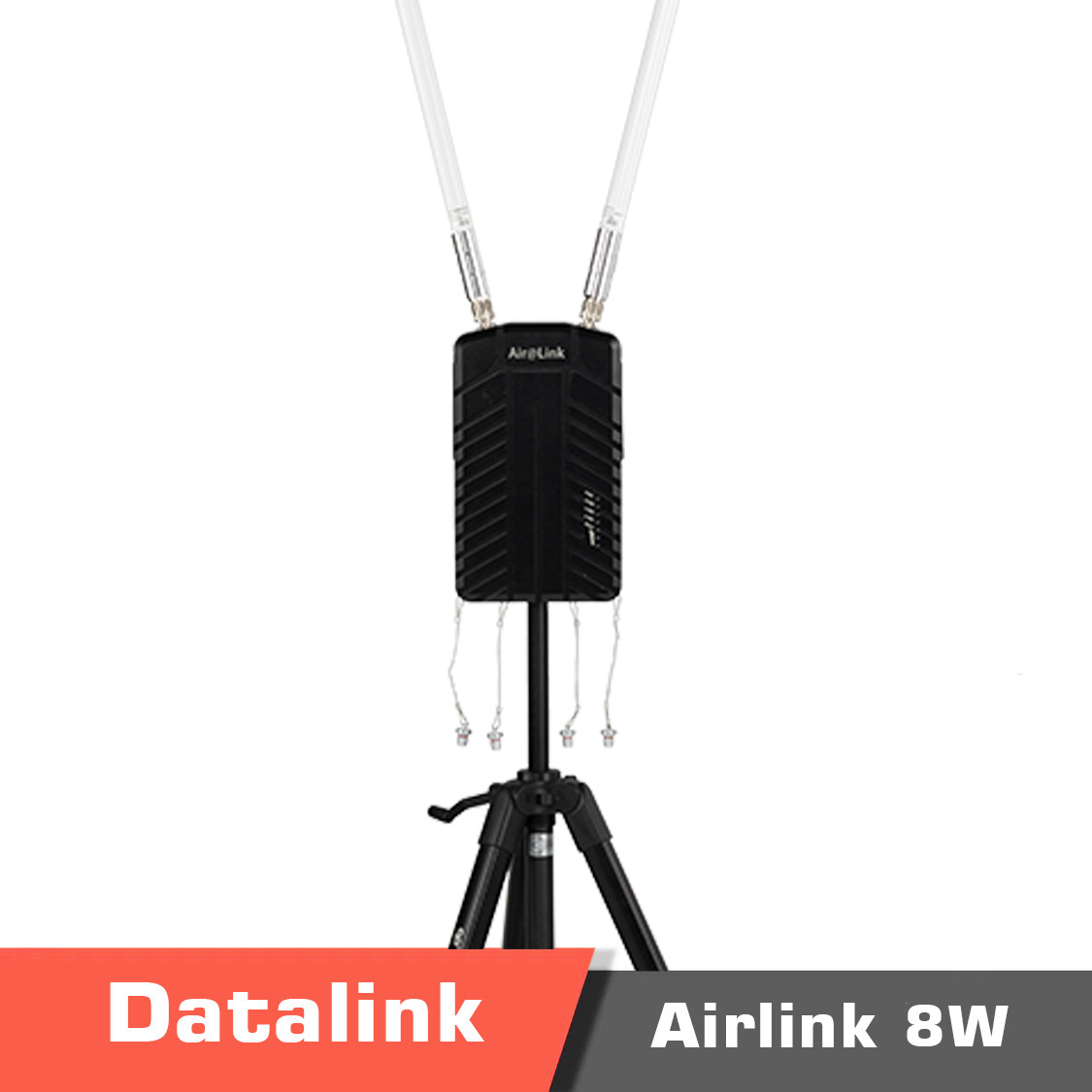

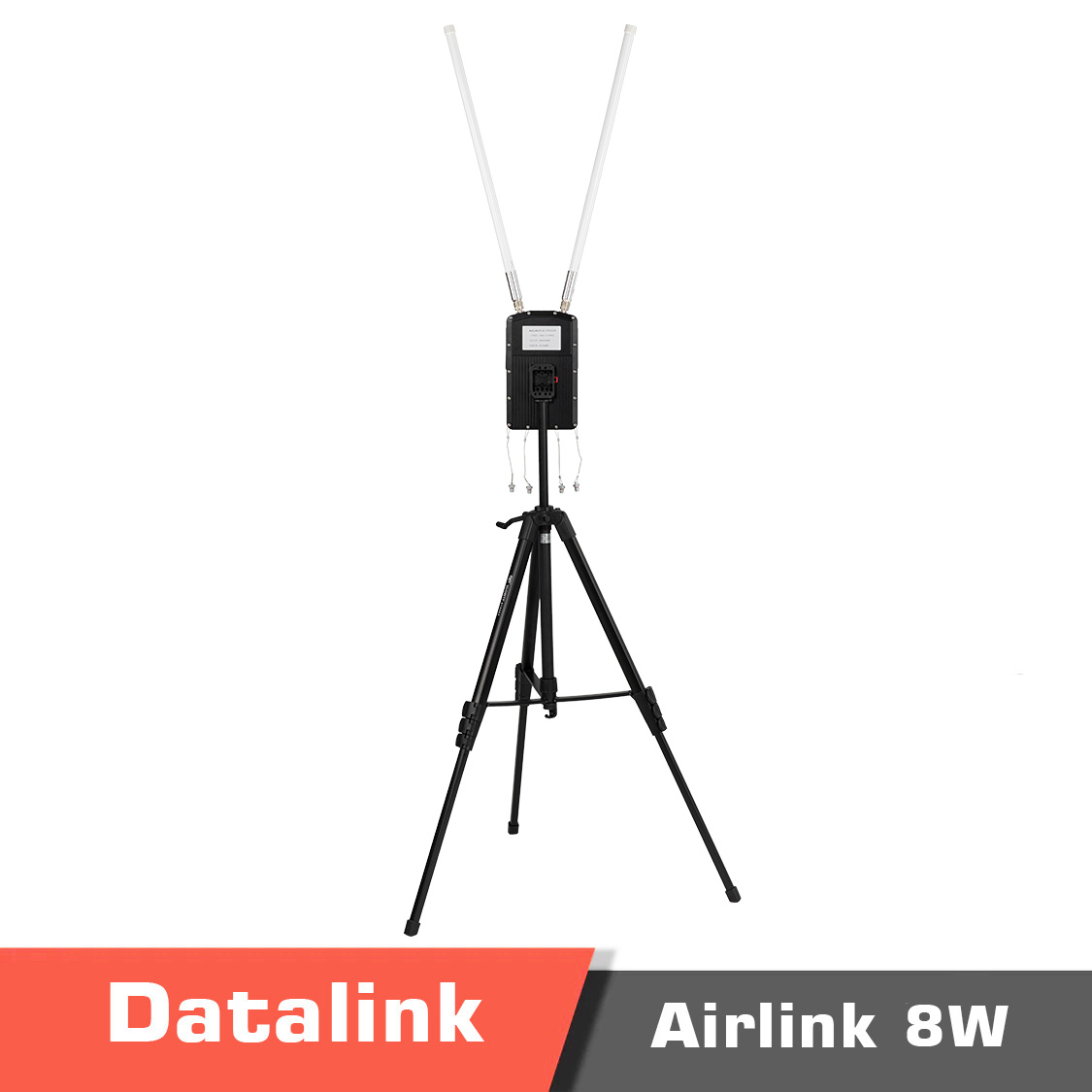

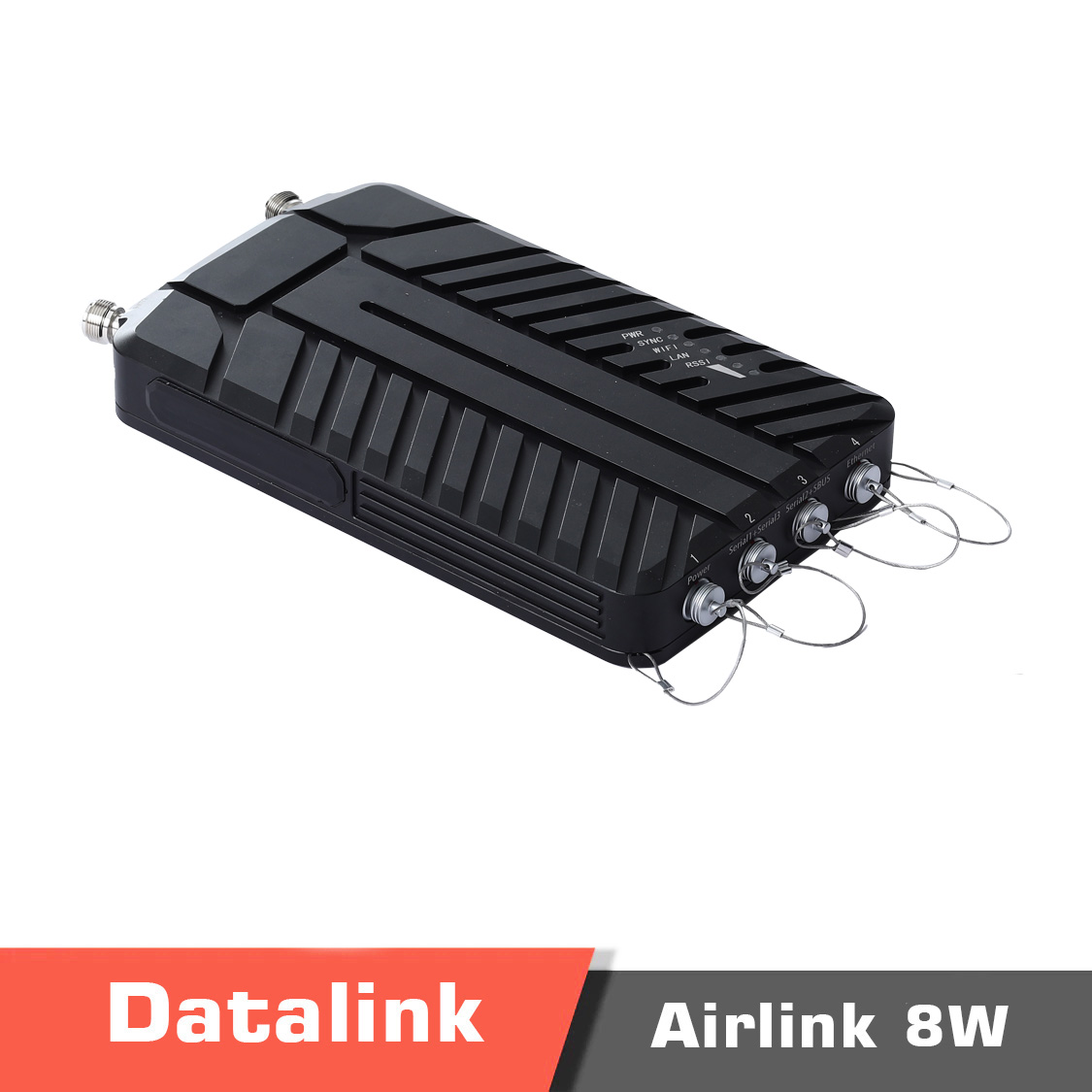

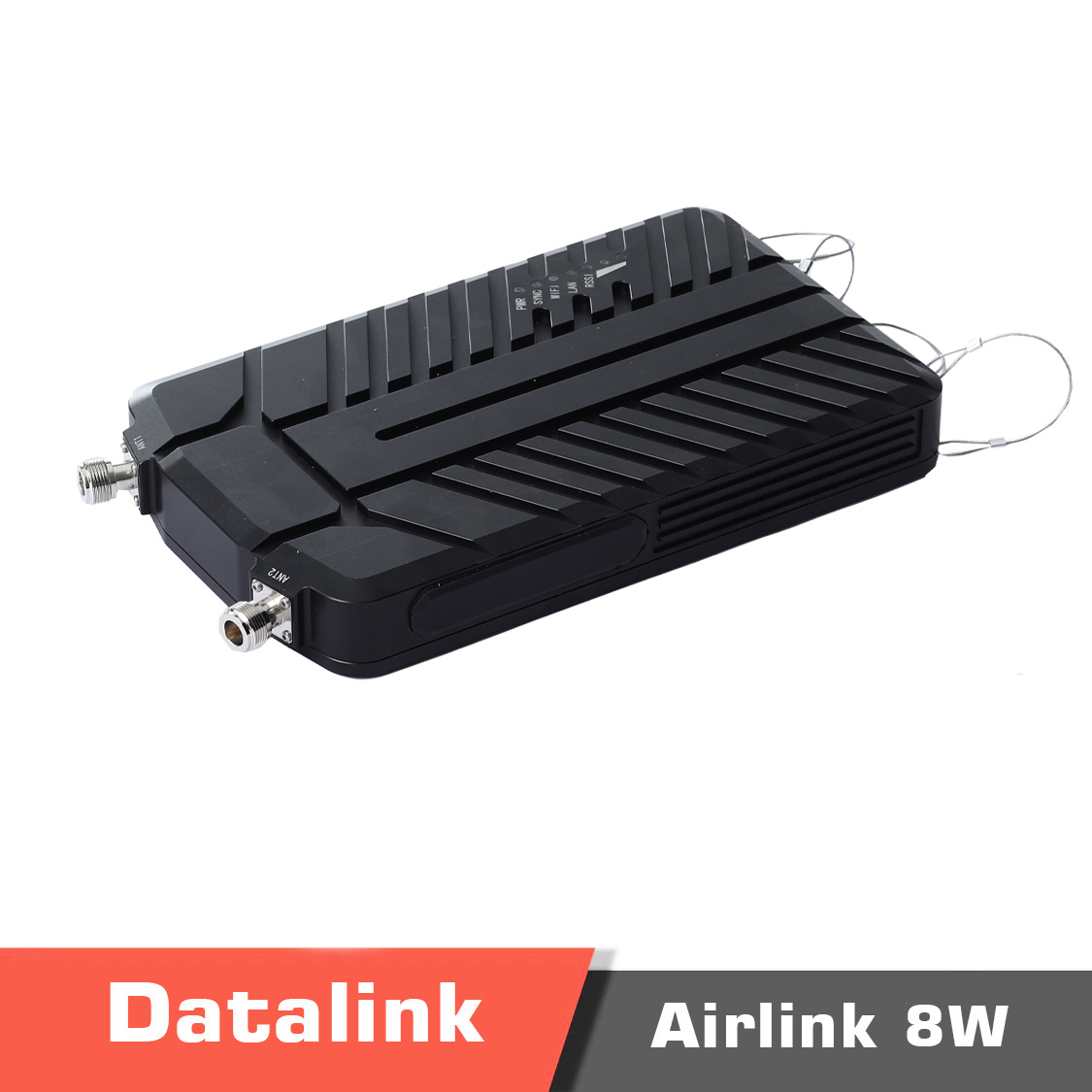

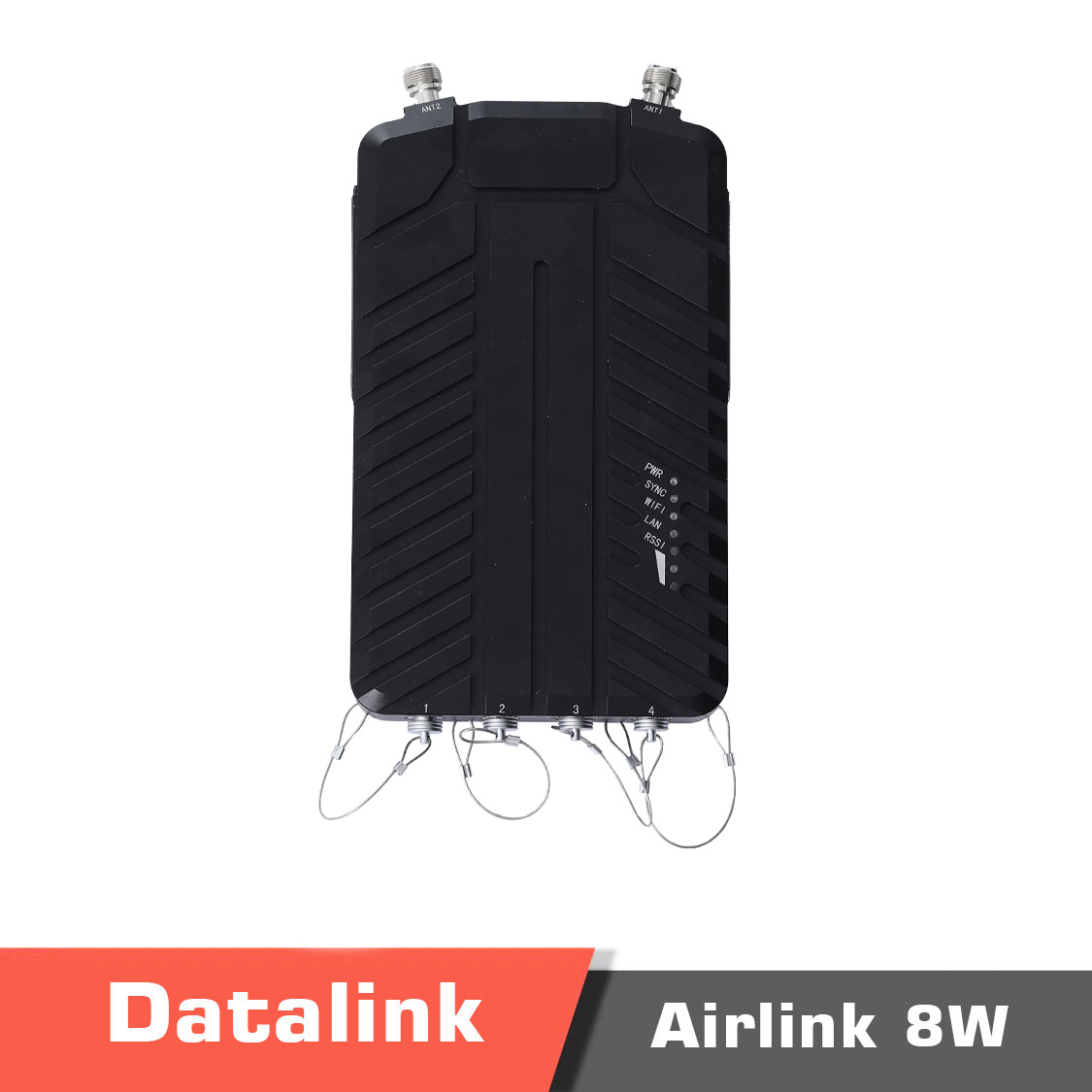

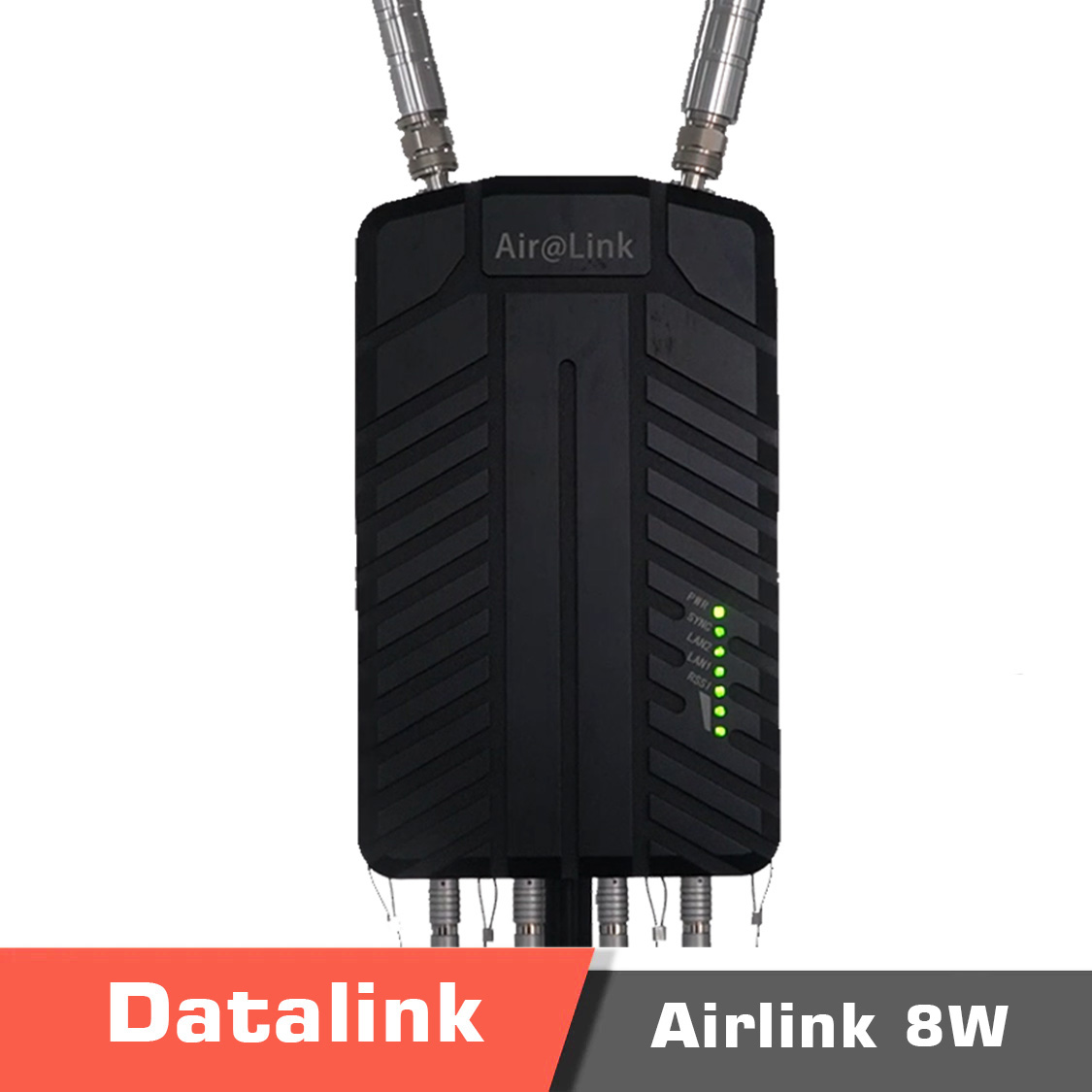

Airlink 8w. 1 - airlink-8w - motionew - 6 Airlink 8w. 2 - airlink-8w - motionew - 7 Airlink 8w. 3 - airlink-8w - motionew - 8 Airlink 8w. 4 - airlink-8w - motionew - 9 Airlink 8w. 5 - airlink-8w - motionew - 10 Airlink 8w. 6 - airlink-8w - motionew - 11 Airlink 8w. 8 - airlink-8w - motionew - 12

Specifications

Specifications

Description
Model AIRLINK-8W
Parameters
Working frequency 1350~1470MHz
Radio frequency Channel 2T2R
Output power 39dBm (8W)
Transmission distance Air to Ground(LOS)
100KM@5W/8W;
150KM@10W;
200KM@20W;
Channel bandwidth 10MHz
Modulation mode QPSK, 16QAM
Maximum rate 16Mbps@16QAM3/4
Communication encryption AES256
Transmission delay ≤10ms
Interface index
Radio frequency Interface SMA x2
Interface type Lemo line

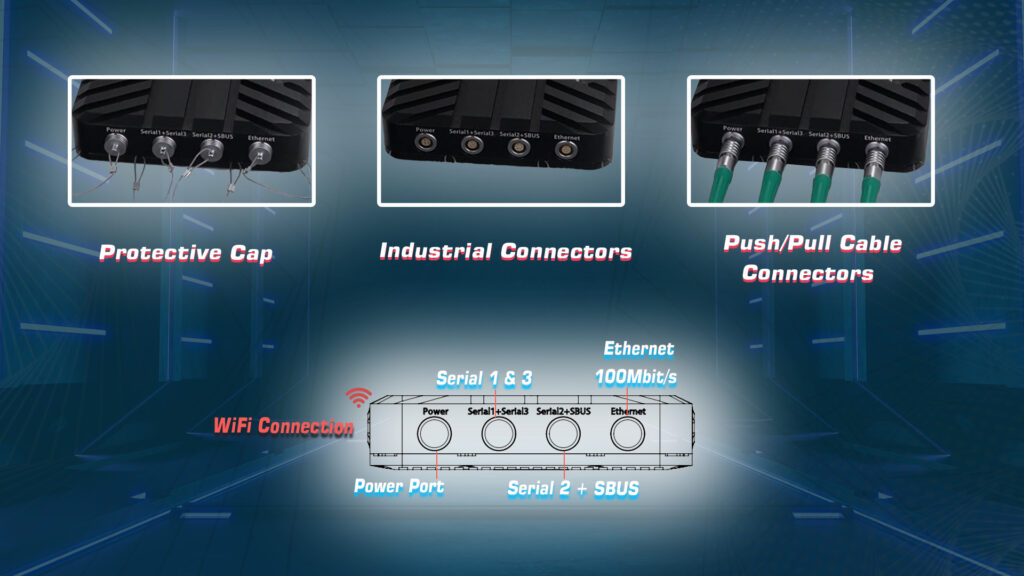

Device interface Ethernet x1, WIFI x1, TTL/RS232 x2, RS422 x1, SBUS/TTL X1
Electrical specifications
Power consumption ≤ 15W
Level of Protection Ground unit: IP65; Air unit: IP20
Physical specifications

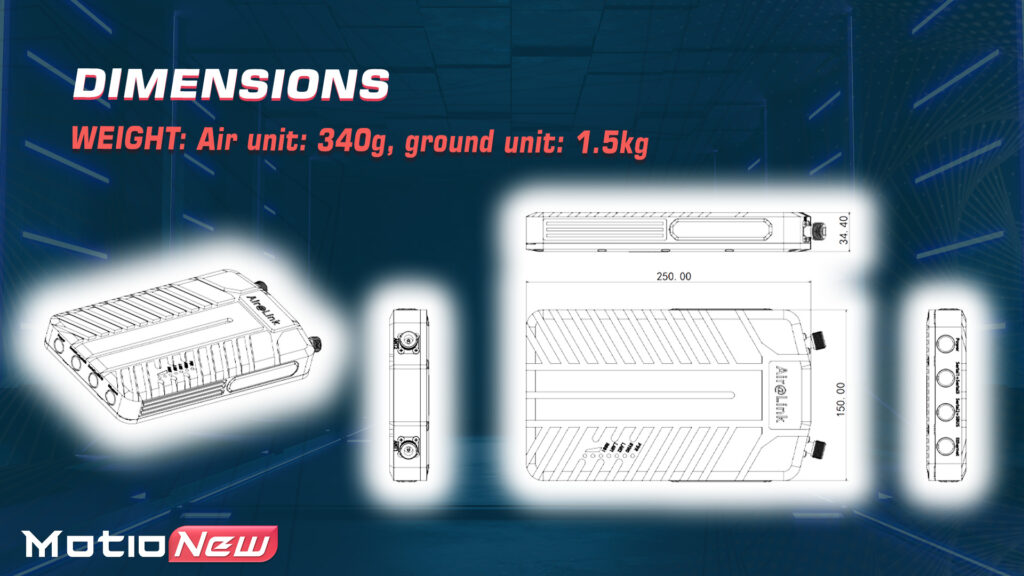

Dimension(L*W*H) 250mm*150mm*34.4mm
Weight Ground unit: 1.5kg; Air unit: 340g
Working voltage DC 22~30V,Typical value :+24V/+28V
product weight Air unit: 340g, Ground unit: 1.5kg
Working temperature -40~+65℃
Documents

Documents

Click Here To Download AirLink-8W manual

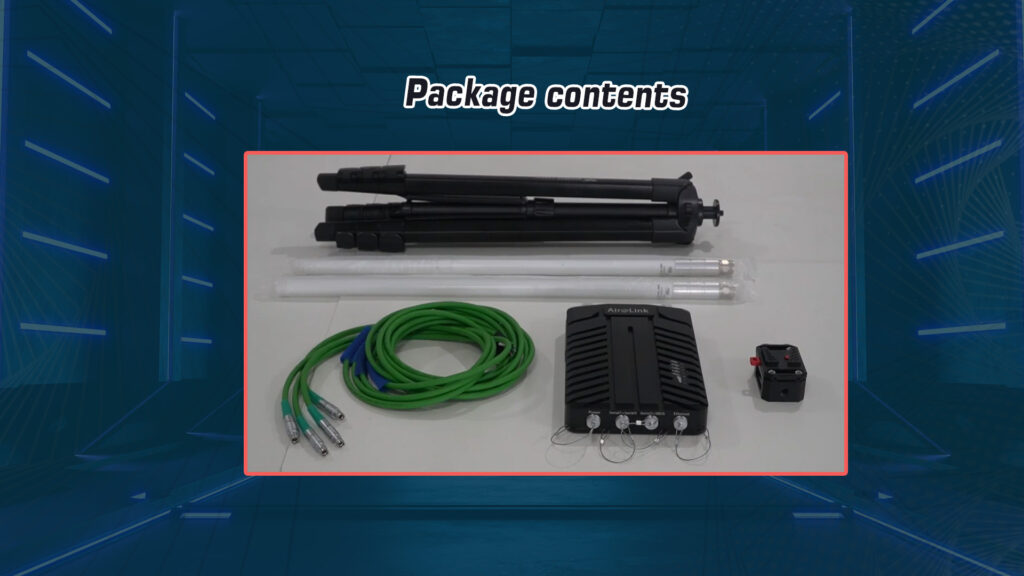

Product contents

Product contents





Airlink 8w. 7 - airlink-8w - motionew - 13

Reviews
5
1 review
1
0
0
0
0

1 review for AirLink-8W

Clear filters
  1. Carmen

    Producto excelente, lo recomiendo!

Add a review

Specification:

Transmission Power

8W

Operating Frequency

1.4GHz

Transmission System Type

Video Link / Data Link

Data Encryption

AES256

Transmission System Interfaces

Ethernet

,

SBUS

,

Serial

,

WiFi

Transmission System Weight

1.5kg

Channel Bandwidth

10MHz
