AirLink-5W

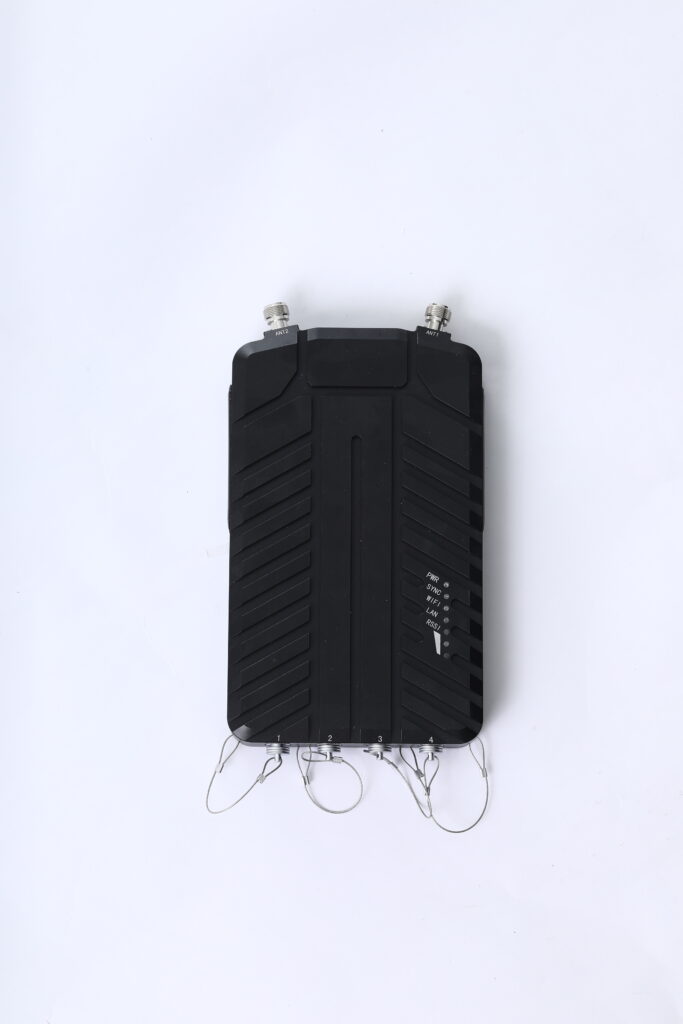

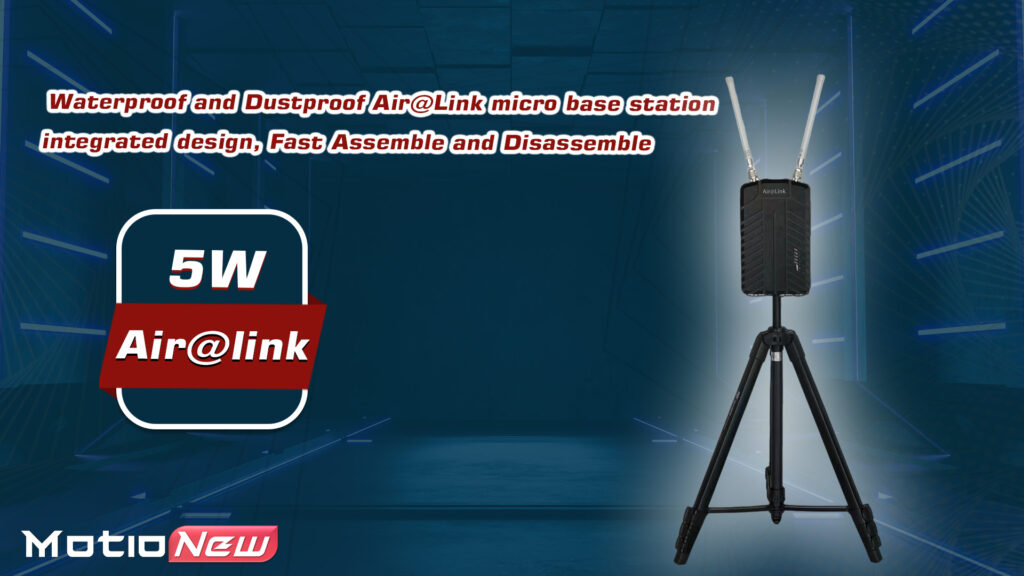

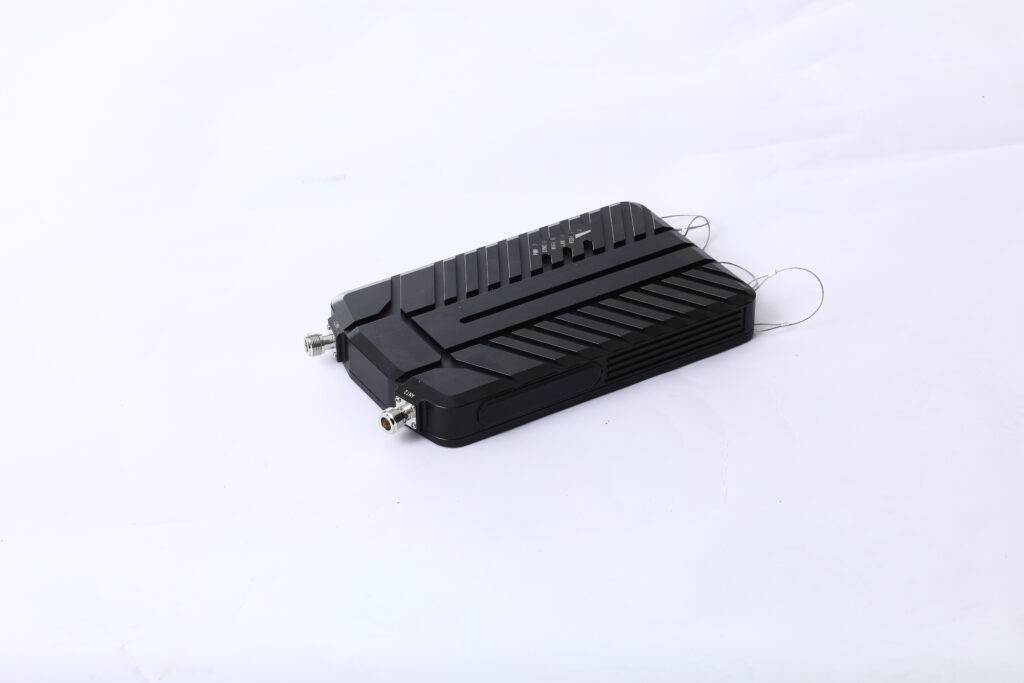

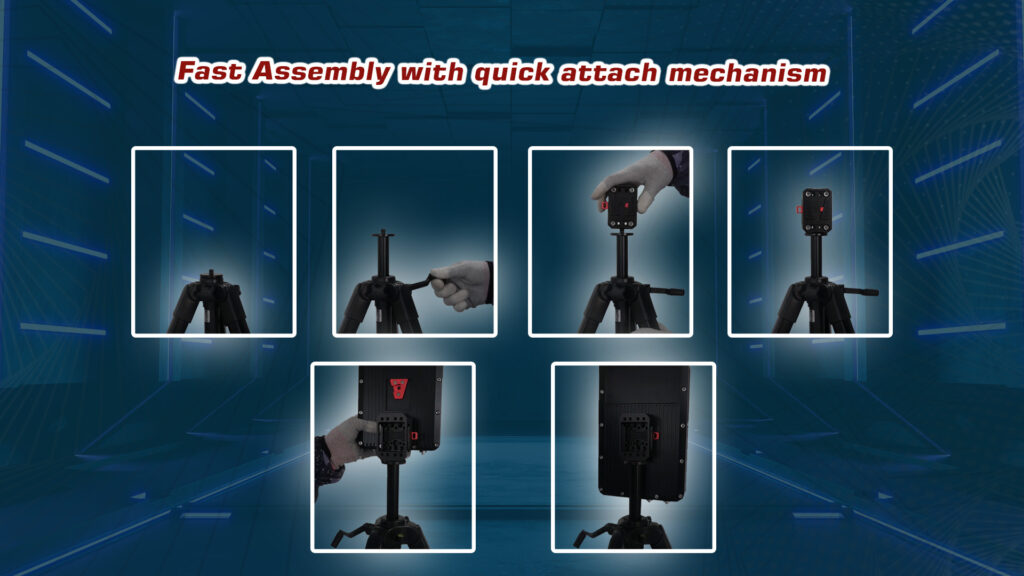

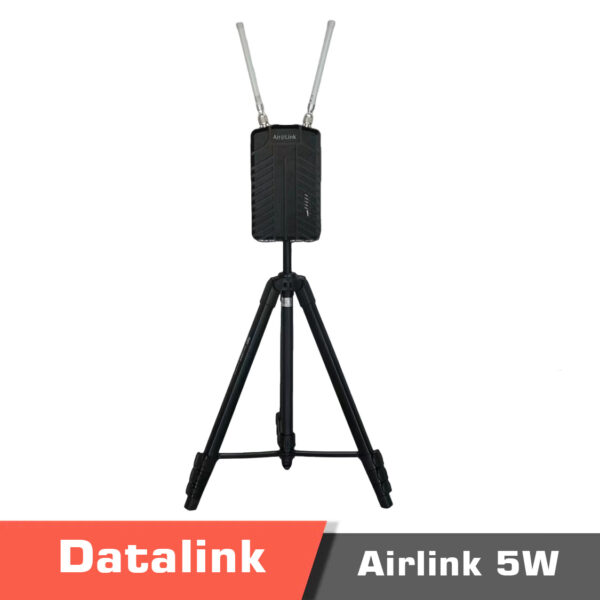

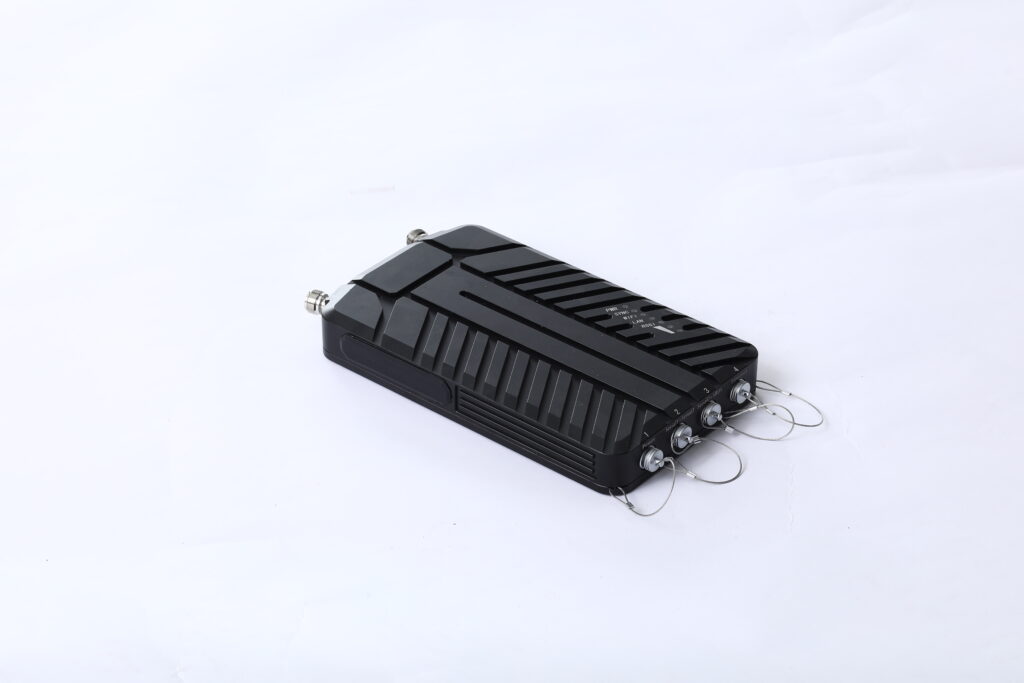

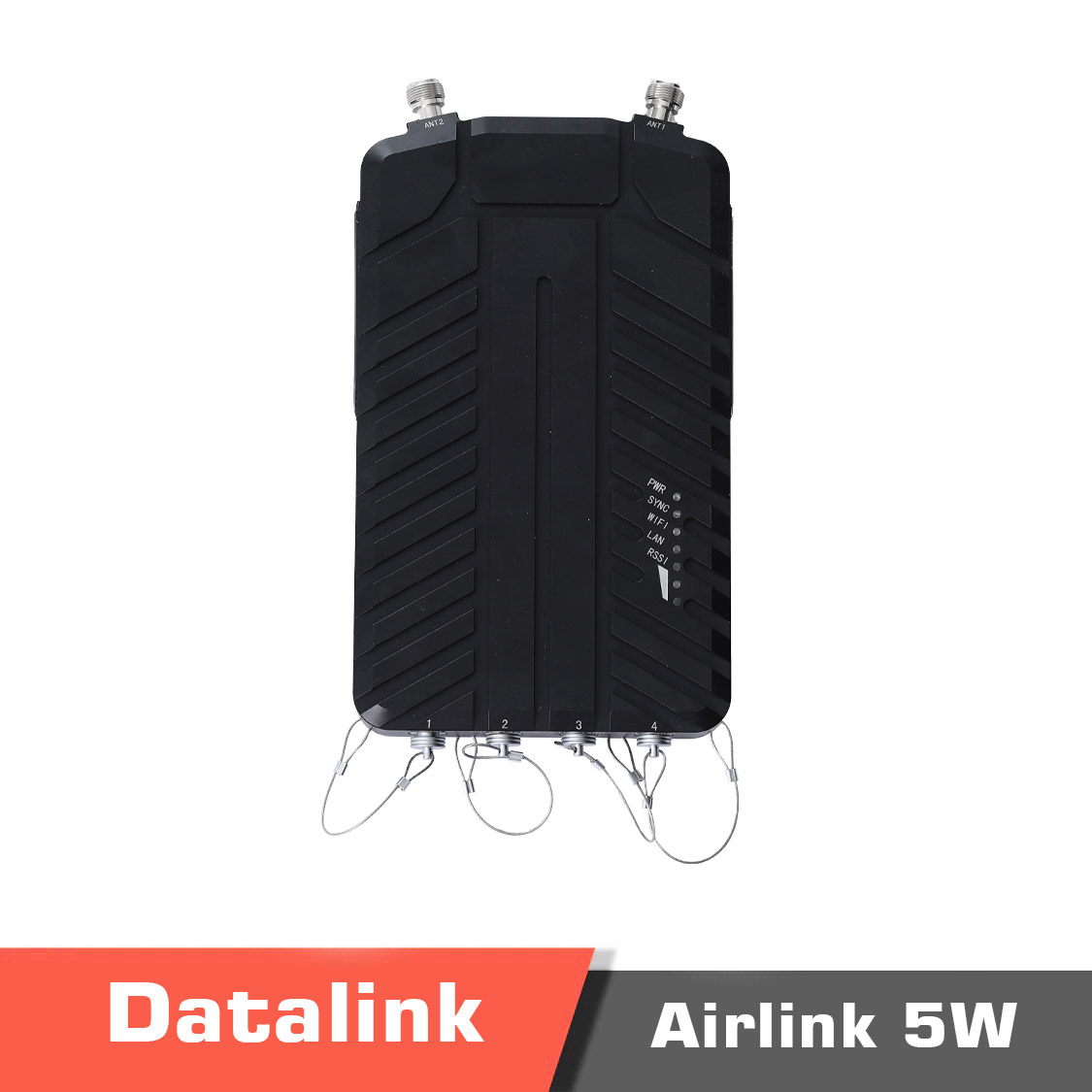

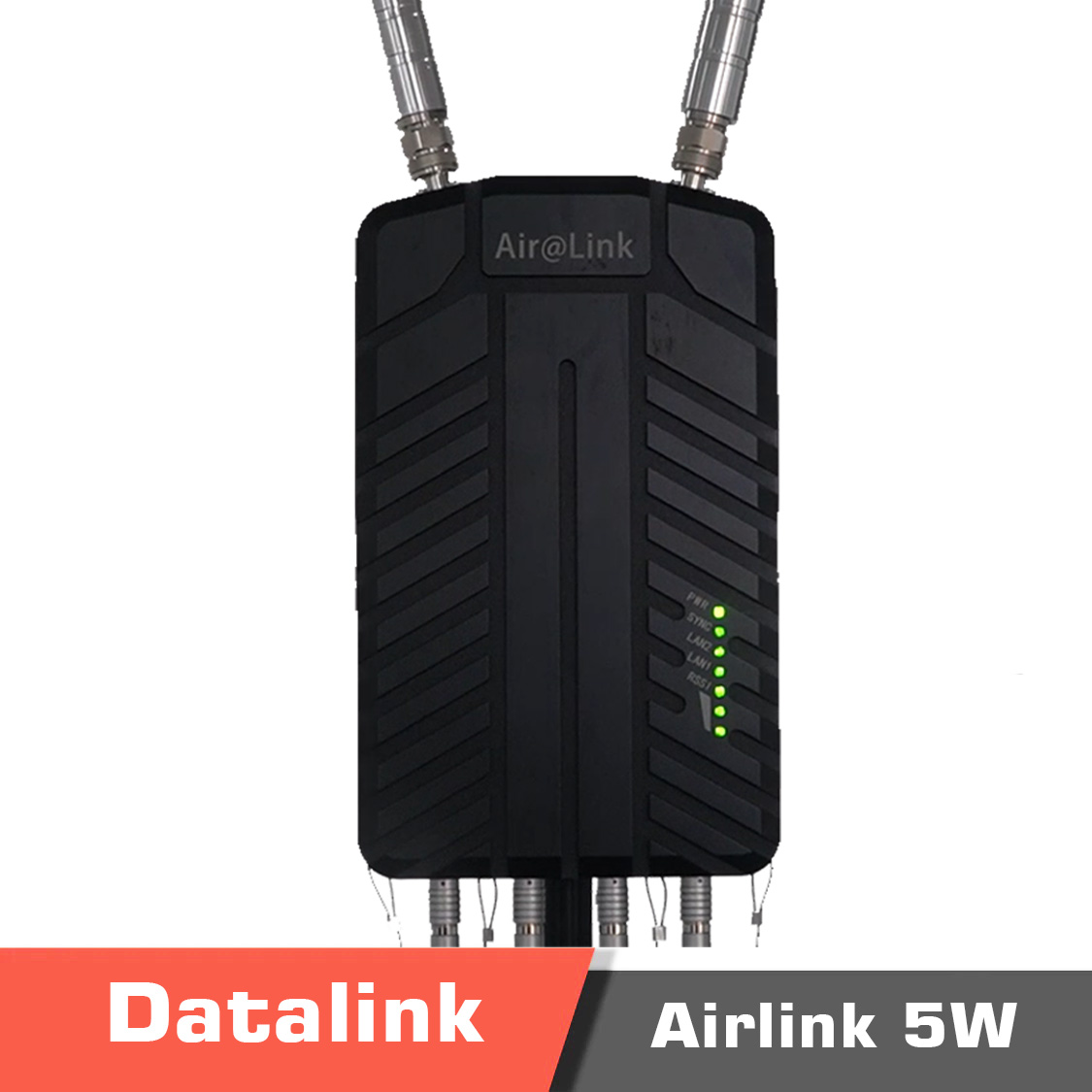

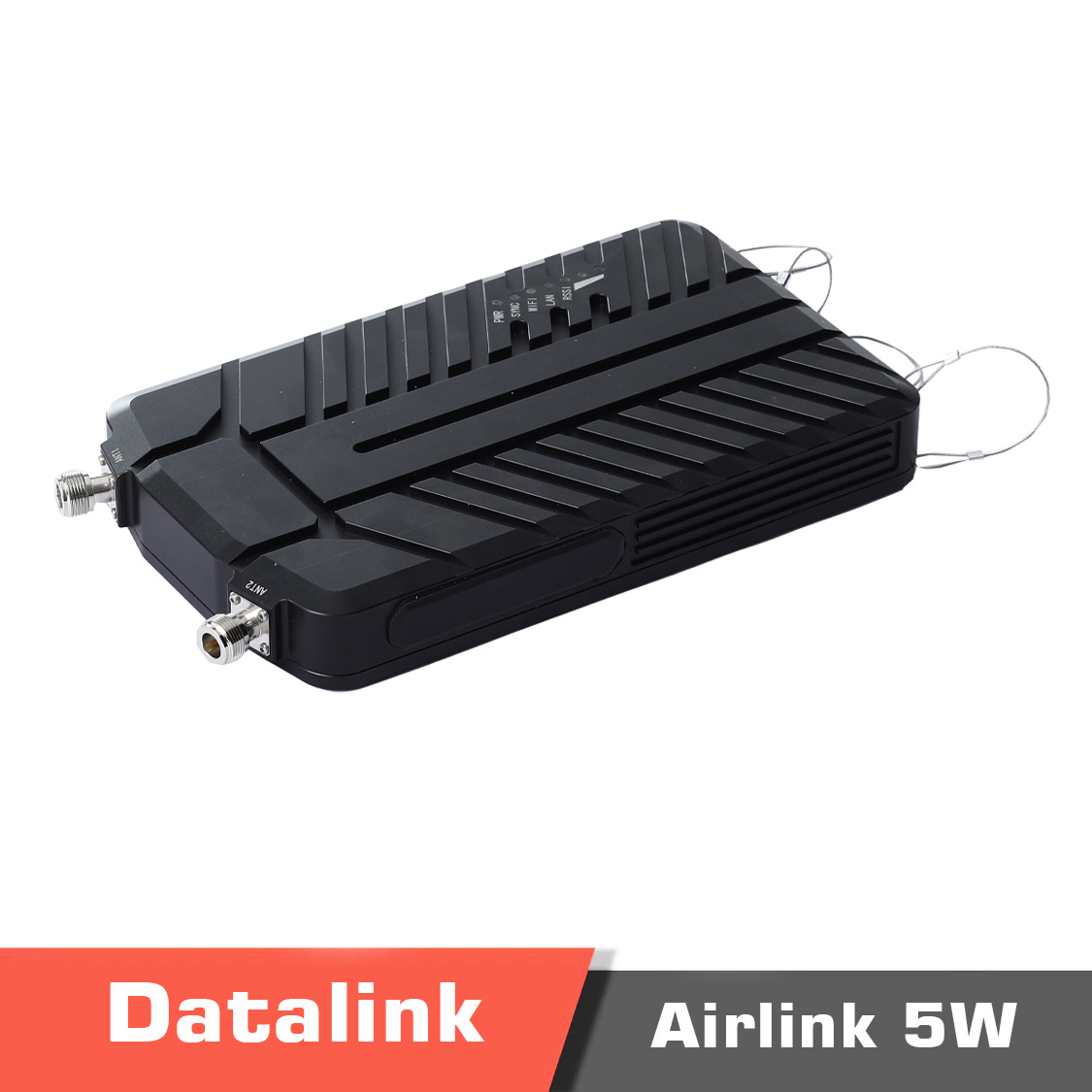

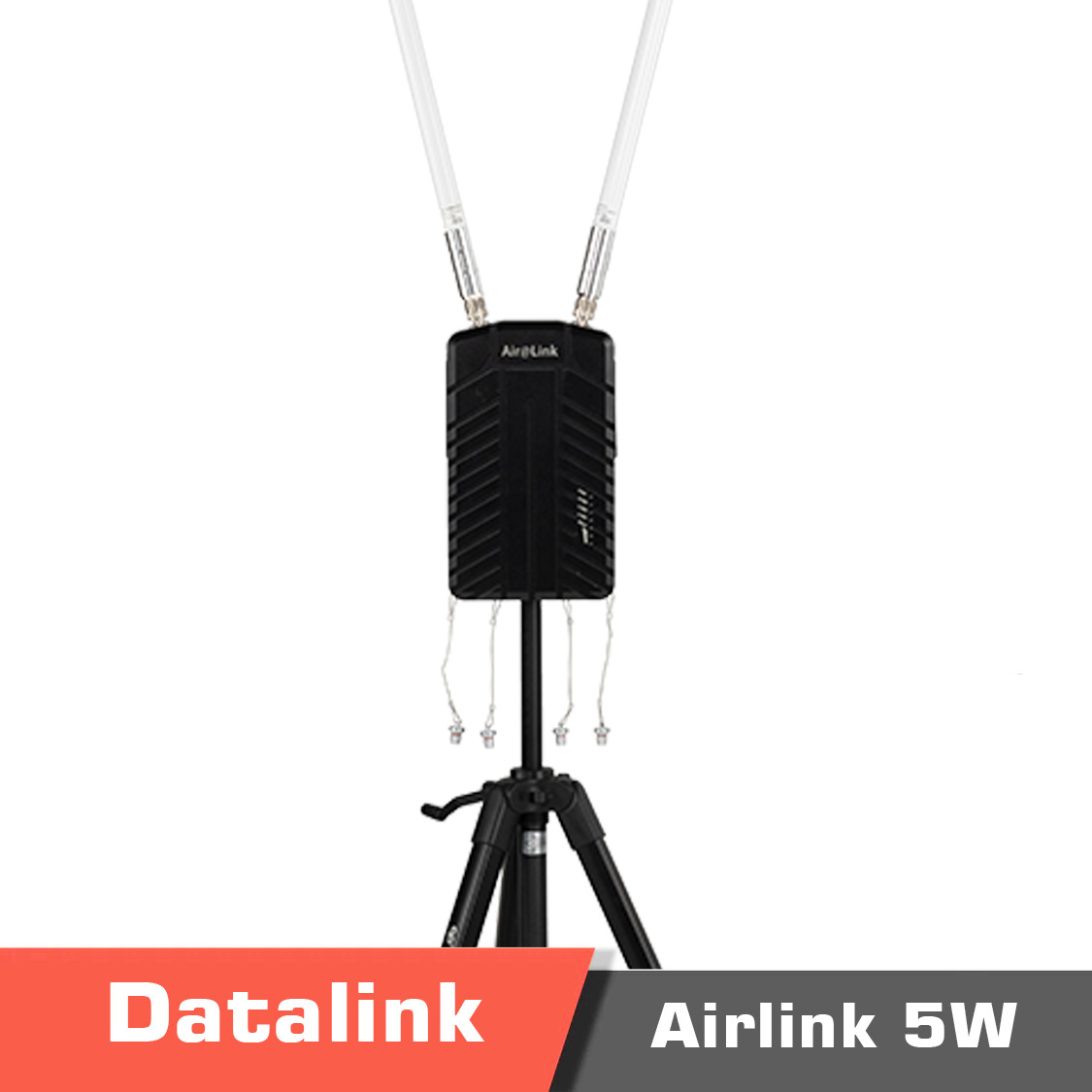

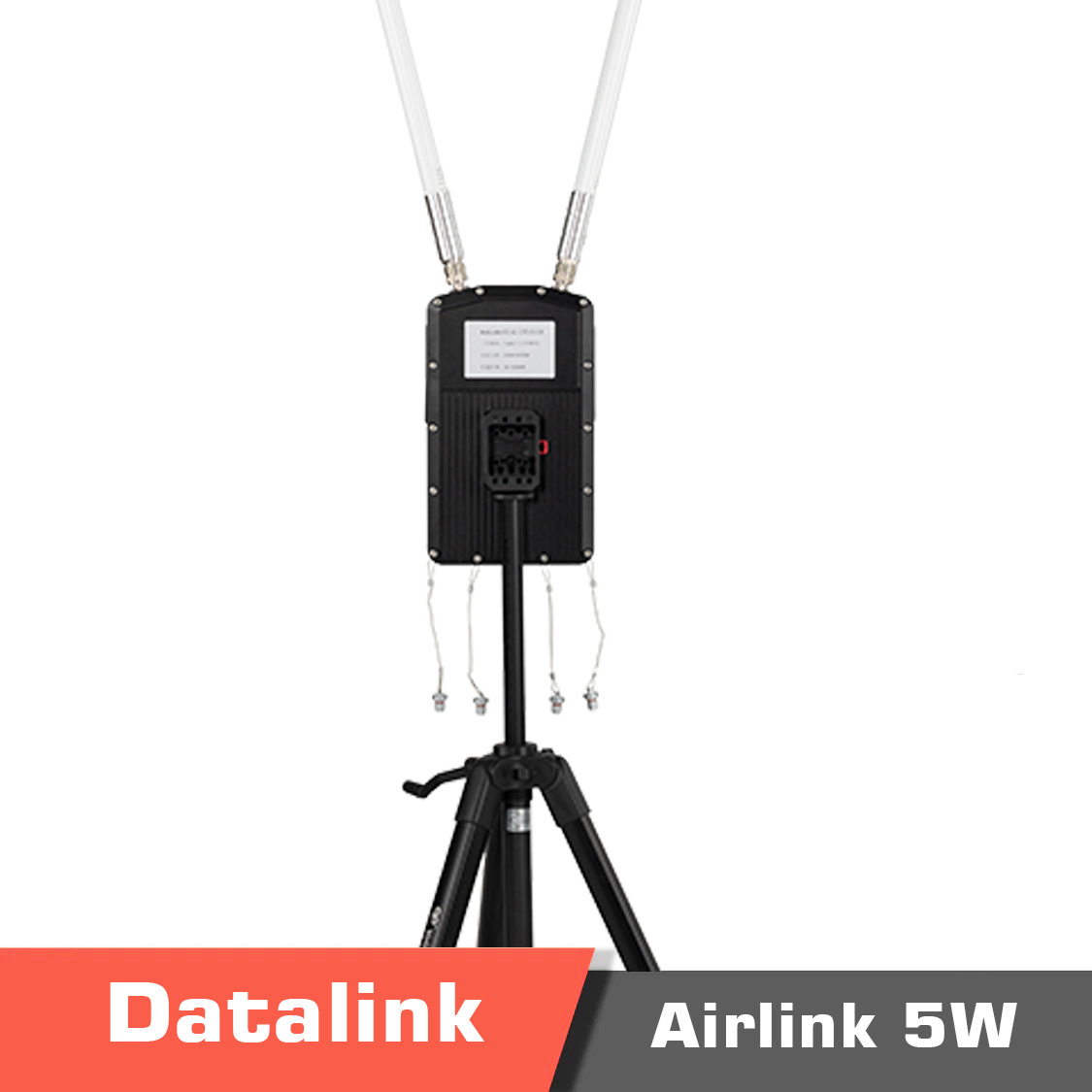

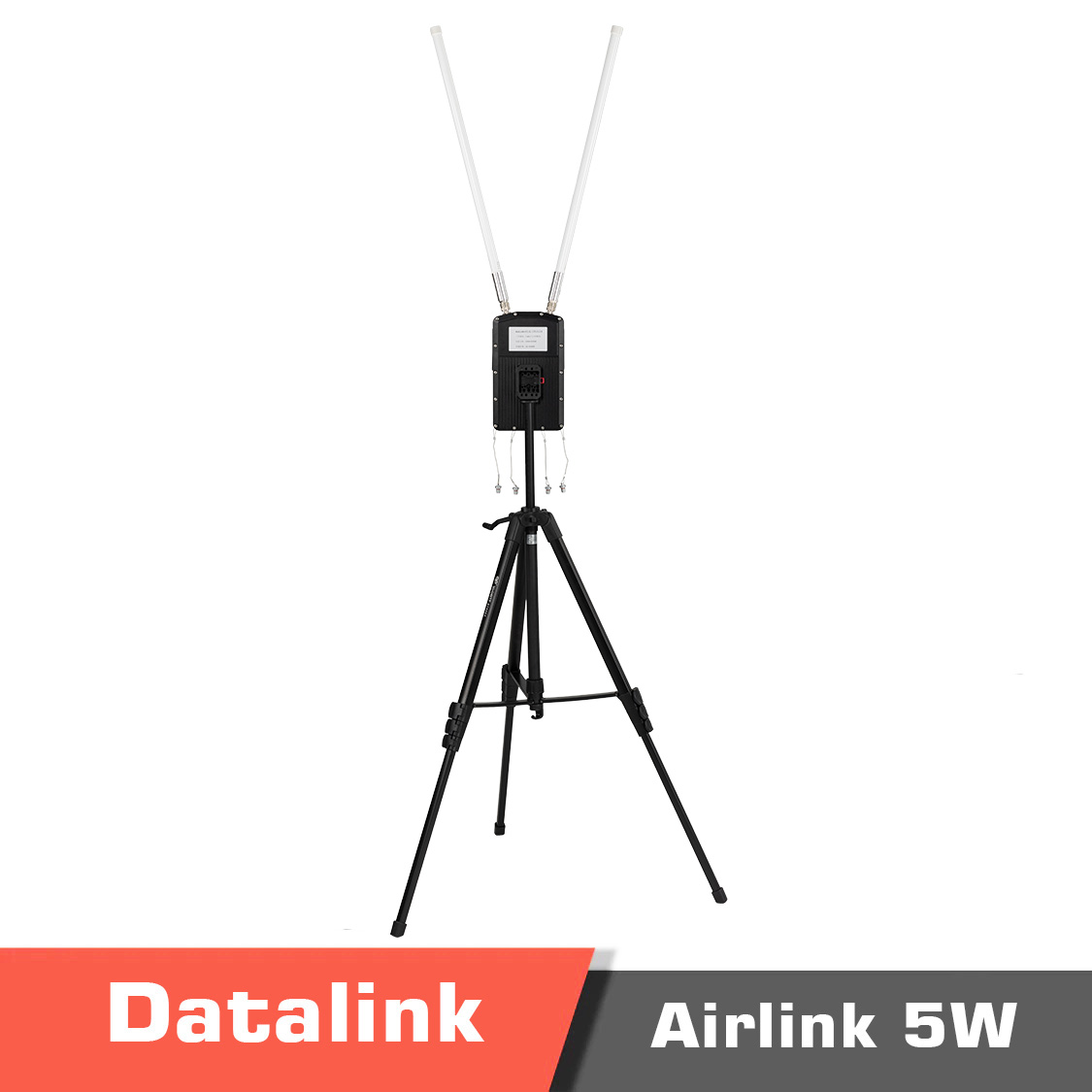

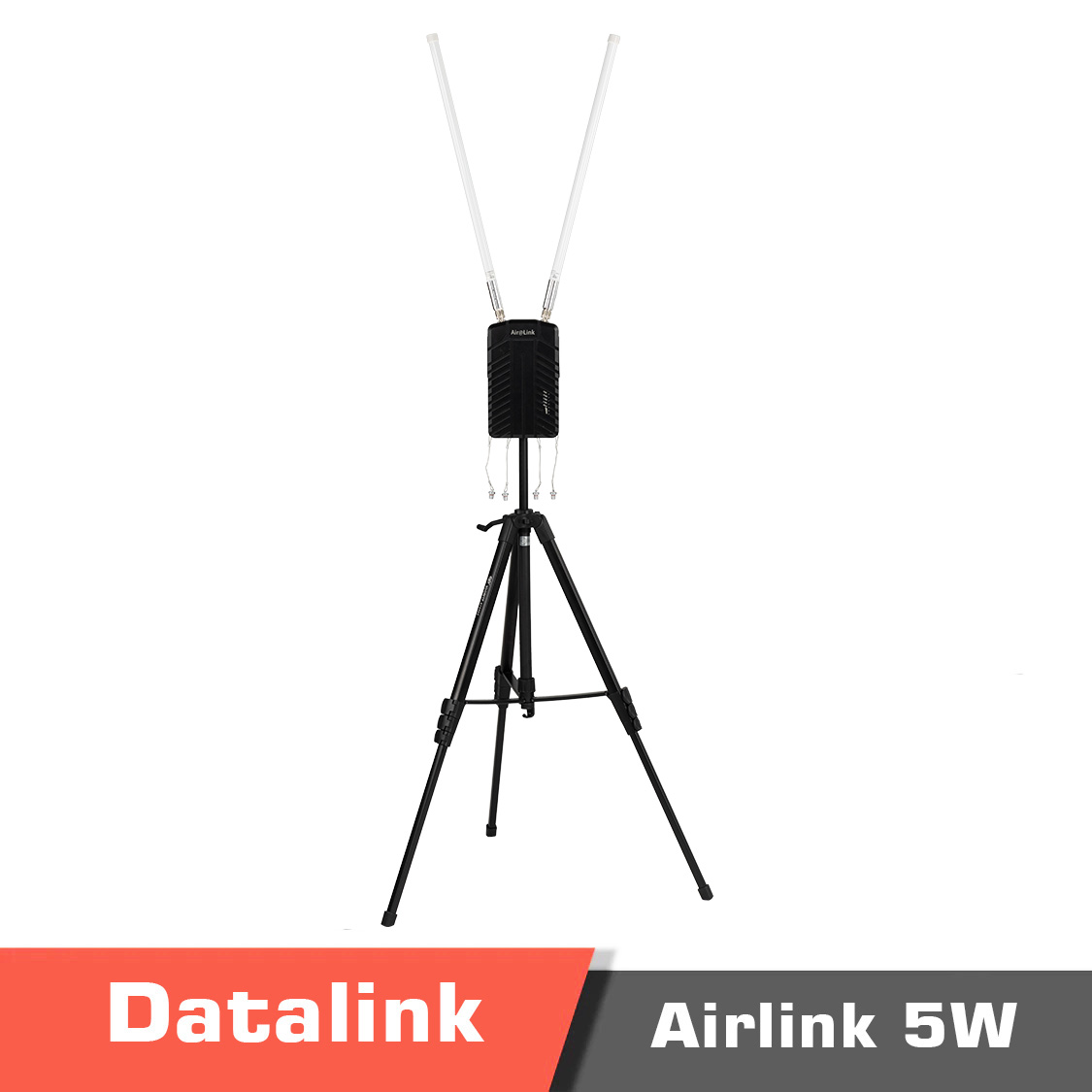

AirLink micro base station adopts an integrated design. It adopts a waterproof, dustproof and anti-corrosion design, supports independent battery power supply, is simple to assemble and easy to disassemble. It is a TDD two-way wireless small ground station with integrated image, data and remote control. It has multiple interfaces such as wifi, network port, serial port, SBUS and RS422. It supports a series of features such as real-time environmental noise detection adaptive code stream, automatic frequency selection, automatic retransmission mechanism, automatic antenna selection, automatic power control, manual frequency mode, and multiple sets of coexistence. Airlink has a transmission power of 5W, and the maximum air-to-ground transmission distance under line-of-sight conditions can be supported up to 100KM.

PRODUCT FEATURE

• Automatic retransmission: Automatically retransmit burst error data to improve data reliability

• Automatic frequency selection: Real-time detection of interference signals and automatic selection of the optimal frequency

• Distance transmission: 6Mbps code stream, air-to-ground line of sight, omnidirectional antenna transmission distance can reach 60km+

• Distance transmission: 4Mbps code stream air-to-ground line of sight, directional antenna transmission distance can reach 100km+

• Bandwidth transmission: Maximum support 17Mbps@10MHz

• Transmitting power: 37dBm (5W)

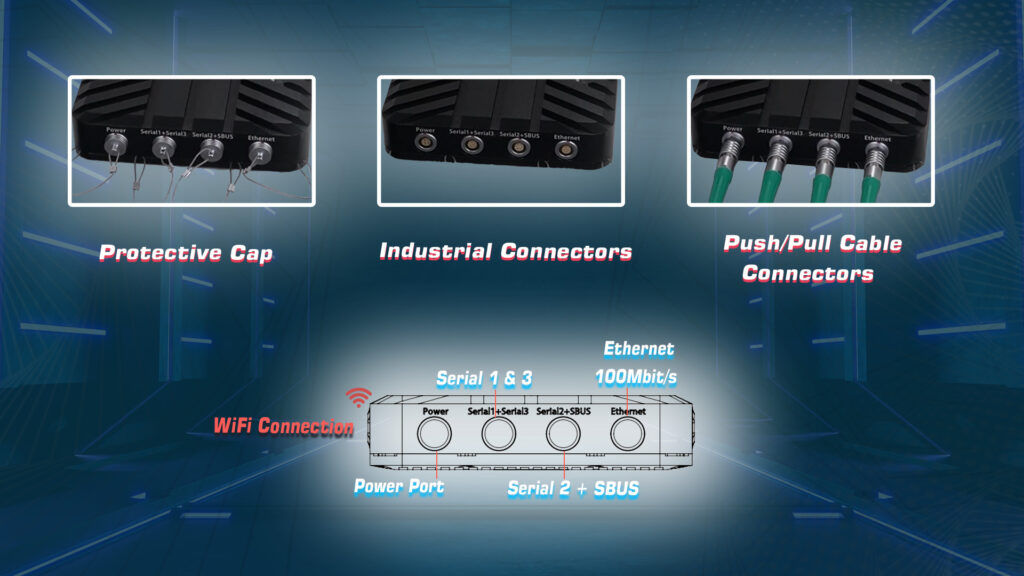

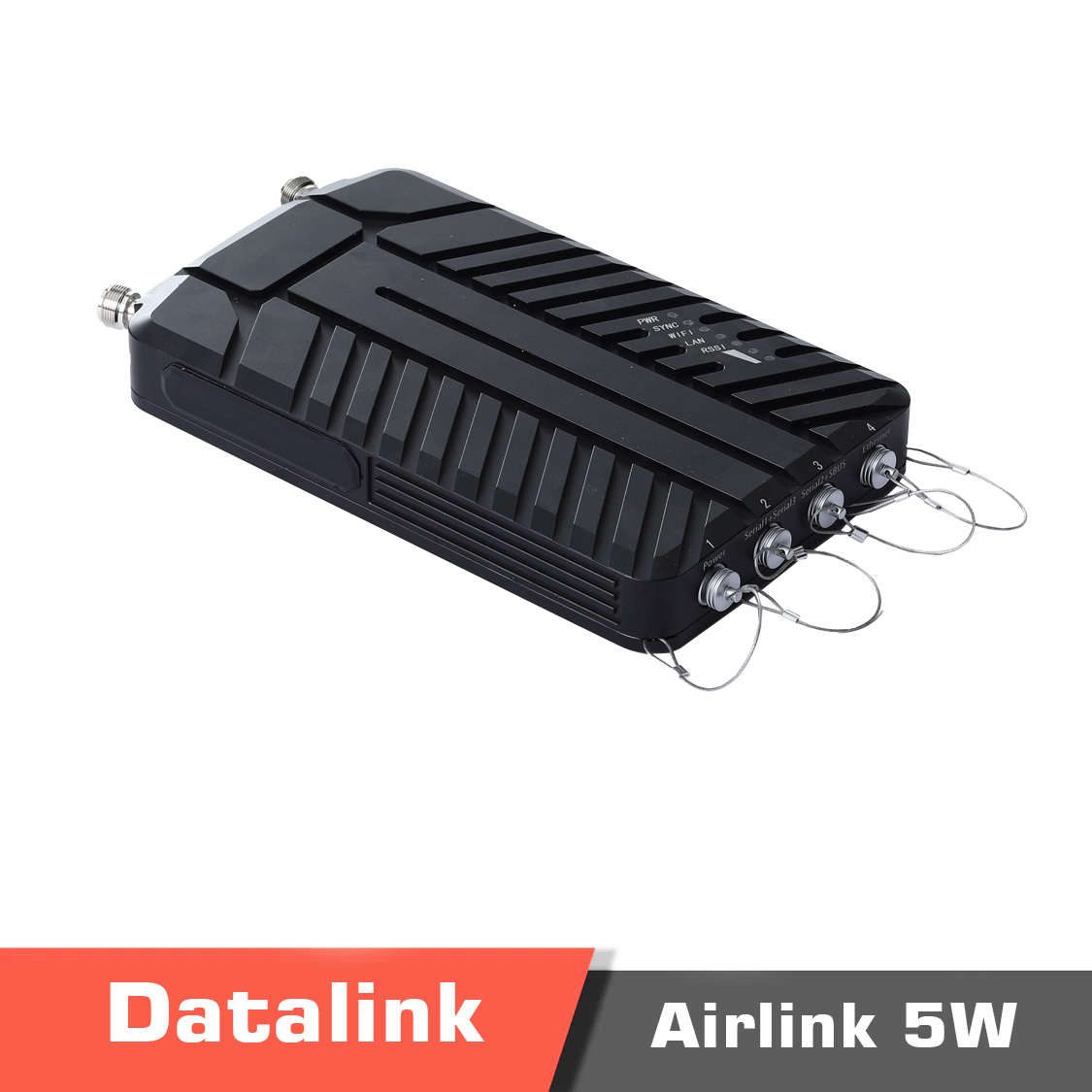

• Interface design: The device has dual network ports and four serial ports (supports RS232, TTL, 422, SBUS)

• Adaptive modulation: Automatically adjust channel modulation mode according to real-time signal quality

• Automatic antenna selection: select the best antenna for transmission based on real-time occlusion conditions

• Automatic power control: Automatically adjust the transmission power at close range to reduce power consumption

• The ground station supports IP65 protection level

FAQ – AirLink 5W Long Range Digital Data Link

1. What are the key specifications of the AirLink 5W system?
The AirLink 5W is a high-performance long-range digital communication system designed for UAVs, UGVs, and ground control stations. Operating on 1.4GHz frequency band, it delivers 5W RF output power, providing bi-directional transmission for telemetry, HD video, and control data. It supports bandwidth up to 17 Mbps over 10 MHz channels.

2. What is the communication range and latency performance?

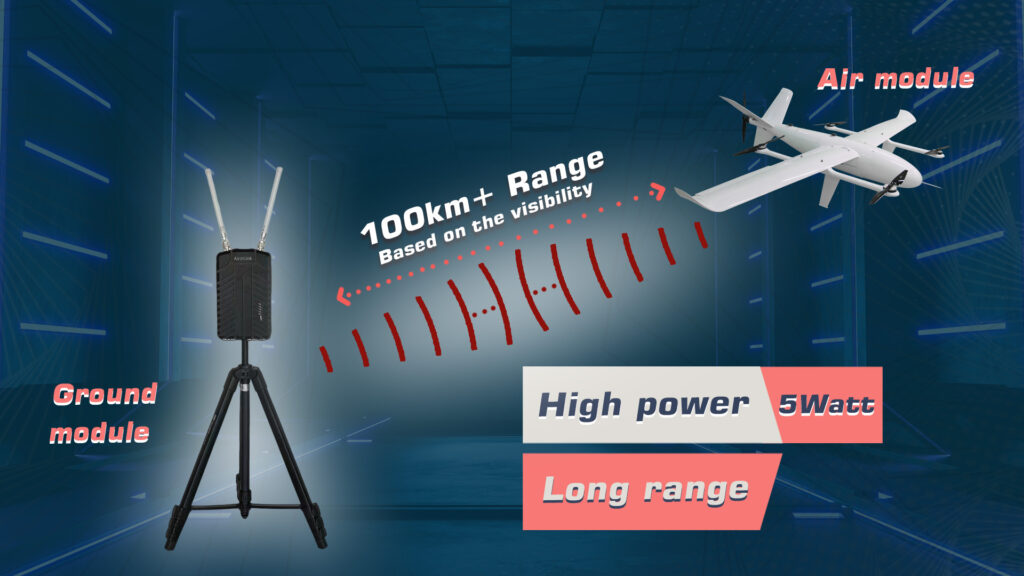

Under optimal line-of-sight conditions, the AirLink 5W achieves a communication range of up to 100 km. It maintains low latency (<200 ms) and stable high-throughput connectivity, ensuring reliable real-time control and data exchange.

3. What interfaces and communication protocols does it support?
The system provides Ethernet, RS232, RS422, TTL, and SBUS interfaces. It supports IP-based communication, MavLink telemetry, and HD video streaming, making it fully compatible with professional UAV flight controllers and GCS software like QGroundControl and Mission Planner.

4. What payment methods are accepted for purchasing the AirLink 5W system?
Motionew accepts credit/debit cards, PayPal, and bank wire transfers. For corporate or OEM clients, proforma invoices can be arranged for direct bank payments.

5. Is OEM or system customization available?
Yes. Motionew provides OEM customization, including frequency configuration, connector type modification, branding, and enclosure design. Contact the Motionew sales department for MOQ and delivery schedule details.

6. Are datasheets and setup guides available?
Yes. Motionew supplies datasheets, wiring diagrams, and integration manuals for both air and ground units. Additional technical support is available for antenna setup, frequency calibration, and system optimization.
