Raspberry Pi Compute Module 4

49.24 $105.20 $

(1 customer review)
PayPal
Visa
Master

Description



Ucd4325b4ae53414aac286409d930be3de - compute module 4,raspberry pi - motionew - 7

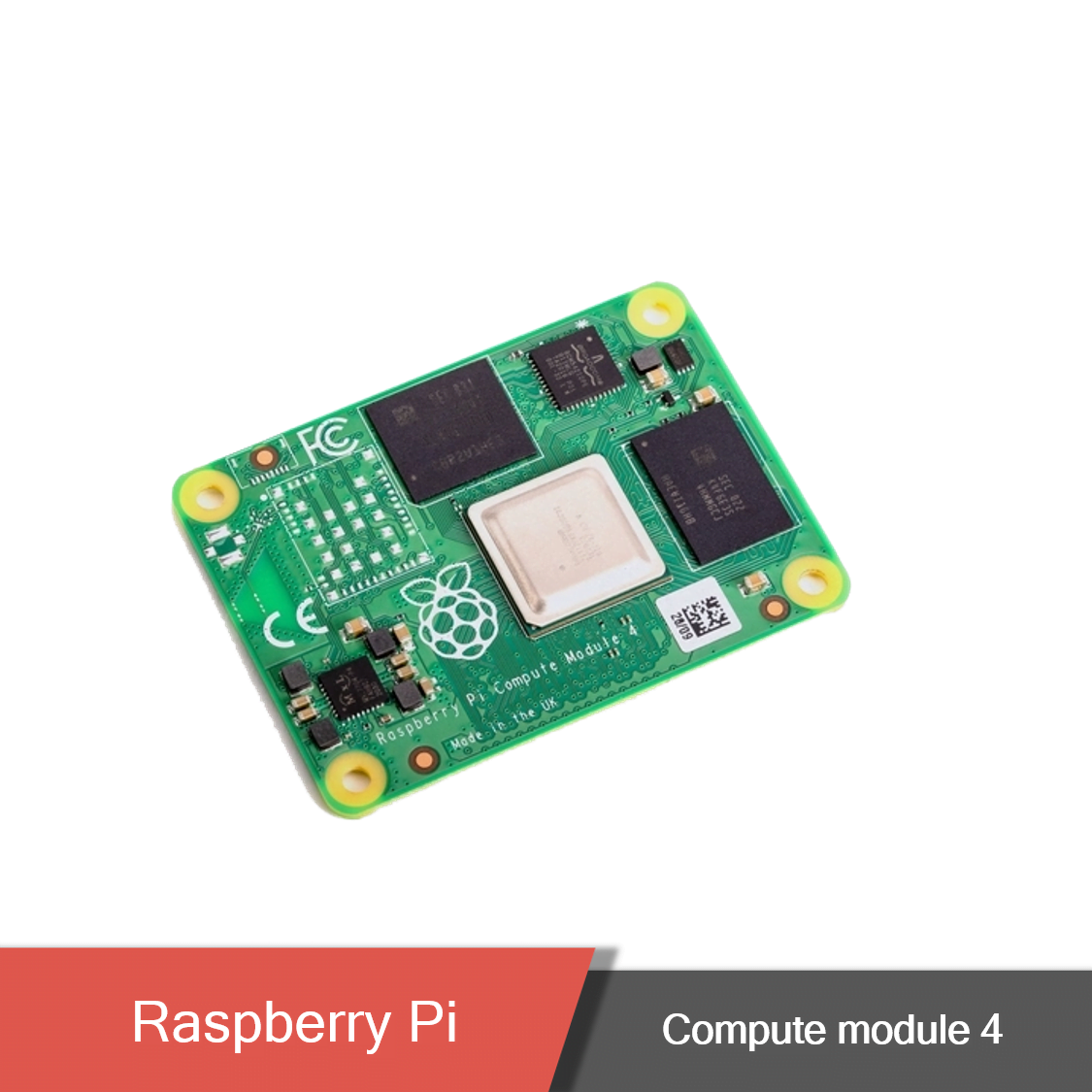

New, more compact form factor

Compute Module 4 introduces a brand new form factor and a compatibility break with earlier Compute Modules. Where previous modules adopted the JEDEC DDR2 SODIMM mechanical standard, with I/O signals on an edge connector, we now bring I/O signals to two high-density perpendicular connectors (one for power and low-speed interfaces, and one for high-speed interfaces).

This significantly reduces the overall footprint of the module on its carrier board, letting you achieve smaller form factors for your products.

Those interested in the best Raspberry Pi can also find information on our Raspberry Pi archive which contains a page devoted specifically to the Raspberry Pi Bundles.

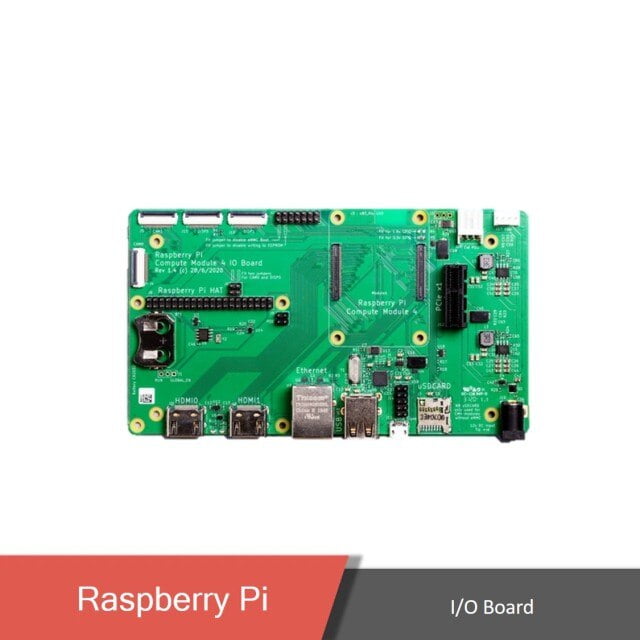

Compute Module 4 IO Board

To help you get started with Compute Module 4, we are also launching an updated IO Board. Like the IO boards for earlier Compute Module products, this breaks out all the interfaces from the Compute Module to standard connectors, providing a ready-made development platform and a starting point for your own designs.

Ua399be6bf50f428bae70bd2fbed8fd929 - compute module 4,raspberry pi - motionew - 8



Compliance

Raspberry Pi Compute Module 4 has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates atย raspberrypi.org/compliance.

If you are integrating Compute Module 4 into a product and need assistance with compliance, the Raspberry Pi Integrator Program can help: more information and contact details here.

Specifications

Processor Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @1.5GHz
Video Decoder H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
OpenGL OpenGL ES 3.1, Vulkan 1.0
eMMC Flash memory (depending on variant) Options for 0GB (“Lite”), 8GB, 16GB or 32GB
Option for fully certified radio module 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless; Bluetooth 5.0, BLE;
Antenna On-board electronic switch to select either external or PCB trace antenna
RAM 1/2/4/8 GB
Dimension 85x56mm

Documents

Raspberry Pi Compute Module 4 product brief

Raspberry Pi Compute Module 4 datasheet

Compute Module 4 STEP file

Compute Module 4 Lite (without eMMC) STEP file

Compliance

more information and contact details here.

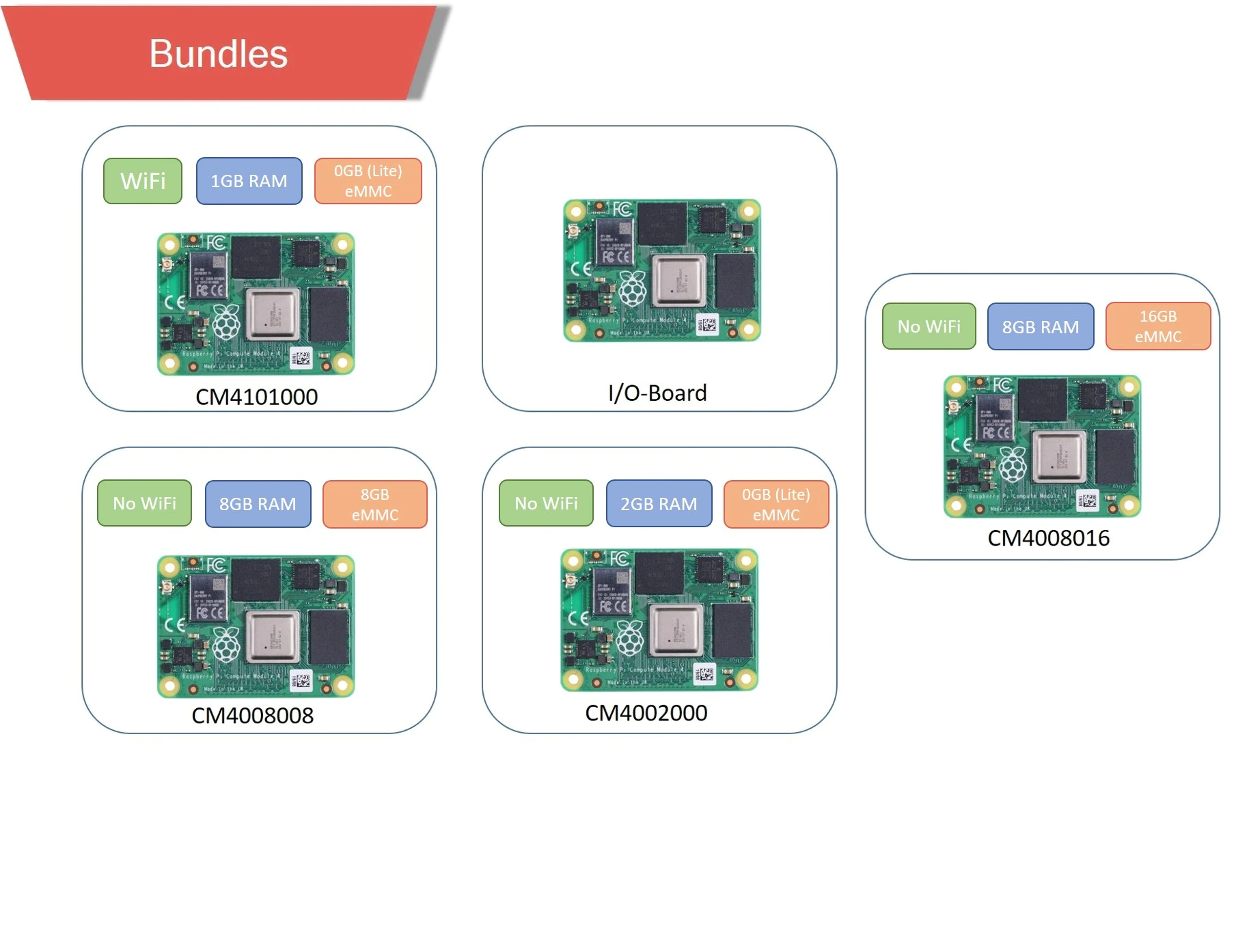

Product contents

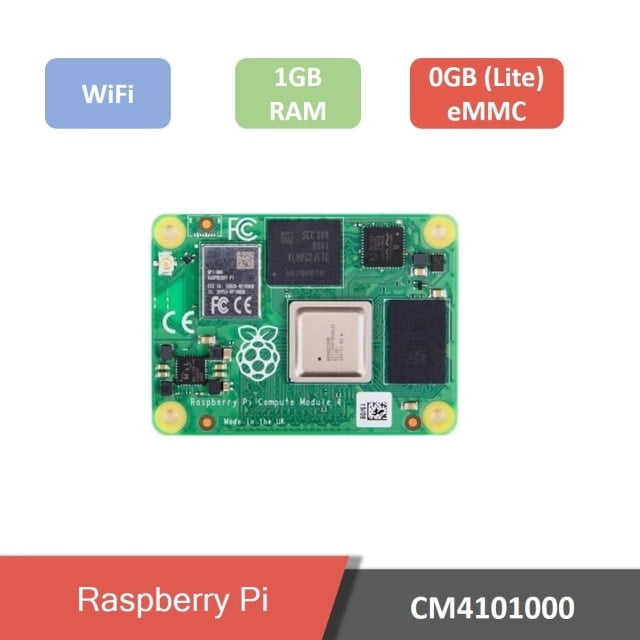

CM4101000: wifi-1GB Ram-0GB (lite) eMMC

I/O-Board

CM4008008: No wifi-8GB Ram-8GB eMMC

CM4002000: No wifi-2GB Ram-0GB (lite) eMMC

CM4008016: No wifi-8GB Ram-16GB eMMC

U34b1fabb53694f34bc215e930694b2e3z - compute module 4,raspberry pi - motionew - 9
