Raspberry Pi HQ Camera Sony IMX477

80.75 $196.65 $

PayPal
Visa
Master

Description

Overview of Raspberry Pi HQ

The Raspberry Pi HQ Camera is the latest camera accessory from Raspberry Pi. This Raspberry Pi HQ camera offers higher resolution (12 megapixels, compared to 8 megapixels), and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2, and is designed to work with interchangeable lenses in both C- and CS-mount form factors. Other lens form factors can be accommodated using third-party lens adapters.

The High Quality Camera provides an alternative to the Camera Module v2 for industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/or integration with specialist optics. It is compatible with all models of Raspberry Pi computer from Raspberry Pi 1 Model B onwards, using the latest software release from www.raspberrypi.org.

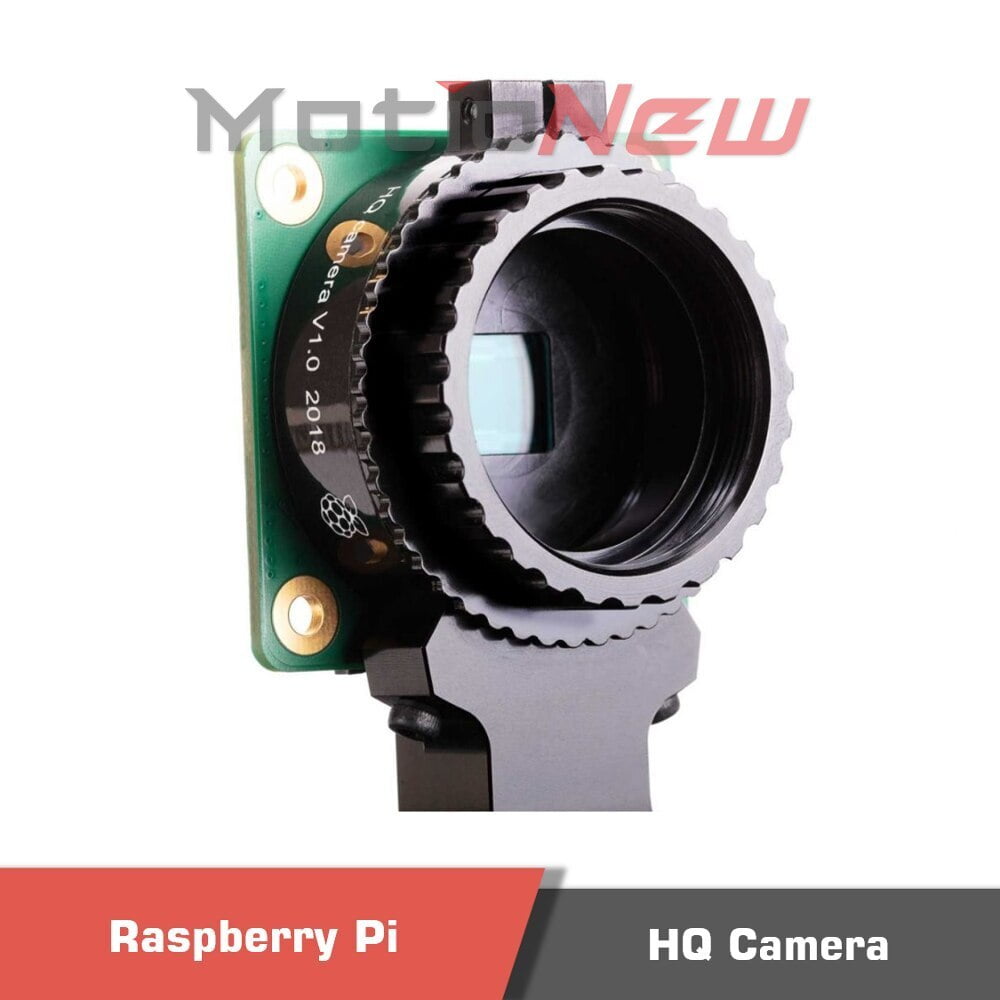

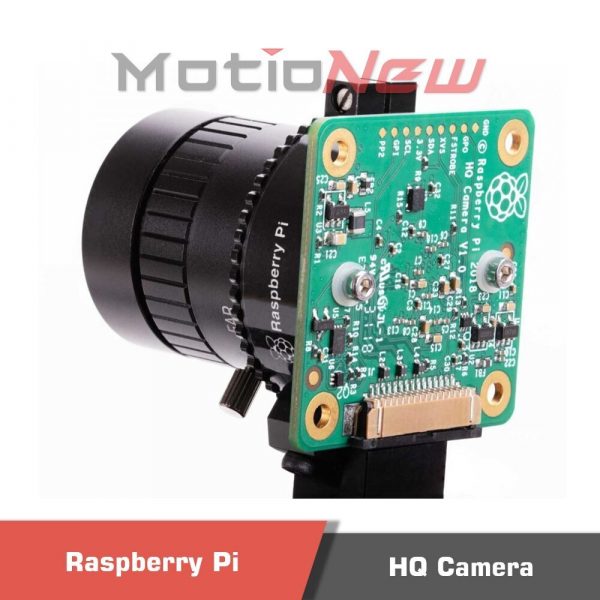

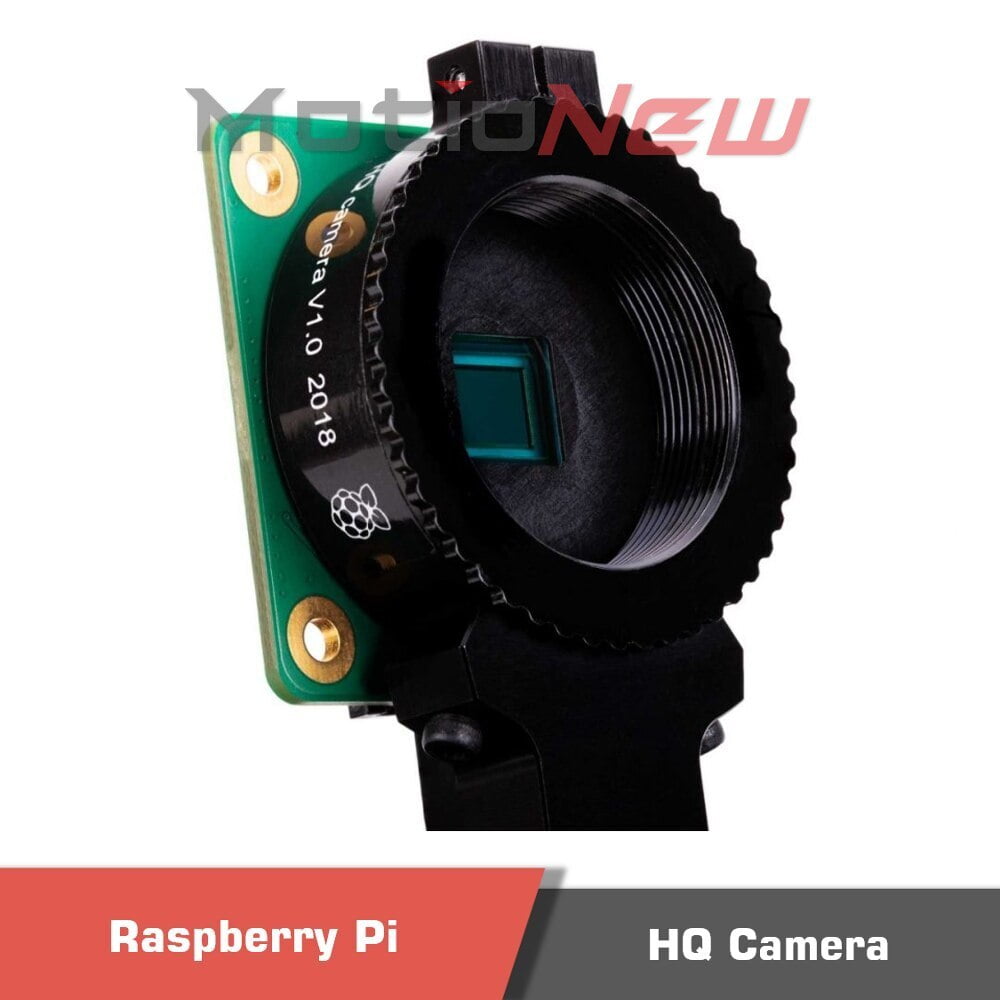

The package comprises a circuit board carrying a Sony IMX477 sensor, an FPC cable for connection to a Raspberry Pi computer, a milled aluminum lens mount with integrated tripod mount and focus adjustment ring, and a C- to CS-mount adapter. Consult Motionew Online Shop for the full range of our products.

*NOTE: Camera needs Lens to be usable*

U2e4e27e0b570454ca372e466fa245b57N - Raspberry Pi HQ,Sony IMX477,HQ Camera Sony - MotioNew - 7 U91f8729c49df40b9b3cbd0785b0342311 - Raspberry Pi HQ,Sony IMX477,HQ Camera Sony - MotioNew - 8



If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Weight 0.01 kg
Dimensions 5 × 5 × 2 cm

Specifications

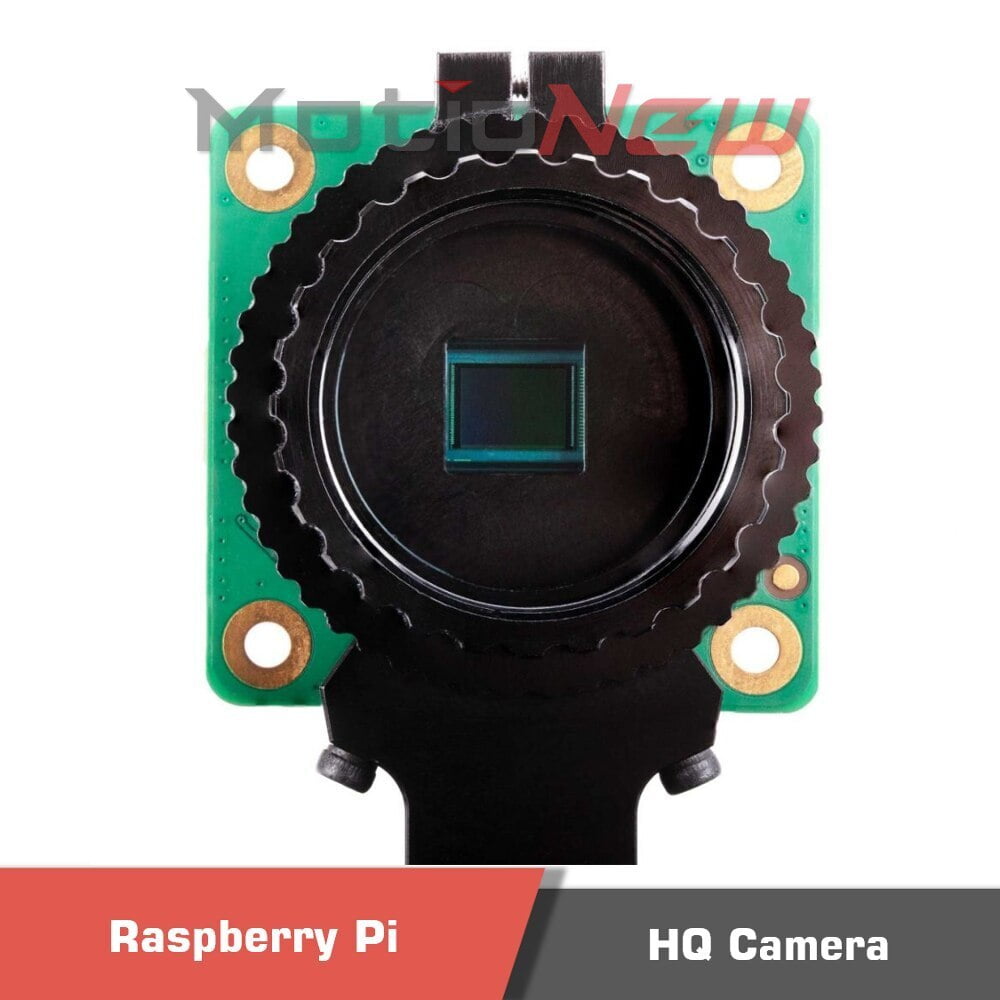

Sensor Sony IMX477R stacked, back-illuminated sensor
Quality 12.3 megapixels
Sensor Size 7.9 mm sensor diagonal
Pixel Size 1.55 μm x 1.55 μm
Output RAW12/10/8, COMP8
Back Focus Adjustable (12.5 mm – 22.4 mm)
Lens Standards CS-mount (C-CS adapter included)
IR cut filter Integrated
Ribbon Cable Length 200 mm

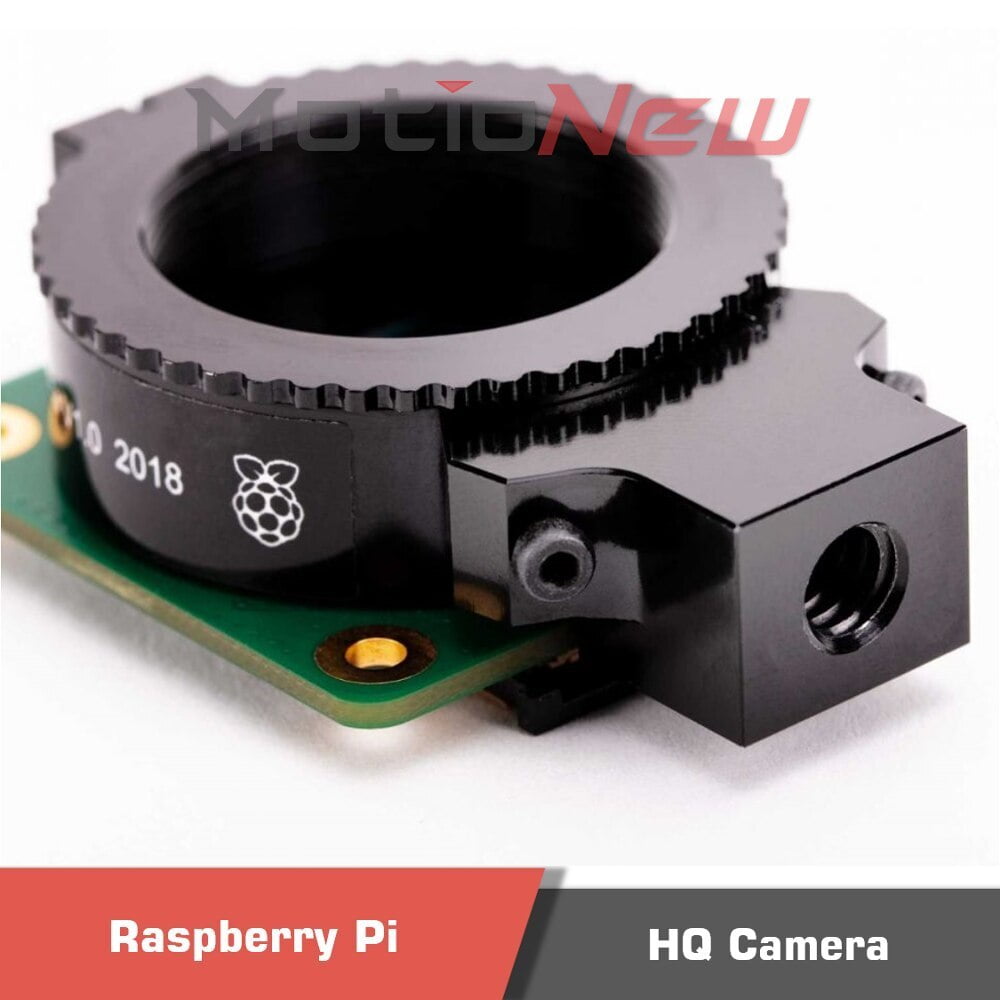

Tripod Mount 1/4″ – 20

Product contents

Option 1

1x Camera Module

Option 2

1x Camera Module

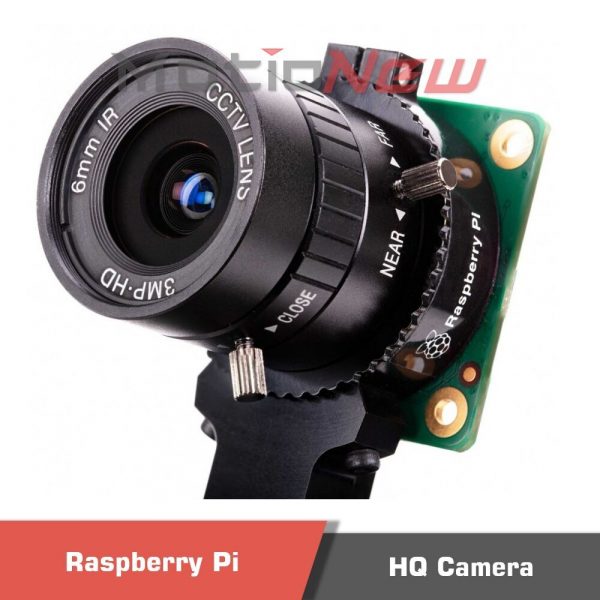

1x 6mm Lens

Option 3

1x Camera Module

1x 16mm Lens

Option 4

1x Camera Module

1x 6mm Lens

1x 16mm Lens

Documents

Getting Started

Product Brief

Tutorial

C-mount lens guide

CS-mount lens guide

Mechanical Drawing
