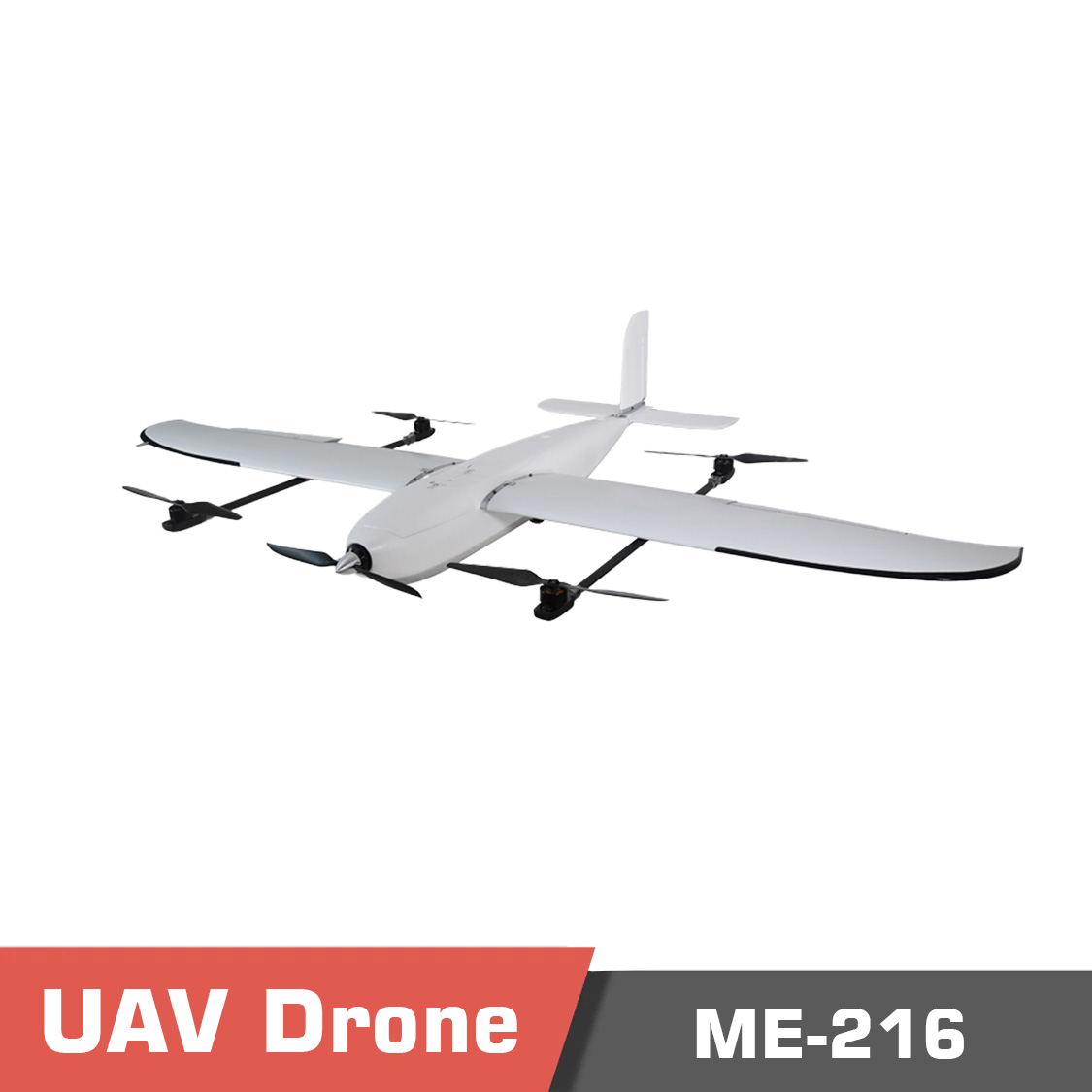

ME-216 VTOL

3750.00 $ – 4130.00 $

Description

ME-216 VTOL

Me 216. 1 - me-216,me-216 vtol,long endurance,fixedwing uav,cargo drone,wind resistance,detachable load,mapping drone,detachable payload,surveying drone,fixed-wing uav,heavy lift drone,vertical take-off,vertical landing,redundant sensors,four-axis,eight-propeller rotor,low temperature resistance - motionew - 4 Me 216. 2 - me-216,me-216 vtol,long endurance,fixedwing uav,cargo drone,wind resistance,detachable load,mapping drone,detachable payload,surveying drone,fixed-wing uav,heavy lift drone,vertical take-off,vertical landing,redundant sensors,four-axis,eight-propeller rotor,low temperature resistance - motionew - 5 Me 216. 3 - me-216,me-216 vtol,long endurance,fixedwing uav,cargo drone,wind resistance,detachable load,mapping drone,detachable payload,surveying drone,fixed-wing uav,heavy lift drone,vertical take-off,vertical landing,redundant sensors,four-axis,eight-propeller rotor,low temperature resistance - motionew - 6 Me 216. 4 - me-216,me-216 vtol,long endurance,fixedwing uav,cargo drone,wind resistance,detachable load,mapping drone,detachable payload,surveying drone,fixed-wing uav,heavy lift drone,vertical take-off,vertical landing,redundant sensors,four-axis,eight-propeller rotor,low temperature resistance - motionew - 7 Me 216. 5 - me-216,me-216 vtol,long endurance,fixedwing uav,cargo drone,wind resistance,detachable load,mapping drone,detachable payload,surveying drone,fixed-wing uav,heavy lift drone,vertical take-off,vertical landing,redundant sensors,four-axis,eight-propeller rotor,low temperature resistance - motionew - 8 Me 216. 6 - me-216,me-216 vtol,long endurance,fixedwing uav,cargo drone,wind resistance,detachable load,mapping drone,detachable payload,surveying drone,fixed-wing uav,heavy lift drone,vertical take-off,vertical landing,redundant sensors,four-axis,eight-propeller rotor,low temperature resistance - motionew - 9 Me 216. 7 - me-216,me-216 vtol,long endurance,fixedwing uav,cargo drone,wind resistance,detachable load,mapping drone,detachable payload,surveying drone,fixed-wing uav,heavy lift drone,vertical take-off,vertical landing,redundant sensors,four-axis,eight-propeller rotor,low temperature resistance - motionew - 10 Me 216. 8 - me-216,me-216 vtol,long endurance,fixedwing uav,cargo drone,wind resistance,detachable load,mapping drone,detachable payload,surveying drone,fixed-wing uav,heavy lift drone,vertical take-off,vertical landing,redundant sensors,four-axis,eight-propeller rotor,low temperature resistance - motionew - 11

Additional information

Weight 10 kg
Dimensions 40 × 40 × 150 cm

Specifications

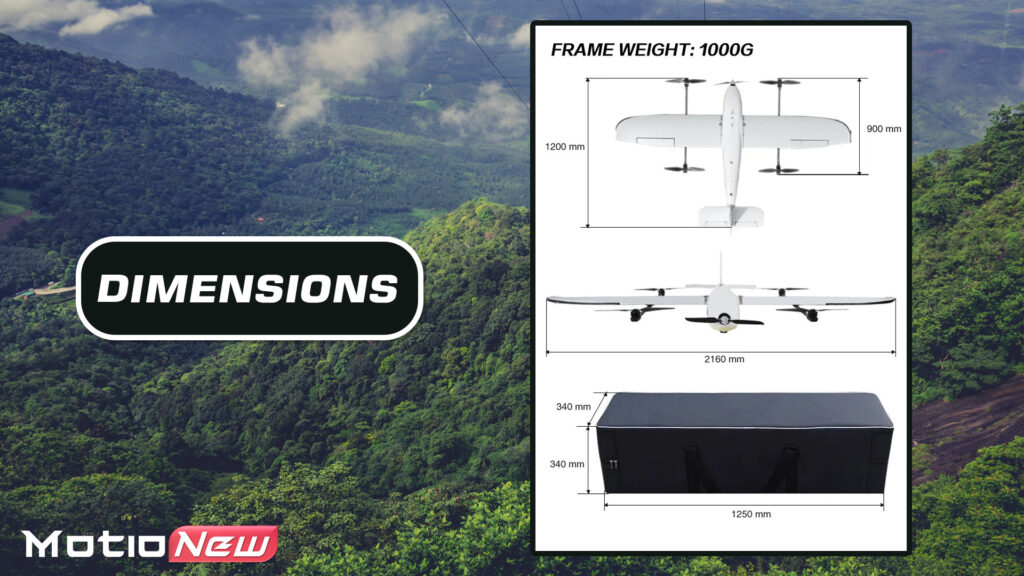

Wingspan 2160mm
Fuselage 1200mm

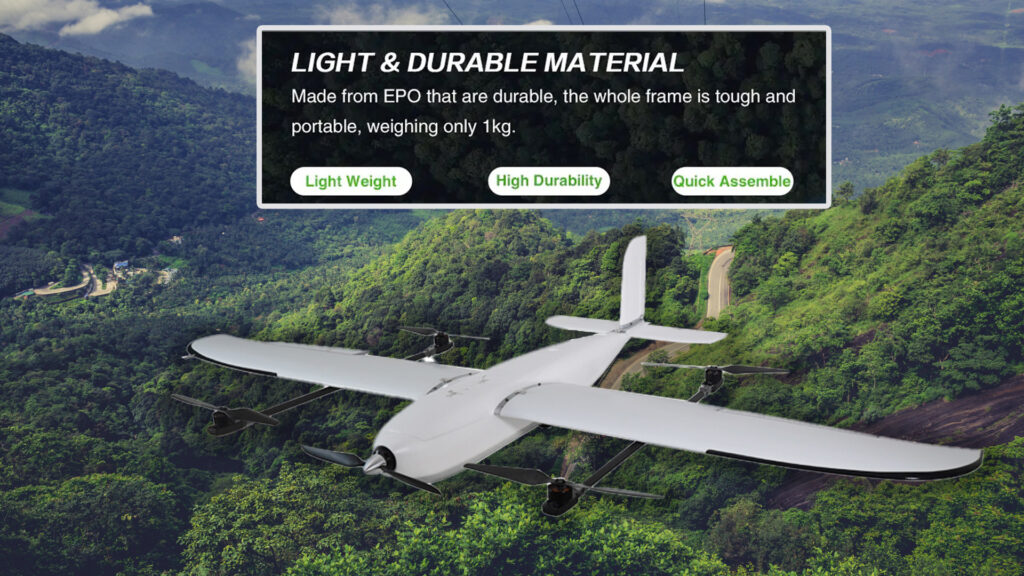

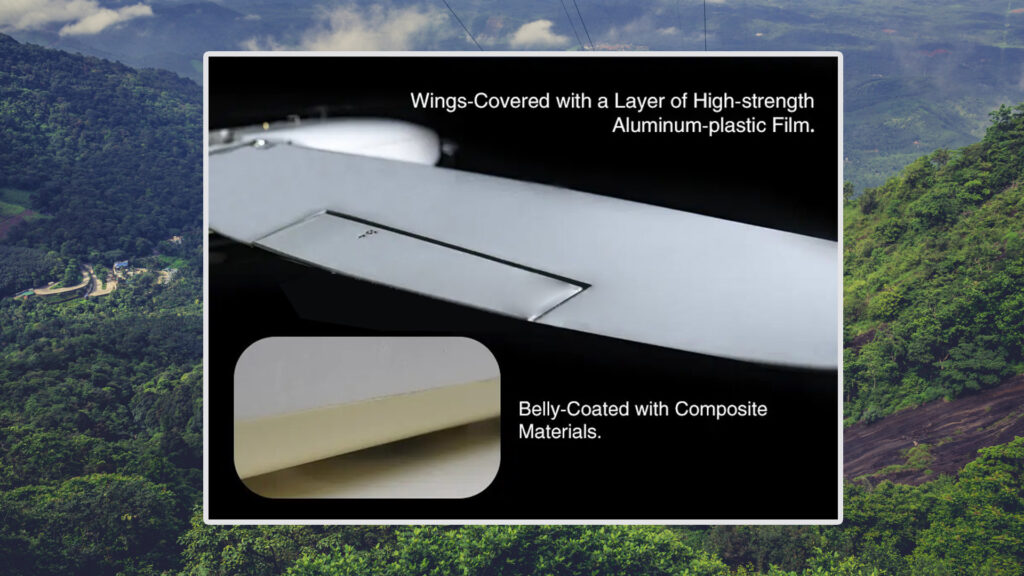

Material EPO, Aluminum-plastic Film, PVC
Frame Weight 1kg
Basic Empty Weight 3.8kg (no battery)
Max. Take-off Weight 8kg
Suggested Max Payload 800g (excluding battery)

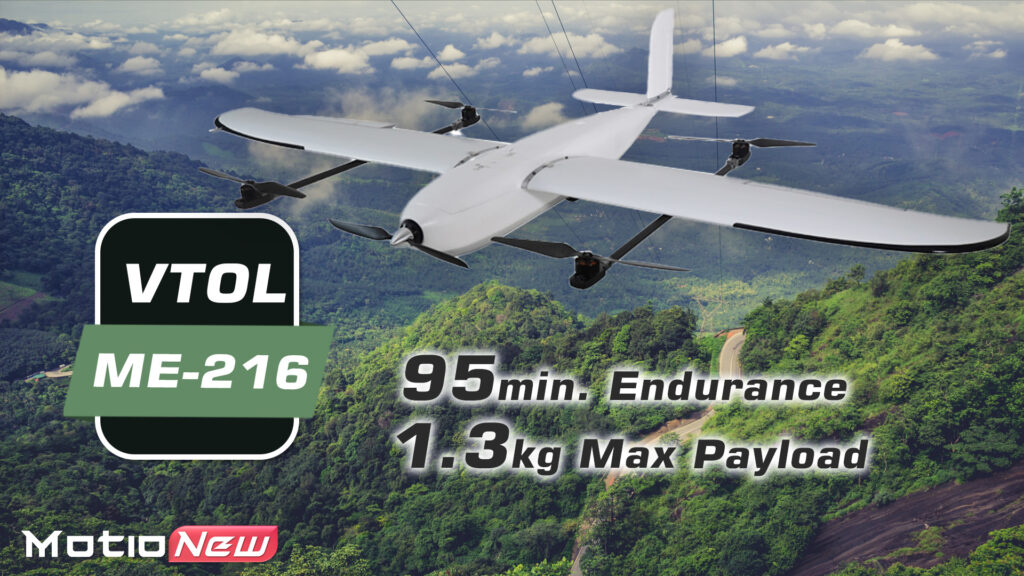

Endurance 95min (1x 6S 25000mAh High Voltage Lipo Battery, no payload)
Recommended Cruising Speed 18-20m/s
Stall Speed 12-14m/s
Suggested Take-off Altitude 0~1500m
Wind Resistance 5.5m/s-7.9m/s (12.5mph-17.5mph)
Take-off/Landing VTOL
Working Voltage 24V
Working Temperature -10℃~40℃
Carrying Case 125x34x34cm



Documents

Please contact us for more information.

Product contents

CUAV V5+ RTF Combo

1x ME-216 VTOL Frame

1x  CUAV V5+ Flight Controller with CUAV NEO 3 Pro GNSS

1x Radio Controller

4x (VTOL Motor + VTOL ESC)

1x (Motor for Fixed-wing Mode + ESC for Fixed-wing Mode)

3x 17g Servo

2x 9g Servo

2x (pair) 1655 Carbon Fiber Propeller

1x 1612 Folding Propeller

1x Pitot Tube

1x Carrying Case

1x Assembling, tuned, and Flying Test Service





Pixhawk Cube Orange RTF Combo

1x ME-216 VTOL Frame

1x Pixhawk Cube Orange Standard Set with Here 3 GNSS

1x Radio Controller

4x (VTOL Motor + VTOL ESC)

1x (Motor for Fixed-wing Mode + ESC for Fixed-wing Mode)

3x 17g Servo

2x 9g Servo

2x (pair) 1655 Carbon Fiber Propeller

1x 1612 Folding Propeller

1x Pitot Tube

1x Carrying Case

1x Assembling, tuned, and Flying Test Service
