SkyRC PC3000H LiPo/LiHV Quattro Battery Charger

698.00 $

Description

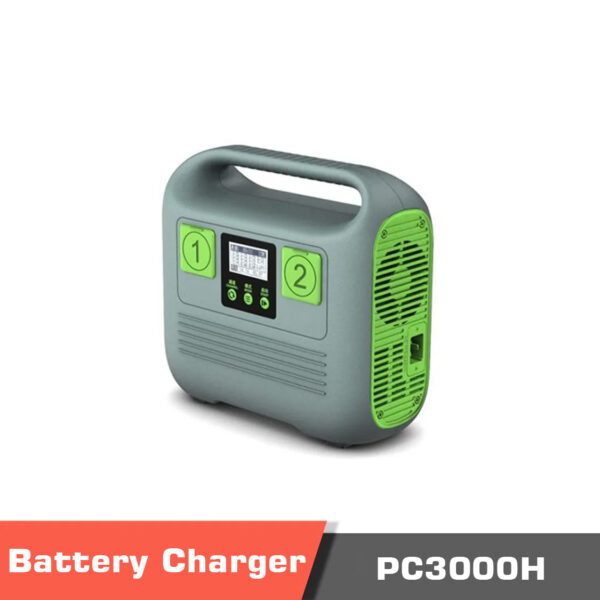

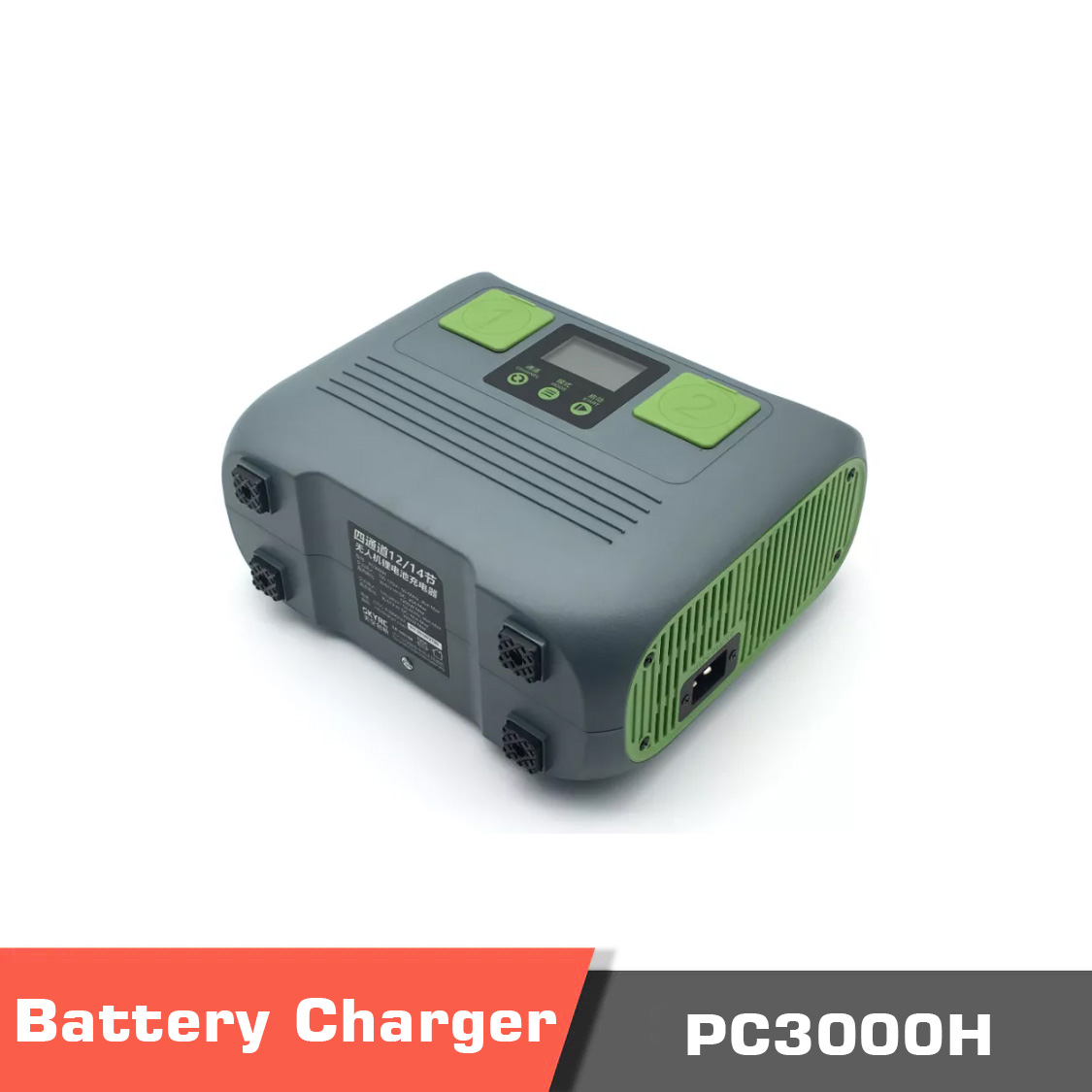

SkyRC PC3000H LiPo/LiHV Quattro Battery Charger

SkyRC PC3000H is an intelligent and fast agricultural drone that can charge up to 4 pieces of 12S and 14S LiPo and Lithium-polymer High Voltage LiHV batteries. With CAN communication protocol, a variety of battery types are supported: smart batteries, legacy lithium batteries, and LiHV batteries (4.35V).

PC3000H has a maximum output power of 3000W and provides up to 60A current. It is possible to choose from four different modes of charging: 1. Fast Charge, 2. Standard Charge, 3. Charge, and 4. Storage. The charger provides a seamless experience by instantly recognizing and automatically charging the connected battery. The user interface is simple and intuitive.

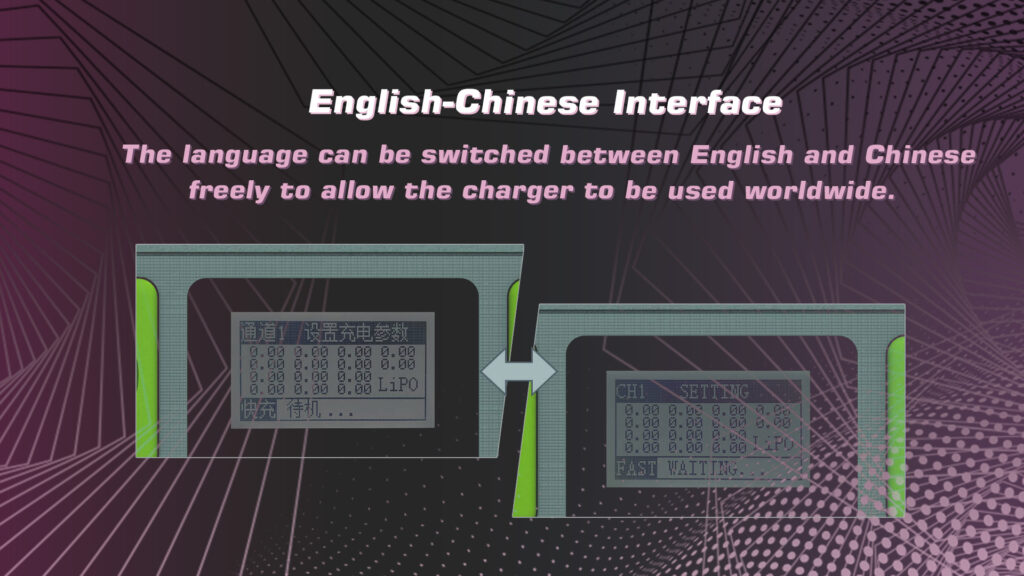

Real-time data of charging time, battery percentage, and every single cell’s voltage are displayed on the provided LCD display. With high power output on all four channels, four batteries can be charged simultaneously in charge mode at a maximum charging power of 3000W with the AC input 220V. For example, a 28000mAh battery can be fully charged in 15 minutes which significantly saves charging time.

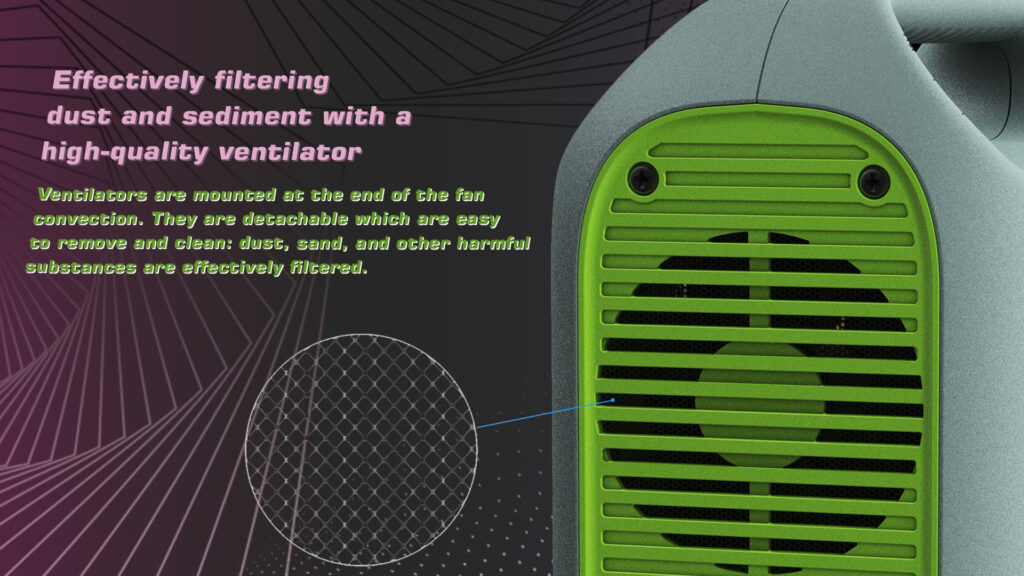

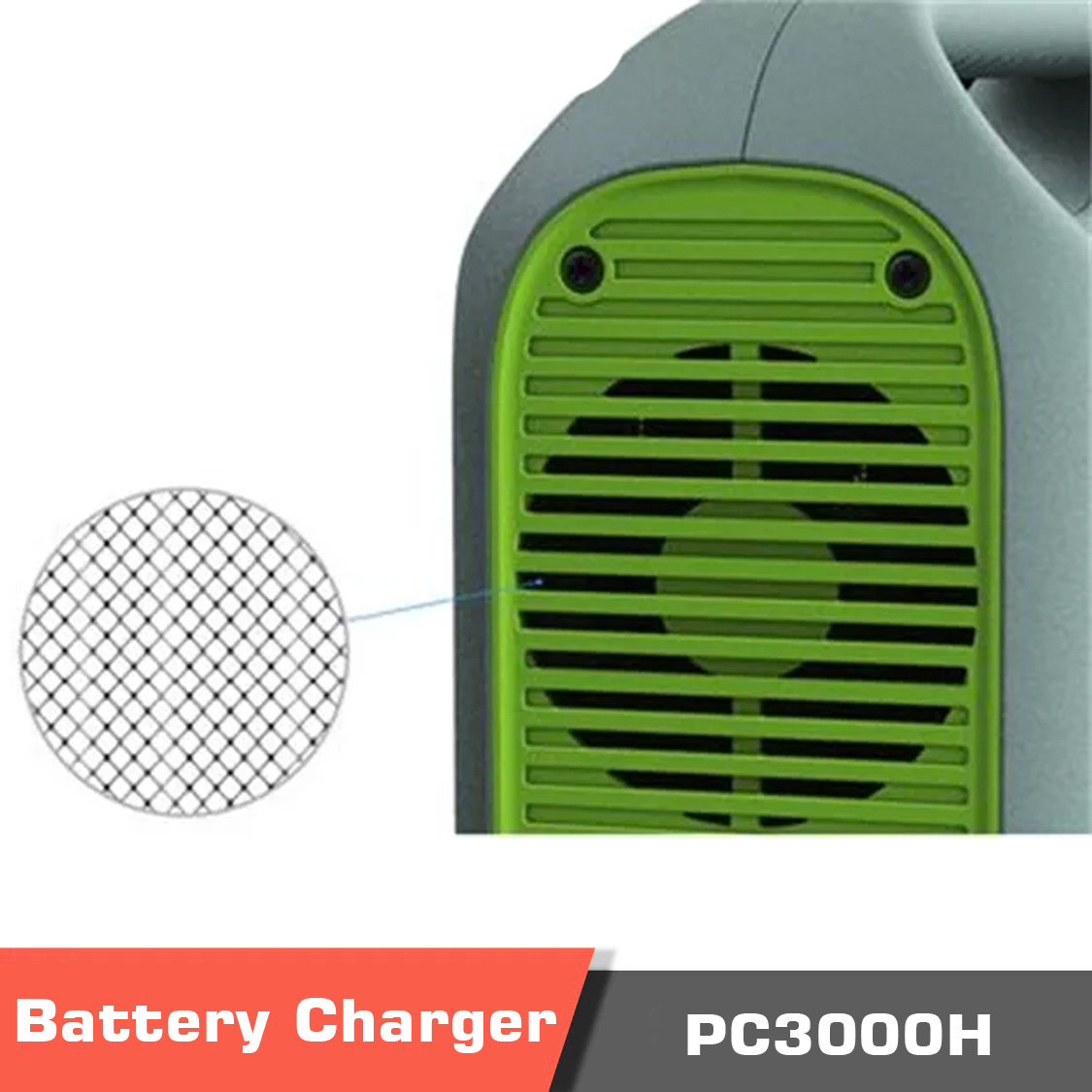

Usually, chargers get hot during the charge and discharge process. The wing blade design of the convection air duct reduces noise, provides high-wind performance, and significantly improves heat dissipation efficiency. Detachable ventilators are mounted at the end of the fan convection to filter out dust, sand, and other harmful substances. The detachable design makes their maintenance pretty easy, just remove and clean and install again.

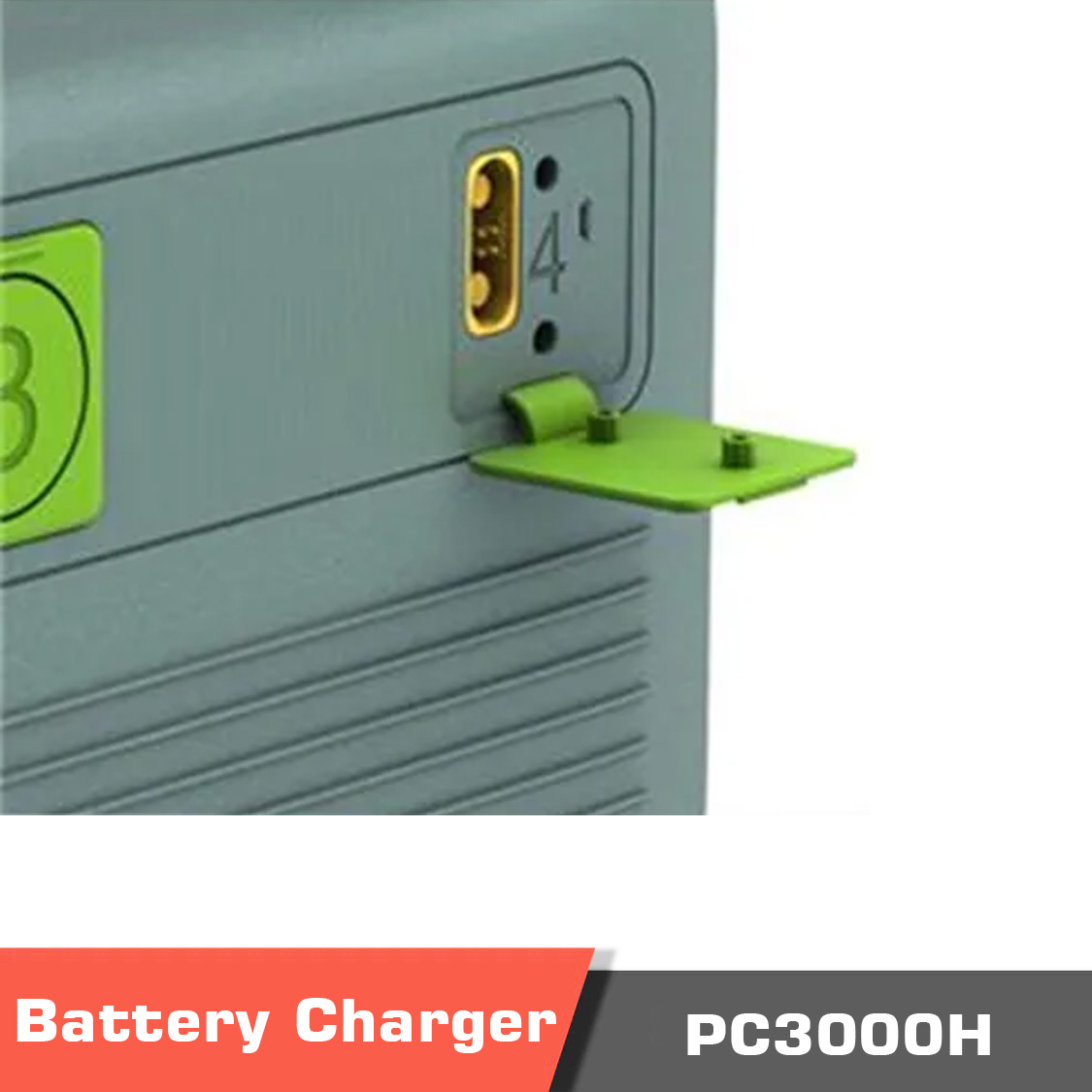

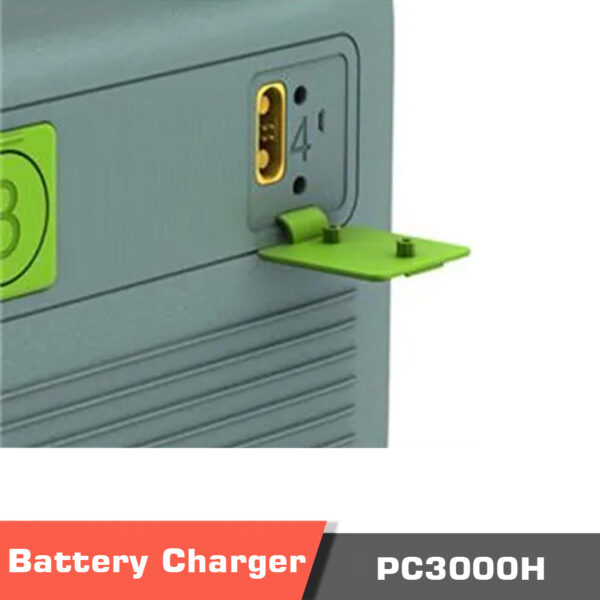

Every charging port comes with a premium and environment-friendly rubber cover to be used while not charging. The cover avoids corrosion and oxidation and extends its lifespan.



Skyrc pc3000h Skyrc 3000w. 2 - skyrc pc3000h,60a 12s charger,60a 14s charger,lipo quattro battery charger,lihv quattro battery charger,agricultural drone,intelligent fast,4. 35v per cell,can communication,smart charger,for smart batteries,legacy lithium battery,lihv battery,up to 3000w,real-time data,lcd display,high performance,four channels,can bus,battery life extended,english-chinese interface - motionew - 8 Skyrc 3000w. 3 - skyrc pc3000h,60a 12s charger,60a 14s charger,lipo quattro battery charger,lihv quattro battery charger,agricultural drone,intelligent fast,4. 35v per cell,can communication,smart charger,for smart batteries,legacy lithium battery,lihv battery,up to 3000w,real-time data,lcd display,high performance,four channels,can bus,battery life extended,english-chinese interface - motionew - 9Skyrc 3000w. 4 - skyrc pc3000h,60a 12s charger,60a 14s charger,lipo quattro battery charger,lihv quattro battery charger,agricultural drone,intelligent fast,4. 35v per cell,can communication,smart charger,for smart batteries,legacy lithium battery,lihv battery,up to 3000w,real-time data,lcd display,high performance,four channels,can bus,battery life extended,english-chinese interface - motionew - 10 Skyrc 3000w. 5 - skyrc pc3000h,60a 12s charger,60a 14s charger,lipo quattro battery charger,lihv quattro battery charger,agricultural drone,intelligent fast,4. 35v per cell,can communication,smart charger,for smart batteries,legacy lithium battery,lihv battery,up to 3000w,real-time data,lcd display,high performance,four channels,can bus,battery life extended,english-chinese interface - motionew - 11 Skyrc 3000w. 6 - skyrc pc3000h,60a 12s charger,60a 14s charger,lipo quattro battery charger,lihv quattro battery charger,agricultural drone,intelligent fast,4. 35v per cell,can communication,smart charger,for smart batteries,legacy lithium battery,lihv battery,up to 3000w,real-time data,lcd display,high performance,four channels,can bus,battery life extended,english-chinese interface - motionew - 12 Skyrc 3000w. 7 - skyrc pc3000h,60a 12s charger,60a 14s charger,lipo quattro battery charger,lihv quattro battery charger,agricultural drone,intelligent fast,4. 35v per cell,can communication,smart charger,for smart batteries,legacy lithium battery,lihv battery,up to 3000w,real-time data,lcd display,high performance,four channels,can bus,battery life extended,english-chinese interface - motionew - 13 Skyrc 3000w. 8 - skyrc pc3000h,60a 12s charger,60a 14s charger,lipo quattro battery charger,lihv quattro battery charger,agricultural drone,intelligent fast,4. 35v per cell,can communication,smart charger,for smart batteries,legacy lithium battery,lihv battery,up to 3000w,real-time data,lcd display,high performance,four channels,can bus,battery life extended,english-chinese interface - motionew - 14 Skyrc 3000w. 9 - skyrc pc3000h,60a 12s charger,60a 14s charger,lipo quattro battery charger,lihv quattro battery charger,agricultural drone,intelligent fast,4. 35v per cell,can communication,smart charger,for smart batteries,legacy lithium battery,lihv battery,up to 3000w,real-time data,lcd display,high performance,four channels,can bus,battery life extended,english-chinese interface - motionew - 15 Skyrc 3000w. 10 - skyrc pc3000h,60a 12s charger,60a 14s charger,lipo quattro battery charger,lihv quattro battery charger,agricultural drone,intelligent fast,4. 35v per cell,can communication,smart charger,for smart batteries,legacy lithium battery,lihv battery,up to 3000w,real-time data,lcd display,high performance,four channels,can bus,battery life extended,english-chinese interface - motionew - 16 Skyrc 3000w. 11 - skyrc pc3000h,60a 12s charger,60a 14s charger,lipo quattro battery charger,lihv quattro battery charger,agricultural drone,intelligent fast,4. 35v per cell,can communication,smart charger,for smart batteries,legacy lithium battery,lihv battery,up to 3000w,real-time data,lcd display,high performance,four channels,can bus,battery life extended,english-chinese interface - motionew - 17



Additional information

Weight 7 kg
Dimensions 30 × 15 × 30 cm

Specifications

Size and Weight
Housing Material Plastic (Flame Retardant PC+ABS)
Size 294mmx139mmx282mm
Weight 6Kg



Battery
Type Lithium Battery
LiPo Battery Cells 12S/14S (4.2V)
LiHV Battery Cells 12S/14S (4.35V)



Charge/Discharge
AC 220V
Fast Charge Current max. 60A single channel
Standard Charge Current max. 30A single channel, max. 60A Dual channels in total
Slow Charge Current max. 20A single channel; max. 60A multi-channels in total
AC 120V
Fast Charge Current max. 1200W single channel
Slow Charge Current max. 20A single channel; max. 1200W multi-channels in total
Storage Discharge Power
Main Port 50W Max.
Balance Port 80W Max. (The current will be adjusted based on the balance port’s temp)
Max Charge Output Power
AC220V Output Power 3000W
AC120V Output Power 1200W
Discharge Power 60W
Charging Mode Fast charge /Standard Charge/ Charge / Storage



Working and Storage
Working Temperature 0℃-40℃
Working Humidity 0%-75%
Storage Temperature -10℃-70℃
Storage Humidity 0%-75%

Product contents

1x PC3000H charger

1x instruction manual

1x IEC C19 AC Power Cord

Documents

Please download the user manual from here.
