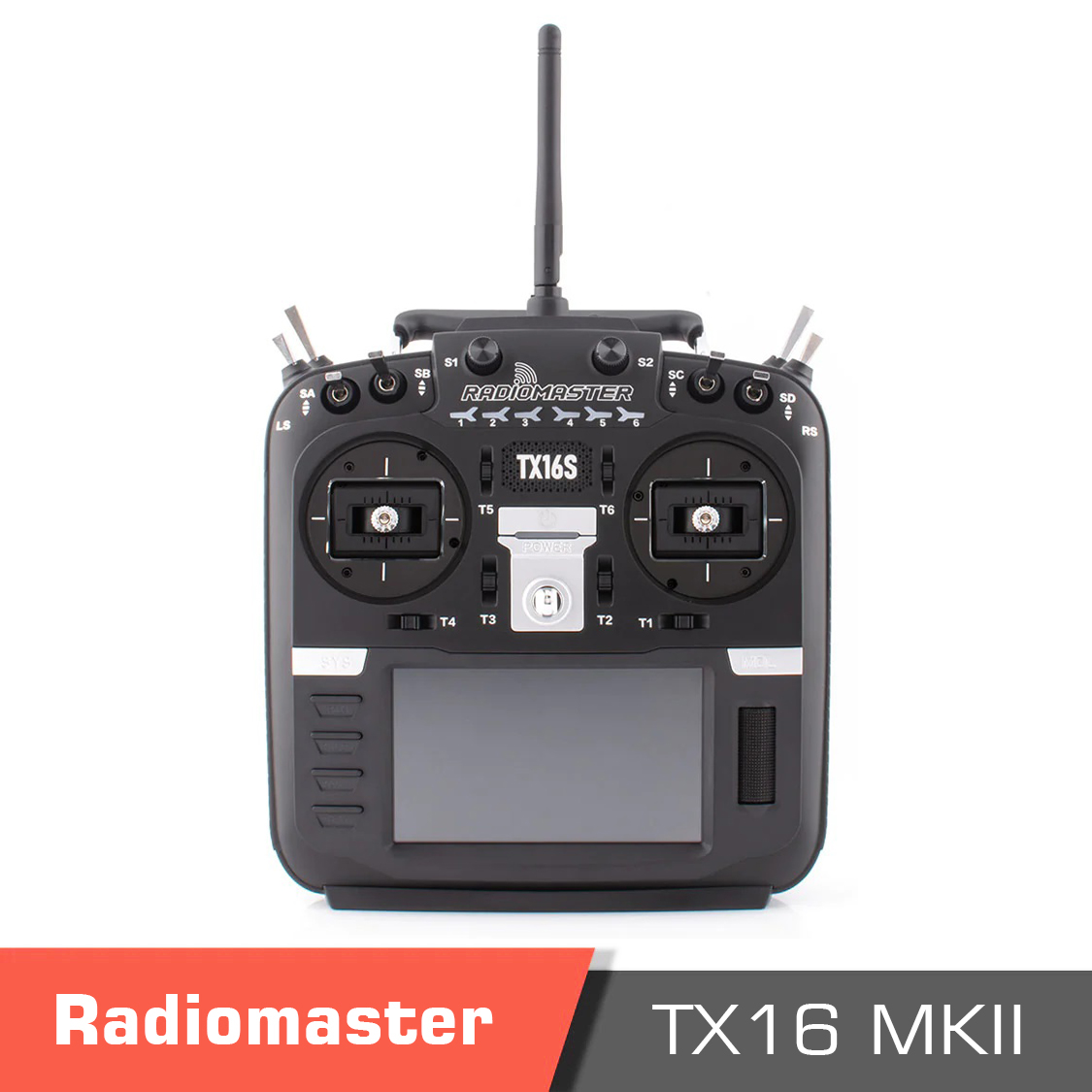

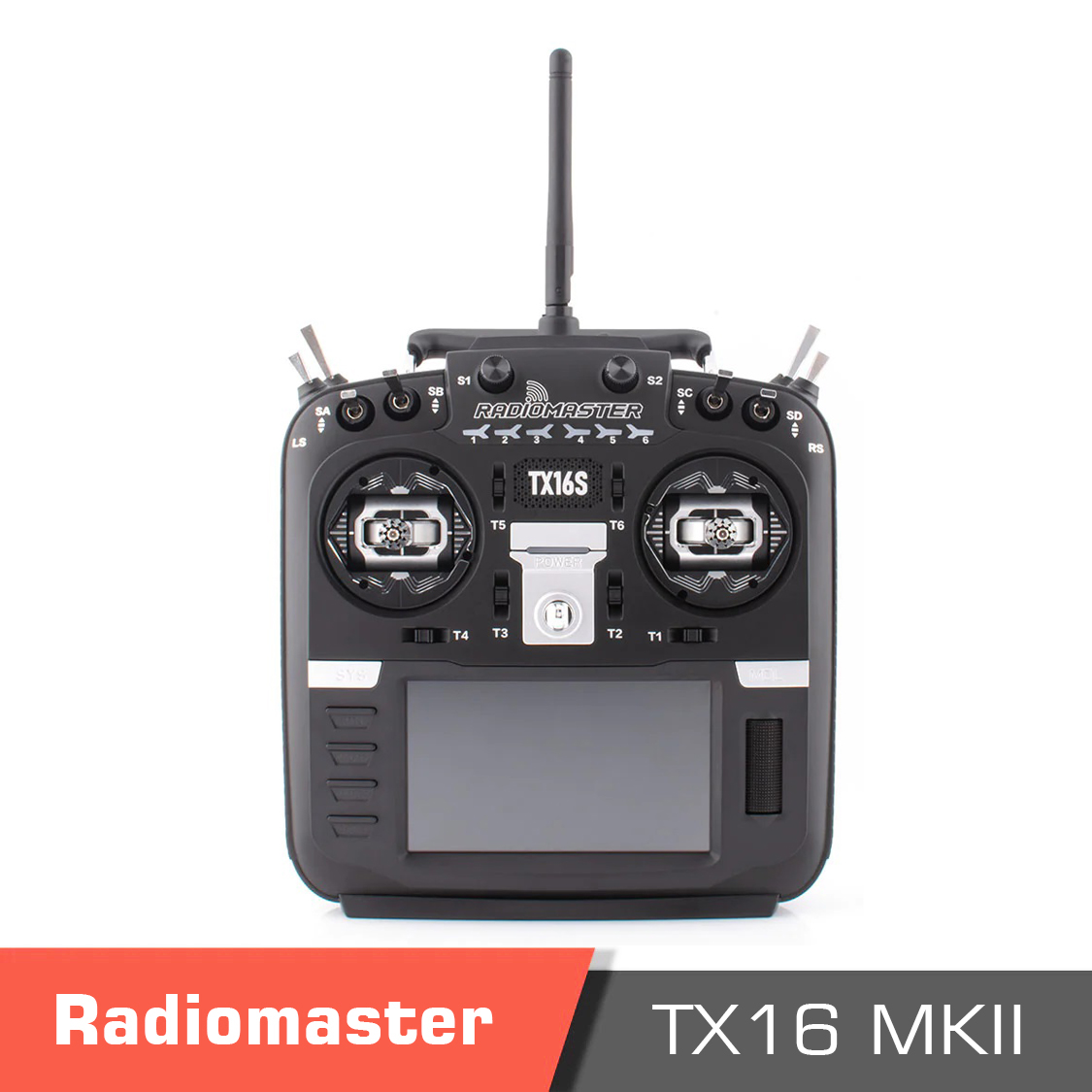

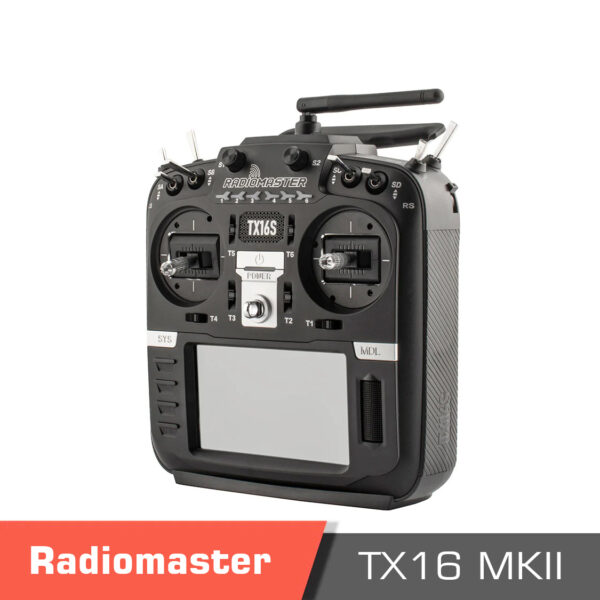

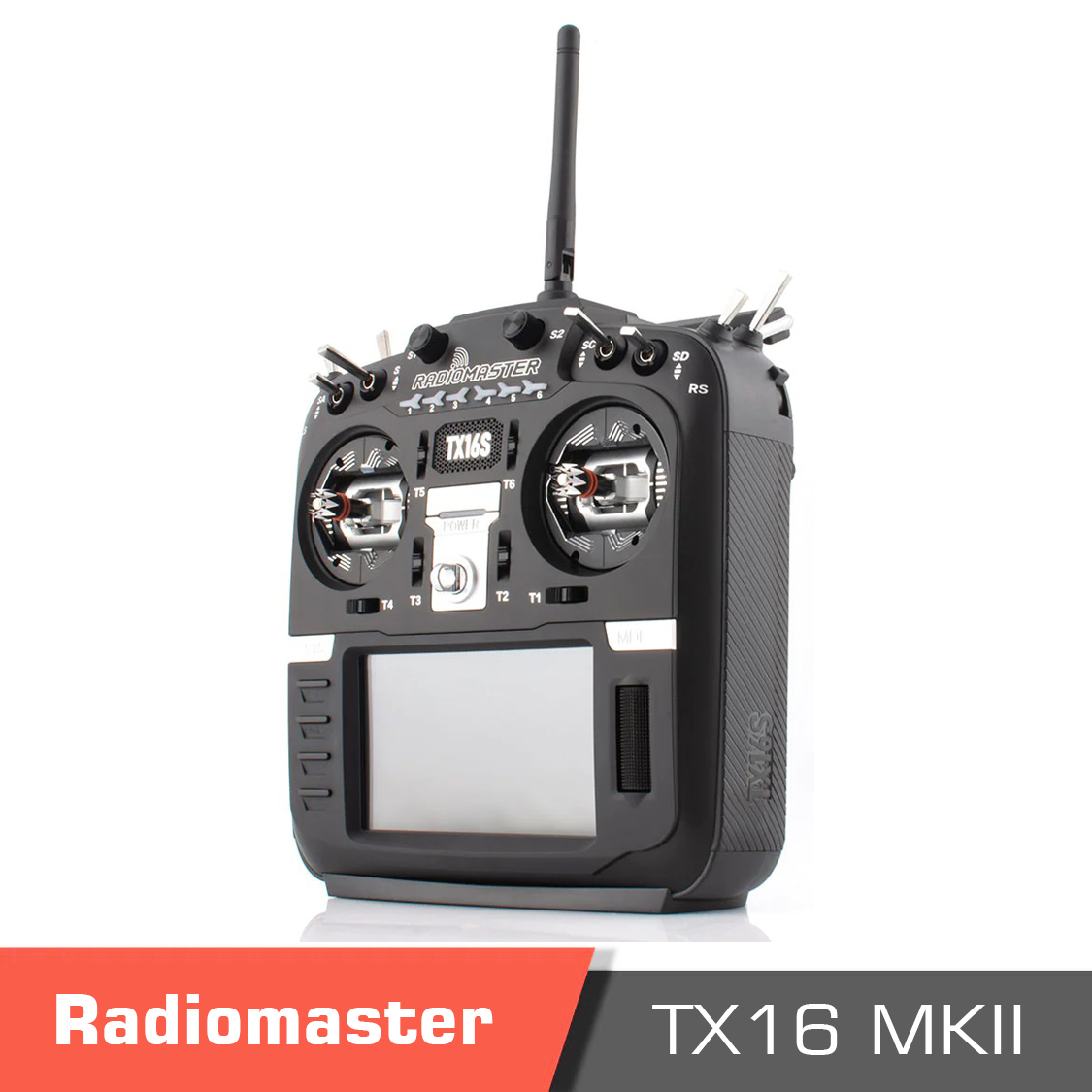

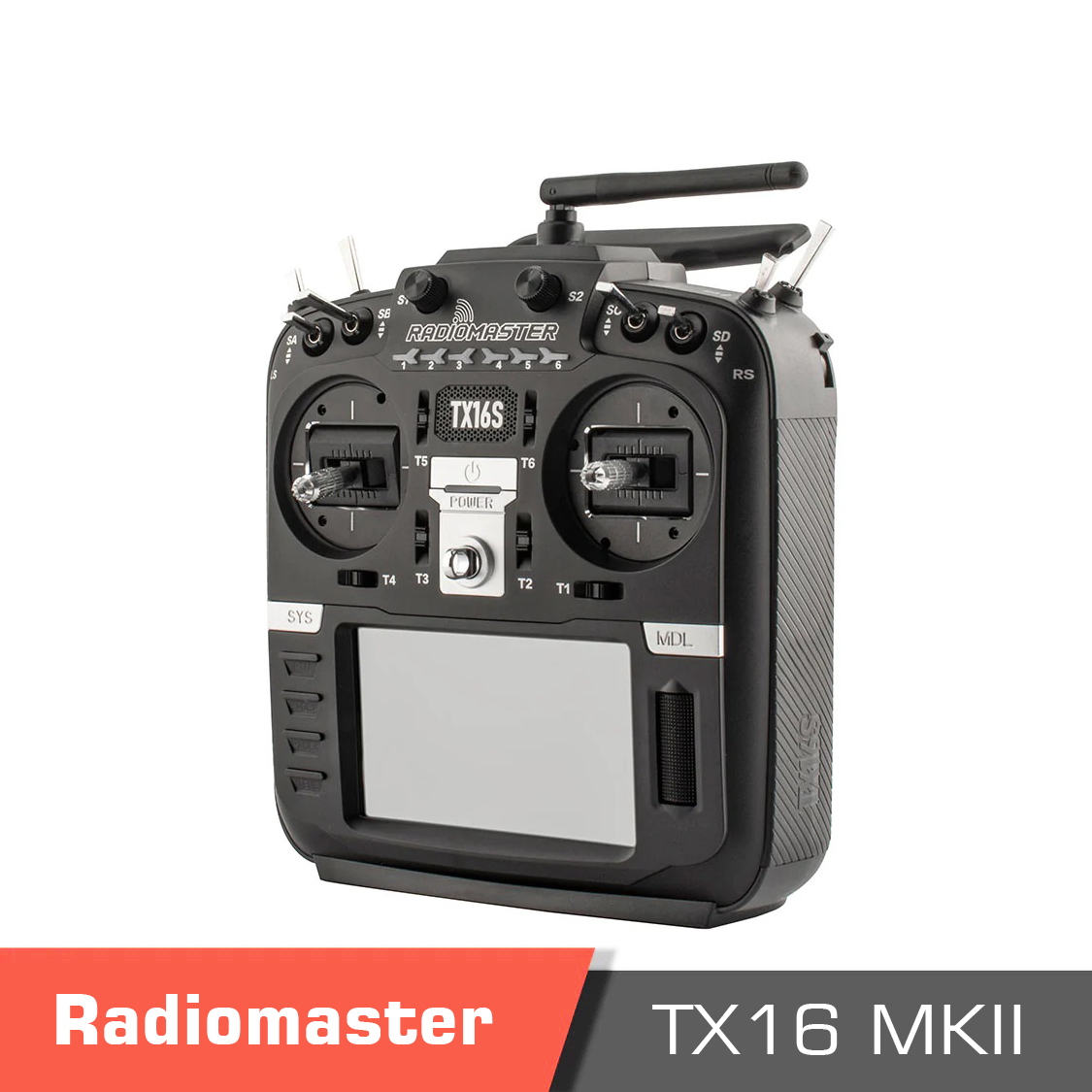

RadioMaster TX16 Mark II Radio Controller (Mode 2)

Introducing the RadioMaster TX16 Mark II Radio Controller

Introducing the RadioMaster TX16 Mark II Radio Controller – the ultimate addition to your RC gear! With improved internal circuitry and optimized power supply, this controller offers superior performance for your RC needs. The new charge circuitry comes with integrated reverse-polarity protection, and an optimized charge IC allows for up to 2.2A internal USB-C charge current.

RadioMaster TX16 Mark II Radio Controller with Advanced Features

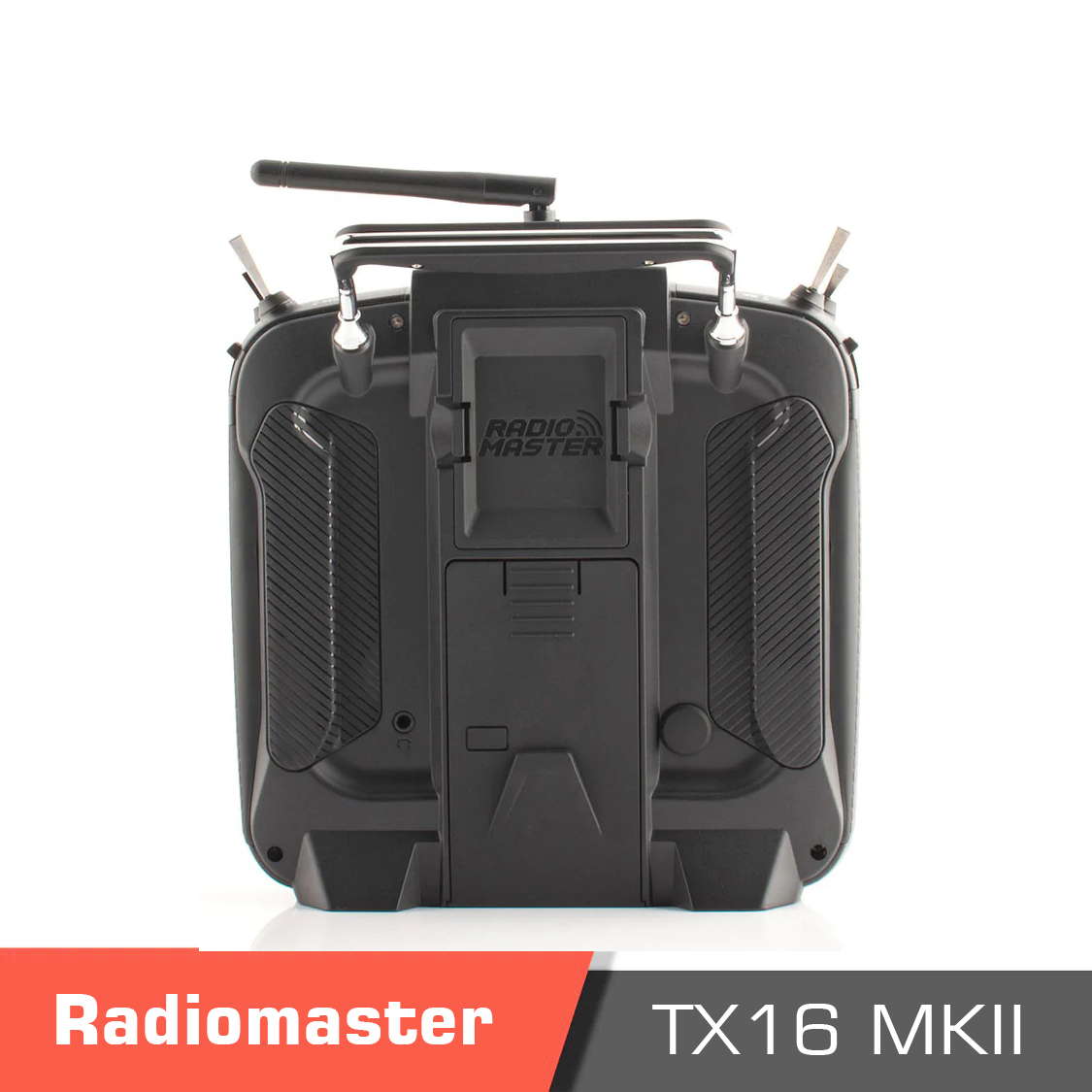

Featuring a rear-mounted audio jack, you can easily plug in your headphones and enjoy uninterrupted audio while you fly. The V4.0 Gimbal offers improved centering and temperature stability with the same circuitry as AG01, and optional high/low rear grips are included for improved ergonomics. The improved S1/S2 knobs and LS/RS sliders offer a smoother feel and better center-detents, while the redesigned battery cover allows for improved battery access.

Advanced Flexibility and Compatibility

Not only does the RadioMaster TX16 Mark II offer improved hardware, but it also supports EdgeTX and OpenTX for easy software updates. EdgeTX comes pre-installed with a touch screen enabled interface. Additionally, the controller is available in both 4in1 and ELRS versions, allowing you to choose the right protocol for your needs.

Personalize Your Experience

For those who want to customize their experience, the controller also comes with a rear DIY socket for personalized mods. The TX16s natively supports Team Black Sheep MicroTX modules in CRSF mode with LUA scripts, and the internal 4-in-1 multi-protocol module allows you to switch between internal RF and Crossfire via software. You can also choose between the standard FCC version or the EU LBT version, depending on your location and needs.

Upgrade your RC experience with the RadioMaster TX16 Mark II

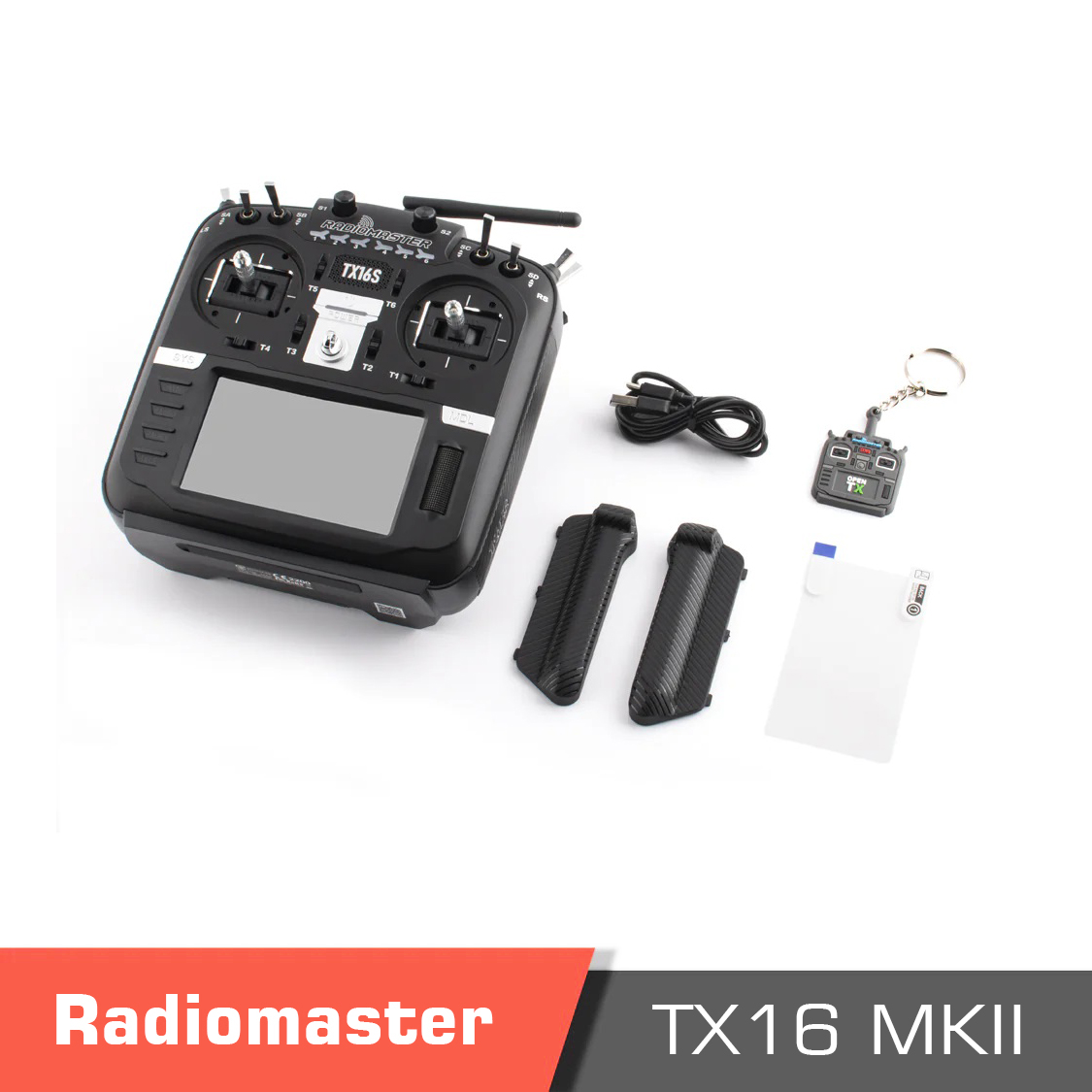

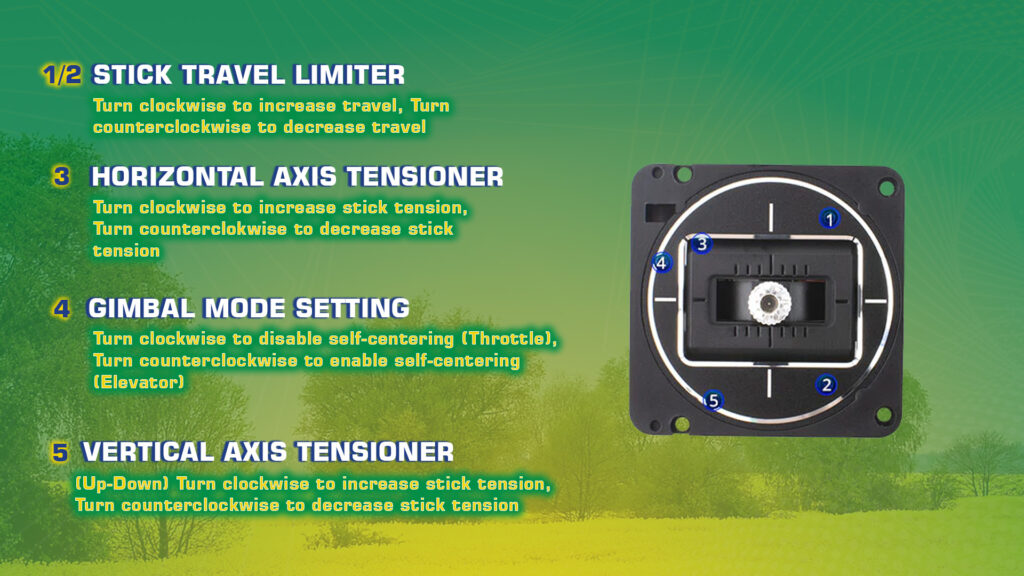

Upgrade your RC experience with the RadioMaster TX16 Mark II. The controller comes with optional V4.0 Hall Gimbals or AG01 Gimbals, both with externally adjustable stick travel, self-centering, and stick tension. The included raised and flat grips allow for further customization, while the upgraded design features a retolded faceplate with improved fit and finish and a 4.3-inch IPS color display with adjustable brightness.

Take your RC game to the next level with the RadioMaster TX16 Mark II Radio Controller.

Read More: Radiomaster Boxer vs TX 12 vs TX 16

For a comprehensive reading of related products, please visit the Motionew website.

RadioMaster TX16 Mark II Radio Controller – FAQ

1. What are the main technical specifications of the TX16 Mark II?

   • Dimensions: 287 × 129 × 184 mm

   • Weight: ~750 g (without battery)

   • Transmission frequency: 2.400 GHz – 2.480 GHz

   • Power supply: 6.6 V – 8.4 V DC

   • Working current: ~400 mA

   • Transmission distance: > 2 km at 22 dBm output

   • Internal module options: 4-in-1 multi-protocol or ELRS

   • Maximum transmit power (ELRS): adjustable (e.g. up to 250 mW)

   • SD card support: default 256 MB, up to 8 GB

   • Display: 4.3-inch color TFT touchscreen (480 × 272)

   • Channel support: up to 16 channels

   • Gimbal options: V4.0 Hall gimbals or AG01 Hall gimbals

2. What enhancements and features does this version offer over earlier models?

   • Improved internal circuitry, power supply, and charging system (USB-C with reverse-polarity protection)

   • Optional high/low rear grips for better ergonomics

   • Upgraded knobs, sliders, and controls with smoother feel and better centering

   • Support for EdgeTX (preinstalled) and OpenTX; touch-screen UI enabled

   • Rear DIY socket for custom modules or extensions

   • JR-compatible external module bay for add-ons

3. Which protocols and firmware are supported?

   • The TX16 Mark II supports EdgeTX by default, with full touchscreen interface

   • Module options let you run ExpressLRS or multi-protocol (for compatibility with various receiver types)

   • The external JR module bay supports external modules or TBS MicroTX in CRSF mode

4. Does MotioNew offer OEM or customization options for this controller?
   Yes — they support OEM services, including custom branding, firmware configuration, packaging options, and special variants for bulk orders.

5. What payment methods are accepted for purchasing the TX16 Mark II?
   MotioNew accepts international payment methods such as credit cards, PayPal, and bank transfers.

6. Are manuals, technical documents, and firmware guides provided with it?
   Yes — the package includes documentation, wiring/configuration guides, and update instructions. Additional support and firmware resources are available upon request.
