DJI Smart Controller for Mavic2 Pro
Description

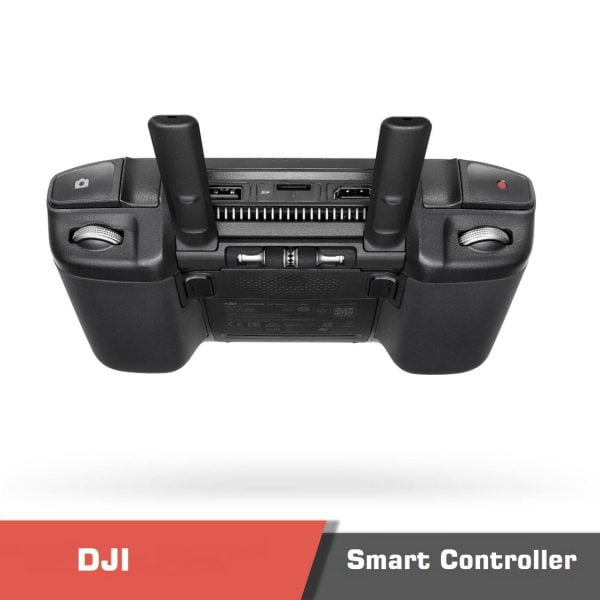

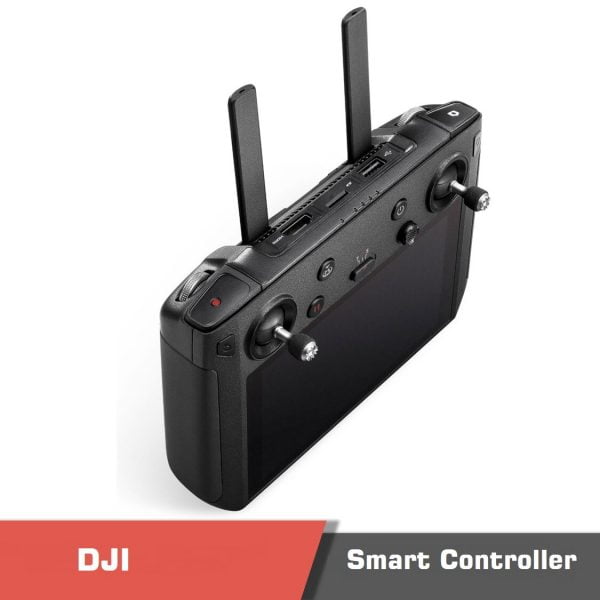

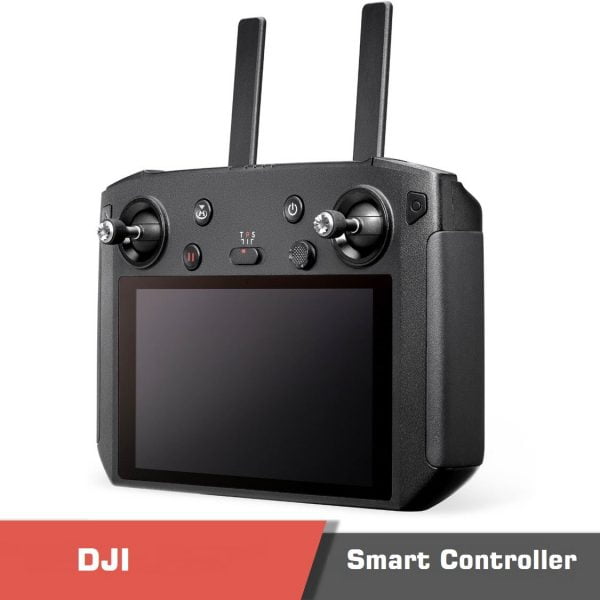

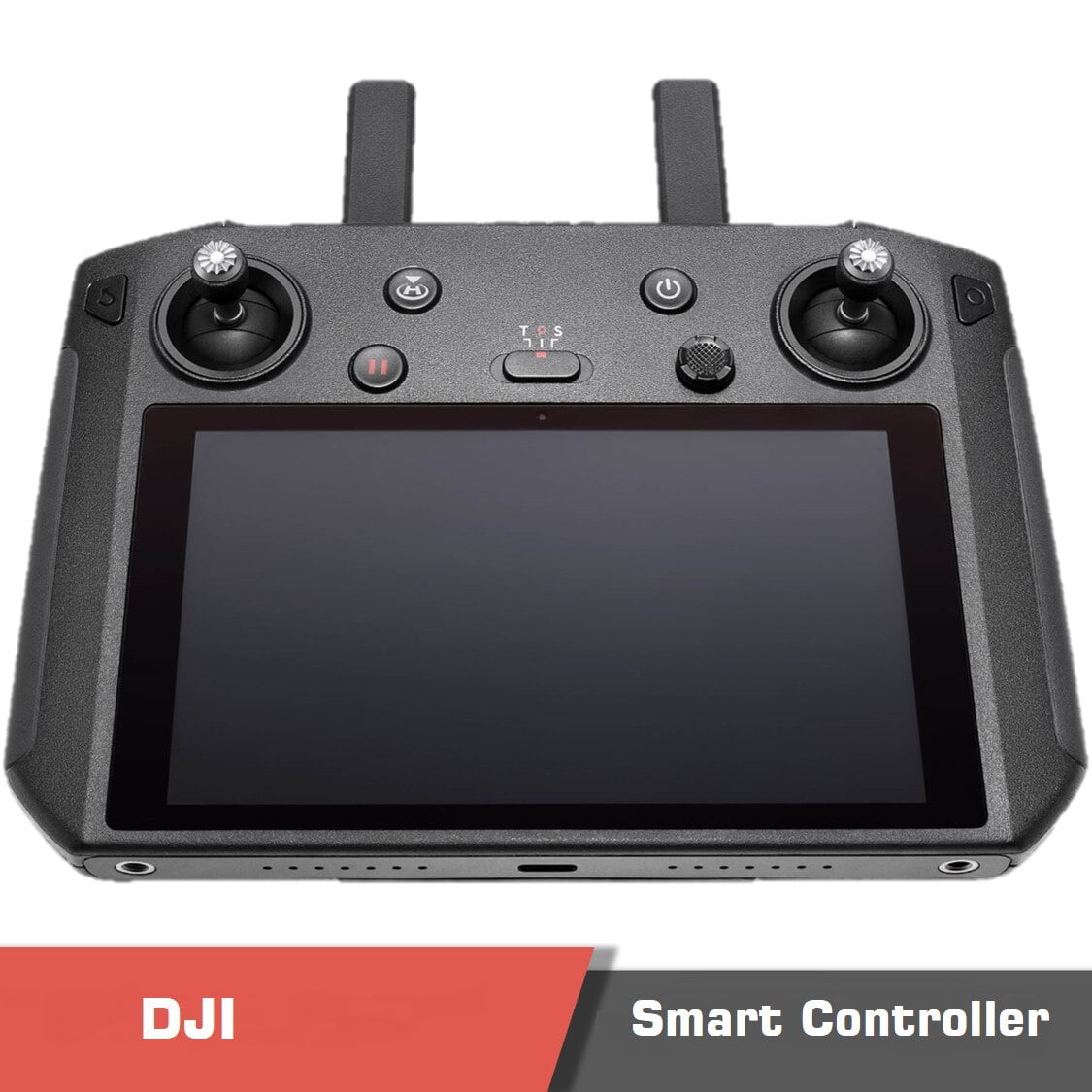

DJI SMART CONTROLLER
The DJI Smart Controller is designed to maximize your outdoor flying experience with the Mavic 2 or other aircraft equipped with OcuSync 2.0.[1] A 5.5-inch built-in screen displays clear, bright images, even under challenging conditions. Intuitive controls and pre-installed features like SkyTalk and the DJI GO 4 App , DJI Fly App get you up in the air quicker, clearer, and more conveniently than ever before.
OcuSync 2.0 Full-HD Video Transmission
Equipped with OcuSync 2.0 Full-HD video transmission technology, the DJI Smart Controller supports automatic switching between 2.4 GHz and 5.8 GHz, reducing the influence of environmental interference on drone operation and image quality. This also ensures reliable long-range transmission at distances of up to 10 km.[2]
Compatible with the Mavic Air 2, Mavic 2 Zoom, Mavic 2 Pro and Mavic 2 Enterprise Series, Phantom 4 Pro V2.0.
Dimensions
177.5 x 121.3 x 40 mm (antennas folded, and the control sticks unmounted)
177.5 x 181 x 60 mm (antennas unfolded, and the control sticks mounted)
Weight Approx. 630 g
Model RM500
Supported SD Cards
Supported SD Cards
microSD™ Supports microSD cards with a capacity of up to 128 GB and R/W speed up to UHS-I Speed Grade 3
Footnotes
1. Local regulations in some countries prohibit the use of the 5.8 GHz and 5.2 GHz frequencies. In some regions, the 5.2 GHz frequency band is only allowed for indoor use.
2. The Smart Controller will support more DJI aircraft models in the future. Please visit the official website for the latest information.
For a comprehensive reading of related products, please visit the Motionew website.
DJI Smart Controller for Mavic 2 Pro – FAQ
-
What are the main features of the DJI Smart Controller?
The DJI Smart Controller features a 5.5-inch 1080p display with a brightness of 1000 nits for excellent outdoor visibility.
It uses OcuSync 2.0 technology for HD transmission and supports automatic frequency switching between 2.4 GHz and 5.8 GHz for stable connectivity. -
Which drones are compatible with this controller?
It is compatible with DJI drones equipped with OcuSync 2.0 technology, including the Mavic 2 Pro, Mavic 2 Zoom, and Mavic 2 Enterprise series. -
What are the connectivity and storage options?
The controller includes HDMI, USB Type-C, and microSD ports.
It supports microSD cards up to 128 GB and features built-in Wi-Fi and Bluetooth for file transfers, firmware updates, and screen mirroring. -
What operating system and software are included?
The Smart Controller runs a customized Android OS with the DJI GO 4 app pre-installed, allowing direct access to camera controls, video playback, and live streaming without the need for a smartphone. -
Does MotioNew provide OEM or customization services for this product?
Since the product is manufactured by DJI, OEM customization is not available; however, MotioNew supports enterprise procurement and integration services for large-scale drone operations. -
What payment methods are accepted for purchasing the DJI Smart Controller?
MotioNew accepts PayPal, international credit cards, and bank transfers for global transactions.
Specifications
Specifications
| Wireless Communication | RF |
| Wireless Communication | bluetooth |
| Support APP | Yes |
| Channel | 8 |
| Frequency | 5.8GHz |
| Model Number | RM500 |
| Display | 5.5″ 1000 cd/m2 High Brightness HD screen |
| Frequency Band | 2.4G,5.8G |
| OcuSync 2.0 Operation Frequency Range | 2.400-2.4835 GHz, 5.725-5.850 GHz[1] |
| Max Transmission Distance | (unobstructed, free of interference) 10 km (FCC), 6 km (CE), 6 km (SRRC),6km(MIC) |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz: 25.5 dBm (FCC), 18.5 dBm (CE), 19 dBm (SRRC), 18.5 dBm (MIC)5.725 5.850GHz:25.5dBm(FCC),12.5dBm(CE),18.5 dBm (SRRC) |
| Wi-Fi Protocol | Wi-Fi Direct, Wireless Display, 802.11a/g/n/ac, Wi-Fi with 2×2 MIMO is supported |
| Operation Frequency Range |
2.400-2.4835 GHz, 5.150-5.250 GHz
|
| Transmitter Power (EIRP) 2.400-2.4835 GHz: 21.5 dBm (FCC), 18.5 dBm (CE) 18.5 dBm (SRRC), 20.5 dBm (MIC) 5.150-5.250 GHz: 19 dBm (FCC), 19 dBm (CE) 19 dBm (SRRC), 19 dBm (MIC) 5.725-5.850 GHz: 21 dBm (FCC), 13 dBm (CE), 21 dBm (SRRC) |
|
| Bluetooth Protocol | Bluetooth 4.2 |
| Operation Frequency Range | 2.400-2.4835 GHz |
| Transmitter Power (EIRP) | 4 dBm (FCC), 4 dBm (CE), 4 dBm (SRRC), 4 dBm (MIC) |
| General Battery | 18650 Li-ion (5000 mAh @ 7.2 V) |
| Charge Type | Supports USB power adapters rated 12 V/2 A |
| Rated Power | 15 W |
| Storage Capacity | ROM 16 GB + scalable (microSD) |
| Charging Time | 2 hours (using a USB power adapter rated 12 V/2 A) |
| Working Time | 2.5 hours |
| Video Output Port | HDMI Port |
| Power Supply Current / Voltage (USB-A port) | 5 V/ 900 mA |
| Operation Temperature Range | 4° to 104° F (-20° to 40° C) |
| Storage Temperature Range | <1 month: -22° to 140° F (-30° to 60° C) 1-3 months: -22° to 113° F (-30° to 45° C) 3-6 months: -22° to 95° F (-30° to 35° C) >6 months: -22° to 77° F (-30° to 25° C) |
| Charging Temperature Range | 41° to 104° F (5° to 40° C) |
| Supported Aircraft Models[2] | Mavic 2 Pro, Mavic 2 Zoom, Phantom 4 Pro V2.0 GNSS GPS+GLONASS |
